SERVICE MANUAL

LG KE-14P2B

MODEL

3-5

ADJUSTMENT INSTRUCTIONS

Notes;

(Adjustments must be performed by the following procedures)

1. It is recommended that an isolation transformer be used

when servicing this chassis to prevent electric shock and

damage to test equipment.

2. The ac line voltage must be maintained at 230 vac, +- 10%,

50/60 hz.

3. Prior to making any adjustments, the receiver must be

operated for 10 minutes.

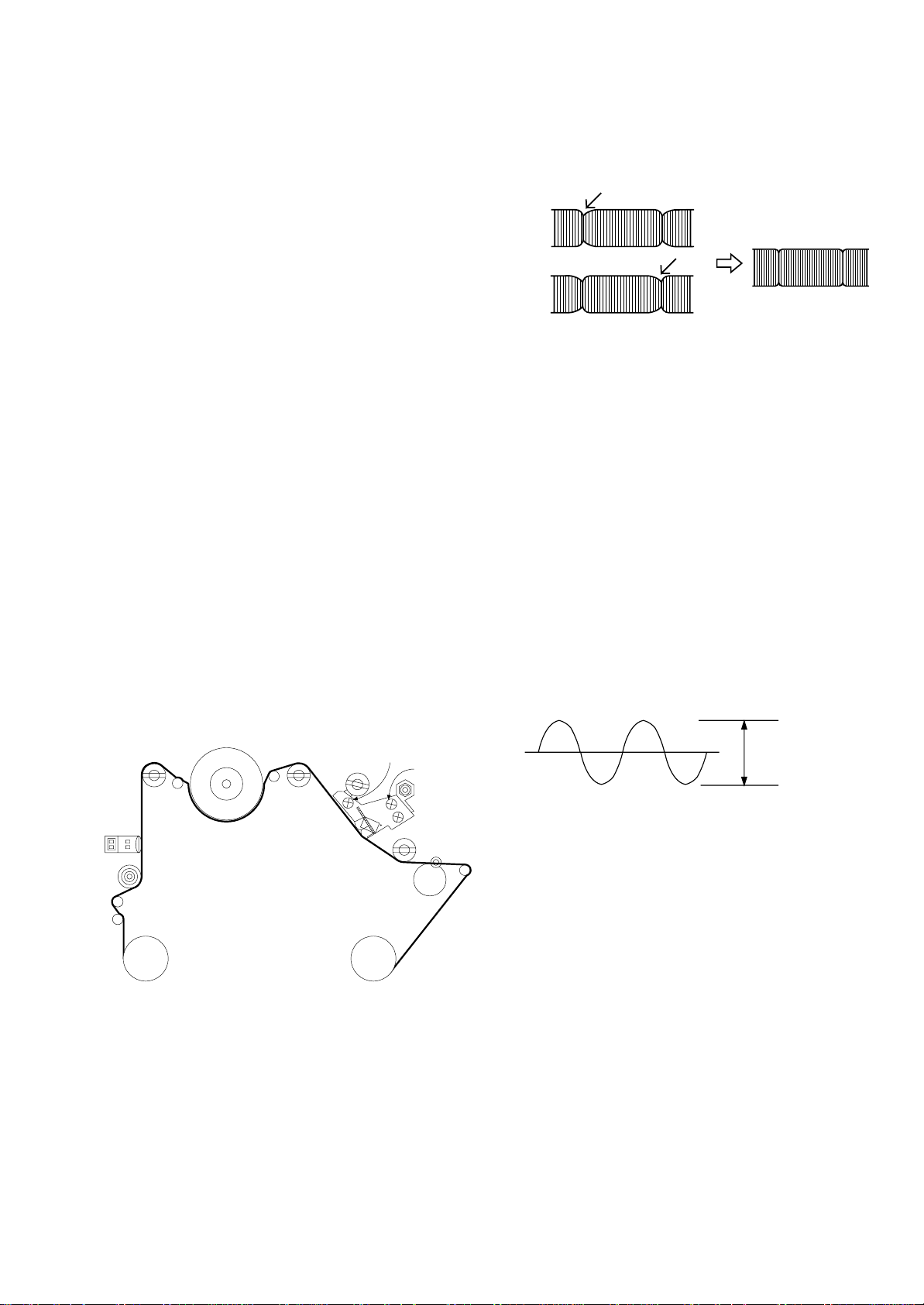

1. DECK ADJUSTMENT

1. Deck Transit System Adjustment

1-1. Necessary Instruments

1) TAPE for SP

2) Oscilloscope

3) 10:1 Probes 2EA

4) Adjustment Driver

(P2, P3, X-distance (NUT), Audio (NUT) control)

5) RMS Meter (Audio Level Meter)

1-2.Preliminary Steps

1)

Connect CH 1 of the oscilloscope to J123 (H/SW) on the main

PCB. Trigger on this channel.

2) Connect CH 2 of the oscilloscope to J158 (RF) on the main

PCB. Monitor this waveform when preceding with step 4.

3) Play an alignment tape.

4) When the "auto Trk" caption appears on screen, press the

TRK up (+) button on the RCU to initialize the manual

tracking feature.

5) If manual tracking differs from auto tracking, precede with

steps 1-3 (RF Linearity) and 1-4 (X-Distance Adj.).

1-3. RF linearity check and adjustment

1) Adjust P2 & P3 so that the RF ENVELOPE waveform is

maximum and stabilized .

2) Check if the ENVELOPE waveform is at its maximum size

by pressing TRK UP(+) and DOWN(-) button one step.

1-4. X-Distance Adjustment

1) Turn the Cone Screw of the DECK left or right so that the

RF waveform is maximum.

2) Check if the RF waveform satisfies the linearity by

pressing TRK UP(+) and DOWN(-) button one step.

CAUTION: If the RF waveform becomes maximum with

the Cone Screw more than 2 turns, its out of adjustment.

(2 turns; 720¡£)

1-5. Audio Level Check and Adjustment

1) Connect "+" terminal of RMS Meter (Audio Level Meter)

to J108 on MAIN PCB AUDIO OUT and "-" terminal to GND,

respectively.

2) Play the 1khz and 7khz segments on the alignment tape

and confirm if the spec is meet in item #3. If not adjust

the azimuth screw to meet this spec.

3) Audio Level Spec: 1KHz ; 0.5 ¡0.1Vrms

6KHz ; 1K ¡1.5dB

2. CIRCUIT ADJUSTMENT

1. PG Adjustment

1-1. Necessary Instruments

1) Alignment tape SP

2) Oscilloscope

3) 10 : 1 Probe

1-2.Adjustment

1) PLAY exclusive use of SP tape. (2HD: NORMAL TAPE)

2) Connect CH 1 of the Oscilloscope to J123 (H/SW) on the

MAIN PCB and VOL/DIV to 1V Range and Trigger the

Oscilloscope.

3) Connect CH 2 of the oscilloscope to J241 (Video Out) on

the main PCB and set the VOL/DIV to 500mV Range.

4) Set TIME/DIV of oscilloscope to 50 ¥s Range.

5) Adjust VR01 so that V-sync Falling Edge of Video signal

become 412 ¥sec¡20¥sec.

DRUM

P2

FE HEAD

P1

ARM

TENSION

P0

SUPPLY

REEL TAKE-UP

REEL

PINCH

ROLLER

TAPE

CAPSTAN

T/UP

ARM

P4

A/C

HEAD

P3 X-DISTANCE

ADJUST SCREW

AZIMUTH

SCREW CONE POINT

SCREW

A/C HEAD

HEIGHT ADJUST NUT

P2 POST ADJUST

P2

P3

P3 POST ADJUST

Adjust waveform

3-6

3. Focus Voltage Adjustment

1) Receive the cross hatch pattern.

2) Press the PICTURE button to set the Standard ON

condition.

3) Adjust Focus control knob so that the focus of center &

circumference to be best.

4. Screen Adjustment

1) Receive PAL DIGITAL PATTERN.

2) Select channel 0.

3) Connect the probe of oscilloscope to the RK of CPT PCB.

4) Adjust screen volume of FBT so that the waveform is the

same as below figure.

¡HHoowwttooggeettiinnttooSSVVCCmmooddeewwhheennyyoouuddoonn''tthhaavveeSSVVCC

RReemmootteeCCoonnttrroolllleerr..

PPuusshhtthhee""OOKK""KKeeyyoonntthheeuusseerr''ssRReemmootteeCCoonnttrroolllleerraannddllooccaall

""OOKK""bbuuttttoonnaatttthheessaammeettiimmee..

5. SIF Adjustment

1) Receive PAL DIGITAL PATTERN.

2) Connect the DMM to pin 5 of IC100 (SIF TP).

3) Adjust L107 to be DC 2.3¡0.05V.

6. RF AGC Adjustment

1) Input PAL DIGITAL PATTERN.

2) Connect DMM to AGC(J184) test point on the Main PCB.

3) Press SVC Key on the Service Remote Controller to get

into SVC mode and press PR +/- Key to select AGC.

4) Press VOL +/- Key until DMM reads the data on the table

below.

7. White Balance Adjustment

1) Input a signal which lower half is black and upper half is

white.

2) Set the picture at standard on.

3) Press SVC Key on the Service Remote Controller to get

into Service mode.

4) Press PR +/- Key to select BG, RG.

Press VOL +/- Key until X=281¡3, Y=288¡3.

¡GG is fixed data at 32 so, do not adjust GG data.

8 Deflection Data Adjustment

1) Input PAL Digital Pattern.

2) Press SVC Key on the Service Remote Controller and

select LINE SERVICE 2 mode.

3) Press PR +/- Key to select an adjustment mode.

4) Press VOL +/- Key to adjust data.

5) Vertical SLOPE adjustment

¤Select V-SLP mode with PR +/- Key.

¤Ł Press VOL +/- Key until the horizontal center line of

the large circle coincides with Blanking Line.

6) Vertical amplitude adjustment

¤Select V-AMP mode with PR +/- Key.

¤ŁPress VOL +/- Key until the upper and lower end of the

large circle reach 5 mm inside from the effective area

of CPT.

7) Vertical Shift Adjustment

¤Select V-SFT mode with PR +/- Key.

¤ŁPress VOL +/- Key until the horizontal center coincides

with the vertical sign slot mark of CPT.

8) Horizontal Shift Adjustment

¤Select H-SFT mode with PR +/- Key.

¤Ł Press VOL +/- Key until the vertical center coincides

with the horizontal sign slot mark of CPT.

9) Vertical S-Correction Adjustment

¤Select S-COL mode with PR +/- Key.

¤Ł Press VOL +/- Key until the grid of Cross Hatch

Pattern is even all over the screen.

Adjust Period

* CAUTION: Set the trigger mode of Oscilloscope to DC.

MODEL

Electric fields strength

AGC Voltage 65dBu ¡0.2dBu

2.3 ¡0.1Vdc 65dBu ¡0.2dBu

2.1¡0.1Vdc

KL/KF/KE KI

V

140V

GND

Black Level (DC)

Is there about 6V

at pin 9 of P804?

YES

Is there about 11V

at '+' terminal

of C856?

YES

Is there about 6.1V

at pin 9 of IC801?

YES

Is there voltage at

pin 9 of T801?

YES

NO POWER : NO STAND-BY

Replace the Fuse

Check the 6V Line

of MAIN 1 BOARD

Check if the

Fuse is O.K.?

YES

NO

Check/Replace

DB801, R801, C806.

NO

Check/Replace

D806, Q801, R807, ZD801, C814,

IC801.

NO

¡Check/Replace FR851, D852,

C856, Q860, Q861, Q862,

ZD860, ZD861, R874.

¡Check the pin 11 of P804 :

'LOW"

NO

Check/Replace

IC857, D859, F852, C875

NO

TROUBLE SHOOTING

ELECTRICAL

2

Is there about 115V

at '+' terminal of C865?

YES

Is there about

6V at pin 9 of P804?

YES

NO POWER : NO MONITOR ON

Go to NO POWER (NO ST-BY)

BLOCK

Go to NO RASTER BLOCK

Check T701, Q781 and go to

NO RASTER BLOCK

Check the

NO POWER(NO ST-BY)

BLOCK

YES

NO

Check the pin 10 of P804 ; "HIGH"

NO

¡Check/Replace D851, L851,

C860, IC851.

¡Check the pin 10 of P804 :

'HIGH"

NO

Is there about

6.3VAC at HEATER of CPT

SOCKET?

YES

Does the waveform

appear at the collector

of Q781?

YES

Does the square

waveform appear at pin 1 of

P805?

YES

Is there about 8V

at pin 6 of P805?

YES

NO RASTER

Go to NO POWER BLOCK

Go to NO PICTURE BLOCK

Is there about 115V

at pin 3 of T701?

YES

NO

¡Check/Replace F852, D850,

R858, IC853, C863.

¡Check the 8V LINE of VCD

BOARD

NO

¡Check the H-OUT LINE of VCD

BOARD.

¡Check/Replace IC501 of VCD

BOARD.

NO

Check/Replace Q782, T781, R783,

R787, Q781.

NO

Check/Replace T701, 5PIN

CONNECTOR, FR901

NO

ELECTRICAL

4

Is there about

44V at pin 6 of IC701?

YES

Is there about

15V at pin 3 of

IC701?

YES

V. Deflection ERROR

Check the vertical part of VCD

Check/Replace IC701

Does the V-A, V-B

signal appear at pin 4, 7

of P805?

YES

NO

Check/Replace FR702, D702, C704,

L731

Check;/Replace FR701, D701, C708,

C734.

NO

Is there about

200V at pin 1 of P901?

YES

NO PICTURE

Check the CVBS line of VCD

¡Check/Replace IC901.

¡Check screen voltage

Does the RGB signal

appear at pin 3, 5, 7 of

P902?

YES

NO

Check/Replace FR704, D703, C702,

T701, 5PIN CONNECTOR, L901, R911

NO

Does the sound

signal appear at pin 4

of IC601?

YES

Does the sound

signal appear at pin 9

of P805?

YES

NO SOUND

Check/Replace FR854, D855, IC601.

Check/Replace speaker,

speaker connector.

Is there about

25V at pin 5

of IC601?

YES

NO

Check the Audio source line of

VCD

¡Check the voltage at collector of

Q601.

¡Check/Replace IC601, external

components of IC601.

NO

2-2

EXPLODED VIEW:14P2

330

340

320

315

300

120

501

520

310

943 400

603

610

601

602

121

A00

P801

R.P.L

5-2

REPLACEMENT PARTS LIST

1. Mechanical Section

S AL LOCA.NO

ASSEMBLY PARTS SECTION

PARTS SECTION

REMARKSPART NO(GS) DESCRIPTION SPECIFICATION

6721R-0105A

6723R-0101B

6723R-B101B

6723R-D101B

4261R-0012A

4261R-0003A

4811R-0011A

4470R-0028A

4470R-0026A

4931R-0015A

4811R-0014A

4261R-0010A

4510R-0019A

6723R-0104B

4680RB0004A

4680RB0005A

4930R-0106A

5006R-0014A

276-100A

434-242A

4260R-0009A

4970R-0043A

4260R-0011A

4770R-0004A

4261R-0004A

3041R-0003A

3041R-0003B

3041R-0004A

3041R-0004B

3041R-0007A

5870R-0001A

3041R-0005A

4408R-0001A

4970R-0054A

4421R-0003A

4970R-0053A

4421R-0004A

523-833B

4980R-0010A

4261R-0008A

4810R-0053A

4681R-0007A

4470R-0025A

4408R-0002A

4261R-0011A

4970R-0052A

NSP

A00

A01

A02

A03

A04

A11

A12

A21

A22

A23

A24

001

002

003

004

005

006

007

008

009

010

011

012

013

014

015

016

017

018

019

020

021

022

023

024

025

026

027

028

029

031

OR

DECK ASSY

DRUM ASSY

DRUM(CIRC) ASSY

ARM ASSY

BRACKET ASSY

GEAR ASSY

HOLDER ASSY

BRACKET ASSY

ARM ASSY

LEVER ASSY

DRUM ASSY

MOTOR(MECH)

HOLDER

CAP

ROLLER

ARM

SPRING

ARM

BAND(MECH) ASSY

ARM ASSY

BASE ASSY

OPENER

BASE ASSY

REEL

SPRING

BRAKE ASSY

SPRING

BRAKE ASSY

HEAD

SUPPORTER

ARM ASSY

BRACKET

MOTOR ASSY

GEAR

REEL

ARM ASSY

SPRING

D33 (2HD, NP, VCR)

D33-2CH SP/EP (5M2)

T/UP

CLEANER

L/D MOTOR

P3

P2

CST

DOOR

F/L

SWITCH

SUB D33-2CH SP/EP (5M2)

DRUM F2OEL-81 SANKYO D33

DRUM GVD-033A LGEC D33

FPC(2CH)

FPC

A CLEANER

CLEANER

T/UP

TENSION

P2

P2 (D/C)

P3

P3 (D/C)

P4

LID

A/C HEAD(LGEC)

S

SB

S

TB

T

FE D33. LG C&D/ST

CST

IDLER

L/D MOTOR

L/D

WHEEL

T

PINCH (MOLD BEARING)

TENSION

NSP : Not Service Part

5-3

SAL LOCA.NO REMARKSPART NO(GS) DESCRIPTION SPECIFICATION

3141R-0002A

4400R-0005A

4680RA0002A

4680RA0003A

4974R-0018A

4470R-0037A

4470R-0033A

4470R-0032A

4470R-0036B

4510R-0025A

4265R-0002A

4470R-0044A

4970R-0051A

4470R-0034A

4510R-0016A

4970R-0046A

4470R-0029A

4470R-0027A

4970R-0046A

4510R-0015A

3300R-0157A

4510R-0022A

3040R-0018A

3301R-0029A

4810R-0056A

4510R-0023A

4930R-0099A

4974R-0019A

4930R-0098A

4930R-0100A

4510R-0024A

4810R-0055A

5870R-0002A

4260R-0018A

4970R-0055A

3070R-0001A

4970R-0056A

4260R-0019A

4970R-0050A

4510R-0020A

1MPK0261418

1MEC0302018

1APF0201718

1MGC0302418

1APF0262218

1MPC0302018

354-001B

1WZZR-0004B

1WZZR-0004A

NSP

032

051

052

053

054

055

056

057

060

061

062

063

064

065

066

067

068

069

070

077

078

079

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

401

406

407

409

410

426

504

517

518

OR

CHASSIS ASSY

BELT

MOTOR(MECH)

GUIDE

GEAR

LEVER

CLUTCH ASSY

GEAR ASSY

SPRING

GEAR

LEVER

SPRING

GEAR

SPRING

LEVER

PLATE

LEVER

BASE

PLATE ASSY

BRACKET

LEVER

HOLDER

GUIDE

HOLDER

LEVER

BRACKET

OPENER

ARM

SPRING

BODY

SPRING

ARM

SPRING

LEVER

PAN HEAD MACHINE SCREW +, -

PAN HEAD MACHINE SCREW S/W+

SCREW TAP TITE(B), PAN HEAD

PAN HEAD MACN SCREW S/P WASH +

SCREW TAP TITE(B), PAN HEAD

PAN HEAD MACHINE SCREW +!

WASHER

D33

CAPSTAN

CAPSTAN F2QSB SANKYO D33

CAPSTAN GVC-033A LGEC D33

RACK F/L

DRIVE

CAM

CONNECT

F/R

D33

UP/D

SECTOR

P3

L/D

P3

P2

L/D

P2

SLIDER

TENSION

TOP

SIDE(L)

STOPPER(L)

SIDE(L)

CST

SIDE(R)

STOPPER(R)

SIDE(R)

DOOR

F/L(L)

F/L

F/L(R)

SWITCH

+ D2.6 L4.0 MSWR3/FZY

D3.0 L6.0 MSWR3/FZY

+ D2.0 L5.0 MSWR3/FZY

D3.0 L8.0, MSWR3/FZY

+ D2.6 L6.8 MSWR3/FZY

D3.0 L6.0 MSWR3/FZY

P.S D3.1XD6X0.5T

STOPPER

SCREW

NUT, WASHER

2-3

EXPLODED VIEW PARTS LIST

LOCA. NO PART NO DESCRIPTIONS

112 2055-00744L CPT SET A34KPU02XX 00N7ND

120 6400VA0019B SPEAKER,G9050402(C93H)8 OHM

121 4810V00205A BRACKET,SPK

150 150-D02B COIL,DEGAUSSING,CU 14” 42T 5.7 OHM

153 153-113V DY,DCAD2-14SNAB

170 170-A01E LEAD SET,CPT EARTH

300 3091V00251G CABINET ASSY(BLUE)

3091V00251C CABINET ASSY(GREEN)

3091V00251H CABINET ASSY(PINK)

310 5020V00382A BUTTON,CONTROL

315 3580V00014J DOOR,CST(BLUE)

3580V00014K DOOR,CST(PINK)

3580V00014W DOOR,CST(GREEN)

320 320-075B SPRING,KNOB

330 5020V00381A BUTTON,POWER

340 5020V00383A BUTTON,CONTROL

400 3809V00185B BACK COVER ASSY(GREEN)

3809V00185C BACK COVER ASSY(BLUE)

3809V00185D BACK COVER ASSY(PINK)

501 4810V00012A BRACKET,SMPS

520 6871VDM105A PWB ASSY,MAIN2 14”,NARROW

601 4810V00195C BRACKET,MAIN

602 4814V00158B SHIELD,BOTTOM

603 4814V00157E SHIELD,TOP CASE

610 6871VMM449A PWB ASSY,MAIN KE,E/D/F,W/TXT,SCART

6871VMM449B PWB ASSY,MAIN KE,E/D/F,W/O TXT,SCART

6871VMM449C PWB ASSY,MAIN KL,E/D/F,W/O TXT,SCART

6871VMM449D PWB ASSY,MAIN KE,E/I/S,W/TXT,SCART

913 332-057A SCREW ASSY,HEXAGON HEAD

943 1PTF0403116 SCREW,TAP TITE D4.0 L16.0

A00 6721R-0105B DECK ASSY,D33(TV-33A2OMO 1KT2,2HD,NP

P801 174-009V CORD,POWER(W/HOLD,HOUSING)L=400,4.0

174-224G CORD,POWER H03VVH2-F

The components identified by mark is

critical for safety.

Replace only with part number specified.

RPL

5-4

REPLACEMENT PARTS LIST

LOCA. NO PART NO DESCRIPTION

D506

D507

D509

D510

D511

D512

D602

D603

D701

D702

D703

D704

D781

D805

D806

D807

D808

D809

D810

D811

D850

D851

D852

D853

D854

D855

D858

D859

D860

D904

DB801

ZD01

ZD02

ZD100

ZD500

ZD601

ZD701

ZD702

ZD801

ZD860

ZD861

ZD901

ZD902

ZD903

ZD904

Q02S

Q03

Q03S

Q04

Q07

Q08

0DD414809ED

0DD859009AA

0DD181009AB

0DD414809ED

0DD060009AC

0DD150009CA

0DD060009AC

0DD414809ED

0DD150009CA

0DD150009CE

0DD060009AC

0DD100009AL

0DD414809ED

0DD060009AC

0DD560009AA

0DD100009AE

0DD420000BB

0DD360009AA

0DD414809ED

0DD360009AA

0DD060009AC

0DD400309AD

0DD260000BD

0DZ680009BB

0DZ510009AB

0DZ330009BA

0DZ180009AG

0DZ620009BB

0DZ820009AH

0DZ680009BB

0DZ110009AD

0DZ360009DA

0DZ750009AG

0TR150400BA

0TR102009AG

0TR387500AA

0TR102009AG

0TR387500AA

DIODE,1N4148 TA

DIODE,SILICON MA859

DIODE,SWITCHING KDS181 85V 300MA

DIODE,1N4148 TA

DIODE,TVR06J 0.6A/600V 250NS

DIODE,RECTIFIER RGP15J,TP(52MM)

DIODE,TVR06J 0.6A/600V 250NS

DIODE,1N4148 TA

DIODE,RECTIFIER RGP15J,TP(52MM)

DIODE,GP15J TP (1.5A/600V) GI

DIODE,TVR06J 0.6A/600V 250NS

DIODE,EH-1ZV(1)

DIODE,1N4148 TA

DIODE,TVR06J 0.6A/600V 250NS

DIODE,RECTIFIER BYT56M

DIODE,RECTIFIER RU1A V(1)

DIODE,D4L20U SHINDENGEN

DIODE,RECTIFIER BYW36 TP(2A/600V)

DIODE,1N4148 TA

DIODE,RECTIFIER BYW36 TP(2A/600V)

DIODE,TVR06J 0.6A/600V 250NS

DIODE,IN4003A RECT K-ROHM TP

DIODE,BRIDGE D2SBA60

DIODE,ZENER MTZJ6.8B TP ROHM-K

DIODE,ZENER MTZ5.1B,TP(52MM),ROHM

DIODE,ZENER HZT33(TP) HITACHI

DIODE,ZENER MTZJ18B TP ROHM-K

DIODE,ZENER MTZJ6.2B TP ROHM-K

DIODE,ZENER MTZJ8.2B TP ROHM-K

DIODE,ZENER MTZJ6.8B TP ROHM-K

DIODE,ZENER MTZJ11B TP ROHM-K

DIODE,ZENER MTZ3.6B,(52MM) TP

DIODE,ZENER MTZJ7.5B TP ROHM-K

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP KRC102S SOT-23 TP KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP KRC102S SOT-23 TP KEC

TR,CHIP 2SC3875S(ALY) KEC

LOCA. NO PART NO DESCRIPTION

IC01

“

IC01S

IC02

IC03

IC04

IC05

IC06

IC100

IC101

IC200

IC201

IC202

IC301

IC500

“

IC601

IC701

IC801

IC802

IC803

IC851

IC852

IC853

IC855

IC856

IC857

IC901

D01

D02

D03

D04

D05

D07

D18

D20

D21

D22

D26

D100

D101

D102

D301

D500

D501

D502

D503

D504

D505

0IGS899602A

0IGS899603A

0ITO123800A

0IAL241600B

0ISS753300A

0ISA164500B

0IMI350410R

0ITF448800A

0ISG405200B

0ISA701600A

0ISA722200A

0ISA715980A

0IPH884212A

0IPH884112A

0ISG200600A

0IPH835050A

0ISK670700B

0ISH123200B

0ISK110000A

0ISH052100A

0IKE780800J

0ISS781200H

0IKE780600F

0IPH610700A

0DD400309AD

0DD414809ED

0DD400309AD

0DD414809ED

0DD400309AD

0DD414809ED

0DD859009AA

0DD414809ED

IC,LG8996-02A(GMS3977R-AA70F) 100

IC,LG8996-03A

IC,TA1238N SECA

IC,AT24C16-10PC 8D EEPROM 16K

IC,KA7533Z RESET T0-92 TP 3.3V

IC,LB1645N 10SIP BK MOTOR DRIVE I

IC,M35041-091FP 20SOP TP OSD

IC,U4488B 16DIP BK SIF+AM DEMODUL

IC,HCF4052BE 16P DIP BK

IC,LA7016 8S ANALOG S/W

IC,LA7222 (1280 AUDIO)

IC,LA71598M 100QFP BK AVCP

IC,TDA8842(S1)/N2 56P,SDIP BK MUL

IC,TDA8841(S1)/N2 56P,SDIP *KE-

IC,TDA2006 5Z 1CHX10W AUDIO AMP.

IC,TDA8350Q/N6 13P,SIP BK V/DEF+E

IC,STR/S6707(LF.953) 9P (R5,R6)

IC,PC123 FY2 PHOTO COUPLER

IC,SE110N(LF12) 3P 110V ERROR AMP

IC,PQ05RF21 4P(TO-220) 5V S/W REG

IC,KIA7808API 3 ST REGULATOR .

IC,KA78R12 4P,TO-220F BK LOW DROP

IC,KA7806API 3 ST REGULATOR

IC,TDA6107Q SIP9 BK VIDEO OUT AMP

DIODE,IN4003A RECT K-ROHM

DIODE,1N4148 TA

DIODE,IN4003A RECT K-ROHM

DIODE,1N4148 TA

DIODE,IN4003A RECT K-ROHM

DIODE,1N4148 TA

DIODE,SILICON MA859

DIODE,1N4148 TA

IC

DIODE

The components identified by mark is

critical for safety.

Replace only with part number specified.

TRANSISTOR

5-5

LOCA. NO PART NO DESCRIPTION

Q100

Q104

Q105

Q106

Q108

Q109

Q110

Q111

Q112

Q113

Q200

Q201

Q203

Q204

Q205

Q206

Q207

Q208

Q300

Q301

Q303

Q304

Q305

Q306

Q307

Q308

Q309

Q312

Q500

Q501

Q502

Q504

Q505

Q506

Q507

Q508

Q509

Q510

Q601

Q602

Q781

Q782

Q801

Q853

Q854

Q860

Q861

Q862

C04S

C04J

0TR102009AG

0TR387500AA

0TR388109AA

0TR387500AA

0TR102009AG

0TR387500AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR102009AG

0TR387500AA

0TR150400BA

0TR320509AB

0TR387500AA

0TR150400BA

0TR387500AA

0TR126609AA

0TR387500AA

0TR102009AG

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR102009AG

0TR319809AA

0TR570200AA

0TR320709AA

0TR385200AA

0TR319809AA

0TR322809AA

0TR968000AA

0CC1500K415

0CN4710K519

TR,CHIP KRC102S SOT-23 TP KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,KTC3881 CHIP KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP KRC102S SOT-23 TP KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP KRC102S SOT-23 TP KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,KTC3205-Y (KTC2236A) TP KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP KRC102S SOT-23 TP KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP KRC102S SOT-23 TP KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KSD5702 BK SAMSUNG TO3PF H-OUT

TR,KTC3207,TP(KTC2482),KEC

TR,2SC3852A SANKEN

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTC3228-0 TP(KTC2383),KEC

TR,KTA968A-Y KEC

15P 50V J

470P 50V K B TA52

LOCA. NO PART NO DESCRIPTION

C05S

C06

C06J

C07

C08S

C09

C10

C11

C12S

C14S

C16

C16S

C17S

C19S

C32

C36

C37

C38

C39

C45

C47

C48

C50

C51

C52

C53

C54

C55

C56

C58

C61

C63

C72

C73

C74

C80

C84

C85

C88

C100

C101

C105

C106

C108

C111

C114

C115

C118

C119

C120

C122

C127

0CE107DF618

0CE3363F618

0CN1010K519

0CN2230H949

0CE225DK618

0CE2263F618

0CC1800K415

0CE107DF618

0CE474DK618

0CE4763F618

0CN1030F679

0CE474DK618

0CE106DF618

0CE4753K618

0CQ4731N509

0CN1040K949

181-007C

0CE4753K618

0CE107DF618

0CE1074F618

0CE477DF618

0CE4763F618

0CN1040K949

0CE4763F618

181-002B

0CQ3332K439

0CE4763F618

0CE1063F616

0CE4763F618

0CC8200K415

0CC4700K415

0CE1053K618

0CE4763F618

0CE107DF618

0CN1030F679

0CE476DK618

181-007C

0CE476DH618

0CE475DK618

0CE476DF618

0CN2230H949

0CN1030F679

0CE107DF618

0CE4753K618

181-007C

0CE476DK618

181-007C

100UF STD 16V M

33UF SRE 16V M

100P 50V K B TA52

22000P 25V Z FTA52

2.2000UF STD 50V M

22UF SRE 16V M

18P 50V J NPO TP

100UF STD 16V M

0.4700UF STD 50V M

47UF SRE 16V M

10000P 16V M

0.4700UF STD 50V M

10UF STD 16V M

4.7UF SRE 50V M

0.047U 100V K

0.1M 50V Z

ECQ-V1H104JL3(TR)50V 0.1

4.7UF SRE 50V M

100UF STD 16V M

100UF SRA 16V M

470UF STD 16V M

47UF SRE 16V M

0.1M 50V Z

47UF SRE 16V M

SUPER CAP.FSOH473Z

0.0330UF S 50V J

47UF SRE 16V M

10UF SRE 16V M

47UF SRE 16V M

82P 50V J

47P 50V J

1UF SRE 50V M

47UF SRE 16V M

100UF STD 16V M

10000P 16V M Y

47UF STD 50V M

ECQ-V1H104JL3(TR)50V 0.1

47UF STD 25V M

4.7000UF STD 50V M

47UF STD 16V M

22000P 25V Z

10000P 16V M

100UF STD 16V M

4.7UF SRE 50V M

ECQ-V1H104JL3(TR)50V 0.1

47UF STD 50V M FL TP5

ECQ-V1H104JL3(TR)50V 0.1

CAPACITOR

For Capacitor & Resistors, the

charactors at 2nd and 3rd digit

in the P/No. means as follows;

CC, CX, CK, CN : Ceramic

CQ : Polyestor

CE : Electrolytic

RD : Carbon Film

RS : Metal Oxide Film

RN : Metal Film

RF : Fusible

The components identified by mark is

critical for safety.

Replace only with part number specified.

5-6

LOCA. NO PART NO DESCRIPTION

C130

C132

C133

C200

C201

C202

C203

C204

C207

C210

C214

C220

C223

C224

C226

C227

C234

C235

C237

C238

C241

C244

C302

C303

C305

C306

C307

C309

C310

C313

C316

C329

C330

C332

C333

C334

C335

C336

C338

C340

C341

C342

C343

C347

C350

C351

C353

C355

C356

C357

C359

C365

0CE476DF618

0CE107DF618

0CE107DD618

0CE106DF618

0CE475DK618

0CE476DF618

0CE107DF618

0CE476DF618

0CE106DF618

0CE474DK618

0CE475DK618

0CE107DF618

0CE106DF618

0CE476DF618

0CE337DF618

0CN4710K519

0CE1063F618

0CE106DF618

0CE1063F618

0CE106DF618

0CE475DK618

0CE106DF618

0CQ1031N509

0CE4753K618

0CQ1531N509

0CE4763F618

0CQ2231N509

0CE1074F618

0CQ2221N509

0CE1053K618

0CE1063F618

0CE2253K618

0CN1040K949

0CN2230H949

0CE4763F618

0CE1053K618

0CE1063F618

0CE1053K618

0CN1030F679

0CE1074F618

0CE4763F618

0CN1030F679

0CE4753K618

0CN2230H949

0CE4753K618

0CE1053K618

0CE4763F618

47UF STD 16V M

100UF STD 16V M

100UF STD 10V M

10UF STD 16V M

4.7000UF STD 50V M

47UF STD 16V M

100UF STD 16V M

47UF STD 16V M

10UF STD 16V M

0.4700UF STD 50V M

4.7000UF STD 50V M

100UF STD 16V M

10UF STD 16V M

47UF STD 16V M

330UF STD 16V M

470P 50V K B TA52

10UF SRE 16V M

10UF STD 16V M

10UF SRE 16V M

10UF STD 16V M

4.7000UF STD 50V M

10UF STD 16V M

0.01U 100V K

4.7UF SRE 50V M

0.015U 100V K

47UF SRE 16V M

0.022U 100V K

100UF SRA 16V M

0.0022U 100V K

1UF SRE 50V M

10UF SRE 16V M

2.2000UF SRE 50V M

0.1M 50V Z

22000P 25V Z

47UF SRE 16V M

1UF SRE 50V M

10UF SRE 16V M

1UF SRE 50V M

10000P 16V M

100UF SRA 16V M

47UF SRE 16V M

10000P 16V M

4.7UF SRE 50V M

22000P 25V Z

4.7UF SRE 50V M

1UF SRE 50V M

47UF SRE 16V M

LOCA. NO PART NO DESCRIPTION

C367

C368

C369

C370

C371

C377

C379

C381

C389

C390

C396

C398

C504

C506

C507

C509

C510

C512

C519

C528

C529

“

C530

“

C531

C532

C534

C536

C540

C541

“

C544

C545

C546

C547

C548

C601

C602

C603

C604

C605

C606

C607

C608

C609

C610

C701

C702

C703

C704

C705

C706

0CQ2242K439

0CE1063F618

0CQ2242K439

0CE3363F618

0CQ2242K439

0CE1074F618

0CE1053K618

0CE335DK618

0CE2263F618

0CE2253K618

0CE107DF618

0CE475DK618

0CE225DK618

0CE476DF618

181-007F

0CE107DF618

181-007F

181-007C

0CE104DK618

0CE1074F618

0CQ4731N509

0CQ1041N509

0CC6200K415

0CQ1021N509

0CE104DK618

0CE225DK618

0CE105DK618

0CE684DK618

0CQ1041N455

0CSZVTA001G

0CSZVTA001C

0CE106DH618

181-007C

0CC2710K415

0CN2710K519

181-007G

0CE475DK618

0CE226DK618

0CQ3931N509

0CE106DH618

0CQ1041N509

0CE227DJ618

0CE227DF618

0CN1010K519

0CE106DF618

0CE475DK618

181-009V

0CE226CR618

0CK4710W515

0CE337DK618

0CK4710W515

0CQ1031N509

0.2200UF S 50V J

10UF SRE 16V M

0.2200UF S 50V J

33UF SRE 16V M

0.2200UF S 50V J

100UF SRA 16V M

1UF SRE 50V M

3.3000UF STD 50V M

22UF SRE 16V M

2.2000UF SRE 50V M

100UF STD 16V M

4.7000UF STD 50V M

2.2000UF STD 50V M

47UF STD 16V M FL TP5

ECQ-V1H224JL3(TR)50V 0.2

100UF STD 16V M FL TP5

ECQ-V1H224JL3(TR)50V 0.2

ECQ-V1H104JL3(TR)50V 0.1

0.1000UF STD 50V M

100UF SRA 16V M

0.047U 100V K

0.1U 100V K *KE-

62PF 50V J NP0 TR

0.001U 100V K *KE-

0.1000UF STD 50V M

2.2000UF STD 50V M

1UF STD 50V M FL TP5

0.6800UF STD 50V M

0.1000UF 100V J

2.2UF 25V K FM5 TP 5

TAP105K025BRS *KE-

10UF STD 25V M FL TP5

ECQ-V1H104JL3(TR)50V 0.1

270P 50V J

270P 50V K B TA52

ECQ-V1H334JL3(TR)50V 0.3

4.7000UF STD 50V M

22UF STD 50V M

0.0390UF 100V K

10UF STD 25V M

0.1U 100V K

220UF STD 35V M

220UF STD 16V M

100P 50V K B TA52

10UF STD 16V M

4.7000UF STD 50V M

PP 200V 0.047UF K

22UF SHL,SD 250V M

470PF 500V K B TR

330UF STD 50V M

470PF 500V K B TR

0.01U 100V K

The components identified by mark is

critical for safety.

Replace only with part number specified.

For Capacitor & Resistors, the

charactors at 2nd and 3rd digit

in the P/No. means as follows;

CC, CX, CK, CN : Ceramic

CQ : Polyestor

CE : Electrolytic

RD : Carbon Film

RS : Metal Oxide Film

RN : Metal Film

RF : Fusible

RPL

5-7

LOCA. NO PART NO DESCRIPTION

C708

C709

C731

C732

C733

C734

C736

C738

C739

C741

C743

C781

C782

C783

C784

C785

C787

C801

C802

C805

C806

C807

C808

C809

C810

C811

C812

C813

C814

C816

C850

C851

C852

C853

C854

C855

C856

C857

C858

C859

C860

C862

C863

C865

C866

C867

C868

C869

C870

C871

C872

C874

0CE106DN618

0CK4710W515

0CN1010K519

0CQ1041N509

0CE337DK618

0CE226DN618

0CQ1031N509

0CN3910K519

0CN1040K949

0CQ1041N509

181-015G

0CE105DP618

0CK3310W515

0CN3310K519

0CE225CP618

181-013B

0CQZVBK002A

0CK10201515

181-001F

0CK10201515

0CK1020W515

0CE106DN618

0CE227DF618

181-014A

181-091J

181-120K

0CE107DJ618

0CQ1041N509

0CK4710W515

181-091C

0CK4710W515

0CE107DN618

0CE108DF618

0CE108DH618

0CE108DJ618

0CE227DP61A

0CE108DF618

0CE477DF618

0CE107CP618

0CE477DF618

0CE477DH618

0CE228DF618

181-091C

0CQ1031N509

0CE106DF618

0CE477DF618

10UF STD 100V M

470PF 500V K B TR

100P 50V K B TA52

0.1U 100V K

330UF STD 50V M

22UF STD 100V M

0.01U 100V K

390P 50V K B TA52

0.1M 50V Z F TA52

0.1U 100V K

MPP 1600V 0.0077UF H

1UF STD 160V M

330P 500V K

330P 50V K

2.2UF SHL,SD 160V M

MPP 200V 0.36UF J

A.C 275V 0.1UF M (S=15)

1000P 1KV K B TS

CE 400V 220UF M

1000P 1KV K B TS

1000P 500V K

10UF STD 100V M

220UF STD 16V M

MPP 1600V 0.0022UF J

DE1107-486 R 821K 2KV

ACT 4KV E 222M

100UF STD 35V M

0.1U 100V K

470PF 500V K

DE0705-979 R 471K 1KV

470PF 500V K B TR

100UF STD 100V M

1000UF STD 16V M

1000UF STD 25V M

1000UF STD 35V M

220UF STD 160V M

1000UF STD 16V M

470UF STD 16V M

100U SHL 160V M

470UF STD 16V M

470UF STD 25V M

2200UF STD 16V M

DE0705-979 R 471K 1KV

0.01U 100V K

10UF STD 16V M

470UF STD 16V M FL

LOCA. NO PART NO DESCRIPTION

C875

C876

C901

C904

C905

C906

FB801

FB802

FB803

FB851

L04J

L222

L510

L902

L01J

L01S

L01

L02J

L02S

L02

L03J

L03

L04

L05J

L05

L06

L07

L10

L11

L12

L13

L101

L102

L103

L104

L105

L106

L107

L108

L144

L200

L201

L203

L204

L205

L206

L207

L209

0CE228DD618

0CE474CK636

0CQ1042R539

181-033T

0CE475DR618

125-022K

125-123A

125-022K

0LA0102K119

0LA0222K119

0LA1000K139

0LA0102K119

0LA0222K119

0LA1000K139

0LA0102K119

0LA1000K139

0LA0101K119

0LA1000K139

0LA0821K119

0LA0222K119

0LA1000K119

0LA0222K119

150-C01G

0LA0102K119

0LA0122K119

150-E16C

0LA0102K139

0LA0102K119

0LA1000K119

2200UF STD 10V M FL

0.47UF SHL,SD 50V M

0.1UF S 250V K M/PE

2KV B 222K TP7.5

4.7000UF STD 250V M

CORE (CIRC),FERRITE 1UH

CORE (CIRC),FERRITE BFD3565R2F

CORE (CIRC),FERRITE 1UH

INDUCTOR,10UH K

INDUCTOR,22UH K

INDUCTOR,100UH K

INDUCTOR,10UH K

INDUCTOR,22UH K

INDUCTOR,100UH K

INDUCTOR,10UH K

INDUCTOR,100UH K

INDUCTOR,1.0UH K

INDUCTOR,100UH K

INDUCTOR,8.2UH K

INDUCTOR,22UH K

INDUCTOR,100UH K

INDUCTOR,22UH K

COIL,CHOKE 1.0UH A 1105

INDUCTOR,10UH K

INDUCTOR,12UH K

COIL,IFT VAR,07S 1B 38.9MHZ

INDUCTOR,10UH K

INDUCTOR,100UH K

CORE

COIL & TRANSFORMER

The components identified by mark is

critical for safety.

Replace only with part number specified.

For Capacitor & Resistors, the

charactors at 2nd and 3rd digit

in the P/No. means as follows;

CC, CX, CK, CN : Ceramic

CQ : Polyestor

CE : Electrolytic

RD : Carbon Film

RS : Metal Oxide Film

RN : Metal Film

RF : Fusible

5-8

LOCA. NO PART NO DESCRIPTION

L300

L301

L302

L303

L306

L307

L309

L391

L500

L501

L502

L503

L504

L505

L506

L507

L508

L509

L733

L734

L782

L851

L901

T300

T301

T701

T781

T801

F851

F852

F853

FR701

FR702

FR704

FR851

FR854

FR901

FR902

R01J

R01

R02

R02J

R03

R04J

R04

R05J

R06

R06J

R07J

R08

0LA0222K119

0LA0562K119

0LA0332K119

0LA0222K119

0LA0272K119

0LA0102K119

0LA0331K119

0LA0821K119

0LA0102K119

0LA0561K119

0LA0102K139

0LA0102K119

0LA0102K139

150-L01W

150-C02E

0LR0102K520

633-032N

150-B05C

6174Z-6022E

151-C02H

151-A13J

180-D02Y

0RF0561J607

0RF0470J607

0RF0101H609

0RF0470H609

0RF0101J607

180-D02L

180-D02E

0RD1000F609

0RD1001F609

0RD2203F609

0RD1001F609

0RD0752F609

0RD1001F609

0RD2000F609

0RD1001F609

0RD2000F609

0RD4300F609

0RD1001F609

INDUCTOR,22UH K

INDUCTOR,56UH K

INDUCTOR,33UH K

INDUCTOR,22UH K

INDUCTOR,27UH K

INDUCTOR,10UH K

INDUCTOR,3.3UH K

INDUCTOR,8.2UH K

INDUCTOR,10UH K

INDUCTOR,5.6UH K

INDUCTOR,10UH K

COIL,H-LINEARITY 57UH

COIL,CHOKE 50UH R 1217

INDUCTOR,10M K 4X5

COIL,CAN BIAC OSC DEO-010 KSE

COIL,L/C FILTER(07S) LPF

FBT,FTMPN91

TRANSFORMER,H-DRIVE,EI-19,BULK

TRANSFORMER,SMPS EER4215 700UH

0.045 OHM 1/2 W 10%

5.60 1W 5% TA62

0.47 1W 5% TA62

1.0 1/2W 5 TA52

0.47 1/2W 5 TA52

1 1W 5% TA62

CR 2W 2.0 J

CR 2W 1.0 J

100 1/6W 5 TA52

1.0K 1/6W 5 TA52

220K 1/6W 5 TA52

1.0K 1/6W 5 TA52

75 1/6W 5% TA

1.0K 1/6W 5 TA52

200 1/6W 5 TA52

1.0K 1/6W 5 TA52

200 1/6W 5 TA52

430 1/6W 5 TA52

1.0K 1/6W 5 TA52

LOCA. NO PART NO DESCRIPTION

R08S

R09S

R09

R10

R11

R12

R14

R17

R18

R19

R20

R22

R23

R24

R25

R26

R27

R28

R31

R33

R38

R42

R43

R45

R46

R55

R57

R59

R67

R68

R69

R74

R77

R90

R92

R97

R98

R99

R101

R102

R109

R110

R112

R125

R128

R144

R146

R147

R148

R149

R153

R154

0RD5600F609

0RD1000F609

0RD1001F609

0RD1000F609

0RD2200F609

0RD5601F609

0RD1001F609

0RD2200F609

0RD1002F609

0RD2200F609

0RD4701F609

0RD2200F609

0RD4701F609

0RD3300F609

0RD2200F609

0RD5600F609

0RD1000F609

0RD1801F609

0RD8201F609

0RD1801F609

0RD1001F609

0RD5602F609

0RD1001F609

0RD2200F609

0RD4701F609

0RD5601F609

0RS0561K607

0RD4702F609

0RD1001H609

0RD3302F609

0RD1001F609

0RD0102F609

0RD1004F609

0RD1000F609

0RD4701F609

0RD0102F609

0RD1001F609

0RD1002F609

0RD4701F609

560 1/6W 5 TA52

100 1/6W 5 TA52

1.0K 1/6W 5 TA52

100 1/6W 5 TA52

220 1/6W 5 TA52

5.6K 1/6W 5 TA52

1.0K 1/6W 5 TA52

220 1/6W 5 TA52

10K 1/6W 5 TA52

220 1/6W 5 TA52

4.70K 1/6W 5% TA52

220 1/6W 5 TA52

4.70K 1/6W 5% TA52

330 1/6W 5 TA52

220 1/6W 5 TA52

560 1/6W 5 TA52

100 1/6W 5 TA52

1.8K 1/6W 5 TA52

8.2K 1/6W 5 TA52

1.8K 1/6W 5 TA52

1.0K 1/6W 5 TA52

56K 1/6W 5 TA52

1.0K 1/6W 5 TA52

220 1/6W 5 TA52

4.70K 1/6W 5% TA52

5.6K 1/6W 5 TA52

5.60 2W 5% TA62

47K 1/6W 5 TA52

1K OHM 1/2 W 5% TA52

33K 1/6W 5% TA52

1.0K 1/6W 5 TA52

10 1/6W 5 TA52

1.0M 1/6W 5 TA52

100 1/6W 5 TA52

4.70K 1/6W 5% TA52

10 1/6W 5 TA52

1.0K 1/6W 5 TA52

10K 1/6W 5 TA52

4.70K 1/6W 5% TA52

RESISTOR

The components identified by mark is

critical for safety.

Replace only with part number specified.

For Capacitor & Resistors, the

charactors at 2nd and 3rd digit

in the P/No. means as follows;

CC, CX, CK, CN : Ceramic

CQ : Polyestor

CE : Electrolytic

RD : Carbon Film

RS : Metal Oxide Film

RN : Metal Film

RF : Fusible

RPL

5-9

LOCA. NO PART NO DESCRIPTION

R205

R208

R214

R215

R219

R220

R221

R224

R235

R237

R238

R302

R309

R319

R321

R333

R334

R348

R360

R361

R363

R364

R365

R380

R381

R382

R508

R512

R515

R516

R517

R521

R529

R530

R601

R602

R603

R604

R605

R606

R607

R608

R609

R610

R611

R702

R703

R704

R706

R731

R733

R734

0RD4701F609

0RD1502F609

0RD4700F609

0RD1000F609

0RD0682F609

0RD5101F609

0RD1001F609

0RD1000F609

0RD1002F609

0RD1001F609

0RD1000F609

0RD5600F609

0RD1002F609

0RD1001F609

0RD1000F609

0RD1001F609

0RD2202F609

0RD1001F609

0RD4702F609

0RD1000F609

0RD0472F609

0RD1002F609

0RD1001F609

0RD1003F609

0RN3902F409

0RD1201F609

0RD1003F609

0RD5102F609

0RS0221H609

0RD6802F609

0RD8201F609

0RD4701F609

0RD1001F609

0RD1201F609

0RD1003F609

0RS5101H609

0RD6201F609

0RD2003H609

0RD4701H609

0RN2001F409

0RN0680J607

0RD0202F609

4.70K 1/6W 5% TA52

15K 1/6W 5 TA52

470 1/6W 5 TA52

100 1/6W 5 TA52

68 1/6W 5 TA52

5.1K 1/6W 5 TA52

1.0K 1/6W 5 TA52

100 1/6W 5 TA52

10K 1/6W 5 TA52

1.0K 1/6W 5 TA52

100 1/6W 5 TA52

560 1/6W 5 TA52

10K 1/6W 5 TA52

1.0K 1/6W 5 TA52

100 1/6W 5 TA52

1.0K 1/6W 5 TA52

22K 1/6W 5 TA52

1.0K 1/6W 5 TA52

47K 1/6W 5 TA52

100 1/6W 5 TA52

47 1/6W 5% TA

10K 1/6W 5 TA52

1.0K 1/6W 5 TA52

100K 1/6W 5 TA52

39K 1/6W 1% TA52

1.2K 1/6W 5 TA52

100K 1/6W 5 TA52

51K 1/6W 5 TA52

2.2 1/2W 5 TA52

68K 1/6W 5 TA52

8.2K 1/6W 5 TA52

4.70K 1/6W 5% TA52

1.0K 1/6W 5 TA52

1.2K 1/6W 5 TA52

100K 1/6W 5 TA52

5.1K 1/2W 5 TA52

6.2K 1/6W 5 TA52

200K 1/2W 5 TA52

4.7K 1/2W 5 TA52

2K 1/6W 1% TA52

0.68 1W 5% TA62

20 1/6W 5 TA52

LOCA. NO PART NO DESCRIPTION

R735

R739

R740

R781

R782

R783

R784

R785

R786

R787

R788

R801

R805

R806

R807

R808

R809

R810

R811

R812

R813

R816

R821

R822

R823

R824

R825

R851

R852

R853

R854

R855

R856

R857

R858

R860

R865

R866

R867

R870

R871

R872

R873

R874

R903

R904

R905

R906

R907

R908

R909

R910

0RS0222H609

0RS2200J607

0RN3901F409

0RD0392H609

0RD3301H609

0RS5601K607

0RD4700F609

180-B01M

0RS1801J607

0RS6801K607

0RD0912F609

180-A03A

0RS2202K607

0RS1202H609

0RD1801F609

0RD1001F609

0RS0222K607

180-A01H

0RD5600F609

0RKZVTA001C

0RD3900F609

0RD6801H609

0RD1000H609

0RD4701F609

0RD6801F609

0RD4701F609

0RD3301F609

0RD2001F609

0RD1001F609

0RD1002F609

0RD4701F609

0RF0470H609

0RS4700J607

0RF0101K607

0RS0470J607

0RS0470K607

0RD1002F609

0RD2002F609

0RD2002H609

0RD1001H609

0RS0102J607

0RD2200F609

0RS1801H609

0RD2204H609

0RD2200F609

0RD1000F609

22 1/2W 5 TA52

220 1W 5% TA62

3.90K 1/6W 1% TA52

39 1/2W 5 TA52

3.3K 1/2W 5 TA52

5.60K 2W 5% TA62

470 1/6W 5 TA52

RS RECT S 5W 7.5K J

1.80K 1W 5% TA62

6.80K 2W 5% TA62

91 1/6W 5 TA52

RW RECT G 5W 2.20 J

22K 2W 5% TA62

12K 1/2W 5 TA52

1.8K 1/6W 5 TA52

1.0K 1/6W 5 TA52

22 2W 5% TA62

RW ROUND G 2W 0.27 J

560 1/6W 5 TA52

8.2M OHM 1/2 W 5%

390 1/6W 5 TA52

6.8K 1/2W 5 TA52

100 OHM 1/2 W 5% TA52

4.70K 1/6W 5% TA52

6.8K 1/6W 5 TA52

4.70K 1/6W 5% TA52

3.3K 1/6W 5 TA52

2.0K 1/6W 5 TA52

1.0K 1/6W 5 TA52

10K 1/6W 5 TA52

4.70K 1/6W 5% TA52

0.47 1/2W 5 TA52

470 1W 5% TA62

1 2W 5% TA62

0.47 1W 5% TA62

0.47 2W 5% TA62

10K 1/6W 5 TA52

20K 1/6W 5 TA52

20K 1/2W 5 TA52

1K OHM 1/2 W 5% TA52

10 1W 5% TA62

220 1/6W 5 TA52

1.8K 1/2W 5 TA52

2.2M 1/2W 5 TA52

220 1/6W 5 TA52

100 1/6W 5 TA52

The components identified by mark is

critical for safety.

Replace only with part number specified.

For Capacitor & Resistors, the

charactors at 2nd and 3rd digit

in the P/No. means as follows;

CC, CX, CK, CN : Ceramic

CQ : Polyestor

CE : Electrolytic

RD : Carbon Film

RS : Metal Oxide Film

RN : Metal Film

RF : Fusible

5-10

LOCA. NO PART NO DESCRIPTION

R911

R912

RA07

RA11

RA20

RA22

RA23

RA30

RA33

RA34

VR01

SW01

SW03

SW04

SW05

SW06

SW07

SW08

SW11

SW12

SW13

SW14

SW804

F100

F101

F102

L100

L801

T101

T102

T500

“

X01S

X01

X02

X301

X500

X501

Z100

“

Z101

Z102

C04T

C05T

C06T

C07T

0RD1000F609

0RD3902F609

0RD4700F609

0RD5600F609

0RD4700F609

0RD2700F609

0RD1202F609

0RD1000F609

180-F03M

6600RDB004C

140-315C

6600VM1001A

166-B02C

166-B02E

166-B02D

166-F01G

150-F06H

166-C06D

166-C02C

166-C04B

156-A01X

156-A08A

156-A01T

6202R1443AC

156-A01C

156-A01V

166-A01B

6200VQS001M

6200VQS001D

166-A01L

0CE107DF618

0CC3300K415

0CE106DF618

100 1/6W 5 TA52

39K 1/6W 5 TA52

470 1/6W 5 TA52

560 1/6W 5 TA52

470 1/6W 5 TA52

270 1/6W 5 TA52

12K 1/6W 5 TA52

100 1/6W 5 TA52

EVN-DJAA03 B204

SWITCH,DETECTOR MPU10252MLB4 5V 0.01A

SWITCH,TACT 4LEAD EVQPB905X

SWITCH,PUSH SDKLA1 250V 5A

FILTER(CIRC),SFSH5.5MCB-TF21

FILTER(CIRC),SFSH6.5MCB-TF21

FILTER(CIRC),SFSH6.0MCB-TF21

FILTER,DSS306-93FZ103N

FILTER(CIRC),SQE2930 30MH

FILTER(CIRC),MKT40.4MA110P-TF01

FILTER(CIRC),TPS5.5MB-TF21 MURATA

FILTER(CIRC),TPWA03B-TF21 *KE-

CRYSTAL,HC49U KJE RADIAL 4.286MHZ

CRYSTAL,HC49U DISHINKU RADIAL 32.768KH

CRYSTAL,HC49U SUNNY RADIAL 10.000MHZ

CRYSTAL,X-TAL 4.433709M 15PPM

CRYSTAL,HC49U KJE RADIAL 3.579545MHZ

CRYSTAL,HC49U KJE RADIAL 4.433619MHZ

FILTER,OFWK3953M 37.4MHZ

FILTER(CIRC),OFWG3963M *KE-

FILTER(CIRC),OFWK9260M 38.9MHZ

FILTER,OFWL9453M

100UF STD 16V M

33P 50V J

10UF STD 16V M

LOCA. NO PART NO DESCRIPTION

C08T

C10T

C11T

C12T

C23T

C24T

IC01T

IC03T

L01T

L02T

L03T

L08T

Q01T

Q02T

Q03T

Q04T

R01T

R02T

R05T

X01T

A1

A2

A3

F801

JK05J

LD03

TH801

TU100

“

RC01

S01

S02

S03

S04

SG901

SG902

SK200

SK902

0CQ3332K439

0CE107DF618

0CN1030F679

0CE107DF618

0CE476DF618

181-007G

0ISM545400A

0ISS753300A

0LA0102K119

0TR387500AA

0TR102009AG

0RD1000F609

0RN2702F409

156-A01L

3828VA0190C

3828VA0190E

3828VA0190Q

3828VA0190S

6710V00032C

6710V00032E

132-210H

3300R-0165A

879-019K

0FT4001B53C

6613V00009C

4931R-0017A

163-051F

6700VPF005A

6700VPF005B

106-047J

6500RAB002A

4930V00090A

165-004A

381-091A

6620VBA001A

0.0330UF S 50V J

100UF STD 16V M

10000P 16V M

100UF STD 16V M

47UF STD 16V M

ECQ-V1H334JL3(TR),50V 0.3

IC,SDA5454-B001 52P SDIP BK TXT

IC,KA7533Z RESET T0-92 TP 3.3V

INDUCTOR,10UH K

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP KRC102S SOT-23 TP KEC

100 1/6W 5 TA52

27K 1/6W 1% TA52

CRYSTAL,HC49U 6.000MHZ 30

MANUAL,OWNERS DG LG GE/FR/N

MANUAL,OWNERS UK/WTY LG EN

MANUAL,OWNERS FS LG FR 032C/E

MANUAL,OWNERS ES LG SP/PO

REMOTE CONTROLLER W/O TXT

REMOTE CONTROLLER W/TXT

ANTENNA,ROD,W/ADAPTER L=650 PAL

PLATE,GND

CABLE ASSY,FFC 7PX100MM(P=1.25)

FUSE,TIME LAG 4000MA 250V 5.2X20

JACK ASSY,PMJ015C H/P+A/V 2P

HOLDER ASSY,LED

THERMISTOR,J503P84D140M290Q

TUNER,TU8PSD01DB PAL DIN BG/L 3

TUNER,TU8PSD01DA PAL

PRE-AMP,SBX2020-82(01) 38.0KHZ NO

SENSOR,GP1S566 SHARP D-33

HOLDER END SENSOR ASSY(33 DECK)

SPARK GAPAG20PT 152F-L3N/S-23

SOCKET,S-091A 21PIN H

SOCKET (CIRC),CPT PCS-633A

SWITCH

ACCESSORIES

MISCELLANEOUS

FILTER & CRYSTAL

TELETEXT PARTS

The components identified by mark is

critical for safety.

Replace only with part number specified.

For Capacitor & Resistors, the

charactors at 2nd and 3rd digit

in the P/No. means as follows;

CC, CX, CK, CN : Ceramic

CQ : Polyestor

CE : Electrolytic

RD : Carbon Film

RS : Metal Oxide Film

RN : Metal Film

RF : Fusible

RPL

3-7

BLOCK DIAGRAM

LG KE-14P2B User manual

Popular TV manuals by other brands
