LG 42LV3700 User manual

G
Ufe's Good
LED LCD TV / LC
PLASMA TV
TV /
Please read this manual carefully before operating your
set and retain it for future reference.
LED LCD TV MODELS
42LV3700 42LV5500 32LW5700
47LV3700 47LV5500 42LW5700
55LV3700 55LV5500 47LW5700
42LV5400 42LW5600 55LW5700
47LV5400 47LW5600 72LZ9700
55LV5400 55LW5600
PING: MFL62882745 (l101-REVOO)
47LW6500
55LW6500
65LW6500
47LW7700
55LW7700
47LW9500
55LW9500
60LW9500
LCD TV
MODELS
42LK530
47LK530
55LK530
42LK550
47LK550
PLASMA TV
MODELS
50PZ750
60PZ750
50PZ950
60PZ950
50PZ950U
60PZ950U
www.lg.com

2

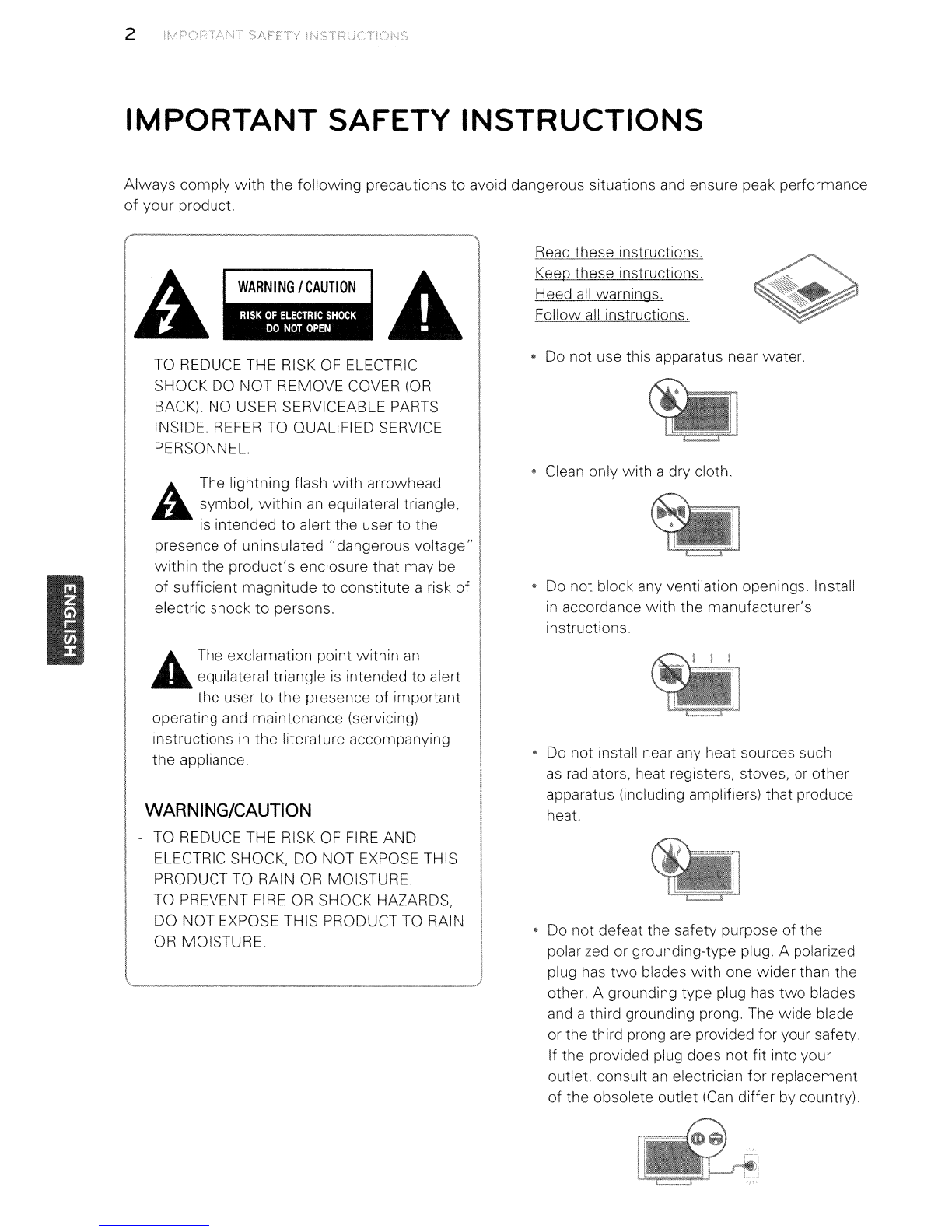

IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak performance
of your product
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
I
TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER TO QUALIFIED SERVICE
PERSONNEL.
A. The lightning flash with arrowhead
IA symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated "dangerous voltage"
within the product's enclosure that may be
of sufficient magnitude to constitute arisk of
electric shock to persons
AThe exclamation point within an
~ equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompanying
the appliance.
WARNING/CAUTION
-TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
- TO PREVENT FIRE OR SHOCK HAZARDS,
DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
• Do not use this apparatus near water.
•Clean only with adry cloth.
• Do not block any ventilation openings. Install
in accordance with the manufacturer's
instructions
•Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat
• Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. Agrounding type plug has two blades
and athird grounding prong. The wide blade
or the third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet (Can differ by country).

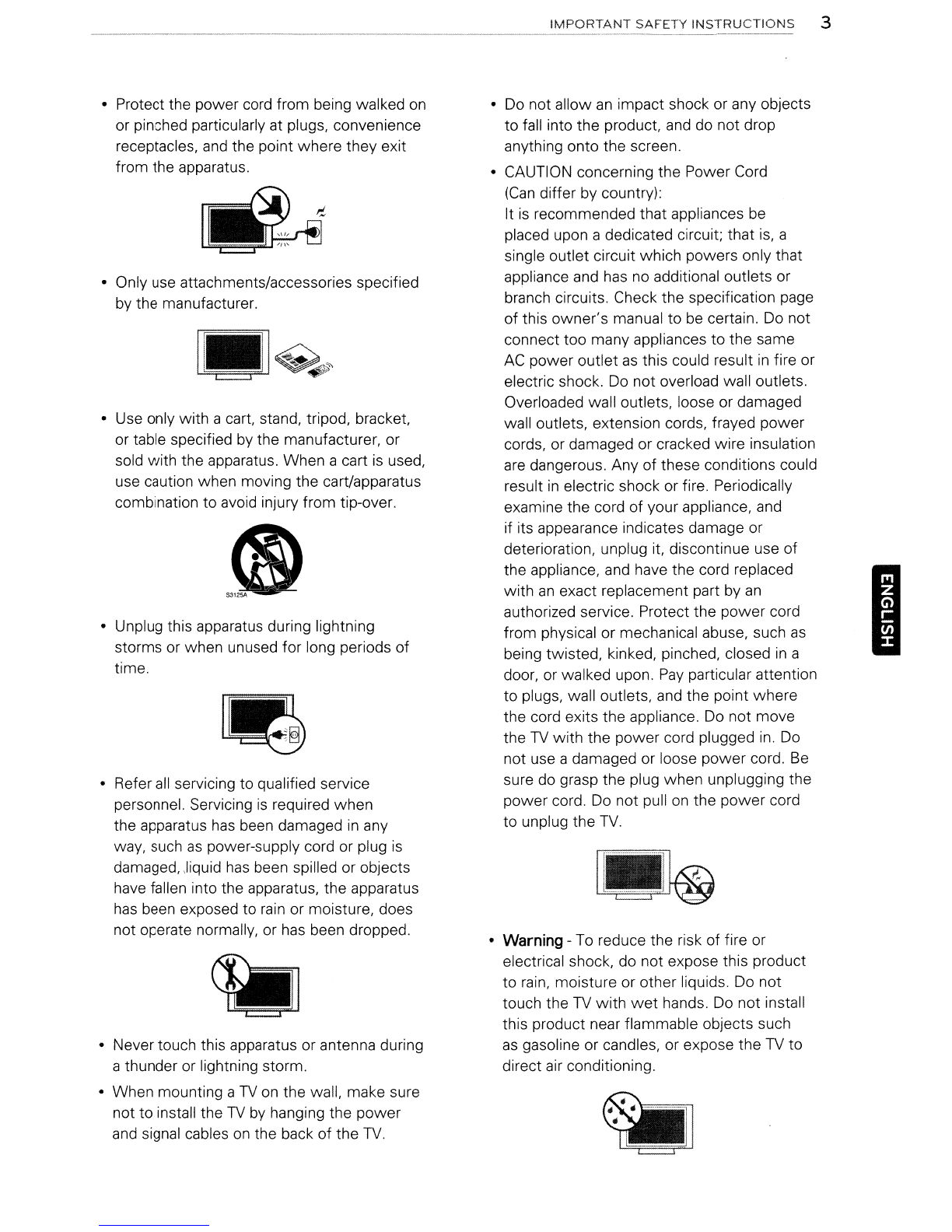

IMPORTANT SAFETY INSTRUCTIONS 3
------------------
•Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles,
and the point where they exit
from the apparatus.
•Only use attachments/accessories specified
by the manufacturer.
•Use only with acart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When acart
is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
•Unplug this apparatus during lightning
storms or when unused for long periods of
time.
•Refer
all servicing to qualified service
personnel. Servicing
is required when
the apparatus
has been damaged in any
way, such
as power-supply cord or plug is
damaged, ,liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or
has been dropped.
•Never touch this apparatus or antenna during
athunder or lightning storm.
•When mounting a
TV on the wall, make sure
not to install the
TV by hanging the power
and signal cables
on the back of the TV.
•Do not allow an impact shock or any objects
to fall into the product, and do not drop
anything onto the screen.
•CAUTION concerning the Power Cord
(Can differ by country):
It
is recommended that appliances be
placed upon adedicated circuit; that
is, a
single outlet circuit which powers only that
appliance and
has no additional outlets or
branch circuits. Check the specification page
of this owner's manual to be certain. Do not
connect too many appliances to the same
AC power outlet as this could result in fire or
electric shock. Do not overload wall outlets.
Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could
result
in electric shock or fire. Periodically
examine the cord
of your appliance, and
if its appearance indicates damage or
deterioration, unplug it, discontinue use
of
the appliance, and have the cord replaced
with
an exact replacement part by an
authorized service. Protect the power cord
from physical or mechanical abuse, such
as
being twisted, kinked, pinched, closed in a
door, or walked upon.
Pay particular attention
to plugs, wall outlets, and the point where
the cord exits the appliance. Do not move
the
TV with the power cord plugged in. Do
not use adamaged or loose power cord.
Be
sure do grasp the plug when unplugging the
power cord. Do not pull
on the power cord
to unplug the
TV.
• Warning - To reduce the risk of fire or
electrical shock, do not expose this product
to
rain, moisture or other liquids. Do not
touch the
TV with wet hands. Do not install
this product near flammable objects such
as gasoline or candles, or expose the TV to
direct
air conditioning.
I

4 IMPORTANT SAFETY INSTRUCTIONS
NEC: National Electrical Code
the National Electrical Code (NEC) in the
U.S.A. provides information with respect to
proper grounding of the mast
and supporting
structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding
conductors, location of antenna discharge
unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
•Cleaning
When cleaning, unplug the power cord and
wipe gently with asoft cloth to prevent
scratching.
Do not spray water or other
liquids directly
on the TV as electric shock
may occur.
Do not clean with chemicals
such
as alcohol, thinners or benzine.
•Moving
Make sure the product is turned off,
unplugged
and all cables have been
removed. It may take 2or more people to
carry larger
TVs. Do not press or put stress
on the front panel of the TV.
•Ventilation
Install your TV where there is proper
ventilation.
Do not install in aconfined
space such
as abookcase. Do not cover the
product with cloth
or other materials while
plugged.
Do not install in excessively dusty
places.
•If you smell smoke or other odours coming
from the
TV, unplug the power cord contact
an authorized service center.
•
Do not press strongly upon the panel with
hand or sharp object such as nail, pencil or
pen, or make ascratch
on it.
•Keep the product away from direct sunlight.
~~
Ground Clamp __ T=+_---+_ '-":;ll
I I
rt--+-- Antenna Discharge Unit
Electric Service (NEe Section 810-20)
Equipment
~=t=~~¥i~j]- Grounding Conductof
Ground Clamp _L --L ~ (NEC Section 810-211
':' ~ -- Power Service Grounding
Electrode System
(NEC
Art 250, Part HI
Short-circuit Breaker
• Do not expose to dripping or splashing and
do not place objects filled with liquids, such
as vases, cups, etc. on or over the apparatus
(e.g.
on shelves above the unit).
•Grounding
Ensure that you connect the earth ground
wire to preveht possible electric shock
(i.e. a TV with athree-prong grounded AC
plug must be connected to athree-prong
grounded
AC outlet). If grounding methods
are not possible, have aqualified electrician
install aseparate circuit breaker.
Do not try to
ground the unit by connecting it to telephone
wires, lightening rods, or
gas pipes.
•DISCONNECTING DEVICE FROM THE MAIN
POWER
The power outlet must remain readily
accessed
in the event the device needs to
be unplugged.
•
As long as this unit is connected to the AC
wall outlet, it is not disconnected from the
AC power source even if the unit is turned
off.
• Do not attempt to modify this product in any
way without written authorization from
LG
Electronics. Unauthorized modification could
void the user's authority to operate this
product.
•ANTENNAS Outdoor antenna grounding
(Can differ by country):
If
an outdoor antenna is installed, follow
the precautions below. An outdoor antenna
system should not be located
in the vicinity
of overhead power lines or other electric light
or power circuits, or where it
can come in
contact with such power lines or circuits as
death or serious injury can occur. Be sure the
antenna system
is grounded so as to provide
some protection against voltage surges
and built-up static charges. Section 810 of
I

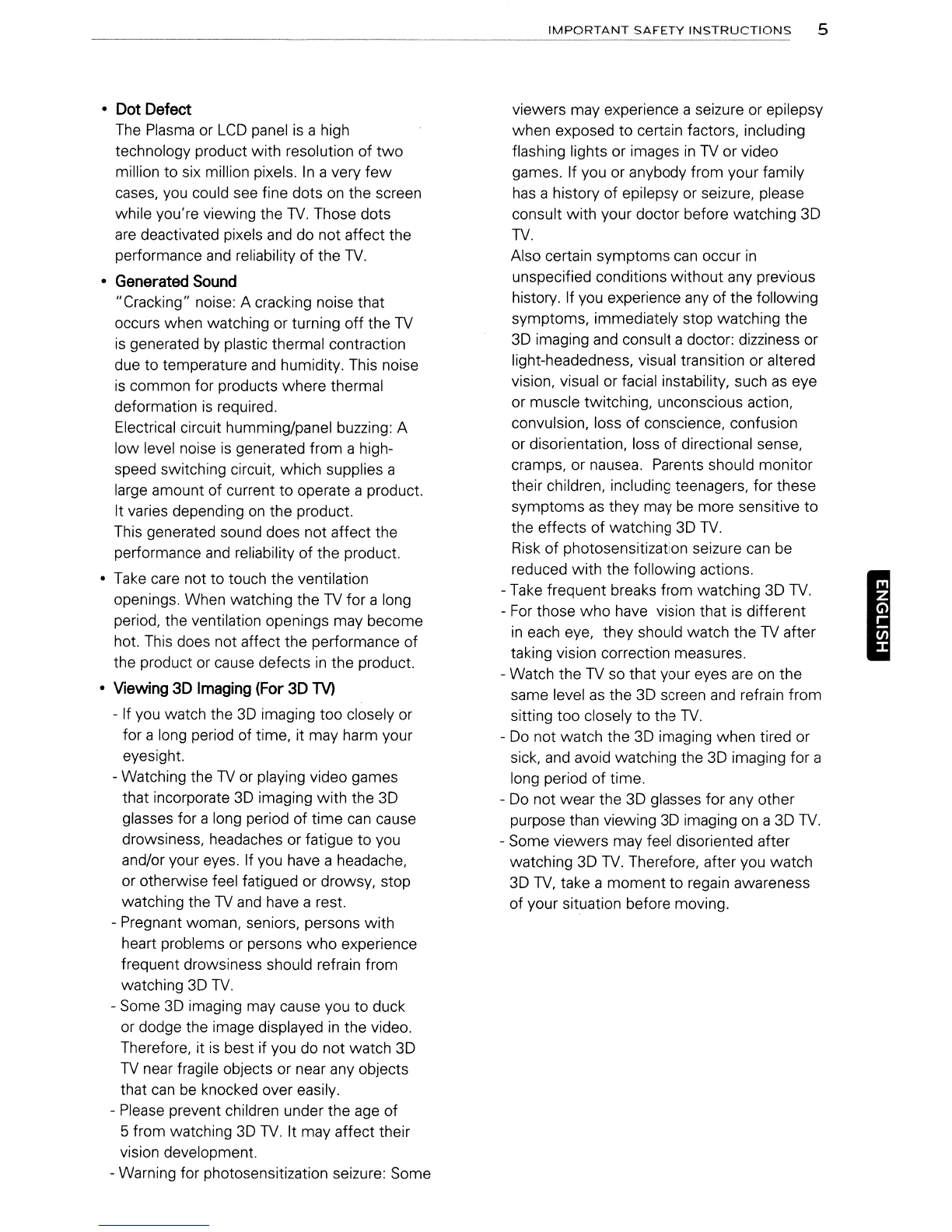

• Dot Defect
The Plasma or LCD panel is ahigh
technology product with resolution of
two
million to six million pixels. In avery few
cases, you could see fine dots on the screen
while you're viewing the
IV. Those dots
are deactivated pixels and do not affect the
performance
and reliability of the IV.
• Generated Sound
"Cracking" noise: Acracking noise that
occurs when watching or turning
off the IV
is generated by plastic thermal contraction
due to temperature
and humidity. This noise
is common for products where thermal
deformation
is required.
Electrical circuit humming/panel buzzing: A
low level noise
is generated from ahigh-
speed switching circuit, which supplies a
large amount of current to operate aproduct.
It varies depending
on the product.
This generated sound does not affect the
performance
and reliability of the product.
•
Take care not to touch the ventilation
openings. When watching the
IV for along
period, the ventilation openings may become
hot. This does not affect the performance of
the product or cause defects
in the product.
• Viewing 3D Imaging (For 3D TV)
-If you watch the 3D imaging too closely or
for along period of time, it may harm your
eyesight.
-Watching the
IV or playing video games
that incorporate
3D imaging with the 3D
glasses for along period
of time can cause
drowsiness, headaches or fatigue to you
and/or your eyes. If you have aheadache,
or otherwise feel fatigued or drowsy, stop
watching the
IV and have arest.
-Pregnant woman, seniors, persons with
heart problems or persons
who experience
frequent drowsiness should refrain from
watching
3D TV.
-Some 3D imaging may cause you to duck
or dodge the image displayed
in the video.
Therefore, it
is best if you do not watch 3D
IV near fragile objects or near any objects
that
can be knocked over easily.
-Please prevent children under the age of
5from watching
3D TV. It may affect their
vision development.
-Warning for photosensitization seizure: Some
IMPORTANT SAFETY INSTRUCTIONS 5
viewers may experience aseizure or epilepsy
when exposed to certain factors, including
flashing lights or images
in IV or video
games. If you or anybody from your family
has ahistory of epilepsy or seizure, please
consult with your doctor before watching 3D
IV.
Also certain symptoms can occur in
unspecified conditions without any previous
history. If you experience
any of the following
symptoms, immediately stop watching the
3D imaging and consult adoctor: dizziness or
light-headedness, visual transition or altered
vision, visual or facial instability, such
as eye
or muscle twitching, unconscious action,
convulsion, loss
of conscience, confusion
or disorientation, loss
of directional sense,
cramps, or nausea. Parents should monitor
their children, including teenagers, for these
symptoms
as they may be more sensitive to
the effects
of watching 3D IV.
Risk of photosensitization seizure can be
reduced
with the following actions.
-
Take frequent breaks from watching 3D IV.
- For those who have vision that is different
in each eye, they should watch the IV after
taking vision correction measures.
-Watch the
TV so that your eyes are on the
same level
as the 3D screen and refrain from
sitting too closely to the
IV.
- Do not watch the 3D imaging when tired or
sick, and avoid watching the 3D imaging for a
long period
of time.
-Do not wear the 3D glasses for any other
purpose than viewing
3D imaging on a3D IV.
-Some viewers may feel disoriented after
watching 3D
IV. Therefore, after you watch
3D IV, take amoment to regain awareness
of your situation before moving.
I

I
6 IMPORTANT SAFETY INSTRUCTIONS
••
If the TV feels cold to the touch, there may
be asmall "flicker" when it is turned on. This
is normal, there is nothing wrong with TV.
Some minute dot defects may be visible on
the screen, appearing as tiny red, green, or
blue spots. However, they
have no adverse
effect
on the TV's performance. Avoid
touching the
LCD screen or holding your
finger(s) against it for long periods of time.
Doing so may produce some temporary
distortion effects
on the screen.
The fluorescent lamp used
in this product contains
asmall amount of mercury. Do not dispose of this
product with general household waste. Disposal of
this product must be carried out
in accordance to
the regulations of your local authority.
For USA
,NOTE TO CA6lE!TV"JNSTA:tt:ER,
This reminder is provided to call the CATV system
installer's attention to Article 820-40 of the
National Electric Code (U.S.A.). The code provides
guidelines for proper grounding
and, in particular,
specifies that the cable ground shall be connected
to the grounding system of the building,
as close
to the point of the cable entry
as practical.
Prexenfirlg' "Imagebl.!~tl'" or "aurn~.in/lonyour TV scree.n
•If afixed image displays on the TV screen for
along period of time, it will
be imprinted and
become apermanent disfigurement on the
screen. This
is "image burn" or "burn-in" and
not covered by the warranty.
•If the aspect ratio of the
TV is set to 4:3 for a
long period of time, image burn may occur
on
the letterboxed area of the screen.
•Avoid displaying afixed image
on the TV screen
for along period of time
(2 or more hours for
LCD, 1 or more hours for the Plasma TV) to
prevent image burn.
Additional information
Viewingfhe OWn~r·s.rna(lual
The owner's manual in PDF file format is supplied
on the enclosed CD. Install the Adobe Acrobat
Reader
to view the owner's manual on your Pc.
1Insert the supplied CD.
The web page appears automatically.
2Click Owner's Manual on the web page.
·~!L
T~," co '"CI"" •• ""ront RUder .,"' .. :111." Ill ..... lI>Ili.led 1",,'lU"')6" Ulow
_~_:;'1-.;;;;,7 IQ."l;Il_'Ii .. ,;u"ti.91n"a-'lC.a!'Om:il,o_.\~_i~"""·i'
3View the owner's manual.
,--0 NOTE
•If the web page does not appear
automatically, access
My computer and then
click
LG and index.html to view the owner's
manual.
oNOTE ------------------------------
· == :Plasma TV
• : LED LCD TV, LCD TV
•Image shown may differ from your TV.
•Your TV's OSD (On Screen Display) may
differ slightly from that shown
in this manual.

TABLE OF CONTENTS
2IMPORTANT SAFETY INSTRUCTIONS
7
TABLE OF CONTENTS
8ASSEMBLING AND PREPARING
8 Unpacking
11 Optional Extras
12 Parts
and buttons
17 Lifting and moving the TV
17 Setting up the TV
17 - Attaching the stand
24 - Mounting on a table
24 - Mounting on awall
26 REMOTE CONTROL
29 Magic Motion Remote Control Functions
30 -Registering Magic Motion Remote Control
30 -How to use Magic Motion Remote Control
30 - Precautions to Take when Using the
Magic Motion Remote Control
31 WATCHING TV
31 Connecting an antenna or cable
31 - Connecting an antenna or basic cable
31 Turning the TV on for the first time
32 Watching TV
33 Using the quick menu
34 Accessing Home Menu
35 ENTERTAINMENT
35 Network Connection
35 - Connecting to awired network
36 - Connecting to awireless network
37 - When a security code is already set
40 Premium Account Function
40 - Notice
42 LG Apps function
42 - Registration LG Apps
43 - Sign in with LG Apps account
44 - Using LG Apps
45 - Using My Apps
46 Smart Share Function
46 - Connecting USB storage devices
47 - Connecting DLNA DMP (Digital Living
Network Alliance, Digital Media Player)
50 - Connecting DLNA DMR (Digital Living
TABLE OF CONTENTS 7
Network Alliance, Digital Media Render)
51 - Browsing files
52 3D IMAGING (FOR 3D TV)
52 3D Technology
52 - When watching 3D imaging
52 - When using 3D Glasses
52 - 3D Imaging Viewing Range
53 Viewing 3D Imaging
53 - Setting 3D Imaging
55 OPEN SOURCE SOFTWARE NOTICE
55 MAKING CONNECTIONS
56 Connection Overview
57 Connecting to a HD receiver, DVD, or VCR
player
57 - HDMI Connection
58 -DVI to HDMI Connection
59 - Component Connection
60 - Composite Connection
62 Connecting to aPC
62 - HDMI Connection
63 -DVI to HDMI Connection
64 -RGB Connection
66 TROUBLESHOOTING
68 SPECIFICATIONS
I

8 ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations
in this manual may differ from the actual
product
and item.
o
0000
ODD
8GB
oeD
rno
rr=r:1
plo)J
~
000
ClOQ
Do
I
Remote control.
Batteries (AAA)
Polishing cloth1
(Depending on model)
<J
()
Owner's manual
Cleansing Cloths (Mitt)2
(Depending
on model)
CD manual
w ....
o:
V
Nero MediaHome 4Essentials
CD
Magic Motion Remote Control3,
Strap,
Batteries
(AA)
(Except LV3700, LV5400, LW5700,
LK530, LK550 series
1Gently wipe the spots
on the cabinet with the polishing cloth.
2Wipe spots on the exterior only with the cleansing cloths.
Do not wipe roughly when removing stains. Excessive pressure
may cause scratches or discoloration.
For cleaning front frame, please slowly wipe
in one direction
after spraying
water 1-2 times on cleansing cloths. Please
remove excessive moisture after cleaning. Excessive moisture
may cause
water stains on the frame.
3Sold seperately for LV3700, LV5400, LW5700, LK530, LK550
series.

ASSEMBLING AND PREPARING 9
PZ750, PZ950, PZ950U series
14
~X3
1
x4 ~X4
~
:? xII
~
Qu
QQ
o
\'>O""Q
M4x26 M5 x14.5 M4x28 M5 x14.5
Screw for assembly Screw for assembly Cable holder Power cord holder
(50PZ750/950/950U) (60PZ750/950/950U)
01
Power cord Wireless LAN for
Broadband/DLNA Adaptor
(AN-WF100)
(PZ950, PZ950U series)
Ferrite Core Protection cover,
Tape
LV3700, LV5400, LV5500, LW5600, LW5700, LW6500, LWnOO, LW9500, LZ9700 series I
M5 x35 M4 x26
M4x 16
3D Glasses (AG-S250)
(PZ950U series)
M4 x 12
Screw for assembly
(LV3700, LV5400, LV5500,
LW5600, LW5700, LW7700
series, 47/55LW6500)
Screw for assembly
(LW9500 series,
65LW6500)
Screw for assembly
(LZ9700 series) Power cord (LZ9700 series)
Composite gender cable Component gender cable
x4
co 1
Cable holder Screw for fixing
(32LW5700)
3D Glasses
(AG-P110, AG-F11 0)
(LW5600, LW5700,
LW6500 series)
Wireless LAN for
Broadband/DLNA
Adaptor
(AN-WF100)
(Except LW9500 series)

10 ASSEMBLING AND PREPARING
LK530, LK550 series
M4 x 20
Screw for assembly Protection cover Power cord Screw for fixing
(42LK530, 42LK550)
l
I
Composite gender cable Component gehder cable Wireless LAN for
Broadband/DLNA Adaptor
(AN-WF100)
& CAUTION - -----.---
•Do not use any unapproved items to ensure the safety and product life span.
•Any damages or injuries by using unapproved items
are not covered by the warranty.
,0 NOTE --------------------
I • The items supplied with your product may vary depending on the model.
•Product specifications or contents of this manual may
be changed without prior notice due to
upgrade of product functions.
• (18l) How to use the ferrite core
-Use the ferrite core to reduce the electromagnetic interference
in the LAN cable.
Wind the
LAN cable on the ferrite core once. Place the ferrite core close to the TV.
[to the TV)
[to an External device)
• (0) For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm
(0.39 inch) thick and 18 mm (0.7 inch) width.
*A< 10 mm (0.39 inch)
*8 <18 mm (0.7 inch)
............ - - -__ __ .--_. __ . .. __ _._ _____ .. _ .. __ _-_ _--_._-- _..•. __ .. _--_._._-_. __ _-------_ .. _-- .. -)

ASSEMBLING AND PREPARING 11
Optional Extras
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer for buying these items.
These device only works
with compatible LG LED LCD TV, LCD TV, or Plasma TV.
J,=:=""'---===:=lJ:i[)
Wireless Media Box1
(AN-WL1 OOW)
o
()
@
O
n
u
o
Magic Motion Remote
(AN-MR200)
3D Glasses2
(AG-S230, AG-S250, AG-S270)
D-sub 15 pin signal cable4
co }
Wireless LAN for Broadband/DLNA
Adaptor3
(AN-WF100)
3D Glasses5
(AG-P110, AG-F11 0)
I
Supports for LV3700, LV5400, LV5500, LW5600, LW5700, LW6500, LW7700, LW9500, PZ750, PZ950,
PZ950U series
2Supports for LWnOO, LW9500, LZ9700, PZ750, PZ950, PZ950U series
3Unnecessary for LW9500 series
4When using the
VGA (D-sub 15 pin signal cable) PC connection, use the shielded signal interface cable
with aferrite core to maintain standards compliance for the product.
5Supports for LW5600, LW5700, LW6500 series

I
12 ASSEMBLING AND PREPARING
Parts and buttons
PZ750, pi950,PZ950U series
.-. "'" - ,.,' ". ~,-- -
,....-----J= Screen
LV5400, 1,..\,15500, LW6500 series
.. - • ., A -. 4
n=======E Screen
--i+---Remote control and
intelligent' sensors
----Power indicator
+vH
~
C>/I
CH VOL ENTER·:!) HOME INPUT
Touch buttons2
or
+vH
~
<!l
CH VOL ENTER~
HOME INPUT
c>/I
Touch button
2
Description
6/1
Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input
and exits the menus.
ENTER @Selects the highlighted menu option or confirms
an input
-VOL +Adjusts the volume level.
v
CH /\ Scrolls through the saved channels.
1Intelligent sensor -Adjusts the image quality and brightness based on the surrounding environment.
2All
of the buttons are touch sensitive and can be operated through simple touch with your finger.

LW5700, LW7700 seri~s.
ASSEMBLING AND PREPARING 13
LW5600 series
~>
F=======E=s=c=re=e=n======~
F===-=-=-E Screen
v CH A - VOL +ENTER@ HOME
r---,
!
81
e!
G +- Buttons
+I
~I
i
0,
o
@
sensors,
I
Button Description
~II
Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu. or saves your input
and exits the menus.
ENTER @Selects the highlighted menu option or confirms
an input
-VOL +Adjusts the volume level.
v
CH /\
Scrolls through the saved channels.
1Intelligent sensor -Adjusts the image quality and brightness based on the surrounding environment.
2
All of the buttons are touch sensitive and can be operated through simple touch with your finger.

I
14 ASSEMBLING AND PREPARING
LW9500 series
~=====E Screen
Ii :1111 Remote control and
~=_ _ . . '::.lL-IntelUgenl' <en,o"
~~1\ Pow",lndkalo<
Speakers I \
r;------------J "---
U ~ CH ~ _VOL + EN~ER@ H~E IN~PUT <!l~' j] Touch buttons2
Screen
Speakers
I
CH VOL ENTER@ HOME INPUT <!JII II 2
. ~ ~ - + -/ H ~ <'>~ Touch buttons
<======================== j
Touch button
2
Description
6/1
Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input
and exits the menus.
._-
ENTER @Selects the highlighted menu option or confirms
an input
-VOL +Adjusts the volume level.
Iv CH 1\
Scrolls through the saved channels.
1Intelligent sensor -Adjusts the image quality and brightness based on the surrounding environment.
2All of the buttons
are touch sensitive and can be operated through simple touch with your finger.

ASSEMBLING AND PREPARING 15
,LV3700 sari,s
,--- ~ Screen
- VOL +ENTER@ HOME
~LK550 series
-.." .,
~screen
r--
II ~ CH ~ -VOL + ENTER" HOME
\...=
Touch button
2
Description
<9/1
Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input
and exits the menus.
ENTER @Selects the highlighted menu option or confirms
an input
-VOL +Adjusts the volume level.
v
CH /\
Scrolls through the saved channels.
1Intelligent sensor -Adjusts the image quality and brightness based on the surrounding environment.
2
All of the buttons are touch sensitive and can be operated through simple touch with your finger.
I

16 ASSEMBLING AND PREPARING
LK530 series
r:;screen
Speakers
;.
I-~l
I <0 I
I®IButtons
i
(3 I
I ENTER<t>~
III 2E i
01
IINPUT
r~~~=_o ,J~l ~ I
l' po~., ;nd;;ato,
L Remote contwl and
intelligent1sensors
I
Button
Description
<9/1
Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input
and exits the menus.
ENTER @Selects the highlighted menu option or confirms
an input
-VOL +Adjusts the volume level.
v
CH /\ Scrolls through the saved channels.
"------------_.-
Intelligent sensor -Adjusts the image quality and brightness based on the surrounding environment.

ASSEMBLING AND PREPARING 17
Lifting and moving the TV
Setting up the TV
When moving or lifting the TV, read the following
to prevent the
TV from being scratched or
damaged and for safe transportation regardless
of
its type and size.
Put your
TV on apedestal stand and mount the TV
on atable or wall.
Attaching the stand
& CAUTION --.----------------
•Avoid touching the screen at all times, as
this may result in damage to the screen.
If you
are not mounting the TV to awall, use the
following instructions to attach the stand.
PZ150,. PZ950, PZ950Useries
i:t' .. )t-~-·. :.:. - >.", . .:. ~,'. __ . ,,-'.
Stand Body
Stand Base
I
Lay the TV with the screen side down on aflat
surface.
r& CAUTION ----------.,
•Lay afoam mat or soft protective cloth
on the surface to protect the screen from
damage. Make sure no objects press
against the screen.
~~ " " Stand Body
/~"
, ;'5J ~, .'
Model Screwfor Number of
assembly screws
5OPZ750, M5 x14.5 3
50PZ950,
50PZ950U
6OPZ750,
M5 x14,5 4
6OPZ950,
6OPZ950U
2Assemble the parts of the stand body with the
stand base
of the TV.
•It is recommended to move the TV in the
box or packing material that the
TV originally
came
in.
•Before moving or lifting the TV, disconnect
the power cord
and all cables.
•When holding the
TV, the screen should face
away from you to avoid damage.
~
~
•Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill
area.
•When transporting alarge TV, there should
be at least 2people.
•When transporting the
TV by hand, hold the
TV as shown in the following illustration.
~
•When transporting the TV, do not expose the
TV to jolts or excessive vibration.
•When transporting the
TV, keep the TV
upright, never turn the TV on its side or tilt
towards the left or right.
Stand Base

18
ASSEMBLING AND PREPARING
I
3Secure the lV and the stand with the 4
screws.
Model
Screw for Number of
assembly screws
5OPD50, M4x 26
4
5OPZ950,
5OPZ950U
6OPD50,
M4x28 4
6OPZ950,
6OPZ950U
i&CAUTION
I •Tighten the screws firmly to prevent
Ithe TV from tilting forward. Do not over
Itighten.
To detach the stand,
1 Lay the lV with the screen side down on aflat
surface.
2Remove the 4screws and pull the stand away
from the
lV.
Model
Screw for Number of
assembly
screws
50PD50.
M4 x 26 4
50PZ950,
5OPZ950U
6OPD50.
M4 x 28 4
60PZ950,
60PZ950U
3 Push the supplied protection cover into the
opening at the bottom of the
lV until it locks in
place.
Attach the protection cover tape.
-This will protect the opening from
accumulating dust and dirt.
-When installing the wall mounting bracket,
use the protection cover.
Protection cover tape
Protection cover

~' "'-1
··4V~"
,t;Wf"{
1 Lay the TV with the screen side down on aflat
surface.
1& CAUTION
I • Lay afoam mat or soft protective cloth
I
;
on the surface to protect the screen from
damage. Make sure
no objects press
against the screen.
2Assemble the parts of the stand body with the
stand base of the
TV.
Model
Screw for Number of
assembly
screws
LV3700,
M4 x 12
4
LV5400,
LV5500,
LW5600,
LW5700,
LW7700 series,
47/55LW6500
65LW6500
M4 x 16 4
V---..!'i-+-- Stand Body
Stand Base
ASSEMBLING AND PREPARING 19
3Secure the TV and the stand with the 4
screws.
Model
Screw for Number of
assembly screws
LV3700.
M4x 12 4
LV5400.
LV5500,
LW5600.
LW5700,
LW7700 series.
47/55LW6500
65LW6500
M4x 16
4
r& CAUTION
•Tighten the screws firmly to prevent
the
TV from tilting forward. Do not over
tighten.
To detach the stand,
1 Lay the TV with the screen side down on aflat
surface.
2Remove the 4screws and pull the stand away
from the
TV.
I
Screw for assembly
M4x 12
Number of screws
4

20 ASSEMBLING AND PREPARING
2Assemble the parts of the stand body with the
stand base of the
TV.
1 Lay the TV with the screen side down on aflat
surface.
1& CAUTION
! •
• Lay afoam mat or soft protective cloth
on the surface to protect the screen from
damage. Make sure no objects press
against the screen.
Number of screws
4
Screw for assembly
M4 x16
1& CAUTION -----------,
j • Tighten the screws firmly to prevent
the
TV from tilting forward. Do not over
tighten.
4Secure the TV and the stand with the 4
screws.
Number of screws
4
Screw for assembly
M4 x16
2Remove the 4screws and pull the stand away
from the
TV.
To detach the stand,
Lay the TV with the screen side down on aflat
surface.
IStand Base Screw
for assembly Number of screws
3Assemble the parts of the stand rear cover
with the
TV.
Stand Rear Cover
M4x 16
4
