LG MT77 Series User manual

Please read this manual carefully before operating your TV
and retain it for future reference.
www.lg.com
OWNER’S MANUAL
Safety and Reference
MT57* MT77* MT47*

ENG
ENGLISH
2
Table of contents
3 Licenses
3 Open source software notice
information
3 Preparing
4 Lifting and moving the TV
4 Setting up the TV
4 Using the joystick button
4 -Basic functions
5 -Adjusting the menu
5 Using the touch buttons
5 Mounting on a table
5 -Adjusting the angle of the TV to suit view
6 -Using the kensington security system
6 Mounting on a wall
6 -Separate purchase
(Wall mounting bracket)
7 Connections (notifications)
7 -Antenna connection
7 -Satellite dish connection
7 -CI module connection
7 -Euro scart connection
7 -Other connections
7 -Connecting to a PC
8 Remote control
9 Settings
12 To see web manual
13 Maintenance
13 -Cleaning your TV
13 -Screen, frame, cabinet and stand
13 -Power cord
13 -Preventing “Image burn” or“Burn-in”on
your TV screen
13 Troubleshooting
14 Specifications
NOTE
yLG LED TVs are LCD TVs with LED backlighting.

ENGENGLISH
3
NOTE
yImage shown may differ from your TV.
yYourTV’s OSD (On Screen Display) may differ slightly from that
shown in this manual.
yThe available menus and options may differ from the input
source or product model that you are using.
yNew features may be added to this TV in the future.
yTheTV can be placed in standby mode in order to reduce the
power consumption. And theTV should be turned off if it
will not be watched for some time, as this will reduce energy
consumption.
yThe energy consumed during use can be significantly reduced
if the level of brightness of the picture is reduced, and this will
reduce the overall running cost.
yThe items supplied with your product may vary depending on
the model.
yProduct specifications or contents of this manual may be
changed without prior notice due to upgrade of product
functions.
yFor an optimal connection, HDMI cables and USB devices
should have bezels less than 10 mm thick and 18 mm width.
Use an extension cable that supports USB 2.0 if the USB cable
or USB memory stick does not fit into your TV’s USB port.
A
B
A
B
*A
<
=
10 mm
*B
<
=
18 mm
yUse a certified cable with the HDMI logo attached. If you do
not use a certified HDMI cable, the screen may not display or a
connection error may occur.
yRecommended HDMI cable types
- High-Speed HDMI®/™cable
- High-Speed HDMI®/™cable with Ethernet
CAUTION
yDo not use any unapproved items to ensure the safety and
product life span.
yAny damage or injuries caused by using unapproved items are
not covered by the warranty.
ySome models have a thin film attached on to the screen and
this must not be removed.
Preparing
Licenses
Supported licenses may dier by model. For more information about
licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. Dolby and
the double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Denition Multimedia Interface,
and the HDMI logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
This DivX Certied® device has passed rigorous testing to ensure it
plays DivX® video.
To play purchased DivX movies, rst register your device at vod.
divx.com. Find your registration code in the DivXVOD section of
your device setup menu.
DivX Certied® to play DivX® video up to HD 1080p, including
premium content.
DivX®, DivX Certied® and associated logos are trademarks of DivX,
LLC and are used under license.
Covered by one or more of the following U.S. patents:
7,295,673; 7,460,668; 7,515,710; 7,519,274.
Open source software
notice information
To obtain the source code under GPL, LGPL, MPL, and other open
source licenses, that is contained in this product, please visit http://
opensource.lge.com.
In addition to the source code, all referred license terms, warranty
disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM
for a charge covering the cost of performing such distribution (such
as the cost of media, shipping, and handling) upon email request to
opensourc[email protected]. This oer is valid for three (3) years from the date
on which you purchased the product.

ENG
ENGLISH
4

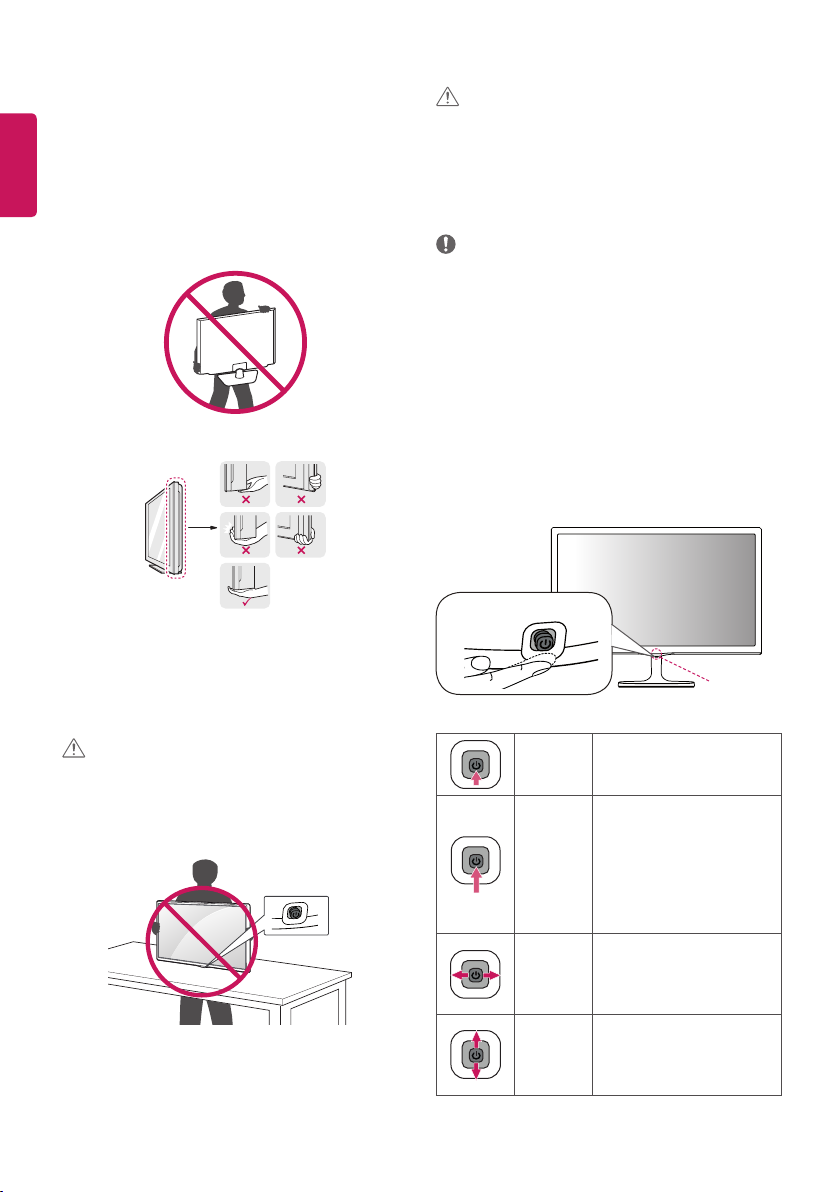

Lifting and moving the TV
Please note the following advice to prevent theTV from being
scratched or damaged and for safe transportation regardless of its
type and size.
yIt is recommended to move the TV in the box or packing
material that theTV originally came in.
yBefore moving or lifting theTV, disconnect the power cord and
all cables.
yWhen holding the TV, the screen should face away from you to
avoid damage.
yHold the top and bottom of theTV frame firmly. Make sure not
to hold the transparent part, speaker, or speaker grill area.
yWhen transporting the TV, do not expose the TV to jolts or
excessive vibration.
yWhen transporting the TV, keep the TV upright, never turn the
TV on its side or tilt towards the left or right.
yDo not apply excessive pressure to cause flexing /bending of
frame chassis as it may damage screen.
CAUTION
yAvoid touching the screen at all times, as this may result in
damage to the screen.
yWhen handling the TV, be careful not to damage the
protruding joystick button. (Depending on model)
Using the joystick button
(Only 22/24/27MT57*, 24MT77*, 22/24/28/29MT47*)
You can simply operate the TV functions, pressing or moving the
joystick button up, down, left or right.
yImage shown may differ from your TV.
Setting up the TV
CAUTION
yWhen attaching the stand to theTV set, place the screen facing
down on a cushioned table or flat surface to protect the screen
from scratches.
yDo not carry the monitor upside-down by holding the stand
body (or stand base) as this may cause it to fall off, resulting in
damage or injury.
NOTE
yRemove the stand before installing the TV on a wall mount
by performing the stand attachment in reverse. (Only MT57*,
MT77*)
yLift up the latch at the bottom of the stand base and detach
the stand base from theTV. (Only MT47*)
Basic functions
Power On
When the TV is turned o, place
your nger on the joystick button
and press it once and release it.
Power O
When the TV is turned on, place
your nger on the joystick button
and press it once for a few seconds
and release it. (However, if the
Menu button is on the screen,
pressing and holding the joystick
button will let you exit the Menu.)
Volume
Control
If you place your nger over the
joystick button and move it left or
right, you can adjust the volume
level you want.
Programmes
Control
If you place your nger over the
joystick button and move it up or
down, you can scrolls through the
saved programmes you want.
Joystick Button
Remote control
sensor

ENGENGLISH
5

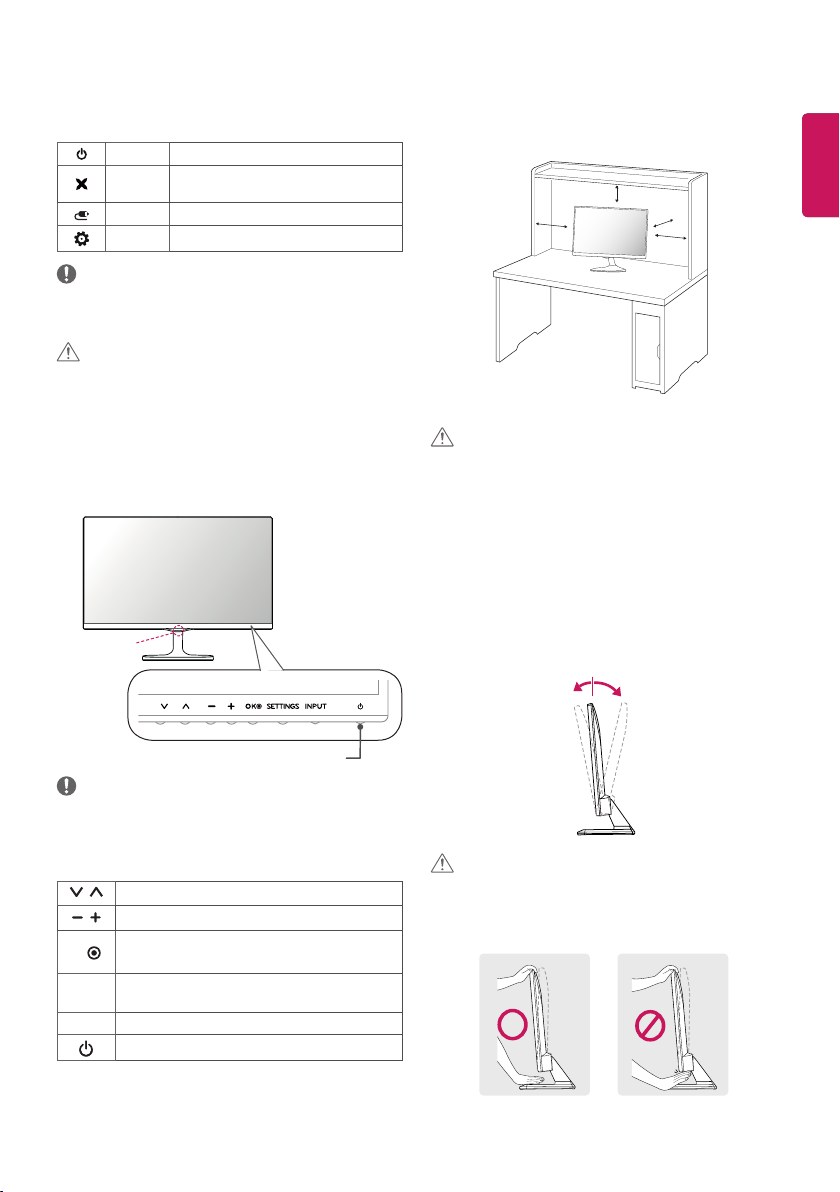

Adjusting the menu
When the TV is turned on, press the joystick button one time. You
can adjust the Menu items moving the joystick button up, down, left
or right.
TV o Turns the power o.
Close Clears on-screen displays and returns toTV
viewing.
Input List Changes the input source.
Settings Accesses the main menu.
NOTE
yIf you press the joystick button first, you may not be able to adjust
the volume level and saved programmes.
CAUTION
yWhen your finger over the joystick button and push it to the up,
down, left or right, be careful not to press the joystick button.
Using the touch buttons
(Only 23/27MT77*)
NOTE
yAll of the buttons are touch sensitive and can be operated through
simple touch with your finger. Power and control touch button are
located on the bottom.
Scrolls through the saved programmes.
Adjusts the volume level.
OK Selects the highlighted menu option or conrms an
input.
SETTINGS Accesses the main menus, or saves your input and exits
the menus.
INPUT Changes the input source.
Turns the power on or o.
Mounting on a table
1 Lift and tilt the TV into its upright position on a table.
yLeave a 10 cm (minimum) space from the wall for proper
ventilation.
10 cm
10 cm
10 cm
10 cm
2 Connect the AC-DC Adapter and Power Cord to a wall outlet.
CAUTION
yDo not place the TV near or on sources of heat, as this may
result in fire or other damage.
yPlease be sure to connect theTV to the AC/DC power adapter
before connecting theTV’s power plug to a wall power outlet.
Adjusting the angle of the TV to suit view
(Only 22/24/27MT57*, 23/24/27MT77*, 22/24MT47*)
Tilt from +20 to -5 degrees up or down to adjust the angle of theTV
to suit your view.
yImage shown may differ from your TV.
Front Rear
+20
-5
CAUTION
yWhen you adjust the angle, do not hold the buttom of the TV
frame as shown on the following illustration, as may injure
your fingers.
Touch buttons
Remote control
sensor

ENG
ENGLISH
6
Mounting on a wall
For proper ventilation, allow a clearance of 10 cm on each side and
from the wall. Detailed installation instructions are available from your
dealer, see the optionalTilt Wall Mounting Bracket Installation and
Setup Guide.
10 cm
10 cm
10 cm 10 cm
If you intend to mount the TV to a wall, attachWall mounting interface
(optional parts) to the back of the TV.
When you install theTV using the wall mounting interface (optional
parts), attach it carefully so it will not drop.
1 If you use screw longer than standard, theTV might be damaged
internally.
2 If you use improper screw, the product might be damaged and
drop from mounted position. In this case, LG Electronics is not
responsible for it.
Separate purchase
(Wall mounting bracket)
Model
22MT57*
22MT47*
23MT77*
24MT57*
24MT77*
24MT47*
27MT57*
27MT77*
28MT47*
29MT47*
Wall mount (A x B)
A
B75 x 75 100 x 100
Standard screw M4 x L10
Number of screws 4
Wall mount bracket
(optional)
RW120
CAUTION
yDisconnect the power first, and then move or install the TV.
Otherwise electric shock may occur.
yIf you install theTV on a ceiling or slanted wall, it may fall and
result in severe injury.
yUse an authorized LG wall mount and contact the local dealer
or qualified personnel.
yDo not over tighten the screws as this may cause damage to
the TV and void your warranty.
yUse the screws and wall mounts that meet the VESA standard.
Any damages or injuries by misuse or using an improper
accessory are not covered by the warranty.
yScrew length from outer surface of back cover should be under
8mm.
Wall mount Pad
Back Cover Standard screw
: M4 x L10
Wall mount Pad
Back Cover
Max.8mm
NOTE
yUse the screws that are listed on theVESA standard screw
specifications.
yThe wall mount kit includes an installation manual and
necessary parts.
yThe wall mount bracket is optional.You can obtain additional
accessories from your local dealer.
yThe length of screws may differ depending on the wall mount.
Be sure to use the proper length.
yFor more information, refer to the instructions supplied with
the wall mount.
Using the kensington security system
(This is not available for all models.)
yImage shown may differ from your TV.
The Kensington security system connector is located at the rear of
the TV. For more information of installation and using, refer to the
manual provided with the Kensington security system or visit http://
www.kensington.com. Connect the Kensington security system cable
between the TV and a table.
NOTE
yThe Kensington security system is optional. You can obtain
additional accessories from most electronics stores.

ENGENGLISH
7
Euro scart connection
Transmits the video and audio signals from an external device to the
TV set. Connect the external device and theTV set with the euro scart
cable.
Output
Type
Current
input mode
AV1
(TV Out1)
Digital TV Digital TV
Analogue TV Analogue TV
Component, AV, HDMI, RGB
1 TV Out : Outputs Analogue TV or Digital TV signals.
NOTE
yAny Euro scart cable used must be signal shielded.
Other connections
Connect yourTV to external devices. For the best picture and audio
quality, connect the external device and the TV with the HDMI cable.
Some separate cable is not provided.
yUSB port supports 0.5 A electric current. If you need more
electric current in case of HDD, use the separate power adaptor.
Connecting to a PC
YourTV supports the Plug & Play* feature and has the built-in speakers
with Virtual Surround that reproduces sound clearly with a rich bass.
* Plug & Play:The function when a PC recognizes a connected device
that users connect to a PC and turn on, without device conguration
or user intervention.
NOTE
yIf you want to use HDMI-PC mode, you must set the Input
Label to PC mode.
yThe OSD (On Screen Display) is displayed on the screen as
shown below.
»When turning the product on in HDMI input.
»When switching to HDMI input.
Is the input connected to your PC?
Do not show message again
Yes No
yIf you select "Yes" the size and image quality are optimised for
your PC.
yIf you select "No" the size and image quality are optimised for
the AV device (DVD player, set-top box).
yIf you select "Do not show message again" this message
does not appear until the TV is reset.You can change the set
value in SETTINGS INPUT Input Label.
yThe values set for HDMI1/HDMI2 are saved independently.
(Only MT57*, MT77*)
Connections (notications)
Connect various external devices to theTV and switch input modes
to select an external device. For more information about an external
device’s connection, refer to the manual supplied with each device.
Available external devices are: HD receivers, DVD players,VCRs, audio
systems, USB storage devices, PC, camcorders or cameras, gaming
devices, and other external devices.
NOTE
yThe external device connection may differ from the model.
yConnect external devices to theTV regardless of the order of
the TV port.
yIf you record a TV programme on a DVD recorder or VCR, make
sure to connect theTV signal input cable to the TV through a
DVD recorder or VCR. For more information of recording, refer
to the manual provided with the connected device.
yRefer to the external equipment’s manual for operating
instructions.
yIf you connect a gaming device to theTV, use the cable
supplied with the gaming device.
yIn PC mode, there may be noise associated with the resolution,
vertical pattern, contrast or brightness. If noise is present,
change the PC output to another resolution, change the refresh
rate to another rate or adjust the brightness and contrast on
the PICTURE menu until the picture is clear.
yIn PC mode, some resolution settings may not work properly
depending on the graphics card.
Antenna connection
Connect the TV to a wall antenna socket with an RF cable (75 Ω).
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal amplifier properly
to improve the image quality.
yIf the image quality is poor with an antenna connected, try to
realign the antenna in the correct direction.
yAn antenna cable and converter are not supplied.
ySupported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus,
HE-AAC
Satellite dish connection
(Only MT57V, MT77V, MT47V, MT47U)
Connect the TV to a satellite dish to a satellite socket with a satellite
RF cable (75 Ω).
CI module connection
(Depending on model)
View the encrypted (pay) services in digital TV mode.
yCheck if the CI module is inserted into the PCMCIA card slot in
the right direction. If the module is not inserted properly, this
can cause damage to the TV and the PCMCIA card slot.
yIf the TV does not display any video and audio when CI+ CAM
is connected, please contact to theTerrestrial/Cable/Satellite
Service Operator.

ENG
ENGLISH
8
Remote control
The descriptions in this manual are based on the buttons on the remote
control. Please read this manual carefully and use theTV correctly.
To replace batteries, open the battery cover, replace batteries
(1.5 V AAA) matching the and ends to the label inside the
compartment, and close the battery cover.To remove the batteries,
perform the installation actions in reverse.
CAUTION
yDo not mix old and new batteries, as this may damage the
remote control.
yThe remote control will not be included for all sales market.
Make sure to point the remote control toward the remote control
sensor on the TV.
hri^Z`^\^_]
A
B
A
(Power) Turns the TV on or o.
Selects Radio, TV and DTV programme.
Recalls your preferred subtitle in digital mode.
By pressing the AD button, audio descriptions function will be
enabled.
Turns the PIP mode on or o. (Depending on model)
Selects TV or PC mode.
Changes the input source.
B
Number buttons Enters numbers.
Accesses the saved programme list.
Returns to the previously viewed programme.
Adjusts the volume level.
Accesses your favourite programme list.
Shows programme guide.
Mutes all sounds.
Scrolls through the saved programmes.
Moves to the previous or next screen.
hri^Z`^\^_]
C
D
C
Teletext buttons ( ) These buttons are used for
teletext.
Views the information of the current programme and
screen.
Accesses the main menus.
Accesses the quick menus.
Navigation buttons (up/down/left/right) Scrolls through
menus or options.
Selects menus or options and conrms your input.
Returns to the previous level.
Clears on-screen displays and returns toTV viewing.
D
Accesses the AV devices connected with the HDMI
cable through HDMI-CEC. Opens the SIMPLINK menu.
Not functional.
Control buttons ( ) Controls the MY MEDIA
menus, or the SIMPLINK compatible devices (USB, SIMPLINK).
Colour buttons These access special functions in some menus.
( : Red, : Green, : Yellow, : Blue)
(Gaming mode) Turns the gaming mode on or o.
(Backlight) Adjusts the brightness of the screen by
controlling the screen backlight.
NOTE
yOn MHEG programme, you cannot adjust the backlight with
the yellow or blue key.

ENGENGLISH
9
Settings
Automatically Setting Up Programme
SETTINGS SETUP Auto Tuning
Automatically tunes the programmes.
yIf Input Source is not connected properly, programme
registration may not work.
yAuto Tuning only finds programmes that are currently
broadcasting.
yIf Lock System is turned on, a pop-up window will appear
asking for password.
To select Picture Mode
SETTINGS PICTURE Picture Mode
Select the picture mode optimized for the viewing environment or the
programme.
yVivid : Heightens contrast, brightness and sharpness to display
vivid images.
yStandard : Displays images in standard levels of contrast,
brightness and sharpness.
yEco/APS: [Depending on model]
The Energy Saver feature changes settings on theTV to reduce
power consumption.
yCinema/Game : Displays the optimum picture for movie,
game.
ySport : Optimizes the video image for high and dynamic
actions by emphasizing primary colours such as white, grass,
or sky blue.
yExpert 1,2 : Menu for adjusting picture quality that
allows experts and amateurs to enjoy the bestTV viewing.
This is the adjustment menu provided for ISF-certified picture
tuning professionals. (ISF logo can only be used on ISF-
certified TVs.)
ISFccc: Imaging Science Foundation Certified Calibration
Control
yDepending on input signal, available range of picture modes
may differ.
yExpert mode is for picture tuning professionals to
control and fine-tune using a specific image. For normal
images, the effects may not be dramatic.
yThe ISF function is only available on some models.
To set advanced control
SETTINGS PICTURE Picture Mode
Advanced Control / Expert Control
Calibrates the screen for each picture mode; or adjusts picture settings
for a special screen. First select a Picture Mode of your choice.
yDynamic Contrast : Adjusts the contrast to the optimal level
according to the brightness of the image.
yDynamic Colour : Adjusts colours to make the image appear
in more natural colours.
ySkin Colour : Sets Skin colour spectrum separately to
implement the skin colour as defined by the user.
ySky Colour : Sky colour is set separately.
yGrass Colour : Natural colour spectrum (meadows, hills, etc.)
can be separately set.
yGamma : Sets the gradation curve according to the output of
picture signal in relation to the input signal.
yColour Gamut : Selects the range of colours that can be
expressed.
yEdge Enhancer : Shows clearer and distinctive yet natural
edges of the video.
yExpert Pattern : [Depending on model]
Patterns used for expert adjustment.
yColour Filter : Filters a specific colour spectrum in RGB colours
to fine-tune colour saturation and hue accurately.
yColour Temperature : Adjusts the overall tone of the screen
as desired. In Expert mode, detailed fine-tuning can be set via
Gamma method, etc.
yColour Management System :This is a system that experts
use when they adjust colour with a test pattern.They can select
from six colour areas (Red / Green / Blue / Cyan / Magenta /
Yellow) without affecting other colours. For normal images,
adjustments may not result in noticeable colour changes.
yDepending on input signal or other picture settings, the range
of detailed items for adjustment may differ.
To set additional picture options
SETTINGS PICTURE Picture Mode Picture Option
Adjusts detailed setting for images.
yNoise Reduction : Eliminates noise in the picture.
yMPEG Noise Reduction : Eliminates noise generated while
creating digital picture signals.
yBlack Level : Adjusts the brightness and contrast of the
screen to suit the black level of the input picture by using the
blackness (black level) of the screen.
yReal Cinema : Optimizes the screen for movie viewing.
yMotion Eye Care : Saves power consumption by adjusting the
brightness corresponding to the movement of the image on
the screen.
yDepending on input signal or other picture settings, the range
of detailed items for adjustment may differ.

ENG
ENGLISH
10
To use Gaming Mode
SETTINGS PICTURE Gaming Mode
[Available only for RGB/HDMI-PC.]
The following modes optimize the picture quality for games.
yDAS Mode : [Depending on model]
Minimizes the time to display the video signal from the input
device to ensure faster and smoother gameplay. (Screen flickers
when turning DAS Mode on/off.)
- DAS : Dynamic Action Sync
yBlack Stabilizer :
Adjusts the black level to clearly see objects
on a dark screen. Increasing the Black Stabilizer value brightens
the low gray levels on the screen. (You can easily distinguish
objects on a dark game screen.) Reducing the Black Stabilizer
value darkens the low gray levels and increases the dynamic
contrast on the screen.
-You can adjust the detailed settings for Gaming Mode using
the [ ] key on the remote control.
-When using Gaming Mode, the picture mode is set to Game, and
you cannot change the picture mode to any other.
-You can set DAS Mode only when the vertical input frequency is
50/60 Hz.
-When using PIP, DAS Mode is unavailable for use.
To use Energy Saving feature
SETTINGS PICTURE Energy Saving
Reduces power consumption by adjusting screen brightness.
yOff : Turns off the Energy Saving mode.
yMinimum / Medium / Maximum : Applies the pre-set
Energy Saving mode.
yScreen Off : Screen is turned off and only sound is played.
Press any button except Power button on the remote control to
turn the screen back on.
To use TV speaker
SETTINGS AUDIO Sound Out TV Speaker
[Depending on model]
Sound is output through the TV speaker.
To use Headphone
SETTINGS AUDIO Sound Out Headphone
[Depending on model]
Sound is output through the headphone connected to the earphone/
headphone port.
To synchronize audio and video
SETTINGS AUDIO AV Sync. Adjust
Synchronizes video and audio directly when they do not match.
yIf you set AV Sync. Adjust to ON, you can adjust the sound
output (TV speakers) to the screen image.
To use SIMPLINK
SIMPLINK is a feature that enables you to control and manage various
multimedia devices conveniently via the SIMPLINK menu.
1 Connect the TV’s HDMI IN terminal and the SIMPLINK device’s HDMI
output terminal using an HDMI cable.
2 Select INPUT SimpLink.
SIMPLINK menu window appears.
3 In SIMPLINK Setting window, set SIMPLINK function to ON.
4 In SIMPLINK menu window, selects the device you want to control.
yThis function is only compatible with devices with the
SIMPLINK logo.
yTo use the SIMPLINK function, you need to use a high-
speed HDMI® cable (with CEC (Consumer Electronics Control)
feature added). High-speed HDMI® cables have the No. 13 pin
connected for information exchange between devices.
yIf you switch to another input, the SIMPLINK device will stop.
yIf a third-party device with the HDMI-CEC function is also used,
the SIMPLINK device may not work normally.
yIf you select or play media from a the device with a home
theatre function, the HT Speaker(Speaker) is automatically
connected.
SIMPLINK function description
yDirect Play : Plays the multimedia device on theTV instantly.
ySelect multimedia device : Selects the desired device via
the SIMPLINK menu to control it from the TV screen instantly.
yDisc playback : Manages the multimedia device with theTV
remote control.
yPower off all devices :When you power off theTV, all
connected devices are turned off.
ySync Power on : When the equipment with SIMPLINK
function connected HDMI terminal starts to play, theTV will
automatically turn on.
To set password
SETTINGS LOCK Set Password
Sets or changes the TV password.
The initial password is set to‘0000’.
yWhen France is selected for Country, password is not‘0000’but
‘1234’.
yWhen France is selected for Country, password cannot be set to
‘0000’.
To return Factory Reset
SETTINGS OPTION Factory Reset
All stored information is deleted and TV settings are reset.
TheTV turns itself o and back on, and all settings are reset.
yWhen Lock System is in place, a pop-up window appears and
asks for password.
yDo not turn off the power during initialization.
