LG RE28FZ10RX User manual

Colour Television
OWNER’S MANUAL
Please read this manual carefully before operating your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote this
information to your dealer when you require service.
Model number :
Serial number :
P/NO : 3828VA0333D (MC022A, 077Z/088B TX)
(3840VA0024A/B, 3840VA0016C, 373-026F)
FOR THE GUARANTEE TERMS & CONDITIONS,
PLEASE REFER TO BACK COVER OF THIS MANUAL

Contents
Installation 3
Location and function of controls 4
Remote control handset
Battery installation
Front panel
Basic operation 7
On and off / Programme selection
Volume adjustment / Quick view
Mute function / Auto Demonstration
On screen language selection (option)
On screen menus 8
Menu selection
Setting up TV stations 9
Auto programme tuning
Manual programme tuning
Fine Tuning
Programme edit / Favourite programme
Calling the programme table
Picture adjustment 14
Picture adjustment / Eye (option) / Picture format
Turbo picture selection (option)
Sound adjustment 16
Sound adjustment / Turbo sound selection (option)
Stereo/Dual reception
NICAM reception (option)
Sound output selection
Time setting 18
Time / On/Off time
On Programme number / Volume / Auto sleep
Other functions 19
TV and AV modes / Auto AV switching (option)
Child lock / Blue back
Degaussing / Tilt (option) / Sleep timer
Teletext (option) 21
Switch on/off
SIMPLE text
TOP text (option)
FASTEXT mode
Special teletext functions
Connection of external equipment 24
Aerial socket
Euro scart sockets
Audio/Video in sockets (option)
Audio out sockets (AUDIO OUT) (option)
S-video/Audio in sockets (S-AV) (option)
Headphone socket (option)
Troubleshooting check list 26
2

Installation
Power
This set operates on an AC mains supply, the voltage is as indicat-
ed on the label on the back cover. Never apply DC power to the set.
In the event of thunderstorms or powercuts, please pull out the aer-
ial and mains plugs.
Warning
To prevent fire or shock hazard, do not expose the set to rain or
moisture.
Wiring (in U.K. only)
This set is supplied with a BS 1363 approved 13 amp mains plug,
fused at 5 amp. When replacing the fuse always use a 5 amp BS
1362, BSI orASTAapproved type. Never use this plug with the fuse
cover omitted. To obtain a replacement fuse cover contact your
dealer or “LG Electronics U.K. Ltd.”
If the type of plug supplied is not suitable for the mains sockets in
your home, then the plug should be removed and a suitable type fit-
ted. Please refer to the wiring instructions below:
Warning (in U.K. only)
Amains plug removed from the mains lead of this set must be
destroyed.A mains plug with bared wires is hazardous if inserted in
a mains socket.
Do not connect either wire to the earth pin, marked with the letter E
or with the earth symbol or coloured green or green and yellow.
If any other plug is fitted, use a 5 amp fuse, either in the plug, or at
the distribution board.
Important (in U.K. only)
The wires in this mains lead are coloured in accordance with the fol-
lowing codes:
BLUE: NEUTRAL
BROWN: LIVE
As the colours of the wires in the mains lead of this set may not cor-
respond with the coloured marking identifying the terminals in your
plug, proceed as follows:
The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black. The wire which
is coloured brown must be connected to the terminal which is
marked with the letter L or coloured red.
Service
Never remove the back cover of the set as this can expose you to
very high voltage and other hazards. If the set does not operate
properly, unplug it and call your dealer.
Aerial
Connect the aerial cable to the socket marked +75 Ω on the back
cover. For the best reception an outdoor aerial should be used.
Location
Position your set so that no bright light or sunlight falls directly onto
the screen. Care should be taken not to expose the set to any
unnecessary vibration, moisture, dust or heat. Also ensure that the
set is placed in a position to allow a free flow of air. Do not cover
the ventilation openings on the back cover.
3

Location and function of controls
All the functions can be controlled with the remote control handset.
Some functions can also be adjusted with the buttons on the front
panel of the set.
Remote control handset
Before you use the remote control handset, please install the bat-
teries. See the next page.
1. POWER
switches the set on from standby or off to standby.
2. NUMBER BUTTONS
switches the set on from standby or directly select a number.
3. ARC (Aspect Ratio Control)
changes the picture format.
4. TURBO PICTURE / SOUND BUTTON
selects Turbo picture / sound.
5. DD( ) / EE() (Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
scans programmes automatically.
FF/ GG(Volume Up/Down)
adjusts the volume.
adjusts menu settings.
6. VCR BUTTONS (option)
control a LG video cassette recorder.
7. SSM (Sound Status Memory)
recalls your preferred sound setting.
8. I/II (option)
selects the language during dual language broadcast (option).
selects the sound output.
9. PSM (Picture Status Memory)
recalls your preferred picture setting.
10. TELETEXT BUTTONS (option)
These buttons are used for teletext.
For further details, see the ‘Teletext’ section.
11. MUTE
switches the sound on or off.
12. TV/AV
selects TV or AV mode.
switches the set on from standby.
EE
EE
DD
DD
4
OK
PR
VOL PR VOL
PLAY
P/STILL STOP REC
REW FF
I/II SSM LIST
PSM
TEXT
SLEEP
Q.VIEW
?
MIX TIME
REVEAL MODE
SIZE HOLD UPDATE
INDEX
i
M
0
ARC TV/AV
MENU
SOUND
12 3
45 6
78 9
POWER MUTE
T U R B O
EYE/
( )
( )
2
1
3
5
6
8
10
4
9
7
11
12
15
16
13
18
14
17
(With TELETEXT)

Location and function of controls
13. MENU
selects a menu.
14. OK
accepts your selection or displays the current mode.
15. LIST
displays the programme table.
16. EYE/*(option)
switches the eye function on or off.
17. SLEEP
sets the sleep timer.
18. Q.VIEW
returns to the previously viewed programme.
selects a favorite programme.
COLOURED BUTTONS
These buttons are used for teletext (only TELETEXT models) or
programme edit.
Battery installation
The remote control handset is powered by twoAAtype batteries. To
load the batteries, turn the remote control handset over and open
the battery compartment. Install two batteries as indicated by the
polarity symbols ( and ) marked inside the compartment.
Note : To avoid damage from possible battery leakage, remove the
batteries if you do not plan to use the remote control handset for an
extended period of time.
5
+
-
OK
PR
VOL PR VOL
PLAY
P/STILL STOP REC
REW FF
I/II SSM LIST
PSM
SLEEP
Q.VIEW
0
ARC TV/AV
MENU
SOUND
12 3
45 6
78 9
POWER MUTE
T U R B O
EYE/
( )
( )
2
1
3
5
6
8
4
9
7
11
12
15
16
13
18
14
17
(Without TELETEXT)

Location and function of controls
6
1. MAIN POWER
switches the set on or off.
2. MENU (option)
selects a menu.
3. DD/ EE(Programme Up/Down) (option)
selects a programme or a menu item.
switches the set on from standby.
FF/ GG(Volume Down/Up) (option)
adjusts the volume.
adjusts menu settings.
4. OK (option)
accepts your selection or displays the current
mode.
5. POWER/STANDBY INDICATOR
illuminates brightly when the set is in standby
mode.
dims when the set is switched on.
6. REMOTE CONTROL SENSOR
Note : Only use the supplied remote control
handset. (When you use others, they’ll be not
able to function.)
7. TV/AV (option)
selects TV or AV mode.
clears the menu from the screen.
switches the set on from standby.
8. (Function) (option)
selects volume, EYE (option), picture items or
brief auto programme while the menus not dis-
play.
9. +/- (DD/EE) (option)
adjusts the function or selects a programme.
switches the set on from standby.
10. EYE (option)
adjusts picture according to the surrounding
conditions.
11. HEADPHONE SOCKET (option)
Connect the headphone plug to this socket.
12. AUDIO/VIDEO IN SOCKETS (AV3)
Connect the audio/video out sockets of external
equipment to these sockets.
S-VIDEO/AUDIO IN SOCKETS (S-AV) (option)
Connect the video out socket of an S-VIDEO
VCR to the S-VIDEO socket.
Connect the audio out sockets of the S-VIDEO
VCR to the audio sockets as in AV3.
Note : Do not place any heavy objects (over 4Kg)
on the RE/RL-29FA33 series models.
Front panel
Side
panel
S-VIDEO
VIDEO
(L/MONO)
AUDIO
AV3
R
L
CE/CL-25/29H40 series
MENU OK VOL PR
ON/OFF
310
ON/OFF MENU O K
VOL VOL
PR
1
CE/CL-29Q40 series
245 6 10 3
L/MONO R
AUDIO
VIDEO
AV3
S-VIDEO
11
12
ON/OFF
MENU OK VOL PR
RE/RL-29FA33 series
1 5 24 6 1011 123
ON/OFF
MENU OK VOL PR
CE/CL-25/29Q20 series
1 5 6 10
32 4
ON/OFF
TV/AV
AV3
VIDEO AUDIO
VOL PR
L/MONO R
CE/CL-29K30 series
1
1 5 6 24
5 6 11 1012789
S-VIDEO VIDEO L/MONO RAUDIO
AV3
11
12
11
12
S-VIDEO VIDEO L/MONO RAUDIO
AV3
12
ON/OFF
MENU OK VOL PR
VIDEO
AUDIO
L/MONO
R
AV3
1
RE/RL-29FB50 series
5 6 24 103 11 12
CE/CL-28H80 series
ON/OFF
TV/AV
VOL PR
VIDEO AUDIOL/MONO
AV3 R
12 111 5 6 7 8 9
ON/OFF
VIDEO L/MONO RAUDIO
MENU OK VOL PR
A/V3
ON/OFF
VIDEO L/MONO RAUDIO
MENU OK VOL PR
A/V3
1
RE/RL-28CB80 series
5 6 2 4 113 12
ON/OFF
MENU OK VOL PR
1
RE/RL-28FZ31 series
5 6 2 4 10
3
ON/OFF MENU OK VOL PR
RE/RL-28FZ10 series
1 5 4
2
63

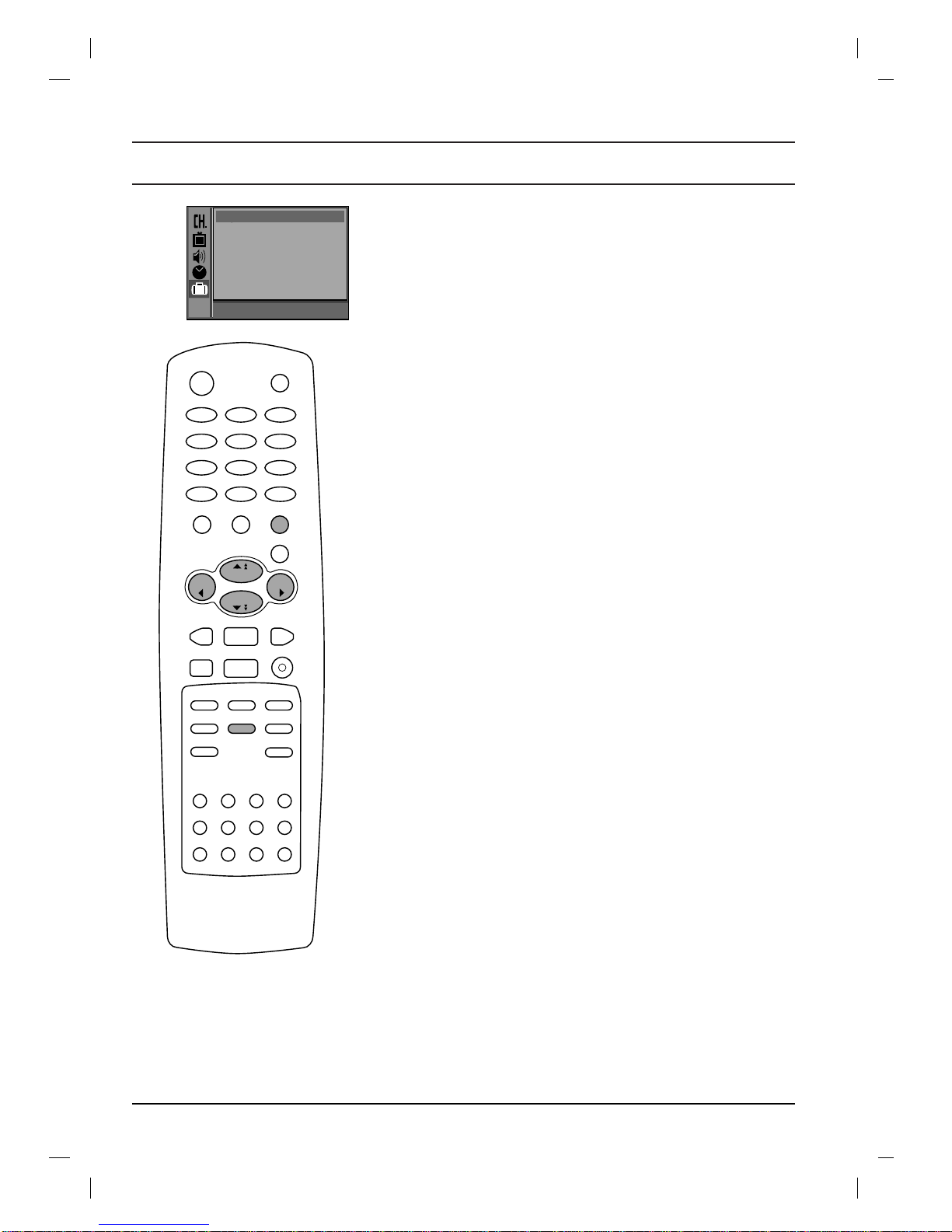

Basic operation
7
OK
VOL VOL
I/II SSM
Q.VIEW
0TV/AV
MENU
SOUND
12 3
45 6
78 9
POWER MUTE
T U R B O
PR
PR
( )
( )
On and off
1. Press the main power button to switch the set on.
2. If the set is in standby mode, press the POWER, DD/ EE, TV/AV or
NUMBER buttons on the remote control handset to switch it on fully.
3. Press the POWER button on the remote control handset.
The set reverts to standby mode.
4. Press the main power button again to switch the set off.
Note : If, while the set is switched on, the mains plug is discon-
nected the set will switch to standby or power on when the mains
plug is replaced in the mains power socket.
Programme selection
You can select a programme number with the DD/ EEor NUMBER
buttons.
Volume adjustment
Press the FF/ GGbutton to adjust the volume.
Quick view
Press the Q.VIEW button to view the last programme you were
watching.
Note : This function works only when Favourite programme is
set to Off . Otherwise each press of this button will select a stored
favorite programme.
Mute function
Press the MUTE button. The sound is switched off and the display
Wappears.
You can cancel it by pressing the MUTE, FF/ GG,SSM, I/II, TURBO
SOUND button.
Auto Demonstration
To review all the menus programmed in the set, press the OK
or button of the front panel controls for about 10 seconds.
To stop auto demonstration, press any button of the front panel
controls and the POWER button of the remote control.
On screen language selection (option)
The menu can be displayed on the screen in your desired lan-
guage. First select your language.
1. Press the MENU button and then DD/ EEbutton to select the
Special menu.
2. Press the GGbutton and then the DD/ EEbutton to select Language.
3. Press the GGbutton.
4. Press the DD/ EEbutton to select your desired language.
5. Press the OK button.
All the on screen displays will appear in the selected language.
6. Repeatedly press the MENU button to return to normal TV
viewing.

On screen menus
The dialogue between you and your set takes place on screen with
an operator menu. The buttons required for the operating steps are
also displayed.
Menu selection
1. Press the MENU button and then DD/ EEbutton to display each
menu.
2. Press the GGbutton and then DD/ EEbutton to select a menu
item.
The selected menu item changes from white to black.
3. Press the GGbutton to change the setting of a menu item or OK
button to display the sub menu.
Note :
a. In the teletext mode, menus are not displayed.
b. In some models, the Normal / Turbo search will not display,
only the Start will display in the Auto programme menu.
c. In some models, Tilt , Game , Degauss or Booster will not display.
d. In some models, the BG , L will display.
e. In some models, the Language will not be display.
8
OK
VOL
MENU
PR
PR
( )
( )
Station menu
TV programme
AutoOprogramme
ManualOprogramme
ProgrammeOedit
FavouriteOprogramme
()O{OOK O MENU
System BG
StorageOfrom 1
NormalOsearch
TurboOsearch
0OOARO1DOOO5OOSO69
O1OOCO03OOO6OOSO17
O2OOCO12OOO7OOSO22
O3OOSO66OOO8OOCO09
O4OOSO67OOO9OOCO11
DeleteOOOCopy
MoveOOOOOSkip
O0OOCO03
Flat
Music
Movie
Speech
User
0.1O0.5O1.5O5.0O10OkHz
Picture menu
Contrast 100
Brightness 60
Colour 60
Sharpness 50
()O{OOK O MENU
Sound menu
Equalizer
DBS Off
AVL Off
Balance 0
()O{OOK O MENU
Special menu
Input TV
Language
Childolock Off
Blueoback Off
Degauss Off
Tilt 0
()O{OOK O MENU
Time menu
Time -i-i:i-i-
Offotime Off
-i-i:i-i-
Onotime Off
-i-i:i-i-
OnoPr. 1
Volume 30
Autoosleep Off
()O{OOK O MENU
()O}{OMENU
System BG
ChannelOOOOV®UHF 3
Fine {{{
Search
NameOOOOOOOOOOOC 03
Booster Off
Storage 1
()O}{OOK O MENU
()O}{OOK O MENU
() O MENU
AutoOprogramme System BG
System BG
Equalizer
Flat

Up to 100 TV stations can be stored in this set by programme numbers
(0 to 99). Once you have preset the stations, you will be able to use
the DD/ EEor NUMBER buttons to scan the stations you programmed.
Stations can be tuned using automatic or manual modes.
Auto programme tuning
All stations that can be received are stored by this method. It is rec-
ommended that you use auto programme during installation of this set.
1. Press the MENU button and then DD/ EEbutton to select the
Station menu.
2. Press the GGbutton and then DD/ EEbutton to select Auto pro-
gramme.
3. Press the GGbutton to display the Auto programme menu.
4. Press the DD/ EEbutton to select System. Select a TV system
with the FF/ GGbutton;
L: SECAM L/L’ (France: SECAM-L models only)
BG : PAL B/G, SECAM B/G (Europe/East Europe)
I: PAL I/II (U.K./Ireland)
DK : PAL D/K, SECAM D/K (East Europe)
5. Press the DD/ EEbutton to select Storage from.
6. Select the beginning programme number with the FF/ GGbutton
or NUMBER buttons. Any number under 10 is entered with a
numeric ‘0’in front of it, i.e. ‘05’for 5.
7. Press the DD/ EEbutton to select Normal or Turbo search.
Option: In some models, you can only select Start.
Note :
a.
Turbo search is faster than Normal search and in some
models, these searches will automatically store all receivable
stations.
b. If the programmed station has poor quality sound, select the
system again in the
Manual programme menu.
8. Press the OK button to begin auto programming.
All receivable stations are stored. The station name is stored for
stations which broadcast VPS (Video Programme Service),
PDC (Programme Delivery Control) or TELETEXT data. If no
station name can be assigned to a station, the channel number
is assigned and stored as C(V/UHF 01-69) or S(Cable 01-47),
followed by a number.
To stop auto programming, press the MENU button.
When auto programming is completed, the Programme edit
menu appears on the screen. See the ‘Programme edit’ section
to edit the stored programme.
9. Repeatedly press the MENU button to return to normal TV
viewing.
(Normal search) (Turbo search)
System BG
StorageOfrom 1
NormalOsearch CO15
TurboOsearch
2%
MENU
System BG
StorageOfrom 1
NormalOsearch
TurboOsearch CO38
2%
MENU
Setting up TV stations
9
OK
VOL VOL
0
MENU
12 3
45 6
78 9
PR
PR
( )
( )
Station
Menu
AutoOprogramme
ManualOprogramme
ProgrammeOedit
FavouriteOprogramme
()O{OOK O MENU
System BG
StorageOfrom 1
NormalOsearch
TurboOsearch
() O }{ O MENU
System BG
NormalOsearch CO15 TurboOsearch CO38
AutoOprogramme
22

Setting up TV stations
Auto programme scan
To automatically scan the pictures of stored programmes, press the
DD( ) or EE( ) button for about 3 seconds. The picture of stored
programmes appears on the screen one by one.
To stop auto programme scanning, press any button except VCR
buttons.
Manual programme tuning
Manual programme lets you manually tune and arrange the sta-
tions in whatever order you desire. Also you can assign a station
name with five characters to each programme number.
1. Press the MENU button and then DD/ EEbutton to select the
Station menu.
2. Press the GGbutton and then DD/ EEbutton to select Manual
programme.
3. Press the GGbutton to display the Manual programme
menu.
4. Press the DD/ EEbutton to select System. Select a TV system
with the FF/ GGbutton;
L: SECAM L/L’ (France: SECAM-L models only)
BG : PAL B/G, SECAM B/G (Europe/East Europe)
I: PAL I/II (U.K./Ireland)
DK : PAL D/K, SECAM D/K (East Europe)
5. Press the DD/ EEbutton to select Channel. Press the FF/ GG
button to select V/UHF or Cable as required.
If possible, select the channel number directly with the number
buttons. Any number under 10 is entered with a numeric ‘0’in
front of it, i.e. ‘05’for 5.
6. Press the DD/ EEbutton to select Search. Press the FF/ GGbut-
ton to commence searching. If a station is found the search will
stop.
7. If this station is the one required, press the DD/ EEbutton to select
Storage. Select the desired programme number (0 to 99) with
the FF/ GGbutton or NUMBER buttons. Any number under 10 is
entered with a numeric ‘0’in front of it, i.e. ‘05’for 5.
8. Press the OK button to store it. The display Stored will appear.
9. To store another station, repeat steps 4 to 8.
10. Repeatedly press the MENU button to return to normal TV
viewing.
EE
EE
DD
DD
10
OK
VOL VOL
0
MENU
12 3
45 6
78 9
PR
PR
( )
( )
Station
Menu
System BG
ChannelOOOOV®UHF 3
Fine {{{
Search
NameOOOOOOOOOOOC03
Booster Off
Storage 1
() O }{ O OK O MENU
System BG
ChannelOOOOV®UHF 3
Fine {{{
Search
NameOOOOOOOOOOOC03
Booster Off
Storage 1
Stored
AutoOprogramme
ManualOprogramme
ProgrammeOedit
FavouriteOprogramme
()O{OOK O MENU
Storage 1
System BG
ManualOprogramme

OK
VOL VOL
0
MENU
12 3
45 6
78 9
PR
PR
( )
( )
Setting up TV stations
Assigning a station name
1. Repeat the ‘Manual programme tuning’ steps 1 to 3.
2. Press the DD/ EEbutton to select Name.
3. Press the GGbutton. You can use a blank, +, -, the numeric 0to 9
and the alphabet Ato Z.
With the FFbutton you can select in the opposite direction.
4. Select the next position by pressing the OK button and then take
your choice of the second character, and so on.
5. Press the DD/ EEbutton and then OK button.
6. Repeatedly press the MENU button to return to normal TV
viewing.
Booster (option)
In some models, Booster is an optional function. Only a set with
Booster can perform this function.
If the reception is poor at the fringe area of TV signal, select
Booster to On. When the picture condition is good, do not select
Booster to On.
1. Repeat the ‘Manual programme tuning’ steps 1 to 3.
2. Press the DD/ EEbutton to select Booster.
3. Press the FF/ GGbutton to select On or Off.
4. Repeatedly press the MENU button to return to normal TV
viewing.
Fine tuning
Normally fine tuning is only necessary if reception is poor.
1. Repeat the ‘Manual programme tuning’ steps 1 to 3.
2. Press the DD/ EEbutton to select Fine.
3. Press the FF/ GGbutton to fine tune for the best picture and
sound.
4. Press the OK button.
5. Repeatedly press the MENU button to return to normal TV
viewing.
The finely tuned programme will be indicated by yellow number
during programme selection.
11
Station
Menu
System BG
ChannelOOOOV®UHF 3
Fine {{{
Search
NameOOOOOOOOOOOC03
Booster Off
Storage 1
() O }{ O OK O MENU
AutoOprogramme
ManualOprogramme
ProgrammeOedit
FavouriteOprogramme
()O{OOK O MENU
ManualOprogramme
Fine {{{

Setting up TV stations
12
OK
VOL VOL
0
MENU
12 3
45 6
78 9
PR
PR
( )
( )
Programme edit
This function enables you to delete or skip the stored programmes.
Also you can move some stations to other programme numbers or
insert a blank station data into the selected programme number.
1. Press the MENU button and then DD/ EEbutton to select the
Station menu.
2. Press the GGbutton and then DD/ EEbutton to select
Programme edit.
3. Press the GGbutton to display the Programme edit menu.
Deleting a programme
1. Select a programme to be deleted with the DD/ EEor FF/ GGbutton.
2. Press the RED button twice.
The selected programme is deleted, all the following pro-
grammes are shifted up one position.
Copying a programme
1. Select a programme to be copied with the DD/ EEor FF/ GGbutton.
2. Press the GREEN button.
All the following programmes are shifted down one position.
Moving a programme
1. Select a programme to be moved with the DD/ EEor FF/ GGbutton.
2. Press the YELLOW button.
3. Move the programme to the desired programme number with
the DD/ EEor FF/ GGbutton.
4. Press the YELLOW button again to release this function.
Skipping a programme number
1. Select a programme number to be skipped with the DD/ EEor FF/ GG
button.
2. Press the BLUE button. The skipped programme turns to blue.
3. Press the BLUE button again to release the skipped pro-
gramme.
When a programme number is skipped it means that you will be
unable to select it using the DD/ EEbutton during normal TV
viewing. If you want to select the skipped programme, directly
enter the programme number with the NUMBER buttons or
select it in the programme edit or table menu.
Repeatedly press the MENU button to return to normal TV viewing.
Station
Menu
0OOARO1DOOO5OOSO69
O1OOCO03OOO6OOSO17
O2OOCO12OOO7OOSO22
O3OOSO66OOO8OOCO09
O4OOSO67OOO9OOCO11
DeleteOOOCopy
MoveOOOOOSkip
()O}{OOKOMENU
O0OOCO03
()O}{OMENU
Move0off
AutoOprogramme
ManualOprogramme
ProgrammeOedit
FavouriteOprogramme
()O{OOK O MENU
0OOARO1DOOO5OOSO69
O1OOCO03OOO6OOSO17
O2OOCO12OOO7OOSO22
O3OOSO66OOO8OOCO09
O4OOSO67OOO9OOCO11
O0OOCO03
ProgrammeOedit

Favourite programme
This function lets you select your favourite programmes directly.
1. Press the MENU button and then DD/ EEbutton to select the
Station menu.
2. Press the GGbutton and then DD/ EEbutton to select Favourite
programme.
3. Press the OK button to display the Favourite programme
menu.
4. Press the FF/ GGbutton to select On or Off.
5. Press the DD/ EEbutton to select -- -----.
6. Select a desired programme with the FF/ GGbutton or NUMBER
buttons. Any number under 10 is entered with a numeric ‘0’in
front of it, i.e. ‘05’for 5.
7. To store another programme, repeat steps 5 to 6.
You can store up to 5 programmes.
8. Repeatedly press the MENU button to return to normal TV
viewing.
Repeatedly press the Q.VIEW button to select stored favourite pro-
grammes.
Calling the programme table
You can check the programmes stored in the memory by displaying
the programme table.
Displaying programme table
Press the LIST button to display the Programme table menu.
The programme table appears on the screen. One programme
table contains ten programmes as below.
Note :
a. You may find some blue programmes. They have been set up
to be skipped by auto programming or in the programme edit
mode.
b. Some programmes with the channel number shown in the pro-
gramme table indicate there is no station name assigned.
Selecting a programme in the programme table
Select a programme with the DD/ EEor FF/ GGbutton.
Then press the OK button.
The set switches to the chosen programme number.
Paging through a programme table
There are 10 programme table pages which contain 100 pro-
grammes.
Pressing the DD/ EEor FF/ GGbutton repeatedly turns the pages.
Repeatedly press the MENU button to return to normal TV viewing.
OK
VOL VOL
LIST
Q.VIEW
0
MENU
12 3
45 6
78 9
PR
PR
( )
( )
Setting up TV stations
13
()O}{OOKOMENUOLIST
0OOARO1DOOO5OOSO69
O1OOCO03OOO6OOSO17
O2OOCO12OOO7OOSO22
O3OOSO66OOO8OOCO09
O4OOSO67OOO9OOCO11
O0OOCO03
Station
Menu
AutoOprogramme
ManualOprogramme
ProgrammeOedit
FavoriteOprogramme
()O{OOK O MENU
Off
()O}{OMENU
Pr.1
--
O
-- O - O - O - O - O
Pr.2
--
O
-- O - O - O - O - O
Pr.3
--
O
-- O - O - O - O - O
Pr.4
--
O
-- O - O - O - O - O
Pr.5
--
O
-- O - O - O - O - O
FavouriteOprogramme

Picture adjustment
14
VOL VOL
PSM
MENU
T U R B O
EYE/
PR
PR
( )
( )
Menu Picture adjustment
You can adjust picture contrast, brightness, colour intensity, sharp-
ness and tint (NTSC AV only) to the levels you prefer.
1. Press the MENU button and then DD/ EEbutton to select the
Picture menu.
2. Press the GGbutton and then DD/ EEbutton to select the desired
picture item.
3. Press the FF/ GGbutton to make appropriate adjustments, then
it will be stored for the picture User.
4. Repeatedly press the MENU button to return to normal TV
viewing.
To recall your preferred setting, press the PSM button until the
desired picture (Dynamic, Standard, Mild, Game or User)
appears. The picture Dynamic, Standard, Mild and Game are
programmed for good picture reproduction at the factory and can-
not be changed.
Eye (option)
Eye is an optional function. Only a set with eye option can perform
this function.
In some models, the set will automatically adjust the picture accord-
ing to the surrounding conditions. This will enable you to enjoy the
most suitable picture according to the surroundings.
Press the EYE/*button to switch the eye function on or off.
When the eye function is on, the most suitable picture is automati-
cally adjusted according to the surrounding conditions.
At this time the display in green does not appear continuously
but the display in yellow appears each time the picture con-
dition changes.
Note : If you press the PSM or TURBO PICTURE button with the
eye function, the eye function is automatically switched off.
Off
Contrast 100
Brightness 60
Colour 60
Sharpness 50
()O}{OOK O MENU
Contrast 80
Contrast 100

Picture adjustment
15
PSM
ARC
T U R B O
EYE/
Picture format
You can watch TV in various picture formats; Standard, 16:9
(Wide), Zoom.
RE/RL-28/32FZ10 series picture formats; 4:3, Auto, 16:9, 14:9 and
Zoom.
Repeatedly press the ARC button to select your desired picture format.
Standard (or 4:3)
This picture format is 4 to 3 of general TV.
Auto
When your TV receives the wide screen signal, it will be automati-
cally changed to the picture format to be sent.
16:9
You can enjoy the cinema (the picture format of 16:9) or general TV
programme through the 16:9 mode.
The screen 16:9 is viewed just like that but the screen 4:3 is mag-
nified to the left and right so that the screen 16:9 is full.
14:9
The screen 14:9 is viewed just like that but the screen 4:3 is mag-
nified to the upper / lower and left / right so that the screen 14:9 is
full.
You can move the screen up or down with DD/ EEbutton.
Zoom
You can enjoy the cinema in a vast screen through the Zoom mode.
The screen 4:3 is magnified to the upper/lower and left/right sides
so that the screen 16:9 is full. The bottom and top of the picture
may be lost. (option : RE/RL-28/32FZ10 series - You can move the
screen up or down with DD/ EEbutton.)
Note :
a. When you switch the set to standby or off, the
16:9 or Zoom
picture format is reset to the Standard (4:3).
b. In the 1/2 size sub picture and vertical four sub pictures of PIP
mode the picture format is not available.
Turbo picture selection (option)
When this function is on, the picture will be more brilliant and dis-
tinct picture than normal picture.
Repeatedly press the TURBO PICTURE button to switch on or off.
Note : If you press the PSM or EYE/
*
button with the Turbo picture
function, the Turbo picture function is automatically switched off.
(Turbo Picture off)
TURBO
(Turbo Picture on)

Sound adjustment
16
OK
VOL VOL
SSM
MENU
SOUND
T U R B O
PR
PR
( )
( )
Sound
Menu Equalizer
DBS Off
AVL Off
Balance 0
()O{OOK O MENU
Sound adjustment
You can select your preferred sound setting; Flat, Music, Movie or
Speech and you can also adjust the sound frequency of equalizer,
balance. If you switch DBS to on, the set creates a dynamic bass
sound. If you switch AVL to on, the set automatically keeps on an
equal volume level even if you change programmes.
1. Press the MENU button and then DD/ EEbutton to select the
Sound menu.
2. Press the GGbutton and then DD/ EEbutton to select the desired
sound item; Equalizer, DBS, AVL or Balance.
3. Press the FF/ GGbutton to make desired adjustment.
Press the OK button in Equalizer to set the Equalizer User.
a. Select User by pressing the DD/ EEbutton.
b. Select a sound band by pressing the FF/ GGbutton.
c. Make appropriate sound level with the DD/ EEbutton.
d. Press the OK button to store it for the sound User.
The display Stored appears.
4. Repeatedly press the MENU button to return to normal TV
viewing.
To recall your preferred setting, press the SSM button until the
desired sound (Flat,Music, Movie, Speech or User) appears.
The sound Flat,Music, Movie and Speech are programmed for
good sound reproduction at the factory and cannot be changed.
Note : If you press the SSM button after making appropriate adjust-
ment in Sound menu, the display User automatically appears even
though you have already set a factory preset setting; Flat , Music ,
Movie or Speech .
Turbo sound selection (option)
When this function is on, the sound will be more emphasized and
amplified than normal sound.
Repeatedly press the TURBO SOUND button to switch on or off.
(Turbo Sound off)
MEGA TURBO
(Turbo Sound on)
()O}{OOKOMENU
Equalizer
Flat
Music
Movie
Speech
User
0.1O0.5O1.5O5.0O10OkHz
U ser

Sound adjustment
Stereo/Dual reception
When a programme is selected, the sound information for the sta-
tion appears after the programme number and station name disap-
pear.
Mono sound selection
In stereo reception if the stereo signal is weak, you can switch to
mono by pressing the I/II button twice. In mono reception the depth
of sound is improved. To switch back to stereo, press the I/II but-
ton twice again.
Language selection for dual language broadcast
If a programme received in two languages (dual language), you can
switch to DUAL I, DUAL II or DUAL I+II by pressing the I/II but-
ton repeatedly.
DUAL I sends the primary broadcast language to the loudspeakers.
DUAL II sends the secondary broadcast language to the loud-
speakers.
DUAL I+II sends a separate language to each loudspeaker.
NICAM reception (option)
If your set is equipped with the receiver for NICAM reception, the
high quality NICAM (Near Instantaneous Companding Audio
Multiplex) digital sound can be received.
Sound output can be selected according to the type of received
broadcast as follows by pressing the I/II button repeatedly.
1. When NICAM mono is received, you can select NICAM
MONO
or FM MONO.
2. When NICAM stereo is received, you can select NICAM
STEREO or FM MONO. If the stereo signal is weak, switch to
FM mono.
3. When NICAM dual is received, you can select NICAM DUAL
I, NICAM DUAL II or NICAM DUAL I+II or MONO. When
FM mono is selected the display MONO appears on the
screen.
Sound output selection
In AV mode, you can select output sound for the left and right loud-
speakers.
Repeatedly press the I/II button to select the sound output.
L+R :Audio signal from audio L input is sent to left loud-speaker
and audio signal from audio R input is sent to right loud-
speaker.
L+L : Audio signal from audio L input is sent to left and right loud-
speakers.
R+R : Audio signal from audio R input is sent to left and right loud-
speakers.
I/II
17
Broadcast
Mono
Stereo
Dual
On Screen Display
MONO
STEREO
DUAL I

Time setting
18
VOL VOL
0
MENU
12 3
45 6
78 9
PR
PR
( )
( )
Time
Menu Time -i-i:i-i-
Offotime Off
-i-i:i-i-
Onotime Off
-i-i:i-i-
OnoPr. 1
Volume 30
Autoosleep Off
() O }{ O 0 i - i 9 O MENU
Time -i-i:i-i-
Time
The time uses the 24 hour system and must be set to the correct
time before operating the set.
1. Press the MENU button and then DD/ EEbutton to select the
Time menu.
2. Press the GGbutton and then DD/ EEbutton to select Time.
3. Select and adjust hour and minute by pressing the FF/ GGbut-
ton or number buttons.
4. Repeatedly press the MENU button to return to normal TV
viewing.
On/off time
By using this function in On mode, the set automatically switches
on or off at a preset time. You must set the time correctly before
using on/off time function.
1. Press the MENU button and then DD/ EEbutton to select the
Time menu.
2. Press the GGbutton and then DD/ EEbutton to select On time or
Off time.
3. Press the FF/ GGbutton to select On or Off.
4. Press the EEbutton.
5. Select and adjust hour and minute by pressing the FF/ GGbut-
ton or number buttons.
6. Repeatedly press the MENU button to return to normal TV
viewing.
On Programme number
By using this function, the set automatically switches on at a preset
programme.
1. Press the MENU button and then DD/ EEbutton to select the
Time menu.
2. Press the GGbutton and then DD/ EEbutton to select On Pr..
3. Select and adjust programme number by pressing the FF/ GG
button or number buttons.
4. Repeatedly press the MENU button to return to normal TV
viewing.
Volume
By using this function, the set automatically switches on at a preset
volume size.
1. Press the MENU button and then DD/ EEbutton to select the
Time menu.
2. Press the GGbutton and then DD/ EEbutton to select Volume.
3. Select and adjust volume by pressing the FF/ GGbutton or num-
ber buttons.
4. Repeatedly press the MENU button to return to normal TV
viewing.
Auto sleep
If you select Auto sleep On the set will automatically switch itself
to standby mode approximately ten minutes after a TV station stops
broadcasting.
1. Press the MENU button and then DD/ EEbutton to select the
Time menu.
2. Press the GGbutton and then DD/ EEbutton to select Auto sleep.
3. Press the FF/ GGbutton to select On.
4. Repeatedly press the MENU button to return to normal TV
viewing.
Note :
a. This function works only in standby mode.
b. To cancel the set on/off time, set the on/off timer to --:--.
c. To view the remaining on/off time, select the Time menu.
d. When you switch the main power off, the
Time is reset and the
On / Off time is off.
e. Two hours after the set is switched on by the on time function it
will automatically switch back to standby mode unless a button
has been pressed.
f. Once the on or off time is set, these functions operate daily at
the preset time.

Other functions
TV and AV modes
Inputs can be set for TV orAV mode.AV mode is used when a video
cassette recorder (VCR), or other equipment is connected to the set.
Note : When a VCR is connected via the aerial socket the set is used
in TV mode. See the ‘Connection of external equipment’ section.
1. Press the MENU button and then DD/ EEbutton to select the
Special menu.
2. Press the GGbutton and then DD/ EEbutton to select Input.
3. Press the FF/ GGbutton to select TV, AV 1, AV 2, AV 3 (or S-
Video), Component (option) .
The AV modes are :
AV1 : VCR connected to the Euro scart socket 1 of the set
AV2 : VCR connected to the Euro scart socket 2 of the set
AV3 : VCR connected to the AV3 sockets of the set
S-Video : S-VIDEO VCR connected to the S-VIDEO sockets of
the set (option).
COMPONENT : COMPONENT connected to the COMPONENT
INPUT sockets on the set (option).
To return to TV mode, press the DD/ EEor NUMBER buttons.
Alternatively you can select the TV or AV mode by pressing the
TV/AV button.
Auto AV switching (option)
If your VCR outputs anAV switching voltage when connected to the
Euro scart socket, the set will switch to AV 1 or AV 2 mode auto-
matically. But if you want to keep on watching in TV mode, press
the DD/ EEor NUMBER buttons. Press the TV/AV button to return to
AV modes.
Child lock
The TV can be set so that the remote control handset is needed to
control it. This feature can be used to prevent unauthorized viewing.
1. Press the MENU button and then DD/ EEbutton to select the
Special menu.
2. Press the GGbutton and then DD/ EEbutton to select Child lock.
3. Press the FF/ GGbutton on the remote control handset to select On.
4. Repeatedly press the MENU button to return to normal TV
viewing.
With the lock on, the display Child lock on appears on the screen
if any button on the front panel is pressed while viewing the TV.
Note : The display Child lock on will not appear on the screen if
any button on the front panel is pressed while displaying the menus.
Blue back
If you select Blue back On, the blue background appears on the
screen when there is no or poor signal.
1. Press the MENU button and then DD/ EEbutton to select the
Special menu.
2. Press the GGbutton and then DD/ EEbutton to select Blue back.
3. Press the FF/ GGbutton to select On or Off.
4. Repeatedly press the MENU button to return to normal TV
viewing.
19
VOL VOL
0TV/AV
MENU
12 3
45 6
78 9
PR
PR
( )
( )
Special
Menu
Input TV
Language
Childolock Off
Blueoback Off
Degauss Off
Tilt 0
() O }{ O MENU
Input TV

Other functions
Degaussing
Owing to the super large Tube used in the set. The colour purity of
the picture may be affected by other magnetic influences such as
speakers. Stripes may appear on the screen or there may be colour
patches.
You can restore high colour quality by operating the Degaussing
function.
1. Press the MENU button and then DD/ EEbutton to select the
Special menu.
2. Press the GGbutton and then DD/ EEbutton to select Degauss.
3. Press the FF/ GGbutton to select On. After the degauss function
works, On mode switches to Off mode.
4. Repeatedly press the MENU button to return to normal TV
viewing.
Note : If you cannot adjust the screen condition by degaussing, try
it again after about 4 minutes.
Tilt (option)
The TV picture may tilt to the left or right if the TV set moves to
another position. This function can be used to compensate the tilt.
1. Press the MENU button and then DD/ EEbutton to select the
Special menu.
2. Press the GGbutton and then DD/ EEbutton to select Tilt.
3. Press the FF/ GGbutton to adjust the tilt.
4. Repeatedly press the MENU button to return to normal TV
viewing.
Sleep timer
You don’t have to remember to switch the set off before you go to
sleep. The sleep timer automatically switches the set to standby
after the preset time has elapsed.
Press the SLEEP button to select the number of minutes. The dis-
play rr0will appear on the screen, followed by 10,20, 30, 60, 90,
120, 180 and 240.The timer begins to count down from the number
of minutes selected.
Note :
a. To view the remaining sleep time, press the SLEEP button once.
b. To cancel the sleep time, repeatedly press the SLEEP button
until the display
rr
0 appears.
c. When you switch the set off, the set releases the preset sleep
time.
20
VOL VOL
SLEEP
MENU
PR
PR
( )
( )
Input TV
Language
Childolock Off
Blueoback Off
Degauss Off
Tilt 0
() O }{ O MENU
Input TV
Special
Menu
