LG RF-15FB50ME/MX/VE/VX User manual

COLOR TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : MC-019A
MODEL : RF-15FB50ME/MX/VE/VX
MODEL : RF-21FB50RX/VX
MODEL : RT-15FB50M/ME/VE
MODEL : RT-21FB50RQ/V/VE/VQ/VX/VW
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html
Mar,2004
Printed in KoreaP/NO : 3828VD0126N

- 2 -
CONTENTS
Contents ................................................................................................................. 2
Safety Precautions ............................................................................................3
Servicing Precautions ..................................................................................... 4
Specifications ..................................................................................................... 6
Description of Controls .................................................................................. 7
Disassembly Instructions .............................................................................10
Adjustment ............................................................................................................11
Purity & Convergence Adjustment..........................................................14
Block Diagram ......................................................................................................17
Exploded View .................................................................................................. 18
Exploded View Parts List..............................................................................19
Replacement Parts List ............................................................................... 20
SVC. Sheet ................................................................................................................

- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in
the Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to
prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An lsolation Transformer should always be used during
the servicing of a receiver whose chassis is not isolated from
the AC power line. Use a transformer of adequate power rating
as this protects the technician from accidents resulting in
personal injury from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitary that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film
Resistor, over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Due to high vacuum and large surface area of picture tube,
extreme care should be used in handling the Picture Tube.
Do not lift the Picture tube by it's Neck.
X-RAY Radiation
Warning:
To determine the presence of high voltage, use an accurate
high impedance HV meter.
Adjust brightness, color, contrast controls to minimum.
Measure the high voltage.
The meter reading should indicate
23.5 ¡1.5KV: 14-19 inch, 26 ¡1.5KV: 19-21 inch,
29.0 ¡1.5KV: 25-29 inch, 30.0 ¡1.5KV: 32 inch
If the meter indication is out of tolerance, immediate service
and correction is required to prevent the possibility of
premature component failure.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc.,
to be sure the set is safe to operate without damage of
electrical shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source,
connect an electrical jumper across the two AC plug prongs.
Place the AC switch in the on positioin, connect one lead of
ohm-meter to the AC plug prongs tied together and touch other
ohm-meter lead in turn to each exposed metallic parts such as
antenna terminals, phone jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC
voltmeter with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC
voltage measurements for each esposed metallic part. Any
voltage measured must not exceed 0.75 volt RMS which is
corresponds to 0.5mA.
In case any measurement is out of the limits sepcified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

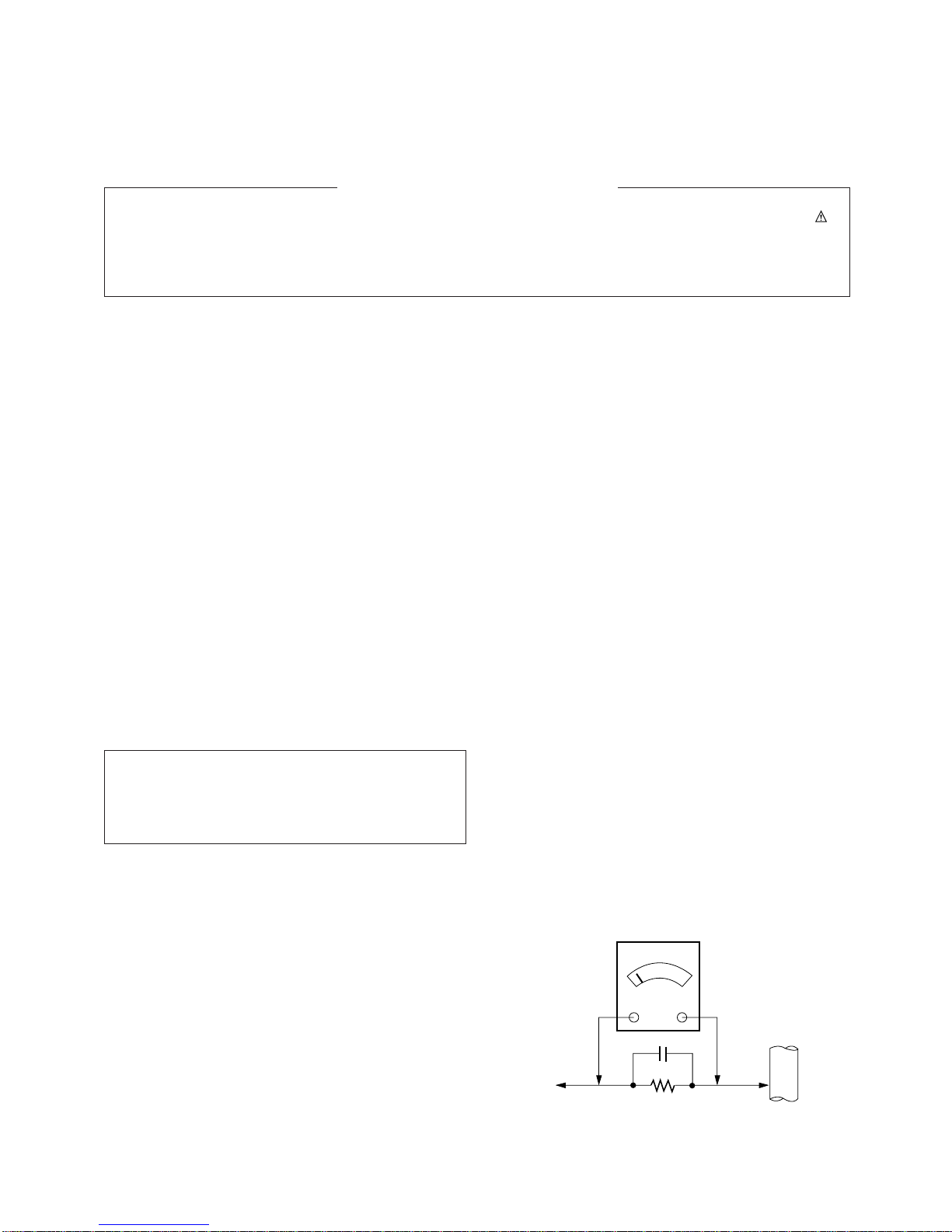

Leakage Current Hot Check circuit
The source of X-RAY RADIATION in this TV receiver is the
High Voltage Section and the Picture Tube.
For continued X-RAY RADIATION protection, the
replacement tube must be the same type tube as specified in
the Replacement Parts List.
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

- 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety
precautions on page 3 of this publication, always follow the
safety precautions. Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC
power source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug
or other electrical connection.
c.
Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect
polarity installation of electrolytic capacitors may result
in an explosion hazard.
d. Discharging the picture tube anode.
2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Discharge the picture tube anode only by (a) first connecting
one end of an insulated clip lead to the degaussing or kine
aquadag grounding system shield at the point where the
picture tube socket ground lead is connected, and then (b)
touch the other end of the insulated clip lead to the picture
tube anode button, using an insulating handle to avoid
personal contact with high voltage.
4. Do not spray chemicals on or near this receiver or any of its
assemblies.
5. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to
the contacts with a pipe cleaner, cotton-tipped stick or
comparable nonabrasive applicator; 10% (by volume)
Acetone and 90% (by volume) isopropyl alcohol (90%-99%
strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication
of contacts in not required.
6. Do not defeat any plug/socket B+ voltage interlocks with
which receivers covered by this service manual might be
equipped.
7. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks
are correctly installed.
8. Always connect the test receiver ground lead to the
receiver chassis ground before connecting the test receiver
positive lead.
Always remove the test receiver ground lead last.
9.
Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to
any heatsink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged
easily by static electricity. Such components commonly are
called
Electrostatically Sensitive (ES) Devices. Examples of
typical ES devices are integrated circuits and some fieldeffect
transistors and semicounductor "chip" components. The
following techniques should be used to help reduce the
incidence of component damage caused by static by static
electricity.
1. Immediately before handling any semiconductor component
or semiconductor-equipped assembly, drain off any
electostatic charge on your body by touching a known earth
ground. Alternatively, obtain and wear a commercially
available discharging wrist strap device, which should be
removed to prevent potential shock reasons prior to
applying power to the unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder
ES devices.
4. Use only an anti-static type solder removal device. Some
solder removal devices not classified as "anti-static" can
generate electrical charges sufficent to demage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a repalcement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum
foil or comparable conductive material).
7. Immediately before removing the protective material from
the ieads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the
device will be installed.
CAUTION:Be sure no power is applied to the chassis or
circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such
as the bruching together of your clothes fabric or the lifting
of your foot from a carpeted floor can generate static
electricity sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and
appropriate tip size and shape that will maintan tip
temperature within the range or 500¡£F to 600¡£F.
2. Use an appropriate gauge of RMA resin-core solder
composed of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thorohly clean the surfaces to be soldered. Use a mall
wirebristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500¡£F to 600¡£F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static,
suction-type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the
circuiboard printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal
temperature (500¡£F to 600¡£F)
b. First, hold the soldering iron tip and solder the strand
against the component lead until the solder melts.
SERVICING PRECAUTIONS

- 5 -
c. Qulckly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it
there only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess
or splashed solder with a small wire-bristle brush.
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following
technique should be used to remove and replace the IC. When
working with boards using the familiar round hole, use the
standard technique as outlined in parapraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.
2. Draw away the melted solder with an anti-static suction-
type solder removal device (or with solder braid) before
removing the IC.
Replacement
1. Carefully insert the replacement IC in the circuit boare.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as
close as possible to the component body.
2. Bend into a "U" shape the end of each of three leads
remaining on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the
corresponding leads extending from the circuit board and
crimp the "U" with long nose pliers to insure metal to metal
contact then solder each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heatsink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the
circuit board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heatsink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicula y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them
and if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board
hollow stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board
to prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board.
The following guidelines and procedures should be followed
whenever this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper
pattern side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely
necessary).
2. carefully scratch away the solder resist and acrylic coating
(if used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away
copper pattern and let it overlap the previously scraped end
of the good copper pattern. Solder the overlapped area and
clip off any excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper
pattern at connections other than IC Pins. This technique
involoves the installation of a jumper wire on the component
side of the circuit board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a
hazardous condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the
pattern break and locate the nearest component that is
directly connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of
the nearest component on one side of the pattern break to
the lead of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so
the it does not touch components or sharp edges.

- 6 -
SPECIFICATIONS
Note : Specification and others are subject to change without notice for improvement.
OVideo input system:
PAL-B/G, D/K, I/I
SECAM-B/G, D/K,L/L’
NTSC M
NTSC 4.43
OIntermediate Frequency (Unit : MHz)
VISION IF : 38.9MHz
COLOR IF : 34.47MHz(4.43)
35.32MHz(3.58) : NTSC-M
VIF-4.25000MHz
VIF-4.40625MHz
SOUND IF : 33.4MHz (B/G)
32.9MHz (I/I)
32.4MHz (D/K)
34.4MHz (M)
OPower requirement : 110~240V, 50/60Hz
OPower consumption : 95
OSTAND-BY : 3W
OTuning system :
FVS
100 Programme memory
200 Programme memory(W/O TXT)
O Antenna input impedance : VHF/UHF 75 ohm, unbalanced
OOSD (On Screen Display) : EASY-MENU
OVoice coil impedance : 8 ohm
OSound output : 7W¡¿2(MAX)
Dual/Stereo : A2/NICAM(Option)
OExternal connection : Head Phone Jack
A/V in : 2
PERI Connector(Full Scart) : 1
DVD in
OExternal In/Output
Audio-In:0.5Vrms!3dB,over 10Kohm
Audio-Out:0.5Vrms!3dBb,below 1Kohm
Video-In/Out:1Vp-p!3dB,75ohm
DVD In Y: 1Vp-p!3dB
Pb,Pr : 0.7Vp-p!3dB
OFeature : Auto programme/Manual programme
CSM (Color Status Memory)
Auto Sleep
Turbo Picture & Sound
Programme Editing
PSM (Picture Status Memory)
Teletext (TOP/FLOF/LIST)
ACMS
Auto Volume Level
Game
SSM(Sound Status Memory)
Favorite Program
OTuning range
Band
VHF-Low
VHF-High
Hyper
UHF
S1'-S3', S1
S2-S10,
S11-S20
S21-S41
For TV For CATV
B/G
Ch2-4
Ch5-12
D/K
Ch1-5
Ch6-12
I/I
Ch4-13
NTSC
Ch2-13
Ch21-69 Ch14-69
(): SECAM

- 7 -
All the functions can be controlled with the remote control handset.
Some functions can also be adjusted with the buttons on the front
panel of the set.

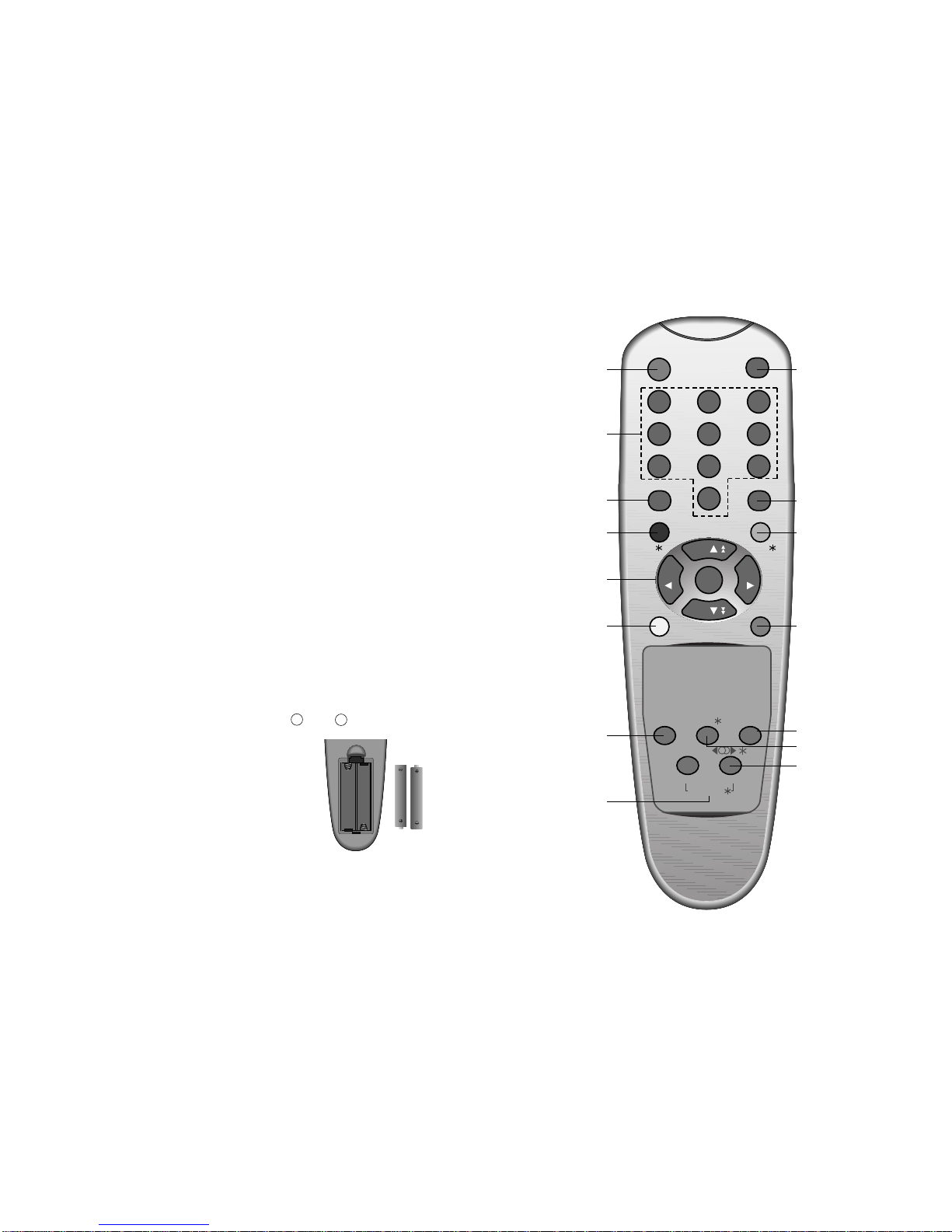

Remote control handset
Before you use the remote control handset, please install the bat-
teries. See the next page.
1. POWER
switches the set on from standby or off to standby.
2. NUMBER BUTTONS
switches the set on from standby or directly select a number.
3. MENU (or INDEX)
selects a menu.
selects an index page in the teletext mode (only TELETEXT
models).
4. EYE/*(option)
switches the eye function on or off.
5. / (Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
scans programmes automatically.
FF/ GG(Volume Up/Down)
adjusts the volume.
adjusts menu settings.
OK
accepts your selection or displays the current mode.
6. Q.VIEW
returns to the previously viewed programme.
selects a favorite programme.
7. TELETEXT BUTTONS (option)
These buttons are used for teletext.
For further details, see the ‘Teletext’ section.
8. PSM (Picture Status Memory)
recalls your preferred picture setting.
9. TURBO PICTURE / SOUND BUTTON (option)
selects Turbo picture and sound.
POWER
MENU/INDEX
Q.VIEW LIST
0
PR
OK
VOL VOL
PR
231
564
897
TV/AV
TV
I/II/
MUTE
TEXT/MIX SIZE HOLD
UPDATE TIME REVEAL
PSM SSM/ SLEEP
M
EYE/
TURBO/
()
()
PICTURE SOUND
/
11 10
11
12
13
14
15
16
2
3
4
5
6
7
8
9
( )
( )
(With TELETEXT)
DECRIPTIONS OF CONTROLS

- 8 -
10. MUTE
switches the sound on or off.
11. TV/AV
selects TV or AV mode.
clears the menu from the screen.
switches the set on from standby.
12. I/II/*(option)
selects the language during dual language broadcast. (option)
selects the sound output.
13. LIST
displays the programme table.
14. SLEEP
sets the sleep timer.
15. SSM/*(option) (Sound Status Memory)
recalls your preferred sound setting.
16. SURROUND (ºº/*) (option)
selects surround sound.
COLOURED BUTTONS : These buttons are used for teletext (only
TELETEXT models) or programme edit.
Battery installation
The remote control handset is powered by two AAA type batteries.
To load the batteries, turn the remote control handset over and
open the battery compartment. Install two batteries as indicated by
the polarity symbols ( and ) marked inside the compartment.
Note : To avoid damage from possible battery leakage, remove the
batteries if you do not plan to use the remote control handset for an
extended period of time.
+
-
POWER
MENU
Q.VIEW LIST
0
PR ( )
( )
OK
VOL VOL
PR
2 31
5 64
8 97
TV/AV
I/II/
MUTE
PSM SSM/ SLEEP
PICTURE SOUND
EYE/
TURBO/
/
11 10
11
12
13
14
15
16
2
3
4
5
6
8
9
(Without TELETEXT)

- 9 -
1. MAIN POWER (ON/OFF)
switches the set on or off.
2. POWER/STANDBY INDICATOR
illuminates brightly when the set is in
standby mode.
dims when the set is switched on.
blinks when signal is input from the
remote control.
3. REMOTE CONTROL SENSOR
4. MENU
selects a menu.
5. OK
accepts your selection or displays the
current mode.
FF/ GG(Volume Up/Down)
adjusts the volume.
adjusts menu settings.
DD/ EE(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
6. TV/AV
selects TV or AV mode.
clears the menu from the screen.
switches the set on from standby.
7. (Function)
selectsvolume,EYE(option), picture items
or brief auto programme while the menus
not display.
8. +/- (DD/EE)
adjusts the function or selects a pro-
gramme.
switches the set on from standby.
9. AUDIO - L/R (or AUDIO) / VIDEO IN
SOCKETS (AV) (option)
Connect the audio/video out sockets of
external equipment to these sockets.
Note :If both the input jacks on the
front/side panel and back panel have
been connected to external equipments
simultaneously, only the input jacks on
the front/side panel can be received.
10. HEADPHONE SOCKET (option)
Connect the headphone plug to this
socket.
11. EYE (option)
adjusts picture according to the sur-
rounding conditions.
12. TURBO SOUND / PICTURE (option)
switches Turbo sound or Turbo picture
function on or off.
Note : Do not place any heavy objects (over
4Kg) on the RF/RT-21FA30/31/32 series mod-
els.
ON/OFF MENU OK VOL PR
1 3 4 5 9 10
ON/OFF
MENU VOL
OK PR
RF/RT-21FA30/31/32 series
CF/CT-21Q60K/61K/62K series
CF/CT-21Q20K/21K/22K series CF/CT-21Q64K/65K/66K series
CF/CT-15Q90K/91K/92K series
VIDEO TV/AV
VOL PR
AUDIO
AV
L R
ON/OFF
TV/AV (VOL) PR VIDEO AUDIO
AV
L R
( ) ( )
ON/OFF
ON/OFF
TV/AV
VOL PR
1
2
10 9 67 8 2 3
1 2 367 8 11
1 2 3 6 7 9 10 11
2 3 4 5
111
ON/OFF
MENU OK VOL PR
VIDEO
AUDIO
L
R
AV
RF/RT-15/21FB50 series
2 3 4 105 9
111
11
ON/OFF
MENU VOL SOUND
OK PR PICTURE
TURBO
DIGITAL TURBO SOUND
DIGITAL TURBO SOUND
CF/CT-21Q90K/91K/92K series
1 2 34 115
8
VIDEO RL AUDIO
AV
10
9
VIDEO LRAUDIO
AV
10
9
PR
VOLOKMENU
RF/RT-21FA71/72/75/76/79 series
ON/OFF
VIDEO AUDIO
AV
R
L
10
9
13 2
45
12
RF/RT-21FB30 series
ON/OFF
MENU
OK
VOL
PR
RF/RT-21FB20 series
1 2 34 115
VIDEO LRAUDIO
AV
10
9
ON/OFF MENU OK
VOL PR VIDEO AUDIO
AV
VIDEO AUDIO
L/MONO
R
AV3
1 2 3 4 10 1095 9

- 10 -
Fig. 2-1 Fig. 2-2
CPT
board
Remove
Screws
Main
PCB
DISASSEMBLY INSTRUCTIONS
Important note
This set is disconnected from the power supply through the
converter transformer. An isolating transformer is necessary
for service operations on the primary side of the converter
transformer.

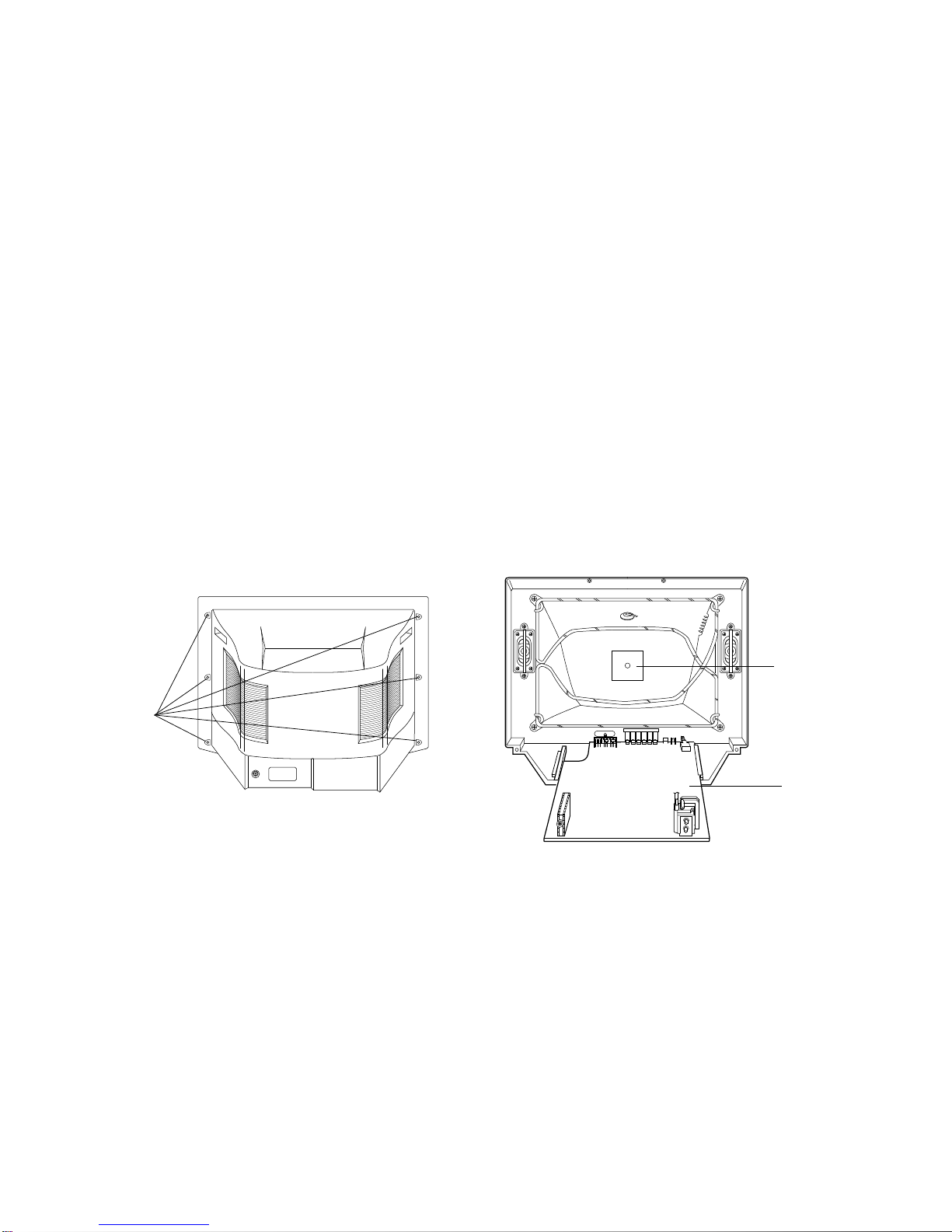

Back Cabinet Removal
Remove the screws residing on the back cabinet and carefully
separate the back cabinet from the front cabinet. (Fig. 2-1).
Chassis Assy Removal
Grasp both side of Frame and pull it backward smoothly.
CPT Removal
1. Pull out the CPT board from the CPT neck.
2. Place the front cabinet on soft material not to mar the front
surface or damage control knobs.
3. Remove 5 screws securing the picture tube mounting
brackets to the front cabinet.
4. Carefully separate CPT from the front cabinet.
PICTURE TUBE HANDLING CAUTION
Due to high vacuum and large surface area of picture tube, great
care must be exercised when handling picture tube. Always lift
picture tube by grasping it firmly around faceplate.
NEVER LIFT TUBE BY ITS NECK! The picture tube must not be
scratched or subjected to excessive pressure as fracture of
glass may result in an implosion of considerable violence which
can cause personal injury or property damage.

- 11 -
O Safety Precautions
1. It is safe to adjust after using insulating transformer
between the power supply line and chassis input to
prevent the risk of electric shock and protect the
instrument.
2. Never disconnect leads while the TV receiver is on.
3. Don't short any portion of circuits while power is on.
4. The adjustment must be done by the correct appliances.
But this is changeable in view of productivity.
5. Unless otherwise noted, set the line voltage to
110~240Vac !10%, 50/60Hz.
6. The adjustment of TV should be performed afther warming
up for 20 minutes.
O Test Equipment required
1. Multimeter (volt meter)
2. Oscilloscope
3. 10:1 PROBE
4. Color Analyzer
O CDL Data Adjustment(LINE SVC-0)
1) Press the SVC button to get into the SVC-0 Mode.
2) Press the Channel UP/DOWN button to select CDL12.
3) Press the Volume UP/DOWN button until the CDL data is
the same as the Table below.
4) Press the OK(V) button to memorize the data.
O OPTION Data Adjustment(OPTION-1,OPTION-2)
1) Press OK buttons on both TV set and Remote Controller at
the same time to get into SVC mode.
2) Press the Yellow button several times to find OPTION-1 or
OPTION-2.
3) Input the correspond OPTION data referring to Table below
with the numeric buttons.
4) Press the OK(V) button to memorize the data.
Table 1. OPTION 1 Function
Table 2. OPTION 2 Function
Table 3. OPTION 3 Function
ADJUSTMENT
21” FCD
12
FLAT
14,16” CPT
8
15” CPT
10
FLAT
20,21” CPT
12
CDL Data
Remark
0
1
0
1
0
1
0
1
0
1
SCART
TOP
2 IN 1
DVD
C MUTE
Option Code Function Remark
ACTIVE
NOT ACTIVE
W/O DVD
DVD(REAR JACK)
W/O 2 IN 1TUNER
WITH 2 IN 1TUNER
FLOF TXT
TOP TXT
PHONO JACK
SCART JACK
0
1
0
1
0
1
0
1
EYE
TBS
MONO
4 KEY
Option Code Function Remark
W/O TBS
WITH TBS
W/O EYE
WITH EYE
W/O 4 KEY
WITH 4 KEY
FORCED MONO
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
ACMS
T-SCH
T-P/S
CURVE
DUAL
CHA
+ AU
200 PRO
GAME
BCF
Option Code Function Remark
Auto Abnormal ON
Not Used
W/O GAME PACK
WITH GAME PACK
100 PRO
200 PRO
Except China,Austrailia
China,Austrailia
W/O DUAL
WITH DUAL
Austrailia
Except Austrailia
W/O TURBO SEARCH
WITH TURBO SEARCH
W/O TURBO P/S
WITH TURBO P/S
NORMAL VOLUME CURVE
M-A,India VOLUME CURVE
0
1
0
1
0
1
2
3
4
5
6
7
SYSTEM
HOTEL
RESER
VED
Option Code Function Remark
* * *
* * *
W/O HOTEL
W/HOTEL
BG/L
BG/I/DK
BG/I/DK/M
BG/I/DK DUAL
BG/I/DK/M DUAL
2nd IF BG
2nd IF I
2nd IF DK

- 12 -
O AGC Adjustment (SERVICE 1)
1) Connect RF signal (70dB!0.2dB) and turn on the TV.
¡Standard adjustment Channel
- EU 05 Ch. (frf = 175.25MHz)
2) Press the OK buttons on TV set and Remote Controller at the
same time to get into SVC-0 mode.
3) Press the Channel UP/DOWN button on the Remote
Controller several times to find AGC??.
4) Press the Volume UP/DOWN button until the AGC Voltage is
the same as the Table below.
5) Press the OK(V) button to memorize the data.
O FOCUS Adjustment
1) Tune the TV set to receive a PAL 05CH.
2) Adjust the Focus Volume of FBT for best focus.
O Screen Voltage Adjustment
1) Connect the probe of oscilloscope to the RK (Red Cathode)
of CPT Board.
2) Set the oscilloscope to 50V/div and 20Us/div and after
putting GND line upon the lowest grid line of the scope by
pressing GND button,enter into DC mode.
3) Tune the TV set to receive a PAL-B/G 05CH.
4) Adjust Screen Volume of FBT so that the waveform is the
same as below figure (DC 140!3V).
O White Balance Adjustment.(LINE SVC-0)
NOTE : This adjustment should be performed after screen voltage
adjustment.
1) Tune the TV set to receive an 100% white pattern.
2) Press OK(V) buttons on TV set and remote controller at the
same time to get into SVC mode.
3) Press Yellow button on remote controller. (Standard mode)
4) Press Channel UP/DOWN button for desirous function
adjustment.
5)
Adjust VOL+ or VOL-button in each status of "RG--"/"BG--" for
X=272
!8 , Y=288 !8 with color analyzer.(Europe Model :
X=288 !8 , Y=295 ! X=272 !8 , 11,000K)
7) Press the OK(V) button to memorize the data.
Test Point : AGC TP (C101)
Adjust : Remote Controller
Tuner P/N
Marker
AGC Voltage
6700VPF009G
LG Innotek(W/S TUNER)
2.7!0.05V
6700VPF016A
DAEWOO(W/S TUNER)
2.7!0.05V
Tuner P/N
Marker
AGC Voltage
6700VPF009S
LG Innotek(TBS TUNER)
2.5!0.05V
Test Point : Observing Display
Adjust : Focus Volume of FBT
Test Point : RK (Red Cathode of CPT Board)
Adjust : Screen Volume of FBT
Horizontal
FlyBack Time Black level
White level
GND for dc
140Vp-p
Status
RG
GG
BG
BLO-R
BLO-G
Initial Data
31
31
31
31
31
Remark
0
1
2
3
0
1
2
3
0
1
0
1
2
0
1
2
3
0
0
1
0
1
OSD-L
(E-ASIA)
OSD-L
(CH+HI)
English
English,Deutsch,Francais,Italiano,Espanol
English,Nederlands,Svenska,Dansk,Suomi,Por
tugues,Romaneste,Polski,Cesky,Pyccknn
English,Romaneste,Polski,Cesky,Pyccknn,Magyar
English
English,Arab,,Urdu,French
English,Parsi,Urdu,French
English,French,Arab,Urdu,Parsi
English
English,Malay,Vietnam,Indonesian,Thai
English
English,Chinese
English,Hindi
TXT-L
(EU)
TXT-L
(E-ASIA)
TXT-L
(ARAB)
TXT-L
(FARSI)
OSD-L
(EU)
OSD-L
(M-
ASIA)
Option Code Function Remark
ENG. ONLY
EU-7EA
EU ALL
EU EAST
ENG. ONLY
ARABIC
PARSI
ARAB,FARSI,URDE
ENG.ONLY
ASIA-ALL
ENG.ONLY
E+CHINA
E+HINDI
W-EU
E-EU
CYRILLIC
UKRAINIAN
WEST-EU
WEST-EU
ARABIC
WEST-EU
FARSI 14”
DC 130V !3V
OTHERS
DC 140V !3V

- 13 -
O Deflection Data Adjustment (Line SVC-1)
NOTE: To enter SVC mode, press "OK" buttons on both TV set
and the Remote control at the same time.
1. Preparation for Deflection Adjustment
1) At SVC mode, press the Yellow colored button.
And then, deflection data adjustment OSD (SVC1 mode) will
be displayed.
2) Tune the TV set to receive a PAL 05 CH and set the ARC
mode is standard.
2. Deflection Initial Setup Data
3. Deflection Adjustment Procedure
VL (Vertical Linearity)
Adjust so that the boundary line between upper and lower half
is in accord with geometric horizontal center of the CPT.
VA (Vertical Amplitude)
Adjust so that the circle of a digital circle pattern may be
located within the effective screen of the CPT.
SC (Vertical “S” Correction)
Adjust so that all distance between each horizontal lines are
to be the same.
VS (Vertical Shift)
Adjust so that the horizontal center line of a digital circle
pattern is in accord with geometric horizontal center of the
CPT.
HS (Horizontal Shift)
Adjust so that the vertical center line of a digital circle pattern is
in accord with geometric vertical center of the CPT.
Press the OK(V) button to memorize the data.
VL
VA
VS
HS
SC
31
31
31
31
25
31
31
31
31
25
31
31
31
31
25
Status Default 21" FLAT S/S 21" FLAT LG

- 14 -
PURITY & CONVERGENCE ADJUSTMENT
Caution:
Convergence and Purity have been factory aligned. Do not
attempt to tamper with these alignments.
However, the effects of adjacent receiver components, or
replacement of picture tube or deflection yoke may require the
need to readjust purity any convergence.

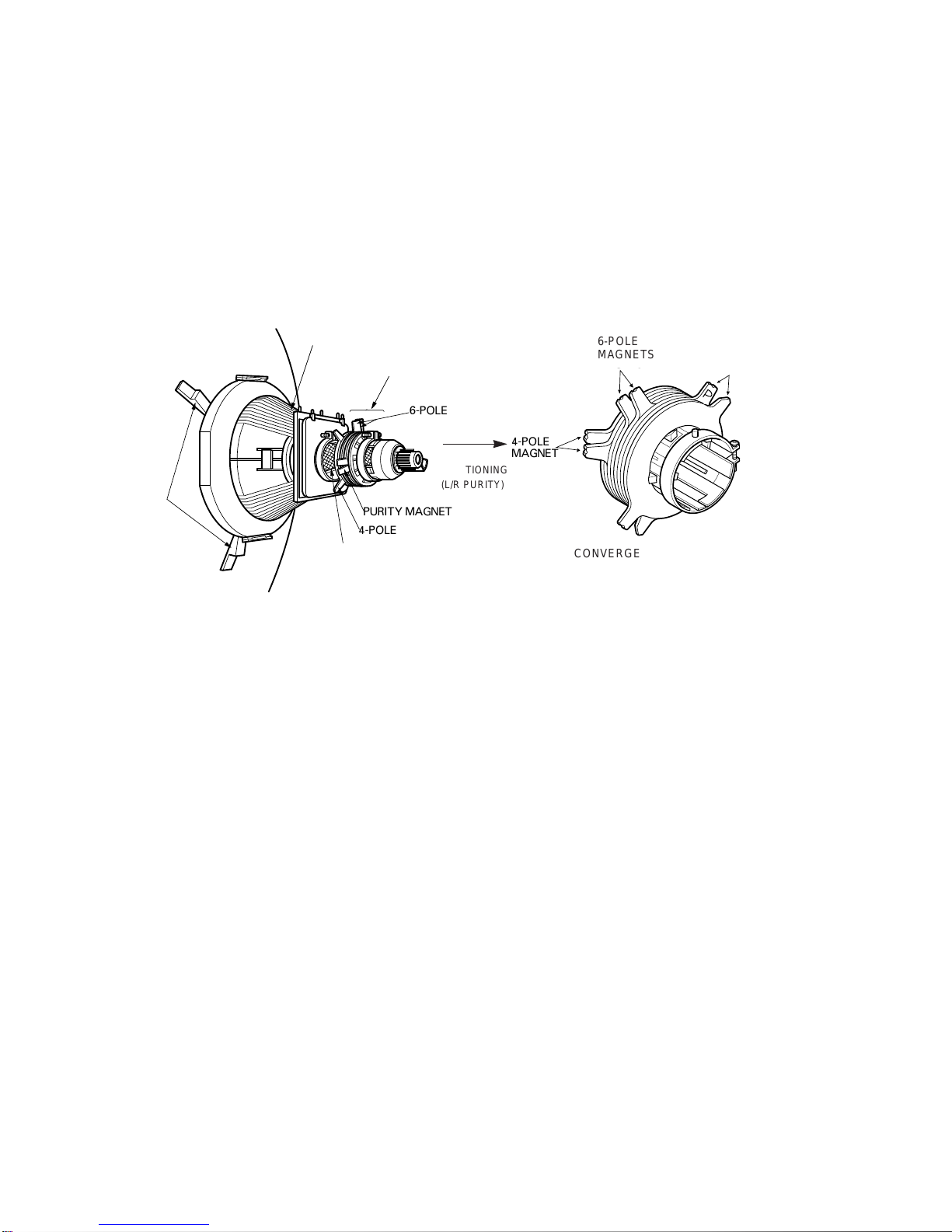

¡Purity Adjustment
This procedure DOES NOT apply to bonded yoke and picture
tube assemblies.
The instrument should be at room temperature (60 degrees F or
above) for six (6) hours and be operating at low beam current
(dark background) for approximately 20 to 30 minutes before
performing purity adjustments.
CAUTION: Do not remove any trim magnets that may be
attached to the bell of the picture tube.
1. Remove the AC power and disconnect the internal
degaussing coil.
2. Remove the yoke from the neck of the picture tube.
3. If the yoke has the tape version beam bender, remove it and
replace it with a adjustable type beam bender (follow the
instructions provided with the new beam bender)
4. Replace the yoke on the picture tube neck, temporarily
remove the three (3) rubber wedges from the bell of the
picture tube and then slide the yoke completely forward.
5. Reconnect the internal degaussing coil.
6. Position the beam bender locking rings at the 9 o'clock
position and the other three pairs of tabs (2,4 and 6 pole
magnets) at the 12 o'clock position.
7. Perform the following steps, in the order given, to prepare the
receiver for the purity adjustment procedure.
a. Face the receiver in the "magnetic north" direction.
b. Externally degauss the receiver screen with the television
power turned off.
c. Turn the television on for approximately 10 seconds to
perform internal degaussing and then turn the TV off.
d. Unplug the internal degaussing coil. This allows the
thermistor to cool down while you are performing the purity
adjustment. DO NOT MOVE THE RECEIVER FROM ITS
"MAGNETIC NORTH" POSITION.
e. Turn the receiver on and obtain a red raster by increasing
the red bias control (CW) and decreasing the bias controls
for the remaining two colors (CCW).
f. Attach two round magnets on the picture tube screen at 3
o'clock and 9 o'clock positions, approximately one (1) inch
from the edge of the mask (use double-sided tape).
DEFLECTION YOKE
PURITY &CONVERGENCE
MAGNET ASSEMBLY
RUBBER
WEDGES
GLASS CLOTH TAPE
,,,,
,,,,
,,,,,
,,,,
,,,,
,,
,,
,,,
,,,
,,
,,,,,
,,,,,
,,,,,
,,,,,,
,,,,,
,,,,,
,,,,,
,,,,,
,,
PURITY MAGNET
6-POLE
4-POLE
4-POLE
MAGNET
CONVERGENCE MAGNET ASSEMBLY
6-POLE
MAGNES PURITY MAGNET(2-POLE)
X-AXIS YOKE
POSITIONING
(L/R PURITY)
6-POLE
MAGNETS
CONVERGENCE MAGNET ASSEMBLY

- 15 -
8. Referring to above, perform the following two steps:
a. Adjust the yoke Z-axis to obtain equal blue circles.
b. Adjust the appropriate beam bender tabs to obtain correct
purity (four equal circles).
9. After correct purity is set, tighten the yoke clamp screw and
remove the two screen magnets.
10. Remove the AC power and rotate the receiver 180 degrees
(facing "magnetic south").
11. Reconnect the internal degaussing coil.
12. Turn the receiver on for 10 seconds (make sure the receiver
came on) to perform internal degaussing, and then turn the
receiver off.
13. Unplug the internal degaussing coil.
14. Turn on the receiver and check the purity by holding one (1)
round magnet at the 3 o'clock and a second round magnet at
9 o'clock position. If purity is not satisfactory, repeat steps 8
through 14.
15. Turn off the receiver and reconnect the internal degaussing
coil.
¡Convergence Adjustment
Caution: This procedure DOES NOT apply to bonded yoke and
picture tube assemblies.
Do not use screen magnets during this adjustment
procedure. Use of screen magnets will cause an
incorrect display.
1. Remove AC power and disconnect the internal degaussing
coil.
2. Apply AC Power and set the brightness to the Picture Reset
condition. Set the Color control to minimum.
3. Make a horizontal line.
4. Adjust the Red, Green and Blue Bias controls to get a dim
white line.
5. Restore the screen by removing the horizontal line.
6. Reconnect the internal degaussing coil and apply AC power.
7. Turn the receiver on for 10 seconds to perform internal
degaussing and then turn the receiver off again.
8. Unplug the internal degaussing-coil.
9. Turn on the receiver, connect a signal generator to the VHF
antenna terminal and apply a crosshatch signal.
Caution: During the convergence adjustment procedure, be
very careful not to disturb the purity adjustment tabs
are accidentally move, purity should be confirmed
before proceeding with the convergence adjustments.
Note: Make sure the focus is set correctly on this instrument
before proceeding with the following adjustment.
10. Converge the red and blue vertical lines to the green vertical
line at the center of the screen by performing the following
steps (below TABLE).
a. Carefully rotate both tabs of the 4-pole ring magnet
simultaneously in opposite directions from the 12 o'clock
position to converge the red and blue vertical lines.
b. Carefully rotate both tabs of the 6-pole ring magnet
simultaneously in opposite directions form the 12 o'clock
position to converge the red and blue (now purple)
vertical lines with the green vertical line.
11. Converge the red and blue horizontal with the green line at
the center of the screen by performing the following steps.
(below TABLE)
a. Carefully rotate both tabs of the 4-pole ring magnet
simultaneously in the same direction (keep the spacing
between the two tabs the same) to converge the red and
blue horizontal lines.
b. Carefully rotate both tabs of the 6-pole ring magnet
simultaneously in same direction (keep the spacing
between the two tabs the same) to converge the red and
blue (now purple) horizontal lines with the green
horizontal line.
c. Secure the tabs previsouly adjusted by locking them in
place with the locking tabs on the beam bender.
MAGNETS
RED RED
1.ADJUST YOKE Z-AXIS FIRST
TO GET EQUAL BLUE
COLOR CIRCLES
2 .ADJUST BEAM BENDER 2 POLE
MAGNET TO GET FOUR EQUAL
COLOR CIRCLES

- 16 -
RING
PAIRS
4
POLE
ROTATION DIRECTION
OF BOTH TABS
OPPOSITE
SAME
OPPOSITE
SAME
MOVEMENT OF RED
AND BLUE BEAMS
B B
RR OR
OR
B R B R
OR
B
R
B
R
B R OR BR
6
POLE
12. While watching the 6 o'clock positions on the screen, rock the
front of the yoke in a vertical (up/down) direction to converge
the red and blue vertical lines. (Fig upper left)
13. Temporarily place a rubber wedge at the 12 o'clock position
to hold the vertical position or the yoke.
14.
Check the 3 o'clock and 9 o'clock areas to confirm that the red
and blue horizontal lines are converged.
If the lines are not converged, slightly offset the vertical tilt of the
yoke (move the rubber wedge if necessary) to equally balance the
convergence error of the horizontal lines at 3 o'clock and 9 o'clock
and the vertical lines at 6 o'clock and 12 o'clock.
15. Place a 1.5 inch piece of glass tape over the rubber foot at
the rear of the 12 o'clock wedge.
16. While watching the 6 o'clock and 12 o'clock areas of the
screen, rock the front of the yoke in the horizontal (left to
right) motion to converge the red and blue horizontal lines.
(Fig. upper right)
17. Temporarily place a rubber wedge at the 5 o'clock and 7
o'clock positions to hold the horizontal position of the yoke.
18. Check the 3 o'clock and 9 o'clock areas to confirm that the
red and blue vertical lines are converged. If the lines are not
converged, slightly offset the horizontal tilt of the yoke (move
the temporary rubber wedges if necessary) to equally
balance the convergence error of the horizontal lines at 6
o'clock and 12 o'clock and the vertical lines at 3 o'clock and 9
o'clock.
19. Using a round magnet confirm purity at the center, right and
left sides and corners. See Purity Adjustment Procedure.
20. Reconfirm convergence and apply a 1.5 inch piece of glass
tape over the rubber foot at the rear of the 5 o'clock and the 7
o'clock wedges.
RED
BLUE
RED BLUE
BLUE
RED
GREEN
GREEN
BLUE RED
GREEN
GREEN
ADJUSTMENT
VIEWING
AREA
UP/DOWN ROCKING OF THE YOKE
CAUSES OPPOSITE ROTATION OF RED
AND BLUE RASTERS
ADJUSTMENT
VIEWING
AREA RED
RED
GREEN
TV
SCREEN
LEET/RIGHT ROCKING OF THE YOKE
CAUSES OPPOSITE SIZE CHANGE OF
THE RED AND BLUE RASTERS
UP/DOWN ROCKING OF THE YOKE
CAUSES OPPOSITE ROTATION OF RED
AND BLUE RASTERS
LEFT/RIGHT ROCKING OF THE YOKE
CAUSES OPPOSITE SIZE CHANGE OF THE
RED AND BLUE RASTERS

- 17 -
BLOCK DIAGRAM
DVD
(FLAT OPT.)
R.G.B AMP. & CPT DRIVE (TDA6107Q)
FBT
185V -14V
AFC ABL
HEATER
B+
HDT
Collector
A1(R/L)-IN
SPK(R/L)-OUT
UOC
TDA9361(TXT)
H/P AV-IN
AUDIO B+
B+ (110/115V)
(14/17V)
SMPS TRANS
SPK.
Front-AV(2)
(MNT/TV-OUT)
14V
H-out
IFout
Int.
CVBS
SCL
SDA
EXT
Video-in
RGB
OUT IK
H-Vcc
VIDEO
TUNER
V_DY
VERTICALAMP
LA7840
Va
Rear_AV(1)
SCART / PHONE)
(
IC03
EEPROM
24C08/16
A(R/L)-OUT
V-OUT
EXT.RGB
Vb
Va
Vb
SPK.
9.5V
5V
From
IC131
A1/A2(R/L)-IN
Y/Pb/Pr
DVD(R/L)-IN / Game Audio
MNT/TV-A(R/L)-OUT
SIF
FM-SIF-IN
SW1 SW2 SDA SCL
MSP3410D
TDA9859
AV STEREO
RF STEREO
MONO SOUND AMP TDA2006
AC INPUT (110~240V)
STEREO,
Sound Max
SOUND AMP.
TDA7266/97
STEREO,
Sound Max
SOUND AMP.
TDA7266/97
IC131 5V REG
Option Part
IIC Bus Line
TDA9381(Non-TXT)
Audio(Mono)
(TV OUT)
28 33 21
22
38
Sound Trap Part
Video-OUT(TV/MNT OUT)
50 4251~53
°‹
°‹
°‹
°‹°‹
STEREO ( ~B01K ~ A13P)
MONO ( ~B01L )
10
12
9
5 3
9 8
10
2
6
14V
1
ST-BY TRANS (3W Opt)
°‹
SPK(L)-OUT °‹
24 25
4744
AUDIO
AM-IN (L/L Only)
30
39
31 40 28
30
14 39
8V
From IC844
14 39 39
3.3V Reg.
5V
From
IC842 3.3V
°‹°‹
8V
From
IC844
IC844 8V REG IC842 5V REG
41 42
1
32
IC02
IC631
IC661
5V 5V
5.1V
SFE 5.74M
32
SIF
SIF(CE Mono)
From Tuner
°‹
35
EXT
Audio-in
°‹
IC651 LA7016(Mono Opt)
72
TV Audio(From UOC #28) / Game Audio (From HIC01)
4
MNTAudio Out(Mono) TV Audio Out (CL Mono)
°‹
°‹
LA7016(DVD / GameOpt)
IC591 )
2
DVD Y / Game Video
4 7
EXT Video
PJ201
EXT Video(To UOC #42)
HIC01 Game Pack(Game Opt)
3, 4, 5 1 2
From UOC Video(Game) Audio(Game)
PJ202
15 18
44 Audio Out
TO IC631 #1,#5
Thai
Opt.
°‹

- 18 -

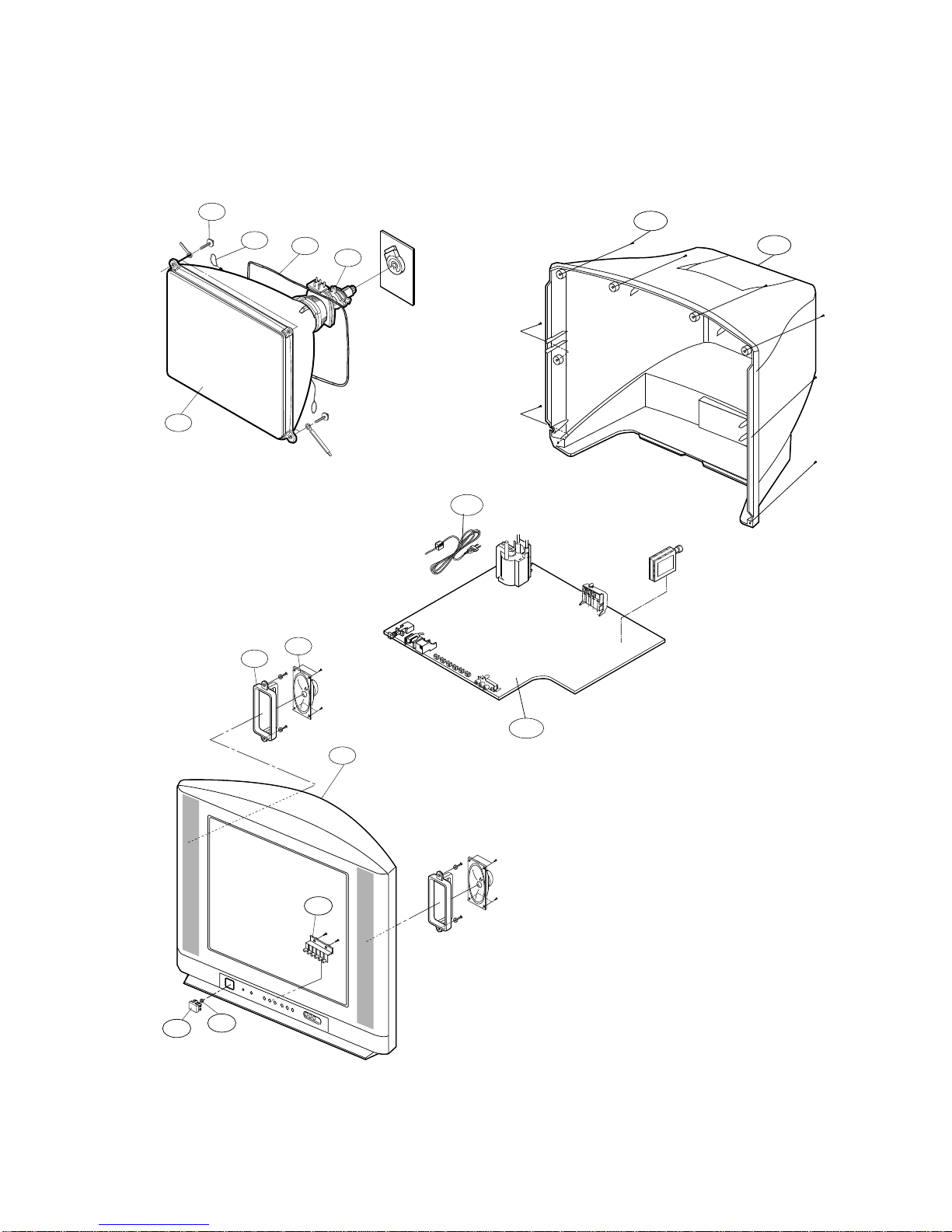

EXPLODED VIEW
913
170 150
112
153
943
400
330 320
120
300
121
310
174
520

- 19 -
112 6334V21004B 6334V15001A CPT
6334V21004A 6334V15001C CPT
6334V21005A - CPT,A51QDJ470X 00Q7NR LG-PHILIPS 15KHZ
120 120-C77M 120-C93G SPEAKER,FULLRANGE
121 4810V00088B 4810V00685A BRACKET,SPEAKER
150 150-D02X 150-D02Z COIL,DEGAUSSING
153 6150V-1014J 6150V-1014F DY
6150V-1019C 6150V-1019A DY
170 170-A01N 170-A01A CPT EARTH
174 174-009E 174-009E POWER CORD
174-225C - POWER CORD
6410VEH001B 6410VBH006A POWER CORD
300 3091V00474A 3091V00B24B CABINET ASSEMBLY
3091V00474B 3091V00B24D CABINET ASSEMBLY
3091V00474C - CABINET ASSEMBLY
3091V00474D - CABINET ASSEMBLY
3091V00694A - CABINET ASSEMBLY
310 5020V00738A 5020V00726A BUTTON,CONTROL 6 KEY
5020V00938A - BUTTON,CONTROL 21FB50 ABS 6KEY LGEEG
320 320-062E 320-062E SPRING,COIL
330 5020V00737A 5020V00725A BUTTON,POWER
330 5020V00939A - BUTTON,POWER 21FB50 ABS NON LGEEG
400 3809V00323A 3809V00A73B
BACK COVER ASSY
3809V00323D 3809V00A73D BACK COVER ASSY
3809V00323B - BACK COVER ASSY
3809V00477A - BACK COVER ASSY
520 6871VMMP10E 6871VMMNA1L PWB ASSY,MAIN MC019A
6871VMMS34Q 6871VMMNA1P PWB ASSY,MAIN MC019A
6871VMMP10P 6871VMMP41N PWB ASSY,MAIN
6871VMMP10Q 6871VMMQA64Q
PWB ASSY,MAIN
6871VMMP10R - PWB ASSY,MAIN MC019A
6871VMMP10S - PWB ASSY,MAIN MC019A
6871VMMP83B - PWB ASSY,MAIN MC019A
700 0IGL120104A 0IGL120104A IC,CDS SENSOR MODULE(P1201-04)
913 332-057B 332-057B SCREW ASSY,HEXAGON HEAD
943 1PTF0403116 1PTF0403116 SCREW,TAP TITE(P)
EXPLODED VIEW PARTS LIST
The components identified by mark are
critical for safety.
Replace only with part number specified.
LOCA. NO DESCRIPTIONS
PART NO
21" 15"

REPLACEMENT PARTS LIST
LOCA. NO PART NO DESCRIPTION
IC01
“
“
“
“
IC02
IC03
IC130
IC301
IC601
IC602
IC603
IC621
IC631
IC661
IC662
IC801
IC802
IC803
IC804
IC842
IC844
IC901
D101
“
D102
D301
“
D401
“
D441
“
D442
“
D443
“
D501
“
D571
“
D802
“
D803
“
D804
D805
“
D806
“
0ICTMPH008C
0ICTMPH006C
0ICTMPH005C
0ICTMPH002C
0ICTMPH004D
0IMCRNS005A
0IAL241610B
0IMCRSG004A
0ISA784070A
0ISA701600A
0ISG726600A
0IFA754207A
0ISG200600A
0IMCRPH010A
0IMCRMN011C
0IFA753307A
0ILI817000G
0ILI817000G
0ISK665413C
0ISK110000A
0IMCRUK002A
0IMCRKE001A
0IPH610700B
0DS141489AB
0DD414809ED
0DSVH00019A
0DR140059AC
0DD400509AA
0DR150009EA
0DD150009CA
0DR060009AA
0DD060009AC
0DR060009AA
0DD060009AC
0DR060009AA
0DD060009AC
0DS141489AB
0DD414809ED
0DS141489AB
0DD414809ED
0DR100009FA
0DD100009AM
0DS141489AB
0DD414809ED
0DD360009AA
0DR200009DA
0DD200009AH
0DR100009FA
0DD100009AM
TDA9381PS/N2/3I,0837 PHILIPS 64P ST MC019A CHINA OSD
TDA9361PS/N2/4I,0793
TDA9381PS/N2/3I,0838
TDA9361PS/N2/4I,0789
TDA9381PS/N2/3I,0782
LM1117T-3.3 NATIONAL SEMICONDUCTOR 3P
AT24C16A-10PI-2.7 8PIN DIP ST EEPROM NON
L7805CV 3PIN
TDA7266S 15 SIP ST SOUND AMP MC00AA
LA7016 8S ANALOG SW
KA75420ZTA 3P,TO-92 TP 4.2V RESET IC
TDA9859 PHILIPS 32P SDIP ST UNIVERSIAL HI-
TDA2006 5Z 1CHX10W AUDIO
TDA9859 PHILIPS 32P SDIP ST UN
MSP3410G PO B8 V3
KA75330ZTA 3P
LTV817M-VB 4P,DIP BK PHOTO COU
LTV817M-VB 4P,DIP BK PHOTO COU
STR-F6654R(LF1352) 5 SIP BK STR MC00AA
SE110N(LF12) 3P 110V ERROR AMP
S78DL05 AUK 3P,TO92 TP 5V-REGULATOR
KIA78R08PI KEC 4PIN,TO220IS-4 ST 1A LOW
TDA6107JF/N3 9P ST RGB AMP
DIODE,SWITCHING 1N4148 TP GRANDE - 20V
DIODE,1N4148
DIODE,SWITCHING BA282 VISHAY TP DO35 35V 100MMA 350A
DIODE,RECTIFIERS 1N4005GP DO41 600V 1.0A
DIODE,RECTIFIERS 1N4005
DIODE,RECTIFIERS RGP15J DO15 600V 1.5A 50A
DIODE,RECTIFIERS RGP15J
DIODE,RECTIFIERS TVR06J DO41 600V 0.6A
DIODE,RECTIFIERS TVR06J
DIODE,RECTIFIERS TVR06J DO41 600V 0.6A
DIODE,RECTIFIERS TVR06J
DIODE,RECTIFIERS TVR06J DO41 600V 0.6A
DIODE,RECTIFIERS TVR06J
DIODE,SWITCHING 1N4148 TP GRANDE - 20V
DIODE,1N4148
DIODE,SWITCHING 1N4148 TP GRANDE - 20V
DIODE,1N4148
DIODE,RECTIFIERS EU1DGR DO41 200V 1.0A 30A
DIODE,RECTIFIERS EU1VZ
DIODE,SWITCHING 1N4148 TP GRANDE - 20V
DIODE,1N4148
DIODE ,BYW36 TP(2A/600V)
DIODE,RECTIFIERS RU2JGF DO15 600V 1.5A 50A
DIODE,RECTIFIERS RU2AMV
DIODE,RECTIFIERS EU1DGR DO41 200V 1.0A 30A
DIODE,RECTIFIERS EU1VZ
LOCA. NO PART NO DESCRIPTION
D807
D808
“
D815
D824
D901
D902
D903
D904
DB801
LD01
ZD01
“
ZD101
ZD441
ZD442
ZD443
ZD501
ZD601
ZD901
Q01
Q102
Q103
Q211
Q212
Q213
Q214
Q215
Q216
Q301
Q402
Q442
Q551
Q552
Q553
Q554
Q555
Q571
Q621
Q651
Q653
Q671
Q672
Q801
Q802
Q806
C01
C02
C03
0DD300009AC
0DR060009AA
0DD060009AC
0DD420000BB
0DD420000BB
0DR210009AC
0DR210009AC
0DR210009AC
0DR140049AC
0DD260000BB
4930V00183B
0DZ910009BD
0DZ910009AJ
0DZ510009AK
0DZ620009AK
0DZ820009BF
0DZ330009DG
0DZ820009BF
0DZ910009BD
0DZ750009BE
0TR198009BA
0TR319709AB
0TR102009AB
0TR198009BA
0TR534309AA
0TR534309AA
0TR534309AA
0TR534309AA
0TR534309AA
0TR198009BA
0TRSA10002A
0TR233109AA
0TR198009BA
0TR198009BA
0TR198009BA
0TR534309AA
0TR534309AA
0TR198009BA
0TR534309AA
0TR534309AA
0TR198009BA
0TR198009BA
0TR198009BA
0TR102009AB
0TR102009AB
0TR102009AB
0CN1020K519
0CN1030F679
0CE107DD618
DIODE,RECTIFIER RU3AMV(1) TP SANKEN
DIODE,RECTIFIERS TVR06J DO41 600V 0.6A
DIODE,RECTIFIERS TVR06J
DIODE,D4L20U SHINDENGEN
DIODE,D4L20U SHINDENGEN
DIODE,RECTIFIERS BAV21 DO35 200V 0.2A 1A 50SEC 100A
DIODE,RECTIFIERS BAV21 DO35 200V 0.2A 1A 50SEC 100A
DIODE,RECTIFIERS BAV21 DO35 200V 0.2A 1A 50SEC 100A
DIODE,RECTIFIERS 1N4004A T-81 DO41 500V 1.0A 30A 10UA
DIODE,RECTIFIERS BRIDGE D2SBA60(STK)
HOLDER,LED MODULE ASSY . 4PIN
DIODE,ZENERSGDZJ9.1B TP GRANDE DO34 0.5W 9.1V
DIODE,ZENERS MTZJ9.1B
DIODE,ZENERS GDZJ5.1B TP GRANDE DO34 0.5W 5.1V
DIODE,ZENERS GDZJ6.2B TP GRANDE DO34 0.5W 6.2V
DIODE,ZENERS GDZJ8.2B TP GRANDE DO34 0.5W 8.2V
DIODE,ZENERS GDZJ33B TP GRANDE DO34 0.5W 33.0V
DIODE,ZENERS GDZJ8.2B TP GRANDE DO34 0.5W 8.2V
DIODE,ZENERS GDZJ9.1B TP GRANDE DO34 0.5W 9.1V
DIODE,ZENERS GDZJ7.5B TP GRANDE DO34 0.5W 7.5V
TR,2SA1980Y TP AUK - -
TR,KTC3197,TP(KTC388A),KEC
TR,KRC102M(KRC1202) KEC TP NA NA NA
TR,2SA1980Y TP AUK - -
TR,2SC5343Y TP AUK - -
TR,2SC5343Y TP AUK - -
TR,2SC5343Y TP AUK - -
TR,2SC5343Y TP AUK - -
TR,2SC5343Y TP AUK - -
TR,2SA1980Y TP AUK - -
TR,TT2140 SANYO ST TO220F 150
TR,KSC2331-Y TP SAMSUNG TO-92L
TR,2SA1980Y TP AUK - -
TR,2SA1980Y TP AUK - -
TR,2SA1980Y TP AUK - -
TR,2SC5343Y TP AUK - -
TR,2SC5343Y TP AUK - -
TR,2SA1980Y TP AUK - -
TR,2SC5343Y TP AUK - -
TR,2SC5343Y TP AUK - -
TR,2SA1980Y TP AUK - -
TR,2SA1980Y TP AUK - -
TR,2SA1980Y TP AUK - -
TR,KRC102M(KRC1202) KEC TP NA NA NA
TR,KRC102M(KRC1202) KEC TP NA NA NA
TR,KRC102M(KRC1202) KEC TP NA NA NA
1000P 50V K B TA52
10000P 16V M Y TA52
100UF STD 10V M FL TP5
IC
DIODE
TRANSISTOR
- 20 -
The components identified by mark are
critical for safety.
Replace only with part number specified.
CAPACITOR
