ADJUSTMENT INSTRUCTION

These instructions are applied to only NC-6HA chassis.

Notes

1.Because this is not a hot chassis, it is not necessary to use an

isolation transformer.

However, the use of isolation transformer will help protect test

instrument.

2.Adjustment must be done in the correct order.

3.Supply 100~240V A.C./50~60Hz.

4.The receiver must be operated for about 30 minutes proir to

the adjustment.

CONTENTS

1. VCO/AFT Adjustment

2. SIF Adjustment

3. Stereo separation Adjustment

4. AGC voltage Adjustment

5. Screen voltage Adjustment

6. White Balance Adjustment

7. FOCUS Adjustment

8. Sub-Bright Adjustment

1. VCO/AFT Adjustment

1) Connect the DMM to pin 13 of IC501.

2) Disconnect the antenna cable.

3) Press SET-UP buttons on the Remote control and the front

panel of TV set at the same time to get into the adjustment mode.

Press channel Up/Down buttons to select an adjustment.

Press volume Up/Down buttons to vary the data.

4) Select APCADJ mode by pressing channel Up/Down

button.

5) Adjust APCADJ data by pressing volume Up/Down button

untill the DMM reads 3.8+_ V.

6) Input the Digital pattern signal.

7) Select VCORUN mode by pressing channel Up/Down

button.

8) Adjust VCORUN data by pressing volume Up/Down button

untill the DMM reads 3.8+_0.2V.

2. SIF Adjustment

1) Input 100% modulated 1KHz sound signal.

2) Connect DMM to pin 7 of IC501.

3) Adjust L104 untill DMM reads 3.8+_0.2V.

3. Stereo separation Adjustment

3-1. Preparation

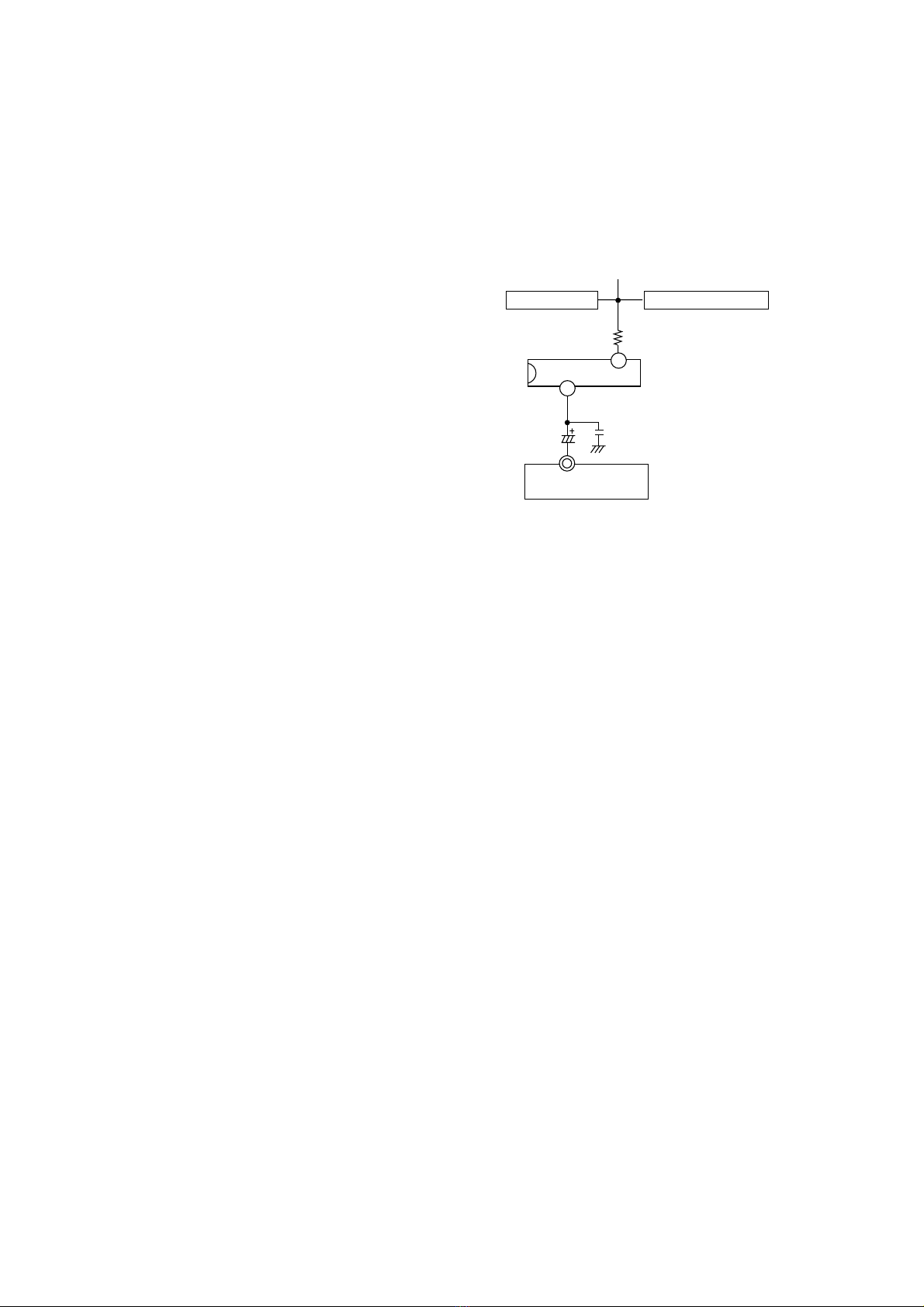

1) Connect the measuring equipment to the TV as show in Fig. 1.

2) Press SET-UP buttons on the Remote control and the front

panel of TV set at the same time to get into the adjustment mode.

3-2. ATT input level adjustment

Select ATT with CHANNEL button and adjust with VOLUME

button until the voltage of JP at R620 is 1.414+_0.03Vp-p.

3-3. Stereo VCO(ST) Adjustment

1) Disconnect the Modulator and connect C1 and the frequency

counter.

2) Select ST VCO with CHANNEL button and adjust with

VOLUME button until the frequency of JP at R617 is

15.734+_0.1KHz.

3-4. Filter Adjustment

Select FILTER with CHANNEL button and adjust with

VOLUME button until the waveform becomes minimum.

3-5. Separation Adjustment

1) Select ST L-only 300Hz signal 30% Modulation of Modulator.

2) Select LSPRT with CHANNEL button and adjust with

VOLUME button until the waveform is minimum.

3) Change the frequency of Modulator to 3KHz.

4) Select HSPRT with CHANNEL button and adjust with

VOLUME button until the waveform is minimum.

5) Select LSPRT and reduce 10 steps.

3-6. SAP VCO Adjustment

1) Disconnect the Modulator and connect C1 and the frequency

counter.

2) Select SAP VCO and adjust until the frequency becomes

78.67+_0.5KHz

4. AGC voltage Adjustment

4-1. Preparation

Connect the DMM to J64 on Main PCB.

4-2. Adjustment

1) Select AGCDLY with CHANNEL button in Adjustment mode.

2) Adjust with VOLUME button until the voltage is 5.6+_0.1V.

5. ScreenVoltage Adjustment

5-1. Make the screen has the horizontal line by Remote control.

5-2. Turn the screen control clockwise until the Horizontal line is

visible and turn it counterclockwise until the Horizontal line is

faintly visible.

OSCILLOSCOPE

IC601

TV SOUND MULTIPLEX

MODULATOR(USA)

JP

C619

C607

R617

FREQUENCY COUNTER

26

7

0.3

0.2

6. White Balance Adjustment

6-1. Preparation

1) Press the APC button on the Remote control for APC ON

condition.

APC ON CONTRAST : 100

BRIGHT : 50

COLOR : 50

TINT : 0

SHARPNESS : 60

2) Set the screen for Adjustment mode by Remote Control.

6-2. Adjustment

1) Adjust the CONTRAST and BRIGHT for 40FT-1.

2) Select G-DRIVER for data Y and B-DRIVER for data X and

adjust for High Light condition. X=282, Y=288(10000+_800

K)

3) Adjust the CONTRAST and BRIGHT for 4.5FT-1.

4) Select G-BIAS for data Y and B-BIAS for data X and adjust for

Low Light condition. X=282, Y=288(10000+_800)

5) Repeat above 1) ~ 4) for good white balance.

7. FOCUS Adjustment

1) Press the APC button on the Remote Control for APC ON

condition.

2) Adjust the FOCUS control on the FBT to obtain a sharp and

clear picture.

8. Sub-Bright Adjustment

1) Input the Mono scope signal as Fig. 2.

2) Set the screen for Adjustment Mode by Remote Control.

3) Select Sub-Bright and adjust until A part is distinguishable.

- 2-

1023456789

A

3-2

PURITY & CONVERGENCE ADJUSTMENT

Caution:

Convergence and Purity have been factory aligned. Do not

attempt to tamper with these alignments.

However, the effects of adjacent receiver components, or

replacement of picture tube or deflection yoke may require the

need to readjust purity any convergence.

* Purity Adjustment

This procedure DOES NOT apply to bonded yoke and picture

tube assemblies.

The instrument should be at room temperature (60 degrees F or

above) for six (6) hours and be operating at low beam current

(dark background) for approximately 20 to 30 minutes before

performing purity adjustments.

CAUTION:Do not remove any trim magnets that may be

attached to the bell of the picture tube.

1. Remove the AC power and disconnect the internal

degaussing coil.

2. Remove the yoke from the neck of the picture tube.

3. If the yoke has the tape version beam bender, remove it and

replace it with a adjustable type beam bender (follow the

instructions provided with the new beam bender)

4. Replace the yoke on the picture tube neck, temporarily

remove the three (3) rubber wedges from the bell of the

picture tube and then slide the yoke completely forward.

5.Reconnect the internal degaussing coil.

6. Position the beam bender locking rings at the 9 o'clock

position and the other three pairs of tabs (2,4 and 6 pole

magnets) at the 12 o'clock position.

7. Perform the following steps, in the order given, to prepare the

receiver for the purity adjustment procedure.

a. Face the receiver in the "magnetic north" direction.

b. Externally degauss the receiver screen with the television

power turned off.

c. Turn the television on for approximately 10 seconds to

perform internal degaussing and then turn the TV off.

d. Unplug the internal degaussing coil. This allows the

thermistor to cool down while you are performing the purity

adjustment. DO NOT MOVE THE RECEIVER FROM ITS

"MAGNETIC NORTH" POSITION.

e. Turn the receiver on and obtain a red raster by increasing

the red bias control (CW) and decreasing the bias controls

for the remaining two colors (CCW).

f. Attach two round magnets on the picture tube screen at 3

o'clock and 9 o'clock positions, approximately one (1) inch

from the edge of the mask (use double-sided tape).

DEFLECTION YOKE

PURITY &CONVERGENCE

MAGNET ASSEMBLY

RUBBER

WEDGES

GLASS CLOTH TAPE

,,,,

,,,,,

,,,,

,,

,,,

,,

,,,,,

,,,,,,

,,,,,

,,

PURITY MAGNET

6-POLE

4-POLE

MAGNET

CONVERGENCE MAGNET ASSEMBLY

6-POLE

MAGNES PURITY MAGNET(2-POLE)

X-AXIS YOKE

POSITIONING

(L/R PURITY)

6-POLE

MAGNETS

CONVERGENCE MAGNET ASSEMBLY

3-3

8. Referring to above, perform the following two steps:

a. Adjust the yoke Z-axis to obtain equal blue circles.

b. Adjust the appropriate beam bender tabs to obtain correct

purity (four equal circles).

9. After correct purity is set, tighten the yoke clamp screw and

remove the two screen magnets.

10.Remove the AC power and rotate the receiver 180 degrees

(facing "magnetic south").

11. Reconnect the internal degaussing coil.

12. Turn the receiver on for 10 seconds (make sure the receiver

came on) to perform internal degaussing, and then turn the

receiver off.

13. Unplug the internal degaussing coil.

14. Turn on the receiver and check the purity by holding one (1)

round magnet at the 3 o'clock and a second round magnet at

9 o'clock position. If purity is not satisfactory, repeat steps 8

through 14.

15. Turn off the receiver and reconnect the internal degaussing

coil.

* Convergence Adjustment

Caution:This procedure DOES NOT apply to bonded yoke and

picture tube assemblies.

Do not use screen magnets during this adjustment

procedure. Use of screen magnets will cause an

incorrect display.

1. Remove AC power and disconnect the internal degaussing

coil.

2. Apply AC Power and set the brightness to the Picture Reset

condition. Set the Color control to minimum.

3. Apply 8V to the pin.

4. Adjust the Red, Green and Blue Bias controls to get a dim

white line.

5. Remove the AC power and 8V from the pin.

6. Reconnect the internal degaussing coil and apply AC power.

7. Turn the receiver on for 10 seconds to perform internal

degaussing and then turn the receiver off again.

8. Unplug the internal degaussing-coil.

9. Turn on the receiver, connect a signal generator to the VHF

antenna terminal and apply a crosshatch signal.

Caution:During the convergence adjustment procedure, be

very careful not to disturb the purity adjustment tabs

are accidentally move, purity should be confirmed

before proceeding with the convergence adjustments.

Note:

Make sure the focus is set correctly on this instrument

before proceeding with the following adjustment.

10. Converge the red and blue vertical lines to the green vertical

line at the center of the screen by performing the following

steps (below TABLE).

a. Carefully rotate both tabs of the 4-pole ring magnet

simultaneously in opposite directions from the 12 o'clock

position to converge the red and blue vertical lines.

b. Carefully rotate both tabs of the 6-pole ring magnet

simultaneously in opposite directions form the 12 o'clock

position to converge the red and blue (now purple)

vertical lines with the green vertical line.

11. Converge the red and blue horizontal with the green line at

the center of the screen by performing the following steps.

(below TABLE)

a. Carefully rotate both tabs of the 4-pole ring magnet

simultaneously in the same direction (keep the spacing

between the two tabs the same) to converge the red and

blue horizontal lines.

b. Carefully rotate both tabs of the 6-pole ring magnet

simultaneously in same direction (keep the spacing

between the two tabs the same) to converge the red and

blue (now purple) horizontal lines with the green

horizontal line.

c. Secure the tabs previsouly adjusted by locking them in

place with the locking tabs on the beam bender.

MAGNETS

RED RED

1.ADJUST YOKE Z-AXIS FIRST

TO GET EQUAL BLUE

COLOR CIRCLES

2 .ADJUST BEAM BENDER 2 POLE

MAGNET TO GET FOUR EQUAL

COLOR CIRCLES

3-4

RING

PAIRS

4

POLE

ROTATION DIRECTION

OF BOTH TABS

OPPOSITE

SAME

OPPOSITE

SAME

MOVEMENT OF RED

AND BLUE BEAMS

B B

RR OR

OR

B R B R

OR

B

R

B

R

B R OR BR

6

POLE

12. While watching the 6 o'clock positions on the screen, rock the

front of the yoke in a vertical (up/down) direction to converge

the red and blue vertical lines. (Fig upper left)

13. Temporarily place a rubber wedge at the 12 o'clock position

to hold the vertical position or the yoke.

14.

Check the 3 o'clock and 9 o'clock areas to confirm that the red

and blue horizontal lines are converged.

If the lines are not converged, slightly offset the vertical tilt of the

yoke (move the rubber wedge if necessary) to equally balance the

convergence error of the horizontal lines at 3 o'clock and 9 o'clock

and the vertical lines at 6 o'clock and 12 o'clock.

15. Place a 1.5 inch piece of glass tape over the rubber foot at

the rear of the 12 o'clock wedge.

16. While watching the 6 o'clock and 12 o'clock areas of the

screen, rock the front of the yoke in the horizontal (left to

right) motion to converge the red and blue horizontal lines.

(Fig. upper right)

17. Temporarily place a rubber wedge at the 5 o'clock and 7

o'clock positions to hold the horizontal position of the yoke.

18. Check the 3 o'clock and 9 o'clock areas to confirm that the

red and blue vertical lines are converged. If the lines are not

converged, slightly offset the horizontal tilt of the yoke (move

the temporary rubber wedges if necessary) to equally

balance the convergence error of the horizontal lines at 6

o'clock and 12 o'clock and the vertical lines at 3 o'clock and 9

o'clock.

19. Using a round magnet confirm purity at the center, right and

left sides and corners. See Purity Adjustment Procedure.

20. Reconfirm convergence and apply a 1.5 inch piece of glass

tape over the rubber foot at the rear of the 5 o'clock and the 7

o'clock wedges.

RED

BLUE

RED BLUE

BLUE

RED

GREEN

BLUE RED

GREEN

ADJUSTMENT

VIEWING

AREA

UP/DOWN ROCKING OF THE YOKE

CAUSES OPPOSITE ROTATION OF RED

AND BLUE RASTERS

ADJUSTMENT

VIEWING

AREA RED

RED

GREEN

TV

SCREEN

LEET/RIGHT ROCKING OF THE YOKE

CAUSES OPPOSITE SIZE CHANGE OF

THE RED AND BLUE RASTERS

UP/DOWN ROCKING OF THE YOKE

CAUSES OPPOSITE ROTATION OF RED

AND BLUE RASTERS

LEFT/RIGHT ROCKING OF THE YOKE

CAUSES OPPOSITE SIZE CHANGE OF THE

RED AND BLUE RASTERS

EXPLODED VIEW

102

170 150 153

913 511

103

520

310

500

400

943

523

350

320

330

340

300

912

120

112

600

501

502

20” 14”

102 341-721A 341-721A HOLDER D-COIL

103 341-721B 341-721B HOLDER D-COIL

112 112-C20J 2055-00744M CPT

120 120-480G 6400VA3002A

SPEAKER,MID-RANGE C112P01K145E 8OHM 3W

150 150-D02M 150-D01C COIL,DEGAUSSING

153 6150V00001A 153-360A DY,DCAM1-20PLAA

170 170-851B 170-851A LEAD SET ASSY,CPT EARTH

300 3091V00041A 3091V00033A CABINET ASSY, GOLDSTAR

300 3091V00041E 3091V00033E CABINET ASSY, LG

310 5020V00052A 5020V00062A BUTTON,CONTROL

320 - 320-062E SPRING, COIL

330 5020V00051A 5020V00063A BUTTON,POWER

340 3550V0008A 3550V00010A COVER, DUCT(L)

350 3550V0007A 3550V00009A COVER, DUCT(R)

400 3809V00030A 3809V00024A BACK COVER ASSY

500 3141VMN107A 3141VMN105A CHASSIS ASSY

501 450-C07A 450-C07A ADAPTER,CONNECTING ANT.

502 303-F62A 303-F62A COVER,TUNER

511 381-226D 381-100F SOCKET,CPT

520 6871VMM092A 6871VMM090A PCB ASSY, MAIN

523 174-009E 174-009C CORD,POWER(W/HOLD,HOUSING,L=200,4.0

600 - 3141VSF006A CHASSIS ASSY, FRONT A/V

912 1PRF0302816 1PRF0302816 SCREW,BRAIZER HD D3 L12 MSWR3/BK

913 332-057A 332-057A SCREW ASSY,HEXAGON HEAD

943 1PPF0403116 1PPF0403116 SCREW,PAN HEADD4 L16

NO. PART NO. DESCRIPTION

*

- 12 -

* Marked Parts are available from LGEMX

only. Do not order them from Korea.

LOCA. NO PART NO DESCRIPTION

IC03

IC05

IC2

IC201

IC301

IC501

IC701

IC801

IC802

Q1

Q101

Q102

Q2

Q201

Q202

Q203

Q211

Q212

Q3

Q4

Q401

Q402

Q501

Q701

Q702

Q801

Q802

Q803

Q805

Q807

Q808

Q901

Q902

Q903

D1

D2

D301

D302

D303

D401

D403

D405

D406

D505

D6

D7

D701

0IKE704200B

0IAL240410A

0ISA860822C

0IGS381200A

0ISA784070A

0ISA760752A

0ISA426100A

0ISK570700A

0ITF435000A

0TR319809AA

0TR319709AB

0TR319809AA

0TR126609AA

0TR319809AA

0TR126609AA

0TR319809AA

0TR322809AA

0TR249900AA

0TR319809AA

0TR126609AA

0TR102609AA

0TR319809AA

0TR322709AA

0TR319809AA

0TR322900AB

0DD247109AA

0DD150009CA

0DD060009AC

0DD247109AA

0DD200009AH

0DD247109AA

0DD060009AC

0DD247109AA

IC,KIA7042P 3P 4.2V RESET

IC,AT24C04-10PC 8D EEPROM(4K,IIC)

IC,LG8608-22C(LC864725A-5D85) 42,

IC,GL3812(HA11518)

IC,LA7840 7S VERTICAL

IC,LG7607 52SD NTSC 1CHIP

IC,LA4261

IC,STR/S5707(LF.953) 9P SMPS-CNTR

IC,4N35(G)V 6D PHOTO COUPLER

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTC3197,TP(KTC388A),KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTC3228-0 TP(KTC2383),KEC

TR,KTD2499 TO-3P(H)IS TOSHIBA

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KTC1026-Y TP(KTC2230A),KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTC3227-Y,TP(KTC1627A),KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTC3229(U-STICK) TO-220IS KEC

DIODE,1S2471

DIODE,RGP15J

DIODE,TVR06J 0.6A/600V 250NS

DIODE,1S2471

DIODE,RU2AMV

DIODE,1S2471

DIODE,TVR06J 0.6A/600V 250NS

DIODE,1S2471

LOCA. NO PART NO DESCRIPTION

D702

D703

D704

D801

D802

D804

D805

D806

D807

D813

D814

D821

D823

ZD101

ZD102

ZD104

ZD301

ZD401

ZD402

ZD403

ZD501

ZD502

ZD503

ZD801

ZD802

ZD803

ZD805

C10

C100

C101

C102

C103

C104

C105

C106

C107

C108

C109

C11

C110

C111

C112

C113

C114

C115

C116

C117

C118

C12

C120

0DD247109AA

0DD260000BB

0DD100009AM

0DD060009AC

0DD100009AM

0DD060009AC

0DD247109AA

0DD150009CA

0DD060009AC

0DD300009AC

0DZ510009AB

0DZ120009AA

0DZ330009CA

0DZ110009AA

0DZ750009AA

0DZ180009AA

0DZ820009AA

0DZ180009AA

0DZ750009AA

0DZ180009AA

0DZ510009AB

0DZ910009BA

0CE225DK618

0CN1030F679

0CQ2242K439

0CN1030F679

0CE475DK618

0CQ1831N509

0CN1030F679

0CE475DK618

0CQ1041N509

0CN1030F679

0CE105DK618

0CE107DF618

0CN1030F679

0CE108DF618

0CE105DK618

0CN1030F679

0CE475DK618

0CN1030F679

0CE107DF618

DIODE,1S2471

DIODE,BRIDGE D2SBA60(STK)

DIODE,EU1ZV

DIODE,TVR06J 0.6A/600V 250NS

DIODE,EU1ZV

DIODE,TVR06J 0.6A/600V 250NS

DIODE,1S2471

DIODE,RGP15J

DIODE,TVR06J 0.6A/600V 250NS

DIODE,RU3AMV

DIODE,ZENER MTZ5.1B

DIODE,ZENER Z12BM TA

DIODE,ZENER MTZ 33B

DIODE,ZENER MTZ 11B

DIODE,ZENER MTZ7.5B

DIODE,ZENER MTZ18B

DIODE,ZENER MTZ8.2B

DIODE,ZENER MTZ18B

DIODE,ZENER MTZ7.5B

DIODE,ZENER MTZ18B

DIODE,ZENER MTZ5.1B

DIODE,ZENER MTZ9.1B

C,ELECTROLYTIC 2.2UF STD 50V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,POLYESTER(MYLAR) 0.22UF S 50V J

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 4.7UF STD 50V M

C,POLYESTER(MYLAR) 0.018U 100V K

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 4.7UF STD 50V M

C,POLYESTER(MYLAR) 0.1MF 100V L

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 1UF STD 50V M

C,ELECTROLYTIC 100UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 1000UF STD 16V M

C,ELECTROLYTIC 1UF STD 50V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 4.7UF STD 50V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 100UF STD 16V M

-13 -

REPLACEMENT PARTS LIST

IC

TRANSISTOR

DIODE

CAPACITOR

LOCA. NO PART NO DESCRIPTION

C121

C122

C124

C125

C126

C127

C13

C14

C15

C18

C2

C201

C202

C203

C205

C206

C207

C211

C214

C215

C216

C217

C218

C222

C223

C224

C225

C226

C3

C301

C303

C307

C309

C310

C311

C314

C315

C36

C39

C4

C40

C401

C402

(14”)

C403

C404

C406

C407

C409

C410

C412

(14”)

C413

C414

(14”)

0CN1030F679

0CK1030K945

0CN1030F679

0CX5600K409

0CE474DK618

0CE106DF618

0CN2210K519

0CN4710K519

0CE475DK618

0CN1030F679

0CN2220F569

0CN8210K519

0CN1020K519

0CE105DK618

0CN1030F679

0CE105DK618

0CE106DF618

0CE107DF618

0CN1030F679

0CE108DF618

0CN1030F679

0CE106DF618

0CN1030F679

0CE476DF618

0CN1020K519

0CQ1021N509

0CK4710W515

0CE107DJ618

0CE477DJ618

0CQ1041N509

0CE228DH61A

0CQ4731N509

0CE6849K538

0CN1030F679

0CQ1041N509

0CN1210K519

0CE477DF618

0CE225DP618

181-091H

181-033N

181-091C

0CK2710W515

0CE227DF618

0CE475DK618

0CE226DK618

181-013E

181-013D

0CK2220W515

181-015G

181-015F

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,CERAMIC(HIGH DIELE) 0.01MF 50V Z

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,TUBULA(T.C) 56P 50V J

C,ELECTROLYTIC 0.47UF STD 50V M

C,ELECTROLYTIC 10UF STD 16V M

C,TUBULA(HIGH DIELE) 220PF 50V K

C,TUBULA(HIGH DIELE) 470PF 50V K

C,ELECTROLYTIC 4.7UF STD 50V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,TUBULA(HIGH DIELE) 2200P 16V K

C,TUBULA(HIGH DIELE) 820P 50V K

C,TUBULA(HIGH DIELE) 1000PF 50V K

C,ELECTROLYTIC 1UF STD 50V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 1UF STD 50V M

C,ELECTROLYTIC 10UF STD 16V M

C,ELECTROLYTIC 100UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 1000UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 10UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(HIGH DIELE) 1000PF 50V K

C,POLYESTER(MYLAR) 0.001U 100V K

C,CERAMIC(HIGH DIELE) 470PF 500V K

C,ELECTROLYTIC 100UF STD 35V M

C,ELECTROLYTIC 470UF STD 35V M

C,POLYESTER(MYLAR) 0.1MF 100V L

C,ELECTROLYTIC 2200UF STD 25V M

C,POLYESTER(MYLAR) 0.047U 100V K

C,ELECTROLYTIC 0.68UF KU 50V K

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,POLYESTER(MYLAR) 0.1MF 100V L

C,TUBULA(HIGH DIELE) 120P 50V K

C,ELECTROLYTIC 470UF STD 16V M

C,ELECTROLYTIC 2.2UF STD 160V M

C,DE1007 681K 2KV TP7.5

C,DE1007 561K 2KV TP5

C,DE0705 R 471K 1KV

C,CERAMIC(HIGH DIELE) 270P 500V K

C,ELECTROLYTIC 220UF STD 16V M

C,ELECTROLYTIC 4.7UF STD 50V M

C,ELECTROLYTIC 22UF STD 50V M

C,MPP 200V 0.47uF J

C,MPP 200V 0.43uF J

C,CERAMIC(HIGH DIELE) 2200PF 500V K

C,MPP 1600V 0.0077UF H

C,MPP 1600V 0.0073UF H

LOCA. NO PART NO DESCRIPTION

C415

C416

C417

C418

C419

C420

C421

C422

C423

C444

C5

C501

C502

C503

C504

C505

C506

C507

C508

C509

C510

C511

C512

C513

C514

C515

C516

C517

C518

C521

C522

C523

C524

C540

C61

C62

C66

C67

C701

C702

C703

C704

C705

C706

C707

C708

C709

C710

C711

C712

C713

C714

C715

C8

C801

0CQ1031N509

0CE108DF618

0CQ3331N509

0CE106DK618

0CN1010K519

0CE476DF618

0CN1030F679

0CE227DF618

0CN1030F679

0CQ3331N509

0CE475DK618

0CQ3342K439

0CE225DK618

0CE335DK618

0CX1200K409

0CE475DK618

0CE105DK618

0CX4700K409

0CE225DK618

0CE474DK618

0CQ2231N509

0CN1030F679

0CE106DK618

0CN1510K519

0CX6800K409

0CE225DK618

0CN1010K519

0CN9100K519

181-003F

0CX1500K409

0CN3310K519

0CE475DK618

0CE225DK618

0CE107DF618

0CQ6821N509

0CE476DK618

0CQ1041N509

0CE227DF618

0CE477DJ618

0CQ1031N509

0CE477DF618

0CE106DF618

0CN1010K519

0CQZVBK002A

C,POLYESTER(MYLAR) 0.01U 100V K

C,ELECTROLYTIC 1000UF STD 16V M

C,POLYESTER(MYLAR) 0.033U 100V K

C,ELECTROLYTIC 10UF STD 50V M

C,TUBULA(HIGH DIELE) 100PF 50V K

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 220UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,POLYESTER(MYLAR) 0.033U 100V K

C,ELECTROLYTIC 4.7UF STD 50V M

C,POLYESTER(MYLAR) 0.33UF S 50V J

C,ELECTROLYTIC 2.2UF STD 50V M

C,ELECTROLYTIC 3.3UF STD 50V M

C,TUBULA(T.C) 12PF 50V J

C,ELECTROLYTIC 4.7UF STD 50V M

C,ELECTROLYTIC 1UF STD 50V M

C,TUBULA(T.C) 47PF 50V J

C,ELECTROLYTIC 2.2UF STD 50V M

C,ELECTROLYTIC 0.47UF STD 50V M

C,POLYESTER(MYLAR) 0.022MF 100V K

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 10UF STD 50V M

C,TUBULA(HIGH DIELE) 150P 50V K

C,TUBULA(T.C) 68P 50V J

C,ELECTROLYTIC 2.2UF STD 50V M

C,TUBULA(HIGH DIELE) 100PF 50V K

C,TUBULA(HIGH DIELE) 91P 50V K

C,ELECTROLYTIC 250V 4.7UF T HR (85)

C,TUBULA(T.C) 15PF 50V J

C,TUBULA(HIGH DIELE) 330P 50V K

C,ELECTROLYTIC 4.7UF STD 50V M

C,ELECTROLYTIC 2.2UF STD 50V M

C,ELECTROLYTIC 100UF STD 16V M

C,POLYESTER(MYLAR) 0.0068U 100V K

C,ELECTROLYTIC 47UF STD 50V M

C,POLYESTER(MYLAR) 0.1MF 100V L

C,ELECTROLYTIC 220UF STD 16V M

C,ELECTROLYTIC 470UF STD 35V M

C,POLYESTER(MYLAR) 0.01U 100V K

C,ELECTROLYTIC 470UF STD 16V M

C,ELECTROLYTIC 10UF STD 16V M

C,TUBULA(HIGH DIELE) 100PF 50V K

C,POLYESTER A.C 275V 0.1UF M (S=15)

-14 -

LOCA. NO PART NO DESCRIPTION

C803

C804

C805

C806

C807

C808

C809

C811

C812

C814

C815

C816

C817

C819

C820

C822

C823

C825

C826

C827

C9

C902

C904

(14”)

C905

C907

(14”)

C908

FB801

FB802

FB803

L1

L101

L102

L103

L104

L105

L107

L108

L2

L3

L4

L401

(14”)

L402

L403

L404

L5

L501

L502

L6

L801

L802

181-124Y

181-033E

0CE475DK618

0CE227DJ618

0CE337DK618

181-033T

181-033M

0CN1020K519

0CE477DJ618

0CK4710W515

0CE477BJ618

0CE227DP61A

0CE1071P61A

181-091D

0CK4710W515

0CE227BF618

181-120E

0CQ3331N509

0CN3310K519

0CN2710K519

0CN3310K519

0CE476DF618

0CN2710K519

0CN3310K519

181-033T

125-123A

125-022K

0LA0561K119

0LA0680K119

0LA0121K119

150-E30H

150-E30D

0LA0221K119

0LA0152K119

0LA0222K119

0LA0561K119

0LA0102K119

150-L04B

150-L01Z

150-C02K

0LA0101K119

0LA0272K119

0LA0821K119

0LA0222K119

0LA0102K119

150-F06N

150-C02K

CAPACITOR 400V 220UF M

CAPACITOR 1KV B 2200PF K

C,ELECTROLYTIC 4.7UF STD 50V M

C,ELECTROLYTIC 220UF STD 35V M

C,ELECTROLYTIC 330UF STD 50V M

CAPACITOR 2KV B 222K TP7.5

CAPACITOR 2KV B 471K TP5

C,TUBULA(HIGH DIELE) 1000PF 50V K

C,ELECTROLYTIC 470UF STD 35V M

C,CERAMIC(HIGH DIELE) 470PF 500V K

C,ELECTROLYTIC 470UF KME (RG) 35V

C,ELECTROLYTIC 220UF STD 160V M

C,ELECTROLYTIC 100UF SM 160V M

C,DE0905 R 102K 1KV

C,CERAMIC(HIGH DIELE) 470PF 500V K

C,ELECTROLYTIC 220UF KME 16V M

C,ACT 4KV E 222M FL10

C,POLYESTER(MYLAR) 0.033U 100V K

C,TUBULA(HIGH DIELE) 330P 50V K

C,TUBULA(HIGH DIELE) 270PF 50V K

C,TUBULA(HIGH DIELE) 330PF 50V K

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(HIGH DIELE) 270PF 50V K

C,TUBULA(HIGH DIELE) 330PF 50V K

CAPACITOR 2KV B 222K TP7.5

CORE,FERRITE BFD3565R2F

CORE,FERRITE 1UH

INDUCTOR,5.6UH K

INDUCTOR,0.68UH K

INDUCTOR,1.2UH K

COIL,VAR,07S 1B 46.6592MHz

COIL,VAR,07S 1B 4.5MHZ (STICK)

INDUCTOR,2.2UH K

INDUCTOR,15UH K

INDUCTOR,22UH K

INDUCTOR,5.6UH K

INDUCTOR,10UH K

COIL,LINEARITY 30UH

COIL,LINEARITY 97UH

COIL,CHOKE 100UH R 1217

INDUCTOR,1.0UH K

INDUCTOR,27UH K

INDUCTOR,8.2UH K

INDUCTOR,22UH K

INDUCTOR,10UH K

COIL,LINE FILTER SQE2424 7MH

COIL,CHOKE 100UH R 1217

LOCA. NO PART NO DESCRIPTION

L901

L902

L903

L904

L905

T401

T402

T801

(14”)

P702

P703

P804

P902

FR301

FR401

(14”)

FR402

FR403

FR501

FR803

FR820

FR828

FR932

(14”)

J23

R1

R10

R100

R101

R102

R103

R104

R105

R107

R108

R109

R11

R110

R111

R112

R113

R114

R115

R116

R117

R118

R119

R12

R120

R122

R123

0LA1000K139

0LA0221K119

151-C02B

154-375D

151-B06S

151-B06N

6631V25014E

6631V25014G

387-916J

387-603E

0RF0470H609

180-D02G

180-D02M

180-D02D

0RF0470H609

0RF0101J607

0RF0470J607

0RF0470H609

0RF0680H609

0RF0101J607

180-D02M

0RD2200F609

0RD0822F609

0RD1201F609

0RD0222F609

0RD4701F609

0RD3300F609

0RD3900F609

0RD6800F609

0RD4702F609

0RD2200F609

0RD1002F609

0RD4701F609

0RS1500K607

0RD3903F609

0RD1001F609

0RS0471H609

0RD3002F609

0RD2200F609

0RD5101F609

0RD3901F609

0RD8201F609

INDUCTOR,100UH K

INDUCTOR,2.2UH K

TRANSFORMER,H-DRIVE,EI-19

FBT,DNF-FA2065A(SECTION,154-277F)

TRANSFORMER,SMPS FOIL

CONNECTOR ASSY,2.5MM 2P(L=300)

CONNECTOR ASSY,2.5MM 3P(L=700)

CONNECTOR ASSY,1P(L=500)

CONNECTOR ASSY,9PIN (IL-J)

R,FUSIBLE 0.47 1/2W 5

R,RNF RND(S) CR 2W 1.2 J

R,RNF RND(S) CR 2W 2.2 J

R,RNF RND(S) EQ 2W 0.68 J

R,FUSIBLE 0.47 1/2W 5

R,FUSIBLE 1 1W 5%

R,FUSIBLE 0.47 1W 5%

R,FUSIBLE 0.47 1/2W 5

R,FUSIBLE 0.68 1/2W 5%

R,FUSIBLE 1 1W 5%

R,RNF RND(S) CR 2W 2.2 J

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 82 1/6W 5

R,CARBON FILM 1.2K 1/6W 5

R,CARBON FILM 22 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 330 1/6W 5

R,CARBON FILM 390 1/6W 5

R,CARBON FILM 680 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 10K 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,METAL FILM OXIDE 150 2W 5%

R,CARBON FILM 390K 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,METAL FILM OXIDE 4.7 1/2W 5

R,CARBON FILM 30K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 5.1K 1/6W 5

R,CARBON FILM 3.9K 1/6W 5

R,CARBON FILM 8.2K 1/6W 5

-15 -

COIL & TRANSFORMER

CONNECTOR

RESISTOR

LOCA. NO PART NO DESCRIPTION

R124

R125

R126

R128

R13

R130

R131

R14

R15

R16

R17

R18

R19

R2

R20

R201

R202

R204

R208

R209

R211

(14”)

R212

(14”)

R215

R216

R217

R218

R219

R220

R221

R222

R223

R224

R225

R228

R229

R230

R231

R24

R25

R254

R255

R26

R27

R28

R29

R3

R30

R301

R302

R303

R304

R305

R306

0RD3302F609

0RD1001F609

0RD1800F609

0RD6800F609

0RD2200F609

0RD1500F609

0RS1002K607

0RD2200F609

0RD0752F609

0RD4701F609

0RD2200F609

0RD3300F609

0RD2203F609

0RD0822F609

0RD3300F609

0RD1001F609

0RD5602F609

0RD4302F609

0RD5602F609

0RD4302F609

0RD1000F609

0RD1200F609

0RD5600F609

0RD4700F609

0RD1002F609

0RD2200F609

0RD1001F609

0RD0561F609

0RD3901F609

0RD1202F609

0RD2203F609

0RD3300F609

0RD2200F609

0RD4701F609

0RD0822F609

0RD2203F609

0RD4701F609

0RD4702F609

0RN1201F409

0RN4700F409

0RS0221H609

0RD0682F609

0RD1602F609

0RD5102F609

R,CARBON FILM 33K 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 180 1/6W 5

R,CARBON FILM 680 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 150 1/6W 5

R,METAL FILM OXIDE 10K 2W 5%

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 75 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 330 1/6W 5

R,CARBON FILM 220K 1/6W 5

R,CARBON FILM 82 1/6W 5

R,CARBON FILM 330 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 56K 1/6W 5

R,CARBON FILM 43K 1/6W 5

R,CARBON FILM 56K 1/6W 5

R,CARBON FILM 43K 1/6W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 120 1/6W 5

R,CARBON FILM 560 1/6W 5

R,CARBON FILM 470 1/6W 5

R,CARBON FILM 10K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 5.6 1/6W 5

R,CARBON FILM 3.9K 1/6W 5

R,CARBON FILM 12K 1/6W 5

R,CARBON FILM 220K 1/6W 5

R,CARBON FILM 330 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 82 1/6W 5

R,CARBON FILM 220K 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,METAL FILM 1.20K 1/6W 1%

R,METAL FILM 470 1/6W 1

R,METAL FILM OXIDE 2.2 1/2W 5

R,CARBON FILM 68 1/6W 5

R,CARBON FILM 16K 1/6W 5

R,CARBON FILM 51K 1/6W 5

LOCA. NO PART NO DESCRIPTION

R307

R308

R309

R31

R310

R311

R312

R313

R315

R32

R33

R34

R35

R36

R37

R38

R39

R4

R40

R401

R402

R403

R404

R405

R406

R407

R408

R409

R41

R410

R412

R413

R414

R415

R416

R417

R418

R419

R42

R420

R421

(14”)

R43

R45

R46

R47

R48

R50

R501

R502

R503

R504

R505

R506

R51

0RD1502F609

0RD2701F609

0RD0822H609

0RD4702F609

0RD0101H609

0RD1002F609

0RD2202F609

0RD0152F609

0RD5600H609

0RD4701F609

0RD1001F609

0RD4700F609

0RD2200F609

0RD3300F609

0RD2200F609

0RD2202F609

0RD4701F609

0RD2202F609

0RD0332H609

0RS4701K607

0RD1801H609

0RD6801F609

0RD1102F609

180-D02T

0RD2202H609

0RD1004F609

0RD1000F609

0RD1001F609

0RD3300H609

0RS4701K607

0RD1001F609

0RS1001J607

0RD0682F609

0RD4700F609

0RD2201F609

0RD2200F609

0RD1801F609

0RD1301F609

0RD2201F609

0RD2200F609

0RD4701F609

0RD3902F609

0RD6201F609

0RD2701F609

0RD1000F609

0RD1001F609

0RD4701F609

R,CARBON FILM 15K 1/6W 5

R,CARBON FILM 2.7K 1/6W 5

R,CARBON FILM 82 1/2W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 1.0 1/2W 5

R,CARBON FILM 10K 1/6W 5

R,CARBON FILM 22K 1/6W 5

R,CARBON FILM 15 1/6W 5

R,CARBON FILM 560 1/2W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 470 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 330 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 22K 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 22K 1/6W 5

R,CARBON FILM 33 1/2W 5

R,METAL FILM OXIDE 4.7K 2W 5%

R,CARBON FILM 1.8K 1/2W 5

R,CARBON FILM 6.8K 1/6W 5

R,CARBON FILM 11K 1/6W 5

R,FUSIBLE 2W 27 J

R,CARBON FILM 22K 1/2W 5

R,CARBON FILM 1.0M 1/6W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 330 1/2W 5

R,METAL FILM OXIDE 4.7K 2W 5%

R,CARBON FILM 1.0K 1/6W 5

R,METAL FILM OXIDE 1K 1W 5%

R,CARBON FILM 68 1/6W 5

R,CARBON FILM 470 1/6W 5

R,CARBON FILM 2.2K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 1.8K 1/6W 5

R,CARBON FILM 1.3K 1/6W 5

R,CARBON FILM 2.2K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 39K 1/6W 5

R,CARBON FILM 6.2K 1/6W 5

R,CARBON FILM 2.7K 1/6W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

-16 -

LOCA. NO PART NO DESCRIPTION

R510

R511

R512

R513

R514

R516

R517

R518

R52

R520

R521

R522

R525

R53

R54

R540

R547

R55

R56

R57

R58

R59

R6

R60

R61

R62

R63

R64

R65

R66

R67

R68

R69

R7

R70

R701

R702

R703

R704

R705

R706

R707

R708

R709

R71

R712

R713

R72

R73

R74

R75

R76

R77

R78

R8

0RD1001F609

0RD6803F609

0RD1502F609

0RD1602F609

0RD3000F609

0RD0562F609

0RD3300F609

0RD1001F609

0RD4700F609

0RD5600F609

0RD6800F609

0RD1001F609

0RD2200F609

0RD2702H609

0RD8202H609

0RD2200F609

0RD4700F609

0RD2200F609

0RD4702F609

0RD1002F609

0RD2000F609

0RD2200F609

0RD4701F609

0RD3300F609

0RD8200F609

0RD4701F609

0RD2200F609

0RD6202F609

0RD2200F609

0RD4700F609

0RD7501F609

0RD2701F609

0RD7501F609

0RD2701F609

0RD0221H609

0RD4702F609

0RD2200F609

0RD0102F609

0RD1002F609

0RD2200F609

0RD4702F609

0RD3300F609

0RD1202F609

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 680K 1/6W 5

R,CARBON FILM 15K 1/6W 5

R,CARBON FILM 16K 1/6W 5

R,CARBON FILM 300 1/6W 5

R,CARBON FILM 56 1/6W 5

R,CARBON FILM 330 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 470 1/6W 5

R,CARBON FILM 560 1/6W 5

R,CARBON FILM 680 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 27K 1/2W 5

R,CARBON FILM 82K 1/2W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 470 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 10K 1/6W 5

R,CARBON FILM 200 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 330 1/6W 5

R,CARBON FILM 820 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 62K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 470 1/6W 5

R,CARBON FILM 7.5K 1/6W 5

R,CARBON FILM 2.7K 1/6W 5

R,CARBON FILM 7.5K 1/6W 5

R,CARBON FILM 2.7K 1/6W 5

R,CARBON FILM 2.2 1/2W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 10 1/6W 5

R,CARBON FILM 10K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 330 1/6W 5

R,CARBON FILM 12K 1/6W 5

LOCA. NO PART NO DESCRIPTION

(14”)

R801

R802

R803

R804

R806

R807

R808

R809

R810

R811

R812

R813

R814

R815

R816

R817

R818

R821

R822

R826

R9

R901

R904

R905

R906

(14”)

R908

R911

R913

R915

R916

(14”)

R917

R918

R919

R920

R921

(14”)

R922

SW1

SW2

SW3

SW4

SW5

SW6

SW7

F801

JA01

JA02

(14”)

0RD3902F609

180-A03H

0RS2202K607

0RD0332H609

180-A01H

0RS0182J607

0RD1002H609

0RD5601H609

0RD1800H609

0RD2401F609

0RD8200F609

0RS1200K607

0RD4701F609

0RS0562K607

0RD1000H609

0RD3902H609

180-C02H

0RD5601F609

0RD9100F609

0RD2201F609

0RD2200F609

0RS1202K607

0RD1801F609

0RD3000F609

0RD2400F609

0RD1000F609

0RD1002F609

0RS1202K607

0RD8200F609

0RD3000F609

0RD2400F609

0RD1000F609

0RS1202K607

0RD1501H609

0RD2400F609

0RD1000F609

0RD3000F609

140-275B

140-315B

131-029K

6612VJH002C

6612VJH003B

6612VJV001A

R,CARBON FILM 39K 1/6W 5

R,RW RECT G 10W 1.0 J DOUBLE

R,METAL FILM OXIDE 22K 2W 5%

R,CARBON FILM 33 1/2W 5

R,RW ROUND G 2W 0.27 J

R,METAL FILM OXIDE 18 1W 5%

R,CARBON FILM 10K 1/2W 5

R,CARBON FILM 5.6K 1/2W 5

R,CARBON FILM 180 1/2W 5

R,CARBON FILM 2.4K 1/6W 5

R,CARBON FILM 820 1/6W 5

R,METAL FILM OXIDE 120 2W 5%

R,CARBON FILM 4.7K 1/6W 5

R,METAL FILM OXIDE 56 2W 5%

R,CARBON FILM 100 1/2W 5

R,CARBON FILM 39K 1/2W 5

R,CARBON COMPOSIT C12GK825V 1/2W 8.2M K

R,CARBON FILM 5.6K 1/6W 5

R,CARBON FILM 910 1/6W 5

R,CARBON FILM 2.2K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,METAL FILM OXIDE 12K 2W 5%

R,CARBON FILM 1.8K 1/6W 5

R,CARBON FILM 300 1/6W 5

R,CARBON FILM 240 1/6W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 10K 1/6W 5

R,METAL FILM OXIDE 12K 2W 5%

R,CARBON FILM 820 1/6W 5

R,CARBON FILM 300 1/6W 5

R,CARBON FILM 240 1/6W 5

R,CARBON FILM 100 1/6W 5

R,METAL FILM OXIDE 12K 2W 5%

R,CARBON FILM 1.5K 1/2W 5

R,CARBON FILM 240 1/6W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 300 1/6W 5

SWITCH,PUSH SWITCH (NOT LOCKING)

SWITCH,TACT

FUSE,MINI,TIME LAG 5A/250V

JACK,RCA A/V 2P WITH LABEL

JACK,RCA A/V 2P(PJ6052B) H;15.4

JACK,RCA PJ6048A-01 VERTICAL

-17 -

SWITCH

MISCELLANEOUS

LOCA. NO PART NO DESCRIPTION

LD1

P802

PA01

RL801

TH801

TU101

VA801

X10

X401

X501

Z101

Z102

Z103

A1

A2

A2-1

A3

A4

A5

0DD000000BA

174-009E

106-047B

141-028B

163-054A

113-241C

164-003D

156-A08A

166-E02N

156-A03B

166-234A

166-C04A

166-B02A

3828VA0060D

6710V00011D

303-H35A

132-204G

132-204H

450-017C

387-084B

DIODE,LAMP(DIFFUSION TYPE)

CORD,POWER(W/HOLD,HOUSING,L=200,4.0

PRE-AMP,SBX1620-72(SONY)

RELAY,SZR-G5-AP DC 12V 44MA

THERMISTOR,J502P53D140M290S

TUNER,TUGH9-A07A

VARISTOR,SVC 561D-14A

CRYSTAL,32.7680KHZ +-10PPM

RESONATOR,CSB503F44 507.5

CRYSTAL,3.579545 16PF 90 OHM

FILTER,SAF 45 MA 80Z

FILTER,TRAP TPS4.5MWA-TF21

FILTER,B.P FILTER SFSH4.5MCB-TF21

MANUAL,OWNERS CN-14/20D90G,LG,ENG,GREEN,CAP

REMOTE CONTROLLER ASSY(NC-6HA,MONO,LG)

COVER,BATTERY

ANTENNA ASSY,ROD(STS,3SEC,F/L 500,BK)

ANTENNA ASSY,ROD(STS,3SEC,F/L 650,BK)

ADAPTER,ANT.(300 TO 75) NTSC

CONNECTOR ASSY,POWER (D4.0 W/O EYELET)

LOCA. NO PART NO DESCRIPTION

-18 -

ACCESSORIES

LG Goldstar CN-14D90 Guide

Popular TV manuals by other brands
