LG V-WA266ND User manual

VACUUM CLEANER
SERVICE MANUAL
MODEL : V-WA266ND, V-C9364WAU
CAUTION
BEFORE SERVICING THE UNIT, READ THE
"SAFETY PRECAUTIONS" IN THIS MANUAL.
Website http://biz.lgservice.com
삼흥
정판
P/NO : 3828Fi3854A
May, 2004
Printed in Korea
Internal Use Only

-2-
CONTENTS
SAFETY PRECAUTIONS.............................................................................................................................3
CAUTIONS ...................................................................................................................................................3
DESCRIPTION..............................................................................................................................................4
SPECIFICATIONS ........................................................................................................................................5
DISASSEMBLY ........................................................................................................................................5~8
TROUBLE SHOOTING...........................................................................................................................9~11
SCHEMATIC DIAGRAM.............................................................................................................................12
EXPLODED VIEW................................................................................................................................13~16
REPLACEMENT PARTS LIST.............................................................................................................17~45

-3-
SAFETY PRECAUTIONS
BEFORE OPERATING THIS VACUUM CLEANER, READ THIS SERVICE MANUAL THOROUGHLY,
AND OBSERVE EACH POINT CAREFULLY.
1. Empty the dust tank, when the dust thank is full.
1) If the dust thank is full, intake power will be
reduced.
2. Filter
1) The filter is composed of Air filter and Exhaust
filter.
2) Never use the vacuum cleaner without filters.
It may harm to the motor and cleaner does not
work properly.
3) After cleaning, separate the Air filter and clean it
using water and brush.
NOTE : Reuse of Air filter
• Never wash the filter in a washing machine or in a
dishwasher.
• Never use hot water for washing the filter.
• Reuse the filter after drying it completely in the
shade for a day.
• Do not dry near fire or direct sun ray.
3. Avoid suction such materials as:
1) Inflammable liquids such as benzene, alcohol or
solvents.
2) Burning objects such as cigarette butts or hot
ash.
3) Bulky objects such as vinyl, paper etc.
4) Sharp and hard objects as pins, needles, stones,
small toys etc.
4. Attachments
• Main spray nozzle : Shampoo cleaning for carpet
and floor.
• Window master : Shampoo cleaning for window.
• Small shampoo nozzle : Shampoo cleaning for
sofa and chair etc.
• Carpet/Floor nozzle : For cleaning wooden floor,
the room floor and carpet.
• Carpet master : For carpet cleaning
• Crevice tool : For cleaning any crevice, inside
corners window frames. (However,
do not use the crevice tool more
than 20 minutes.)
• Dusting brush : For delicate vacuuming of fabrics
on the furniture, curtains, etc.
• Upholstery Nozzle : For vacuuming the dust on
the upholstery.
5. Close supervision is necessary when this
vacuum cleaner is used by or near children.
Children's cardlessness may cause damage to
the cleaner or injure persons.
6. Air exhausted from the vacuum cleaner is
normally warm.
But if extraordinarily hot air is exhausted, check
if the tube, hose or air filter is clogged or not.
7. Electric shock could occur if used outdoors or
on wet surfaces.
CAUTIONS
BEFORE ATTEMPTING TO SERVICE OR ADJUST ANY PART OF THE VACUUM CLEANER,
DISCONNECT THE ELECTRICAL POWER SUPPLY CORD FROM THE WALL OUTLET.
1. Motor exchange
1) Separate the Body Cover and Body Base by
unfastening the screws.
2) Disconnect lead wires.
3) Remove the old motor and replace it with a new
one.
2. In case of exchanging other parts, refer to the
exploded view.

-4-
DESCRIPTION
Optional
Carpet Master
Spray Nozzle
Frame Brush
Crevice Turbine NozzleTool
Shampoo Bottle
Brush Dusting Brush
Upholstery Nozzle
Window Master
Small Shampoo Nozzle
Shampoo Button
Inlet Dust
Switch Button
Power Cord
Red Mark
Yellow Mark
Hose
Hose Handle
Dust Tank
Clamp
Shampoo
Tank Cap
Spray Nozzle
Shampoo
Lever
Pipe
Pipe
Cover
Shampoo Tank
Cord Reel Button
Handle

-5-
SPECIFICATIONS
•MODEL : REFER TO THE COVER PAGE
• POWER SOURCE : ON RATING PLATE
• POWER CONSUMPTION : ON RATING PLATE
• CAPACITY : WATER 5.0ℓ, DRY 6.0ℓ
• CORD LENGTH : 6 m
• HOSE LENGTH : 1.8 m
• NET WEIGHT : 9.5Kg
• PACKING WEIGHT : 15Kg
• NET DIMENSION : 493×361×398 (W×D×H)mm
• PACKING DIMENSION
:565×385×565 (W×D×H)mm
• ATTACHMENTS
F/HOSE ASSEMBLY ......................................................... 1EA
STAINLESS PIPE .............................................................. 2EA
CARPET MASTER ............................................................ 1EA
WINDOW MASTER ........................................................... 1EA
SMALL SHAMPOO NOZZLE............................................ 1EA
MAIN SPRAY NOZZLE ..................................................... 1EA
CREVICE TOOL................................................................. 1EA
DUSTING BRUSH ............................................................ 1EA
UPHOLSTERY NOZZLE................................................... 1EA
SHAMPOO BOTTLE ......................................................... 1EA
FRAME BRUSH ................................................................ 1EA
BRUSH................................................................................ 1EA
• This specifications are subject to change according to the buyer's request.
DISASSEMBLY

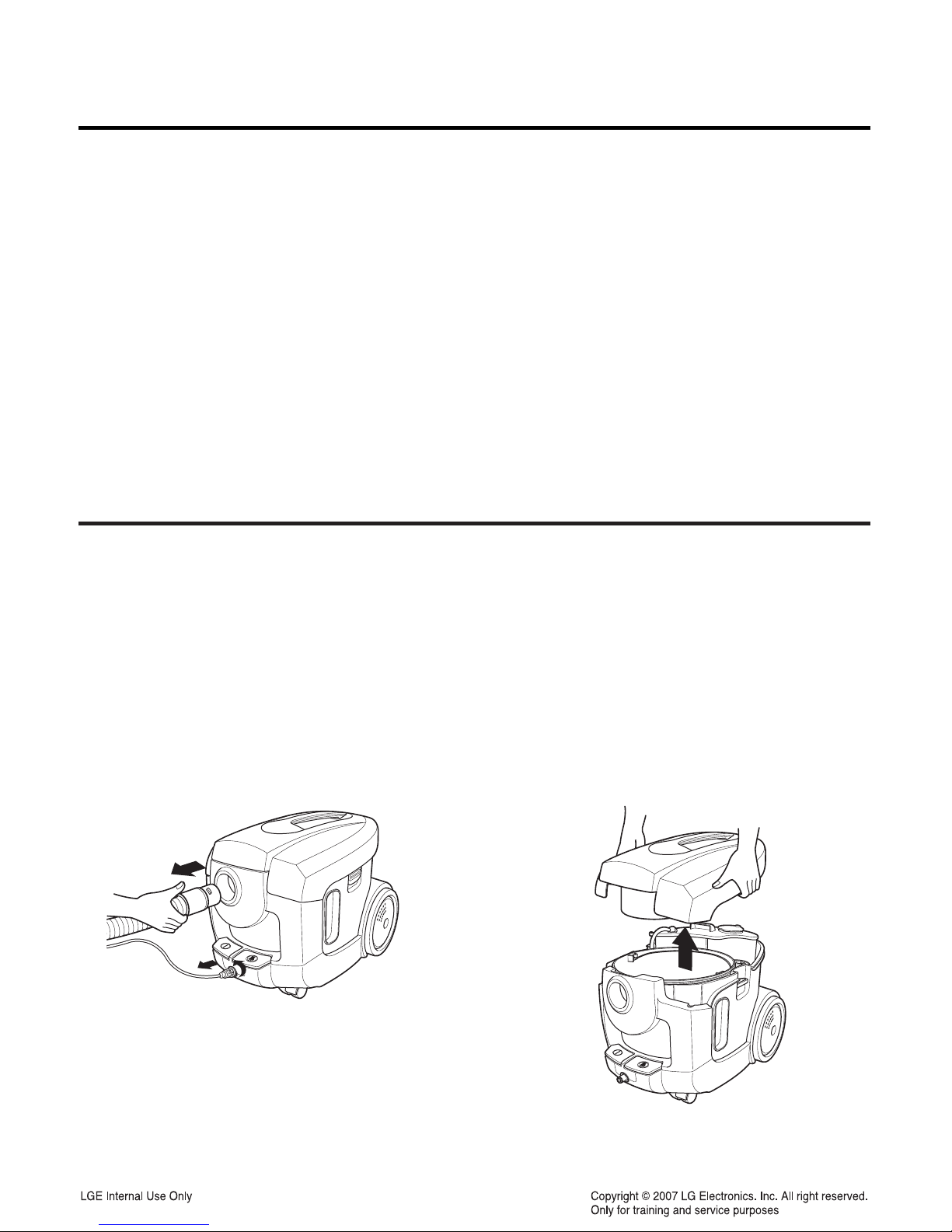

1. Open the Top Cover Assembly.
1) Separate flexible hose Assembly. 2) Grasp clamps and open the Top Cover Assembly by
lifting.
NOTE : Before attempting to service or adjust any part of the vacuum cleaner, disconnect the electrical power
supply cord from the wall outlet.
• Almost all the parts of this vacuum cleaner can be assembled with a screw driver and each connecting component
easily fits each other.
Disassemble one by one referring to the exploded view.
• If possible, don't disassemble except for the necessary parts. It is not necessary to disassemble the parts that are
not detailed in the exploded view.

-6-
3) Separate Dust Tank and Shampoo Tank.
2. Body Base Assembly Replacement
1) Separate Exhaust Cover Assembly .
2) Remove seven screws fastening the Body Cover
Assembly on the Body Base Assembly
3) Separate Body Cover Assembly by lifting.
Dust Tank
Shampoo Tank

-7-
3. Motor Assembly Replacement
• Lift the motor assembly in direction of the arrow.
• Stripe off lead wires.
4. Cord Reel Assembly Replacement
• Lift the Cord Reel Assembly from the body base in
direction of the arrow after stripping off lead wires.
5. Pump Assembly Replacement
1) Take out the Snap Ring and pull out the pump
tube.
2) Take out buttons on button setting.
Snap
Ring
Snap
Ring
Snap
Ring
SnapSnap
RingRing
Snap
Ring

-8-
3) Remove two screws fastening Button Setting and
separate the button setting on body base.
4) Remove four screws fastening the Pump on the
Body Base.
5) Separate E-ring using pump nipple.
Button Setting

-9-
TROUBLE SHOOTING
1. SWITCH ON BUT MOTOR DOES NOT RUN
2. SWITCH ON, MOTOR DOES NOT RUN BUT BUZZES
CHECKING CAUSE SOLUTION
Check the power
source. Poor plug insertion Insert again
Power cord cut Repair or exchange
Interior lead wire cut Exchange the lead wire
Motor armature cut Exchange the motor
Ball bearing defacement Exchange the motor
Impeller hindrance
(Caused by foreign matters)
Remove the foreign
matters
Motor(stator armature)
coil cut or damaged Exchange the motor
Poor contact carbon
brush defaced Exchange or repair
Poor switch contact point Exchange the switch

-10-
3. SWITCH OFF BUT MOTOR RUNS
4. WEAK SUCTION POWER
5. SWITCH ON BUT PUMP DOES NOT OPERATE
Poor connection Repair
Poor switch Exchange the switch
Carbon brush defaced Exchange the carbon
brush or the motor
Motor armature cut
Low rotation speed
Exchange the motor
Foreign matters attached
to the impeller
Remove the foreign
matters
Low voltage Inquire to the Power utility
company
Hose and extension wands
are clogged with foreign
matters
Remove the foreign
matters in the hose or
extension wands
Motor runs normally,
but suction power is weak.
Poor connection Repair
Air filter is clogged. Clean the Air filter.
No-pumping Exchange pump

-11-
6. VIBRATION NOISES
7. RADIO, TV RECEPTION DISTURBANCE
8. IMPROPER HOSE OR NOZZLE CONNECTION
Loose parts Secure firmly
Unbalanced motor
assembly
Exchange or repair
the motor
Foreign matters are attach
to the impeller
Remove the foreign
matters
Poor cord, lead wire Exchange cord, lead wire
Poor carbon brush
rectified
Exchange the carbon
brush or the motor
Bent connection parts Exchange the parts
Poor connection
(Caused by foreign matters)
Remove the foreign matters
and reconnect
Poor electric connector or
receiver
Repair the electric
connector or receiver
Poor capacitor Exchange the capacitor
Poor carbon brush
rectification
Exchange the carbon
brush or the motor
Armature is cut or foreign
matters attached
Exchange motor
Remove foreign matters

-12-
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM

-13-
EXPLODED VIEW
BASE ASSEMBLY, BODY / COVER ASSEMBLY, EXHAUST
#EV#
MDJBM1 MDSBA2 MCDBR1
AHAPA1
MGZBR1
MDSBA4
MHLBS1
MFGBC1
MCKEE1MDSEE1
AJWBA1
AHAPA1
AGNBN1
EADBS1
MGQBP1
MAMBB1
MDSBA1
EBRBM1
MCQBM1
EAUBA1
MCQBZ1
MDSBA3
MCQBA1
MEKBM1
AHJBA1
MBGCC1
MBGCC2
MHYBC1
MBGCS1
MJUCT1
EBFBA1
AHDBR1
V-WA266ND(V-WA266ND.ATRPECC)
V-WA266ND(V-WA266ND.ATVPNAE)
V-WA266ND(V-WA266ND.ADTQERO)
V-WA266ND(V-WA266ND.ADTQLGM)
V-WA266ND(V-WA266ND.ATRQSBI)
V-WA266ND(V-WA266ND.ADTQECZ)
V-WA266ND(V-WA266ND.ATRPLAL)
V-WA266ND(V-WA266ND.ATRQLUK)
V-C9364WAU(V-C9364WAU.ADTQBWT)
V-C9364WAU(V-C9364WAU.ADTQEAK)

-14-
MEATA1
ACVCA1
MCKCF2
MDSTA1
MGJTC9
MBLTS1
MDSSG1
MJMTS1
MBGCR1
MHYCC1
MDSCA1
MDJCM1
MCKCB1
MBNCO1
MBLTT1
MGJTC8
MJMTD1
MEBTC1
AJLCS1AJLTD1
ACQBB1
TANK ASSEMBLY, DUST / TANK ASSEMBLY, SHAMPOO / COVER ASSEMBLY, BODY
#EV#

-15-
MEBTU1
MEBTL1
MDSTG1
MCKST1
ADSTA1
MEATF1
ADQTF1
MBUTC2
MBUTC1
MCKTI1
MDSTG2
MEATB1
COVER ASSEMBLY, TOP
#EV#

-16-
ABCAF1
MCDAH1
MEYAC1
AJRAT1
AGRAM1AGBNN1
AGBNN3
AJALS1
AGBNU1 ABCAD1
MFVAC1 AGBNN2 AGBN41AGBN33
AEMAF1
ACCESSORIES
#EV#
