LG WD-3245RHD User manual

Washing Machine
OWNER'S MANUAL
WD-3243RHD
WD-3245RHD
website : http://www.LGservice.com
e-mail : http://www.LGEservice.com/techsup.html

2
roduct Feature
P
ontents
C
Important Safety Information .....................................................3
Specification ..............................................................................4
Installation..................................................................................5
Preparation Before Washing....................................................10
Adding Detergent.....................................................................11
Cycles......................................................................................12
How To Use Sasher.................................................................13
Maintenance............................................................................20
Troubleshooting Guide ............................................................23
Warranty..................................................................................26
 Automatic Process From Washing To Drying.
Automatic process from washing to drying can be selected easily.
 More Economical By Intelligent Wash System
Intelligent Wash System detects the amount of load and water
temperature, and then determines the optimum water level and
washing time to minimize energy and water consumption.
 Direct Drive System
The advanced Brushless DC motor rotates the drum directly
without belt and pulley.
 Child-Lock
The Child-Lock system has been used to prevent children from
pressing any button to change the program during operation.
 Low Noise Speed Control System
By sensing the amount of load and balance, it evenly distributes
load to minimize the spinning noise level.
 Auto Restart
If the washing machine experiences a power failure, it will restart
automatically from the place it stopped.
TEMP. TIME
DELAY

3
mportant Safety Information
I
For your safety, the information in this manual must be followed to minimize the risk of fire
or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
READ ALL INSTRUCTIONS BEFORE USE
WARNING!
• Read all instructions before using the washer.
• Do not wash articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry cleaning solvents, or other
flammable or explosive substances, as they give
off vapors that could ignite or explode.
• Do not add gasoline, dry cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors
that could ignite or explode.
• Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for 2 weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not
been used for such a period, before using the
washing machine, turn on all hot water faucets
and let the water flow from each for several
minutes. This will release any accumulated
hydrogen gas. As the gas is flammable, do not
smoke or use an open flame during this time.
• Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children.
• Before the washer is removed from service or
discarded, remove the door to prevent children
from hiding inside.
• Do not install or store the washer where it will
be exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the washer
or attempt any servicing unless specifically
recommended in the user-maintenance
instructions or published user-repair instructions
that you understand and have the skills to carry
out.
• See Installation Instructions for grounding
requirements.
• Do not use heat to dry articles containing foam
rubber or similarly textured rubber like materials.
• Interior of washer and condensing duct should be
cleaned periodically by qualified service
personnel.
•ALWAYS follow the fabric care instructions
supplied by the garment manufacturer.
• Do not place items exposed to cooking oil in your
dryer, Items contaminated with cooking oils may
• Contribute to a chemical reaction that could cause
a load to catch fire.
•Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a
cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinance.
• Do not use an adapter or otherwise defeat the grounding plug.
• If you don’t have the proper outlet, consult an electrician.
IMPORTANT SAFETY INSTRUCTIONS
WARNING : To reduce the risk of fire, electric shock, or injury to persons when using the washer,
follow basic precautions, including the following:
SAVE THESE INSTRUCTIONS
WARNING : Improper connection of the equipment-grounding conductor can result in risk of electric
shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is
properly grounded. Do not modify the plug provided with the appliance - if it does not fit the outlet, have a
proper outlet installed by a qualified electrician.

4
pecification
S

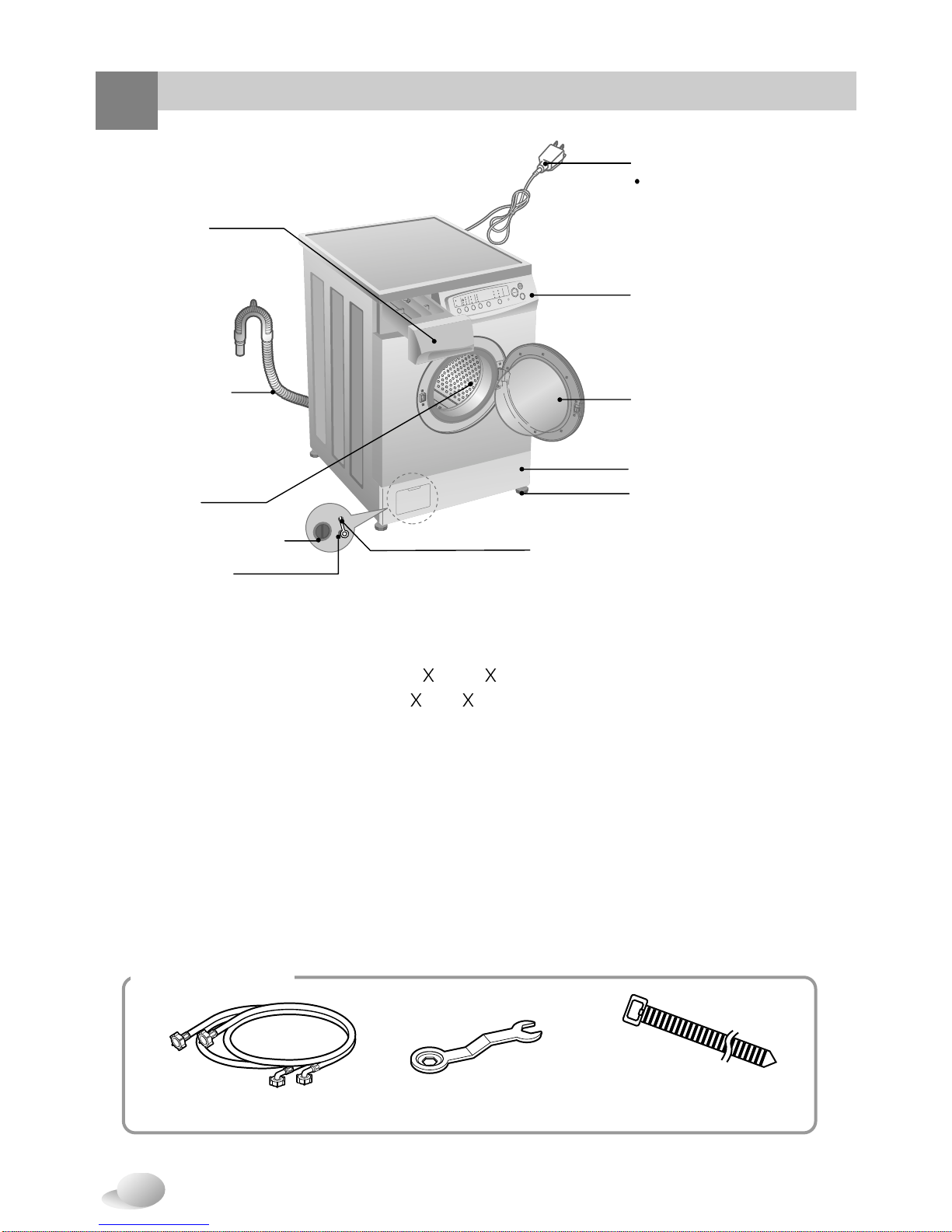

Drain Hose
Power Plug
Control Panel
Door
Lower Cover
Adjustable Feet
Emergency Door Release
(For detergent and
fabric softener)
Drawer
Drum
If the supply cord is damaged,
it must be replaced by the
manufacturer or its service agents
or a similarly qualified person in
order to avoid a hazard.
Drain Pump Filter
Drain Plug
Name : Front-loading Washing Machine
Power supply : 120V~ 60Hz
Size : 235/8235/8331/2(inches)
600 600 850 (mm)
Weight : 1561/2lbs. (71 kg)
Wash capacity : 1.96 cu. ft. (6.5 kg)
Dry capacity : 65/8lbs. (3.0 kg)
Max. Watt : 1200W
Spin speed : No Spin/400/600/800/1000/1200
Water consumption : 194/5gal. (84 l)
Permissible water pressure : 4.5 ~ 145 PSI (30 ~ 1000 kPa)
❋The appearance and specifications may be varied without notice to raise the unit’s quality.
Hot/Cold (1 each) Wrench Tie strap
to secure drain hose to standpipe,
inlet hose, or laundry tub
 Accessories

5
nstallation
I
1. To prevent internal damage during
transport, the special 3 bolts are locked.
Before operating the washer, remove
the bolts and braces.
• If they are not removed, it may cause heavy
vibration, noise, and malfunction.
3. Take out the 3 bolts and braces by twisting
slightly the braces. Keep the 3 bolts and
braces and the wrench for future use.
• Whenever the appliance is transported, the
shipping bolts and braces must be replaced.
The appliance is fitted with shipping bolts to prevent internal damage during transport.
2. Unscrew the 3 bolts with
the wrench supplied. 4. Close the holes with the caps supplied.
 Shipping bolts
Install or store where it will not be exposed to temperatures below freezing or exposed to the weather.
Properly ground washer to conform with all governing codes and ordinances.
The base opening must not be obstructed by carpeting when the washing machine is installed on a
carpeted floor.

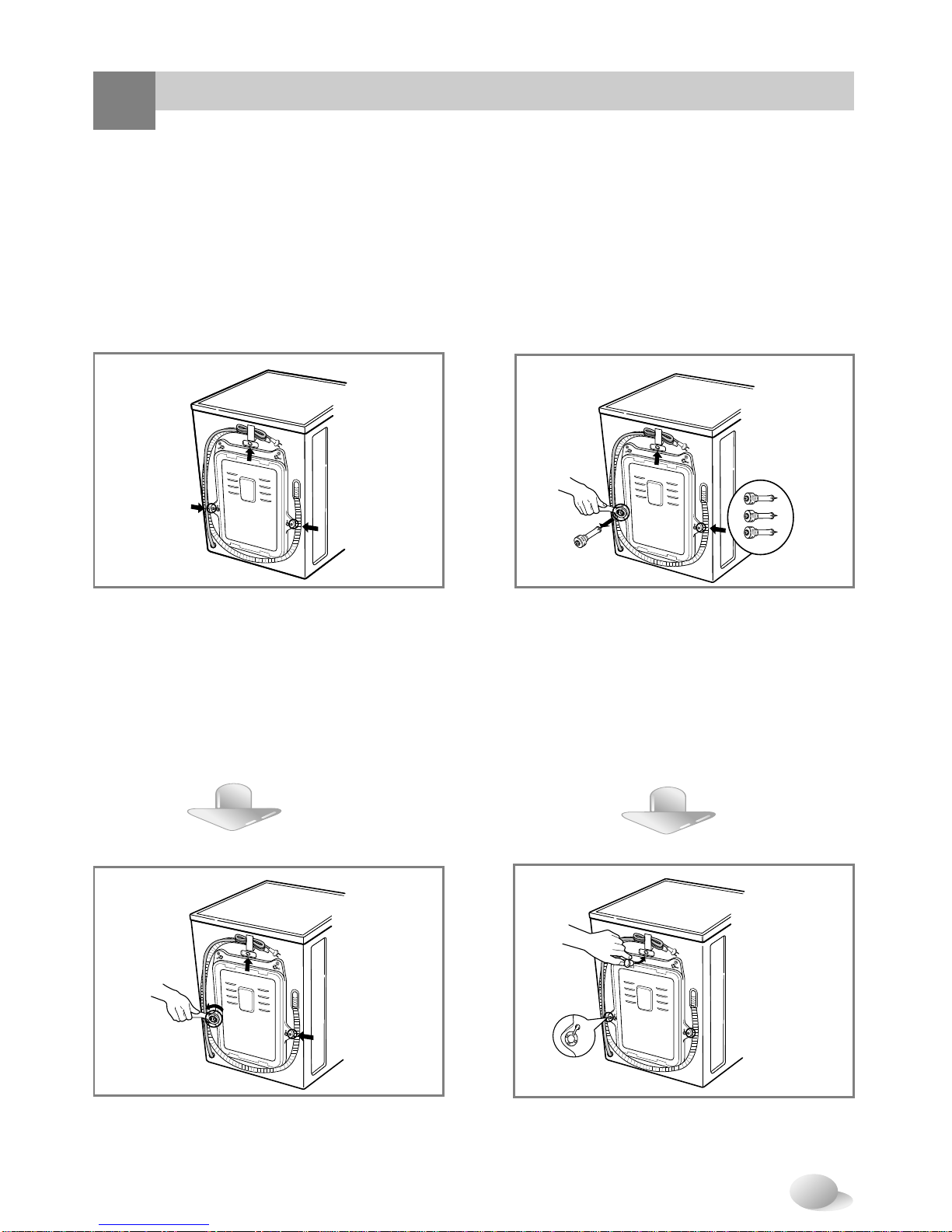

 Removing shipping bolts
cap

6
nstallation
I
Level floor :
Allowable slope under entire washer is 1˚.
Power outlet :
Must be within 60 inches (1.5 m) of either
side of the washer. Do not overload the
outlet with more than one appliance.
Additional Clearance :
If the washer is installed inside a closet or
alcove, the following clearances are
required:
4 inches (10 cm) rear, 1 inch (2.5 cm) side
Do not place or store laundry products on
top of washer at any times.
They can damage the finish or controls.

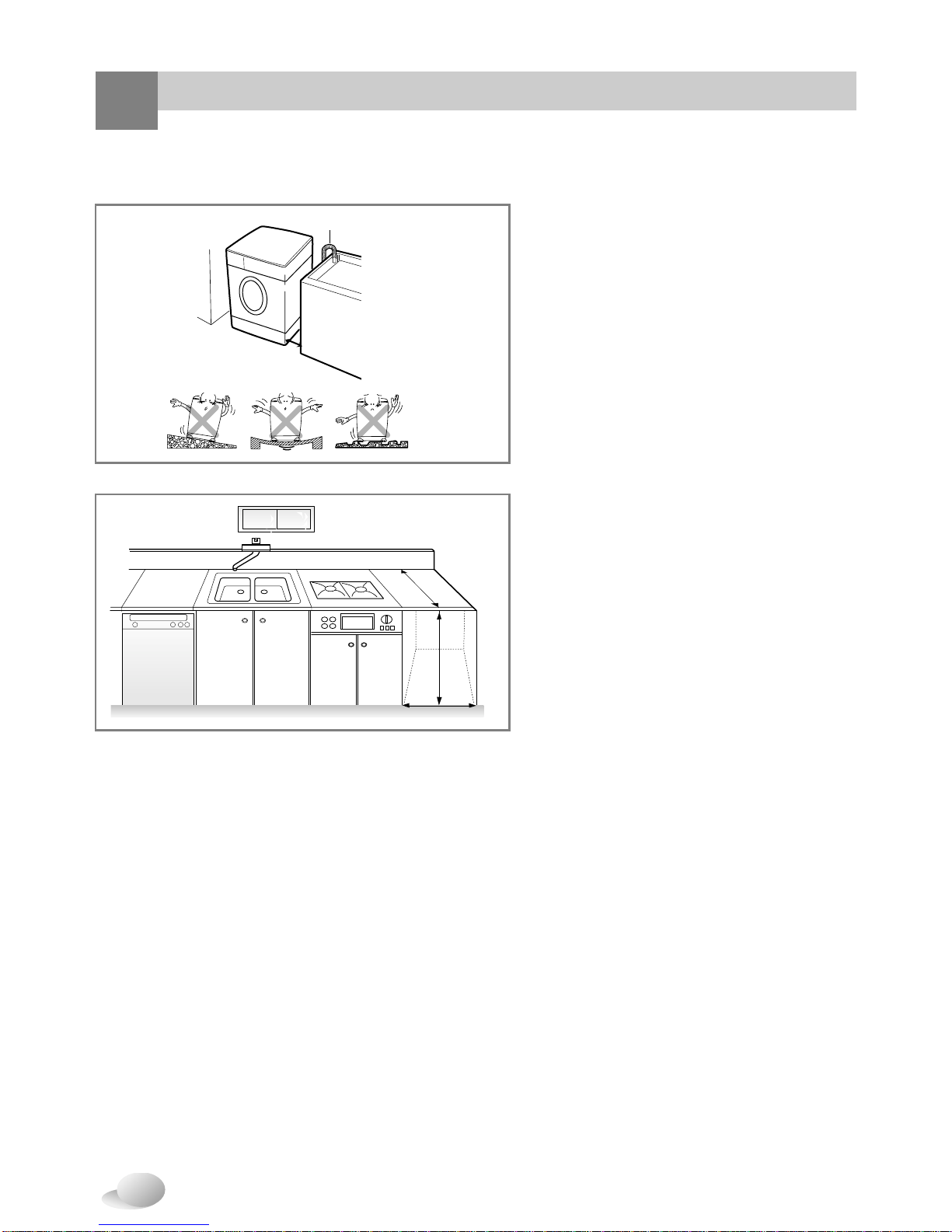

 Installation place requirement
Laundry
Tub
Washer
approx.
2cm
Drain Hose
650
850
600
8

7
nstallation
I
Water supply pressure must be between
4.5 ~ 145 PSI (30~1000 kPa)
Don’t strip or crossthread when connecting
Inlet hose to the valve.
If the water supply pressure is more than
1000 kPa, a pressure reducer device should
be installed.
• Two Sealing washer are supplied with the
water inlet hoses to prevent water leaks.
• Check water tightness of washing
machine connections by turning the tap
completely on.
• Periodically check the condition of the
hose and replace the hose if necessary.
• Make sure that there is no kink in the
hose and that it is not crushed.
• The Inlet hose which has red connector is
for the hot water tap.
 Washing Machine is to be connected to the water mains using new hoses
Old hoses should not be used.

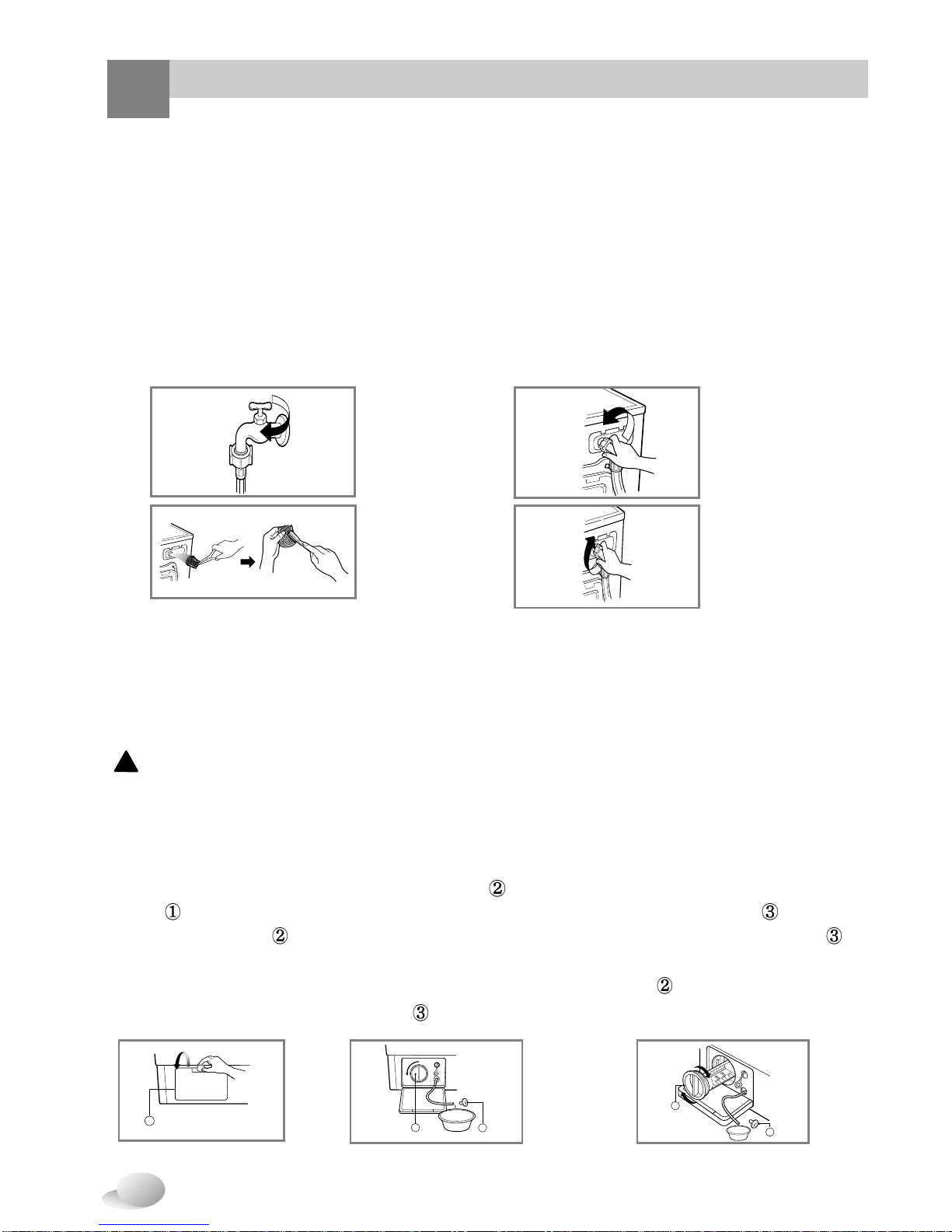

 Connecting water supply hose
Sealing
washer
Hose connector
Hot water tap
Cold Hot Cold
water
tap
1. Do not use an extension cord or double adapter.
2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agents
or similarly qualified person in order to avoid a hazard.
3. Always unplug the machine and turn off the water supply after use.
4. Connect the machine to an earthed socket in accordance with current wiring regulations.
5. The appliance must be positioned so that the plug is easily accessible.
 Electrical connection

8
nstallation
I
 Installation of drain hose
max. 50"
min. 23"
ca. 41"
ca. 57"
ca. 40"
max. 40"
min. 23"
Hose
Retainer
Laundry tub
Tie
strap max. 40"
min. 23"
max. 40"
ca. 41"
ca. 57"
ca. 40"
min. 23"
• The drain hose should not be placed
higher than 40”above the floor.
• Proper securing the drain hose will
protect the floor from damage due to
water leakage.
• When installing the drain hose at a sink,
secure it so it cannot break away, causing
flooding and damage.
• Proper securing the drain hose will protect
the floor from damage due to water
leakage.
• When installing the drain hose at a sink,
secure it so it cannot break away, causing
flooding and damage.
• Proper securing the drain hose will protect
the floor from damage due to water
leakage.

9
nstallation
I

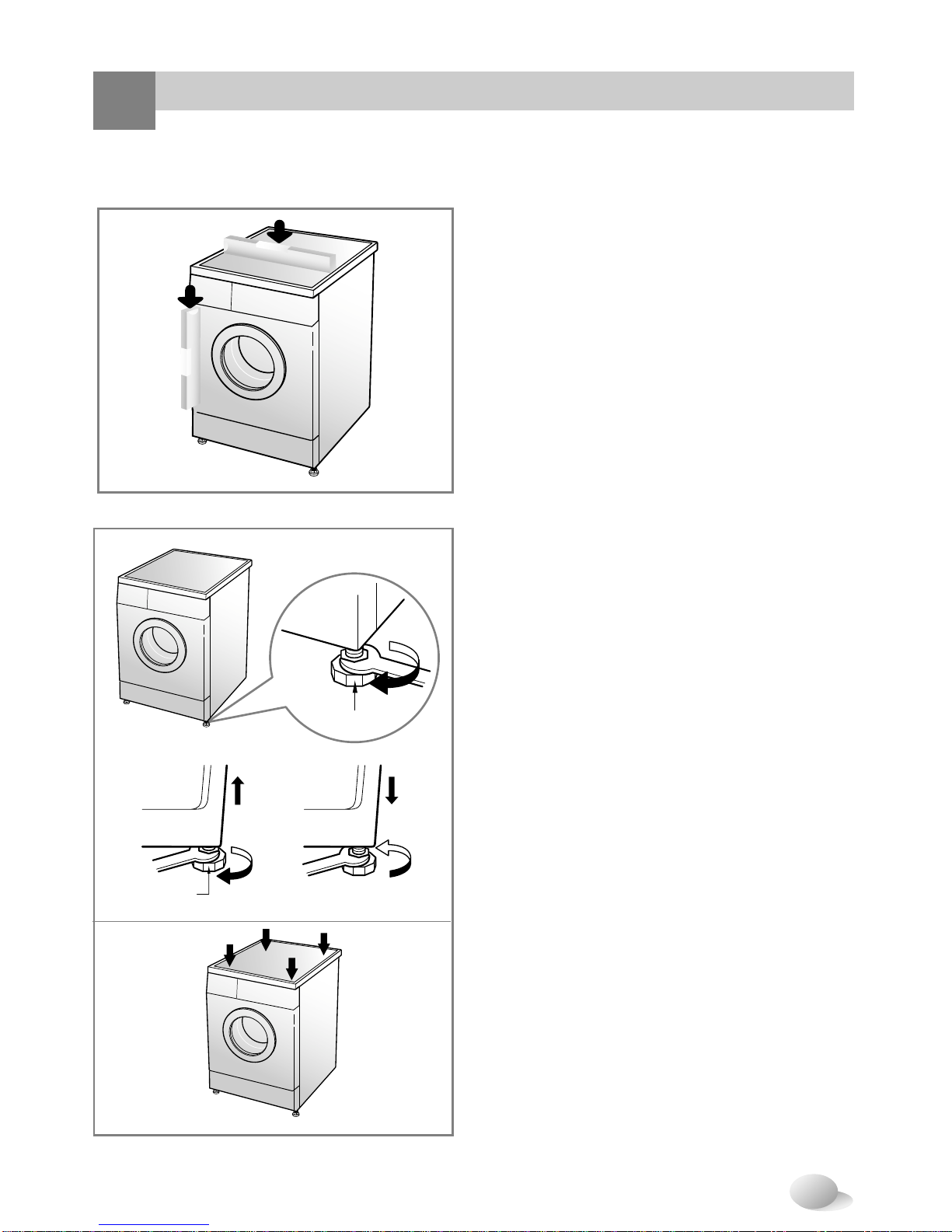

 Level adjustment
1. Leveling a the washing machine properly
prevents excessive noise and vibration.
Install the appliance on a solid and level
floor surface, preferably in a corner of
the room.
2. If the floor is uneven, adjust the
adjustable feet as required. (Do not
insert pieces of wood, etc. under the
feet)
Make sure that all four feets are stable
and resting on the floor and then check
that the appliance is perfectly level. (use
a spirit level)
❊ Diagonal Check
When pushing down the edges of the
washing machine top plate diagonally, the
machine should not move up and down at
all. (Please, check both directions)
If machine rocks when pushing the machine
top plate diagonally, adjust the feets again.
Adjustable feet
Higher Lower
Adjustable feet

10
reparation before washing
P

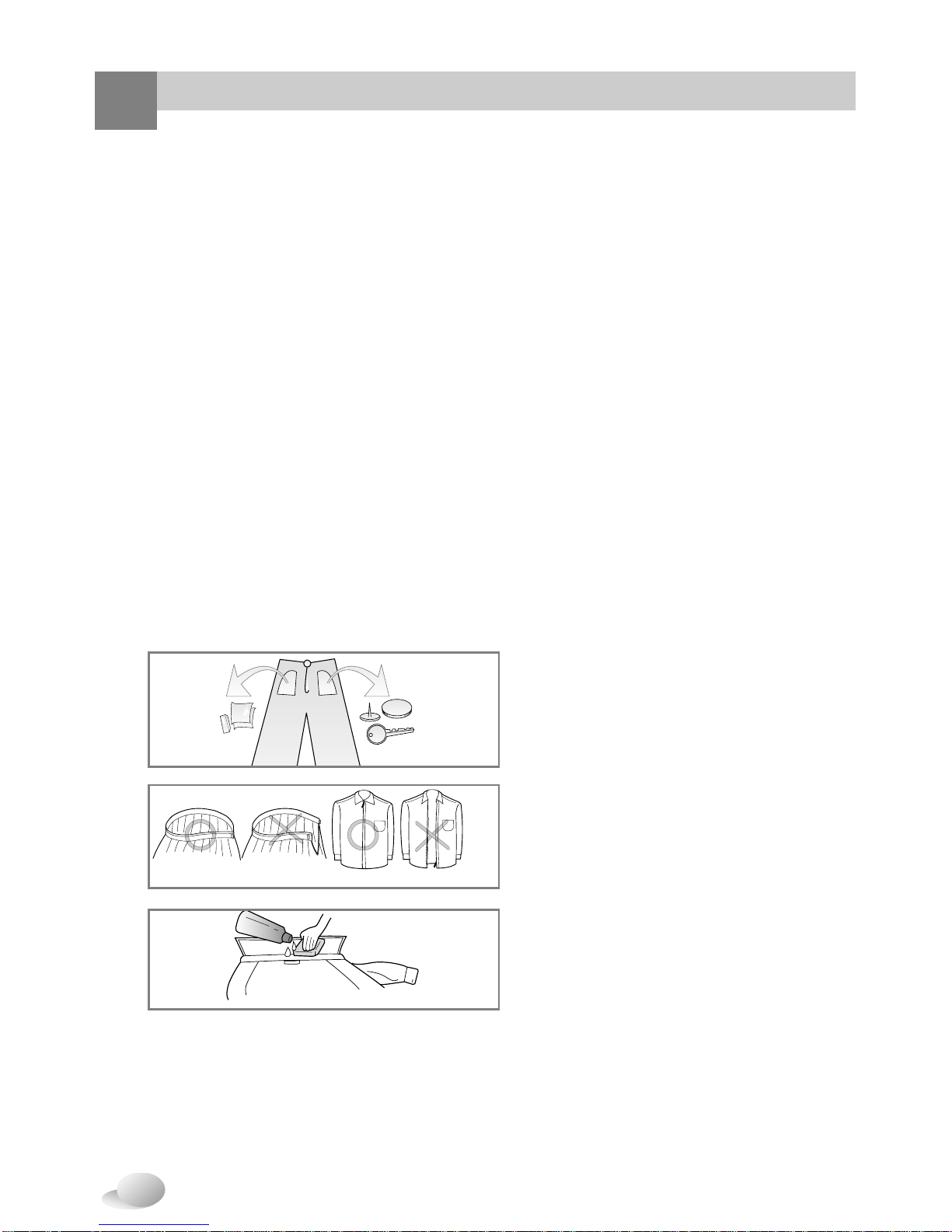

1. Care Labels
Look for a care label on your clothes. This will tell you about the fabric content of your
garment and how it should be washed.
2. Sorting
To get the best results, Sort clothes into loads that can be washed with the same wash cycle.
Water temperature and spin speed and different fabrics need to be washed in different ways.
Always sort dark colors from pale colors and whites. Wash separately as dye and lint
transfer can occur causing discoloration of white etc. If possible, do not wash heavily
soiled items with lightly soiled one.
Soil (Heavy, Normal, Light) Separate clothes according to amount of soil.
Color (White, Lights, Darks) Separate white fabrics from colored fabrics.
Lint (Lint Producers, Collectors) Wash lint producers and lint collectors
separately.
3. Check before loading
 Combine large and small items in a load. Load large items first. Large items should not be more
than half the total wash load.
Do not wash single items. This may cause an out-of-balance load. Add one or two similar items.
• Check all the pockets to make sure
that they are empty. Things such
as nails, hair clip, matches, pens,
coins, and keys can damage both
your washer and your clothes.
• Close zippers, hooks, and strings
to make sure that these items don’t
snag on other clothes.
• Pre-treat dirt and stains by
brushing a little detergent dissolved
in water onto stains like collars and
cuffs to help shift dirt.

11
dding detergent
A
• Do not exceed the maximum fill line.
Overfilling can cause early dispensing
of the fabric softener which could stain
clothes.
• Do not leave the fabric softener in the
detergent drawer for more than 2 days.
(Fabric softener could harden)
• Softener will automatically be added
during last rinse cycle.
• Do not open the drawer when water is
supplied.
• Solvents (benzene, etc.) are not
allowable.

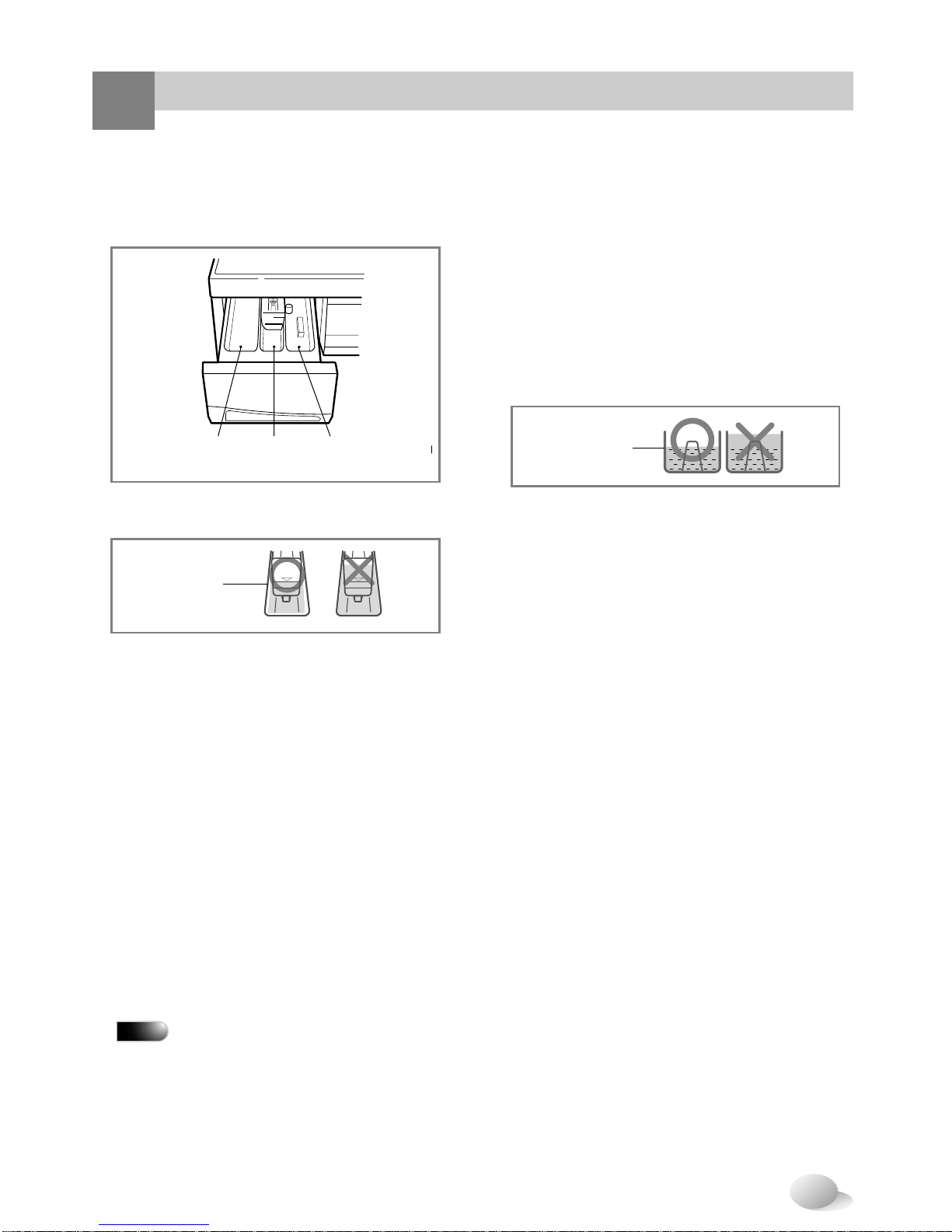

1. The Dispenser Drawer
• The detergent should be used according to the
instruction of the detergent manufacture.
• If too much detergent is used more than the
recommended amount, too many suds can
occur and this will decrease the washing result
or cause heavy load to the motor, causing a
malfunction.
• Use powder detergent only for the front
loading washer.
• Detergent usage may need to be adjusted
for water temperature, water hardness,
size, and soil level of the load. For best
results, avoid oversudsing.
• Detergent is dispensed at the beginning of
the cycle.
4. Detergent usage
• Do not open the detergent drawer during
water fill cycle.
• Bleach will be dispensed automatically
after the detergent has had time to work.
• Do not fill past MAX indicator.
3. The liquid bleach drawer.
2. Adding Fabric Softener
 Adding detergent and fabric softener
MAX
max M
A
X
Detergent
fot wash Fabric softener Liquid Bleach
125 ml
MAX MAX
125 ml
Softener level
Level marking
NOTE
Do not pour fabric softener
directly on the clothes

12
ycles
C
 Recommended cycles according to the laundry type
❋ EXTRA WASH : For heavily soiled and protein-stained items.
❋ Water Temperature : Select the water temperature to the wash cycles. Always follow
garment manufacture’s care label or instructions when laundering.
Fabric Wash/Rinse Maximum Drying Time
Program Temp. Option in
Type (Option) Load (Option) Minutes
COTTON
Color fast garments
(shirts, night dresses,
pajamas...)and lightly
soiled white cotton
(underwear...)
WARM/COLD
(WARM/WARM,
HOT/COLD,
COLD/COLD)
RINSE PLUS,
EXTRA WASH
RINSE PLUS,
EXTRA WASH
Wash:141/3lbs.
(6.5 kg)
Dry:65/8lbs.
(3.0 kg)
Wash:141/3lbs.
(6.5 kg)
Dry:65/8lbs.
(3.0 kg)
Wash:141/3lbs.
(6.5 kg)
Dry:65/8lbs.
(3.0 kg)
235
AUTO
(TIME, NO HEAT)
AUTO
(TIME, NO HEAT)
(NO HEAT)
(NO HEAT)
QUICK
Laundry type is the
same in COTTON and
PERM PRESS.
WARM/COLD
(WARM/WARM,
HOT/COLD,
COLD/COLD)
RINSE PLUS
RINSE PLUS
RINSE PLUS
RINSE PLUS
36
DELICATE
DELICATE laundry
easily damaged
(silk, curtains...)
COLD/COLD
(WARM/COLD)
56
( AUTO, TIME,
NO HEAT)
(
AUTO,
TIME,
NO HEAT)
RINSE+
SPIN
If you wish to rinse
more, the RINSE PLUS
function will remove any
trace of detergents.
WARM/COLD
(WARM/WARM,
COLD/COLD)
32
WOOL
Machine washable
woolens with pure new
wool only
COLD/COLD
(WARM/COLD)
56
PERMANT
PRESS
Polyamide, Acrylic,
Polyester
WARM/COLD
(WARM/WARM,
COLD/COLD)
65/8lbs.
(3.0 kg)
21/5lbs.
(1.0 kg)
65/8lbs.
(3.0 kg)
215

13
ow to use washer
H
• To start, press the POWER button.
• Press the START/PAUSE button.
• Initial condition
- Wash Main Wash Only
- Rinse 3 times
- Spin 1200 rpm
- Temp. Warm/Cold (wash/rinse)
- Dry Automatic
- Program Cotton
• To start, press the POWER button.
• Select the conditions which you want to
use, by pressing each button.
For selecting the correct cycle, please refer to
pages 14 ~ 19.
• Press the START/PAUSE button.
1. For use in the initial
program (Cotton)
2. Manual Selecting
• The Beep On/Off function can be set by
pressing and holding the TIME DELAY
and PROGRAM button simultaneonly.
• The Beep On/Off function can be set at
any time and it is automatically canceled
when power failure occur.
Also the Beep On/Off function works
when power is off.
3. Beep On/Off
OPTION SPIN DRY TEMP.
TIME
DELAY PRO-
GRAM
COTTON
TIME DELAY
TIME LEFT
QUICK
PERM PRESS
RINSE+SPIN
WOOL
DELICATE
NO INLET
NO DRAIN
DOOR LOCK
IMBALANCE
DOOR
OPEN
START
PAUSE
COLD/COLD
WARM/COLD
WARM/WARM
HOT/COLD
AUTO
TIME
NO HEAT
RINSE HOLD
NO SPIN
400
800
1000
1200
600
EXTRA WASH
RINSE PLUS

14
ow to use washer
H
(1) OPTION
(2) SPIN
(3) DRY
(4) WATER TEMP.
(5) CHILD LOCK
(6) TIME DELAY
(7) PROGRAM
(8) DOOR LOCK
(9) START/PAUSE
(10) DOOR OPEN
(11) POWER
OPTION SPIN DRY TEMP.
TIME
DELAY PRO-
GRAM
COTTON
TIME DELAY
TIME LEFT
QUICK
PERM PRESS
RINSE+SPIN
WOOL
DELICATE
NO INLET
NO DRAIN
DOOR LOCK
IMBALANCE
DOOR
OPEN
START
PAUSE
COLD/COLD
WARM/COLD
WARM/WARM
HOT/COLD
AUTO
TIME
NO HEAT
RINSE HOLD
NO SPIN
400
800
1000
1200
600
EXTRA WASH
RINSE PLUS
(1) (2) (3) (4) (5) (7) (8) (9) (10) (11)(6)
Option
2. Rinse Plus
1. Extra Wash
OPTION
EXTRA WASH
RINSE PLUS
• By pressing the Option button,
the wash type can be
selected.
- EXTRA WASH
- RINSE PLUS
- EXTRA WASH + RINSE PLUS
•
This option can be used to add a rinse for people
with sensitive skin. Selecting the RINSE PLUS
button is also recommended when washing
heavily soiled fabrics which needs a lot of
detergent, or when the wash load contains
towelling fabrics that have a greater tendency to
retain detergent.
If lamp turns on, that function has been selected.
• If the laundry is heavily soiled, Extra Wash
course is effective.
• Extra Wash is available in COTTON and
PERM PRESS program.
Spin
SPIN
RINSE HOLD
NO SPIN
400
800
1000
1200
600
• By pressing the Spin button,
the spin rpm can be chosen.
- RINSE HOLD
- NO SPIN
- 400
- 600
- 800
- 1000
- 1200
1. Spin selection
2. No spin
• Spin rpm is available according to the
program as follows.
- COTTON
1200ERINSE HOLDENO SPINE400E600E800E1000
- QUICK
800E1000E1200ERINSE HOLDENO SPINE400E600
- PERMANT PRESS
1000ERINSE HOLDENO SPINE400E600E800
- WOOL / DELICATE
800ERINSE HOLDENO SPINE400
- RINSE+SPIN
800E1000E1200ERINSE HOLDENO SPINE400E600
• If no spin is selected, the washer stops after
draining water.
If lamp turns on, that function has been
selected.
3. Rinse Hold
• If you desire to leave clothes in the
machine without spinning after rinse to
prevent them from getting wrinkled, you
may select RINSE HOLD by pressing the
SPIN button.
To drain and spin, press the SPIN button or
START/PAUSE button to turn off the rinse
hold lamp.

15
ow to use washer
H
2. Drying Time Guide
(Manual Operation)
• This washer-dryer’s automatic
process from washing to drying
can be selected easily.
• For most even drying, make sure
all articles in the clothes load are
similar in material and thickness.
• Do not overload dryer by stuffing too many articles
into drum. Items must be able to tumble freely.
• If you open door and remove load before dryer has
finished its cycle, remember to press the
START/PAUSE button.
• By pressing the DRY button, the drying time can
be selected.
• These drying times are given as a guide to help
you set your dryer for manual drying. Drying times
can vary greatly depending on dampness, room
temperature and type of fabric and your own
experience will be your best guide.
• AUTO (Normal) Cotton 65/8lbs. (3.0 kg)
• MANUAL 30/60/90/120/150 minutes
30 min. Cotton 21/5lbs. (1.0 kg)
60 min. Cotton 43/7lbs. (2.0 kg)
150 min. Cotton 65/8lbs. (3.0 kg)
• NO HEAT For air drying only.
Dry
DRY
AUTO
TIME
NO HEAT
3. Drying guide
• Your dryer can handle a load of up to 3 kg dry
weight of articles.
• When loading, shake out each handful of
clothes so that they can tumble freely.
Items should not be loaded in a tangled
condition, as this will lengthen the drying time.
Woolen Articles
- Do not tumble dry woolen articles. Pull them
to their original shape, and dry them flat.
Woven and Loopknit Materials
- Some woven and loopknit materials may
shrink, by varying amounts, depending on
their quality.
- Always stretch them out immediately after
drying.
Permanent Press and Synthetics
- Do not overload your dryer
- Take out permanent press articles an soon as
the dryer stops to reduce wrinkles.
Fiber or Leather Materials
- Always check the manufacture’s instructions.
Baby Clothes and Night Gowns
- Always check the manufacture’s instructions.
Rubber and Plastics
- Do not dry any items made from or containing
rubber or plastics, such as:
a) aprons, bibs, chair covers
b) curtains and tablecloths
c) bathmats
Fiberglass
- Do not dry fiberglass articles in your dryer.
Glass particles left in the dryer could be picked
up by your clothes the next time you use the
dryer and irritate your skin.
1. Drying Automatic guide
• Use your Automatic Cycles to dry most
loads. Electronic sensors measure the
temperature of the exhaust to increase or
decrease drying temperatures for faster
reaction time and tigher temperature control.
• If a load is not as dry as you like, complete
drying using a time cycle.
NOTE
The Estimated drying time varies
from the actual drying time with
an Automatic. The type of fabric,
size of the load, and the dryness
selected affect drying time.

16
ow to use washer
H
Wash/Rinse Temperature.
• Press TEMP. to cycle through the
temperature choices.
• Select a water temperature based on
the type of load you are washing. Use
the warmest water safe for fabrics.
Follow garment label instructions.
• Warm rinses leave the loads dryer than cold rinses. Warm
rinses increase wrinkling. In cold climates, a warm rinse
makes the load mere comfortable to handle. Cold rinses
save energy.
• Warm rinses are regulated at approximately 75˚F (24˚C).
This is a cooler warm rinse than you are used to, but it
saves energy and gives proper rinsing. The load is a
comfortable temperature remove from the washer.

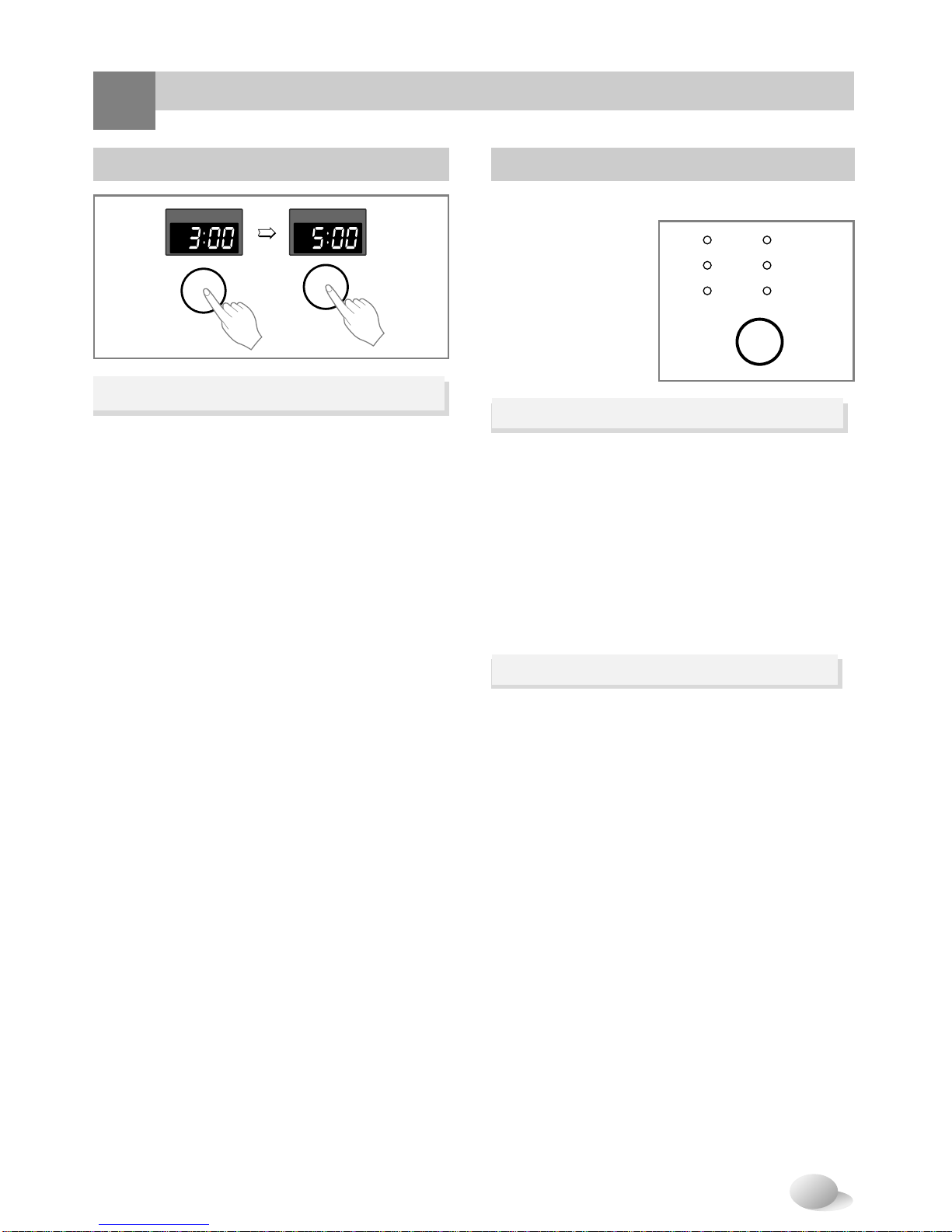

TIME LEFT
TEMP.
TIME
DELAY
Change
the desired
program
START
PAUSE
TEMP.
TIME
DELAY
START
PAUSE
• If you want to change the program when Child
Lock is active,
1. Press and hold both TEMP. and TIME DELAY
together.
2. Press the START/PAUSE button.
3. Change the desired program and press the
START/PAUSE button.
• The child lock can be set at any time and it is
automatically canceled when operational errors
occur. Also Child Lock works when power is off.
Child Lock
TIME LEFT
TEMP.
TIME
DELAY
If you want to lock all the buttons to prevent
operation by a child or unauthorized
persons, this function can be used.
• Child Lock can be set by pressing and holding
the TEMP. button and TIME DELAY button
simultaneously.
• When child lock is set, all buttons are inoperable.
• To deactivate Child lock system, press and hold
TEMP. and TIME DELAY button simultaneously
again.
1. Child Lock
TEMP.
TIME
DELAY
TEMP.
COLD/COLD
WARM/COLD
WARM/WARM
HOT/COLD
1. Wash/Rinse Temperature
• Water temperature can be selected as below
according to the program.
- COTTON & QUICK
WARM/COLD U WARM/WARM U HOT/COLD U
COLD/COLD
- PERM PRESS & RINSE+SPIN
WARM/COLD U WARM/WARM U COLD/COLD
- WOOL & DELICATE
COLD/COLD U WARM/COLD
Selected temperature’s lamp turns on.
For the more detailed information, please refer to the page12.
Temperature Guide
Wash Water Temperature Suggested Fabrics
HOT Whites and pastels
111
˚ F (44 ˚ C) or above Heavy and greasy soils
WARM Bright colors
90
˚ -110 ˚ F (32 ˚ - 43 ˚ C) Moderate to light soils
COLD Colors that bleed or fade
70
˚ -90 ˚ F (21 ˚ -32 ˚ C) Light soils
In wash water temperatures colder than 70˚F (21˚C),
detergents do not dissolve well. Soils may be difficult to
remove.

17
ow to use washer
H
Time Delay
1. Time Delay
Preparing washing before starting Time Delay
- Turn on the water tap.
- Load laundry and close the door.
- Place the detergent and fabric softener in
the drawer.
• How to set TIME DELAY
- Press POWER button.
- Press the PROGRAM button to select
the program you require.
- Press TIME DELAY button and set the
desired time.
- Press the START/PAUSE button.
(The colon will blinks.)
• If TIME DELAY button is pressed, 3:00 is
displayed. The maximum delayed time is
19:00 hours and the minimum time is 3:00
hours.
• Each pressing of the button advances time
delay by one hour.
• To cancel the time delay, press the POWER
button.
• TIME DELAY is expected time from the
present to the completion of washing cycle
or selected process (Option, Rinse, or
Spin.)
• According to the condition of water supply and
temperature, the delayed time and the actual
washing time may vary.
Program
• 6 programs are available according to the
laundry type.
- COTTON
- PERM PRESS
- QUICK
- DELICATE
- WOOL
- RINSE+SPIN
1. Program
2. Cycles
• When START/PAUSE button is pressed,
Cotton program is automatically selected.
• By pressing the Program button, the
program is selected in orders of COTTON
EPERM PRESS EQUICK EWOOL E
DELICATE ERINSE+SPIN .
See page12.
- COTTON
- PERM PRESS
- QUICK
- RINSE+SPIN
- DELICATE
- WOOL
PRO-
GRAM
COTTON
QUICK
PERM PRESS
RINSE+SPIN
WOOL
DELICATE
TIME
DELAY TIME
DELAY
TIME LEFT TIME LEFT

18
ow to use washer
H
Door Lock
• Shows when the door
lock is active.
• When the lamp is off or
blink, the door can be open.
DOOR LOCK
Start/Pause
• This START/PAUSE button is used to start
wash cycle or pause the cycles.
• If temporary stop of wash cycle is needed,
press START/PAUSE button.
• After the pause button is pressed, the
power is turned off automatically 4 minutes
later.
1. Start
2. Pause
START
PAUSE
Door open
Openning the door in emergency
• Press the DOOR OPEN
button to open the door.
• In order to add or
remove laundry you
have to press the DOOR
OPEN button, open the
door and then close the door.
• When you can not open the door with door
button (i.e. power failure) there is an
emergency release on your machine.
Caution! Do not use the
emergency release during wash.
DOOR
OPEN
1. Power
2. Initial Program
Power
• Press the POWER button to turn power
on and off
• It can also be used, to cancel the TIME
DELAY function .
• When the POWER button is pressed, the
washer is ready for COTTON program.
• If you want to advance into the washing
cycle without selecting the program, just
press START/PAUSE button and then
the washer will proceed.
Initial program
- COTTON program / RINSE 3 times / 1200
rpm / AUTO dry

19
ow to use washer
H
• If the washer has a trouble, the trouble
type is displayed.
: Sensing water pressure error
: Problem of overfilling water
: Door is not closed
: Over load in motor
: Over load in motor
: Water temperature trouble
: Dry heater or thermostat trouble
If this error letters are displayed, please refer to
the troubleshooting guide on page 25.
• When child lock is selected, is displayed.
• When time delay is selected, it shows the
remaining time to finish the selected program.
• When washing cycle is completed,
is displayed on the Multi display.
• The washing time may vary by the amount
of laundry, water pressure, water
temperature, and other washing conditions.
• If the imbalance is detected or if the suds
removing program works, the wash time will
be longer. The maximum increase is 45
minutes.
1. Special Function Display
3. Completion of Washing
• When drying cycle is completed, [SLOW
DOWN] is displayed on the Multi display.
• The SLOW DOWN is setting automatically
when a drying cycle is complete.
• When you are not remove a load of clothes
from the dryer as soon as it stops, wrinkles can
form.
• The SLOW DOWN operating periodically
tumbles, rearranges and fluffs the load to avoid
wrinkles without heat for up to 180 minutes.
• The message will continue to display until
the clothes are removed or the START/PAUSE
button is pressed.
5. Completion of Drying
It is impossible to give exact drying times.
Conditions from home to home vary and directly
affect drying times. The length of time it takes to
dry loads will depend on several variables.
• These cycles have a longer cool down period
to reduce wrinkling.
• The automatic cycle will determine the time
needed and often provides the best results.
• Modifiers allow you to further customize your
cycles and save energy.
6. Drying Time
• During washing cycle, the remaining washing
time is displayed.
• Recommended program by manufacturer.
- COTTON Approx. 3 hours 55 minutes
- PERM PRESS Approx. 3 hours 35 minutes
- QUICK Approx. 36 minutes
- WOOL Approx. 56 minutes
- DELICATE Approx. 56 minutes
- RINSE+SPIN Approx. 32 minutes
4. Time Remaining
2. Self-Diagnostic Display
TIME LEFT
Display

20
aintenance
M
 The water inlet filter
- No Inlet error message will blink on the control panel when water does not enter the
detergent drawer.
- If your water is very hard or contains traces of lime deposit, the water inlet filter may
become clogged.
It is a good idea to clean it from time to time.
 The drain pump filter
❋ The drain filter collects threads and small objects left in the laundry.
Check regularly that the filter is clean to ensure smooth running of your machine.
CAUTION First drain it using the drain hose and then open the pump filter to remove
whatever may have stopped it up.
Be careful when draining if the water is hot.
❋ Before cleaning the washer interior, unplug the electrical power cord to avoid electrical
shock to avoid electrical shock hazards.
32
3
2
1
100
1. Turn off the
water tap. 2. Unscrew the
water inlet
hose.
3. Clean the
filter using a
hard bristle
brush.
4. Tighten up
the inlet
hose.
!
1. Open the lower cover
cap by using coin.
Turn the drain plug
to pull out the hose.
2. Unplug the drain plug , allowing
the water to flow out. At this time
use a vessel to prevent water
flowing on to the floor. If the water
does not flow any more, turn the
pump filter open to the left.
3. Take out any foreign material
from the pump filter . After
cleaning, turn the pump filter
clockwise and insert the drain
plug to the original place.
close the lower cover cap.
