OWNER’S MANUAL
FILTERED
WATER
DISPENSER
Read this owner's manual thoroughly before operating the appliance
and keep it handy for reference at all times.
ENGLISH
MFL66990818
Rev.02_070317
WHS76UW2
www.lg.com
Copyright © 2016-2017 LG Electronics Inc. All Rights Reserved.

TABLE OF CONTENTS
SAFETY INSTRUCTIONS ......................................03
Important Safety Instructions...............................................................04
INSTALLATION.......................................................09
Notes for Installation............................................................................09
Notes for Power Supply Requirements ...............................................09
OPERATION ...........................................................10
Parts and Functions.............................................................................10
Notes for Operation ............................................................................ 11
Using the Control Panel.......................................................................12
Notes for Using the Control Panel.......................................................13
Using the Water Tray...........................................................................13
MAINTENANCE......................................................14
Cleaning .............................................................................................14
Maintaining the Filter ...........................................................................16
TROUBLESHOOTING............................................17
This manual is produced for a group of products
and may contain images or content different from
the model you purchased.
This manual maybe subject to revision by the
manufacturer.

03
ENGLISH
SAFETY INSTRUCTIONS
The following safety guidelines are intended to prevent unforeseen risks or
damage from unsafe or incorrect operation of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described
below.
This symbol is displayed to the indicate matters and operations that
can cause risk. Read the part with this symbol carefully and follow the
instructions in order to avoid risk.
WARNING - This indicates that the failure to follow the instructions
can cause serious injury or death.
CAUTION - This indicates that the failure to follow the instructions
can cause the minor injury or damage to the product.
To reduce the risk of explosion, re, death, electric shock, injury or
scalding to persons when using this product, follow basic precautions,
including the following:
Children in the Household
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
WARNING

04
Important Safety Instructions
To reduce the risk of explosion, re, death, electric shock, injury or
scalding to persons when using this product, follow basic precautions,
including the following:
Installation
•This appliance should only be transported by two or more people holding the
appliance securely.
•Ensure that the outlet socket is properly earthed, and that the earth pin on the
supply cord is not damaged or removed from the plug. For more details on
earthing, inquire with your distributor, supplier or dealer.
•This appliance is equipped with a power cord having an equipment-earthing
conductor and an earthing power plug. The power plug must be plugged into an
appropriate outlet socket that is installed and grounded in accordance with all local
codes and ordinances.
•If the power cord is damaged or the holes of the outlet socket are loose, do not
use the power cord and contact an authorized service centre.
•Do not plug the appliance into multiple outlet sockets, a power board, or an
extension power cable.
•Do not plug the appliance into a multi socket adapter which does not have a power
cable(mounted).
•Do not modify or extend the power cord.
•Avoid using any extension cords or double adaptor. The appliance should be
connected to a dedicated power line which is separately fused.
•Do not use a multi socket outlet which is not properly earthed(portable). Upon
using a properly-earthed multi socket outlet (portable), use a product with the
current capacity of the power code rating or higher. Failure to do so may result in
electric shock or re due to the heat of multi socket outlet. The power may be shut
off when the circuit breaker is operated.
•Install the appliance in a place where is easy to unplug the power plug of the
appliance.
•Be careful not to point the power plug up or let the appliance lean against the
power plug.
•Install the appliance on a rm and level oor.
•Do not install the appliance in a damp and dusty place. Do not install or store the
appliance in any outdoor area, or any area that is subject to weathering conditions
such as direct sunlight, wind, rain, or temperatures below freezing.
•Do not connect a plug adapter or other accessories to the power plug.
WARNING

05
ENGLISH
•Do not place the appliance in direct sunlight or expose it to the heat from heating
appliances such as stoves or heaters.
•Be careful not to expose the rear of the appliance when installing.
•Do not install the appliance near re or ammable materials (ether, benzene, LP
gas, etc).
•When installing the drain hose, attach it deep inside the drain using compressed
rubber (applicable to models with the hot water function only).
Operation
•In case of ood, disconnect the power plug and contact your distributor, supplier or
dealer.
•Unplug the power plug during a severe lightening or thunderstorm or when not in
use for a long period of time.
•Do not touch the power plug or the appliance controls with wet hands.
•Do not bend the power cable excessively or place a heavy object on it.
•If water penetrates electrical parts of the appliance, disconnect power plug and
contact your distributor, supplier or dealer.
•Do not plug and unplug the power plug repeatedly.
•Do not place hands or metallic objects inside the cover or heat releasing grille on
the back.
•Do not apply excessive force or impact to the back cover of the appliance.
•Do not place heavy or fragile objects, containers lled with liquid, combustible
substances, ammable objects(such candles, lamps, etc.), or heating devices(such
as stoves, heaters, etc.) on the appliance.
•Do not place heavy or fragile objects, liquid lled containers, combustible
substances, or ammable objects (such as candles and lamps) on the appliance.
•Do not use or store ammable or combustible substances (ether, benzene,
alcohol, chemical, LPG, combustible spray, insecticide, air freshener, cosmetics,
etc.) near the appliance.
•Immediately unplug the power plug and contact your distributor, supplier or dealer
if you detect a strange sound, odour, or smoke coming from the appliance.
•If water is leaking from the inside of the appliance or water has collected near the
appliance, close the water supply valve, unplug the power plug, and contact your
distributor, supplier or dealer.
•Do not move the appliance while the appliance is plugged in.

06
Maintenance
•Disconnect the power cord before cleaning the appliance or replacing the lter.
•Securely plug the power plug in to the outlet socket after completely removing any
moisture and dust.
•Never unplug the appliance by pulling on the power cable. Always grip the power
plug rmly and pull straight out from the outlet socket.
•Do not spray water or inammable substances(toothpaste, alcohol, thinner,
benzene, ammable liquid, abrasive, etc.) over the interior or exterior of the
appliance to clean it.
•Do not clean the appliance with brushes, cloths or sponges with rough surfaces or
which are made of metallic material.
•Only a qualied service personnel from your distributor, supplier or dealer should
disassemble, repair, or modify the appliance. Contact your distributor, supplier or
dealer if you move and install the appliance in a different location.

07
ENGLISH
Disposal
•Dispose of all packaging materials (such as plastic bags and styrofoam) away from
children. The packaging materials can cause suffocation.
Technical safety
•Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
•The refrigerant used in the appliance require special disposal procedures. Consult
with your dealer or supplier or a similarly qualied person before disposing of
them.
•Refrigerant leaking out of the pipes could ignite or cause an explosion.
•The amount of refrigerant in your particular appliance is shown on the identication
plate inside the appliance.
•Never start up an appliance showing any signs of damage. If in doubt, consult your
dealer.

08
To reduce the risk of minor injury to persons, malfunction, or damage to
the product or property when using this product, follow basic precautions,
including the following:
Installation
•Do not tilt the appliance to pull or push it when transporting.
•Connect the water pipe of the appliance to potable water only. Water other than
potable water can increase the risk of exposure to disease. Other types of water
can reduce the appliance life or cause malfunctions.
•Hot water may splatter, so install the drain hose carefully to the drain.
•Make sure not to get a body part such as a hand or foot stuck while moving the
appliance.
Operation
•Prevent animals from nibbling on the power cable or water hoses.
•Supervise a child or a person with poor cognitive skills to ensure they use the
appliance safely.
•Do not damage the pipes of the refrigerant circuit.
•Replace the lter with a LG standard lter periodically according to the replacement
period. Older lters can multiply bacteria or change the taste of the water. The lter
replacement period varies according to the usage, place of usage, season, and
water quality.
•When using hot water, use a container with a handle.(Only applicable to a model
with hot water function)
•Take care against the possibility of damaging the pipe (inlet, outlet) in order to
prevent water leakage.
•Do not allow pets, or any persons to hang from or climb on the appliance.
•Be particularly cautious of children operating the appliance.
Appliance Usage Range
This appliance is intended to be used in household and similar applications only.
It should not be used for catering purposes, or in any mobile application such as a
caravan or boat.
CAUTION

09
ENGLISH
Notes for Installation
•Keep a distance of over 10 cm between the back
and sides of the appliance and the wall for proper
ventilation. Not doing so can cause malfunctions.
•When connecting the water hose, do not connect it to
the hot water tap. Doing so may cause malfunctions.
•Check the pipe and hose connection for leaks. Water
can leak and cause electric shock or injury.
•When transporting the appliance, do not tilt the
appliance over 30 degrees. Doing so can cause
malfunctions.
•Install the appliance in an indoor place with a
surrounding temperature of over 5 °C and less than
35 °C. Not doing so can cause malfunctions.
•Avoid installing the ltered water dispenser in a place
with an uneven ground, a large amount of moisture,
direct sunlight, dust, and direct water splashing.
•Connect the appliance to a drinking water tap with a
water pressure of 147-780 kPa (1.5-7.9 kgf/cm
2
). Not
doing so may cause malfunctions.
•Water should fall through the hot water tank pipe, and
this pipe should be left open.
INSTALLATION
Notes for Power Supply
Requirements
This appliance is only for 230 V - 240 V. Make sure to
plug it into a 230 V - 240 V earthed mains outlet.
Do not connect any other electronic appliance or device
to the same power outlet.
The appliance must be earthed to prevent any electrical
leakage or electrical shock.
This product has an earthing pin on the mains plug and
must not be removed. if the power outlet has no earthing
plug, then it must not be used.
The mains plug should only be plugged into an earthed
and fuse protected mains outlet.

10
OPERATION

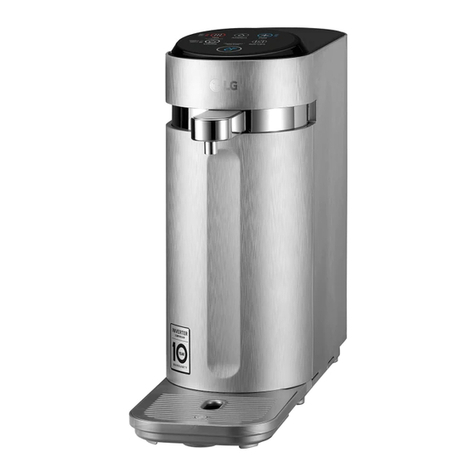

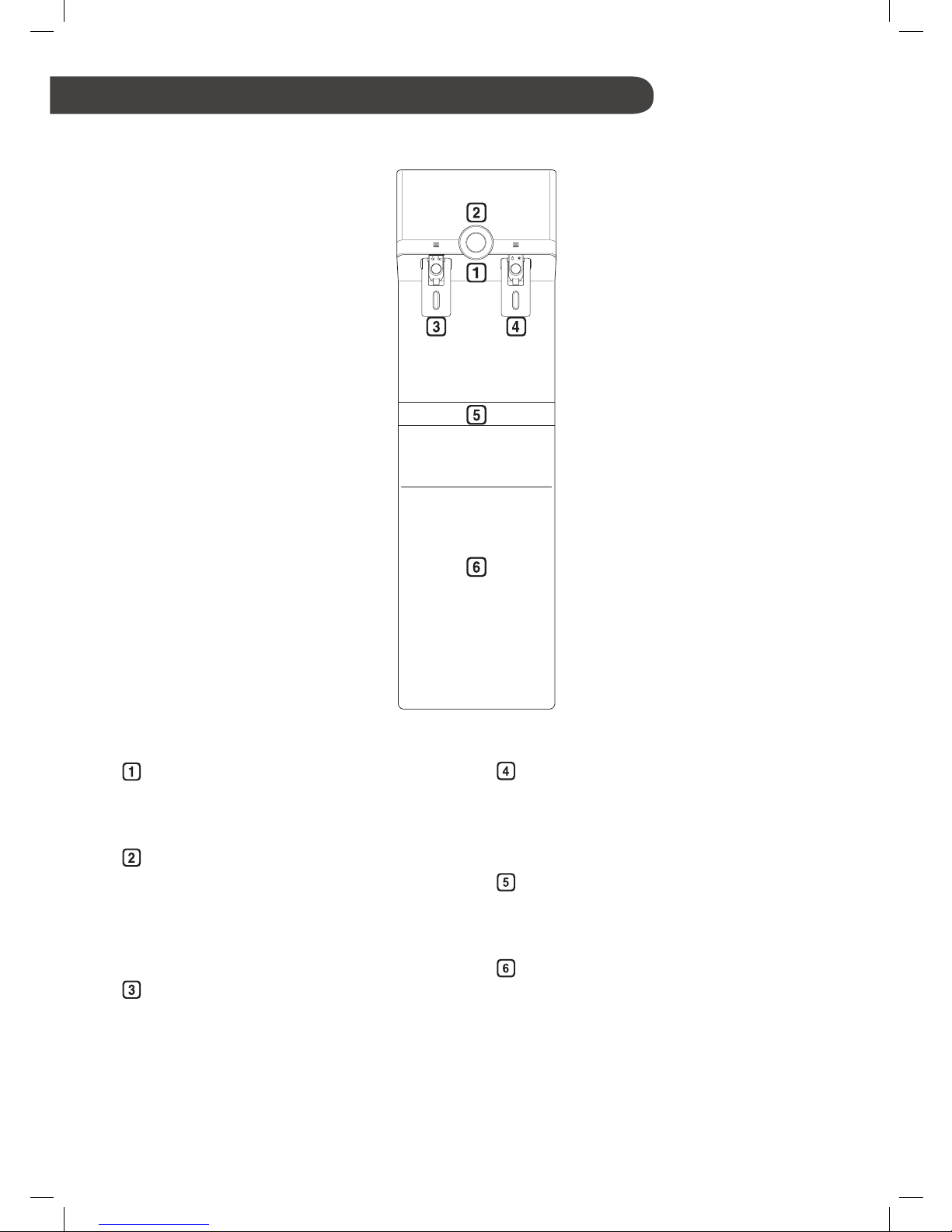

Parts and Functions
Control Panel
You can change the status of Ambient/Cold water
or Lock/Unlock for hot water.
Filter change icon
This indicates the lter replacement period.
•The color indicating that the lter is usable is
blue. The color indicating that the lter should
be replaced is orange.
Hot water lever
Used for dispensing hot water.
Hot water cannot be dispensed continuously for
safety reasons.
Ambient/Cold water lever
Used for dispensing cold water or ambient water.
You can dispense cold water or ambient water
continuously by lifting the lever.
Water tray
This space is where a water bottle or container
can be placed and lled.
Filter cover
This protects the lter and holds the water tray.
•The appearance or components of the appliance may differ from model to model.

11
ENGLISH
Notes for Operation
•Open the water supply valve. The ltered water
dispenser operates normally when water is supplied
properly at a consistent pressure that is within the
operating requirement.
•When the hot water and cold water temperature icons
are turned off, check if the power supply has been lost
due to power failure or other reasons.
•It is very important to replace the lter periodically in
order to drink clean water. When using an expired
lter, the performance of the ltered water dispenser
can deteriorate. Always abide by the lter replacement
period.
•If the appliance has not been used for a long period
of time, discharge cold water, Ambient water, and hot
water for 10 minutes each before using, and then use.
Old water can multiply bacteria or change the water
taste.
•Do not use ltered water for replacing water in a
humidier or shbowl. Leaving ltered water as it is for
a long period of time can cause the water bacteria to
multiply.
•Use the appliance only after closing the appliance
cover completely. Otherwise, insects or other foreign
substances may get in.
•When heating or freezing water, white sediment may
appear due to minerals in water. These minerals are
harmless to humans.
•Water may remain inside the appliance due to the
inspection process carried out while manufacturing the
appliance. This is not a sign of the appliance having
been used previously and is safe to use.
•Do not use a mechanical device other than any, and
if recommended for improving the performance of
the ltered water dispenser. Doing so may cause
malfunctions.
•When using hot water, place a container such as a
cup close to the water outlet. Not doing so can cause
hot water to splash, resulting in burn injury.
Suggestion for Energy Saving
•If the appliance will not be used for a long period of
time, unplug the power plug and drain the water inside
the ltered water dispenser completely.
•In case the hot water or cold water function will not be
used, turn the hot water or cold water function off.

12

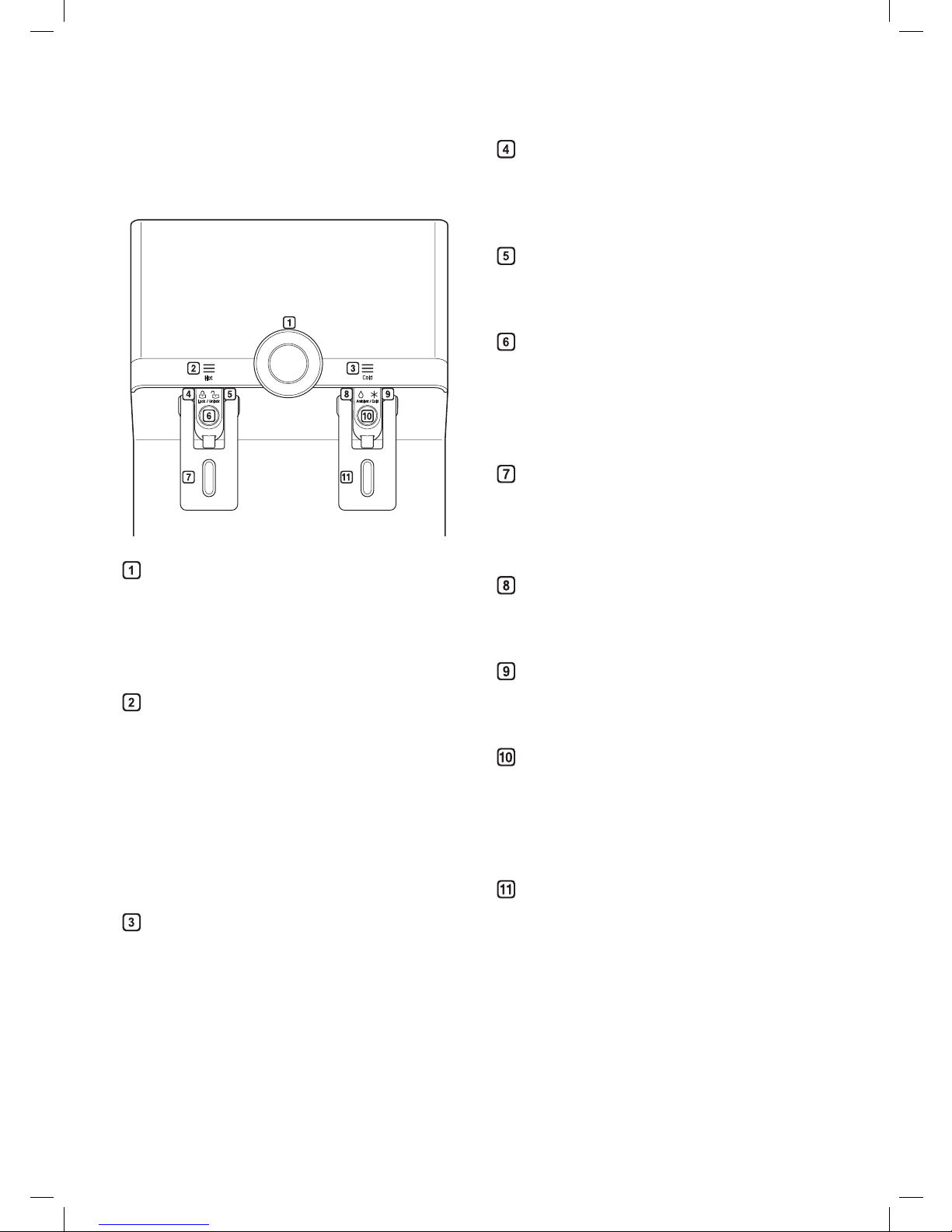

Using the Control Panel
Units and Functions
Filter change icon
This indicates the lter replacement period.
•The color indicating that the lter is usable is
blue. The color indicating that the lter should
be replaced is orange.
Hot water temperature icon (red)
The hot water temperature is displayed in 3
levels.
•The icon is divided into 3 levels according to
the hot water temperature. As more indication
lamps turn on, the hotter the water becomes at
the hot outlet.
•The hot water temperature cannot be adjusted
discretionally.
Cold water temperature icon (blue)
The cold water temperature is displayed in 3
levels.
•The icon is divided into 3 levels according to
the cold water temperature. As more indication
lamps turn on, the colder the water becomes at
the cold outlet.
•The cold water temperature cannot be adjusted
discretionally.
Hot water Lock lamp (red)
This indicates that hot water cannot be dispensed
for safety reasons even if the Hot water lever is
operated.
Hot water Unlock lamp (red)
This indicates that hot water can be dispensed
when the hot water lever is operated.
Lock/Unlock select button
Used for switching between lock status and
unlock status for the hot water.
The hot water function will be turned on or off
when it is pressed continuously for 10 seconds.
Hot water lever
Used for dispensing hot water.
Hot water will be dispensed only when it is
unlocked.
Ambient lamp (white)
This indicates that ambient water can be
dispensed when the lever is operated.
Cold lamp (blue)
This indicates that cold water can be dispensed
when the lever is operated.
Ambient/Cold select button
Used for switching between cold water and
ambient water.
The cold water function will be turned on or off
when it is pressed continuously for 10 seconds.
Ambient/Cold water lever
Used for dispensing cold water and ambient
water.
You can dispense cold water or ambient water
continuously by lifting the lever.
Cold

13
ENGLISH
Notes for Using the Control Panel
•The control panel will turn on in any of the following
cases.
−When the power is turned on
−When a touch button is pressed
−When a lever is pressed
•The control panel will dim automatically for energy
saving in any of the following cases.
−When 1 minute has passed after turning on the
power
−When no further touch button operation is carried
out for 1 minute after a desired touch button is
pressed
•If you press a touch button even after the control
panel has dimmed, the relevant function will function.

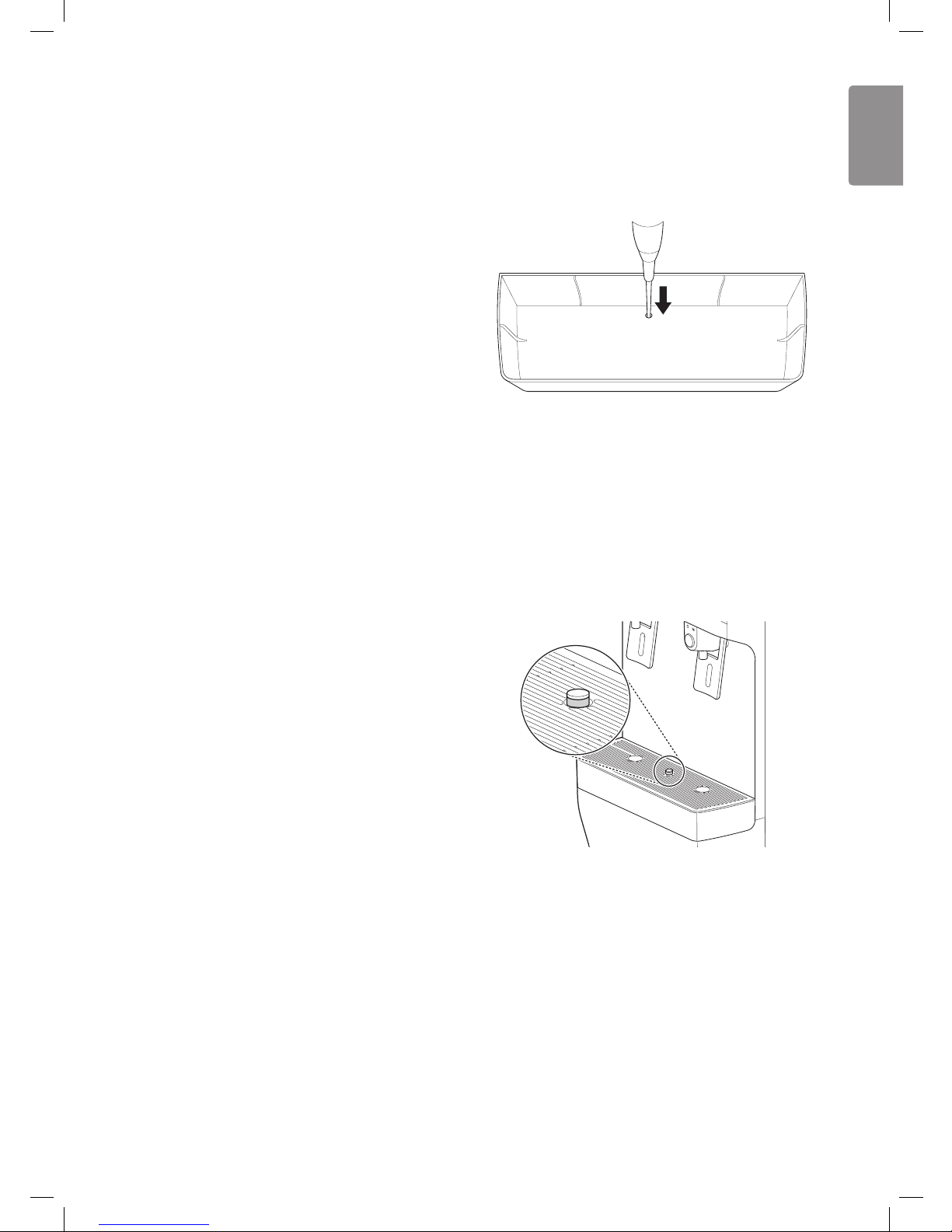

Using the Water Tray
You can complete the hole on the water tray and drain
water through the drain hose.
•However, when you connect to the drain hole provision
after completing the hole, connect the drain hose to
the outside of the room or a large water bucket.
If the water tray is lled with water, the buoy will come
up. If you see the orange color pop up, then drain the
water from the water tray.
•Drain water carefully in order not to spill on the oor.

14
MAINTENANCE
Cleaning
Notes for Cleaning
Use a soft wet towel to wipe the appliance exterior. If
you have used a neutral detergent, wipe it with a clean
towel to make sure it does not stain.
Do not use a rough brush, or detergent (such as
toothpaste, alcohol, thinner, bleach, benzene, ammable
liquid or polish) to remove adhesive marks or hand prints
on the surface of the appliance.
•This can cause discoloration of the appliance exterior
or appliance damage.
Clean the inside and outside of the water outlet
periodically with a soft cleaning brush.
•If it is not cleaned periodically, lint, lime components
(calcium, magnesium), or foreign substances can
appear on the outlet.
When you open the lter cover on the appliance and
remove the gray plug from the left drain hose, hot water
will be discharged.
•However, if you wish to drain water from the hot water
tank, contact your distributor, supplier or dealer.
How to clean the water outlet
Clean the water outlet periodically using a soft brush.
Residue buildup or foreign substances can accumulate
in the water outlet.
•If it is not cleaned periodically, lint, lime components
(calcium, magnesium), or foreign substances can
appear on the outlet.

15
ENGLISH

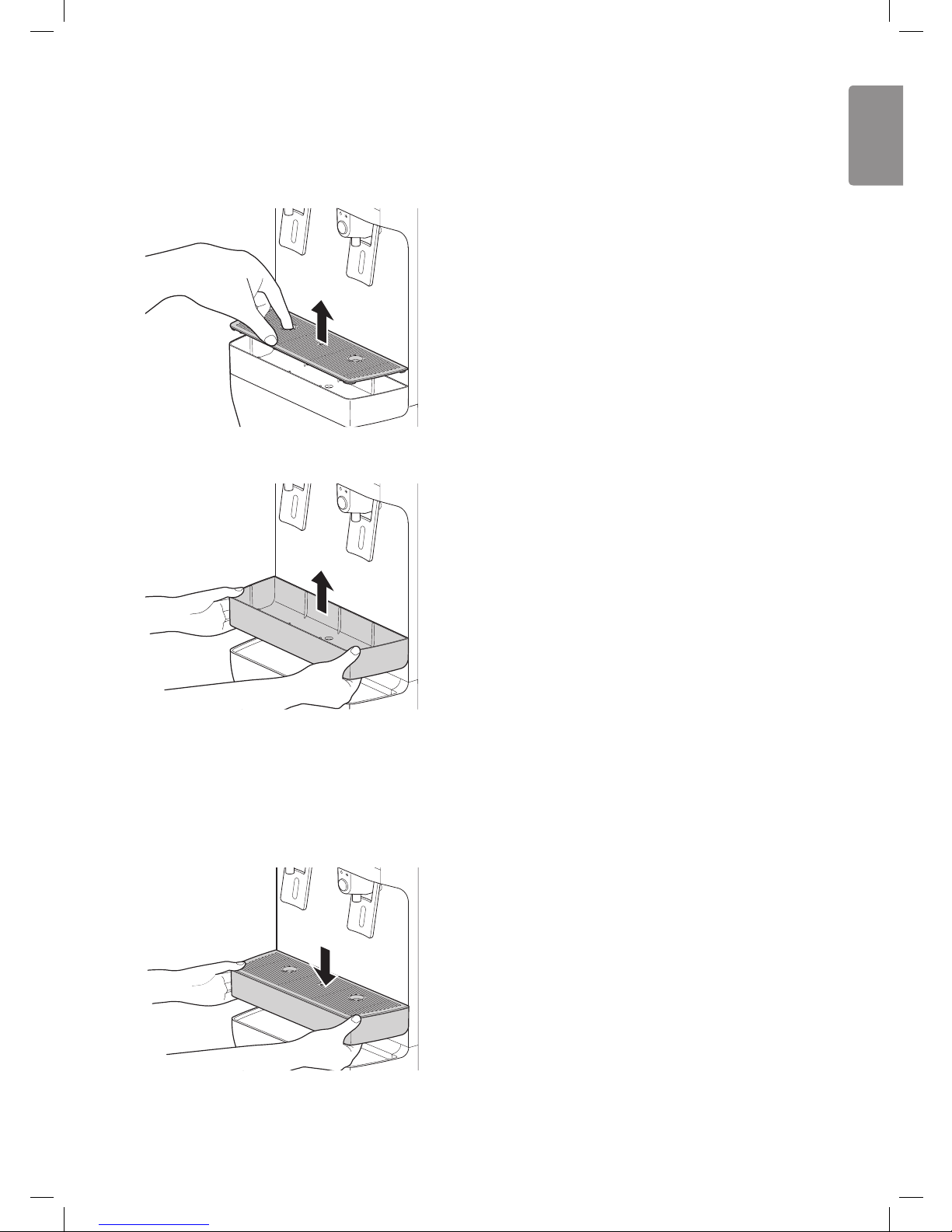

How to clean the water tray
1Separate the water tray cover by pulling it upwards.
2Remove the water tray by pulling it upwards.
3Clean it with water.
4Wipe the surface of the water tray with a soft cloth.
5Place the water tray cover on the water tray and x
it along the holes from top to bottom.
•Caution should be taken. If a large amount of water
is in the water tray, water can spill out when removing
the water tray.

16
Maintaining the Filter
Filter Name Sediment Filter Pre Carbon
Block Filter
UF Membrane
Filter
Post Carbon
Block Filter
Place of origin Korea Korea Korea Korea
Manufacturer LG Electronics LG Electronics LG Electronics LG Electronics
Filter material PP module Activated Carbon
+ Poly-Ethylene
Poly-Sulfone Activated Carbon
+ Poly-Ethylene
Effective amount of water ltration 4,250 L

17
ENGLISH
TROUBLESHOOTING
Symptoms Reason Solution
Water taste strange.
Have you left the ltered water
dispenser for a long period of
time without using it?
•The taste of water may change as it ages
due to bacterial multiplication. Use the
ltered water dispenser after discharging
cold water, hot water and Ambient water
for 10 minutes respectively.
Has it been a long time since you
installed or replaced the lter?
•If an expired lter is used, the
ltration performance may decline. It
is recommended to replace the lter
according to the lter replacement period.
The dispensing volume
has reduced suddenly.
Is it time to replace the lter?
•Make a request for a lter replacement.
Is the water supply valve or tap
closed?
•Open the water supply valve.
Water does not
dispense.
Did you miss the lter
replacement period?
•Make a request for a lter replacement.
Is the water supply valve or tap
closed?
•Open the water supply valve.
Is the power plug unplugged from
the outlet?
•Plug the power plug in the outlet correctly.
Is the Lock lamp on?
(Only applicable to models with a
hot water function.)
•Contact your distributor, supplier or
dealer.

18
Symptoms Reason Solution
Cold water, hot water or
Ambient water does not
dispense.
Did you turn off the relevant
function?
•Turn on the relevant function.
Did you discharge a large amount
of cold water?
•If you discharge a continuous amount of
cold water, the temperature of the cold
water inside the cold water tank drops
and tepid water will dispense. Wait a while
until the cold water becomes colder and
then try again. (Only applicable to models
with a cold water tank)
Did you discharge a lot of hot
water?
•If you discharge a continuous amount
of hot water, the temperature of the hot
water inside the hot water tank drops and
tepid water will dispense. Wait a while
until the hot water becomes hotter and
then try again. (Only applicable to models
with a hot water tank)
Did you discharge a lot of
Ambient water?
•If you have discharged a lot of ltered
water (including Ambient water) so that
there is little ltered water in the storage
tank, ltered water may not dispense.
Wait a while until water is lled inside the
storage tank and then try again. (Only
applicable to models with a storage tank)

19
ENGLISH
Symptoms Reason Solution
The appliance is
noisy and generates
abnormal sounds.
Is the appliance installed on a
weak oor or not installed on a
stable surface?
•Install the appliance in a place with a at
and even surface.
Does the back of the appliance
touch the wall?
•Adjust the installation position to ensure
there is enough space around the
appliance. (10 cm)
Is an object placed on top of the
appliance?
•Remove the object placed on top of the
appliance.
No ice forms in the
appliance. (Only
applicable to models
with ice function)
Is the ice machine cover opened?
•Fit or close the ice machine cover.
Have 6 hours passed since the
installation to water and power?
•Use the appliance after 6 hours of having
installed it to water and power.
Fine particles occur in
the ltered water.
Has the unit just been installed or
the lter just replaced?
•Water bubbles may form in the ltering
process when the unit is newly installed
or the lter has just been replaced and
cause the water to appear cloudy. it is
normal and the water is safe to drink.
•If ne particles still exist after you have
ushed each water dispensing outlet for
10 minutes, then turn off the water supply
and disconnect from the mains power and
contact your distributor, supplier or dealer.

Memo
