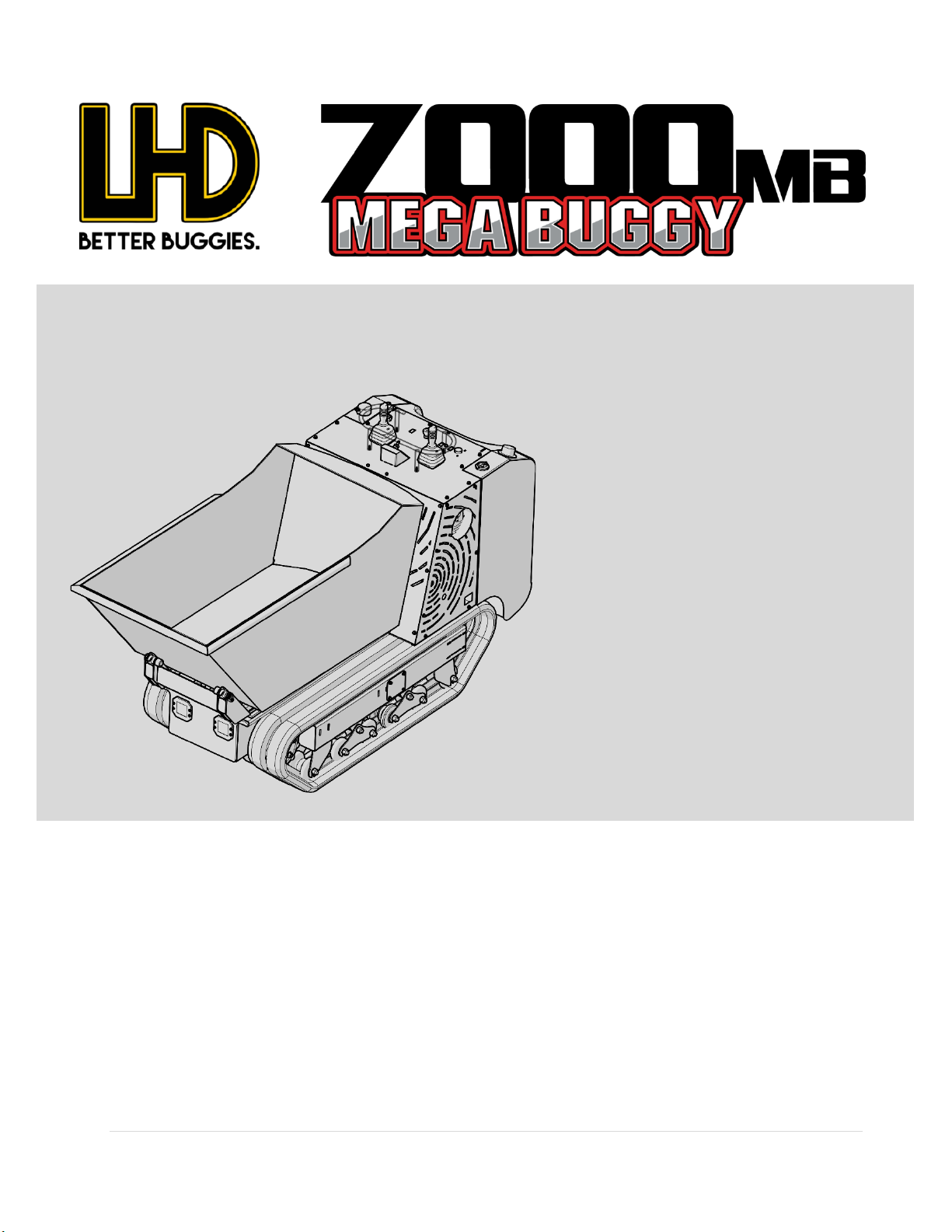

LHD 7000MB Mega Buggy User manual

1 | page
LHD Machinery, LLC
1-888-LHD-7472 Email / Faxes to:
LHDmachinery.com [e-mail]
Ed. 3 – 1/30/23
Find the latest edition of
this Owner’s Manual at:
lhdmachinery.com/library
Owner’s Manual
This manual should be kept on
hand at all times so that it can be
immediately referenced. It should
be saved for the entire life of the
machine.
© 2022 - The entire or partial reproduction
and/or divulging of this document is prohibited
in any form without the written consent of the
company. The editing of the text, the
illustrations, and the paginations were
completed by “LHD Machinery, LLC.” The
illustrations and technical data included in this
manual are non binding: the
manufacturer
reserves the right to carry out eventual
changes to its machine without notice.

2 | page
PLEASE REGISTER YOUR MACHINE ONLINE AT
LHDMACHINERY.COM
*All LHD machines must be registered online after purchase with a serial number and date
of purchase. Warranty may be voided without registration.*
To register your machine:
-Navigate to LHDmachinery.com
-Locate the “Support” link in the menu and click “Warranty Registration”
-Enter your information, read and confirm that you understand and agree to the terms of
the warranty and then submit the form
-Your warranty period will begin on the date of sale and will continue for 6 months for
commercial and 1 year for residential

3 | page
Table of Contents
Machine and Engine Identification.........................................4
Preface .........................................................................................5
Warranty......................................................................................6
Safety.....................................................................................7 - 11
Safety Labels.............................................................................12

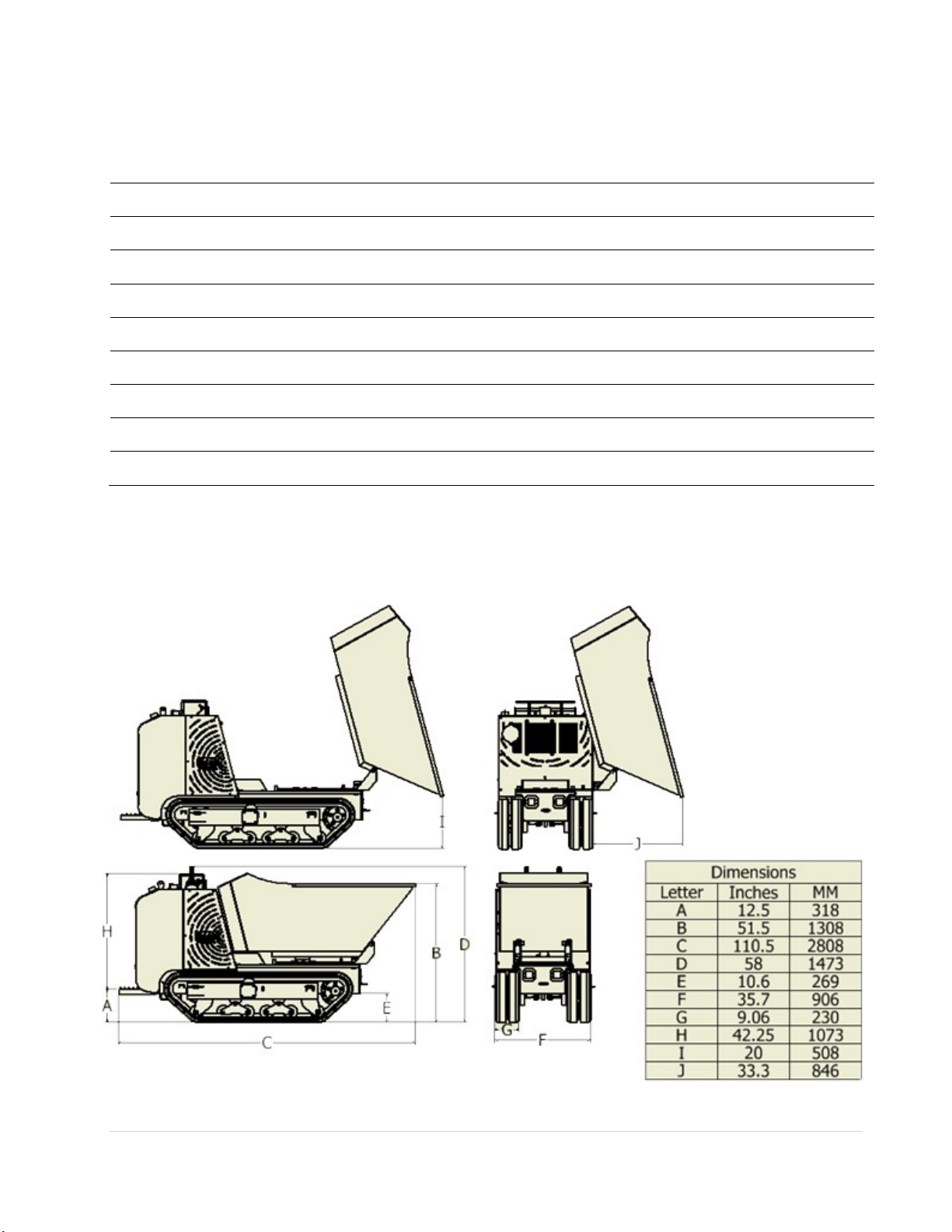

Technical Data / Dimensions........................................ 13 - 14
Startup / Initial Use.................................................................15
Operation .......................................................................... 16 - 21
1. Slopes
2. Loading Bucket
3. Traveling
4. Unloading Bucket
5. Rotating Bucket and Side Dumping
6. Throttle Control
7. Transporting the Machine
8. Automatic Park Brake
9. Towing
10. Lifting with Crane
11. Lifting with Fork Lift
12. Generator (If Equipped)
13. Auxiliary Tool Circuit (If Equipped)
14. Standing Platform
Maintenance Schedule.............................................................22
Maintenance Directions................................................. 23 – 28
1. Engine Oil
2. Changing Oil Filter
3. Replacing Air Filter
4. Changing Spark Plugs
5. Replacing Fuel Filter
6. Draining Fuel Tank
7. Hydraulic System
8. Changing Hydraulic Fluid
9. Battery
10. Cleaning and Long Term Storage
11. Tracks
12. Grease Points
Hydraulic Diagram........................................................... 29
Troubleshooting .............................................................. 30

4 | page
Machine and Engine Identification
Serial Number of Machine:
Serial Number of Engine:
Purchase Date:
Purchased From:
Dealer Contact:
The LHD Serial
Number is located on
the machine’s serial
number plate. See the
figure to the left for the
location of plate on
machine.

Warranty
5 | page
Congratulations on your purchase of a LHD 7000MB Mega Buggy!
This manual contains the guidelines for operation and
maintenance of this LHD Tracked Buggy series, as well as the
corresponding safety recommendations. Please read this entire
manual prior to operation to maintain your safety and enhance
the performance of the machine.
This manual will guide the operator all the rules and precautions
needed for operating and maintaining the
machine under the correct safety precautions. Incorrect operation, inspection or maintenance can
cause personal injury or even death. Pay close attention to items marked with this symbol:
This symbol a safety concern and give directions for proper use. Potential hazards associated with the
operation of this equipment will be referenced with further hazard information which may appear
throughout this manual in conjunction with safety symbols.
Reading and use of the manual will help prevent accidents
during operation, however, we cannot be held responsible for
predicting every kind of danger in all circumstances. The user of
the machine is always responsible for paying attention to the
machine and its surroundings during operation. Knowledge of this
manual and common sense are fundamental in safe use of the
machine.
Note: Since our design and manufacturing technology keep improving, future design or improvement
may cause the manual to exclude small changes that have been made accordingly. Please contact our
company for any information or questions about the machine. Contact information is found on the cover
of this manual or can be found on our website. ( lhdmachinery.com )
Preface

Warranty
6 | page
LHD Machinery, LLC (“LHD”) warrants that each machine will be free from defects in material and workmanship
under normal use for which it was intended for 1 year or 1000 hours. Warranty period begins on first day of purchase by the
End User or first day of purchase by a dealer if the machine is intended for rental. Warranty is based on the following limited
warranty terms and conditions. It is the responsibility of the user to understand the responsibilities related to the warranty,
service and proper operation of the machine.
1. LHD’s obligation and liability under this warranty is expressly limited to replacing or repairing parts if there is determined to
be a defect in workmanship or breakage in material. LHD reserves the choice to repair or replace. Parts such as engines, motors,
pumps, valves, etc. furnished by us but not manufactured by us will only carry the warranty of their original manufacturer except in
special situations as decided upon by the officers of LHD.
2. This warranty does not apply to any failures resulting from: (i)abuse or misuse or improper or unauthorized repair, alteration,
maintenance or operation; (ii) accident, natural disaster or act of nature; or (iii) handling, shipping or storage.
3. If LHD chooses to replace the part, it will be at no cost to the customer and will be made available to the LHD Dealer, or
Rental Center, from whom the End User purchased the machine or nearest professional repair center. Warranty claims should be
reported immediately. Use of the machine after a failure could result in damage and wear not covered under the warranty terms.
4. Replacement or repair parts, installed in the machine, are warranted only for the remainder of warranty period of the machine,
as though they were the original parts.
5. LHD’s warranty does not cover the normal maintenance of machines or its components (such as engine tune- ups and oil &
filter changes). The warranty also does not cover normal wear and tear items (such as consumables) or ground contact items
(such as treads and shovel, if equipped) except in special situations as decided upon by the officers of LHD.
6. LHD does not warranty engines. Engine warranty claims should be made directly to an authorized service center for the
particular engine manufacturer. (Please see your engine manual for more details)
7. LHD’s warranty will be void if it is determined that the defect resulted from operator abuse, impact damage, failure to
perform normal maintenance, modification, alterations or repairs made to the machine without written approval of LHD.
8. LHD will pay shop labor on warranty items at the LHD Shop Labor Rate in existence on the date of the warranty claim.
LHD will determine the time allowed to complete a repair and will govern the shop labor hours that will be allowed.
9. LHD will pay shipping on warranty replacement parts at standard ground rates. No warranty replacement parts will be
shipped at any other shipping type or speed at the expense of LHD.
10. LHD’S WARRANTY POLICY WILL NOT COVER THE FOLLOWING: TAXES, SHOP SUPPLIES,
ENVIRONMENTAL SURCHARGES, AIR FREIGHT, TRAVEL TIME, LOSS OF TIME, INCONVENIENCE, LOSS OF
RENTAL REVENUE, RENTAL COSTS OF EQUIPMENT USED TO REPLACE THE MACHINE BEING REPAIRED,
LOSS OF USE OF THE MACHINE, PROPERTY DAMAGE, COMMERCIAL LOSS OR ANY OTHER CHARGES
WHATSOEVER OR ANY LIABILITIES FOR DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE OR DELAY.
11. LHD MAKES NO OTHER WARRANTY, EXPRESSED OR IMPLIED. THERE ARE NO OTHER WARRANTIES
THAT EXTEND BEYOND THE DESCRIPTION ON THIS DOCUMENT.
12. No LHD employee or representative is authorized to change this warranty in any way or grant any other warranty unless such
change is made in writing and signed by an officer of LHD.

Safety
7 | page
General Cautions
Read, understand, and follow the instructions in this operator’s manual before using the machine.
1. Keep hands, feet and clothing away from all moving parts.
2. Allow only responsible adults who are familiar with the machine and its operation to use the machine.
3. Do not allow any passengers on any part of the machine, including bucket and operating platform.
4. Do not refuel with engine running, or while you, or someone near, is smoking.
5. Do not operate any of the control levers unless you are standing with both feet on the platform and
firmly holding the grip handles.
6. Always wear long pants, substantial shoes, gloves, eye, and hearing protection when using the
machine. Avoid wearing jewelry or loose fitting clothing.
7. Do not place feet under the platform. Always stand on the platform or to the side of the machine.
8. Watch where you are driving. Always look down and behind, before and while reversing.
9. Engine exhaust contains Carbon Monoxide. This gas is colorless and odorless, and can cause death if
inhaled. Do not run the engine indoors or in a confined space.
10. Always stop the engine before leaving the operator’s platform.
13. Never jerk the control levers. Use a steady motion. Slow down before turning.
14. Stop the engine before making any adjustments to the machine or any attachments.
15. Never operate the machine in an explosive atmosphere or near combustible materials. An
explosion or fire could result causing severe bodily harm or death. Never weld near the fuel tank.
16. Look out for ditches, holes, etc. and beware of traffic when near roads.
17. Do not allow any person or animal close to the machine or its attachments while in operation. Stop
the machine if any person or animal comes close.
18. Operate only in daylight or good artificial lighting.
19. Do not operate the machine while fatigued or ill or under the influence of alcohol or drugs.
20. Use extra care while loading or unloading the machine onto a trailer or truck.
21. Do not touch equipment or attachment parts that may be hot from operation. Allow to cool before
attempting to maintain, adjust or service.
22. Do not allow children near the machine.
23. Do not use the equipment for any other purposes or application other than its intended purposes.
24. Replace operation and safety decals when they become difficult to read. (Contact LHD for
replacements)
25. LHD does not assume responsibility for any accidents due to equipment modifications.
Unauthorized modifications will void the warranty.
26. Never use accessories or attachments that are not recommended by LHD for this equipment.
Damage to the equipment and/or injury to the user may result.
27. Always know the location of the nearest fire extinguisher.
28. Always know the location of the nearest first aid kit.
29. Always know the location of the nearest phone or keep a phone on the jobsite so that calls can be
made quickly in case of emergency.
Remember – Safety is your responsibility.

Safety
8 | page
Cautions During Operation:

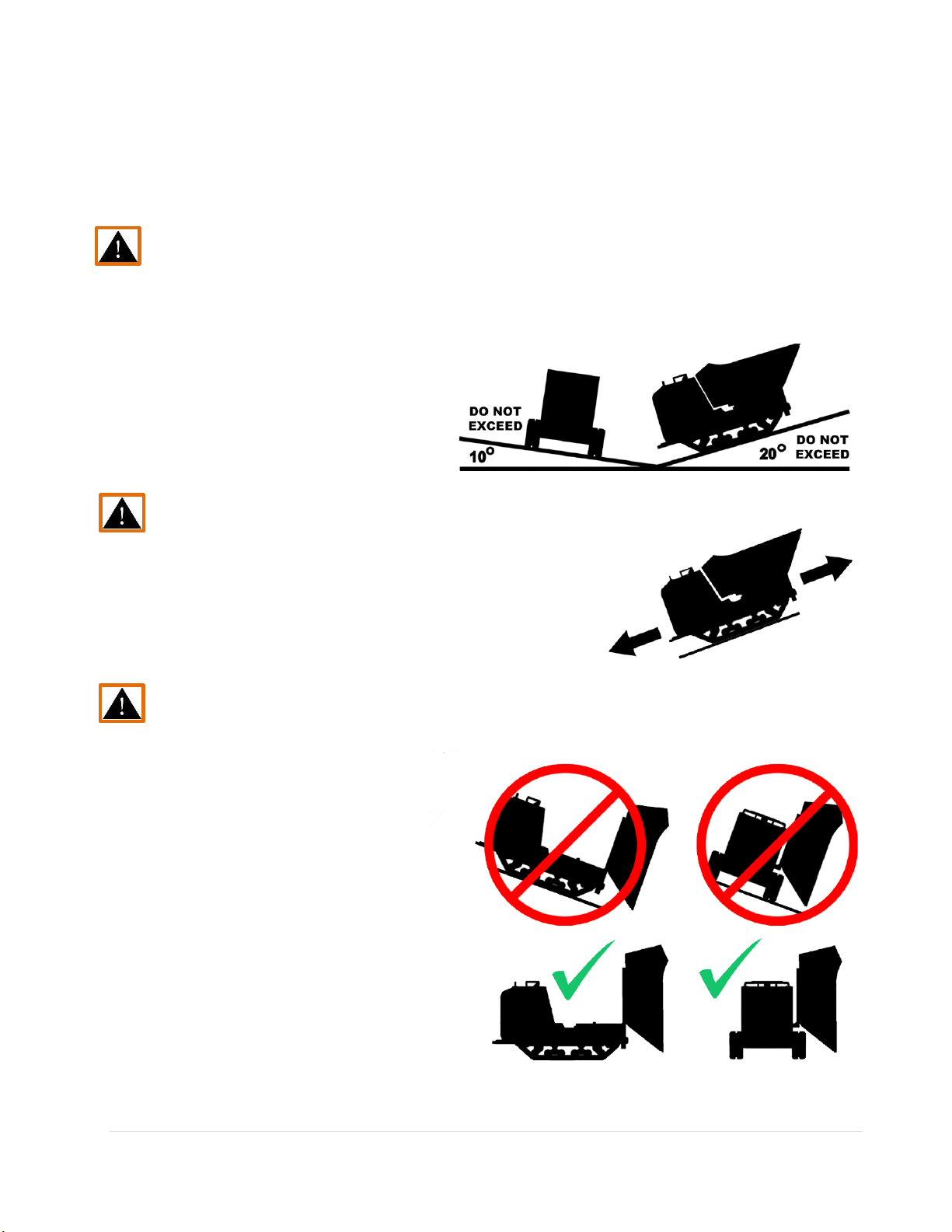

1. All slopes require extra caution. Do not operate on slopes exceeding 10°. If a slope is greater than
10°only go vertically (not horizontally).
2. Always have the heavy end of the machine uphill. Weight distribution will change the tipping point. An
empty bucket will make the rear of the machine heaviest, a loaded bucket will make the front of the
machine heaviest. These same rules apply when loading and unloading the machine onto a trailer or truck.
3. Avoid turning on slopes. If you must turn, turn slowly keeping the heavy end of the machine uphill.
4. Do not operate near ditches or embankments.
5. Do not operate on wet grass. Reduced traction could cause slippage.
6. Remove obstacles such as rocks, tree limbs, etc. from the work area. Watch for ruts or bumps as uneven
terrain could overturn the machine. Tall grass can also hide obstacles.
9. If machine becomes unstable, jump clear. Never try to stabilize the machine yourself.
10. Never use your hand to find hydraulic leaks. Use a piece of wood or cardboard. Hydraulic fluid
injected into the skin must be treated by a knowledgeable physician immediately or severe injury or death
can occur.
11. Always turn machine off when not in use.
12. Never disconnect any emergency or safety devices. These devices are intended for operator safety.
Disconnection of these devices can cause severe injury, bodily harm or even death. Disconnection of any
of these devices will void all warranties.
13. Never approach power lines with any part of the buggy unless all local, state/provincial and federal
(OSHA) required safety precautions have been taken. Use extreme caution when approaching high voltage
power lines.
14. Do not operate the machine at excessive speeds. Reckless operation may cause accidents and severe
injury. Slow down when approaching people, wet areas, and going up and down grades. It is the
responsibility of the operator to adjust speed, as necessary, depending on the conditions of the road or
path.
15. Allow extra time to stop when operating the machine on wet surfaces or loosely graded materials.
16. Do not dump materials that are large, chunky or sticky. These types of material may shift causing the
machine to tip and throw the operator off the machine. The machine intended for dumping free-flowing
and loose materials such as dry soil, slag, and wet concrete.
17. Do not dump materials from bucket while the power buggy is moving.
18. For walk behind operation, the operator platform must be stowed and locked in the UP position.
The speed should also be reduced to 3 mph (4.8 kph) or slower.
19. Always make sure the machine’s brakes are working properly. Check brake linkage and adjust as
required. Never operate the machine with a defective braking system.
20. Ensure brakes are applied when leaving machine unattended or when using on a slope. When parking
on a slope, position the machine at a right angle to a slope. Ensure that the parking brake is engaged and
holds the machine safely in place when parking on a slope.
21. When filling or dumping, do not exceed payload capacity of the machine.
22. Do not stand in front, or alongside, the machine when discharging a load.
23. To prevent unexpected loss of control, do not start engine on a sloping surface.
24. Ensure that the speed control works freely and return to the closed position. Do not start engine
unless speed control is working properly.
25. Never operate the machine with bad or worn tires. Always replace defective tires with new ones.
26. Always make sure the hydraulic dumping mechanism of the tub is working properly.
Remember – Safety is your responsibility.

Safety
9 | page
Cautions During Operation:
27. Avoid sudden stops, starts and changes in direction. Operate the controls smoothly. Do not jerk the
steering or any other controls.
28. Never attempt to work the controls except from the operator’s position.
29. Never drive or tow the machine in traffic or on public roads.
30. Always keep the machine in proper running condition.
31. Fix damage to machine and replace any broken parts immediately.
32. The entire machine should be cleaned after every use. Make sure there is no buildup of concrete,
grease, oil or debris on the machine.
33. Always store equipment properly when it is not being used. Equipment should be stored in a clean,
dry location out of the reach of children and unauthorized personnel.
Engine Safety:
1. Do not place hands or fingers inside engine compartment when engine is running.
2. Never operate the engine with heat shields or guards removed.
3. Keep fingers, hands, hair and clothing away from all moving parts to prevent injury.
4. Always shut down the engine before performing service or maintenance.
5. Do not remove the engine oil drain plug while the engine is hot. Hot oil will gush out of the oil tank
and severely scald any persons close to the machine.
6. Never touch the hot exhaust manifold, muffler or cylinder. Allow these parts to cool before servicing
equipment.
7. Never run engine without an air filter or with a dirty air filter. Severe engine damage may occur.
Service air filter frequently to prevent engine malfunction.
8. Never tamper with the factory settings of the engine or engine governor. Damage to the engine or
equipment can result if operating in speed ranges above the maximum range.
Fuel Safety:
1. Do not start the engine near spilled fuel or combustible fluids. Fuel is
extremely flammable and its vapors can cause an explosion if ignited.
2. Always refuel in a well-ventilated area, away from sparks and open flames.
3. Always use extreme caution when working with flammable liquids.
4. Do not fill the fuel tank while the engine is running or hot.
5. Do not overfill tank and tighten fuel cap. Spilled fuel could ignite if it
comes into contact with hot engine parts or sparks from the ignition system.
5. Store fuel in appropriate containers, in well-ventilated areas and away from
sparks and flames.
6. Never use fuel as a cleaning agent.
7. Do not smoke around or near the equipment. Fire or explosion could result from fuel vapors or if
fuel is spilled on a hot engine.
8. Do not leave the machine in the vicinity of ovens, furnaces or radiant heaters. Heat could raise the
pressure of the fuel so that vented gas could ignite.
Remember – Safety is your responsibility.

Safety
10 | page
Battery Safety (Electric Start Only):
1. Do not drop the battery. There is a possibility that the battery will explode.
2. Do not expose the battery to open flames, sparks, cigarettes, etc. The battery contains combustible
gases and liquids. Contact with a flame or spark could cause an explosion.
3. Always wear safety glasses when handling the battery to avoid eye irritation. The battery contains
acids that can cause injury to the eyes and skin. Use well-insulated gloves when picking up the battery.
4. Do not charge battery if frozen. The battery can explode. Warm the battery to at least 61°F (16°C).
5. Always recharge the battery in a well-ventilated environment to avoid the risk of a dangerous
concentration of combustible gases.
6. If the battery liquid (dilute sulfuric acid) is exposed to clothing or skin, rinse skin or clothing
immediately with plenty of water.
7. If the battery liquid (dilute sulfuric acid) is exposed to eyes, rinse eyes immediately with plenty of
water and contact the nearest doctor or hospital to seek medical attention.
8. Always disconnect the negative battery terminal before performing service on the equipment.
9. Always keep battery cables in good working condition. Repair or replace all worn cables.
Lifting and Maintenance Safety:
1. Never allow any person or animal to stand underneath the equipment while lifting.
2. When lifting of the machine is required, use a properly rated forklift.
3. Never tip the engine to extreme angles during lifting as it may cause oil to gravitate into the cylinder
head, making the engine start difficult.
4. Never lift machine to unnecessary heights.
5. Never lift the equipment while the engine is running.
Transporting Safety:
1 Always use ramps capable of supporting the weight of the machine and the operator to load and
unload the machine.
2. Always shutdown engine before transporting. Tighten fuel tank cap securely.
3. When transporting the machine is required, place the machine on a flatbed truck, flatbed trailer or
equivalent and tie down securely.
4. Always make sure all tie-downs and blocks are in place and the bucket is completely lowered in the
flat (horizontal) position.
5. Place chock blocks underneath
machine to prevent rolling.
6. When transporting the machine on a
truck or trailer, know the overall height
to avoid contacting overhead
obstructions such as bridges and power
lines. Check the truck and ramp
capacities.
Remember – Safety is your responsibility.

Safety
11 | page
Bucket Safety
The machine is equipped with a bucket safety bar that will prevent the bucket from lowering
under its own weight while performing repairs. To engage the safety bar, use the following
procedure:
1. With machine on, raise the bucket
2. Rotate the safety bar into place. (Fig 1)
3. With no one under the bucket and all hands free, very slowly lower the bucket down until
the safety bar is locked into place.
4. Shut off engine
5. Perform these instructions in reverse when done to remove the safety bar.

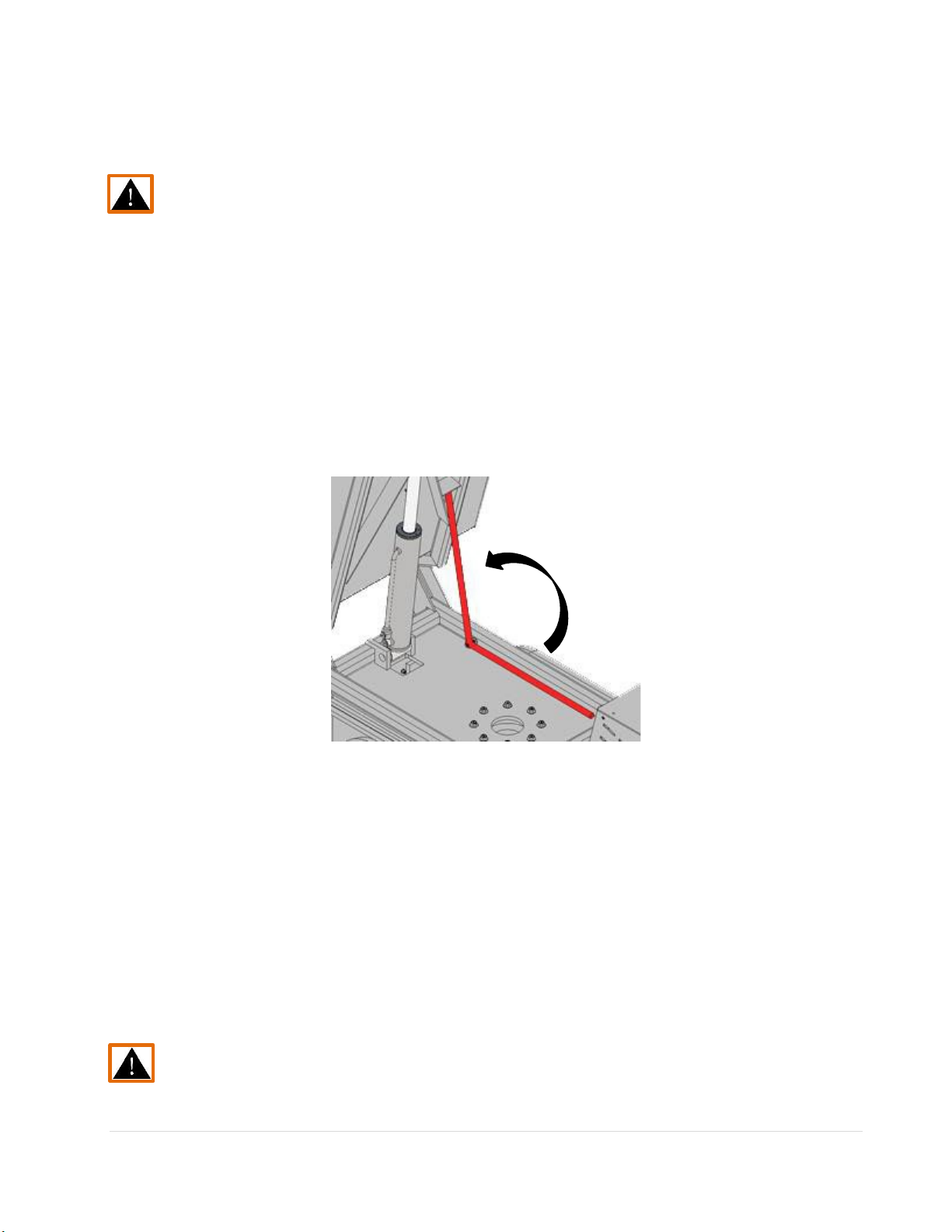

Fig 1 – Bucket Safety Bar
Remember – Safety is your responsibility.

Safety Labels
12 | page
On the machine there are various signs and labels that provide information on safety. Below is a list of those
labels and their corresponding descriptions. Be sure that all safety labels remain clean and legible
A
Decal A:
-Do not operate machine within 30 ft. of bystanders.
-Visibility Hazard: Look before backing up.
-Use extreme caution when dumping – Always dump or side dump on level ground, avoid wet and sticky loads,
dump slowly to ensure load is leaving bucket (if load sticks abort dump)
-For optimal performance, follow fill level recommendations.
-Use extreme caution when dumping.
-Do not run the machine on vertical slopes more than 10 degrees / horizontal slopes more than 10 degrees.
-Always keep heavy end of machine uphill.
-No Persons Allowed in Bucket (Operator Only)
-Do not start or stop the machine quickly or dump loads too quickly. Ensure the platform is clean and dry or
the user may be thrown from the machine.
-Turn slowly to avoid being thrown from machine.
-Always keep the heavy end of the machine uphill and back down slopes.
B
Decal B: Do not operated Aux/Generator Controls while machine is in motion.
C
Decal C:
Gas Only
Allowed
in Engine
D
Decal D:
Grease Each
Lubrication
Point After
Every 10
Hours of Use
E
Decal E:
Caution / Hot – Do
Not Touch
F
Decal F:
Danger of Pinching
G
Decal G:
Hydraulic Fluid Only
(No Other Fluids)

Technical Data
13 | page

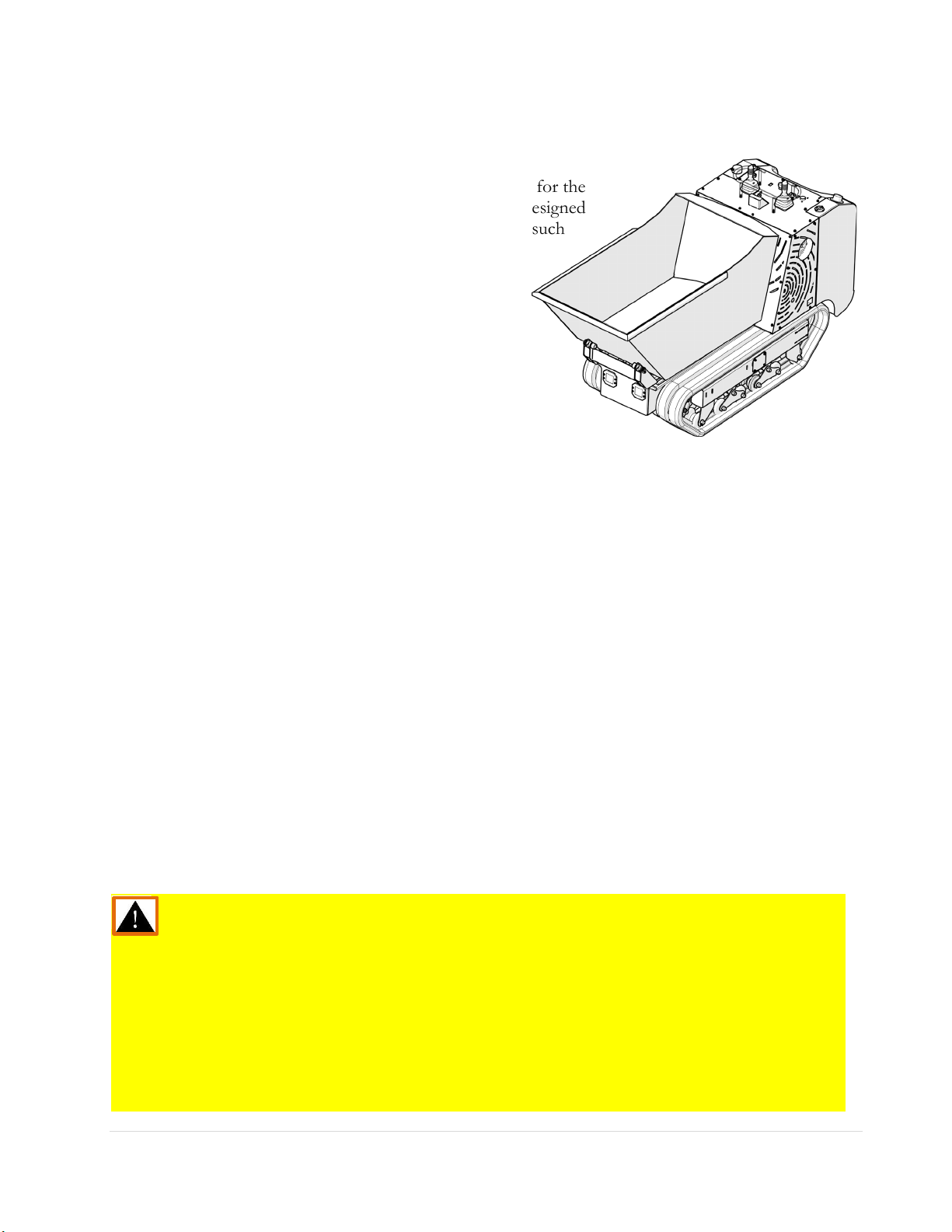

The LHD 7000 MB is a universal material hauler intended for the
transportation of any bulk material. This machine is also designed
for many other construction and landscaping applications such
as job site cleanup and supply transport.
The LHD 7000 MB is equipped with a metal bucket
with a capacity of 27 cubic feet, or 1 yard, which
allows users to move more material in less trips. The
6-inch dump height and wide 9 in (228mm) tracks also
allow users to navigate most any terrain. The design of
the machine is balanced with a low center of gravity
for safety.
The 9 gallon (34.5 liters) fuel tank allows for prolonged use without interruption and the powerful
engine and Poclain hydraulics allow for a maximum speed of 5 mph when empty.
The maximum weight capacity of the LHD 7000 MB is 4,000 lbs. (1,814 kg), the machine can pass
through a 36 in. standard door width.
Easy hand controls in reach from the safety handlebar allowing the user to keep their hands on the
machine for stability. Multiple lift and tie down points have been provided.
The LHD 7000 MB Mega Buggy is powered by a Kohler ECH740 EFI air cooled gasoline engine rated
at 26.5 HP at 3600 RPM.
This machine’s hydraulic system uses a closed loop configuration, operating at a maximum of 5000 PSI
on the track drive motors and 3000 psi on everything else. The system also features an automatic
parking brake when the machine is turned off. In the event of a break down the automatic parking
brake would need to be released to be “towed” or “moved”. The hand pump is located inside the
exhaust panel.
The hydraulic oil is filtered by a screen type filter located in the hydraulic tank, then doubled filtered
within the system by a 10 micron cartridge spin-on return filter.
Important Caution: Read this manual and your engine manual fully
before operating or maintaining the machine. Pay special attention to
the warning stickers on the body of the machine.
It is of extreme
importance to follow any warnings or
instructions described in the
manuals or by the stickers on the machine. Always use common
sense
for maintenance and use, otherwise property damage, personal injury
or death may occur.

Technical Data
14 | page
Engine
Kohler ECH749
Horse Power 26.5 HP
Fuel Gasoline
Starter Electric
Speed (empty, loaded) 3-4 MPH, 4.8-6.4 KPH
Bucket Capacity 27 Cu. Ft
Payload 4,000 LBS
Dump Angle 85º
Weight 2850 lbs
Aux Tool GPM (if equipped) 12 GPM at 2500 PSI
Dimensions

Startup
15 | page
Please read the entire Instruction Manual carefully before putting the machine into use. This also
includes the warning labels on the machine. Any operation in contradiction with these instructions
or warning may result in personal injury.
Check if the surroundings of the machine are safe and if there are any objects or foreign matter
between the moving parts. If the machine is started under such conditions, it may cause damage of
the machine or result in injury.
To keep machine in a good operative state, it is required to check these items EVERYDAY:
•Engine oil level
•Tension of tread and status of each working wheel
•Level of hydraulic oil and fuel (also check for leakage and tighten connections)
•Lubricating points of each sliding position (replenish lubricating oil if needed)
•Tightness of bolts
Note: If the engine seems difficult to start see the troubleshooting section of this manual.
•For Cold and Warm Start: This machine
is electronically fuel injected. Therefore, it
does not have a choke and should start similar
to a car. If the engine will not start refer to
the engine manual.

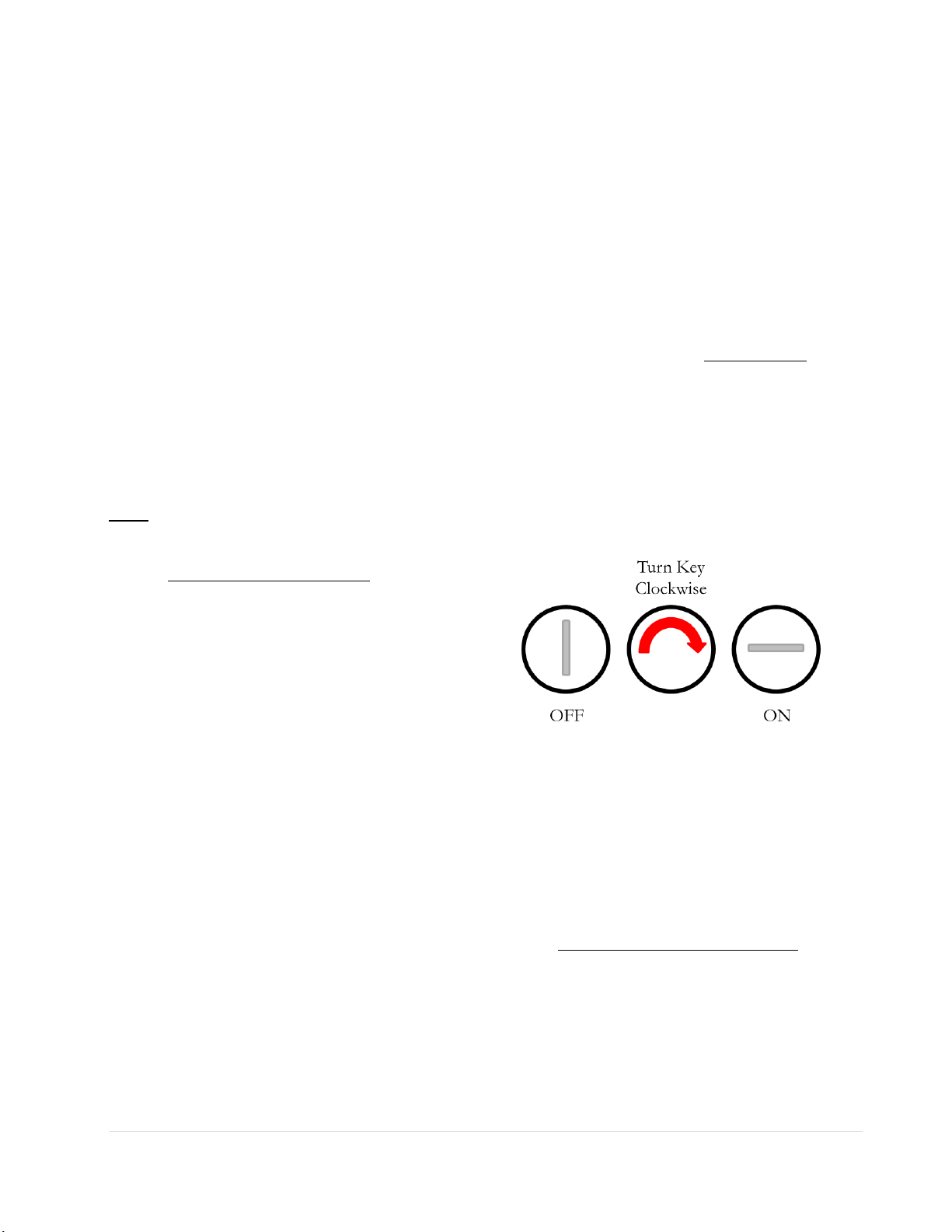

•To turn machine off, turn key back to
OFF position.
Initial Use
Before their sale, all machines have been tested and inspected. However, during the first 10
hours of use it is recommended that you pay close attention to a few items to ensure
successful, efficient and safe operation. If the machine is run improperly or if these
directions are not followed the machine’s lifespan will shorten and working efficiency will
be reduced.
It is the responsibility of the owner to follow these directions during the first 10 hours of use:
•Let the machine warm up at least 5 minutes after start up.
•Avoid using full speed to drive the machine.
•Never start or accelerate the machine hastily; avoid unnecessary emergency stops or
turning abruptly.
•Clean engine oil filter. (See manual of engine for instructions)
•Check all hydraulic connections (including on engine) and tighten when needed.

Operation
16 | page
1. Slopes
Caution: Always avoid site conditions with slopes that are greater than the slopes in (Fig 2) or
include loose soil conditions. There is a possibility of overturning the machine with serious
injury or death of the operator. Always avoid working on terrain with slopes that are greater
than those prescribed. In every case, but especially when working on slopes, it is important that
the terrain is solid and stable.
Caution: Always keep the heavy end of the machine
uphill and always back down slopes. (Fig 3)
Caution: Never dump on a slope or soft soils. (Fig 4)
Fig 2
Fig 3
Fig 4

Operation
17 | page
2. Loading Bucket
For safety and optimal performance do not exceed
fill level recommendations and/or the 4000 lbs
hauling capacity. (Fig 5)
3. Traveling
Note: The horn is the top button of the drive control.
After the engine starts, you should operate the joystick as
shown in the figure to the right (Fig 6) to drive the
machine. Push the joystick forward to move forward and
pull backward to move back. The more pressure put on the
joystick, the higher the speed.
To turn: While stopped, slowly push the joystick
to the right to turn right; push the joystick to the
left to turn left. To turn while driving, push the
joystick in the direction you would like to travel.
Caution: Never run the machine too quickly when moving or turning. This causes a risk of
throwing the user off the machine and causing injury or death. Never steer on a slope or on
unstable ground. This could cause the machine to overturn. Take precautions when traveling
across a slope. Always move in directions parallel with the slope.
4. Unloading Bucket
Operate the joystick as shown. (Fig 7) Push the joystick
forward slowly to dump the bucket. Pull the handle
backward slowly and it will return the material bucket to its
original position.
To unload: After the material bucket is filled,
drive the machine to the discharging area.
Dump the bucket SLOWLY. Driving the
machine backward after dumping may help
empty the bucket.

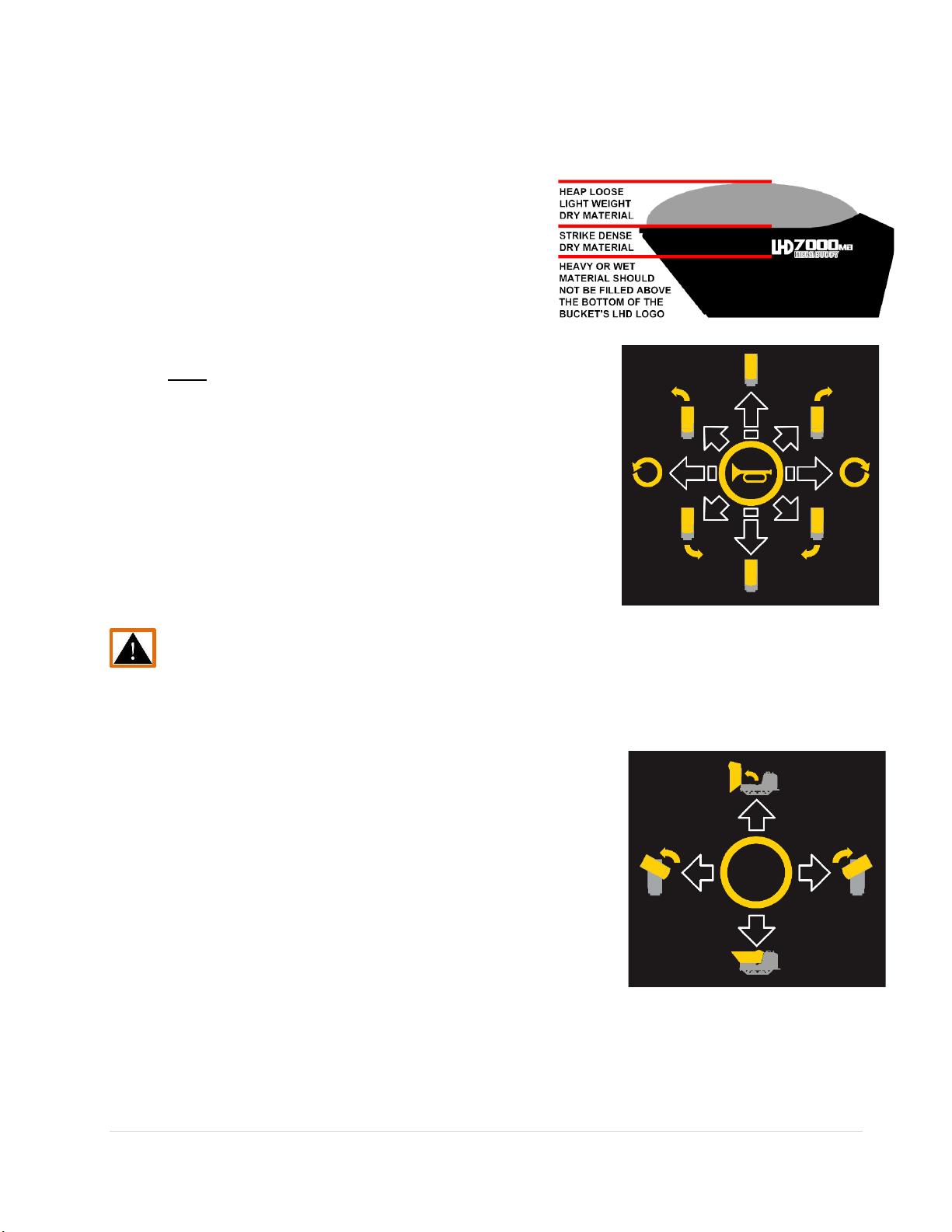

Fig 5
Fig 6
Fig 7
5. Rotating Bucket and Side Dumping
Operate the joystick as shown.
(Fig 7)
Push the joystick to the right to rotate the bucket right.
Push the joystick to the left to rotate the bucket left. Be sure to re-center the bucket to dump
straight forward again

Operation
18 | page
Caution: While side dumping, or dumping straight, if the load is sticky (such
as wet soil) the user may need to help remove the load from the bucket.
Turn off the machine and check its surroundings before you help unload.
Dump slowly to ensure load is leaving bucket, if load sticks abort the
dump.
Caution: Be the utmost aware when dumping the bucket to the
side. (Fig 8) Ensure all persons are a safe distance away, 30 feet or
more. Never side dump the machine with other than 2500 lbs or
less of loose easy to remove materials. Never dump the machine
on a declining slope. Look for barriers when dumping.
6. Throttle Control
Operate the throttle control knob as shown in the figure to the right.
(Fig 9) Rotate the knob to the left to throttle up (rabbit) and rotate
the knob to the right to throttle down (turtle).
Throttle can also be controlled on the engine itself.
Caution: Always operate the machine at the appropriate speed. Operating the machine at too
high of a speed can lead the user to being thrown off the machine or the machine tipping over.
Use extreme caution when using the machine at high speeds.
7. Transporting the Machine
Loading and unloading the machine from vehicle or trailer:
-Always load and unload the machine on a level surface.
-Always use ramps that are sufficiently strong, wide and long for the machine.
-Ensure that the hauling surface and ramps are clean and not slippery. (Never steer on ramps)
Transporting:
-Secure the machine to the vehicle or trailer tightly using fastening devices and the 6 tie down
points. (Fig, 10, 11, and 12) Figure 12 shows tie down location under the rear of machine.
Ensure that the machine will not roll or shift on its own.
Fig 9
Fig 10
Fig 11
Fig 12
Fig 8

Operation
19 | page
Caution: Never transport the machine unless you are sure that it is secured sufficiently to the
transport vehicle. Before leaving the machine unattended, always turn it off. Check that all
locking devices are in the correct position.
8. Automatic Park Brake
This machine is equipped with an automatic park brake. (Fig 13) The park brake is
intended to eliminate accidental movements when there is no operator present.
When the engine is started and everything is working properly the park brake is
released. When the engine is off the park brake is automatically set. If equipped
with the generator or auxiliary tool circuit, the park brake is also automatically set
when in use. If the machine engine fails to start, or there is a malfunction with the
pump, the park brake will not be released and you may wish to deactivate it.
Caution: Park the machine on a flat, level and stable surface. If parking on an uneven surface is
unavoidable, turn the bucket straight, apply the park brake and block the tracks at the lower end
of the machine. Without a load, park the machine with the operator's step uphill. With a load,
park the machine with the operator's step downhill (Never park sideways on a slope.)
In order to deactivate the park brake the park brake pump must be used. Locate the park
brake pump inside the left side panel next to the muffler and pump until there is enough
pressure to release. While towing, pressure may drop. Continue to pump the park brake release
pump until the machine has reached a different destination.
9. Towing
After the material has been removed from the bucket and the park
brake has been released, use the D ring located on the front
bumper and connect a strong tow strap. (Fig 14) While towing, if
the tracks start to spin continue to pump the park brake release
pump until you reach your destination. (See Automatic Park
Brake Above)
10. Lifting with Crane
The machine is equipped with 4 D rings for lifting. Ensure the
bucket is empty and no person is near the machine while lifting.
( F i g 15)
Fig 13
Fig 14
Fig 15

Operation
20 | page
11. Lifting with Forklift
The machine can be lifted from the rear or the sides, not from the front, with a forklift. To lift
from the rear, adjust the forks so they are 16’ 5” apart (from the outside). Raise the rear
platform of the machine. Use caution not to cause damage to the tanks while the forklift is
going towards the machine
To lift the machine from the side, place the forks through the frame ( F i g 16) by placing the
forks 33” apart (from the outside). Ensure the forks extend to through the other side of the
machine before lifting. With both lifting techniques, make sure bystanders are clear, move
slowly and always keep machine as close to the ground as possible.
12. Generator (If Equipped)
Caution: Never operate an electric tool while driving machine.
No operator should be on the machine during the time of electric
tool use. Doing so can result in serious injury or death. After the
generator is turned on, the park brake is automatically set.
Turn on the generator by using the switch on the control panel
marked with “G” symbol. ( F i g 17) After setting park brake you
can begin to use the generator. You can use up to 3.7 KW.
Please see generator owner’s manual for more information.
13. Auxiliary Tool Circuit (If Equipped) ( F i g 18)
Caution: Never operate a hydraulic tool and drive the machine at the
same time. No operator should be on the machine during the time of
auxiliary tool use. Doing so can result in serious injury or death. After
the tool circuit is turned on the park brake is automatically set.
Note: Auxiliary Tool Circuit may not operate all hydraulic tools
properly. Only up to 12 GPM at 2500 PSI.
Before connecting implement hoses to tool circuit,
determine which hose connects to each port.
1. Connect hoses with engine off and adjust the Aux Flow Knob to its lowest setting by
rotating clockwise. ( F i g 17)
2. Start the engine and turn on the Aux Flow circuit by using the switch on the control panel
with the hydraulic symbol, next control the generator switch and aux flow knob. ( F i g 17)
At this time the park brake is automatically set.
Note: If the engine struggles to start or won’t start check your tool hose connections.
3. Slowly increase the engine RPM
4. Adjust the Aux Flow Control knob to get the desired performance from the hydraulic tool
by rotating the knob counter clockwise.
5. After tool use, decrease the Aux Flow and decrease the engine RPM down to idle.
6. While no one is handling the hydraulic tool flip the Aux Tool switch to off ( F i g 17) and then
turn off the machine. Try to activate the tool to reduce built up pressure and remove the
hoses. Turn on the auxiliary tool circuit by using the switch on the control panel. ( F i g 17)
Fig 16
Fig 17
Fig 18
