LI-1500 GPS Upgrade Kit
Installation Instructions
This instruction sheet describes how to install the LI-1500GPS
Upgrade Kit (p/n1500-GPS) in the LI-1500Light SensorLogger.
Note: Some instruments may have different wire colors than
those shown in these instructions. This will not affect the
installation.
LI-1500 GPS Upgrade Kit includes
lGPS board (p/n 9922-135)
lGPS flex cable (p/n 388-13760)
lTwo 2-56 screws (p/n 122-10710)
lAnti-static wrist strap (p/n 619-05291)
lInstallation Instructions
Tool Required: # 1 Phillips head screwdriver
Time Required: About 15 minutes
Disassembly
1. Power off the instrument. Remove the two screws that
secure the battery cover on the back of the console.
Open battery cover and remove batteries, if installed.
2. On the back of the console at the corners, pull back the
rubber gasket and loosen the four screws that hold the
top and bottom of the case together. The screws should
remain captive under the gasket. Gently separate the
two halves of the enclosure.
3. Attach the anti-static wrist strap snugly around your
wrist and attach the clip to earth ground (e.g., a com-
puter chassis that is plugged in or other appliance
chassis that is plugged in). This will help prevent dam-
age from static electricity during installation.
4. Disconnect the power cable connector (circled below)
from the main PC board.

LI-COR® Biosciences
4647 Superior Street • Lincoln, Nebraska 68504
TEL: [phone] • FAX: [phone]
[e-mail] • [e-mail] • www.licor.com/env
Serving United States, Canada, and Mexico.
LI-COR GmbH, Germany • [phone]
[e-mail] • [e-mail]
Serving Andorra, Albania, Belarus, Cyprus, Estonia, Germany, Iceland, Latvia, Lithuania,
Liechtenstein, Malta, Moldova, Monaco, San Marino, Ukraine and Vatican City.
LI-COR Ltd, United Kingdom • [phone]
[e-mail] • [e-mail]
Serving UK, Ireland, and Scandinavia.
LI-COR Distributor Network:
www.licor.com/env/distributors
DLB-100
01/14

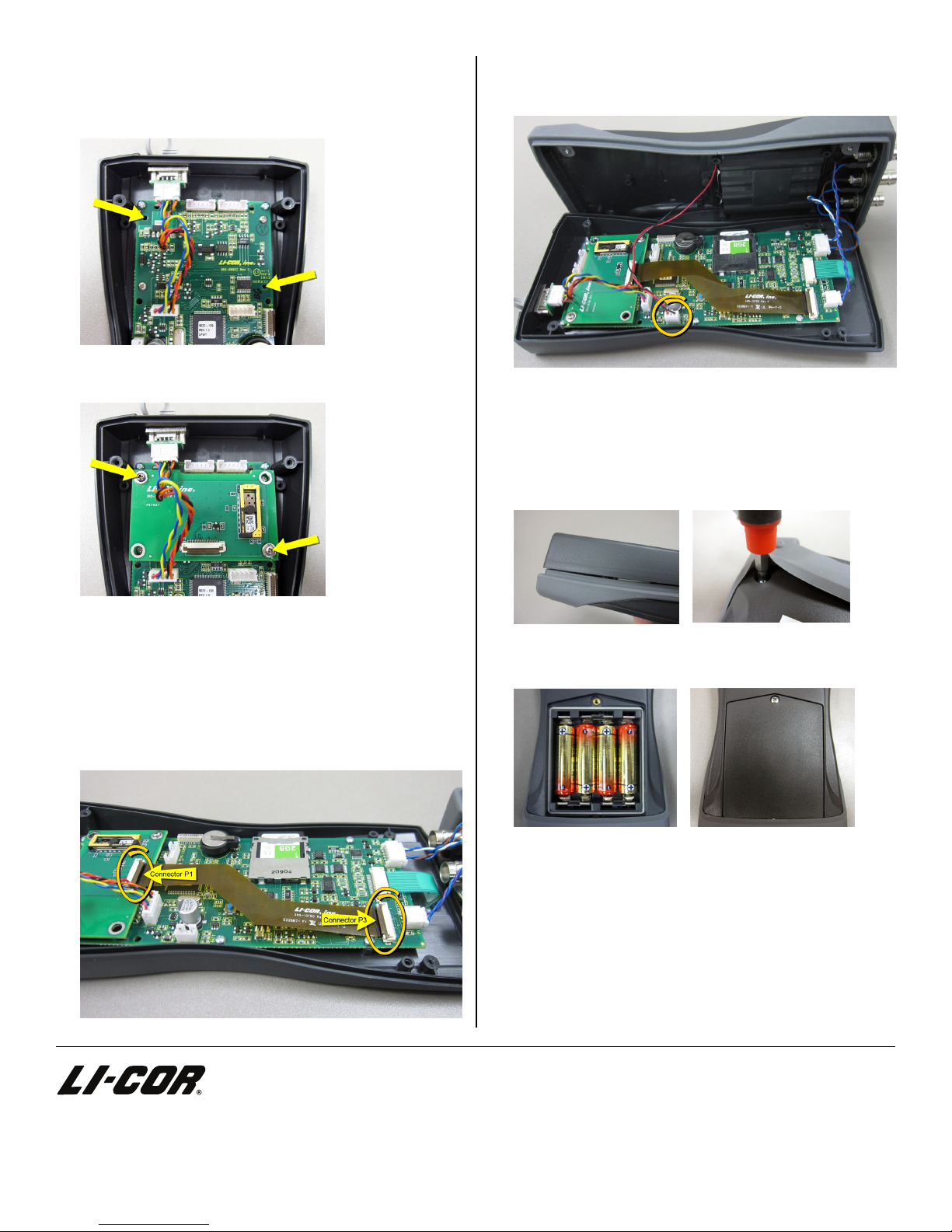

Install GPS Board
1. Remove the upper-left and bottom-right screws from the
display bezel and discard.
2. Install the GPS board as shown below, using two 2-56
screws (provided).
3. Install the flex cable as shown below. Open the retainer
clip on connector P3 of the main PC board by pulling up
on the edge of the brown strip. Carefully insert the prin-
ted end of the flex cable with the printed side up. Slide
it under the two small white tabs on either side. Snap
the retainer clip closed. Open the retainer clip on con-
nector P1 of the GPS board. Insert the remaining end of
the flex cable. Snap the retainer clip closed.
Reassembly
1. Reconnect the power cable to the main PC board.
2. Join the top and bottom halves of the control unit. Be
sure the rubber seal is seated properly. Gently tighten all
four case crews. Torque to 4 in.-lb. if using a torque
screwdriver.
Caution: Be careful not to over-tighten the screws as
they may strip or break the plastic.
3. Install four AA batteries and the battery cover. Be sure
to observe proper polarity when installing batteries.
GPS installation is complete. For GPS use instructions,
please refer to the LI-1500 Instruction Manual.
