Libec H38B User manual

H38B
H38B;

H38B:
H38B:

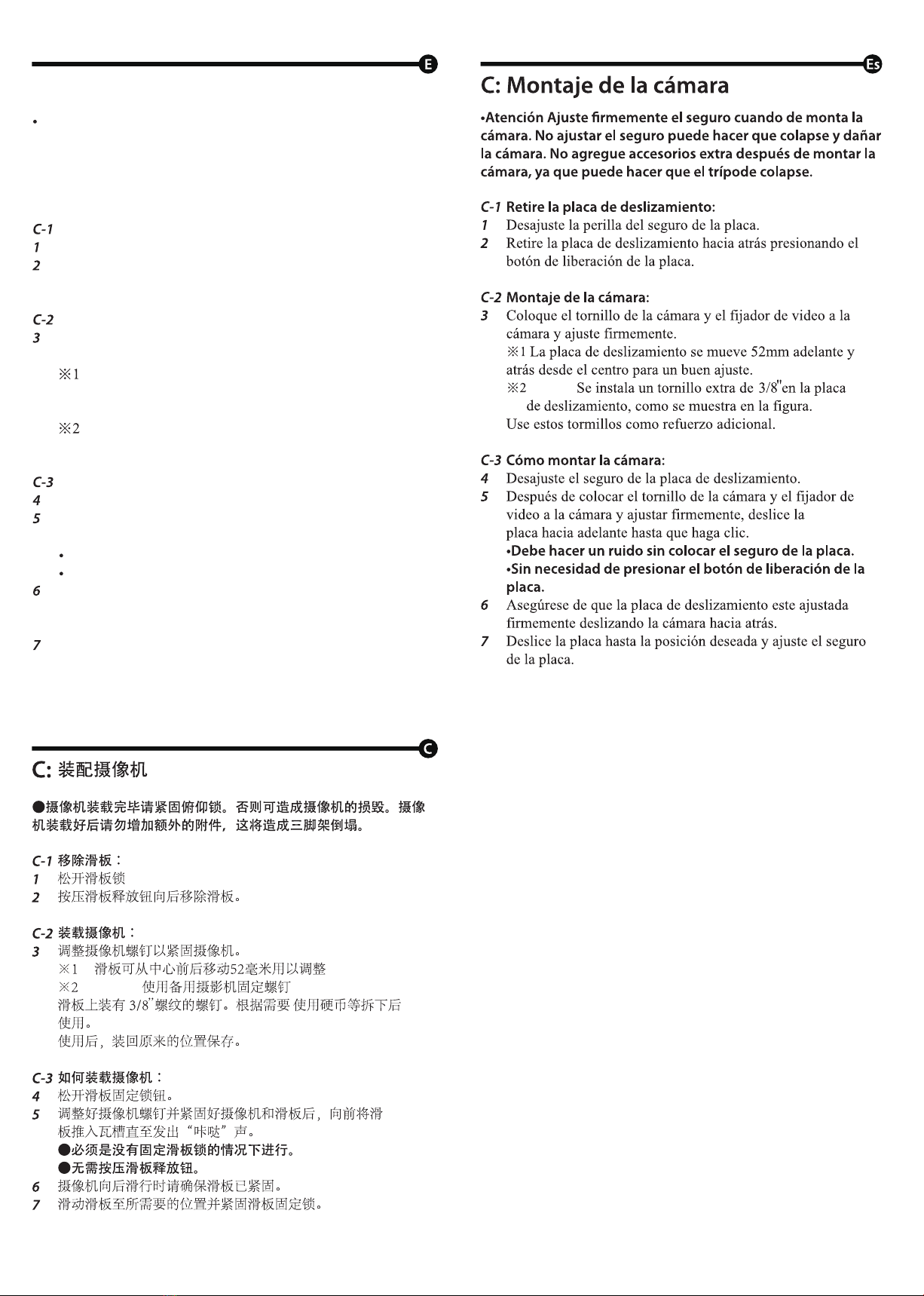

C: Mounting of the camera
Firmly tighten the tilt lock when mounting or dismounting
the camera. Also after the camera was mounted on the head,
do not add accessories and others on it. With thehead
suddenly tilt backward or forward, it may cause damage to the
camera.
Removing the sliding plate:
Loosen the sliding plate lock.
Slide backwards the sliding plate while pressing the plate
release button.
Attaching the sliding plate:
Set the camera screws and video pin to the camera and
tighten firmly.
The camera screw and video pin could slide back and
front which allow adjustment for the camera positioning.
The sliding distance is 52mm.
H38B; 3/8" spare screw is installed on the platform
as shown. Use these screws for additional reinforcement.
Attaching the camera to the head:
Loosen the sliding plate lock.
With the sliding plate mounted on the camera, slide in the
same way as it was removed, push forward until it clicks.
Do not secure the sliding plate lock yet.
And not to press the plate release button.
To confirm the mounting was correct, hold the camera and
slide towards the inserted entrance, to check that the camera
does not come off the platform.
Slide the plate to the desired position and tighten the sliding
plate lock.

If the camera tilts to the backward or forward, adjustment is
needed to shift the sliding plate front or behind.
The head may tilt while adjusting the sliding plate.
Keep hold of the camera to ensure it does not fall off.
Hold the camera and loosened the sliding plate lock.
Move the sliding plate front or back and find the position
where the tilt balancing can be obtained, secure and tighten
the sliding plate lock.
D: Adjusting of sliding plate

Firmly tighten the pan lock, if locking is necessary.
Firmly tighten the tilt lock, if locking is necessary.
