USER MANUAL
DIGIIP 1000 Series Owners Manual
IPEX1001 & IPEX1002
DigiIP 1000 Series AV/IP
1080P AV over IP 1Gbps Encoder and Decoder with easy setup, no processor
required,and with video wall support.

Rev 230101 OWNERS MANUAL IPEX1000 SERIES
PACKAGE CONTENTS
PRODUCT OVERVIEW
The DigiIP IPEX1000 series distribute, route, and switch 1080p HDMI signals over a standard 1 Gbps
network. There is no limit on sources and decoders are limited to a total of 50. No controller needed.
ID, name, setup and control is done using the interactive app. DIGI IP 1000 series can work with managed
or unmanaged network switches, although commercial grade high performance network switch selection is
strongly encouraged
• IPEX1001
• (1) Power Supply with international power adapters
• (2) Phoenix connectors
•(2) mounting Ears
• IPEX1002
• (1) Power Supply with international power adapters
• (2) Phoenix connectors
•(2) mounting Ears

3
OWNERS MANUAL IPEX1000 SERIES
IPEX1001 PRODUCT BREAKDOWN
1. Power LED (Green) :When the green power LED is on the IPEX1001 has power. When the
LED is o no power is supplied to the unit.
2. Status LED (Green) : LED is on when an active HDMI input is plugged in. Slow blinking is
when the unit has no active HDMI input.
1. Power plug : 12 vdc. Unit supports POE. Unit only needs 1 power source (POE or power
adapter)
2. Audio output : Phoenix connector.
3. HDMI source input
4. RS232 : pass through port. (RS232 will pass through to decoder RS232 port)
5. LAN port : POE plug into a Gb network switch
6. Reset button : Press and hold for 5 second to reset unit.

Rev 230101 OWNERS MANUAL IPEX1000 SERIES

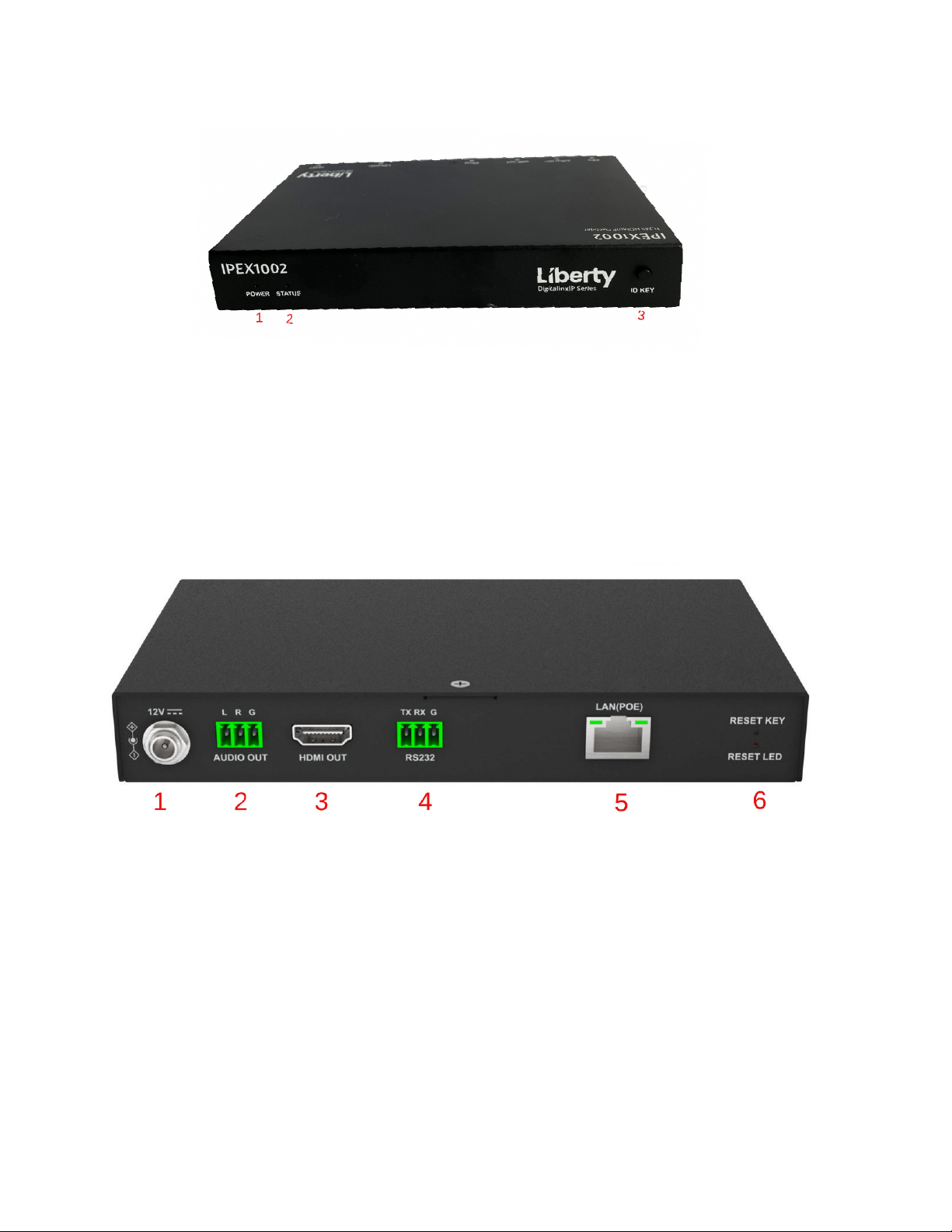

IPEX1002 PRODUCT BREAKDOWN
1. Power LED (Green) :When the green power LED is on the IPEX1001 has power. When the
LED is o no power is supplied to the unit.
2. Status LED (Green) : LED is on when an active source is routed to RX. Slow blinking is when
the unit has no active source routed to RX.
3. ID Key : Press to manually switch to another source.
1. Power plug : 12 vdc. Unit supports POE. Unit only needs 1 power source (POE or power
adapter).
2. Audio output : Phoenix connector.
3. HDMI output : Plug into a display/ projector
4. RS232 : pass through port. (Rs232 will pass through to/from encoder RS232 port)
5. LAN port : POE plug into a Gb network switch
6. Reset button : Press and hold for 5 second to reset unit.

5
OWNERS MANUAL IPEX1000 SERIES
DOWNLOADING THEAPP
Search DigiIP 1000 in the app store or visit the IPEX1001 Product Page on www.LibAV.com
The App is available in Apple or Android.
Make sure the tablet is on the same network as the encoders and decoders. Once you open
the app, the app will do a search. Below is what it will look like after doing a search.

Rev 230101 OWNERS MANUAL IPEX1000 SERIES
1. System Conguration button: Device settings, Video wall settings, Advanced settings, Sys-
tem information.
2. Decoder list: List of all decoders in the system.
3. Preview window: Preview of decoder selected. To route video click on encoder and drag
to preview window.
4. Encoder list: List of all encoders in the system with previews
5. To all screens: Sends Encoder to all decoders. Just drag encoder to button. Only Works if
you have under 50 decoders.
6. Power on/o : Turns displays on / o using cec or rs232 commands.
DEVICE SETTINGS
In device settings you can select TX or RX settings. Here you can hide or name &
change sequencing.
Alias is the name you would like to show up
on the main page of the app.

7
OWNERS MANUAL IPEX1000 SERIES
CREATE A VIDEO WALL
1. First select Create a video wall.

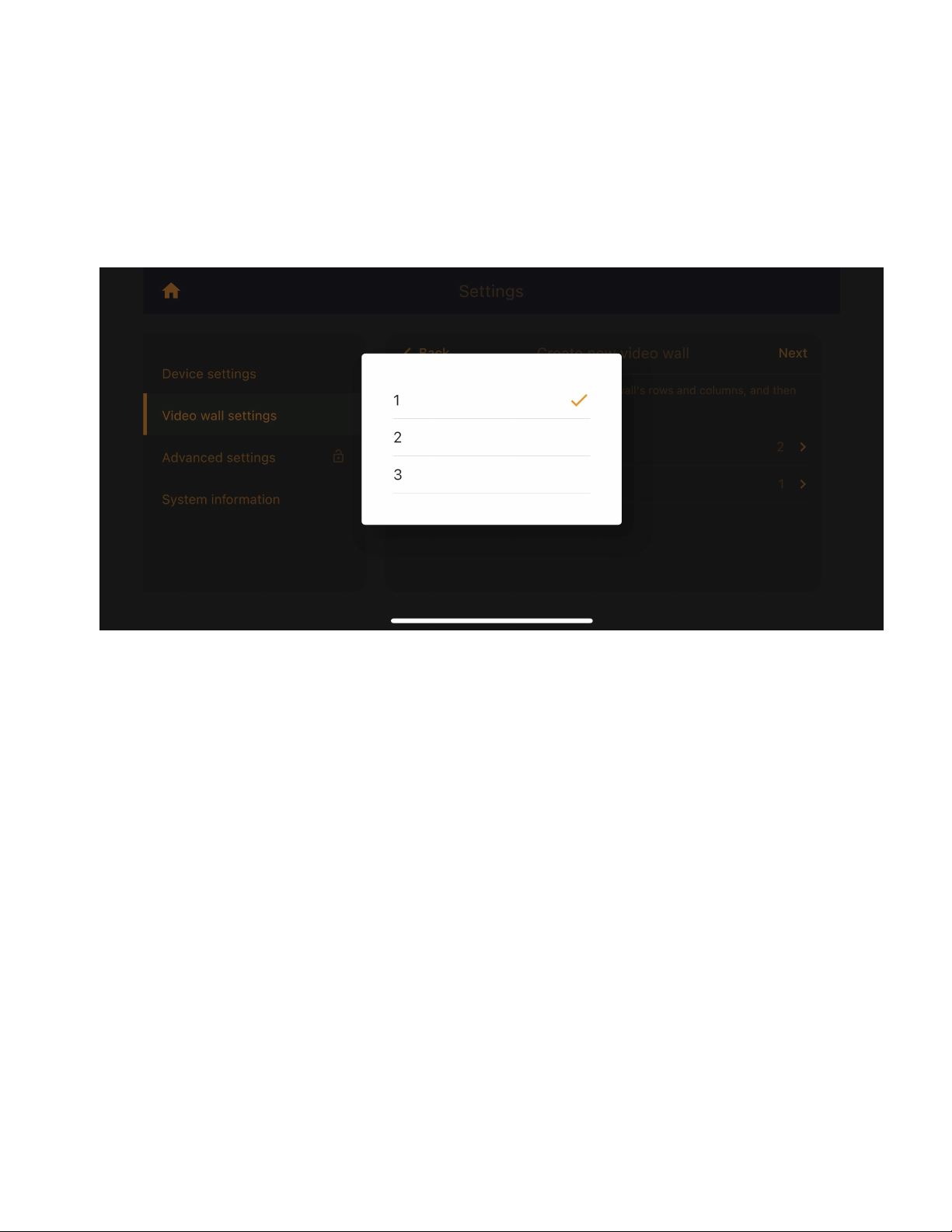

2. Select the number of displays for Row and Column
3. Select Next

Rev 230101 OWNERS MANUAL IPEX1000 SERIES

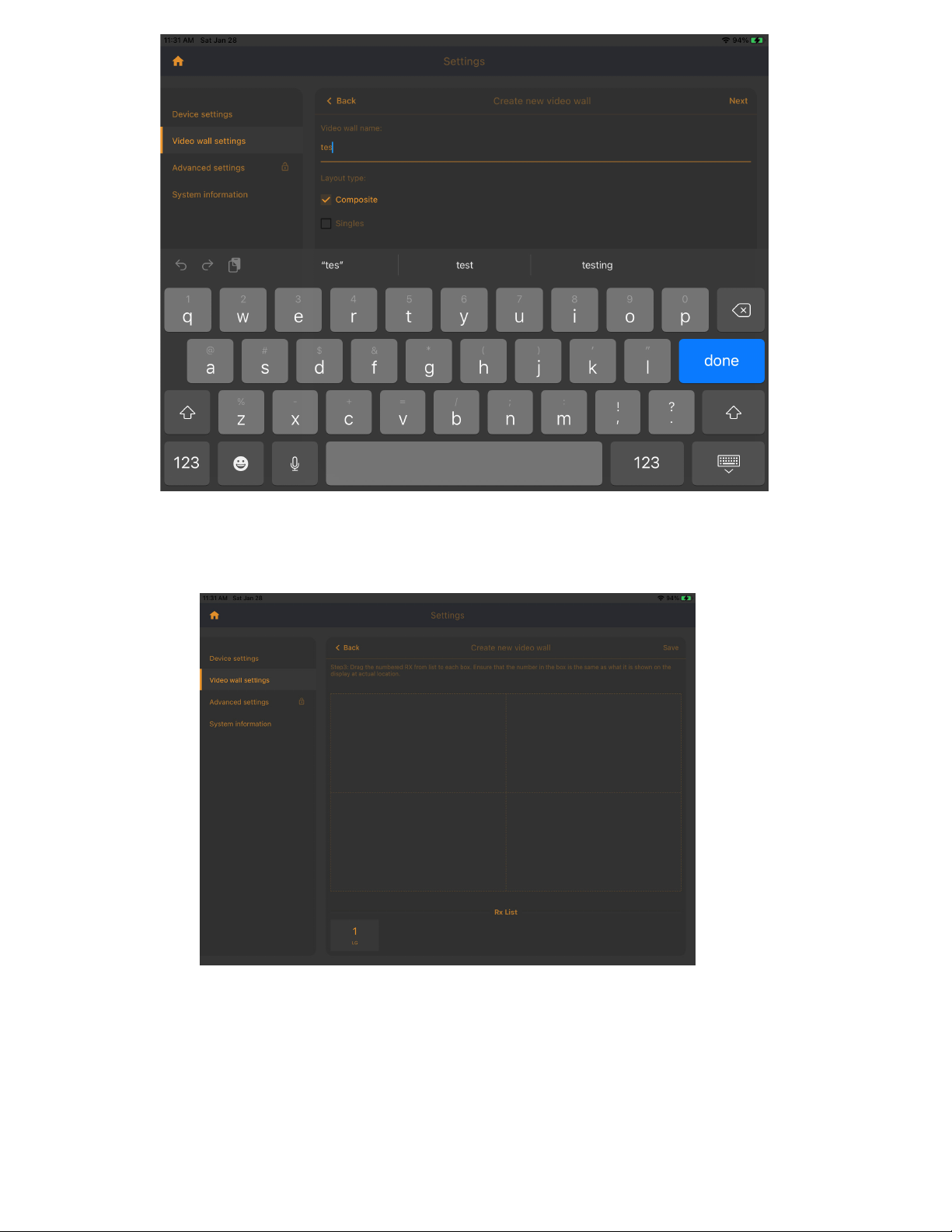

4. Name the video wall and select Composite or single. Composite means video wall and
Single means each display is a single display / source.
5. Select the decoder and place in the correct box on the video wall layout. Check the display
and make sure the number is correct. Once done press Save.

9
OWNERS MANUAL IPEX1000 SERIES

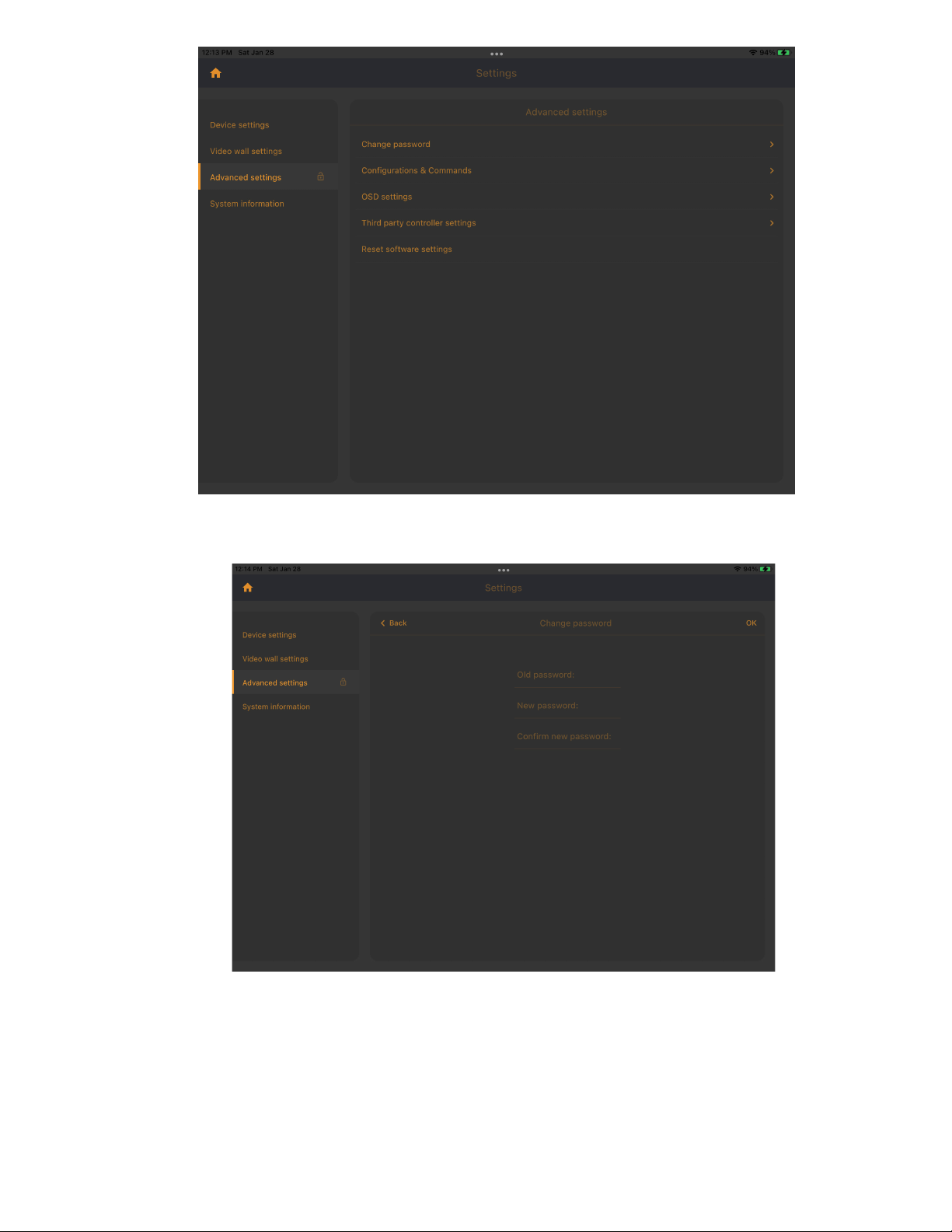

Advanced section allows you to change the following: Password, CEC, RS232, OSD, 3rd party
controller settings, and Reset software settings.
On the password page you can change the password from the default of no password. If you
add a password you will be prompted for a password before you can access advanced
section.

Rev 230101 OWNERS MANUAL IPEX1000 SERIES
In display power on/off instruction page you can select how you want the displays to be
turned on/off. Each section works the same way. Type in the command for on and then off.
Below is an example for CEC.
Select the decoder from the left and then type in the on command and then o command.
Click Apply and you done.

11
OWNERS MANUAL IPEX1000 SERIES

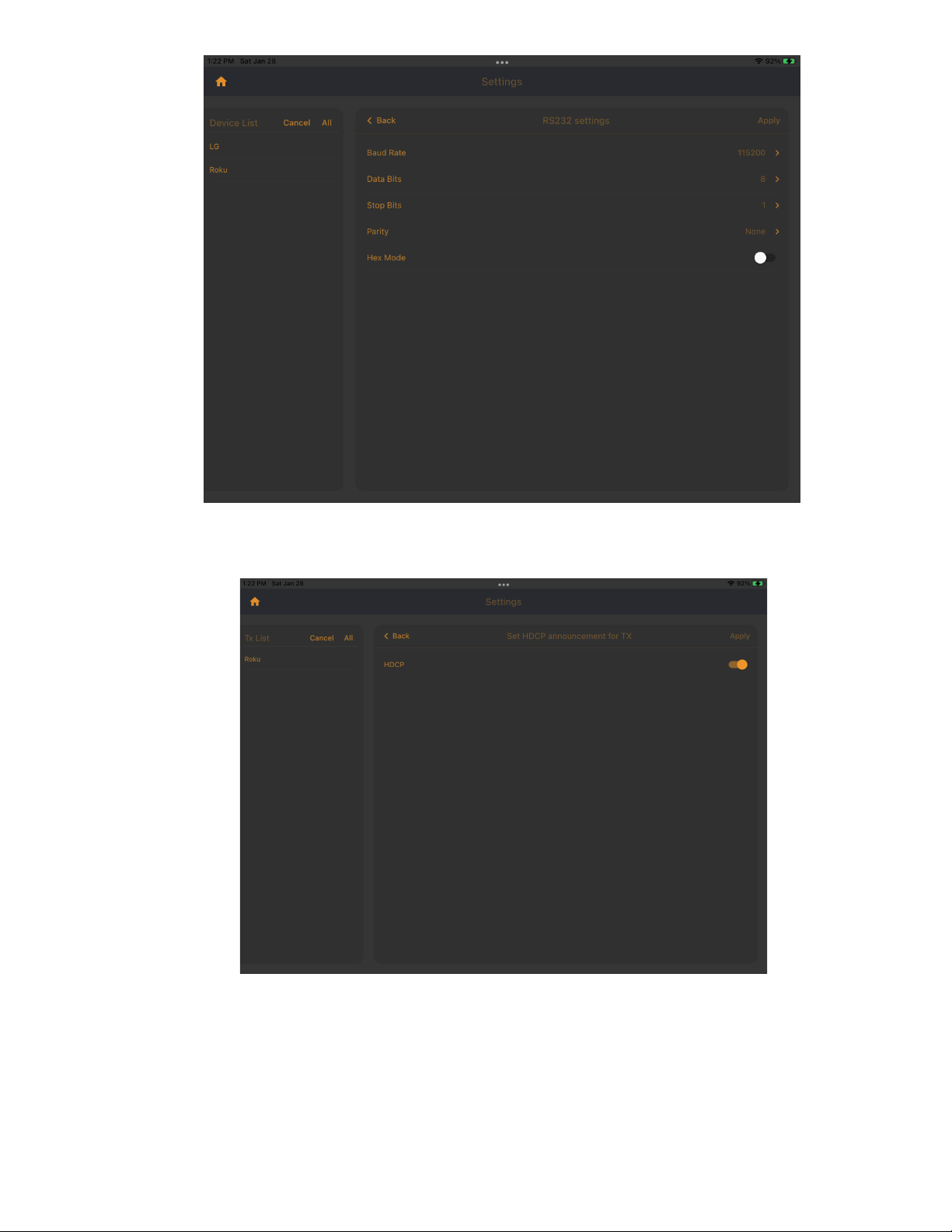

On the RS232 setting page select the device (encoder / decoder) and then set the baudrate
for the device.Once done click apply.
On the HDCP setting page. Select encoder and then turn on or o HDCP. Once done, click
apply.

Rev 230101 OWNERS MANUAL IPEX1000 SERIES
Select either encoder or decoder and then click Apply.
Select either encoder or decoder and then click Apply.

13
OWNERS MANUAL IPEX1000 SERIES

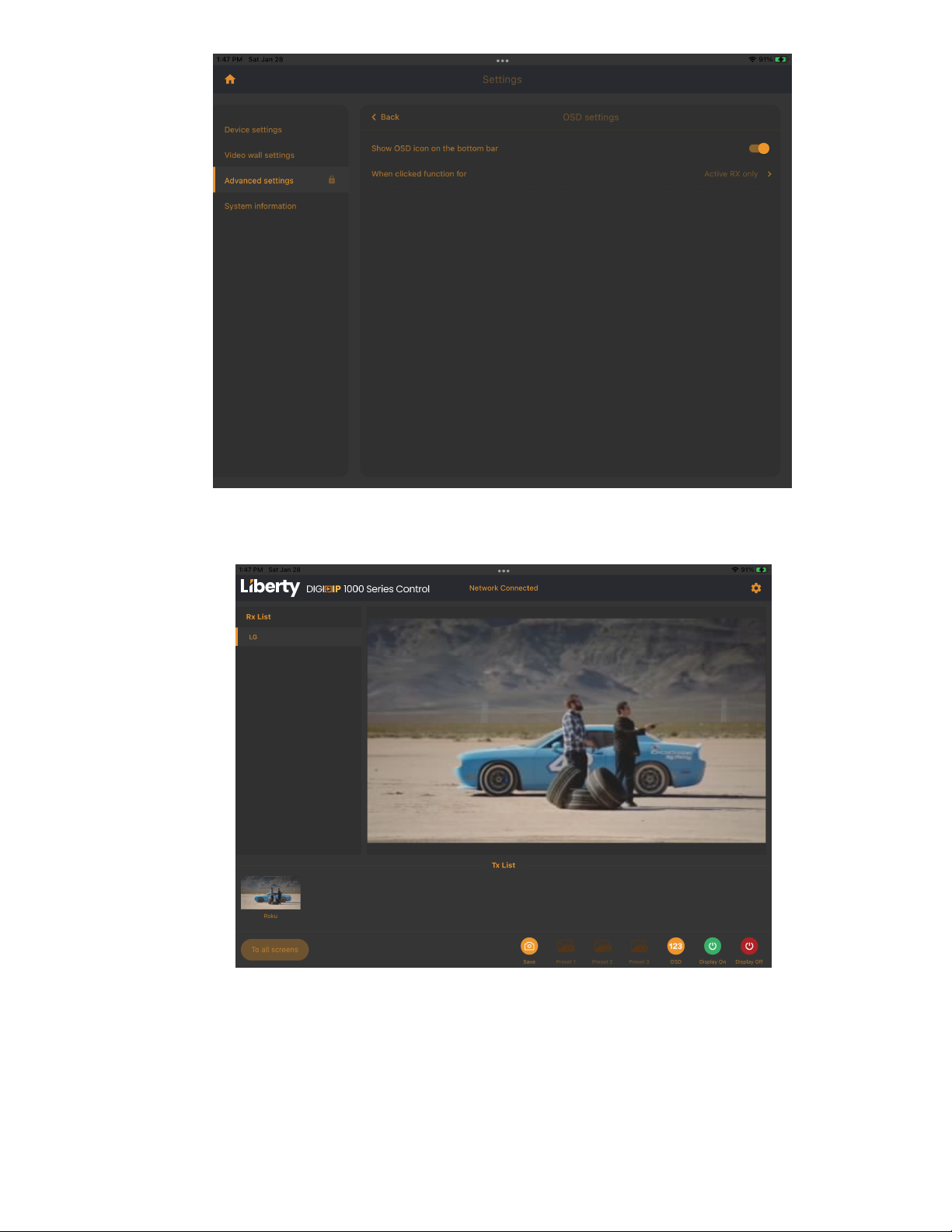

Turn on or o the option for the OSD button to show on the bottom of the home page. Select
all decoders or active decoders.
Press OSD button to turn on the OSD information on the decoders. To turn o, resend the
source.

Rev 230101 OWNERS MANUAL IPEX1000 SERIES
3rd party controller gives you access to another app/browser inside this app. Turn on type in
the name and put in the url. Below is screenshot of the home screen.
The button opens the browser and takes you to the address you entered. Press back in
the upper left hand corner (in the browser)once you are done.

15
OWNERS MANUAL IPEX1000 SERIES
Pressing Reset software settings will open up a pop-up window. If you press yes it will clear
all settings on the software. A new search is required for devices to populate.
System information area has information on encoders, decoders and logs.

Rev 230101 OWNERS MANUAL IPEX1000 SERIES
The Tx information screen shows information on all encoders including: IP address, device
name, alias name, rmware, rs232 settings.
The Rx information screen shows information on all decoders including: IP address, device
name, alias name, rmware, rs232 settings.

17
OWNERS MANUAL IPEX1000 SERIES
The System logs page shows whether devices are online or oine and any errors. Click copy
button to save information to send to support if needed.

Rev 230101 OWNERS MANUAL IPEX1000 SERIES
TECHNICAL SPECIFICATIONS
Model IPEX1001 / IPEX1002
Physical Parameter
Case Material IPEX1001: Industrial-grade metal chassis with metal brackets
IPEX1002: Industrial-grade metal chassis with metal brackets
Dimensions IPEX1001: 175mm [W] x 100mm [D] x 25mm [H]
IPEX1002: 175mm [W] x 100mm [D] x 25mm [H]
Weight IPEX1001: 600g
IPEX1002: 600g
Power Protecon ESD protecon with human body model — ±8kV (Air-gap discharge) & ±4kV
(Contact discharge)
Power Output DC 12V 1A / POE
Power Input AC 100-240V 50/69Hz
Storage Temperature 32 - 140°F / 0 - 70°C
Operang Temperature 32 - 113°F / 0 - 45°C
Video Specicaons
Resoluon support 1920x1080P 60Hz
Max Bandwidth 480Mbps
Video Protocol H.265 Video Compression
Audio Format MPEG-AAC and LPCM Stereo
Networking
Standards 1000Base-T
Data Trac Layer 2
Connecvity
Inputs
Outputs
IPEX1001: 1x HDMI
1x RJ45, 1x RS232
IPEX1002:1x RJ45
1x DC 24V
IPEX1001 : 1x audio IPEX1002: 1x audio, 1x HDMI
Transmission
Max Distance switch to
device
328 / 100m over CAT5e/6/6a/7
Max Distance device to
device
328 / 100m over CAT5e/6/6a/7

19
