Lichtlauf Ledl User manual

Ledl
en

Design Christoph Matthias, Veit Redl 2012
Aluminium. A pendant light reduced to the essential. Colours: Black, silver but
also a variety of exciting anodized Aluminium colours are possible.
Mounting on a junktion box.
light sources: LED approx. 12 W, light colour warm white
dimensions: ø 250 x 9 mm
anodizing colours: grey, black, red; other colours on request
230 V 50 Hz
1 x max. 12 W LED, max. 350 mA
Art:
Indoor light IP20
1 Ledl
1 canopy
1 LED control gear
4 terminal blocks
1 hook
1 thimble
kabel tie
heat shrinking tube pieces
ferrules
This luminaire contains built-in LED lamps.
Energy classes: A - A++
The lamp can only be replaced by the
manufacturer.
product description enclosed
technical data

Keep plastic bags and small components away
from children to avoid risks of suffocation or
swallowing!
Do not look directly into the light source!
(risk of glare or eye damage)
special notes
Disconnect the device from the power supply
grid before cleaning.
The care of the lamp is limited to the
surfaces.
Make sure no liquid reach the connection
area or electrical components.
Important:
Please don‘t use spiritus or alcohol
containing products.
As well as no abrasives or abrasive containig
detergents.
Only use a damp cloth to clean the lamp.
care instructionssafety note
Follow always the hints of this instruction for
a safe assembly and use of these lights.
Keep the assembly instruction for further
questions.
The assembly and the electric supply must
be done by an electric professional. Local in-
stallation regulations have to be respected.
The manufacturer accepts no liability for any
damage due to improper use of the luminaire.
Luminares are only allowed to be used for
the specified purpose. Interior lights may
not be used in outside area. Luminares may
not be covered.
They may not be connected to power supply
still they are packaged.
Lights with elctronic control gears (ECG)
have to be operated with original ECGs.
Attention! Before working on the luminaire
disconnect it from the mains.
Also for cleaning, maintance and lamp
change.
The lamp change must be done by an compe-
tent professional.
Use only lamps with same type of construc-
tion, performance and voltage.
In case of damages, in particular of cable
and socket, the luminare have to be shut off
immediately. In case of damage on the mains
cable it has to be changed by the Lichtlauf
GmbH.
For malfunction call autorized personnel for
troubleshooting.
Never repair it by yourself.
Through improper repair work may arise risk
for the user.
Elements of plug and connection shall be free
from traction and torque.

[A] Assembly of the luminaire cable
20 mm
10 mm
--
+
1. Define the suspension height of the lumi-
naire. Cut the luminaire cable to length with
an addition of approx. 10 cm.
2. Assemble the luminaire cables according to
the drawing. [A]
Remove approximately 20 mm of the outer
sheath. Please be careful! The coaxial braid
must not be damaged.
Then twist the coaxial braid into a conductor
(-).
Provide this with a piece of shrink tubing.
Then a larger one over the place where the
two conductors share.
Insulate both conductors by approx. 10 mm.
Finally squeeze the conductors with one
ferrule each.
Before you start mounting and connecting
the luminaire, make sure that the supply
cable is disconnected from the mains!
Remove the fuse!

Mounting on flush-mounted
box
Pass the secondary line of the control gear
through the opening (A).
Connect the conductor (L) and neutral con-
ductor (N) (marked on the luster terminal)
of the control gear to the corresponding
conductor of the ceiling outlet in the luster
terminal in the flush-mounted box.
Fasten the canopy to the flush-mounted box
using suitable screws.
You can also fix the box to the ceiling if re-
quired. Use suitable screws for your ceiling.
Connect (+) and (-) of the secondary line of
the control gear with (+) red and (-) black
of the luminaire cable to the connection
terminals.
Close the canopy with the three screws
provided.
Attach the cover plate (B) to the canopy by
screwing in the cable securing device (C).
Secure the lamp cable against
Slide out of the cable safety catch by screw-
ing in the grub.
Fastening with hook next to
the canopy
(D) Attach the hook to the ceiling. Use a
dowel suitable for your ceiling. Adjust the
pendulum length and slide the transparent
shrink tubing over the cable loop. Insert the
thimble into the cable loop. Tighten the cable
tie over the shrink tubing. Make sure it is
tight and shorten the excess length of the
cable tie.

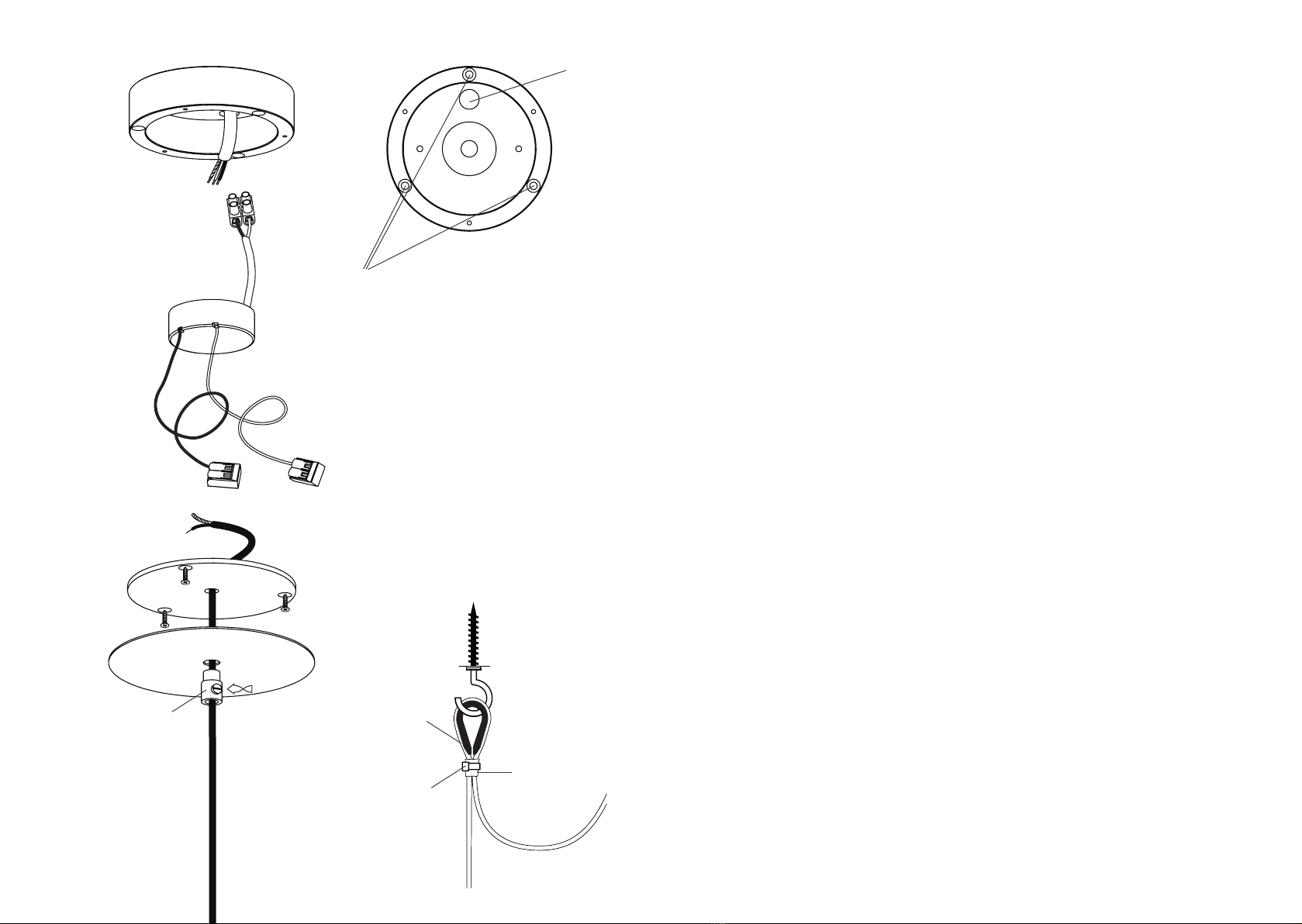

Mounting on flush-mounted box
(A)
LN
(B)
(C)
(D)
thimble
cable tie
heat-shrink
tubing

Pass the ceiling outlet through the opening
(A) in the canopy box.
Fasten it with three screws suitable for your
ceiling.
Connect the conductor (L) and neutral con-
ductor (N) (marked on the luster terminal)
of the control gear to the corresponding
conductor of the ceiling outlet.
Connect (+) and (-) of the secondary line of
the control gear with (+) red and (-) black
of the luminaire cable to the connection
terminals.
Close the canopy with the three screws
provided.
Attach the cover plate (B) to the canopy by
screwing in the cable securing device (C).
Secure the lamp cable against slipping out on
the cable securing device by screwing in the
grub.
Fastening with hook next to
the canopy
(D) Attach the hook to the ceiling. Use a
dowel suitable for your ceiling. Adjust the
pendulum length and slide the transparent
shrink tubing over the cable loop. Insert the
thimble into the cable loop. Tighten the cable
tie over the shrink tubing. Make sure it is
tight and shorten the excess length of the
cable tie.
Mounting without flush-
mounted box
(A)
LN
For ceiling mounting
(B)
(C)
(D)
thimble
cable tie
heat-shrink
tubing
