Life Fitness LifeCycle C1 User manual

C1 /C3 UPRIGHT LIFECYCLE®EXERCISEBIKES
Owner's Manual
8974901 REVB-3

CORPORATE HEADQUARTERS
5100 River Road
Schiller Park, Illinois 60176, U.S.A.
847.288.3300, FAX:[phone]
Service phone number: 800.351.3737 (toll-free within U.S.A., Canada)
Global Website: www.lifefitness.com
INTERNATIONALOFFICES
AMERICAS
North America
Life FitnessInc.
5100NRiverRoad
SchillerPark,IL60176U.S.A
Telephone:[phone]
Fax:[phone]
ServiceTelephone:(800)3513737
ServiceEmail:[email protected]
Sales/MarketingEmail:
[email protected]
OperatingHours:7:00am-6:00pm(CST)
Brazil
Life FitnessBrasil
Av.CidadeJardim,900
Jd. Paulistano
S_o Paulo,SP01454-000
BRAZIL
SAC:08007738282
Telephone:[phone]
Fax:[phone]
ServiceEmail:[email protected]
Sales/MarketingEmail:[email protected]
ServiceOperatingHours:
9:00- 17:00(BRT)(Monday-Friday)
StoreOperatingHours:
9:00-20:00(BRT)(Monday-Friday)
10:00- 16:00(BRT)(Saturday)
Latin America & Caribbean*
Life Fitness Inc.
5100NRiverRoad
SchillerPark,IL60176U.S.A
Telephone:[phone]
Fax:[phone]
ServiceEmail:[email protected]
Sales/MarketingEmail:[email protected]
OperatingHours:7:00am-6:00pm(CST)
EUROPE,MIDDLEEAST, & AFRICA(EMEA)
Netherlands& Luxemburg
Life FitnessAtlantic BV
Bijdorpplein25-31
2992LBBarendrecht
THENETHERLANDS
Telephone:[phone]
Fax:[phone]
ServiceEmail:[email protected]
Sales/MarketingEmail:
[email protected]
OperatingHours:9.00h-17.00h(CET)
United Kingdom& Ireland
Life FitnessUKLTD
QueenAdelaide
Ely,Cambs,CB74UB
Telephone:GeneralOffice(+44) 1353.666017
CustomerSupport(+44)1353.665507
Fax:[phone]
ServiceEmail:[email protected]
Sales/MarketingEmail:[email protected]
OperatingHours:
GeneralOffice:9.00am- 5.00pro(GMT)
CustomerSupport:8.30am- 5.00pro(GMT)
Germany&Switzerland
Life Fitness EuropeGMBH
SiemensstraBe3
85716Unterschleir_heim
GERMANY
Telephone:[phone] (Germany)
([phone](Switzerland)
Fax:[phone](Germany)
([phone] (Switzerland)
ServiceEmail:[email protected]
Sales/MarketingEmail:[email protected]
OperatingHours:08.30-16.30h(CET)
Austria
Life Fitness Austria
VertriebsG.m.b.H.
D_Jckegasse7-9/3/36
1220Vienna
AUSTRIA
Telephone:[phone]
Fax:[phone]
ServiceEmail:[email protected]
Marketing/SalesEmail:[email protected]
OperatingHours:08:30-16.30.h(MEZ)
Spain
Life Fitness IBERIA
C/FredericMompou5,1°1a
08960SantJustDesvernBarcelona
SPAIN
Telephone:[phone]
Fax:[phone]
ServiceEmail:[email protected]
Sales/MarketingEmail:[email protected]
OperatingHours:
9.00h-18.00h(Monday-Thursday)
8.30h-15.00h(Friday)
Belgium
Life Fitness Benelux NV
ParcIndustrialdePetit-Rechain
4800Verviers
BELGIUM
Telephone:[phone]
Fax:[phone]
ServiceEmail:[email protected]
Sales/MarketingEmail:
[email protected]
OperatingHours:9.00h-17.00h(CET)
Italy
Life Fitness EuropeGmbH
SiemensstraBe3
85716Unterschleir_heim
GERMANY
Telephone:[phone]
Service:800438836(In Italy)
Fax:[phone]
ServiceEmail:[email protected]
Sales/MarketingEmail:[email protected]
OperatingHours:08:30- 16:30h(CET)
All Other EMEAcountries&
DistributorBusiness C-EMEA*
Bijdorpplein25-31
2992LBBarendrecht
THENETHERLANDS
Telephone:[phone]
Fax:[phone]
ServiceEmail:[email protected]
Sales/MarketingEmail:
[email protected]
OperatingHours:9.00h-17.00h(CET)
ASIA PACIFIC(AP)
Japan
Life FitnessJapan
NipponBrunswickBldg.,#8F
5-27-7Sendagaya
Shibuya-Ku,Tokyo
Japan151-0051
Telephone:[phone]
Fax:[phone]
ServiceEmail:[email protected]
Sales/MarketingEmail:[email protected]
OperatingHours:9.00h-17.00h(JAPAN)
China and HongKong
Life FitnessAsia PacificLTD
Room2610,MiramarTower
132NathanRoad
Tsimshatsui,Kowloon
HONGKONG
Telephone:[phone]
Fax:[phone]
ServiceEmail:[email protected]
Sales/MarketingEmail:[email protected]
OperatingHours:9.00h-18.00h
All OtherAsia Pacific countries&
distributor businessAsia Pacific*
Room2610,MiramarTower
132NathanRoad
Tsimshatsui,Kowloon
HONGKONG
Telephone:[phone]
Fax:[phone]
ServiceEmail:[email protected]
Sales/MarketingEmail:[email protected]
OperatingHours:9.00h-18.00h

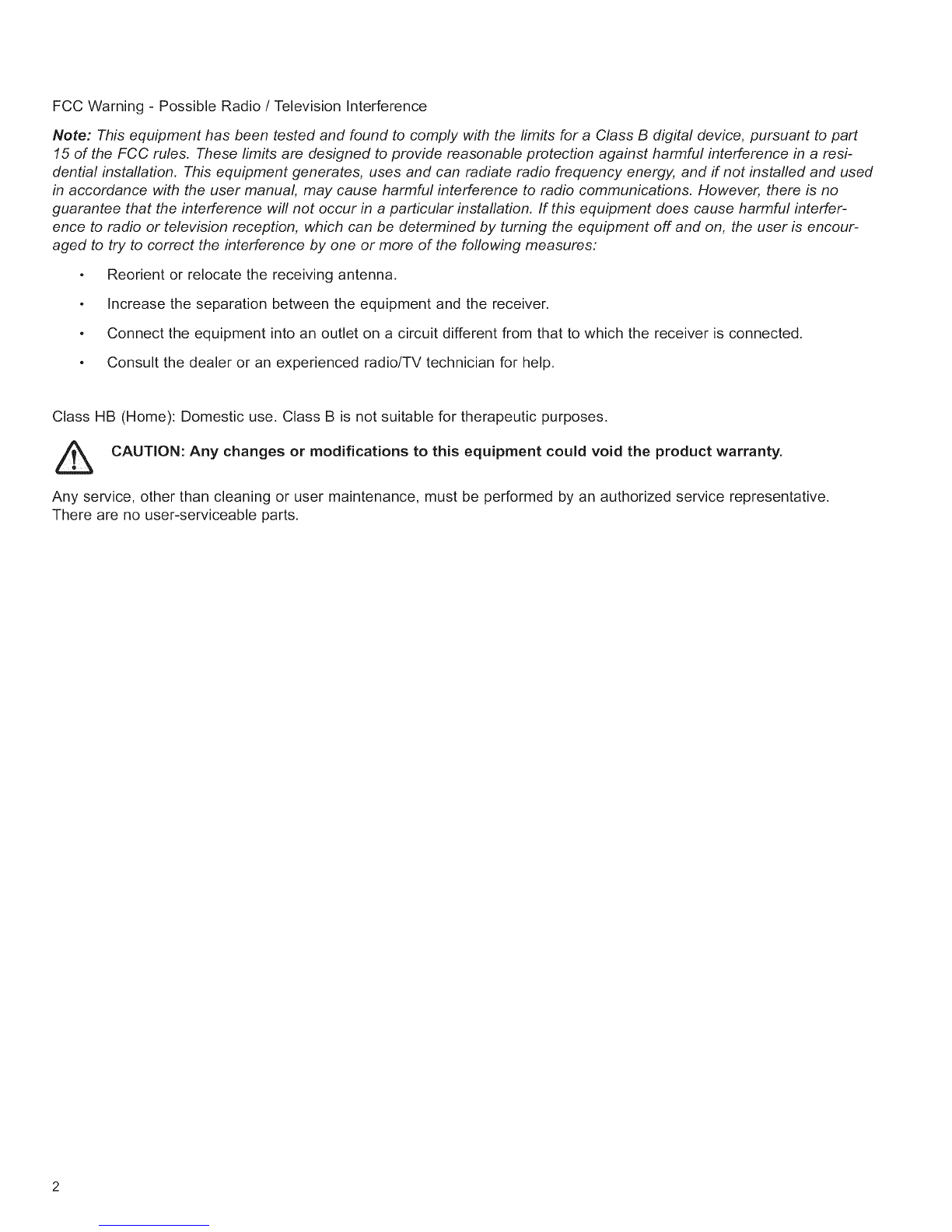

FCC Warning - Possible Radio /Television Interference
Note: This equipment has been tested and found to comply with the fimits for a Class B digital device, pursuant to part
15 of the FCC rules. These fimits are designed to provide reasonable protection against harmful interference in a resi-
dential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used
in accordance with the user manual, may cause harmful interference to radio communications. However, there is no
guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interfer-
ence to radio or television reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Class HB (Home): Domestic use. Class B is not suitable for therapeutic purposes.
CAUTION: Any changes or modifications to this equipment could void the product warranty.
Any service, other than cleaning or user maintenance, must be performed by an authorized service representative.
There are no user-serviceable parts.

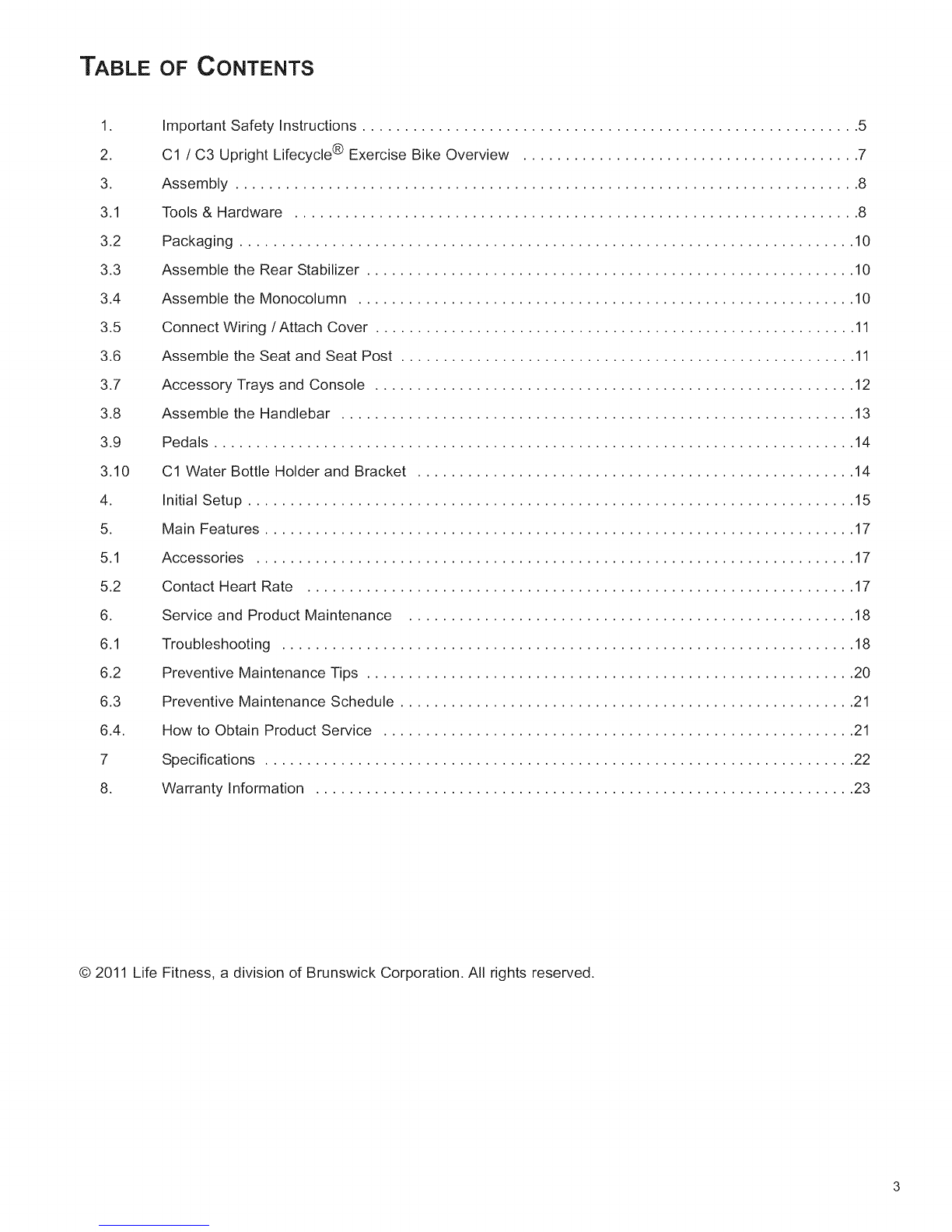

TABLE OF CONTENTS
,
2.
3.
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
3.10
4.
5.
5.1
5.2
6.
6.1
6.2
6.3
6.4.
7
8.
Important Safety Instructions ........................................................... 5
Cl /C3 Upright Lifecycle ® Exercise Bike Overview ........................................ 7

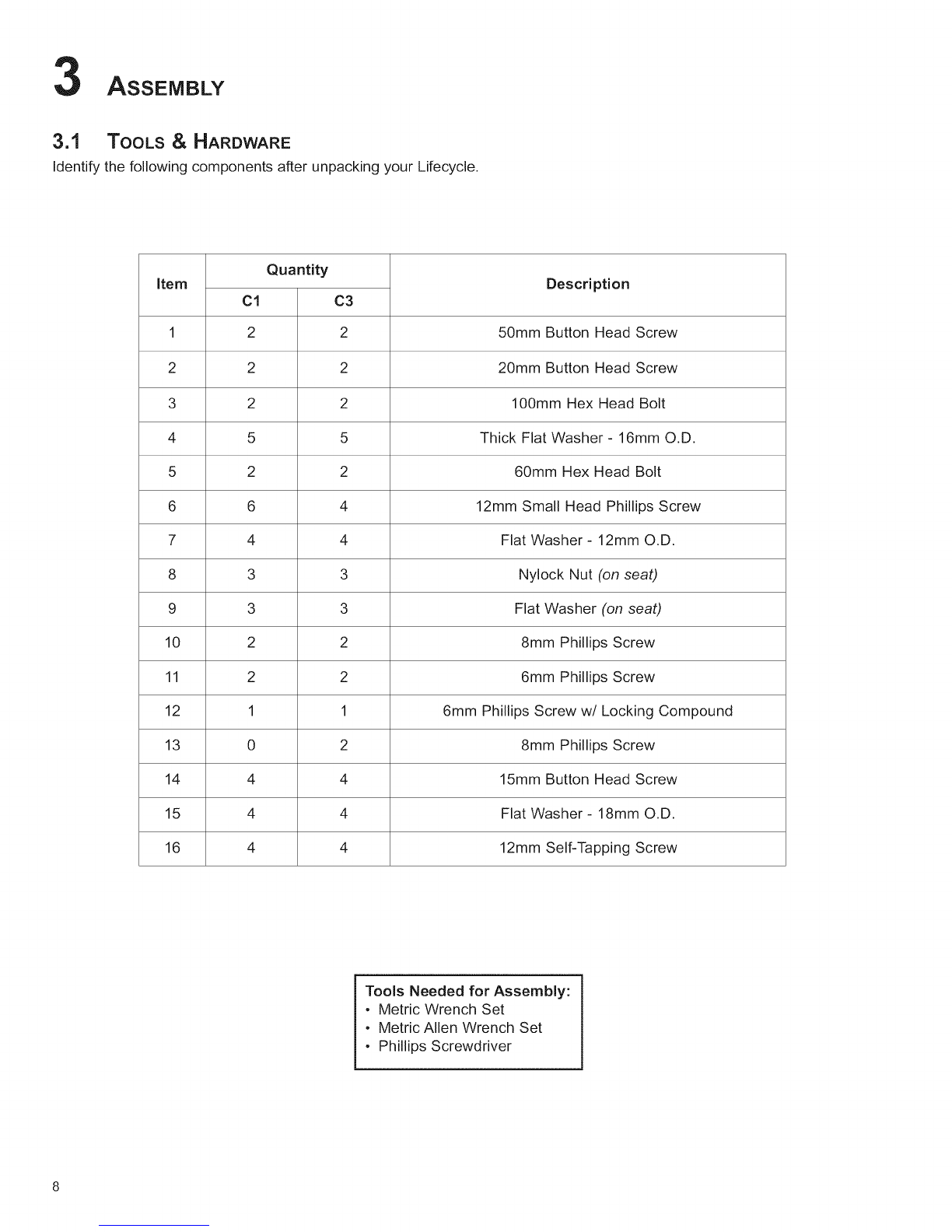

Assembly .......................................................................... 8

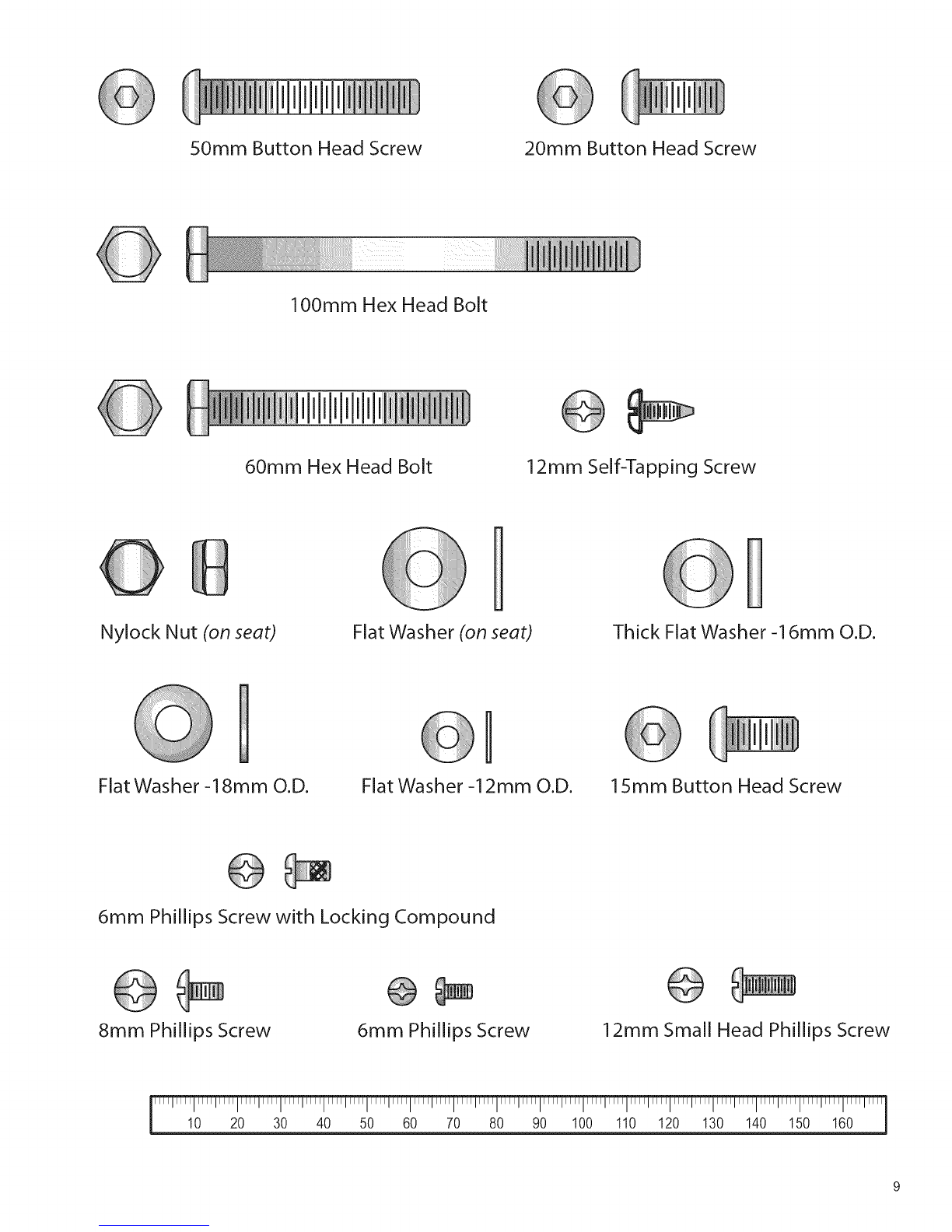

Tools & Hardware ................................................................... 8
Packaging ......................................................................... 10
Assemble the Rear Stabilizer .......................................................... 10
Assemble the Monocolumn ........................................................... 10
Connect Wiring /Attach Cover ......................................................... 11
Assemble the Seat and Seat Post ...................................................... 11
Accessory Trays and Console ......................................................... 12
Assemble the Handlebar ............................................................. 13
Pedals ............................................................................ 14
Cl Water Bottle Holder and Bracket .................................................... 14

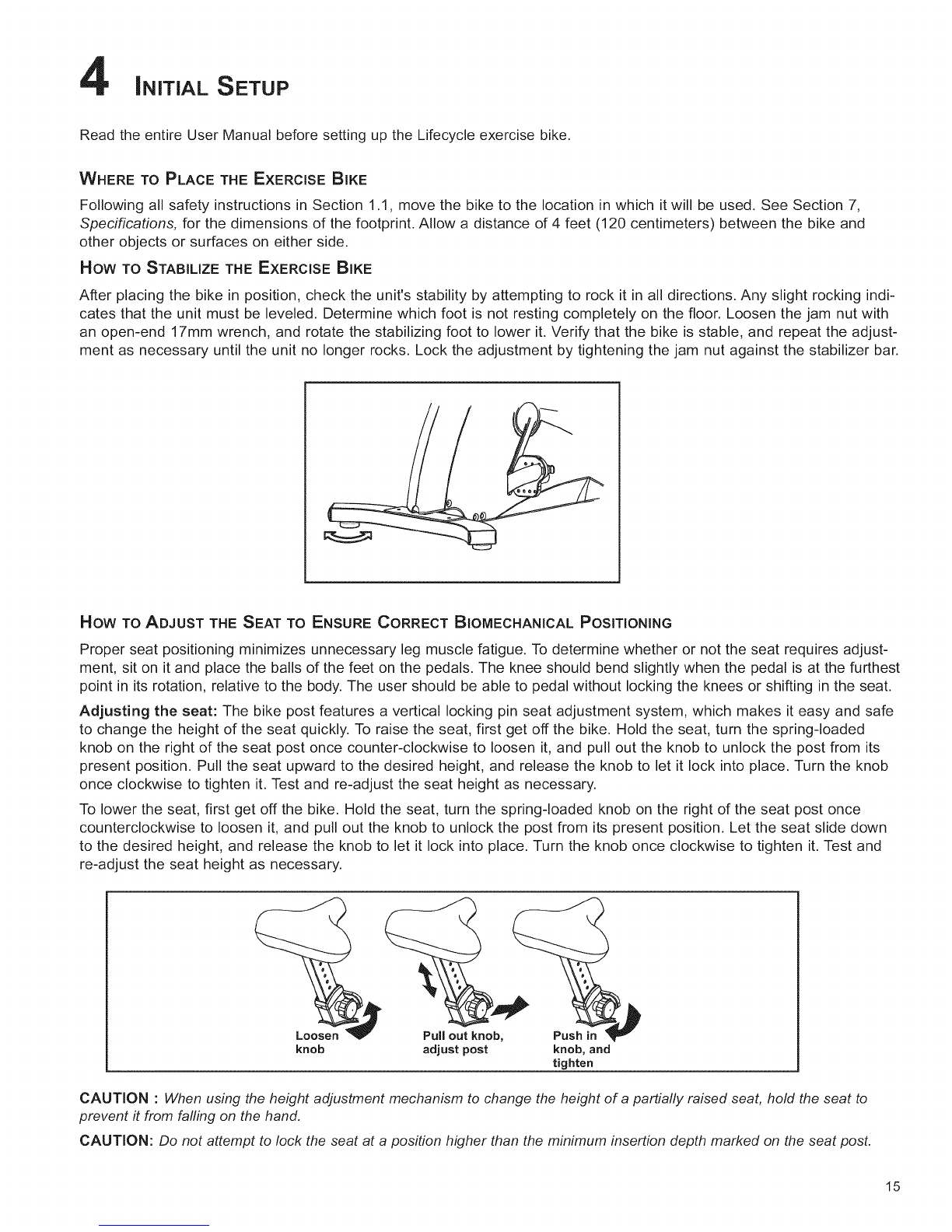

Initial Setup ........................................................................ 15
Main Features ...................................................................... 17
Accessories ....................................................................... 17
Contact Heart Rate ................................................................. 17
Service and Product Maintenance ..................................................... 18

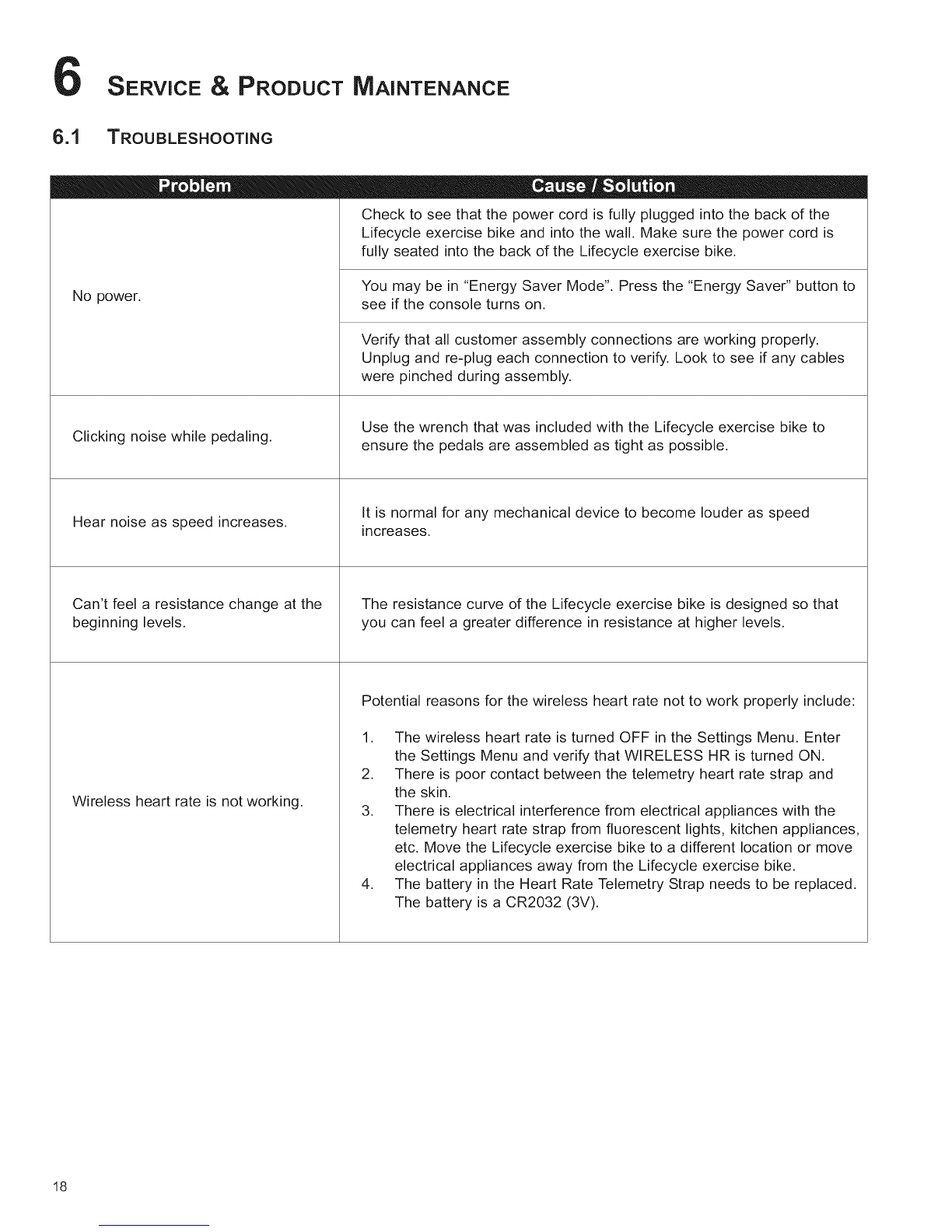

Troubleshooting .................................................................... 18
Preventive Maintenance Tips .......................................................... 20
Preventive Maintenance Schedule ...................................................... 21
How to Obtain Product Service ........................................................ 21
Specifications ...................................................................... 22
Warranty Information ................................................................ 23
@ 2011 Life Fitness, a division of Brunswick Corporation. All rights reserved.

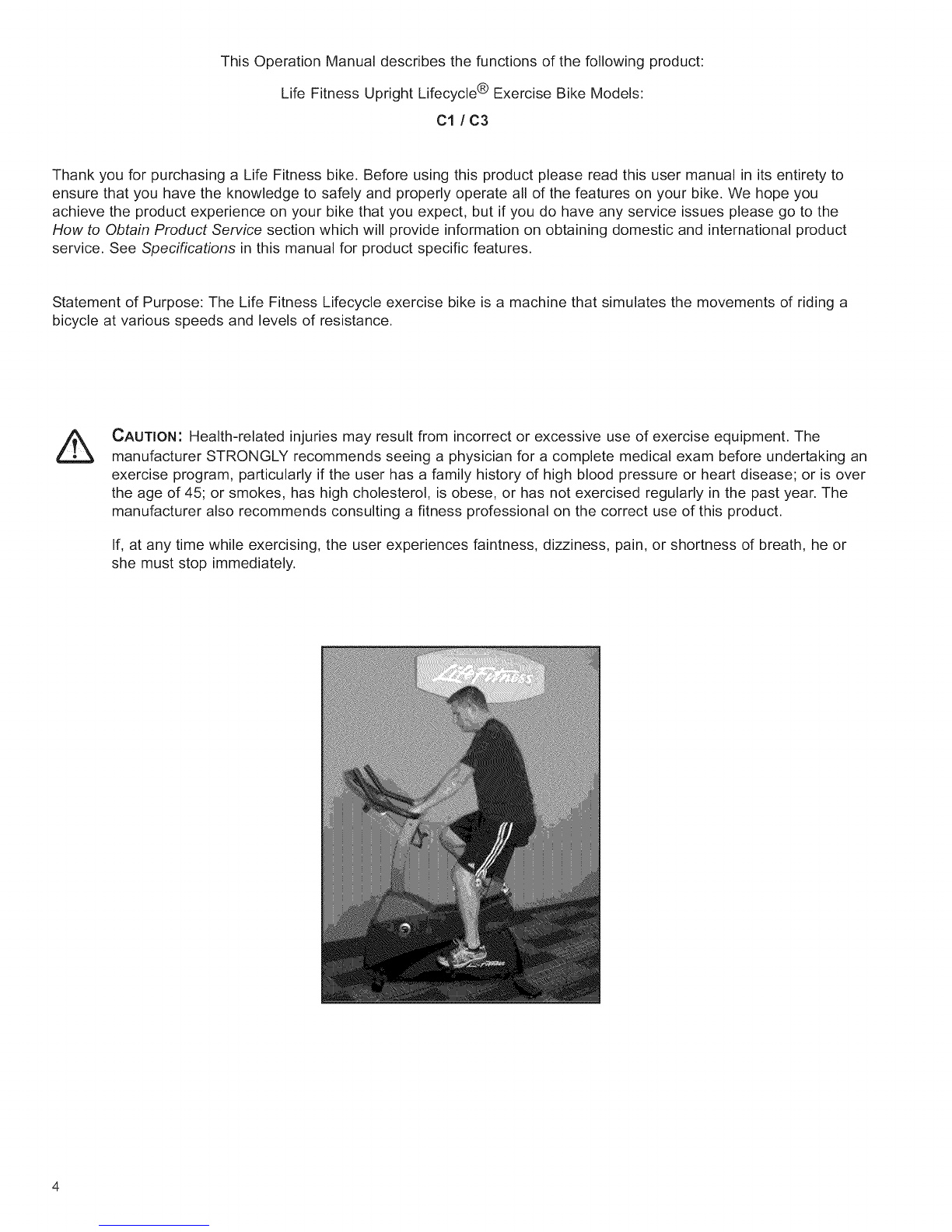

This Operation Manual describes the functions of the following product:
Life Fitness Upright Lifecycle® Exercise Bike Models:
Cl /C3
Thank you for purchasing a Life Fitness bike. Before using this product please read this user manual in its entirety to
ensure that you have the knowledge to safely and properly operate all of the features on your bike. We hope you
achieve the product experience on your bike that you expect, but if you do have any service issues please go to the
How to Obtain Product Service section which will provide information on obtaining domestic and international product
service. See Specifications in this manual for product specific features.
Statement of Purpose: The Life Fitness Lifecycle exercise bike is a machine that simulates the movements of riding a
bicycle at various speeds and levels of resistance.
CAUTION: Health-related injuries may result from incorrect or excessive use of exercise equipment. The
manufacturer STRONGLY recommends seeing a physician for a complete medical exam before undertaking an
exercise program, particularly if the user has a family history of high blood pressure or heart disease; or is over
the age of 45; or smokes, has high cholesterol, is obese, or has not exercised regularly in the past year. The
manufacturer also recommends consulting a fitness professional on the correct use of this product.
If, at any time while exercising, the user experiences faintness, dizziness, pain, or shortness of breath, he or
she must stop immediately.

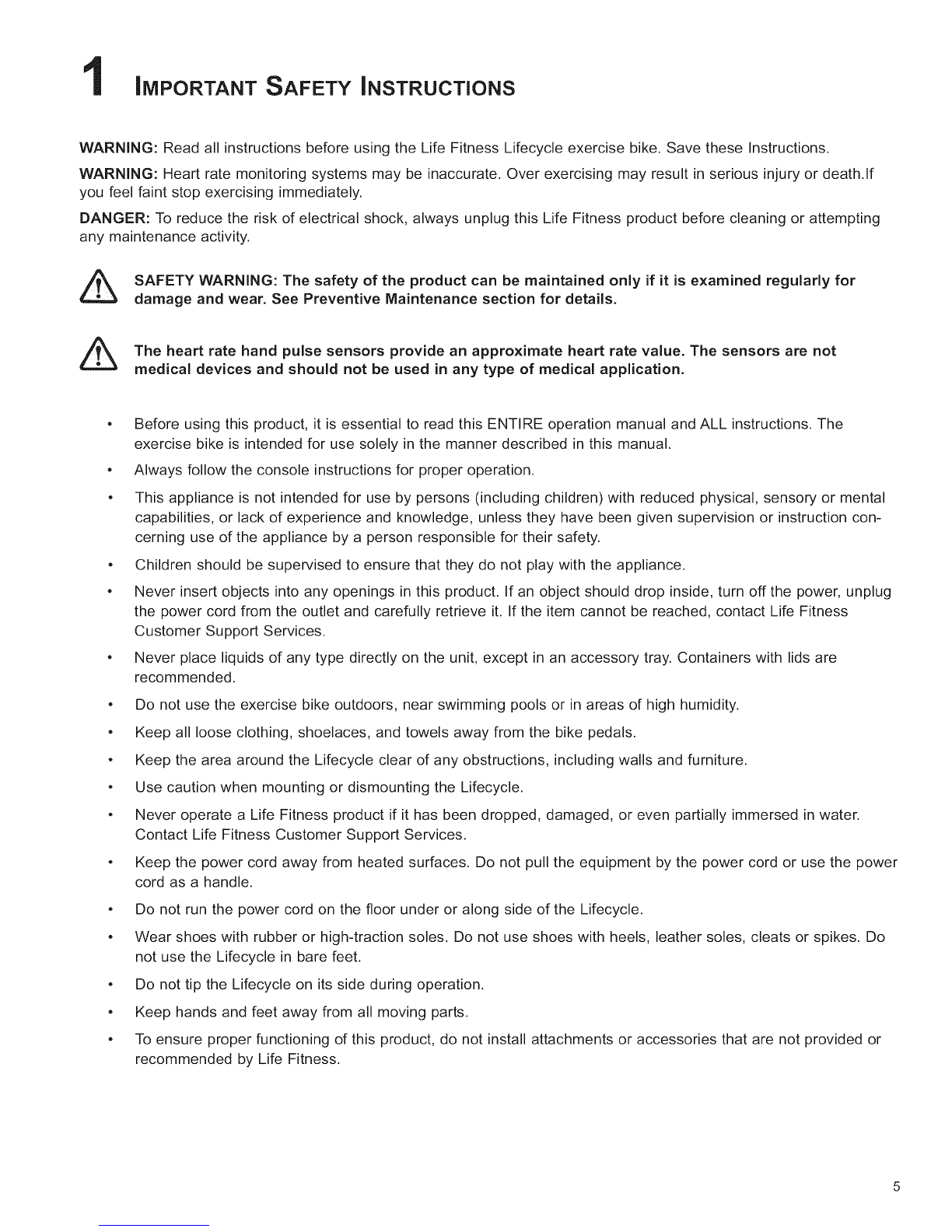

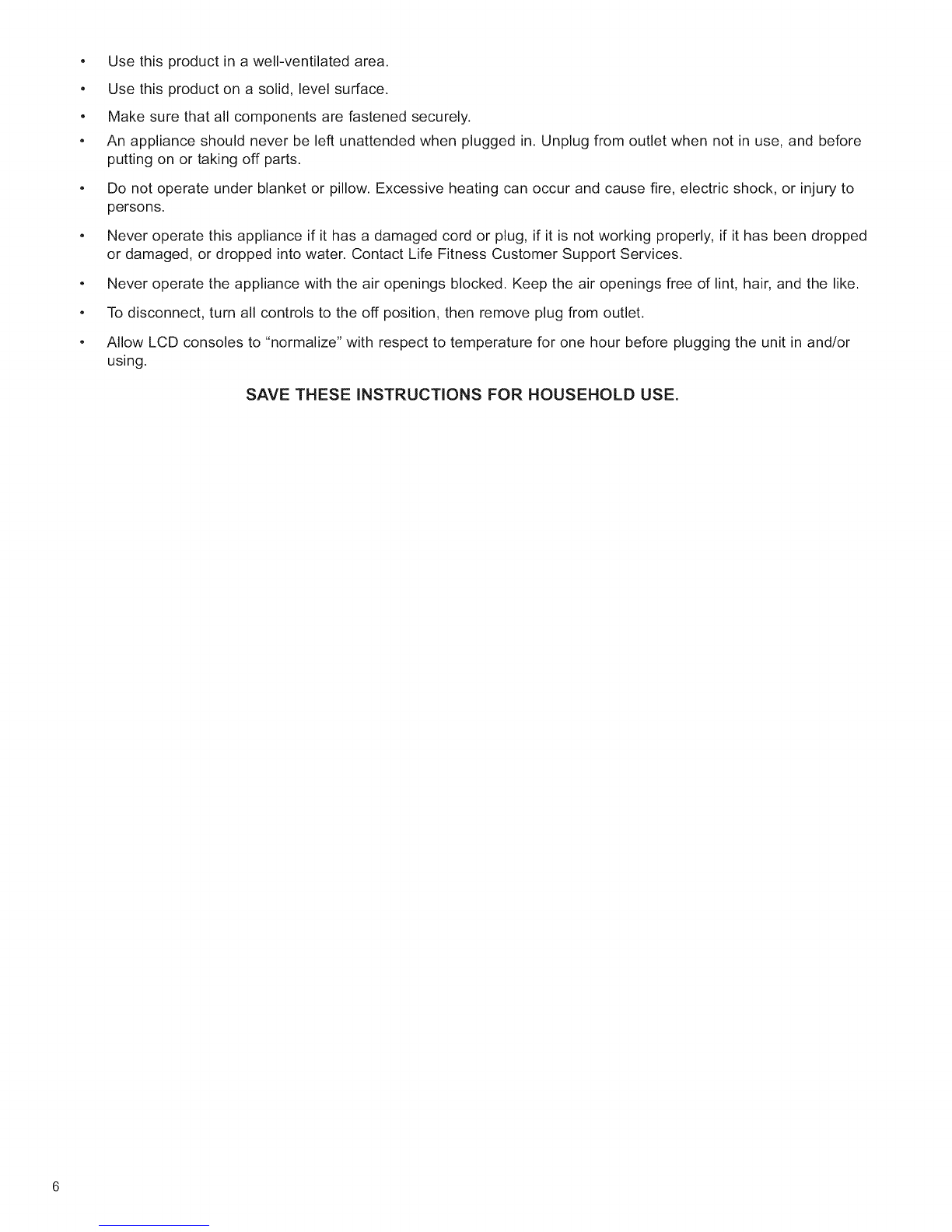

1MPORTANT SAFETY NSTRUCTIONS
WARNING: Read all instructions before using the Life Fitness Lifecycle exercise bike. Save these Instructions.
WARNING: Heart rate monitoring systems may be inaccurate. Over exercising may result in serious injury or death.If
you feel faint stop exercising immediately.
DANGER: To reduce the risk of electrical shock, always unplug this Life Fitness product before cleaning or attempting
any maintenance activity.
SAFETY WARNING: The safety of the product can be maintained only if it is examined regularly for
damage and wear. See Preventive Maintenance section for details.
The heart rate hand pulse sensors provide an approximate heart rate value. The sensors are not
medical devices and should not be used in any type of medical application,
, Before using this product, it is essential to read this ENTIRE operation manual and ALL instructions. The
exercise bike is intended for use solely in the manner described in this manual.
, Always follow the console instructions for proper operation.
, This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction con-
cerning use of the appliance by a person responsible for their safety.
, Children should be supervised to ensure that they do not play with the appliance.
, Never insert objects into any openings in this product. If an object should drop inside, turn off the power, unplug
the power cord from the outlet and carefully retrieve it. If the item cannot be reached, contact Life Fitness
Customer Support Services.
, Never place liquids of any type directly on the unit, except in an accessory tray. Containers with lids are
recommended.
, Do not use the exercise bike outdoors, near swimming pools or in areas of high humidity.
, Keep all loose clothing, shoelaces, and towels away from the bike pedals.
, Keep the area around the Lifecycle clear of any obstructions, including walls and furniture.
, Use caution when mounting or dismounting the Lifecycle.
, Never operate a Life Fitness product if it has been dropped, damaged, or even partially immersed in water.
Contact Life Fitness Customer Support Services.
, Keep the power cord away from heated surfaces. Do not pull the equipment by the power cord or use the power
cord as a handle.
, Do not run the power cord on the floor under or along side of the Lifecycle.
, Wear shoes with rubber or high-traction soles. Do not use shoes with heels, leather soles, cleats or spikes. Do
not use the Lifecycle in bare feet.
, Do not tip the Lifecycle on its side during operation.
, Keep hands and feet away from all moving parts.
, To ensure proper functioning of this product, do not install attachments or accessories that are not provided or
recommended by Life Fitness.

, Use this product in a well-ventilated area.
, Use this product on a solid, level surface.
, Make sure that all components are fastened securely.
, An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and before
putting on or taking off parts.
, Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to
persons.
, Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped
or damaged, or dropped into water. Contact Life Fitness Customer Support Services.
, Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like.
, To disconnect, turn all controls to the off position, then remove plug from outlet.
, Allow LCD consoles to "normalize" with respect to temperature for one hour before plugging the unit in and/or
using.
SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE.

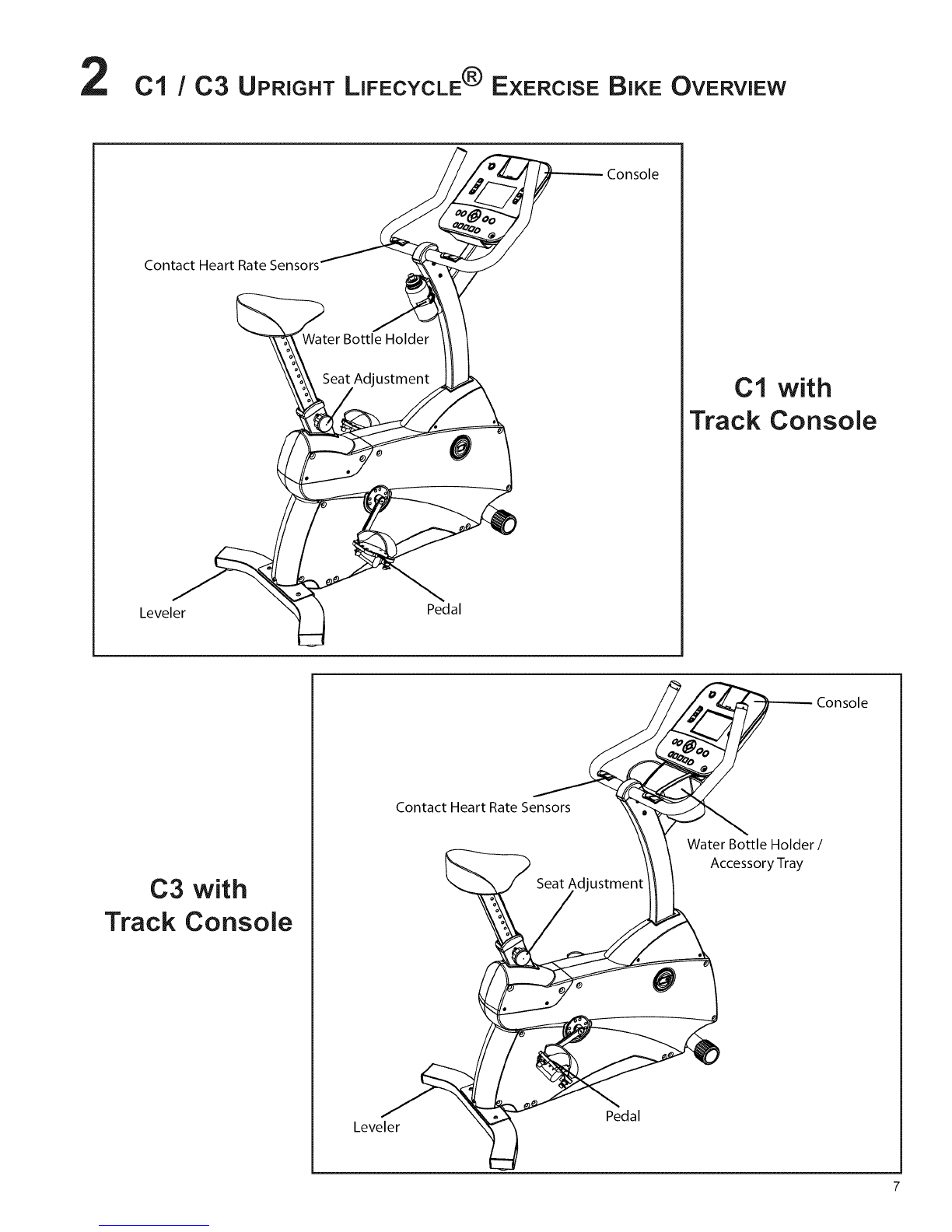

Cl /C3 UPRIGHT LIFECYCLE O EXERCISE BiKE OVERVIEW
Contact Heart Rate Sensors
Leveler
Bottle Holder
_,djustment
Pedal
Console
Cl with
Track Console
C3 with
Track Console
Contact Heart Rate Sensors
Leveler Pedal
Console
Water Bottle Holder /
Accessory Tray

ASSEMBLY
3.1 TOOLS & HARDWARE
Identify the following components after unpacking your Lifecycle.
Item Quantity Description
Cl C3
1 2 2 50mm Button Head Screw
2 2 2 20mm Button Head Screw
3 2 2 100mm Hex Head Bolt
4 5 5 Thick Flat Washer - 16mm O.D.
5 2 2 60mm Hex Head Bolt
6 6 4 12mm Small Head Phillips Screw
7 4 4 Flat Washer - 12mm O.D.
8 3 3 Nylock Nut (on seat)
9 3 3 Flat Washer (on seat)
10 2 2 8mm Phillips Screw
11 2 2 6mm Phillips Screw
12 1 1 6mm Phillips Screw w/Locking Compound
13 0 2 8mm Phillips Screw
14 4 4 15mm Button Head Screw
15 4 4 Flat Washer - 18mm O.D.
16 4 4 12mm Self-Tapping Screw
Tools Needed for Assembly:
• Metric Wrench Set
• Metric Allen Wrench Set
• Phillips Screwdriver

50mm Button Head Screw 20mm Button Head Screw
100mm Hex Head Bolt
60mm Hex Head Bolt 12mm Self-Tapping Screw
Nylock Nut (on seat) Flat Washer (on seat) Thick Flat Washer -16mm O.D.
Flat Washer -18mm O.D. OH Flat Washer -12mm O.D. 15mm Button Head Screw
6mm Phillips Screw with Locking Compound
8mm Phillips Screw 6mm Phillips Screw 12mm Small Head Phillips Screw

3.2 PACKAGING
Parts: None
Remove all packaging and place main components to the side of the box. Break box down in each of the four corners.
3.3 ASSEMBLE THE REAR STABiLiZER
Parts: Hardware Bag #1 (2, 50mm Button Head Screws)
(2, 20mm Button Head Screws)
Tools: 5mm Hex Head Wrench
Locate and install the two LEVELER FEET (A) to the bottom of the REAR STABILIZER (B).With the bends facing rear-
ward, attach the REAR STABILIZER (B) to the BASE UNIT (C) using two 50mm BUTTON HEAD SCREWS (1) from the
top of the REAR STABILIZER BRACKET (D) and two 20mm BUTTON HEAD SCREWS (2) from the front side of the
REAR STABILIZER BRACKET. Tighten the SCREWS securely.
3.4 ASSEMBLE THE MONOCOLUMN
Parts: Hardware Bag #2
Tools: 13mm Socket Wrench
(2, 100mm Hex Head Bolts)
(5, Thick Flat Washers)
(2, 60mm Hex Head Bolts)
Locate the MONOCOLUMN (E). Slide the MONOCOLUMN COVER
(F) onto the MONOCOLUMN as shown. Slide the MONOCOLUMN
COVER up to the CONSOLE SUPPORT (G).
Note: A plastic zip-duehas been included to keep the MONOCOL-
UMN COVER (F) from falling during assembly.
Note: The MONOCOLUMN COVER (F) must slide over the WIRE
TIE (H) taped to the front of the MONOCOLUMN (E).
With the CONSOLE SUPPORT (G) facing the front of the unit as
shown, slide the MONOCOLUMN (E) into the MONOCOLUMN
BRACKET (J) of the BASE UNIT (C).
Slide the MONOCOLUMN down until it is fully seated. Secure the
MONOCOLUMN to the MONOCOLUMN BRACKET using two
100mm HEX HEAD BOLTS (3) and three THICK FLAT WASHERS
(4) (as shown) from the rear side of the MONOCOLUMN. Use two
60mm HEX HEAD BOLTS (5) and two THICK FLAT WASHERS (4)
from the user left side of the MONOCOLUMN BRACKET. Tighten the
BOLTS securely.
CAUTION: Be careful not to pinch the WIRE (K) leading from the
MONOCOLUMN BRACKET (J) when inserting the MONOCOLUMN
(E) into the MONOCOLUMN BRACKET.
10

3.5 CONNECT WIRING IATTACH COVER
Parts: Hardware Bag #3 (4, 12mm Phillips Screws)
(4, Flat Washers)
Tools: Phillips Screwdriver
Detach the WIRE TIE (H) attached to the front of the MONOCOL-
UMN (E). Carefully pull the CONSOLE WIRE (L) through the SIDE
ACCESS HOLE (M) of the MONOCOLUMN (E). Feed the CON-
SOLE WIRE through the GROMMET (N) as shown and insert the
GROMMET into the SIDE ACCESS HOLE.
Connect the WIRE (K) leading from the MONOCOLUMN BRACKET
(J) to the corresponding CONSOLE WIRE (L) from the SIDE
ACCESS HOLE (M) of the MONOCOLUMN (E). Slide the MONO-
COLUMN COVER (F) downward to the meet the MAIN SHROUDS.
Secure the MONOCOLUMN COVER to the MAIN SHROUDS using
four 12mm PHILLIPS SCREWS (6) and matching FLAT WASHERS
(7). Tighten the SCREWS securely. Do not overtighten the
SCREWS.
3.6 ASSEMBLE THE SEAT AND SEAT POST
Parts: Hardware Bag #4 (3, Nylock Nuts)
(3, Flat Washers)
(2, 8mm Phillips Screws)
(1,6mm Phillips Screw with Locking Compound)
(2, 6mm Phillips Screws)
Tools: 13mm Socket Wrench, Phillips Screwdriver
Locate the SEAT (O) and SEAT POST (P). Remove the three
NYLOCK NUTS (8) and FLAT WASHERS (9) from the threaded
studs on the bottom of the SEAT. Align the threaded studs of the
SEAT with the mounting holes in the SEAT POST MOUNTING
PLATE (Q). Secure the seat to the SEAT POST MOUNTING PLATE
using the three previously removed NYLOCK NUTS and FLAT
WASHERS. Tighten the NUTS securely.
Locate the SEAT POST CAP (R). With the curved side facing
upward toward the SEAT (O) and the inside notch aligned with the
SEAT POST (P) adjustment decal, slide the SEAT POST CAP over
the SEAT POST
Locate and slide the SEAT POST SPACER (S) over the end of the
SEAT POST (P). Be sure the locking tabs fully engage the holes
located at the bottom of the SEAT POST. Secure the SEAT POST
SPACER using two 8 mm PHILLIPS SCREWS (10).
With the nose of the SEAT (O) facing forward, insert the SEAT POS-I
(P) into the SEAT POST SUPPORT (T).
Slide the SEAT POST CAP (R) downward to meet the top of the
SEAT POST SUPPORT (T). Secure the SEAT POST CAP to the SEAT POST SUPPORT using two 6mm PHILLIPS
SCREWS (11). Tighten the SCREWS securely. Do not overtighten the SCREWS.
Begin inserting the SEAT ADJUSTMENT KNOB (U). Lift upward on the SEAT (O) and SEAT POST (P) until the SEAT
POST locks into a position. Tighten the SEAT ADJUSTMENT KNOB fully. Insert the 6mm PHILLIPS SCREW W/LOCK-
ING COMPOUND (12) and tighten securely.
11

3.7 ACCESSORY TRAYS & CONSOLE
Parts: Hardware Bag #5
Tools: Phillips Screwdriver
(2, 8mm Phillips Screws)
(4, 12mm Self-Tapping Screws)
C3 Only: Locate the ACCESSORY TRAY (V). Position the ACCES-
SORY TRAY near the top of the MONOCOLUMN (E) at the DIS-
PLAY CONSOLE BRACKET (W).While holding the CONSOLE
WIRE (X) and HEART RATE WIRE (Y), cut the wire tie securing
the CONSOLE WIRES to the DISPLAY CONSOLE BRACKET.
Feed the CONSOLE WIRES through the center hole of the
ACCESSORY TRAY MOUNTING BRACKET (Z). Secure the
ACCESSORY TRAY to the DISPLAY CONSOLE BRACKET using
two 8mm PHILLIPS SCREWS (13). Tighten the SCREWS securely.
CAUTION: Be careful not to pinch the CONSOLE WIRE (X) and
HEART RATE WIRE (Y) when securing the ACCESSORY TRAY
(V) to the DISPLAY CONSOLE BRACKET (W).
Note: Be careful not to let the CONSOLE WIRE (X) and HEART
RATE WIRE (Y) fail into the DISPLAY CONSOLE BRACKET (W).
%
Remove the DISPLAY CONSOLE (AA) from its shipping carton. Position the DISPLAY CONSOLE above the ACCESSO-
RY TRAY (V). Connect the CONSOLE WIRE 15-pin connector (X), HEART RATE WIRE 4-pin connector (Y), SUPPLE-
MENTAL POWER WIRE 2-pin connector (MM), and GROUND WIRE single spade (BB) (Green) to the corresponding
CONNECTORS located on the back of the DISPLAY CONSOLE. Secure the DISPLAY CONSOLE to the DISPLAY
CONSOLE BRACKET (W) using four 12mm SELF TAPPING SCREWS (17). Tighten the SCREWS securely. Do not
overtighten the SCREWS.
Cl Only: Remove the DISPLAY CONSOLE (AA) from its shipping carton. While holding the CONSOLE WIRE (X) and
HEART RATE WIRE (Y), cut the wire tie securing the CONSOLE WIRE to the DISPLAY CONSOLE BRACKET (W).
Position the DISPLAY CONSOLE above the DISPLAY CONSOLE BRACKET. Connect the CONSOLE WIRE 15-pin con-
nector (X), HEART RATE WIRE 4-pin connector (Y), and GROUND WIRE single spade (BB) (Green) to the correspon-
ding CONNECTORS located on the back of the DISPLAY CONSOLE. Secure the DISPLAY CONSOLE to the DISPLAY
CONSOLE BRACKET using four 12mm SELF TAPPING SCREWS (17). Tighten the SCREWS securely. Do not over-
tighten the SCREWS.
Note: Be careful not to let the CONSOLE WIRE (X) and HEART RATE WIRE (Y) fall into the DISPLAY CONSOLE
BRACKET (W).
Go Console Connections
@Track Console Connections
@
12

3.8 ASSEMBLE THE
Parts: Hardware Bag #6
HANDLEBAR
(4, 15mm Button Head Screws)
(4, Flat Washers)
Tools: 5mm Hex Head Wrench
Locate the HANDLEBAR ASSEMBLY (CC). With the handlebars facing forward, position the HANDLEBAR ASSEMBLY
near the top of the MONOCOLUMN (E). Connect the WIRES (DD) leading from the HANDLEBAR ASSEMBLY and the
MONOCOLUMN. Slide the HANDLEBAR ASSEMBLY fully into the MONOCOLUMN. Secure the HANDLEBAR ASSEM-
BLY to the MONOCOLUMN using four 15 mm BUTTON HEAD SCREWS (14) and matching FLAT WASHERS (15).
Tighten the SCREWS securely.
CAUTION Be careful not the pinch the WIRES (DD) when sliding the HANDLEBAR ASSEMBLY (CC) into the MONO-
COLUMN (E). Insert the ENDCAP (KK) into the CONSOLE BRACKET TUBE (LL).
/
\\
\
13

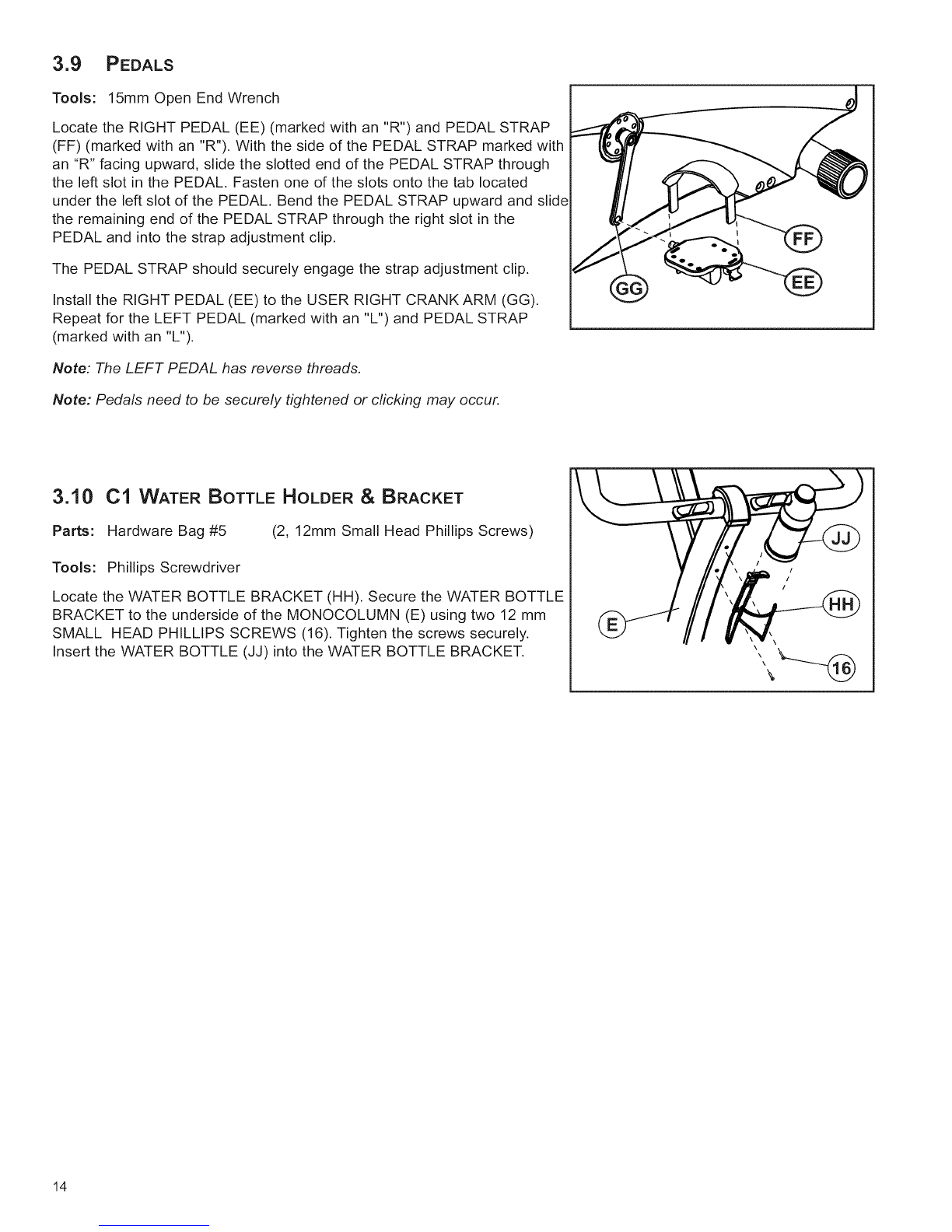

3.9 PEDALS
Tools: 15mm Open End Wrench
Locate the RIGHT PEDAL (EE) (marked with an "R") and PEDAL STRAP
(FF) (marked with an "R"). With the side of the PEDAL STRAP marked with
an "R" facing upward, slide the slotted end of the PEDAL STRAP through
the left slot in the PEDAL. Fasten one of the slots onto the tab located
under the left slot of the PEDAL. Bend the PEDAL STRAP upward and slide
the remaining end of the PEDAL STRAP through the right slot in the
PEDAL and into the strap adjustment clip.
The PEDAL STRAP should securely engage the strap adjustment clip.
Install the RIGHT PEDAL (EE) to the USER RIGHT CRANKARM (GG).
Repeat for the LEFT PEDAL (marked with an "L") and PEDAL STRAP
(marked with an "L").
Note: The LEFT PEDAL has reverse threads.
Note: Pedals need to be securely tightened or clicking may occur.
3.10 CI WATER BOTTLE HOLDER & BRACKET
Parts: Hardware Bag #5 (2, 12mm Small Head Phillips Screws)
Tools: Phillips Screwdriver
Locate the WATER BOTTLE BRACKET (HH). Secure the WATER BOTTLE
BRACKET to the underside of the MONOCOLUMN (E) using two 12 mm
SMALL HEAD PHILLIPS SCREWS (16). Tighten the screws securely.
Insert the WATER BOTTLE (JJ) into the WATER BOTTLE BRACKET.
14

4NITIAL SETUP
Read the entire User Manual before setting up the Lifecyde exercise bike.
WHERE TO PLACE THE EXERCISE BIKE
Following all safety instructions in Section 1.1, move the bike to the location in which it will be used. See Section 7,
Specifications, for the dimensions of the footprint. Allow a distance of 4 feet (120 centimeters) between the bike and
other objects or surfaces on either side.
How TO STABILIZE THE EXERCISE BIKE
After placing the bike in position, check the unit's stability by attempting to rock it in all directions. Any slight rocking indi-
cates that the unit must be leveled. Determine which foot is not resting completely on the floor. Loosen the jam nut with
an open-end 17mm wrench, and rotate the stabilizing foot to lower it. Verify that the bike is stable, and repeat the adjust-
ment as necessary until the unit no longer rocks. Lock the adjustment by tightening the jam nut against the stabilizer bar.
How TO ADJUST THE SEAT TO ENSURE CORRECT BtOMECHANICAL POSITIONING
Proper seat positioning minimizes unnecessary leg muscle fatigue. To determine whether or not the seat requires adjust-
ment, sit on it and place the balls of the feet on the pedals. The knee should bend slightly when the pedal is at the furthest
point in its rotation, relative to the body. The user should be able to pedal without locking the knees or shifting in the seat.
Adjusting the seat: The bike post features a vertical locking pin seat adjustment system, which makes it easy and safe
to change the height of the seat quickly. To raise the seat, first get off the bike. Hold the seat, turn the spring-loaded
knob on the right of the seat post once counter-clockwise to loosen it, and pull out the knob to unlock the post from its
present position. Pull the seat upward to the desired height, and release the knob to let it lock into place. Turn the knob
once clockwise to tighten it. Test and re-adjust the seat height as necessary.
To lower the seat, first get off the bike. Hold the seat, turn the spring-loaded knob on the right of the seat post once
counterclockwise to loosen it, and pull out the knob to unlock the post from its present position. Let the seat slide down
to the desired height, and release the knob to let it lock into place. Turn the knob once clockwise to tighten it. Test and
re-adjust the seat height as necessary.
Loosen Pull out knob, Push in
knob adjust post knob, and
tighten
CAUTION : When using the height adjustment mechanism to change the height of a partially raised seat, hold the seat to
prevent it from falling on the hand.
CAUTION: Do not attempt to lock the seat at a position higher than the minimum insertion depth marked on the seat post.
15

How TO ADJUST THE PEDAL STRAPS
The bike pedal safety straps keep the user's shoes on the pedals during a
workout. The straps should fit comfortably, but they also should be tight enough
to prevent shoes from slipping at any point in the pedaling rotation. Before
working out, the user should test and adjust the tightness of the straps.
The straps can be adjusted to fit a variety of shoe sizes. Each strap is held in
place by a spring-loaded clip that is connected to the outer edge of each pedal.
To tighten a strap, simply pull the loose end of the strap down. It automatically
locks into place with each pull. To loosen a strap, press down on the top of the
clip and pull the strap up. Release the clip to lock the strap into place. Test the
adjustment, and change if necessary.
STARTING UP THE BIKE
4
p,
See Section 7, Specifications, for power requirements. Insert the AC adapter into an electrical outlet that has been prop-
erly installed and grounded in accordance with all local codes and ordinances.
Insert the power adapter jack into the barrel plug on the bottom of the exercise bike. Then insert the power supply into
the wall outlet. Make sure the cord is routed so that it doesn't bind and will not be walked on.
Check that the console lights up. If not, recheck the plug and wall connections and make sure the wall outlet has power.
Once the unit's power is on, the console display lights up, making it possible to select a workout. When using a self-powered
unit, start pedaling to light up the console.
Note: For customers outside the United States, please use your country specific transformer to power the unit.
Note: The C3 can be self-powered if using a Go Console. The PAUSE time is limited to 30 seconds. Workout data will
be cleared after 30 seconds of inactivity. Extend the PAUSE time by plugging the power supply in to the Go Console.
16

MAiN FEATURES
5.1 ACCESSORIES
Two accessory trays (A) are mounted above the handlebars on the C3 to provide storage for items such as water bottles,
personal stereos, and cell phones. A Water Bottle Holder (B) is located on the monocolumn of the C1.
Additionally, an integrated Reading Rack (C) for supporting a book or magazine is located at the base of the console.
5.2 CONTACT HEART RATE
The hand pulse sensors (D) are a built-in heart rate monitoring system on the stationary handlebar. During a workout grasp
the hand pulse sensors to monitor your heart rate. We recommend using the heart rate chest strap included with your con-
sole during workouts and using the hand pulse sensors to only occasionally monitor your heart rate when not using the
chest strap. In addition, to utilize heart rate controlled workouts the chest strap must be used. For the most accurate read-
ing, use a comfortable grip. The console will show a heart rate reading after 15 to 20 seconds.
Hand pulse sensors can work differently with different body types. With some individuals it can be very difficult to extract a
heart rate reading. Follow the below tips to improve the heart rate reading.
Remove your hands from the heart rate sensors and wait for the heart rate display to clear. Grasp sensors again.
Make sure hands are fully contacting the sensors.
Dry hands periodically during use.
Limit movement.
Clean hand pulse sensors.
Note: The heart rate hand pulse sensors provide an approximate heart rate value. The sensors are not medical devices
and should not be used in any type of medical application.
C1 with Track Console
O0 @ O0
ODODO ®
C3 with Track Console
17

SERVICE &PRODUCT MAINTENANCE
6.1 TROUBLESHOOTING
No power.
Clicking noise while pedaling.
Hear noise as speed increases.
Can't feel a resistance change at the
beginning levels.
Wireless heart rate is not working.
Check to see that the power cord is fully plugged into the back of the
Lifecycle exercise bike and into the wall. Make sure the power cord is
fully seated into the back of the Lifecycle exercise bike.
You may be in "Energy Saver Mode". Press the "Energy Saver" button to
see if the console turns on.
Verify that all customer assembly connections are working properly.
Unplug and re-plug each connection to verify. Look to see if any cables
were pinched during assembly.
Use the wrench that was included with the Lifecycle exercise bike to
ensure the pedals are assembled as tight as possible.
It is normal for any mechanical device to become louder as speed
increases.
The resistance curve of the Lifecycle exercise bike is designed so that
you can feel a greater difference in resistance at higher levels.
Potential reasons for the wireless heart rate not to work properly include:
1. The wireless heart rate is turned OFF in the Settings Menu. Enter
the Settings Menu and verify that WIRELESS HR is turned ON.
2. There is poor contact between the telemetry heart rate strap and
the skin.
3. There is electrical interference from electrical appliances with the
telemetry heart rate strap from fluorescent lights, kitchen appliances,
etc. Move the Lifecycle exercise bike to a different location or move
electrical appliances away from the Lifecycle exercise bike.
4. The battery in the Heart Rate Telemetry Strap needs to be replaced.
The battery is a CR2032 (3V).
18

ff a d the a a
Turn the unito n non g in.
"OFF" is displayed in the LEVEL .................................................................................................................
window on the console. If power cycling the product did not work, there is a problem with the
resistance system. Contact Customer Support Services for assistance.
Be sure to grasp the sensors firmly and keep hands still. If heart rate
seems substantially higher or lower than expected, remove hands from
sensors until heart rate disappears.
The contact heart rate sensors are
not reading my heart rate correctly.
Tips for contact heart rate:
1. Dry hands to prevent slipping on the sensors.
2. Apply hands to all four sensors (two in each hand).
3. Grasp sensors firmly.
4. Apply constant pressure to the sensors.
5. May need to wait longer for heart rate to display.
Note: The heart rate hand pulse sensors provide an approximate heart
rate value. The sensors are not medical devices and should not be used
in any type of medical application.
iPod is not recognized.
Note: Applies to Track Console only.
This is displayed if your version of the iPod Player is not supported by
the bike.
It may also be displayed if the connector on the bike or iPod is damaged. _i
iPod is not charging while in Energy
Saver mode.
Note: Applies to Track Console only.
Your iPod will not charge if the bike enters Energy Saver mode. This is
normal.
"Low Battery" message is displayed
on the console.
Note: Applies to Track Console only.
The console has an internal battery that keeps the real time clock
functioning if the bike is unplugged. This real time clock is only needed if
you use the Life Fitness "Virtual Trainer" website. You do not need to
replace the battery if you do not use the website. Contact Customer
Service for guidance on how to change the battery• The battery is a
CR1632 (3V).
The console may not have recognized the USB stick• Try unplugging the
When I try to save a workout on the USB stick and plugging it back in.
USB stick I receive the following
message: UNABLE TO SAVE SEE The USB stick may be full.
MANUAL• The USB stick may not be compatible with the product•
Note: Applies to Track Console only. Try using a different USB stick.
19
