Pre-Installation Notes
Note
•
Due to ongoing research and product development, specifications, ratings, and dimensions are
subject to change without notice. Refer to www.lifebreath.com for the latest product
information.
Attention
•Do not apply electrical power to the unit until after the completion of the installation (including
installation of low voltage control wiring).
•Ensure the installation and wiring is in accordance with CEC, NEC, and local electrical codes.
•Plug the unit into a standard designated (120 VAC) electrical outlet with ground.
•The use of an extension cord with this unit is not recommended. If the installation requires
further wiring, have a licensed electrician make all the electrical connections. The
recommended circuit is a separate 15 A/120 V circuit.
Caution
•
Before installation, careful consideration must be given to how this system will operate if
connected to any other piece of mechanical equipment, i.e. a forced air furnace or air handler,
operating at a higher static. After installation, the compatibility of the two pieces of equipment
must be confirmed, by measuring the airflows of the ERV, by using the balancing procedure
found in this manual. Never install a ventilator in a situation where its normal operation, lack of
operation or partial failure may result in the back drafting or improper functioning of vented
combustion equipment
•Unit must be installed level to ensure proper condensate drainage. Due to the broad range of
installation and operational conditions, consider the possibility of condensation forming on
either the unit or connecting ducting. Objects below the installation may be exposed to
condensate.
•Do not install control wiring alongside electrical wire.
Warning
•
Disconnect the power from the unit before cleaning or servicing.
•To prevent electrical shock, it is extremely important to confirm the polarity of the power line
that is switched by the safety (disconnect) switch. The hot line (black) is the proper line for
switching. Use either a voltmeter or test lamp to confirm the absence of a voltage between the
disconnect switch and ground (on the cabinet) while the door is open. This procedure must be
followed, as dwellings are occasionally wired improperly. Always ensure the proper grounding
of the unit.
•Improper installation, adjustment, alteration, service or maintenance can cause property
damage, personal injury or loss of life. Installation and service must be performed by a
qualified installer or service agency.

lifebreath.com 3
Table of Contents
1 Location Notes ................................................................................................................................................................ 4
2 Simplified Installation (Return/Return Method)............................................................................................................. 5
3 Partially Dedicated System Installation .......................................................................................................................... 6
4 Fully Dedicated System Installation ................................................................................................................................ 7
5 Mounting (30ERV) and Plugs .......................................................................................................................................... 8
6 Hanging Straps ................................................................................................................................................................ 9
7 Drain Connection .......................................................................................................................................................... 11
8 Grilles ............................................................................................................................................................................ 12
9 Grille Fittings ................................................................................................................................................................. 13
10 Lifebreath Weather Hoods............................................................................................................................................ 14
11 Lifebreath Dual Hood .................................................................................................................................................... 15
12 Main Control Installation (99-DXPL02) ......................................................................................................................... 16
13 Main Control Installation (99-BC02, -BC03, -BC04) ...................................................................................................... 17
14 Interlocking the ERV...................................................................................................................................................... 18
15 Additional Controls ....................................................................................................................................................... 19
16 Timers............................................................................................................................................................................ 20
16 Timers............................................................................................................................................................................ 21
17 Repeaters ...................................................................................................................................................................... 22
18 Installer Selectable HIGH-SPEED Settings ..................................................................................................................... 23
19 Dimensional Drawings .................................................................................................................................................. 24
20 Dimensional Drawings .................................................................................................................................................. 25
21 Balancing the Airflows .................................................................................................................................................. 26
22 Balancing the Airflows .................................................................................................................................................. 27
23 Balancing the Airflows – Pitot Tube .............................................................................................................................. 28
24 Balancing the Airflows – Door Ports ............................................................................................................................. 29
25 Door Port Locations ...................................................................................................................................................... 30
26 Airflow Charts (130ERVD Model).................................................................................................................................. 31
26 Airflow Charts (130ERVD Model).................................................................................................................................. 32
27 Airflow Charts (170ERVD Model).................................................................................................................................. 33
27 Airflow Charts (170ERVD Model).................................................................................................................................. 34
28 Auto Balancing .............................................................................................................................................................. 35
29 Fault Indicator Display Board (FID) ............................................................................................................................... 36
30 Troubleshooting ............................................................................................................................................................ 37
30 Troubleshooting ............................................................................................................................................................ 38
Homeowners Warranty Information
After the installation is complete, fill out the Warranty Information page in the Homeowner’s manual.

lifebreath.com 4
1LOCATION NOTES
Install the unit in a heated space that provides clearance for service access. A typical location is in
either a mechanical room or an area close to the outside wall within proximity to where the weather
hoods are mounted. If a basement area is inconvenient or non-existent, install the unit in a utility
room or laundry room.
Leave enough clearance at the front of the access door for servicing the air filters and core. The
recommended clearance is a minimum of 25 in. (635 mm) for opening and closing the door. Four
straps are provided with the unit for hanging it from the basement floor joists.
Attic installations are not recommended due to:
•The complexity of work to install
•Difficulty of access for servicing and cleaning
•Freezing conditions in the attic
If attic installation is necessary, the unit must be situated in a conditioned space.
s
Note: ENERGY STAR®
If the unit is certified ENERGY STAR®, the following applies:
•This product earned the ENERGY STAR®by meeting strict energy efficiency guidelines set by
Natural Resources Canada and the US EPA. This product meets ENERGY STAR®requirements
only when used in Canada.
•To ensure quiet operation of the ENERGY STAR®certified H/ERV, each product model must be
installed using sound attenuation techniques appropriate for the installation.
•The way your heat/energy-recovery ventilator is installed can make a significant difference to
the electrical energy you use. To minimize the electricity, use of the heat/energy-recovery
ventilator, a stand-alone fully ducted installation is recommended. If you choose a simplified
installation that operates your furnace air handler for room-to-room ventilation, an electrically
efficient furnace that has an electronically commutated (EC) variable speed blower motor will
minimize your electrical energy consumption and operating cost.
•Installation of a user-accessible control with your product model will improve comfort and may
significantly reduce the product model’s energy use.

lifebreath.com 5

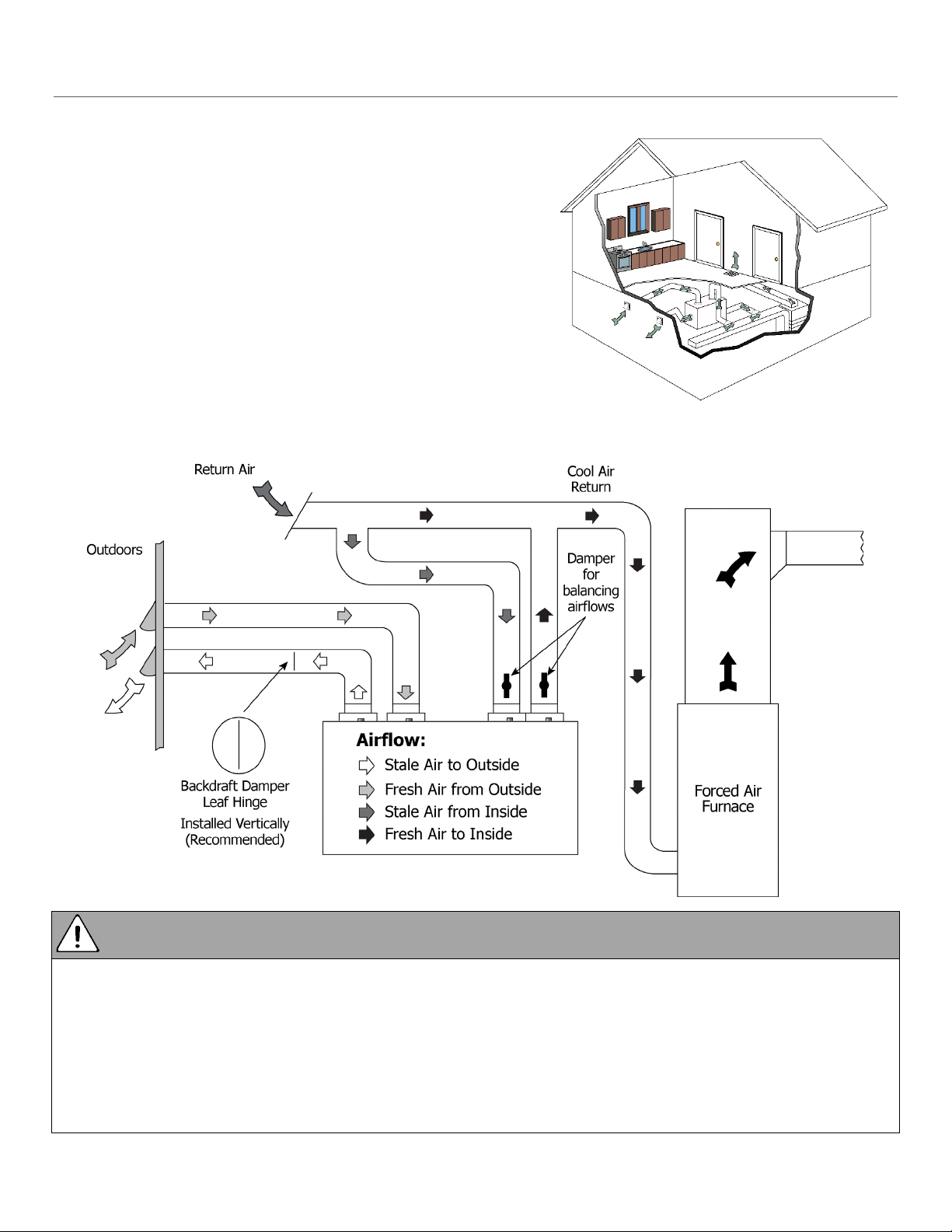

2SIMPLIFIED INSTALLATION (RETURN/RETURN METHOD)
Installation Notes:
•The ERV must be balanced.
•Unit should be balanced on high speed with the furnace
blower on.
•It is mandatory that the furnace blower run
continuously or ERV operation be interlocked with the
furnace blower.
•The duct configuration may change depending on the
ERV model.
•A backdraft damper is recommended in the exhaust air
duct to prevent outdoor air from entering the unit.
•The airflow must be confirmed on site using the
balancing procedures found in this guide.
Spring-Loaded Backdraft Damper (recommended):
Install the Backdraft Damper with the leaf hinge vertical. The damper is installed on the “Stale Air to Outside
Collar”
Warning
•
Check local codes/authority having jurisdiction for acceptance.
•Applications such as greenhouses, atriums, swimming pools, saunas, etc. have unique ventilation
requirements which should be addressed with an isolated ventilation system.
•Weatherhood arrangement is for drawing purposes only. Check local codes/authority having
jurisdiction for acceptance.
•Backdraft dampers are recommended for the stale air to outside air duct. This damper prevents
outdoor air from entering the ERV during the operation of the furnace/air handler while the ERV is in
standby, off, or recirculating.

lifebreath.com 6

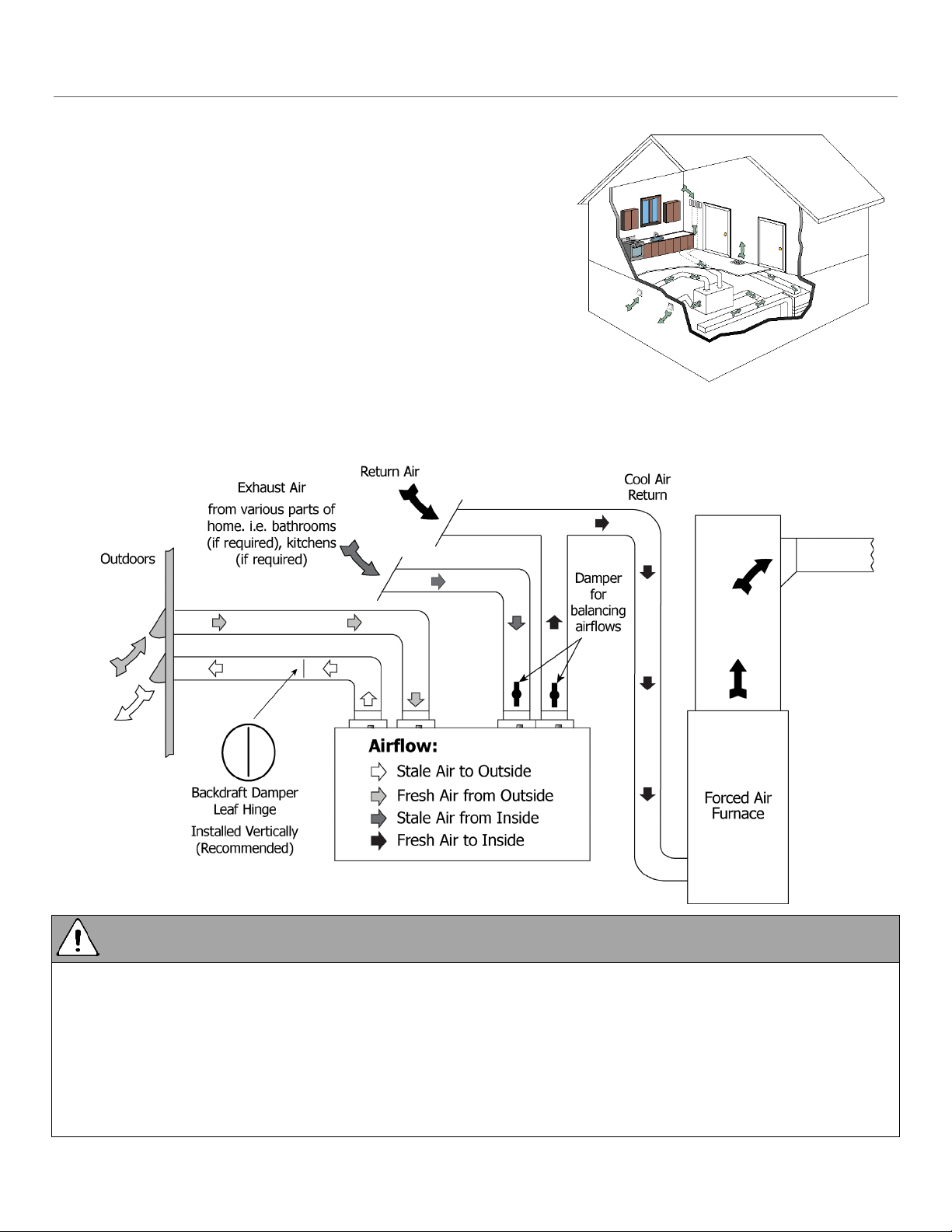

3PARTIALLY DEDICATED SYSTEM INSTALLATION
Installation Notes:
•The ERV must be balanced.
•Unit should be balanced on high speed with the furnace
blower on.
•It is recommended that the furnace blower run
continuously or ERV operation be interlocked with the
furnace blower. Refer to building code.
•The duct configuration may change depending on the ERV
model.
•A backdraft damper is recommended in the exhaust air
duct to prevent outdoor air from entering the unit.
•The airflow must be confirmed on site using the balancing
procedures found in this guide.
Spring-Loaded Backdraft Damper (recommended):
Install the Backdraft Damper with the leaf hinge vertical. The damper is installed on the “Stale Air to Outside
Collar”
Warning
•
Check local codes/authority having jurisdiction for acceptance.
•Applications such as greenhouses, atriums, swimming pools, saunas, etc. have unique ventilation
requirements which should be addressed with an isolated ventilation system.
•Weatherhood arrangement is for drawing purposes only. Check local codes/authority having
jurisdiction for acceptance.
•Backdraft dampers are recommended for the stale air to outside air duct. This damper prevents
outdoor air from entering the ERV during the operation of the furnace/air handler while the ERV is in
standby, off, or recirculating.

lifebreath.com 7
4FULLY DEDICATED SYSTEM INSTALLATION
Installation Notes:
•The ERV must be balanced.
•When balancing, all external exhaust systems should be
turned off (i.e. range hood, exhaust, bathroom vents).
•All exhausting appliances should have their own make-up
air, as this is not an intended use for the ERV system.
•The duct configuration may change depending on the
ERV model.
•The airflow must be confirmed on site using the
balancing procedures found in this guide.
Spring-Loaded Backdraft Damper (recommended):
There is a location for an optional Backdraft Damper with the leaf hinge vertical. The damper is installed on
the “Stale Air to Outside Collar”
Warning
•
Check local codes/authority having jurisdiction for acceptance.
•Applications such as greenhouses, atriums, swimming pools, saunas, etc. have unique ventilation
requirements which should be addressed with an isolated ventilation system.
•Weatherhood arrangement is for drawing purposes only. Check local codes/authority having
jurisdiction for acceptance.
•Backdraft dampers are recommended for the stale air to outside air duct. This damper prevents
outdoor air from entering the ERV during the operation of the furnace/air handler while the ERV is in
standby, off, or recirculating.

lifebreath.com 8
5MOUNTING (30ERV) AND PLUGS

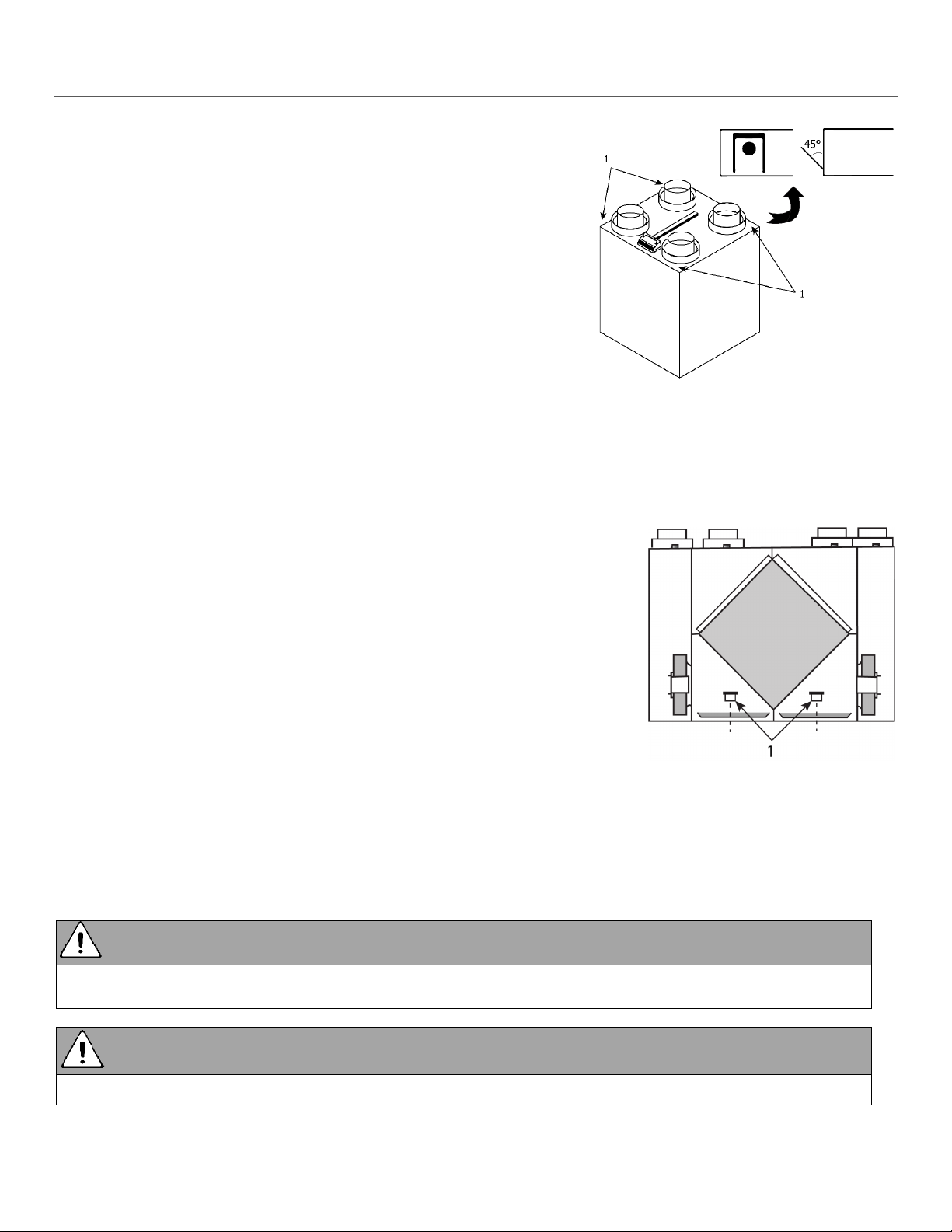

Mounting the 30ERV
(1) Mounting Points
1. Locate the four mounting tabs on the left and right sides of the
unit, at the front and back.
2. Using a flat/pan head screwdriver, bend out the four tabs to
approximately 45 degrees.
3. Once the tabs have all been bent outwards, insert the “S” hooks
through the four holes on the tabs.
4. Install the unit to the structure. Refer to Hanging Straps.
Optional Plug Installation
(1) Plugs
1. Install the plugs (from the ERV manual bag) into the 2 holes located in
the bottom tray of the ERV. They must be inserted from the inside of
the unit to ensure the holes are fully sealed.
Caution
•A drain is required; however, the use of a drain is optional in climates where the outdoor temperature
remains above -25°C (-13°F) combined with an indoor humidity less than 30%.
Attention
•Do not drill additional holes in the ERV

lifebreath.com 9
6HANGING STRAPS
The hanging straps are designed to reduce the possibility of noise, resonance and harmonics.

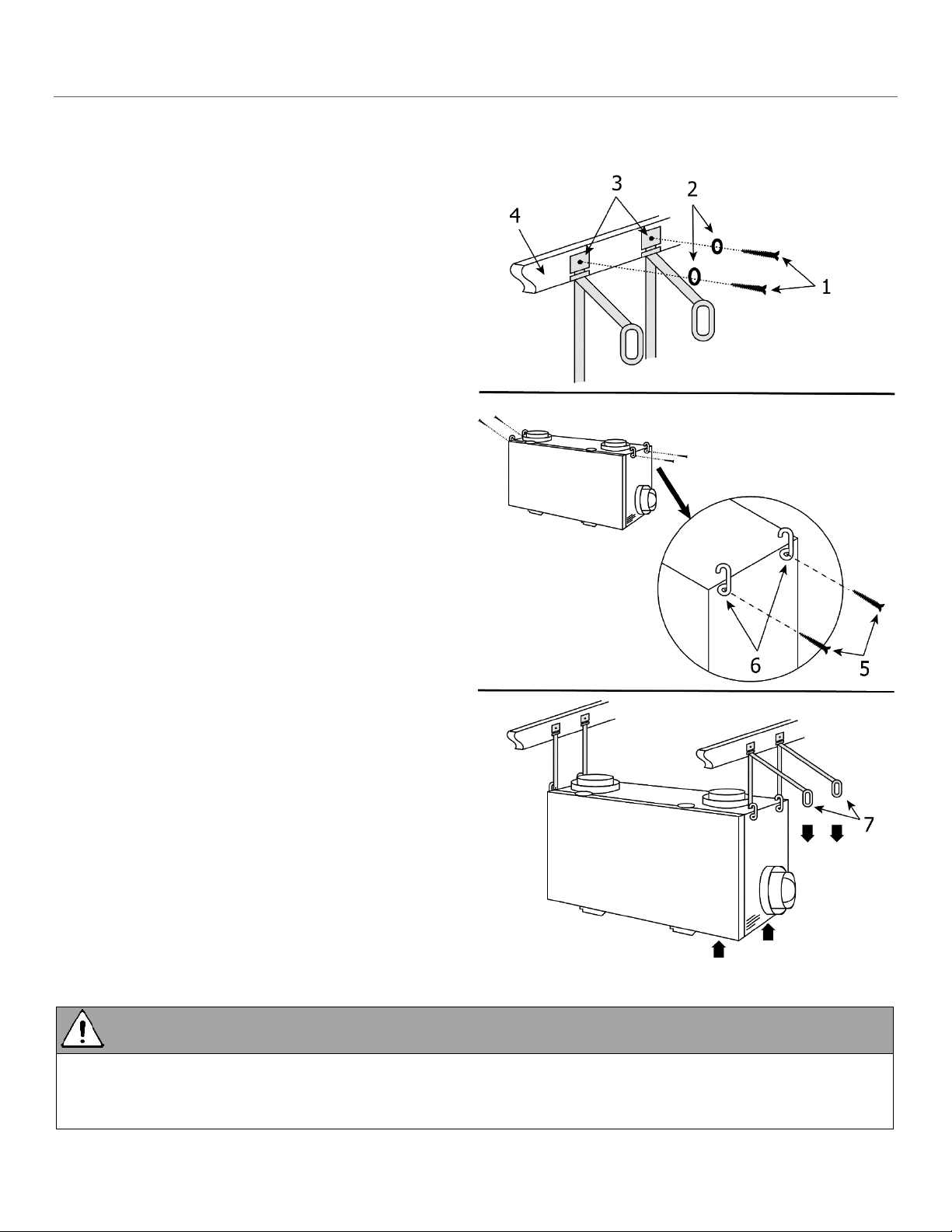

Figure Callouts:
(1) Screws (not included)
(2) Washers (not included)
(3) Hanging Strap Grommets
(4) Structure
(5) Machine Screws
(6) “S” Hooks
(7) Hand Loops
Installation Steps:
1. Insert 4 screws and 4 washers (not included)
through the hanging strap grommets. Fasten
to the structure.
2. Remove the 4 machine screws located on the
upper side of the unit. Attach the “S” hooks
and reinsert the machine screws.
3. Hook the bottom grommets of the straps
through the “S” hooks. Pull down vertically
on the hand loops while lifting the bottom of
the unit.
4. Level the unit from right to left to right and
front to back. Adjust the unit up by pulling
down vertically on the hand loops while
lifting on the bottom of the cabinet.
5. Fold the excess strap of the hand loops and
secure with a nylon tie.
Attention
•
The washer must be wider than the eyelet of the grommet on the hanging strap.
•Must push up on the bottom of the ERV when pulling the hanging straps.
•The unit must be mounted level for proper drainage of the condensate pans.

lifebreath.com 11
7DRAIN CONNECTION
The ERV cabinet has pre-punched holes for the drain. The ERV may produce some condensation
during a defrost cycle. This water should flow into a nearby drain or be taken away by a condensate
pump.

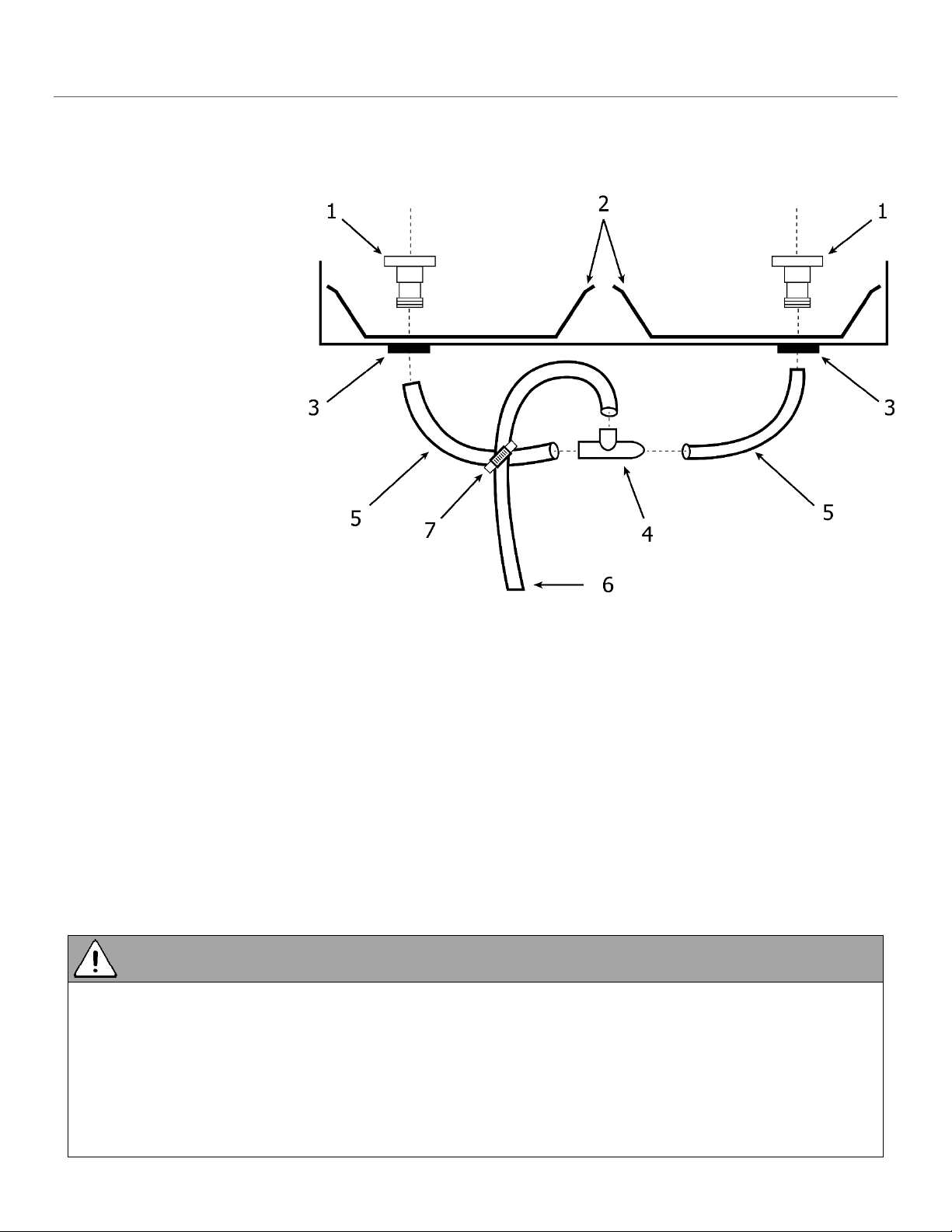

Figure Callouts:
(1) Drain Spout
(2) Drain Pan
(3) Drain Spout Nut
(4) Tee Connector
(5) 1/2 in. Drain Hose
(6) Drain Line
(7) Zip Tie
Installation Steps:
1. Insert the drain spout through the hole in the drain pan.
2. Install nut and washer on the drain spout.
3. Construct a P-trap using the plastic tee connector. Tighten the nut.
4. Cut two lengths of 1/2 in. drain hose (not included) and connect the ends to the two drain spouts and
the other ends to the plastic tee connector.
5. Position the tee connector to point upward and connect the drain line. Use a zip tie to secure the drain
line to one of the 1/2 in. drain hoses.
6. Tape or fasten base to avoid any kinks.
7. Pour a cup of water into the drain pan of the ERV after the drain connection is complete. This creates a
water seal which will prevent odours from being drawn up the hose and into the fresh air supply of the
ERV.
Caution
•
A drain is required. However, the climates where the outdoor temperature remains above -25°C
(-13°F) combined with an indoor humidity less than 30%, the use of a drain is optional.
•The ERV and all condensate lines must be installed in a space where the temperature is
maintained above the freezing point or freeze protection must be provided.
•Drain trap and tubing must be below bottom of door with 1/4 in. per foot downwards slope away
from unit.
•Under certain conditions, a secondary drain pan may be required to protect from condensate
leakage.
