iPA HEAVY RANGER MUTT 9102 User manual

1
Tests 7 Round Pin Connections.
Uses Internal 12 Volt Motorcycle Battery.
(Battery Not Included)
Mobile Universal Trailer Tester
#9102 HEAVY RANGER MUTT
®
OPERATOR’S MANUAL
Innovative Products of America®Incorporated
888-786-7899 • 234 Tinker Street, Woodstock, NY 12498 • www.ipatools.com
© 2018 Innovative Products of America® Incorporated. All rights reserved. This material may not be reproduced, displayed, modied
or distributed without the express prior written permission of the copyright holder. For permission, contact [email protected].

2
LETTER FROM THE PRESIDENT OF IPA®
My name is Peter Vinci and I am the president of IPA®. I would rst like to thank you for
your interest in IPA®’s product line and take this opportunity to share my commitment
to you, our products and our policies. In today’s world, we have all experienced lack of
service and consideration demonstrated by many companies after buying their products.
They say whatever they can to make the sale, and then it’s like pulling teeth to get any
service response out of them. I know this from rst hand experience and because of this, I
want to be sure that your experience with IPA®meets your expectations and our customer
service never disappoints you.
To prove my commitment to you, if for any reason you are not happy with one of our prod-
ucts, or more importantly, with the response from our customer service or any member of
the IPA®team, I invite you to contact me directly via my e-mail at [email protected], or
call me at 888-786-7899. Your satisfaction is more important to me than the sale itself. We
would not be in business for long if we didn’t make you completely happy with our prod-
ucts and service. I want IPA® to be different; to be known for its quality and service.
With that said, please take a look at our product line. You will see innovative, rst time
products that were created to help you do your job faster and better than before. I would
also like to invite you to critique our products. If you can think of a better way to make
them or changes that will make them better, then again, please contact me directly and I
will be sure to look into it. If you have an innovation and would like some feedback, give
me a call.
From all of us at IPA®, we thank you for taking the time to review our product line and wish
you and your family the very best.
Peter Vinci
President
www.ipatools.com
Toll Free: 888-786-7899
Phone: [phone]
Fax: [phone]

3
#9102 HEAVY RANGER MUTT®PARTS
USE THE REFERENCE NUMBERS PROVIDED
WHEN ORDERING PRODUCTS AND PARTS ABOVE
Toll Free: 888-786-7899
Fig. 1 - Parts Diagram
IMPORTANT SAFETY INSTRUCTIONS
IT IS IMPORTANT TO READ, UNDERSTAND AND FOLLOW ALL SAFETY MESSAGES
AND INSTRUCTIONS PRINTED IN THIS MANUAL AND ON THE EQUIPMENT BE-
FORE OPERATING. IF SAFETY INFORMATION IS NOT HEEDED, SERIOUS INJURY
OR DEATH TO THE OPERATOR OR BYSTANDERS MAY OCCUR.
DANGER: Indicates a hazardous situation that if not avoided, will result in death or serious
injury. The possible hazards are shown in the adjoining symbols or explained in the text.
WARNING: Indicates a hazardous situation that if not avoided, could result in death or seri-
ous injury. The possible hazards are shown in the adjoining symbols or explained in the text.
CAUTION: Indicates a hazardous situation that if not avoided, may result in minor or major
injury. The possible hazards are shown in the adjoining symbols or explained in the text.
Rubber Gasket
Lid Lock
Switch Plate
Control Knob
Enclosure
Battery Compartment
7 Round Socket
500mA Battery Charger
#CHR0001
12V Cigarette Socket
Rotary Switch
Padlock Hole
Illuminated Power Switch
Battery Leads

4
DC POWER ONLY
Do NOT plug directly into
AC wall outlet
15 26 37 48
THE FOLLOWING SAFETY ALERT SYMBOLS ARE
USED IN THIS MANUAL.
SYMBOL 1: Potential burn hazard. Sparks from electrical shorts can ignite ammable
liquids such as fuel or oil. Heat from electrical overloads can cause re hazards.
SYMBOL 2: Potential electrical hazard. Batteries have enough electrical energy potential
to ignite ammable liquids such as fuel or oil. Wire overloads can cause electrical failures.
Shock hazard exists.
SYMBOL 3: Potential explosive air hazard. Pneumatic pressures used with this equipment
can cause explosive failures on damaged equipment.
SYMBOL 4: Potential eye hazard. Wear OSHA approved safety glasses. Battery acid and
high air pressures create hazardous situations for eyes.
SYMBOL 5: Potential chemical burn hazard. Wear protective gloves. Battery acid is
corrosive and can cause skin damage.
SYMBOL 6: Potential electrical hazard. Electrical energy can cause heat and burn hazards.
SYMBOL 7: Potential re hazard. Use caution with ammable liquids such as fuel and oil.
Electrical shorts can ignite ammable liquids and wiring.
SYMBOL 8: Important information is stated.
BATTERY GASES, TESTER PREPARATION AND
TESTER/CHARGER LOCATION
RISK OF EXPLOSION
• Gases produced by a battery are highly explosive.
• Wear safety goggles and protective clothing, both users
and bystanders.
• Use in an area having at least four air changes per hour.
• Read, understand and follow all instructions for charger,
battery, vehicle and any equipment used near battery and charger.
• Do not smoke, strike a match, place metal tools on the battery or cause a spark in the
vicinity of the battery. When removing battery cables, remove the ground cable rst.
• Clean terminals before charging battery. During cleaning, keep corrosive particles from
eyes, nose and mouth. Use baking soda and water to neutralize acid and help eliminate
airborne corrosion.
• Never allow the clamps on the charger cables to touch each other.
• Do not expose the tester or charger to rain, snow or wet conditions.
• Do not allow battery gases or acid to contact the Ranger MUTT®cabinet. Do not place
the charger directly above or below the battery.
• Fill the battery to the level specied by battery manufacturer using distilled water.
• Do not remove cell caps while charging per manufacturer’s instructions.

5
• Make sure tester cable clamps make tight connections.
• Battery explosion can cause injury.
ACID BURNS
• Battery acid is highly corrosive sulfuric acid.
• Wear safety goggles, both user and bystanders.
• Wear safety gloves.
• Make sure someone can hear you or is close enough to provide aid when working near
battery.
• Have plenty of fresh water and soap nearby. If battery acid contacts skin, clothing
or eyes, ush the exposed area with soap and water for 10 minutes before seeking
medical help.
• Do not touch eyes after handling battery.
• Battery acid can burn eyes and skin.
CHARGER WARNINGS
RISK OF ELECTRIC SHOCK AND FIRE
• Do not operate the charger with a damaged cord or plug.
Replace the cord or plug immediately.
• Position the power cord and charger cables away from the hood, doors or hot and/or
moving engine parts where they could be damaged.
• Unplug the power cord using the plug rather than the cord when disconnecting the
charger from the outlet.
• Unplug the power cord from the outlet before cleaning or maintaining the tester and
charger. Turning off the controls does not reduce this risk.
• Do not operate the charger after a sharp impact, drop or any other damage.
• Do not disassemble the charger.
• Use only recommended attachments.
• Do not charge a frozen battery. Do not overcharge a battery.
• Use the charger only for lead-acid automotive batteries. Do not use the charger for
charging dry cell batteries.
• Electric shock or re can cause injury.
RISK OF ENTANGLEMENT
• Keep yourself, any clothing and the battery charger leads clear of moving parts such
as fan blades, pulleys, hood and doors.
• Moving parts can cause injury.
RISK OF BURNS
• Batteries can produce short circuit current high enough to weld jewelry such as rings,
bracelets and watches. You must remove them before working near battery.
• Short circuits can cause injury.

6
SPECIFICATIONS
• Input: 12V DC Battery (Use Battery Compartment)
• Output: 10A @ 12V DC
• Overload Protection: Automatic Resetting (Internal) Breaker
• Connection Type: 7 Round Pin
• Control Type: Manual Rotary Switch
• Materials: ABS
• Weight: 2 lbs. (Without the Battery)
• Packaged Dimensions: 12.25”(L) x 5.25”(W) x 7.25”(H)
BATTERY REQUIREMENTS
• Battery Voltage: 12V DC
• Battery Protection: 10 Amp Auto-Resetting Fuse
• Maximum Output to Trailer: 10 Amps
AUTO-RESETTING FUSE
• The thermally activated, internal auto-resetting fuse requires a 30-second cooldown
cycle. After this cycle, the illuminated power switch signies that the unit is ready to test.
QUICK START-UP GUIDE
SELECT A BATTERY
• The best battery to use is the YUASA YTX14 (12 Ah) or similar motorcycle type battery
with top mounted posts. (Sealed lead-acid batteries only.)
• The battery must be 12 volts DC.
• Maximum battery dimensions: 6”(L) x 4”(W) x 5.75”(H)
• Be sure to properly connect the +/- leads to the correct posts on the battery.
• Once the battery is installed, testing can begin.
TAKING CARE OF YOUR BATTERY
NOTE: Every day, a battery naturally loses its charge, little by little. Batteries are tempera-
mental and can be damaged easily. Using a battery very little and then recharging it will
short cycle the battery and hurt its overall life and output. Additionally, over-discharging
it (exceeding 80% total discharge) and then undercharging will permanently damage the
battery as well. It is not good to leave batteries in cold or hot weather. For every degree
above or below room temperature (72º F), a battery loses amp hours. Also, it is not good
to allow batteries to sit for weeks at a time without using or charging.
• To get the most life out of your battery, it is important to discharge about 30% to 50%
of its total output, then provide a full recharge.
• A 500mA battery charger has been provided with your purchase. Be sure to disconnect
the battery charger once it is fully charged. For any questions, please call 888-786-7899.
NOTE: DO NOT LEAVE THE CHARGER PLUGGED INTO A WALL OUTLET WHEN NOT
IN USE.

7
WARNING: NEVER OPERATE TESTER WITH BATTERY VOLTAGE LESS THAN 11.5V.
OPERATING ELECTRONIC DEVICES ON LOW VOLTAGE MAY SHORTEN LIFE OF
DEVICE AND CAUSE DAMAGE TO INTERNAL COMPONENTS. IDEAL BATTERY
VOLTAGE IS 12.0V DC TO 12.5V DC.
SET-UP
• Use the supplied battery charger or charger input no greater than 3 amps to fully charge
the internal battery of the tester. It may take up to 12 hours to charge a fully drained
battery.
• Place the tester on a at, level surface.
• Chock trailer wheels to avoid rolling.
The Ranger MUTT®allows the testing of trailer electrical systems without the need
for the tow vehicle. When used properly, the Ranger MUTT®can save hours spent
troubleshooting electrical issues.
CHECK 7-WAY PIN CONNECTORS: Before operating the Ranger MUTT®, be sure the
7-way socket on the front of the Ranger MUTT®and cable coming from the trailer are in
good condition and the pins are spread to the proper width to ensure good connections.
MAINTAIN 7-WAY PIN CONNECTORS: Dielectric grease should be used on all connec-
tions to avoid corrosion. If a bad connection exists at the terminal junction, you may get
an erroneous reading and the MUTT® will not work properly. Make sure that you have a
solid connection in the 7-way socket.
FUNCTIONAL DESCRIPTIONS
The Ranger MUTT®is a diagnostic tool for trailers wired to North American style 7-way
round pin congurations.

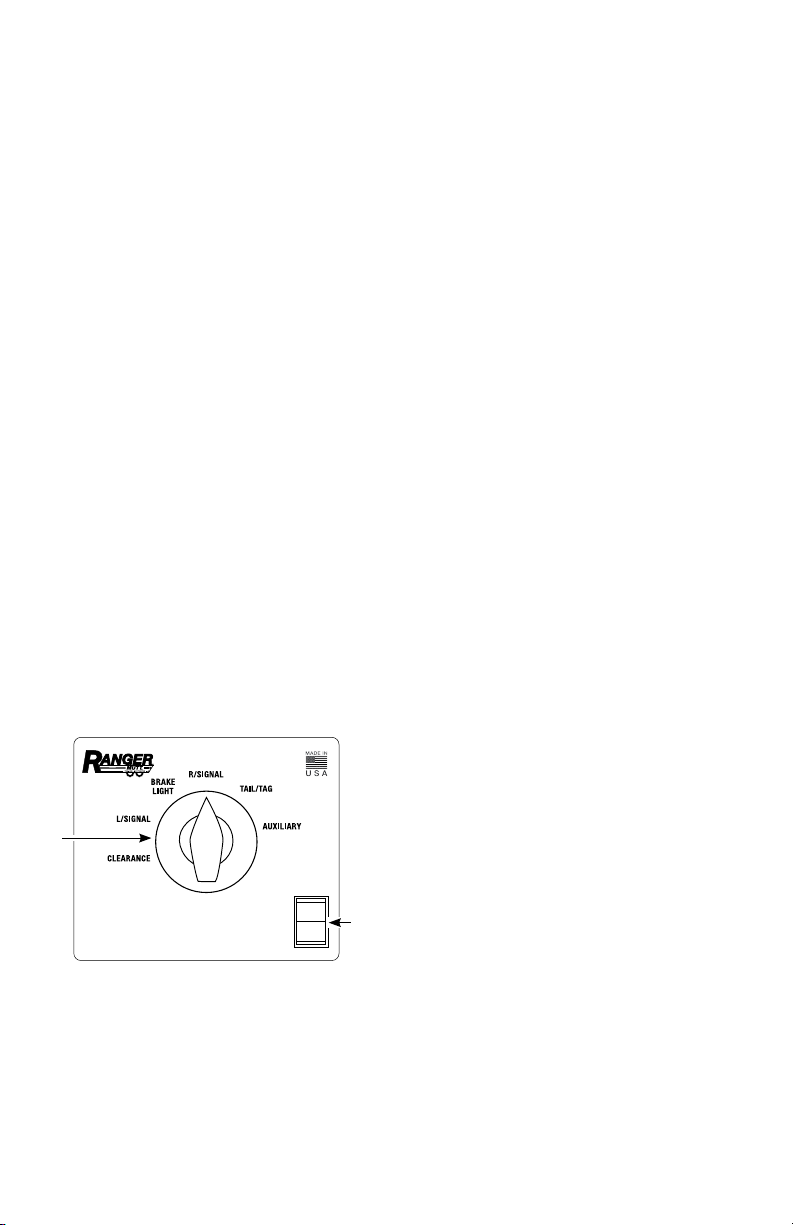

Fig. 2 - Control and Information Panel
1. Control Knob: Activates one selected
circuit at a time.
2. Power Switch: Illuminates when ad-
equate power source is available and
power switch is on.
HEAVY
Max. Load: 10A/12V DC ONLY
Internal 10A Auto Resetting Fuse
30 Second Cool Down Cycle
Illuminated switch indicates power being sent to trailer.
Switch light will go out if breaker is tripped.
Warning! Do not connect any adapters or accessories
to 12V DC socket unless internal battery has been installed.
POWER
ILLUMINATED
ON
OFF
1
2

8
OPERATING INSTRUCTIONS
7-WAY ROUND PIN TESTING PROCEDURE
1. Install a fully charged 12V DC battery into your Ranger MUTT®.
2. Plug the trailer’s 7-way round pin cable into the front of the Ranger MUTT®. Be sure to
push rmly until the ap locks in behind it.
3. To begin testing your trailer, turn the power switch to the “On” position. The power
switch will illuminate. Turn the control knob to the desired circuit.
4. The Ranger MUTT® will send up to 10A @ 12V DC to the selected circuit, e.g., turn
signals, brake lights, etc. Perform a visual inspection by walking around the trailer to
verify proper lights are illuminated.
5. Step 4 should be repeated for all lighting circuits.
WARNING: LEFT TURN AND RIGHT TURN SIGNALS FLASHING TOO QUICKLY OR
TOO SLOWLY ARE AN INDICATION OF LOW BATTERY VOLTAGE. STOP AND CHARGE
BATTERY IMMEDIATELY TO PREVENT DAMAGE TO TURN SIGNAL FLASHERS.
SHORT CIRCUIT AND OVERLOAD TESTING
SHORT CIRCUIT: When a positive power source (12V +) is directly connected to, or
touching the negative terminal or ground connection, wire insulation can wear through
due to vibration. Exposed copper wire can make contact with the metal trailer frame
resulting in a short circuit and a blown fuse in the vehicle.
OVERLOAD: When the load (lights and/or electric brakes) attempts to draw more current
(amps) than the circuit was designed to handle, it often results in blown fuses.
SUMMARY: The Ranger MUTT® is capable of providing up to 10 amps of current to
a selected circuit. It is equipped with an internal, auto-resetting fuse, which is designed to
remove power to the selected circuit when the load exceeds 10 amps in overload condi-
tion. Once power is removed, the circuit breaker requires a 30-second cooldown cycle
until power can be reapplied. If the source of the excessive current draw, i.e., the overload
condition, is still present, the circuit breaker will immediately remove power once again.
This process will be repeated until the source of the excessive current draw is removed.
Most trailers should not exceed 10 amps per circuit when wired properly. You should
check the specied current draw for each light bulb or LED on the trailer circuit to deter-
mine whether it is an overload condition, short circuit condition or faulty equipment, e.g.,
electric brakes, lights, harnesses, etc.
NOTE: The auto-resetting fuse used in the Ranger MUTT®is thermally activated and
requires a short cooldown time between uses. The more often it is tripped, the longer
the required cooldown time before it will become active again.

9
TROUBLESHOOTING
The Ranger MUTT® is an analog trailer tester designed to help conrm trailer wiring con-
guration, proper amperage draw, functioning lights, electric brake operation and proper
ground connections. Keep in mind that many electrical problems are the direct result of a
bad ground connection. By maintaining tight, clean and sealed ground connections, you
can eliminate guesswork and improper diagnosis. We also provide the industry’s standard
wiring diagrams to help you with trailer repairs. The Ranger MUTT®is wired to meet the
accepted standard wiring congurations for the industry. Trailers which are improperly
wired or wired to “personal” specications may render the Ranger MUTT®less effective.
Ranger MUTT®does not turn on. Verify that the power switch is illuminated.
Check battery connections and charge the
battery if needed.
First verify that the Ranger MUTT®power
stays on when power is applied to the
trailer. A low battery will power the Ranger
MUTT®, but when power is sent to the
trailer, the load may cause the Ranger
MUTT®to shut down. Check for faulty op-
erating trailer lights, wiring, ground, battery
polarity, etc. Ensure 7-way cable is all the
way in on the trailer and tester. Ensure that
pins are spread.
The trailer is not wired to standard speci-
cations. If possible, rewire trailer connector
to match the Ranger MUTT®diagrams.
The trailer has crossed wires, or one termi-
nal has two wires connected at the pin.
Check battery connection and voltage. The
Ranger MUTT®’s auto-resetting fuse trips in
overload and short circuit conditions. The
Ranger MUTT®is designed for a maximum
output of 10 amps DC @ 12 volts. If a trailer
circuit exceeds this draw or there is a short
circuit, the Ranger MUTT®’s auto-resetting
fuse breaker will continue to pulse with
power until the issue is resolved.
Check the 7-way cable and selected circuit
for a short. The tripping of the short circuit
protection auto-resetting fuse is an indica-
tion of an extreme short circuit condition.
PROBLEM POSSIBLE CAUSE
Ranger MUTT®is on, but trailer lights do
not light up.
Wrong circuit is powered on trailer.
One circuit powers two sets of lights.
The Illuminated Power Switch keeps
turning off and on again.
The Auto-Resetting Fuse in my Ranger
MUTT®keeps tripping.

10
#9003A Mini MUTT®
(For 7 Spade Pin)
Quickly Troubleshoot
and Repair Light-Duty
Trailer Lights (RV Style)

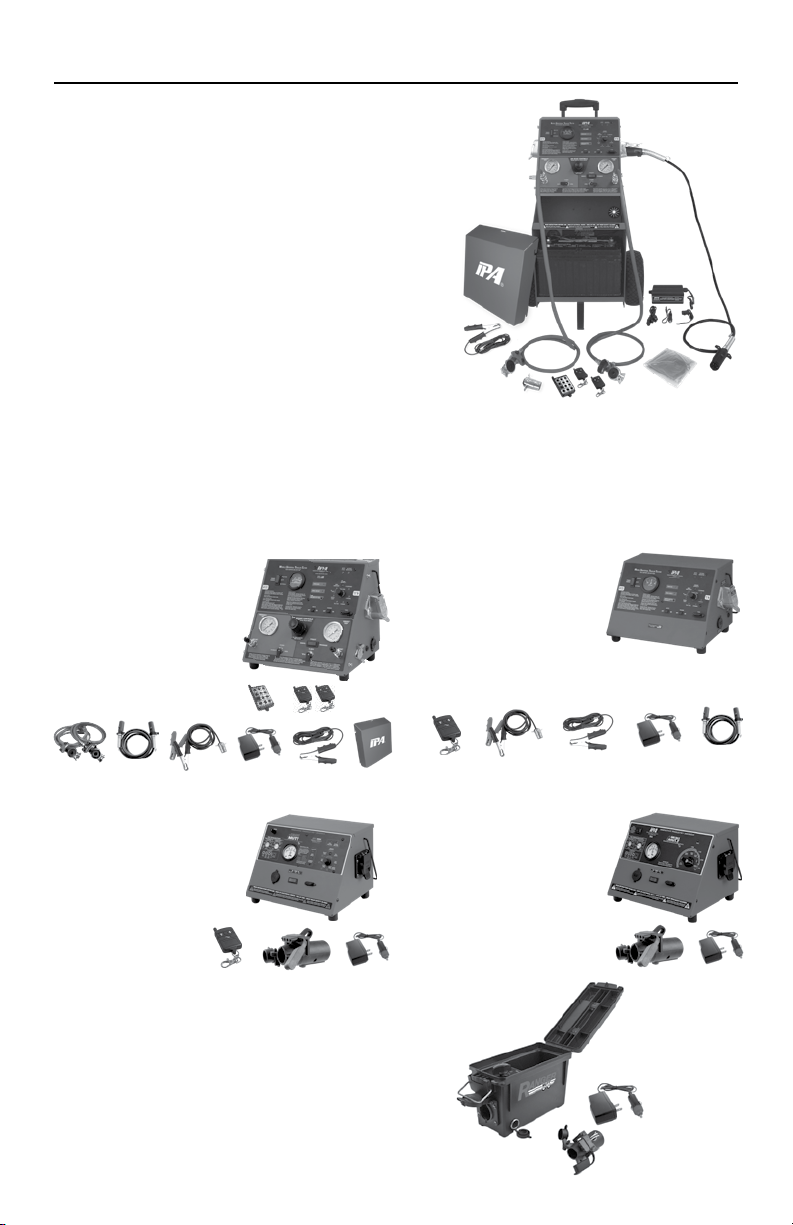

MUTT®PRODUCTS
#9008-SE Super MUTT®Base Model:3-Button Remote Control, 5' 7-Way Cable,
Chassis Ground Cable, External Battery Connector, 8' Glad Hands
#9004A Smart MUTT®
(For 7 Spade Pin
with Remote)
A Portable Unit for the
Light-Duty Trailer
Professional Service
Shop (RV Style)
#9007A Smart MUTT®
(For 7 Round Pin
with Remote)
A Portable Unit for
the Mobile and
Commercial Trailer
Repair Shops
#9005A Super MUTT®
Service Truck Edition
(For 7 Round Pin with
Remote)
Diagnostic Light,
Air Brake and ABS
Tester for Emergency
Vehicles (7 Round Pin)
#9008-UPKIT (This Kit Updates the #9008-SE to the #9008-DL): 2 Extra Remotes,
10A Battery Charger, Face Shield, Rain Cover, Shoulder Screws
#9101 Light Ranger MUTT®
(For 7 Spade, 6 Round, and 4/5 Flat Pin)
Utility and RV Type Trailer Tester For Lights and
Electric Brakes
#9008-DL SUPER MUTT® Pro Edition:
12-Button Remote Control, (2) 3-Button Remote Controls,
5' 7-Way Cable, Chassis Ground Cable, External Battery
Connector, 8' Glad Hands, 10A Battery Charger,
Face/Battery Shield and Rain Cover
BATTERY NOT
INCLUDED
