lifelong FitPro LLTM09 User manual

Manufactured for & Marketed by :
Lifelong Online Retail Private Limited
For queries and complaints:
please contact: [email protected]
www.lifelongindiaonline.com
FITPRO
TREADMILL
(LLTM09)
Built for Endurance. Built for India.
User Manual

12
INTRODUCTION:
Dear Customer,
Congratulations! We welcome you to the Lifelong family, as you welcome our
Lifelong Fit Pro Treadmill to be a part of your home.
At Lifelong, our products are carefully built for the needs of India, which is why we
have crafted a diverse range of innovative products, across a spectrum of categories
- Home, Kitchen, Grooming, Fitness, Lifestyle and Smart Home, to better help you.
We then deliver them at the best prices, enriching your everyday living.
We are sure you can't wait to start using your new Lifelong Fit Pro Treadmill.
We know we can't!
Looking forward to building our bond for life, cheers!
Thank you, Team Lifelong
LLTM09

MARKING OF PRODUCT:
3 4
TABLE OF CONTENTS:
1. .About the product
2. Marking of Product
3. Main Parameters and Parts List
4. Precautions Before Use
5. Installation Instructions
6. Operating Instructions
7. Device Maintenance
8. Running belt adjustments
9. Do’s and Don’ts
10. Troubleshoot Chart
11. Terms and Conditions
12. Warranty
Lifelong Fit Pro combines power and elegance to take your fitness journey to the
next level. It is the perfect machine for losing weight or increasing endurance.
ABOUT THE PRODUCT:
Console
Motor Cover
Knob
Side Rail
End
Running Belt
Safety key is in red
color, please find it in
the accessory bag and
put it on the area with
the yellow sticker on
the display.

5 6
• This Treadmill is for indoor usage only, avoid moisture and dust.
• Please wear suitable clothes and sneakers before exercise. It is prohibited to exercise
on the treadmill barefoot.
• Keep children away from the machine to avoid accidents.
• Avoid overloading or using it for an exceedingly long time, otherwise it could cause
damage to the motor and controller and will accelerate the deterioration of treadmill,
running belt and running board. It is advised to maintain the machine on a regular basis.
• Please maintain good ventilation while running.
• Please clamp the security lock cable on your clothing to make sure the machine stops
at emergency condition.
• If the power cord is damaged, please contact our qualified maintenance personnel for
service rather than disassembling it at your own discretion. If you feel any pain or discomfort,
please consult your physician.
• Do not use the machine when the power cord is damaged or the power plug pin is loose,
otherwise will lead to an electric shock, short circuit, or fire.
• Do not damage or bend the power cord by force or reverse it.
• Do not place heavy objects on the machine, do not clamp the power line.
• Machine should not be used by more than 1 person at the same time.
PRECAUTIONS BEFORE USE:
Main Parameters And Parts List
Packing List
Accessory Bag List
No.
No.
No.
1
2
3
1
2
3
4
5
6
1 Input power voltage
Speed
Complete machine
Supporting base
Accessory Bag
set
pc
pc
1
2
1
1
1
1
1
1
1
1
4
2
Functions
Inner hexagon spanner 5mm
Inner hexagon spanner 6mm
Combination wrench
Safety key
Silicone oil
User manual
MP3 cable
Screw M8*25
Screw M6*12
AC220-240V; 50-60Hz
1.0-12 Km/h
Running
2
3
HP 1.2 HP 4
7
8
9
Name
Name
Units Qty
Qty
Parameters Name Description

7 8
When installing, simply fix all the screws first, then tighten the screws only when the
installation of the frame is done.

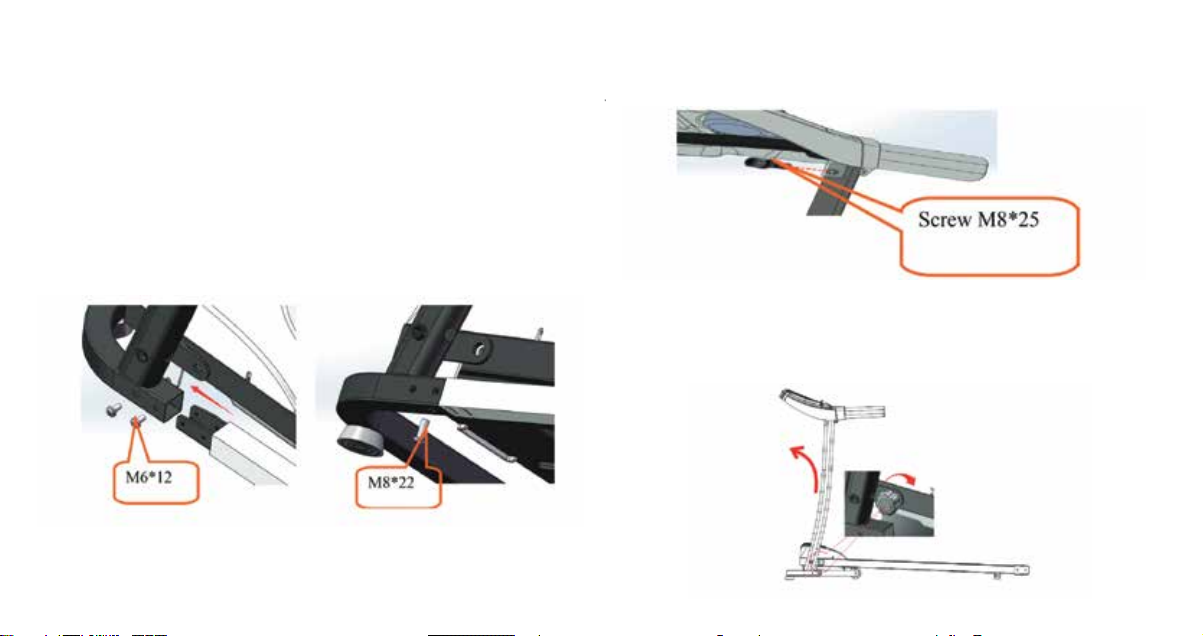

1. Put the machine flat on the ground. Remove the knob in the direction shown, in the
picture below. Keep the columns and console in the direction shown in the picture below.
2. Remove the preinstalled screws M8*22 on the supporting frame and then tighten the
supporting frame with screw M6*12 on the base. Use #6 hexagon wrench and screw
M6*12 to lock and fix the base (two screws for each side).
3. Hold left & right columns, use #6 hexagon wrench and screw M8*25 to lock the console
frame on the columns (Tighten all screws in above steps, and please notice not to clamp
the cable by column).
4. Use the knob in step 1 to lock the main base and columns (Rotate clockwise, please refer
to the direction marked by the arrow mark). The uneven ground may cause trouble when
rotating the knob, please lift the column slightly to the left side (as shown below).
To fold the machine easily next time, please do not rotate the knob too tightly.
INSTALLATION INSTRUCTIONS:

910

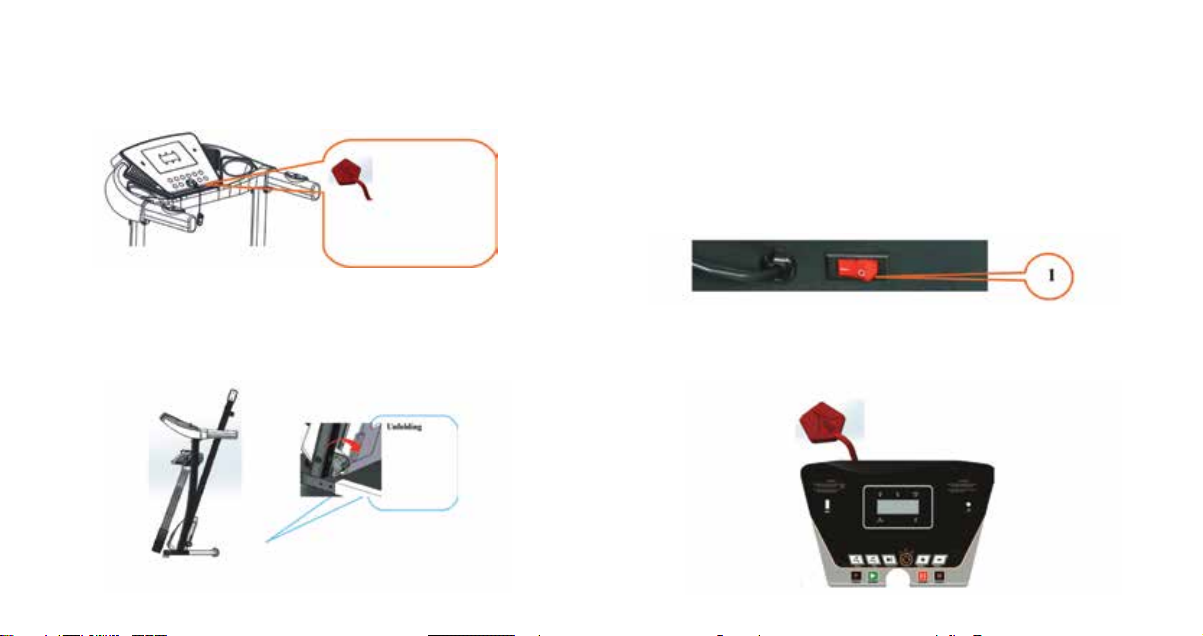

Please hold the running deck with your right hand before unfolding the treadmill and use
your left hand to remove the knob (in the counter clockwise direction), then lower the
running deck slowly and install the plum lock back. This treadmill comes with 2.5 HP
peak motor.
1. Using treadmill: Insert the power plug properly and turn on the switch (in red colour)
When the light is on, there will be a beep sound, and then the screen will light up.
2. Safety key Introduction: The treadmill can only start when the safety key is put on, in the
yellow area of the console. Clip the safety key on your clothes when using the treadmill to
prevent accidents. Put the safety key back when not using the treadmill.
5. Put the safety key in the area shown in the picture, then press the start button to start the
treadmill. (Notice: The treadmill can only start when the safety key is put on the yellow area
marked on the console.)
NOTE: please confirm that all screws are locked uniformly according to the requirements
after installation, and check that no part is left out before plugging into an outlet.
Folding Instructions (Massager for option) When the treadmill is not in use, you can lift the
running deck and then use knob to lock the running deck and base, as shown in the picture
below.
OPERATING INSTRUCTIONS:
Safety key is in red
color, please find it
in the accessory
bag and put it on
the area with the yellow
sticker on the display

11 12
Start: When the treadmill is in a standby condition, press "Start" to start the treadmill
Stop: When the treadmill is running, press "Stop" to stop the treadmill. All the data will be
cleared, and the treadmill goes to manual mode.
Program: In standby mode, press Program to change the options from manual mode to
automatic programs. Manual mode is the system default running mode.
Mode: On standby mode, press “Mode” to switch to different countdown running modes,
(time countdown running mode, distance countdown running mode and calorie countdown
running mode). When choosing any mode, speed adjustment buttons can be used to set the
value. Press "Start" to start the treadmill after setting the value.
Play/Pause: When playing music, press Play/Pause to pause the music, and press the button
again to play music again.
Volume + /-: Can be used to adjust the volume. Press Volume +/- to increase or reduce the
volume.
Speed +/ -: Can be used to adjust the speed of the treadmill.
Speed direct selection: When the treadmill starts, press 3, 6, 9 buttons to change the speed
directly.
3. Console instructions Overlay.
Speed display: Displays the current running speed value.
Time display: Displays the time of manual mode and the countdown time under automatic
modes and programs.
Distance display: Displays cumulative distance under manual mode and programs.
Displays the distance countdown in automatic mode.
Calorie display: Displays cumulative calories under manual mode and programs.
Displays the calorie countdown in automatic mode.
Heart rate display: Heart rate signal will be detected, and the screen shows the heart
rate count.
Heart rate function(optional): In case the treadmill is energized, hold the heartbeat sensor
piece for a while and the heart rate will be shown on the screen. (This data is for reference
only; it cannot be considered as medical data.)
1. Cleaning:
• Comprehensive cleaning will extend the life of the electric treadmill. Remove dust
periodically to keep the parts clean. Be sure to clean both sides of the running belt’s
exposed portion as well.
• Make sure to wear clean athletic shoes to avoid carrying the dirt onto running board
and belt.
DISPLAY FUNCTION:
DEVICE MAINTENANCE:
BUTTON INSTRUCTIONS:

(Picture A) (Picture B)
13 14
2. Running Belt Alignment:
• Put the electric treadmill flat on the ground.
• Make the treadmill run at a speed of about 6-8km/hour.
• If the running belt leans to the right, rotate the adjusting bolt to the right half a turn
clockwise, then rotate the left adjusting bolt half a turn counter clockwise. (Picture A)
• If the running belt leans to the left, rotate the left adjusting bolt half a turn clockwise,
then rotate the right adjusting bolt half a turn counter clockwise. (Picture B)
3. Silicon oil for belt’s maintainance
Step 1: Lift the running belt slightly.
Step 2: Open the silicone oil bottle, spray the silicone oil on the sides of running board,
as shown in the following figure:
RUNNING BELT ADJUSTMENTS:
When you use the treadmill for a long time, the running belt or the multi-wedge belt
becomes loose because of the abrasion. To facilitate the safe use, appropriate adjustment
is needed.
Judgement
The feeling of running with the occasional pause phenomenon, which indicates that the
treadmill belt or multi-wedge belt is a little loose then further affirmations need to be made.
• Treadmill belts should be cleaned by a damp cloth with soap. Please pay attention to avoid
spilling any liquids on the electrical components and running belt.
Note: Before cleaning or maintaining products, please ensure that the power plug of the
treadmill is pulled out. Clean the motor at least once a year.

15 16
Step 1: Remove the motor cover, make the treadmill run at a speed of 1 km/h, and then
stand on the running belt, hold the handlebar, and tread the treadmill belt slightly.
A. If the instantaneous step cannot stop the belt, then the tightness is appropriate.
B. If your instantaneous step stops the running belt, but the multi-wedge belt and front
roller are still running, it indicates that the running belt is loose and appropriate adjustments
must be made to facilitate the safe use.
C. If you observe that the instantaneous step makes the treadmill belt and multi-wedge belt
stop, but the motor is still running, it indicates that the multi-wedge belt is loose and
appropriate adjustments must be made to facilitate the safe use.
Step 2: Use a wrench to adjust the screws on the motor base according to the condition.
Meanwhile, gently flip the multi-wedge belt between the motor shaft and the front roller,
if it is too loose, you can flip the multi-wedge belt by 100%; if it is too tight, the degree to
flip the belt is limited. It is appropriate to flip the multi-wedge belt by 80% after adjustment.
Please adjust the tightness of the multi-wedge belt into the state that it could be
flipped by 80%.
Step 3: Finally lock the motor base and re-install the motor cover.
DOS AND DON’TS:
- Do not use the machine in the status of a shell break in or break off (the internal structure
exposed) or under the condition wherein the welding-parts may fall off, otherwise an
accident or injury can happen.
- Don't jump up and down in the process of movement. It may cause injuries.
- Don't keep machine in or near moist area such as the bathrooms.
- Do not place the machine in direct sunlight, or elevated temperature places such as near
a stove or a heating appliance. It may cause leakage and may burst into flames.
- Don't use when the power cord is damaged or power plug pin is loose, otherwise will lead
to an electric shock, short circuit, or fire.
- Don't damage or bend the power cord by force or reverse it. Do not place heavy objects
on the machine, do not clamp the power line, otherwise will cause fire or an electric shock.
- Machine should not be used by more than 1 person at the same time. Do not go close to
the machine when it is in use. It may cause an accident or injury.
- Avoid drinking water or pouring water when machine is in operation. It may cause electric
shock and fire.
- People who do not exercise frequently should not suddenly do intense exercise.
- Do not use this machine, after eating or when tired.

15 16
TROUBLESHOOT CHART:
Error Code
E1
Abnormal communication:
when the power is on, the
connection between lower
controller and the console is
abnormal.
Possible Cause: The communication
between the lower controller and
console is blocked, check each joint
between the controller and console,
ensure that each core is fully
plugged in. Check the connection
line, replace it if it's damaged.
E2 No signal from motor.
Possible Cause: Check the motor
cable to see whether it is connected
well or not, if not, connect the motor
wire again. Check the motor cable
to see whether it is damaged or
has a burnt smell, if yes, replace
the motor. Check the speed sensor
to see whether it is correctly
installed or damaged.
Description Solution
Error Code
E5
Over-current protection:
In working, the lower
controller detects the
current to be over 6A for
more than 3 seconds.
Possible Cause: Overloading leads to
excessive current, and the system
stops out of self-pro tection, or some
part is stuck, causing the motor to
stop. Adjust the treadmill and restart
it. Check if there is liquid or burnt
smell while the motor is running, if
yes, replace the motor; check if the
controller has a burned smell, if yes,
replace the controller; check the
power supply voltage, if it does not
match the specifications, change into
correct voltage and test the machine
again.
E6
E7
Explosion-proof impact
protection: the abnormal
voltage or motor cause the
fault in circuit which drives
the motor.
No safety key. Insert the safety key in the right place.
Possible Cause: Check if the power
supply voltage is 50% lower than
normal voltage, use the correct
voltage and test the machine again
check if the controller has a burnt
smell and replace the controller;
Check if the motor cable is connected
and connect the motor wire again.
Description Solution
