lifelong FitPro User manual

2
1 YEAR
WARRANTY
FitPro
4-in-1
Multifunction
Manual
Treadmill
INTRODUCTION
Dear Customer,
Congratulations on purchasing Lifelong Treadmill and a warm welcome
to the Lifelong family.
At Lifelong, we take pride in developing quality products for your
home, health and happiness. Through constant innovation in our
products, we have been able to develop a wide spectrum of products
across Home, Kitchen, Grooming and Wellness categories. We strive to
enrich the lives of the modern consumer every day. Keeping that in
mind, we have oered all our products at a fair and honest price.
We hope that the Treadmill serves you and your family’s needs without
any hassles.
Thanks again for becoming a part of the Lifelong family and bringing
Fitness Home. Enjoy using the product!
Warm Regards,
Team Lifelong
Max User Weight
100KG
4 in 1 multifunction
manual treadmill
Heart Rate
Sensor
Foldable

IMPORTANT SAFETY NOTICE
WARNNING：
Please consult the doctor before using this treadmill, this is important for
the people above the age of 35 or have any illness. Read all the using and
operating instructions carefully before using it. Our company will not take
any responsibility for any damage which is caused by user themselves.
Please preserve this manual for future reference.
Attention
Please read this manual carefully before assembling and use this treadmill,
by following below safety precautions actions:
1.Keep children and pets away from the product at all times. DO NOT leave
it unattended with children in the same room as the machine.
2.Only allow one person to use the machine at one time.
3.If the user experiences dizziness, nausea, chest pain or any other abnormal
symptoms, STOP the workout immediately. CONSULT A PHYSICIAN
IMMEDIATELY.
4.Position the treadmill on a clear, levelled surface. DO NOT use near water
or outdoors.
5.Do not keep hands near any transmission parts during use.
6.Always wear appropriate workout clothing when exercising, running or
aerobic. Shoes are also required.
7.DO NOT place any sharp objects around the treadmill,
8.Handicapped or disabled person should not use the treadmill without
presence of a qualified health professional or physician.
9. Always stretch before exercising.
10. NEVER operate the treadmill if, it is not functioning properly.
11.Keep the training record well.
12.Product safety general requirements is: GB17498-1998
12

EXPLODED VIEW LIST VIEW
3 4
Order
Part name/specification
QTY
Order
Part name/specification
Order
1
monitor
1
25
Hexagon head bolt M10*55*30
2
2
Front HB
1
26
Square neck bolt M8*45*20
6
3
Hexagon head bolt
M10*40*25
1 27L/R L/R upright 2
4
Flat washer
Ф
20*
Ф
10.5*2.0
5
28
base tube
1
5
Hexagon socket head bolt
M8*80*30
2 29 Ring insert pin 1
6
Arc pad
Ф
20*
Ф
8.5*2.0
4
30
Hexagon head bolt M8*50*25
2
7
Cross head screw M5*10
2
31
twisting
1
8
Flat washer
Ф
12*
Ф
5.5*1.0
2
32
Inner/out adjustment tube
1
9
Mid upright
1
33
Roller cover
1
10
Nylon nut M8
13
34
Hexagon head bolt M5*12
2
11
Hexagon head bolt M8*35*20
2
35
frame
1
12
Monitor bracket
1
36
Sensor wire
1
13
Mid pulse ware line
2
37
Sensor mid wire line 1
1
14
Pulse outer line
2
38
Push-up tube
2
15
Pulse tube
2
39
Hexagon head bolt M8*45*20
4
16
Sensor mid ware line 2
1
40
Hexagon head bolt M6*40*20
4
17
Hexagon head bolt M8*20
4
41
Cross wrench
1
18
Flat washer
Ф
20*
Ф
8.5*2.0
19
42
Hexagon head wrench
1
19
Oil cylinder 220pound
2
20
pulley
1
21
Hexagon head bolt M8*40*20
3
22L/R
L/R pedal tube
2
23L/R
L/R pedal
2
24
Hexagon socket head bolt
M10*15
2

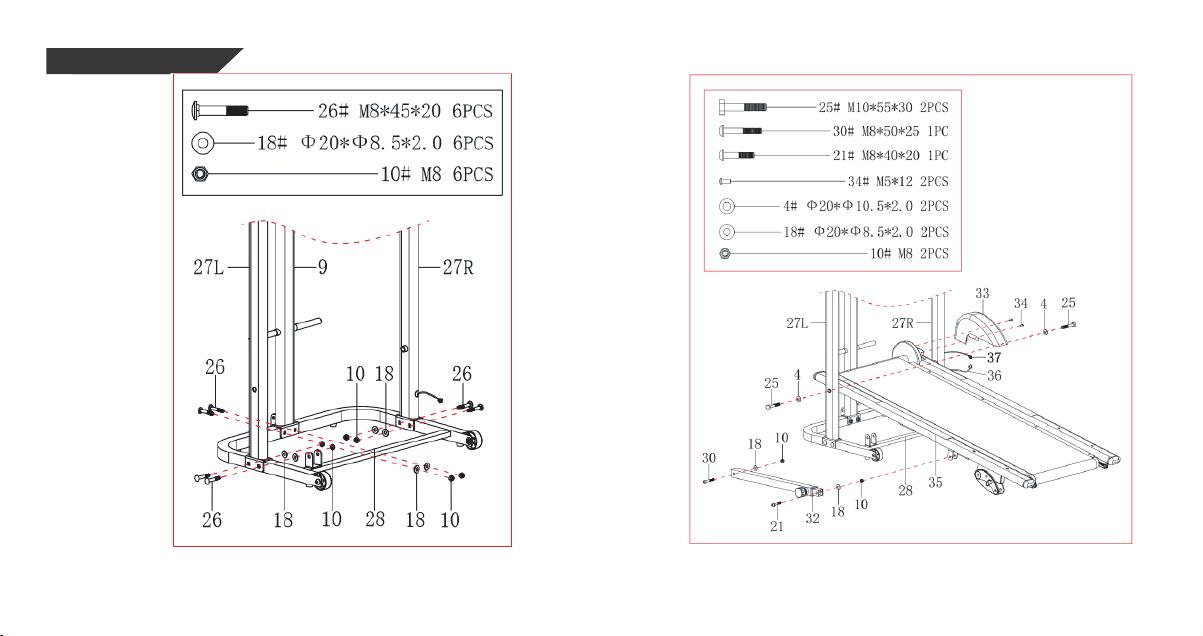

ASSEMBLY STEP
Install square neck bolt（26）,  flat washer（18),nylon nut（10.Install tight L/R
upright（27L/R) and Mid upright（9）to base tube（28）.
Step 1: Step 2:
56

1.Use hexagon socket head bolt（25)and flat washer（4）to frame（35）and L/R
upright(27L/R);
2. Use hexagon head bolt（30）use hexagon head bolt（21）flat washer（18）
nylon nut（10）install adjustment tube（32）to base tube（28）and frame（35）；
3.Install cross screw（34）to assemble roller cover（33）to frame（35）；
4.Connnect sensor out line（36）with sensor mid ware line 1（37）.
1.Use hexagon socket head bolt（3）, flat washer（4）to assemble onto the monitor
bracket（12）,tight onto mid upright（9）上 ；
2.Connect sensor mid ware line 1（37）with sensor mid ware line 2（16）；
3.Connect pulse mid line（14）to pulse mid line（13）.
Step 3:
Step 4:
78

1.Use hexagon head bolt（17）flat washer（18）to install L/R pedal tube（
22L/R）to mid upright（9） ;
2.Use hexagon head bolt（17）、use hexagon head bolt（21）,  flat washer（18）, 
nylon nut（10）to assemble oil cylinder（19）to mid-upright（9）,  and L/R pedal
tube（22L/R ;
3.Use hexagon head bolt（40）to install L/R pedal（23L/R）and tight onto the
L/R pedal tube（22L/R）；
4.Put the pullback pulley（20）onto the upright（9）,  and tighten them using
hexagon socket head bolt（24）,  flat washer（4）pulley（20）.
1.Use hexagon head bolt（5),arc pad（6）,  nylon nut（10）to install front HB
onto（2）mid upright（9）；
2.Connect sensor mid ware line 2（16）,  pulse line（13）with the outline from
the monitor（1）；
3.Use cross screw（7),flat washer（8）to install the monitor（1）onto the
mid-upright（9）.
Step 5:
Step 6:
910

1. Use hexagon socket head bolt（30）, flat washer（18）, nylon nut（10）, ring
insert pin（29）to install the twisting（31）to mid-upright（9）；
2.Use hexagon head bolt（39）,  flat washer（18）to install the push-up tube（
38）to frame（5）.
Consumer Warranty Card
Dear Customer,
Thank you for choosing a Lifelong consumer product. All Lifelong Consumer
products are designed and manufactured to the highest standards to deliver high
quality performance, as well as easy installation and use. At Lifelong, we believe in
providing not only service, but adding value to your purchase. The warranty has
therefore been designed especially for you with your interest at heart.
Warranty Service
All Lifelong consumer products are covered against manufacturing defects from
them date of purchase.
Name of the product:
Model:
Warranty coverage: 1 year
Please note: Purchase receipt is necessary for warranty verification.
Customer Care: [email protected]
Customer Details
Name:
Address:
Home Number:
Office Number:
E-mail Address:
Product Details
Model No.:
Serial No.:
Purchase Date:
Invoice Number:
Online Site:
Please log onto to www.lifelongindiaonline.com and complete the online warranty form with your
personal and product details within 14 days.
11

Terms and Conditions:
1.This warranty is void if:
a. The completely filled warranty card is not presented
at the time of servicing the product.
b. The product is not operated according to the
instructions given under the user manual.
C. Damages are caused by lightning, abnormal
voltage, water or other liquid intrusion, fire, flood,
accident, negligence or improper handling.
d. Product has been damaged due to installation,
repairs, alterations or modifications by unauthorized
service organizations or persons.
e. Product label specifying the model number, serial
number and production code has been removed
and altered.
f. Defects or parts requiring replacement due to
ordinary wear and tear, corrosion, rust or stains,
scratches, dents on the casing or paintwork of the
product.
g. Claims damaged and/or missing parts
(accessories) after 7 days from the original date of
goods received.
h. Defects or faults in product which have been used
for commercial/industrial purposes or which have
been rented/leased or have been otherwise subject
to non-household/non-domestic use.
2. Repairs or replacements will be carried out by
authorized service provider.
3. During the limited warranty period, Lifelong or its
authorized service provider will repair without charge
the defective unit inclusive of labor and parts and
restore the unit to its optimum working condition. All
defective parts used for the warranty repair should be
surrendered to Lifelong and/or its authorised servicer.
4. All expenses incurred in collecting the unit (s) or
part(s) thereof from authorised service provider as will
as any other expenses and incidentals will be borne
by the consumer.
5. Lifelong obligations are limited to the repair and
replacement of the defective product. Except as set
forth above, there are no other express or implied
warranty and all warrantied, conditions or other terms
implied by statute or common law (including any
warranty of satisfactory quality, merchantability or
fitness for a particular purpose) are excluded to the
fullest extent permitted by the lass.
6. Lifelong total liability for damages relating to or arising
out of the purchase or use of the product regardless of
the type or cause of such damage of the form of
characterization of the claim asserted (e.g. contract or
tort) shall not exceed the original purchase price paid
for the product.
7. However in no event shall Lifelong and Lifelong
authorized distributors be liable for any punitive, special
incidental, indirect or consequential losses or damages
whatsoever (including without limitation, damages for
the loss of revenue, business, profits, goodwill, or
contracts, business interruptions, loss of business
information or any other pecuniary loss.) Whether or
not Lifelong has been advised of the possibility of such
damages.These limitations shall apply not with
standing the failure of the essential purpose of any
limited warranty. This limited warranty does not affect
consumer's statutory rights under the law.
8. No carrier, dealer or employee is thereof authorized to
make modifications to this warranty and you should not
reply on any such representation. Lifelong reserves the
right to amend the terms and conditions if necessary.
Manufactured for & Marketed by :
Lifelong Online Retail Private Limited
For queries and complaints:
please contact: [email protected]
www.lifelongindiaonline.com
