LifeSource UB-521 Manual

1
Deluxe One TOuch DigiTal WrisT
Blood Pressure Monitor
Bilingual Instruction Guide – MODEL UB-521
English • Español

Please read this important information before using your monitor.
☞
Please remember that only a medical practitioner is qualified to
interpret your blood pressure measurements. Use of this device
should not replace regular medical examinations.
☞
Have your physician review your procedure for using this device.
He or she will want to verify blood pressure measurements before
prescribing or adjusting medications.
☞
Consult your physician if you have any doubt about your readings.
Should a mechanical problem occur, contact A&D Medical.
☞
Make sure to use the correct cuff size when measuring your blood
pressure.
☞
Make sure to follow instructions when measuring your blood
pressure to ensure accurate results.
☞
Do not attempt to service, calibrate, or repair this monitor.
☞
Because your UB-521 monitor contains delicate, high-precision
parts, avoid exposing it to extremes in temperature or humidity
or to direct sunlight, shock and dust. A&D Medical guarantees the
accuracy of this monitor only when it is stored and used within the
temperature and humidity ranges noted on page E-16.
☞
Clean the monitor and cuff with a dry, soft cloth or a cloth
dampened with water and a mild detergent. Never use alcohol,
benzene, thinner or other harsh chemicals to clean monitor or cuff.
☞
Remove and replace batteries if monitor is not used for more than
six months. Alkaline batteries recommended.
PRECAUTIONS
The UB-521 is designed to be used at home, by those who are eighteen
(18) years and older, to monitor blood pressure (systolic and diastolic) and
pulse rate.
IMPORTANT INFORMATION

Fast. Easy. Accurate.
Congratulations on purchasing a state-of-the-art
LifeSource® blood pressure monitor—one of the most
technologically advanced monitors available today.
Designed for ease of use and accuracy, this monitor
will facilitate your daily blood pressure regimen.
Physicians agree that daily self-monitoring of blood
pressure is an important step individuals can take
to maintain cardiovascular health and prevent the
serious consequences associated with undetected and
untreated hypertension.
A&D Medical has been manufacturing high quality
healthcare products for over 20 years. We are commit-
ted to providing you and your family with monitor-
ing devices that provide the utmost in accuracy and
convenience.
LifeSource - Designed for Life.

E-1
?WHAT DISPLAY SYMBOLS MEAN . . . . . . . . . . . . . . . . . . . . . . . . .E-2
MONITOR COMPONENTS .............................. E-3
HOW UB-521 WORKS ................................ E-4
BEFORE YOU START ................................. E-4
TAKING YOUR BLOOD PRESSURE . . . . . . . . . . . . . . . . . . . . E-5 - E-6
WHAT IS AN IRREGULAR HEARTBEAT . . . . . . . . . . . . . . . . . . . . .E-7
ABOUT CUFF INFLATION METER . . . . . . . . . . . . . . . . . . . . . . . . . .E-7
ABOUT AVERAGE READING .............................E-8
ABOUT PRESSURE RATING INDICATOR™ . . . . . . . . . . . . . . . . . . .E-8
ABOUT MEMORY ....................................E-9
ABOUT BLOOD PRESSURE . . . . . . . . . . . . . . . . . . . . . . . E-10 - E-14
TROUBLESHOOTING .................................E-15
SPECIFICATIONS .................................. E-16
CONTACT INFORMATION ............................. E-17
INSTRUCCIONES EN ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . S-1
TABLE OF CONTENTS

LifeSource Health Line (Toll-Free): 1-888-726-9966
E-2
WHAT DISPLAY SYMBOLS MEAN

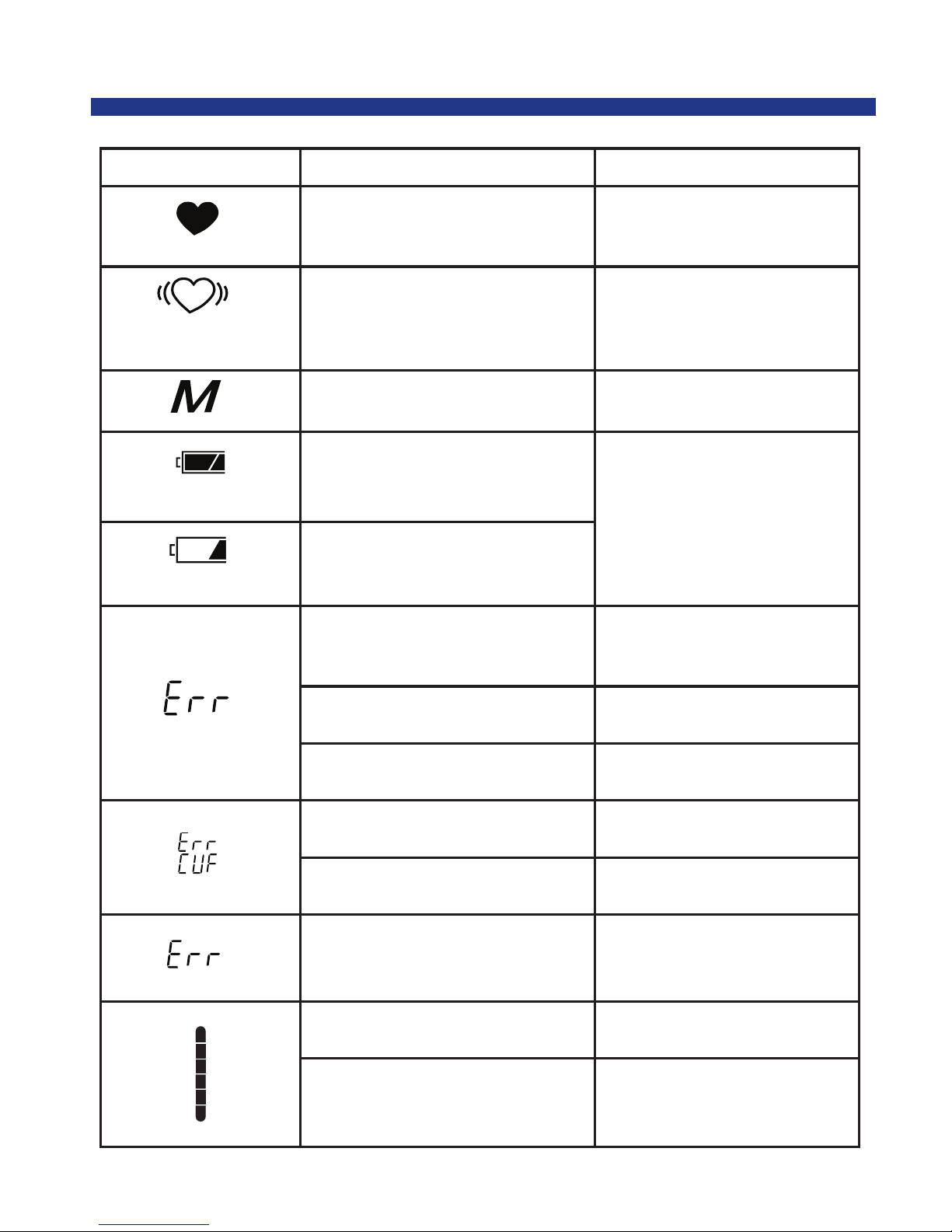

Display Symbol Condition/Cause Recommended Action
The symbol shown while
measurement is in progress. It
blinks while detecting the pulse.
Measurement is in progress,
remain as still as possible.
An irregular heartbeat or body
movement may have occurred.
Refer to page E-7 for more
information on irregular heartbeats.
Take measurement again and
consult with your physician.
Previous measurement stored in
MEMORY.
Battery Full
The battery power indicator during
measurement.
Replace all batteries with
new ones when the symbol
blinks. Alkaline batteries
recommended.
Battery Low
The batteries are low when it
blinks.
Unstable blood pressure due to
excessive body movement.
Try the measurement again.
Remain very still during the
measurement.
The systolic and diastolic values are
within 10 mmHg of each other.
Fasten the cuff correctly, and try
the measurement again.
The pressure value did not increase
during inflation.
Check for air leaks along the
tube and around the air socket.
The cuff is not fastened correctly. Refasten the cuff and retake
measurement.
There is an air leak in the cuff or
monitor.
Make sure tube is properly
connected to cuff and monitor.
The pulse is not detected
correctly. The symbol will appear
on the pulse display area.
Try the measurement again.
Remain very still during the
measurement.
Cuff Inflation Meter Measurement is in progress,
remain as still as possible
Pressure Rating Indicator™ Refer to the section “About
Pressure Rating Indicator” for
further explanation.

E-3
CASE
(1.5V) AAA BATTERIES
MONITOR COMPONENTS
BATTERY
HOLDER
COVER
CUFF
SYSTOLIC
PRESSURE
DIASTOLIC
PRESSURE
CUFF
INFLATION
METER
PRESSURE
RATING
INDICATOR
PULSE RATE
HEART MARK
START BUTTON
DISPLAY SCREEN
DISPLAY SCREEN
MEMORY
BATTERY INDICATOR
IRREGULAR HEARTBEAT
DETECTOR

LifeSource Health Line (Toll-Free): 1-888-726-9966
E-4
The UB-521 provides accurate readings on wrists with a circumference
between 5.3" and 8.5" (13.5 cm and 21.5 cm).
The unit requires two "AAA" (1.5 volt) batteries to operate (alkaline
batteries recommended). To install batteries (or to replace when "Low
Battery" symbol appears), proceed as follows:

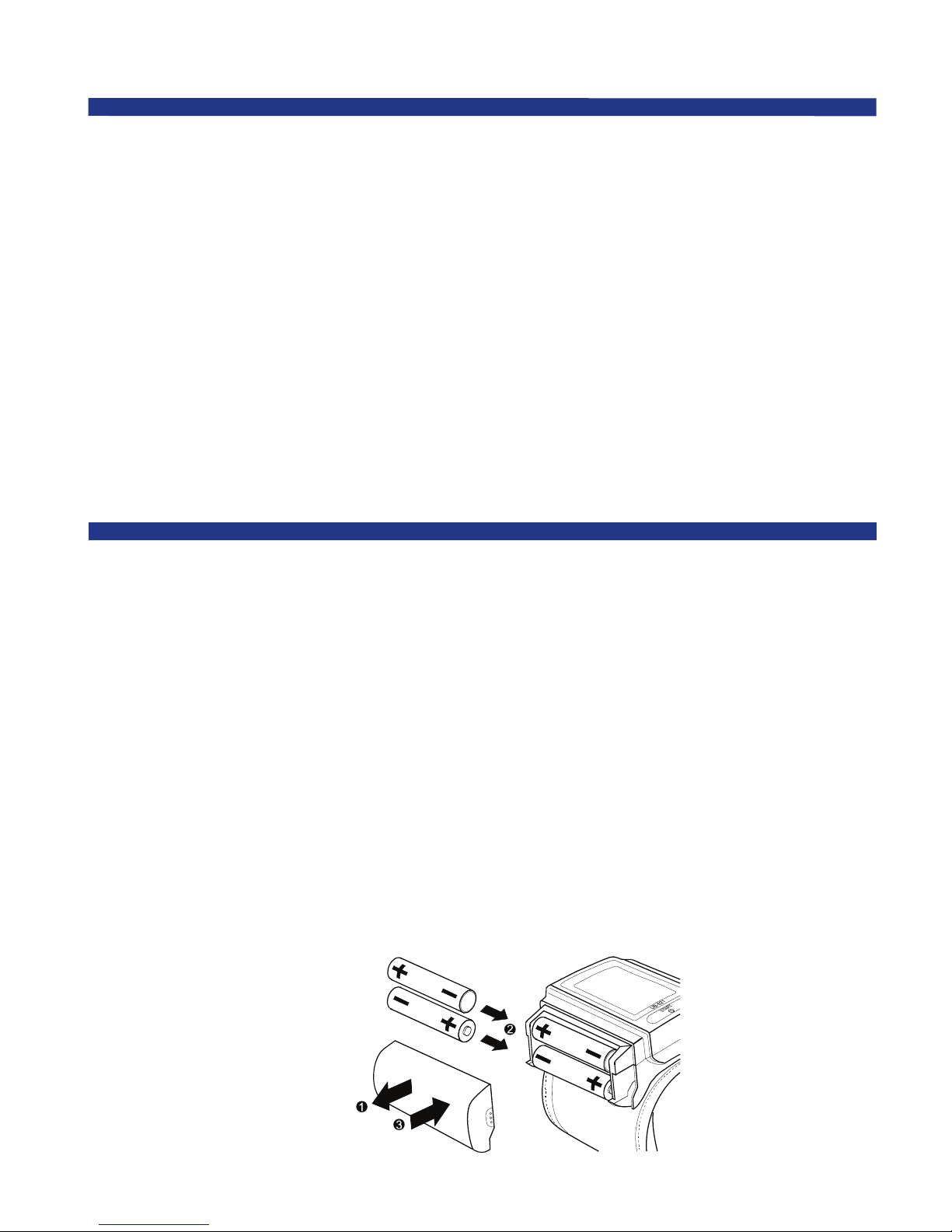

1. Slide the battery cover as shown to remove from the device.
2. Insert batteries into designated areas ensuring a correct match with
positive (+) and negative (-) terminals.
3. Return battery cover by sliding back on to monitoring device.
NOTE: Rechargeable batteries will not work with this monitor.
HOW UB521 WORKS
BEFORE YOU START
LifeSource
®
Blood Pressure Monitors are easy to use, accurate and display
clear digital measurements. Our technology is based on the “oscillometric
method”. The term “oscillation” refers to the measure of vibrations caused
by the arterial pulse and is a non-invasive method to determine blood
pressure.
Our monitors examine the pulsatile pressure generated by the arterial wall
as it expands and contracts with each heartbeat against the monitor’s cuff.
This monitor measures your blood pressure while the cuff is inflating.

E-5
TAKING YOUR BLOOD PRESSURE
Tips for Blood Pressure Monitoring:
☞
Relax for about 5 minutes before measurement.
☞
Do not smoke or ingest caffeine at least 30 minutes prior to
measurement.
☞
Remove constricting clothing and place cuff on bare wrist.
☞
Unless your physician recommends otherwise, use left arm
to measure pressure.
☞
Do not talk during measurement.
☞
Do not cross legs. Keep your feet flat on floor during
measurement.
Now you are ready. Follow these simple steps:
1. Sit comfortably in a chair near a flat surface.
2. With palm facing upward, attach monitor to the
inside of your left wrist and fasten securely. The top
edge of the cuff should align with the crease of your
wrist.
3. Position your wrist so it is level with your
heart, using an arm rest if needed. Positioning
of the wrist at heart level is critical for accurate
measurement.

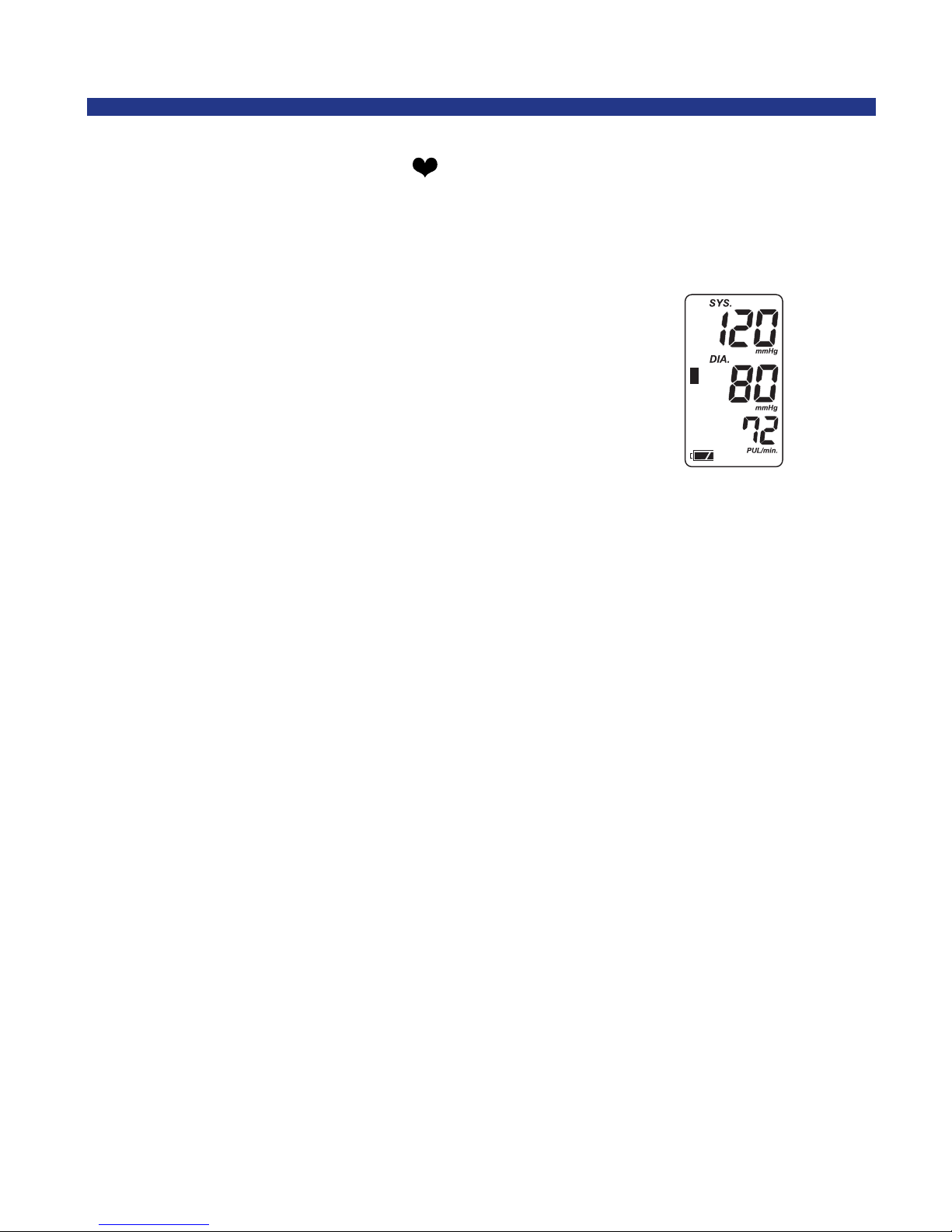

4. Press the START button. Your average blood
pressure reading will appear with the number
of measurements stored in memory (i.e. A25 = total of 25
measurements stored in memory). As the cuff pressurizes,
measurement will begin and the Cuff Inflation Meter will
show on the display screen. It is normal for the cuff to feel
very tight.
NOTE: To stop inflation at any time, press START
5. Remain still and refrain from talking or moving during reading.

LifeSource Health Line (Toll-Free): 1-888-726-9966
E-6
6. As the cuff is inflating, the will appear to indicate that the
measurement is in progress. The monitor measures your blood
pressure while the cuff is inflating, so remain still. Once the pulse is
detected, the symbol will flash with each pulse beat.
7. When measurement is complete, the systolic and
diastolic pressure and pulse rate readings are
displayed. The cuff will automatically deflate
completely, releasing any remaining air.
8. Press either START button once to turn off power.
The device has an automatic power-down feature
which turns off power automatically one minute
after measurement is obtained.
For the most useful blood pressure history, we recommend that you record
the date and time after each measurement. The most accurate history
relies not on a single or sporadic readings, but on a consistent monitoring
pattern over time.
NOTE: If you wish to take your blood pressure measurement again, relax and wait 5-10
minutes to enable the flow of blood in the arm to return to normal.
NOTE: If you have poor blood circulation in winter (especially when your hands and
wrists are cold), you may not get a blood pressure measurement.
SYSTOLIC
DIASTOLIC
PULSE
TAKING YOUR BLOOD PRESSURE

E-7
WHAT IS AN IRREGULAR HEARTBEAT
The UB-521 Blood Pressure Monitor provides a blood pressure and pulse
rate measurement even when an irregular heartbeat occurs. The Irregular
Heartbeat symbol will appear in the display window in the event
an Irregular Heartbeat has occurred during measurement. An irregular
heartbeat is defined as a heartbeat that varies by 25% from the average
of all heartbeat intervals during the blood pressure measurement. It is
important that you relax, remain still and refrain from talking during
measurements.
NOTE: We recommend contacting your physician if you see this symbol frequently.
ABOUT CUFF INFLATION METER
The Cuff Inflation Meter is located on the left side of the display screen
to tell you when the blood pressure monitor is inflating the cuff. The Cuff
Inflation Meter moves up during inflation.
Inflation in Progress Inflation/Measurement
Complete
Measurement Displayed
NOTE: The motor will inflate the cuff at a slow speed starting at 20mmHg to begin the blood pressure
measurement process.

LifeSource Health Line (Toll-Free): 1-888-726-9966
E-8
The UB-521 provides an average blood pressure reading
based on the total measurements stored in memory. When
taking a measurement, the average blood pressure reading
will appear and the number of measurements stored in
memory will flash several times before the cuff begins
to inflate. The average blood pressure reading will also
appear briefly when you recall the measurements stored in
memory.
The Pressure Rating Indicator™ is a feature
which provides a snapshot of your blood pressure
classification based on your measurements.
This will let you quickly know what your blood
pressure readings mean. Each segment of the bar
indicator corresponds to the Seventh Report of the
Joint National Committee (JNC7) on Prevention,
Evaluation and Treatment of High Blood Pressure
from the National Heart, Lung and Blood Institute
- May 2003. For a more detailed look at this blood
pressure classification, please refer to “Assessing
High Blood Pressure” on page E-11.
:The indicator displays a segment, based on the current measurement,
corresponding to the JNC7 Classification.
NOTE: Due to other risk factors (e.g. diabetes, obesity, smoking, etc.) in addition to your blood pressure
measurement, the Pressure Rating Indicator is approximate. Please consult with your physician for
interpretation and diagnosis of your blood pressure measurements.
NOTE: Residents outside of the United States (e.g.. Canada and Mexico) should refer to the WHO
Classification Table on page E-11 for assessment of their blood pressure measurement.
NUMBER OF MEASUREMENTS STORED IN MEMORY
AVERAGE
ABOUT PRESSURE RATING INDICATOR™
ABOUT AVERAGE READING

E-9
ABOUT MEMORY
The UB-521 automatically stores up to (90) blood pressure and pulse
measurements in its memory. Measurements stored in memory are
assigned an index number in the order of the newest to the oldest. The
oldest reading displays as "n01".
To retrieve readings, follow these simple steps:
1. When the display screen is blank, press and hold the
START button. While holding down the START button,
you will see the average reading displayed first. You
will then see the memory index number (e.g. n04) of
the most recent reading followed by the measurement.
Release the START button when you see the memory
index number.
2. The display will shut off automatically a few seconds
after all of the readings are displayed. To turn off the
monitor at any time, press the START button.
3. The display will shut off automatically a few seconds
after the readings are displayed.
If there are no measurements stored in memory, two 0s
displayed vertically followed by a blinking "A00"
To clear the measurement history from memory,
remove the battery from the unit and then place the
battery back into the battery holder.
NOTE: Memory will be lost if batteries become low or are removed.

LifeSource Health Line (Toll-Free): 1-888-726-9966
E-10
What Is Blood Pressure?
Blood pressure is the force exerted by blood against the walls of the
arteries. Systolic pressure occurs when the heart contracts; diastolic
pressure occurs when the heart expands. Blood pressure is measured in
millimeters of mercury (mmHg).
What Affects Blood Pressure?
Blood pressure is affected by many factors: age, weight, time of day,
activity level, climate, altitude and season. Certain activities can signifi-
cantly alter one’s blood pressure. Walking can raise systolic pressure by
12 mmHg and diastolic pressure by 5.5 mmHg. Sleeping can decrease
systolic blood pressure by as much as 10 mmHg. Taking your blood
pressure repeatedly without waiting an interval of 5 minutes between
readings, or without raising your arm to allow blood to flow back to the
heart, can also affect it.
In addition to these factors, beverages containing caffeine or alcohol,
certain medications, emotional stress and even tight-fitting clothes can
make a difference in the readings.

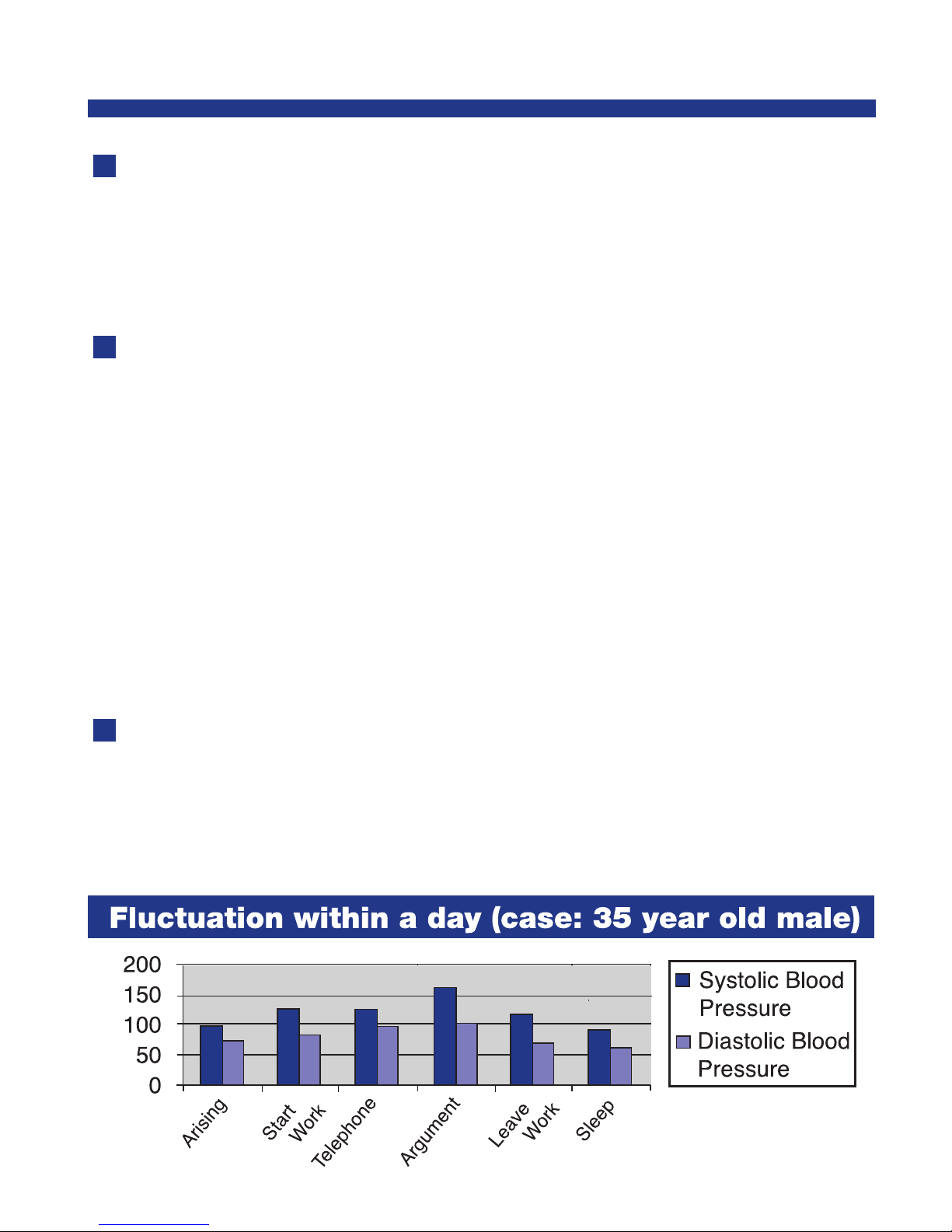

What Causes Variations In Blood Pressure?
An individual’s blood pressure varies greatly from day to day and season
to season. For hypersensitive individuals, these variations are even more
pronounced. Normally, blood pressure rises during work or play and falls
to its lowest levels during sleep.
ABOUT BLOOD PRESSURE

E-11
ABOUT BLOOD PRESSURE
Assessing High Blood Pressure for Adults
The following standards for assessing high blood pressure (without
regard to age or gender) have been established as a guideline. Please note
that other risk factors (e.g. diabetes, obesity, smoking, etc.) need to be
taken into consideration and may affect these figures. Consult with your
physician for an accurate assessment.
JNC7 Classification Table – for adults within the U.S
BP Classification Systolic (mmHg) Diastolic (mmHg)
Normal less than 120 and less than 80
Prehypertension 120-139 or 80-89
Stage 1 Hypertension 140-159 or 90-99
Stage 2 Hypertension 160 or 100
SOURCE: The Seventh Report of the Joint National Committee on Prevention, Evaluation and Treatment
of High Blood Pressure for adults. National Heart, Lung and Blood Institute - May 2003.
WHO Classification Table – for adults outside of the U.S.
(e.g. Canada, Mexico)
BP Classification Systolic (mmHg) Diastolic (mmHg)
Optimal less than 120 and less than 80
Normal less than 130 or less than 85
High-Normal 130-139 or 85-89
Stage 1 Hypertension 140-159 or 90-99
Stage 2 Hypertension 160-179 or 100-109
Stage 3 Hypertension 180 or 110
SOURCE: Standards to assess high blood pressure, without regard to age or gender, have been
established by the World Health Organization (WHO).
greater than
or equal to
greater than
or equal to
greater than
or equal to greater than or equal to

LifeSource Health Line (Toll-Free): 1-888-726-9966
E-12
What Is Hypertension?
Hypertension (high blood pressure) is the diagnosis given when readings
consistently rise above normal. It is well known that hypertension can
lead to stroke, heart attack or other illness if left untreated. Referred to as a
“silent killer” because it does not always produce symptoms that alert you
to the problem, hypertension is treatable when diagnosed early.
Can Hypertension Be Controlled?
In many individuals, hypertension can be controlled by altering lifestyle
and minimizing stress, and by appropriate medication prescribed and
monitored by your doctor. The American Heart Association recommends
the following lifestyle suggestions to prevent or control hypertension:
Don’t smoke. Have regular
Reduce salt and fat intake. physical checkups.
Maintain proper weight. Monitor your blood
Exercise routinely. pressure at periodic
intervals.
Why Measure Blood Pressure at Home?
It is now well known that, for many individuals, blood pressure readings
taken in a doctor’s office or hospital setting might be elevated as a result
of apprehension and anxiety. This response is commonly called “white
coat hypertension.”
In any case, self-measurement at home supplements your doctor’s
readings and provides a more accurate, complete blood pressure history.
In addition, clinical studies have shown that the detection and treatment
of hypertension is improved when patients both consult their physicians
and monitor their own blood pressure at home.
ABOUT BLOOD PRESSURE

E-13
ABOUT BLOOD PRESSURE
Answers to Why Your Readings are Different Between Home
and at the Doctor’s Office
Why are my readings different between home and at a doctor’s office?
Your blood pressure readings taken in a doctor’s office or hospital setting
may be elevated as a result of apprehension and anxiety. This response is
known as white coat hypertension.
When I bring my monitor to a doctor’s office, why do I get a different
measurement from my monitor to that taken by a doctor or nurse?
The healthcare professional may be using a different sized cuff. The size of
the bladder inside the cuff is critical for the accuracy of the measurement.
This may give you a different reading. A cuff too large will produce
a reading that is lower than the correct blood pressure; a cuff that is
too small will produce a reading that is higher than the correct blood
pressure. There may also be other factors that can cause the difference in
measurements.
Keys to Successful Monitoring:
Blood pressure fluctuates throughout the day. We recommend that you are
consistent in your daily measurement routine:
• Measure at the same time every day.
• Sit in the same chair/position.
• Do not cross legs and keep your feet flat on the floor.
• Relax for 5 minutes before measurement.
• Use the correct cuff size to get an accurate reading.
• Sit still during measurement – no talking, eating or sudden
movements.
• Record your measurement in a logbook.

LifeSource Health Line (Toll-Free): 1-888-726-9966
E-14
Establishing Baseline Measurements
The most important method to get an accurate blood pressure
measurement is consistency. To get the most benefit out of your monitor,
it is important to establish a “baseline measurement.” This helps build a
foundation of measurements that you can use to compare against future
readings. To build this baseline measurement, devote two weeks for
consistent blood pressure monitoring. This involves doing everything
the same way when you measure (e.g. measuring during the same time
of day, in the same location, sitting in the same chair, using the same
cuff, etc.). Once you establish your baseline measurement, you can start
evaluating if your measurement has been affected based on things like
lifestyle changes or medication treatment.
How Do I Record My Blood Pressure?
Blood pressure readings are typically recorded with the systolic pressure
written first, followed by a slash mark and the diastolic pressure. For
example, 120 mmHg systolic and 80 mmHg diastolic measurements are
written as 120/80. Pulse is simply written with the letter “P” followed by
the pulse rate—P 72, for example. Please see the back of the manual for
the blood pressure tracking record.
Customer Support Tools Online
Additional tools are available on www.LifeSourceOnline.com to help you
get the most out of your blood pressure monitoring. These include:
• Large Print Instruction Manuals
• Animated Operating Instructions for select models
• Additional Logbook Sheets
ABOUT BLOOD PRESSURE

E-15
TROUBLESHOOTING
Corrective action
Replace all batteries with
new ones. Alkaline batteries
recommended.
Reinstall the batteries with
negative and positive terminals
matching those indicated in the
battery compartment.
Replace all batteries with
new ones. Alkaline batteries
recommended.
Fasten the cuff correctly.
Make sure you remain very
still and quiet during the
measurement.
Sit comfortably and still. Make
sure the cuff is at the same level
as your heart.
See Pg. E-13 "Answers to Why
Your Readings are Different
Between Home and at the
Doctor's Office."
See Pg. E-12 "Why Measure Blood
Pressure at Home?"
Probable cause
Batteries are drained.
Battery terminals
are not in the correct
position.
Battery voltage is
too low. Low battery
symbol blinks. [If the
batteries are drained
completely, the mark
does not appear.]
The cuff is not fastened
properly.
You moved your arm
or body during the
measurement.
The cuff position is not
correct.
The healthcare profes-
sional may be using a
different sized cuff.
Your measurements
may be elevated
by white coat
hypertension.
Problem
Nothing appears
in the display,
even when the
power is turned
on.
The cuff does not
inflate.
The unit does
not measure.
Readings are too
high or too low.
The value is
different from
that measured
at a clinic or
doctor’s office.
NOTE: If the actions described above do not solve the problem, call 1-888-726-9966. Do not attempt
to repair the device yourself.

LifeSource Health Line (Toll-Free): 1-888-726-9966
E-16
Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .UB-521
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Oscillometric
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Digital, 9/7-mm character
height, Pressure/Pulse displayed
simultaneously
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90 readings
Measurement range . . . . . . . . . . . . . . . . . . . . .Pressure: 20 mmHg to 280
mmHg
Pulse: 40 pulses to 180pulses/
minute
Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pressure: ± 3 mmHg or ± 2%,
whichever is greater, Pulse: ± 5%
Pressurization . . . . . . . . . . . . . . . . . . . . . . . . .Automatic, using micropump
Deflation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Automatically by solenoid valve
Power source . . . . . . . . . . . . . . . . . . . . . . . . . .2 type AAA (1.5 volt)
alkaline batteries (included)
Battery life . . . . . . . . . . . . . . . . . . . . . . . . . . . .Approximately 400
measurements
Operating environment . . . . . . . . . . . . . . . . . .50ºF to 104ºF (10ºC to 40ºC)
Less than 95% relative humidity
Storage environment . . . . . . . . . . . . . . . . . . . .14ºF to 140ºF (-10ºC to 60ºC)
Less than 95% relative humidity
Wrist Circumference Range . . . . . . . . . . . . . .5.3 – 8.5” (13.5 – 21.5 cm)
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . .Length: 1.2” (30 mm)
Width: 2.4” (60 mm)
Height: 2.6” (65 mm)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.2 oz. (89 g) without batteries
Blood pressure measurements determined by the UB-521 are equivalent to those obtained by a trained
observer using the cuff/stethoscope auscultation method within the limits prescribed by the American
National Standards Institute for electronic or automated sphygmomanometers.
SPECIFICATIONS
