LK58 WARRIGAL PERGOLA
CUBBY HOUSE
OWNER'S MANUAL
IMPORTANT:
This product may contain sharp points and small parts prior to assembly.
The owner’s manual contains safety, assembly, use and maintenance instructions. This product must be assembled by an adult
who has read and understood these instructions. Keep the packaging away from children and dispose of all packaging before
use.
For the installer and your children’s safety, it is important to fully read and understand the instructions and safety hazards before
commencing the assembly of the product.
WARNING!
The disassembled product
may contain small parts
which pose a choking hazard
to children under 18 months.

2
TABLE OF CONTENTS
1. GENERAL SAFETY 3
1.1 DANGER FOR CHILDREN 3
1.2 RISK OF INJURIES 3
1.3 PRODUCT DAMAGE 3
1.4 ASSEMBLY ADVICE 3
2. SAFETY INSTRUCTIONS 4
3. ASSEMBLY INSTRUCTIONS 7
4. MAINTENANCE 15
5. CLEANING 17
6. WARRANTY 17

3
1 GENERAL SAFETY
This product is intended for indoor and outdoor domestic use only.
1.1 DANGER FOR CHILDREN
WARNING! No eating while using the product
•Children do not recognize potential dangers from this product. The product must be stored out of
reach of children and pets.
•This product may only be used with adult supervision at all times.
•The packaging material is not suitable for children due to choking and suffocation hazards.
1.2 RISK OF INJURIES
•Do not use the product if it is damaged or defective. If it is damaged or defective, please contact a
qualified technician.
•Check the product before each use. Defective parts must be changed immediately as they can
impair the function and the safety of the product.
•No more than one person to use the product at the same time.
•Use the product only on even and non-slipping surfaces. Never use it near water and keep sufficient
space around for safety.
•Beware of moving parts such as the springs or elastics, which could catch your arms and legs. Do
not place any objects or body parts in the product’s openings.
1.3 PRODUCT DAMAGE
•Do not make alterations to the product. Only use original spare parts. Qualified technicians should
only carry out repairs – improper repairs can lead to danger for the user. Use this product only as
described in this manual.
1.4 ASSEMBLY ADVICE
•The assembly of the product must be done carefully and by an able-bodied adult. If in any doubt,
ask a technically qualified person.
•Before you start with the assembly, read the instructions carefully.
•Remove all packaging materials and lay down all parts on an open space. This gives you an
overview and simplifies the assembly procedure.
•Check with the parts list that all parts are available. Dispose of the packaging material when the
assembly is completed.
•Beware that when using tools or doing technical work, there is always a risk of injuries. Assemble
the product with care.
•Create a danger free environment; for example, do not let tools lay around the workspace. Store the
packaging material in a way that cannot cause any danger.

4
•After installing the product according to the instruction manual, en sure all screws, bolts and nuts
are correctly installed and tightened and that all joints are secure.
•Reasonable space must be kept between the product and possible sources of danger, such as
other equipment swimming pools and fences.
•The product must be assembled correctly before use.
•Your play structure must be installed on a flat horizontal surface with a minimum of 2m between it
and any structure or obstacle such as a fence, garage house, tree branches, cloths lines, or electric
cables.
•Modifications made to the original product shall be carried out according to the instructions of the
manufacturer.
•The product must always be used in a well-lit area.
•Do not place anything under the product.
•Use gloves during assembly and disassembly.
•Outdoor products should be equipped with a device that in strong wind conditions avoid
displacement due to wind (e.g. steel bars in the ground or loads like sand bag or water bags).
•In certain areas during winter, snow buildup and the low temperatures can damage the product. It is
recommended to remove snow buildup and to store the product indoor.
•We strongly recommend visual inspections every 3 months to insure the integrity of the entire
product. Replace any parts as necessary.
2 SAFETY INSTRUCTIONS
•The safety instructions of the product should always be considered and obeyed.
•Using the product may result in permanent injury such as paralysis, or even death. Falling off the
product may lead to injuries, particularly to the back, neck or head.
•No clothes with hooks or lose parts should be worn or carried during product usage in order to avoid
hooks getting caught and causing injury.
•Strong winds can result in the product being blown away or damaged. If strong winds are predicted
the product must be disassembled and moved to a sheltered area or sufficiently anchored down.
•Moving the product whilst assembled may affect the integrity of the frame. Should it be necessary to
move the product, please consider the following:
1.) Force to be evenly spaced around the frame to lift the product off the ground
2.) The product must be carried horizontally
3.) Use caution whilst moving as it could bend the product frame.
•Users should be familiar with the assembly manual. This manual contains assembly guidance;
selected precautionary measures as well as recommendations for servicing and maintenance of the
product, in order to ensure a secured and fun use of the product.
•It is the responsibility of the owner or the supervisor to guarantee that all users of the product are
informed sufficiently of all warning references and safety instructions.

5
For the supervisor:
The supervisor’s role is to make sure users are aware of all safety precautions and that these precautions
are enforced. When a supervisor is not available, the product may be disassembled or covered to limit
access.
•The product can be only used if it is in good condition, worn or damaged parts should be replaced.
•Objects, which could be dangerous to the user, should be away from the product
•Avoid unauthorized and unsupervised use of the product.
•Do not use the product under influence of alcohol or drugs (incl. medicines).
•Do not use the product as a jumping platform for other articles.

6
Consumer Information Sheet for Playground Surfacing Materials
The US Consumer Product Safety Commission (CPSC) estimates that about 100 000 playground
equipment-related injuries resulting from falls to the ground surface are treated annually in US hospital
emergency rooms. Injuries involving this hazard pattern tend to be among the most serious of all
playground injuries, and have the potential to be fatal, particularly when the injury is to the head. The
surface under and around playground equipment can be a major factor in determining the injury-causing
potential of a fall. It is self-evident that a fall on to a shock-absorbing surface is less likely to cause a
serious injury than a fall onto a hard surface. Playground equipment should never be placed on hard
surfaces, such as concrete or asphalt, and while grass may appear to be acceptable, it may quickly turn to
hard-packed earth in areas of high traffic. Shredded bark mulch, wood chips, tine sand or the gravel are
considered to be acceptable shock absorbing surfaces when installed and maintained at a sufficient depth
under and around playground equipment.
Table B.1 lists the maximum height from which a child would not be expected to sustain a life-threatening
head injury in a fall on to four different loose-fill surfacing materials if they are Installed and maintained at
depths of 150 mm, 225 mm and 300 mm.
Table B.1: Fall height in millimetres from which a life-threatening head injury would not be expected
However, it should be recognised that all injuries due to falls cannot be prevented, no matter what surfacing
material is used.
It is recommended that a shock absorbing material extend a minimum of 1 800 mm in all directions from the
perimeter of stationary equipment such as climbing frames and slides. However, because children may
deliberately jump from a moving swing, the shock absorbing material should extend in the front and rear of
a swing a minimum distance of twice the height of the pivot point measured from a point directly beneath
the pivot on the supporting structure.
This information is intended to assist in comparing the relative shock-absorbing properties of various
materials. No particular material is recommended over another. However, each material is only effective
when properly maintained. Materials should be checked periodically and replenished to maintain correct
depth as determined necessary for the equipment in question. The choice of a material depends on the
type and height of the playground equipment, the availability of the material in a particular area, and its
cost.
Type of Material Depth of surfacing material
150mm
225mm
300mm
Double Shredded Bark Mulch
1800
3000
3300
Wood Chips
1800
2100
3600
Fine Sand
1500
1500
2700
Fine Gravel
1800
2100
3000

7
3 ASSEMBLY INSTRUCTIONS

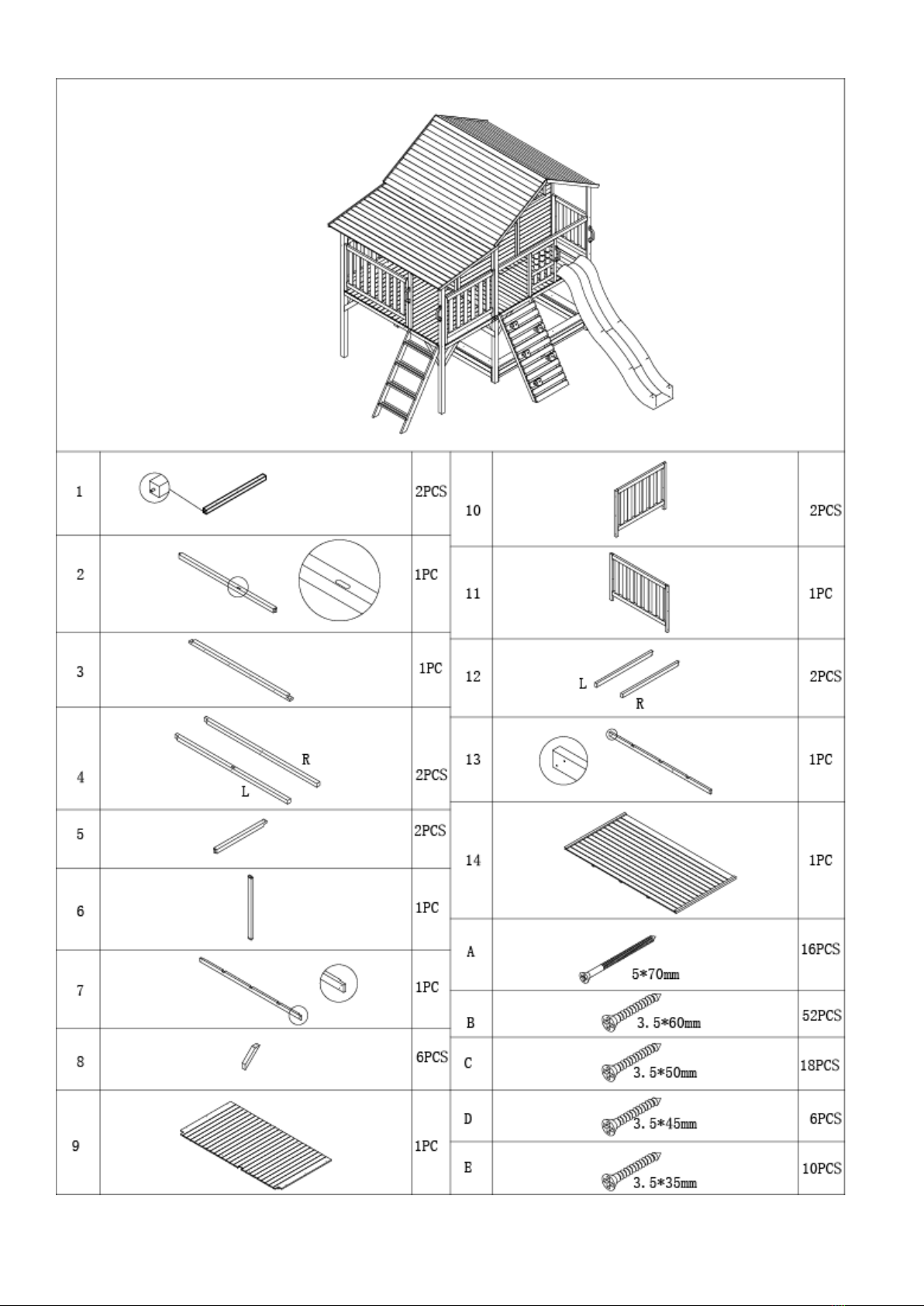

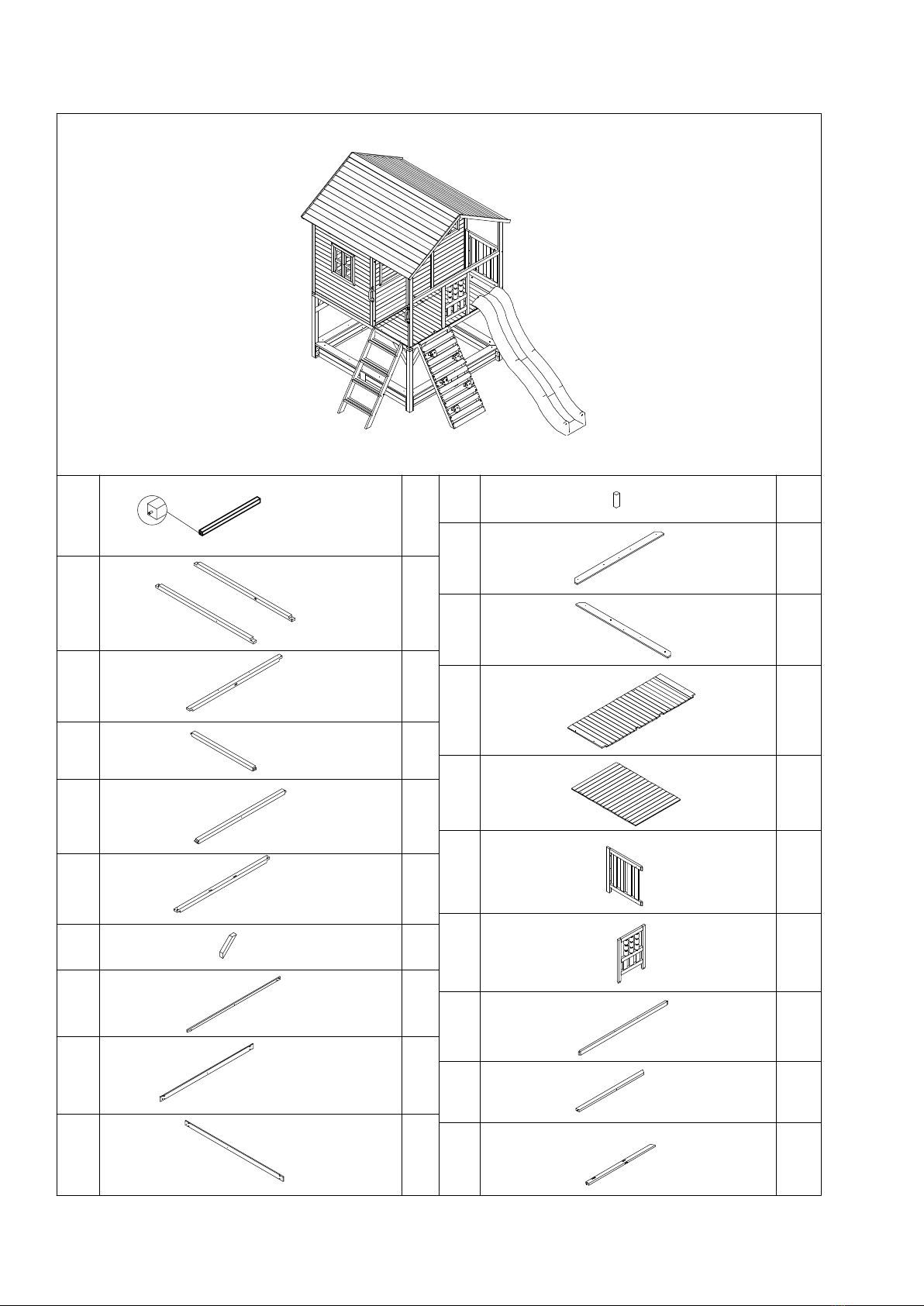

Part 1 – Cubby House Set Up
14PCS
2 2PCS
31PC
41PC
51PC
61PC
78PCS
84PCS
94PCS
10 6PCS
11 4PCS
12 2PCS
13 2PCS
14 1PC
15 2PCS
16 1PC
17 1PC
18 1PC
19 1PC
20 1PC

8

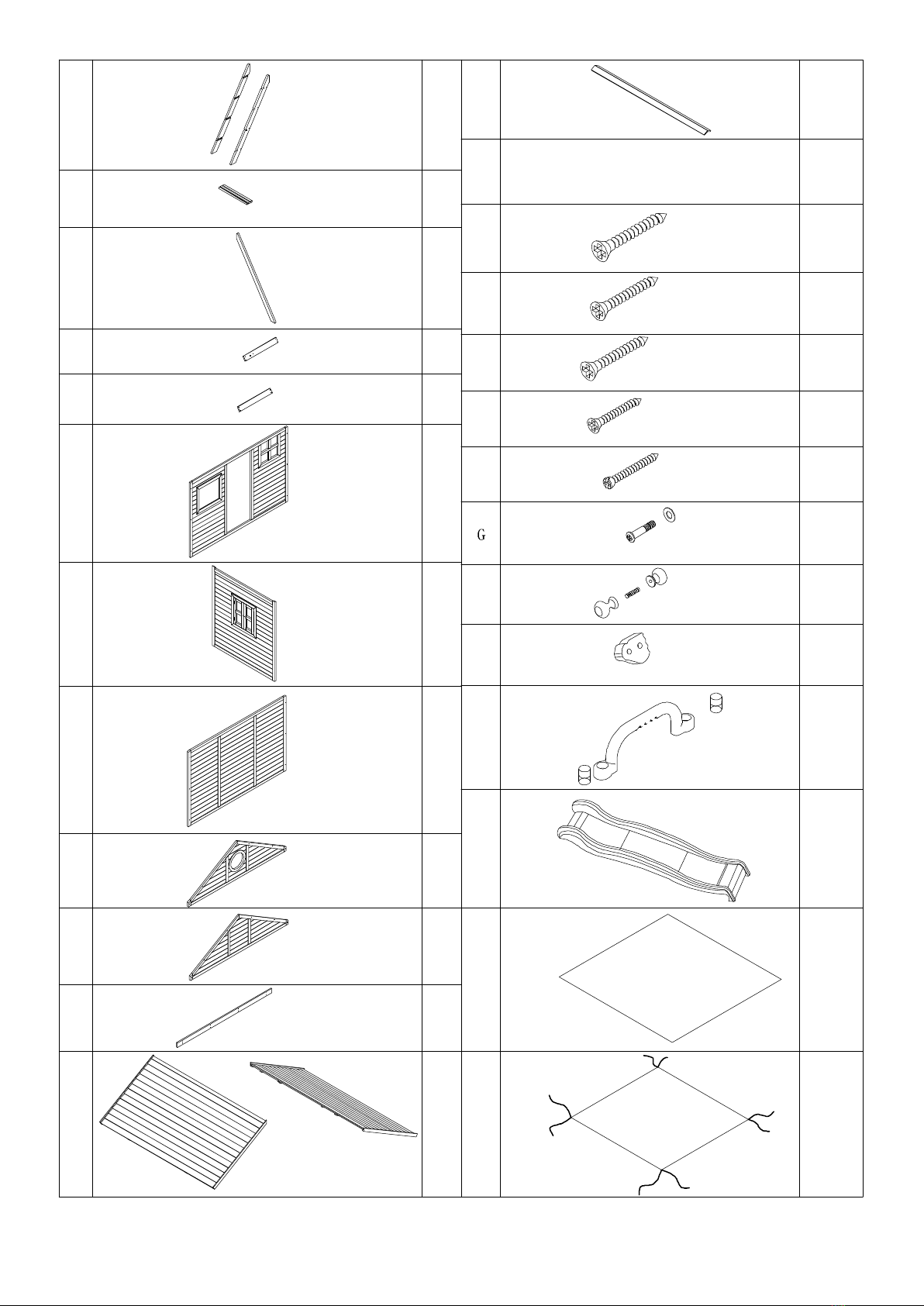

∅3.5*60mm
B
∅3.5*45mm
C
∅
3.5*35mm
D
∅
6*35mm
H
18PCS
53PCS
F
32PCS
154PCS
10PCS
4PCS
J
4PCS
K
1PC
∅3*28mm
E
8PCS
I
5PCS
∅8*30mm
10pcs
LR
21 2PCS
22 4PCS
23 2PCS
24 5PCS
25 7PCS
26 1PC
27 2PCS
28 1PC
29 1PC
30 1PC
31 2PCS
32 2PCS
33 1PC
L
1PC
M
1PC

9
1
B
7
B

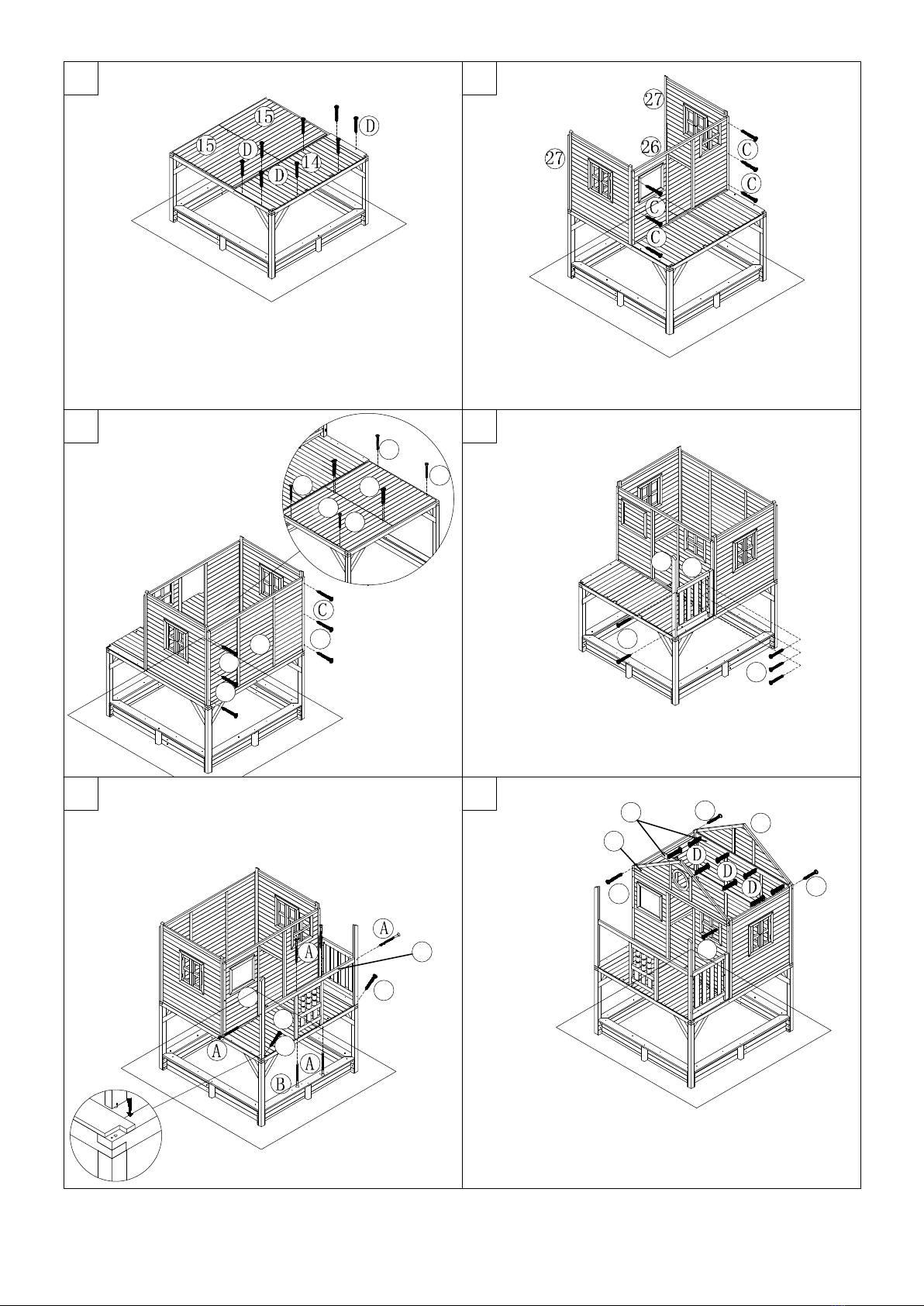

1 2
3 4
5 6
1
1
1
2
2
B
B
B
B
6
3
4
5
A
A
8
10
10
DDD
D
D
D
D
11 11
11
D
12
D
9
C
C
C
C
D
78
L
D
DD
D
D

10
D
D
15
15
9 10
11 11
12 13
B
20
19
18
17
C
C
C
28
C
C
C
B
16
31 30
29
C
D
D
C
B

11

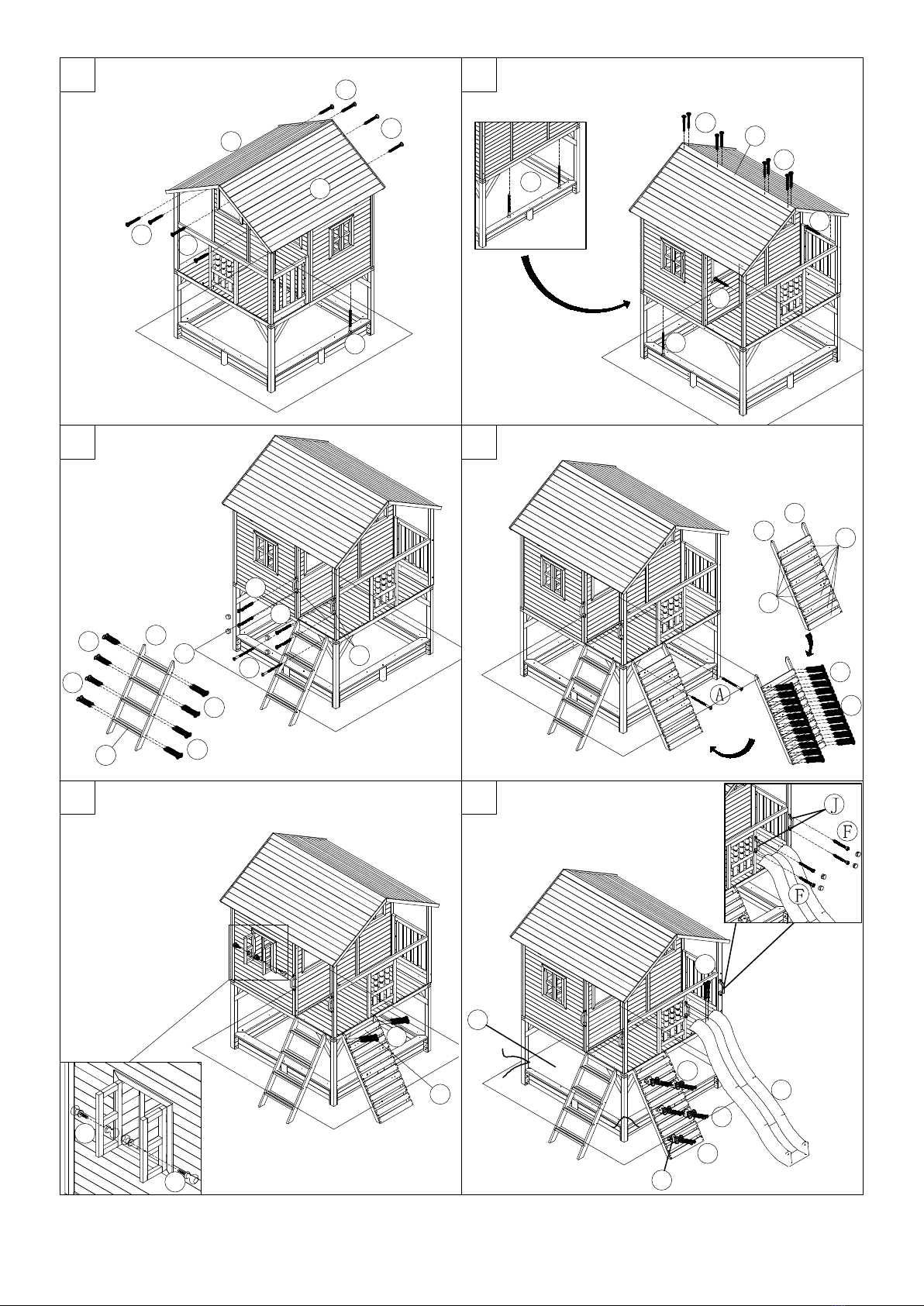

13 14
15 16
17 18
CC
C
C
32
32
E
E
33
C
C
D
D
D
DA
21
21
22
F
F
J
23
23 25
24
D
D
D
H
H
F
K
G
G
G
25
A
A
A
I
M

12

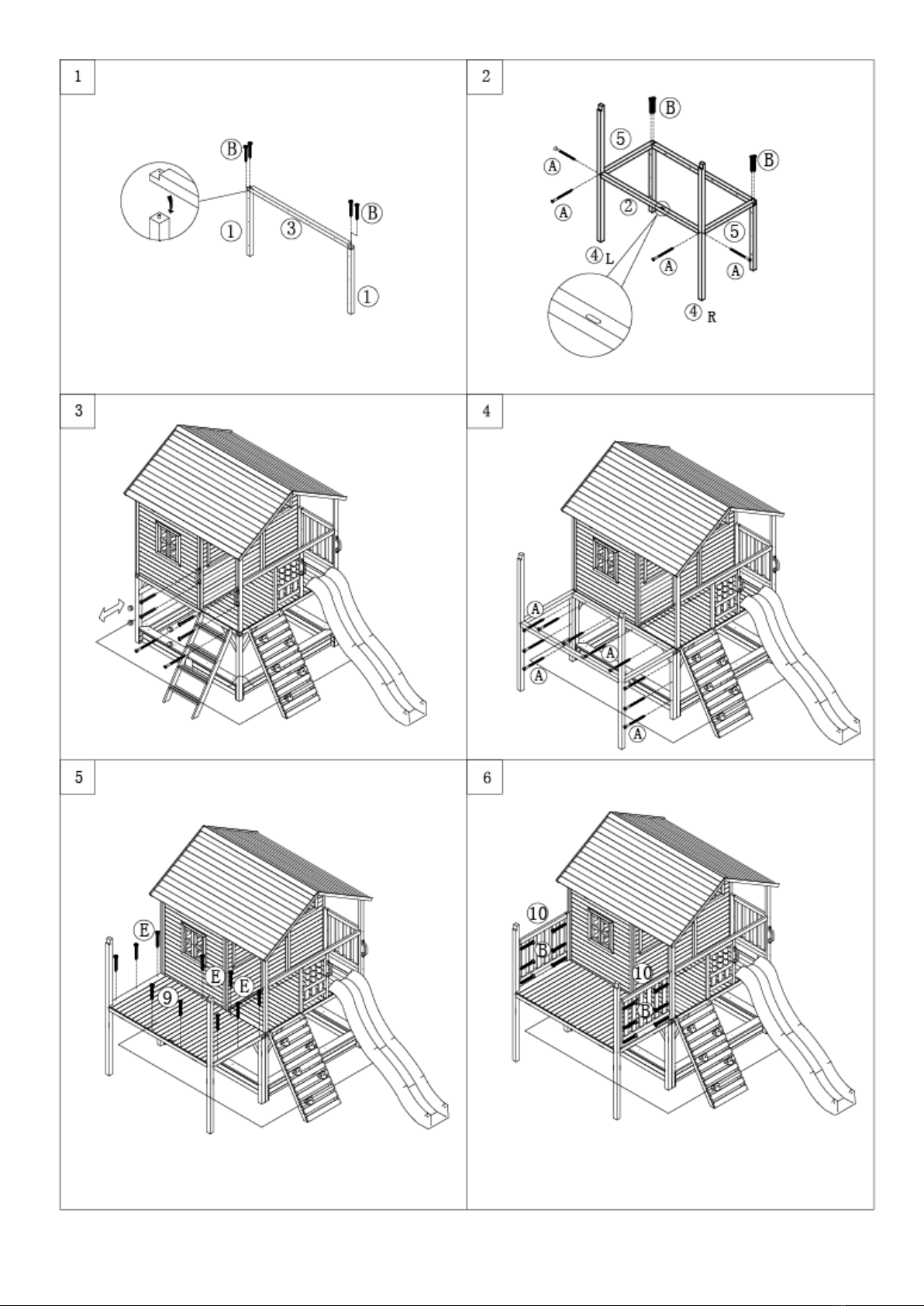

Part 2 – Pergola Set Up

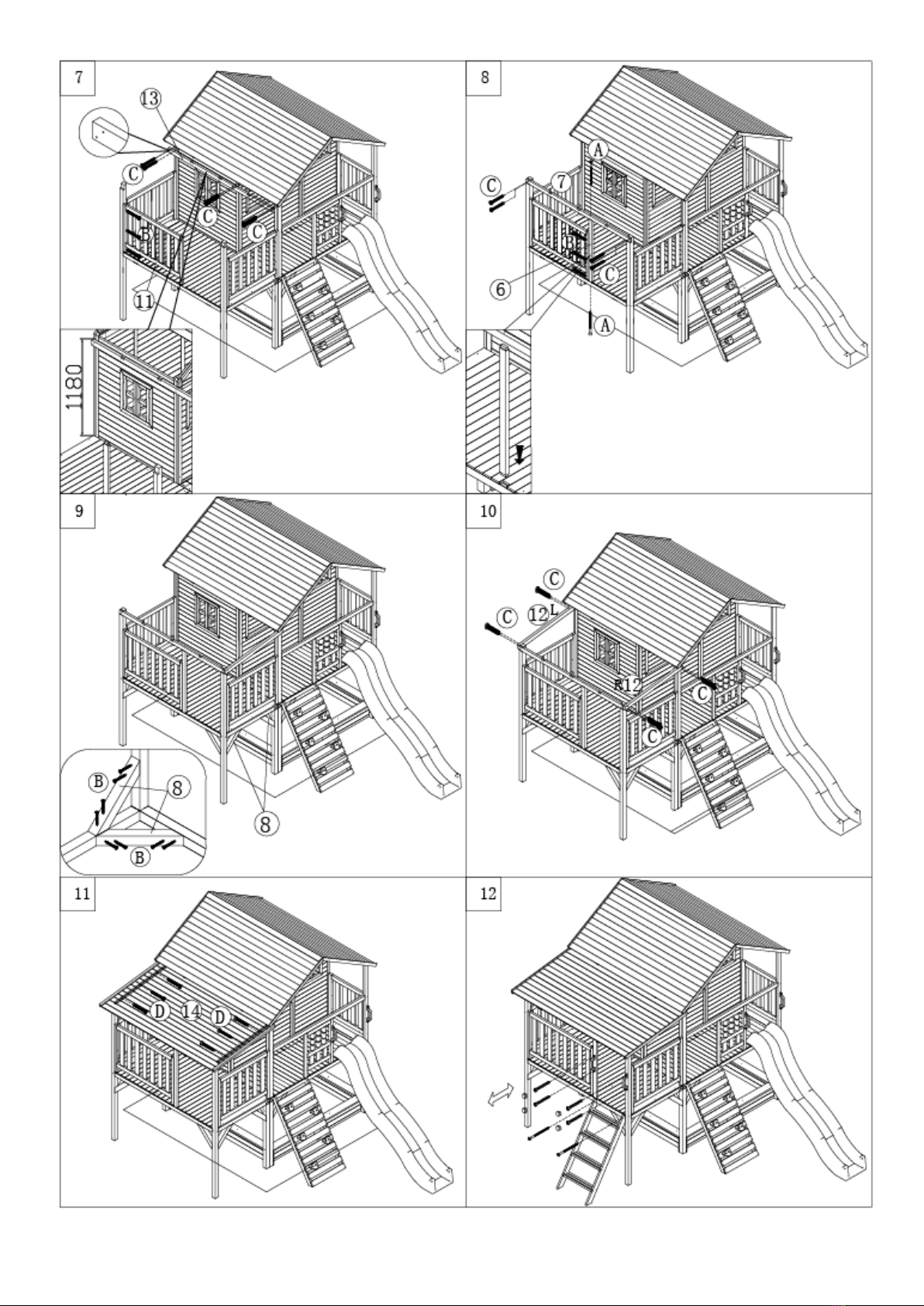

13

14

15
4 MAINTENANCE
WARNING: Please keep for future reference
We recommend regular maintenance to be conducted at the beginning of each season as well as at regular
intervals during the usage session for your play equipment to ensure all main parts/fixings are tightly
secured, well-oiled and intact to avoid failure, injury or hazards.
GENERAL ADVICE
It is of particular importance that this is followed at the beginning of each season as well as at regular
intervals during the usage season.
1. Check the accessories monthly as well as the play equipment’s structure in order to prevent falling
risks.
2. Check and retighten screws, bolts and all other hardware elements as necessary.
a. Do not over tighten to avoid damaging the thread or cracking the surrounding wood.
3. Check all coverings and bolts for sharp edges and replace when required.
4. Lubricate all moving metallic parts.
5. When signs of oxidation and / or rust appear on various metallic parts of your equipment, sand
rusted areas and tubular members and repaint using a non-lead based paint when required.
6. Where applicable: check swing seats, chains, ropes and other means of attachment for evidence of
deterioration.
7. Replace when required in accordance with the owner’s manual.
If your play structure is disassembled, be sure to clearly mark any attached metal plates to prevent
accidents. Check all bolt covers and sharp edges and replace them if necessary.
For longer accessory life, we suggest storing them during the winter.

16
WOOD ADVICE
Our products are manufactured from premium timber. Great care is taking in selecting, machining and treating the
timber before it is sold to you.
1. Inspect wood parts monthly. The grain of the wood sometimes will lift in dry periods causing splinters to
appear. Light sanding may be necessary to maintain a safe environment. Treating your Product with
protection (sealant) after sanding will help prevent severe checking/splitting and other weather damage.
2. We have applied a waterborne translucent stain to your unit. This is done for colour only. Once or twice a
year, depending on your climate conditions, you must apply some type of protection (sealant) to the wood of
your unit. Prior to the application of sealant, lightly sand any “rough” spots on your set. Please note this is a
requirement of your warranty.
Bear in mind that timber is a natural product and may experience changes throughout the course of its life.
It may:
•Develop openings/checks (gaps, slits, apertures, cracks) along the line of the grain.
•Fade as the timber reacts with sunlight.
All woods are hygroscopic, that is, it will absorb or discharge moisture to attain equilibrium with the surrounding
atmosphere. Timber openings/checks occur due to the moisture content between internal and outer surfaces of the
timber. No two pieces of wood are exactly alike. Each piece has its own characteristics and personality and reacts
differently to climate changes. When any wood products are exposed to the elements, it develops 'wood checks'. A
check is the radial separation of the wood fibres running with the grain of the wood. These are caused by the varying
temperature and moisture conditions. A check does not affect the strength or durability of the wood or structural
integrity of the play set.
When should wood cracks be a concern?
Most of the wood splits will never become large enough to affect the reliability and strength of our products, however,
there can be rare cases where splits can occur. This happens when a crack develops past the halfway point from the
timber, splitting it into two separate pieces.
Feel free to contact us with detailed pictures of your product so we can assess and ensure that your playground
remains safe.
Dimensional timbers contain very little heart
wood so less splits can be seen.
Round pole swing set are very thick so that
cracks (shown left) will not affect the strength
and durability of our swing sets.
For more information: http://www.lifespankids.com.au/natural-timber

17
5 CLEANING
Do not use any abrasive cleansers for the cleaning. Use a soft, damp cloth to eliminate dirt and dust.
6 WARRANTY
AUSTRALIAN CONSUMER LAW
Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come
with guarantees that cannot be excluded under the Australian Consumer law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or
damage.
You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. Full details of your consumer rights may be found at
www.consumerlaw.gov.au
Please visit our website to view our full warranty terms and conditions:
http://www.lifespankids.com.au/Warranty-Policy-Kids
Please send all warranty and support inquiries through our ticketing system via the email address:
[email protected].
