Lifestyle Commando Lite User manual

MTC100
Commando Lite
Power Chair
WEIGHT CAPACITY
300 LBS
Available Colors:

USER MANUAL - MTC100 COMMANDO LITE POWER CHAIR
GENERAL EXPLANATION
Joystick Controller
2
Joystick Power
Connector
Backrest
8” Shock Absorbing Caster Wheel
Removable Seat
12.5” Shock
Absorbing
Drive Wheel
Lithium-Ion Battery
Storage Compartment
Foot Platform
Hand Grip
Bottle Holder
Storage Pouch
Anti-Tip Wheels
Motors with Manual
Freewheel Levers
FRONT OF CHAIR
BACK OF CHAIR
Battery Power Connector

TABLE OF CONTENTS
SPECIFICATIONS
ASSEMBLY INSTRUCTIONS
OPERATING INSTRUCTIONS
SAFETY PRECAUTIONS
MAINTENANCE
WARRANTY
3
4-5
6
6-7
7
7
SPECIFICATIONS
NAME
DIMENSION (UNFOLDED/FOLDED)
SEAT DIMENSIONS
BACKREST HEIGHT
SEAT TO FLOOR HEIGHT
MOTOR
BATTERY
MAX SPEED
CHARGER
CHARGING TIME
REAR WHEEL
CASTER
MAXIMUM RANGE
WEIGHT CAPACITY
GROUND CLEARANCE
MAX SLOPE
NET WEIGHT-WITHOUT BATTERY
NET WEIGHT-INCLUDING BATTERY
MTC100 Commando Lite Power Chair
24” W x 41” L / 13.5” W
18” W x 17” D
21”
20”
180W brushless motor (1 pair)
24V 11 AH Lithium Ion Battery
5 mph
High Power 2AH/24V
6 hours
12.5” flat free, shock absorbing
8” flat free, shock absorbing
10 miles
300 lbs
3”
12 degrees
49.6 lbs
54 lbs
3
• Lightweight aircraft aluminum frame
• Removable, breathable seat cushion and backrest
• Electromagnetic braking system changes with free wheel lever
• Flip up armrest for easy transfer
• Foldable foot platform

FIGURE 1 FIGURE 2
To unfold, hold the Hand Grip at the top of the back seat, unfold the Foot Platform,
and push down on the seat until the power chair opens fully. (See Figure 1)
To fold, make sure the power chair is in power mode (See Motors on page 5) and pull
the clip from the frame at the bottom center of the back rest. (See Figure 2)
While holding the Hand Grip, pull the seat up with the other hand until the power
chair is closed. Then fold in the Foot Platform. (See Figure 3)
You can then use the Hand Grip to pull the power chair like luggage (with the
Motor in Free Wheel Mode). The power chair will stand upright (with the Motor in
Power Mode). (See Figure 4)
1
2
3
ASSEMBLY INSTRUCTIONS
4
From the front of the power chair, slide the Battery into the pocket under the seat
pushing the power cord through the back and fasten the velcro tab to hold
the Battery in place.
Installing and Charging the Battery
Read entire manual prior to operating your power chair and save
this manual for future reference. If you do not understand any part of this manual
or require additional assistance, contact your Lifestyle Mobility Aids Dealer.
4
Never connect the battery charger to a power source before connecting it to
the power chair.
Unfolding and Folding your Power Chair
FIGURE 3 FIGURE 4
1
FIGURE 5
Then connect the ends of the power cord at the
bottom center of the back rest and under the
armrest with the joystick. (See Figure 5)
To charge the Battery, connect the Charger into
the charging socket at the back of the Joystick
and then plug the Charger into the power source.
You can also take the Battery out of the pocket
to charge it directly.
2
3

5
The Motors can be changed from Power Mode to Free
Wheel Mode with a manual lever located on each motor.
To engage the Motors, push the two levers inward for
Power Mode.
Pull the two levers outward to disengage the Motors for
Free Wheel Mode. This will allow the power chair to
be pushed by hand.
NOTE: When the power chair is in Freewheel Mode, the braking system
is disengaged and, therefore, should only be used on a level surface.

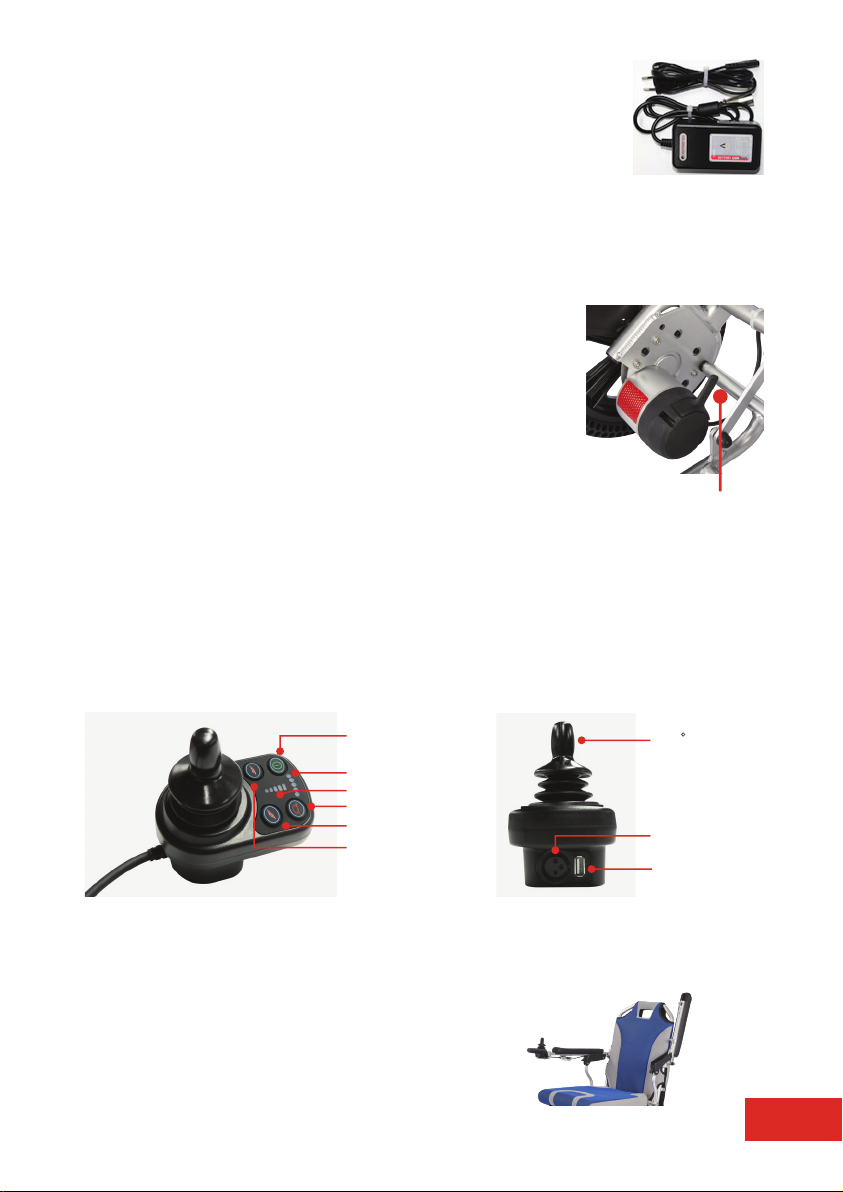

Motors
Manual Lever
The Joystick Controller can be adjusted to a comfortable length and also changed
to either armrest using the quick release lever under the armrest.
In addition to the charging port, the Joystick also has a USB port.
Joystick Controller
Power Switch
Horn
Battery Display
TOP OF CONTROLLER BACK OF CONTROLLER
Speed Display
Accelerate
Decelerate
USB Port
Charging Port
360 Spin
Padded armrests flip up for easy transfer
in and out of the power chair.
(See Figure 6)
Padded Armrest
FIGURE 6
The Charger indicator lights will be red before charging, change to
yellow while charging and change to green when fully charged.
The Battery will be fully charged in 6 hours. Unplug the Charger
from the power source before disconnecting from the Battery.
NOTE: To maximize the Battery life, do not leave charging overnight. For
daily use, charge the Battery before it is fully discharged. For infrequent
use, charge once a week for 6 hours.

6
SAFETY PRECAUTIONS
Perform this safety check before each use to make sure your power chair
operates smoothly and safely.
› Check for proper tire inflation
› Check all electrical connections are secure
› Check the brakes
› Check battery charge
› Ensure the manual freewheel levers are in drive mode before sitting on the power chair.
NOTE: If you discover a problem, contact your Lifestyle Mobility Aids Dealer
for assistance.
Lifestyle Mobility Aids is not liable for personal injury or
property damage due to failure to follow the instructions or recommendations
in the manual or improper use this product.
OPERATING INSTRUCTIONS
Do not operate your power chair before reading and
understanding this owner’s manual.
NOTE: Find an open area and have someone help you practice until you are confident
operating the power chair.
The joystick controls speed, braking, and direction. You will need to become familiar
with the settings and sensitivity. Refer to TOP OF CONTROLLER Image (page 5).
Use the Decelerate Button to set the speed to Level 1 until you are comfortable
operating the power chair.
The Joystick is your steering lever. Move the Joystick gently forward to go forward,
backward to reverse and left or right to turn left or right. The further you push the
joystick in any direction, the speed will increase.
To stop, simply release the Joystick and it will automatically return to the center
position. This will bring the power chair smoothly to a stop and the electromagnetic
brake will engage.
Practice moving forward first. Once you are comfortable, practice making “S” turns
and then move on to moving in reverse. When reversing, make sure there are no
obstacles behind you and note that the power chair will move more slowly despite
the speed level setting.
NOTE: Power down when not in use and ALWAYS power down when parked or getting in or
out of the power chair. This will prevent movement from accidental contact with the joystick
or electromagnetic interference with the braking system which could cause injury
to unsuspecting bystanders.
Driving, Steering, and Braking
Pre-Ride Safety Check

MAINTENANCE
Clean with a damp cloth and dust weekly
Never use abrasive cleaners or scouring pads on any part of the power chair.
If any component appears worn or is not working properly, contact your
dealer for repair and/or appropriate replacement parts.
WARRANTY
Limited Lifetime warranty against manufacturing defects. 5 year warranty on Frame. 1 year warranty on
Controller, Motor, and Battery.
This warranty does not cover product failure due to misuse, negligence, improper storage or handling, improper
operation and unauthorized modifications.
It is recommended but not required that the product be returned to the Lifestyle Mobility Aids dealer through
whom it was originally purchased. However, all Lifestyle Mobility Aids Dealers are qualified to assist you in
obtaining warranty service. If the product is to be returned to Lifestyle Mobility Aids, prior authorization will be
required. In the event of a defect covered by this warranty, Lifestyle Mobility Aids will determine if the product will
be repaired or replaced.
This Lifestyle Mobility Aids product is identified by a serial number at the time of manufacture. Removing
or defacing the serial number label may void this warranty. If you have questions about your Lifestyle
Mobility Aids product or this warranty, please contact us at [e-mail].
7
› Make sure the power is off before getting in or out of the power chair.
› Never stand on the footrests to avoid tipping over.
› Do not carry passengers.
› Do not drink and drive. Consult your physician to determine if your medications
may impair your ability.
› Do not drive on roadways, off-road or on soft or uneven surfaces.
› Do not drive near bodies of water or ledges without fencing.
› Do not drive in rain, snow or at night.
› Do not make sudden stops, weave erratically or make sharp turns.
› Keep arms on or inside the armrests and feet on the footrest at all times.
› Do not attempt to climb an incline greater than 10 degrees or climb in reverse.
› Do not get on or off the power chair while on a hill and use low speed
when driving downhill.
If your power chair comes in contact with liquid of any type:
Thoroughly dry with a towel.
Place in a warm, dry place for at least 12 hours to allow liquid to evaporate.
Check the joystick operation and the brakes before using again.
If you discover a problem, contact your Lifestyle Mobility Aids Dealer.
1
2
3
4
NOTE: Power chairs that are frequently exposed to liquids should be inspected
often for corrosion and electronic components may need to be replaced frequently.
