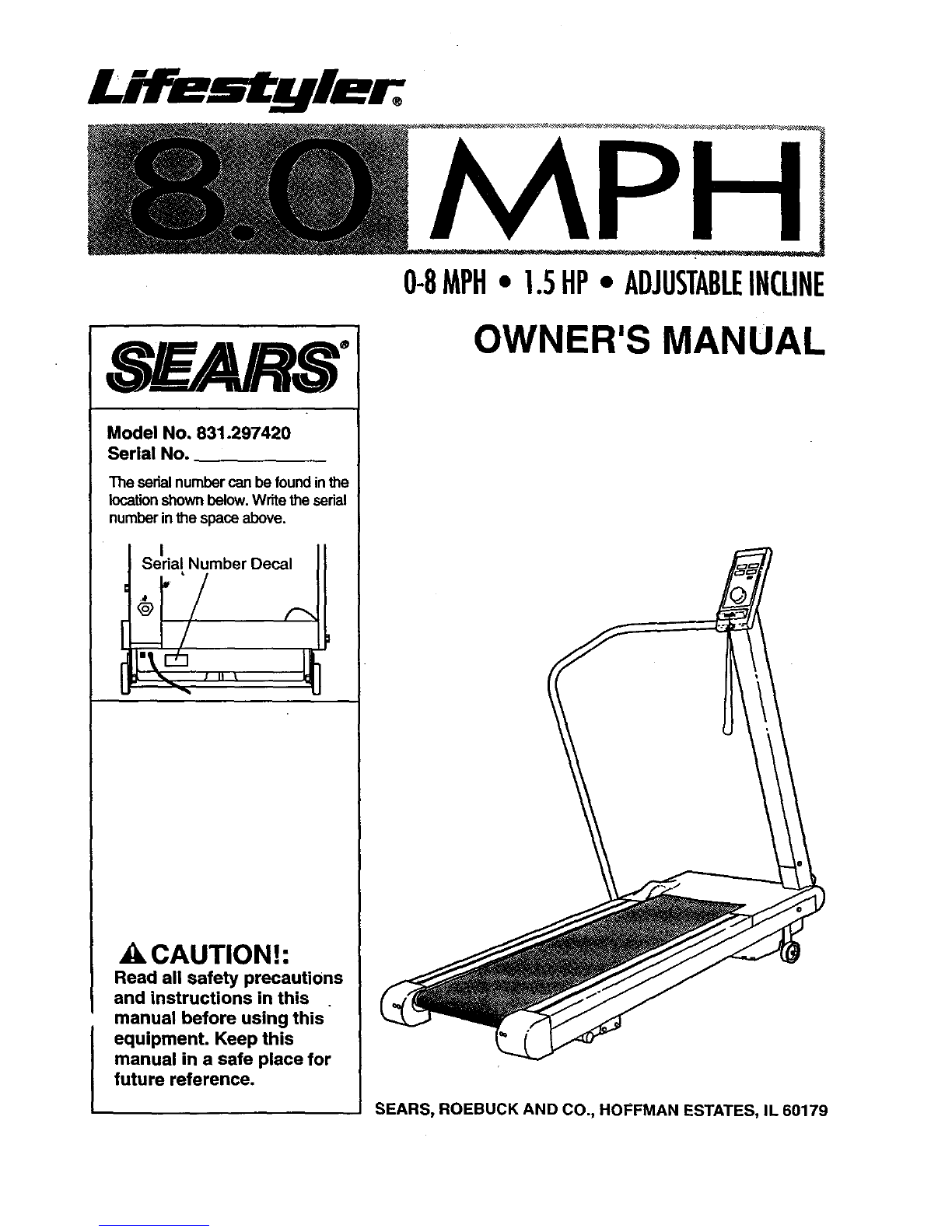

LIFESTYLER 831.297420 User manual

®
0-8MPH°1.5HP°ADJUSTABLEINCLINE
°
Model No. 831.297420
Serial No.
The serialnumber can be found inthe
locationshown below. Write the serial
number in the space above.
I
Sedal Number Decal
_l_CAUTION!:
Read all safety precautions
and instructions in this
manual before using this
equipment. Keep this
manual in a safe place for
future reference.
OWNER'S MANUAL
SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

FULL 90 DAY WARRANTY
For 90 days from the date of purchase, when proper assembly and maintenance procedures
detailed in the Owner's Manual are followed, SEARS will, free of charge, repair or replace and
install a replacement part for any defective part, when this treadmill is used in a normal manner.
This warranty does not apply when this treadmill is used for commercial or rental purposes.
SERVICE IS AVAILABLE SIMPLY BY CONTACTING YOUR NEAREST SEARS SERVICE
CENTEPJDEPARTMENT IN THE UNITED STATES.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
SEARS, ROEBUCK AND CO., DEPT. 817WA,
HOFFMAN ESTATES, IL 60179

®
0-8MPH•1.5HP* ADJUSTABLEINCLINE
TABLE OF CONTENTS
IMPORTANT SAFETY PRECAUTIONS ................................................. 4
BEFORE YOU BEGIN ..... "......................................................... 5
ASSEMBLY ....................................................................... 6
OPERATION AND ADJUSTMENT ..................................................... 7

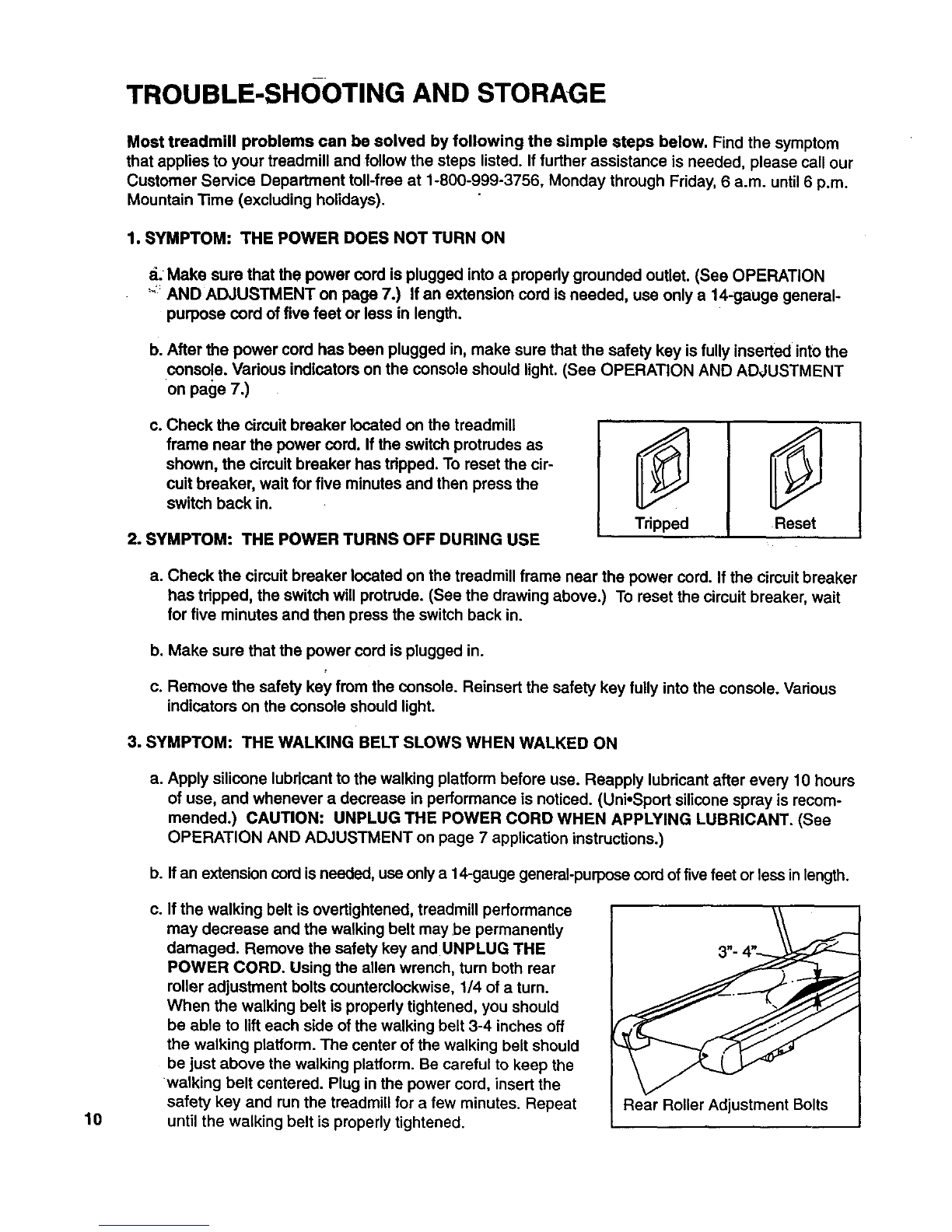

TROUBLE-SHOOTING AND STORAGE ...................................... •......... 10

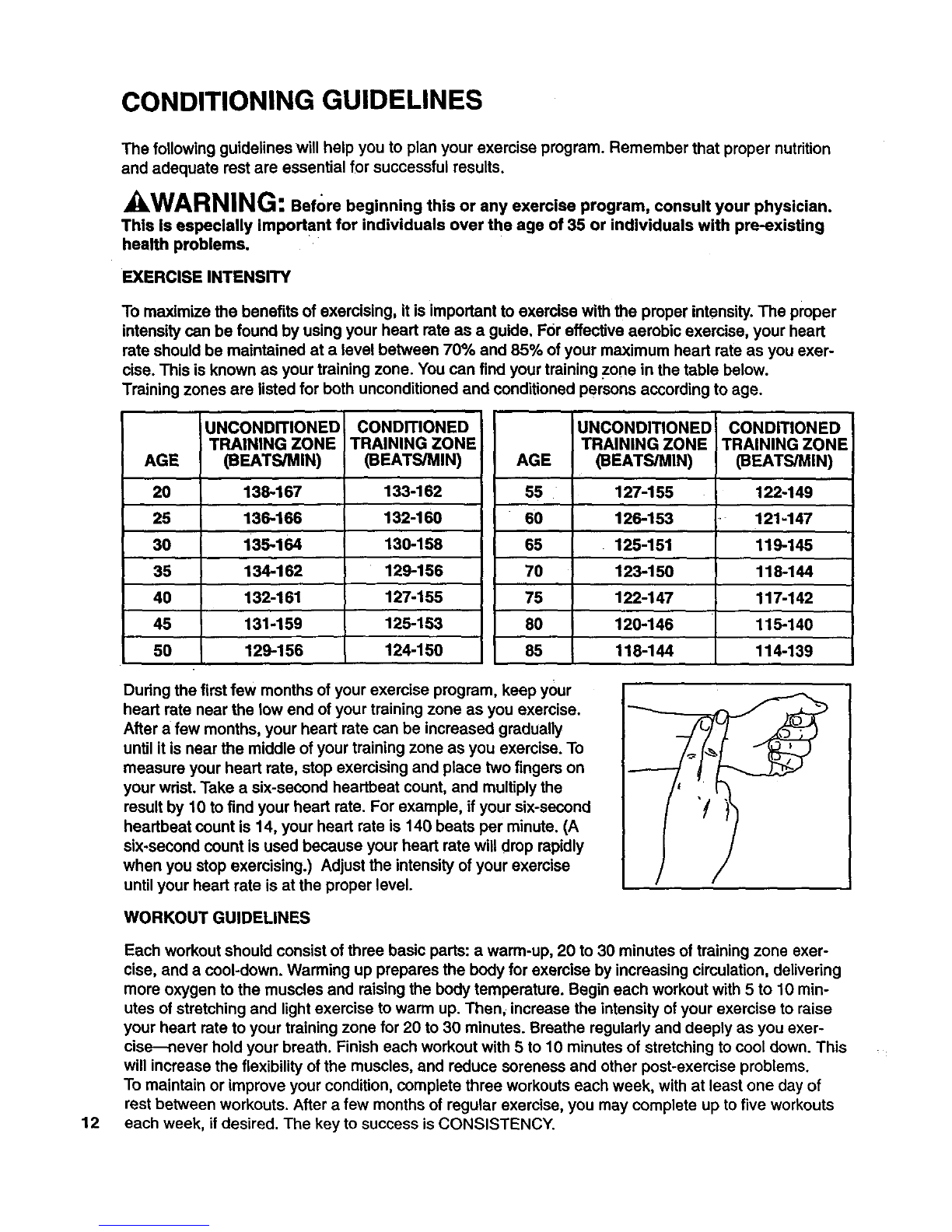

CONDITIONING GUIDELINES ................................................... :.. 12
PART LIST ...................................................................... 14

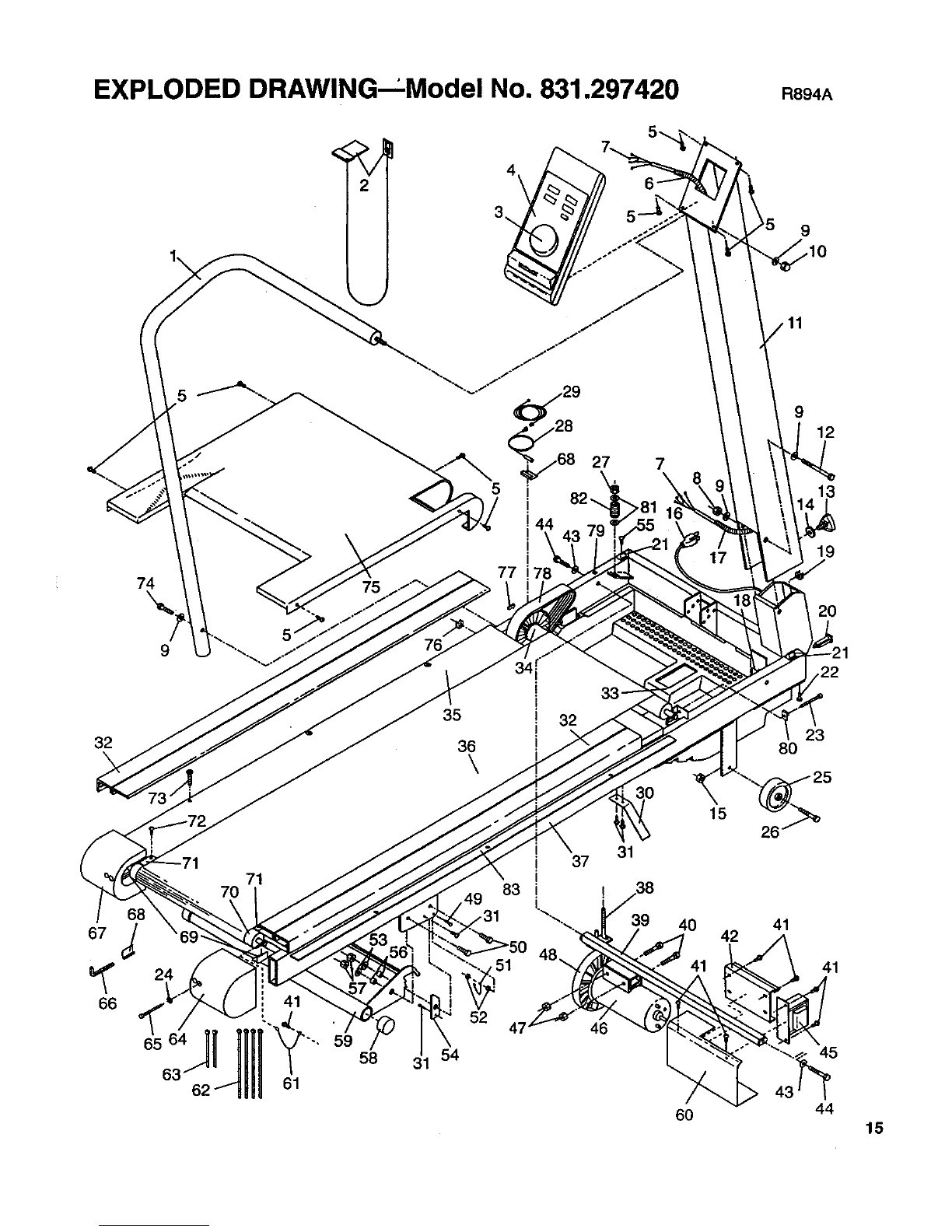

EXPLODED DRAWING ............................................................ 15

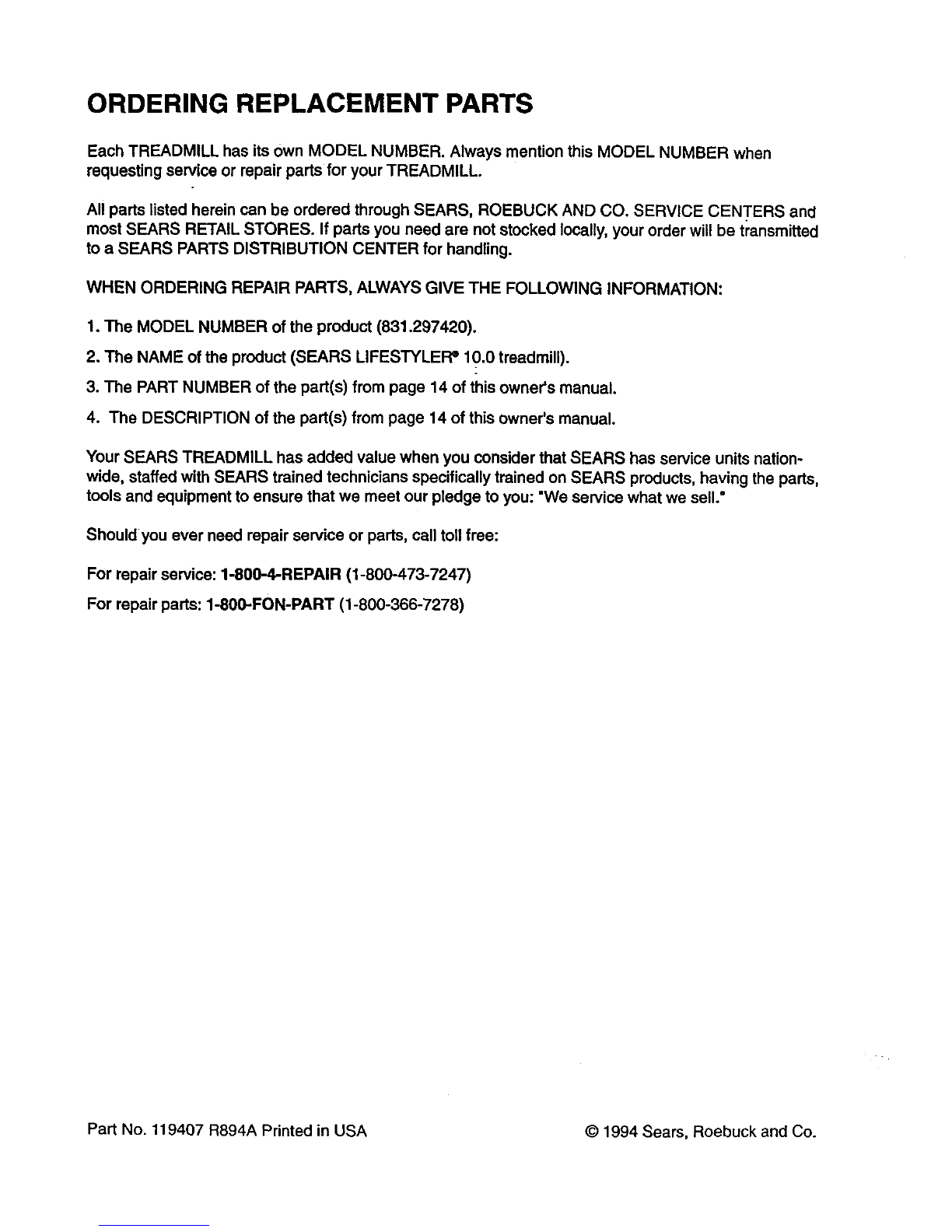

ORDERING REPLACEMENT PARTS ......................................... Back Cover
_I_WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health
problems. Read all instructions before using. SEARS assumes no responsibility for personal
injury or property damage sustained by or through the use of this product. 3

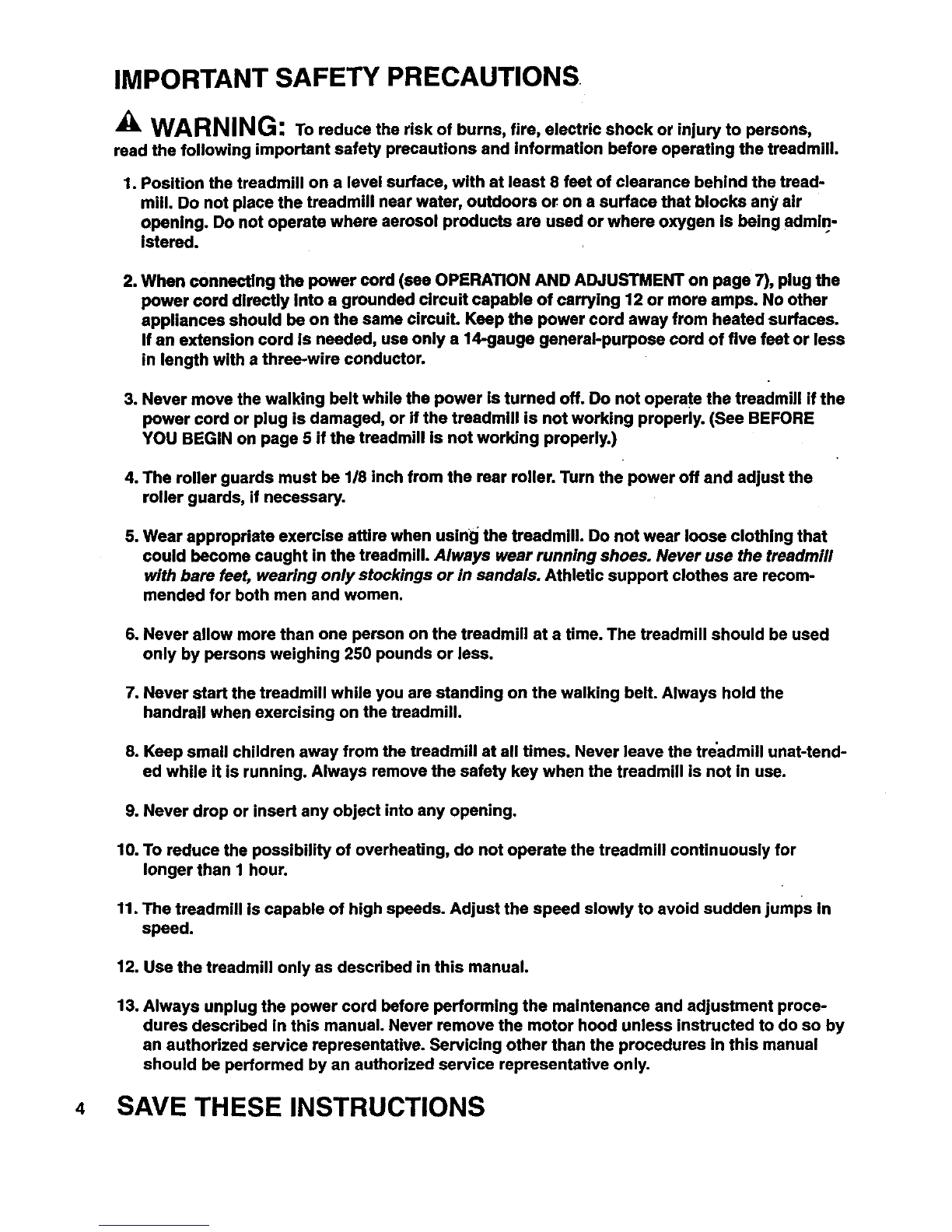

IMPORTANT SAFETY PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock or injury to persons,
read the following important safety precautions and information before operating the treadmill.
1. Position the treadmill on a level surface, with at least 8 feet of clearance behind the tread-
mill. Do not place the treadmill near water, outdoors or on a surface that blocks any air
opening. Do not operate where aerosol products are used or where oxygen is being admin-
istered.
2. When connecting the power cord (see OPERATION AND ADJUSTMENT on page 7), plug the
power cord directly into s grounded circuit capable of carrying 12 or more amps. No other
appliances should be on the same circuit. Keep the power cord away from heated surfaces.
If an extension cord is needed, use only a 14-gauge general-purpose cord of five feet or less
in length with athree-wire conductor.
3. Never move the walking belt while the power is turned off. Do not operate the treadmill if the
power cord or plug is damaged, or if the treadmill is not working properly. (See BEFORE
YOU BEGIN on page 5 if the treadmill is not working properly.)
4. The roller guards must be 1/8 inch from the rear roller. Turn the power off and adjust the
roller guards, if necessary.
5. Wear appropriate exercise attire when using the treadmill. Do not wear loose clothing that
could become caught in the treadmill. Always wear running shoes. Never use the treadmill
with bare feet, wearing only stockings or in sandals. Athletic support clothes are recom-
mended for both men and women.
4
6. Never allow more than one person on the treadmill at a time. The treadmill should be used
only by persons weighing 250 pounds or less.
7. Never start the treadmill while you are standing on the walking belt. Always hold the
handrail when exercising on the treadmill.
8. Keep small children away from the treadmill at all times. Never leave the treadmill unattend-
ed while it is running. Always remove the safety key when the treadmill is not in use.
9. Never drop or insert any object into any opening.
10. To reduce the possibility of overheating, do not operate the treadmill continuously for
longer than I hour.
11. The treadmill is capable of high speeds. Adjust the speed slowly to avoid sudden jumps in
speed.
12. Use the treadmill only as described in this manual.
13. Always unplug the power cord before performing the maintenance and adjustment proce-
dures described in this manual. Never remove the motor hood unless instructed to do so by
an authorized service representative. Servicing other than the procedures in this manual
should be performed by an authorized service representative only.
SAVE THESE INSTRUCTIONS

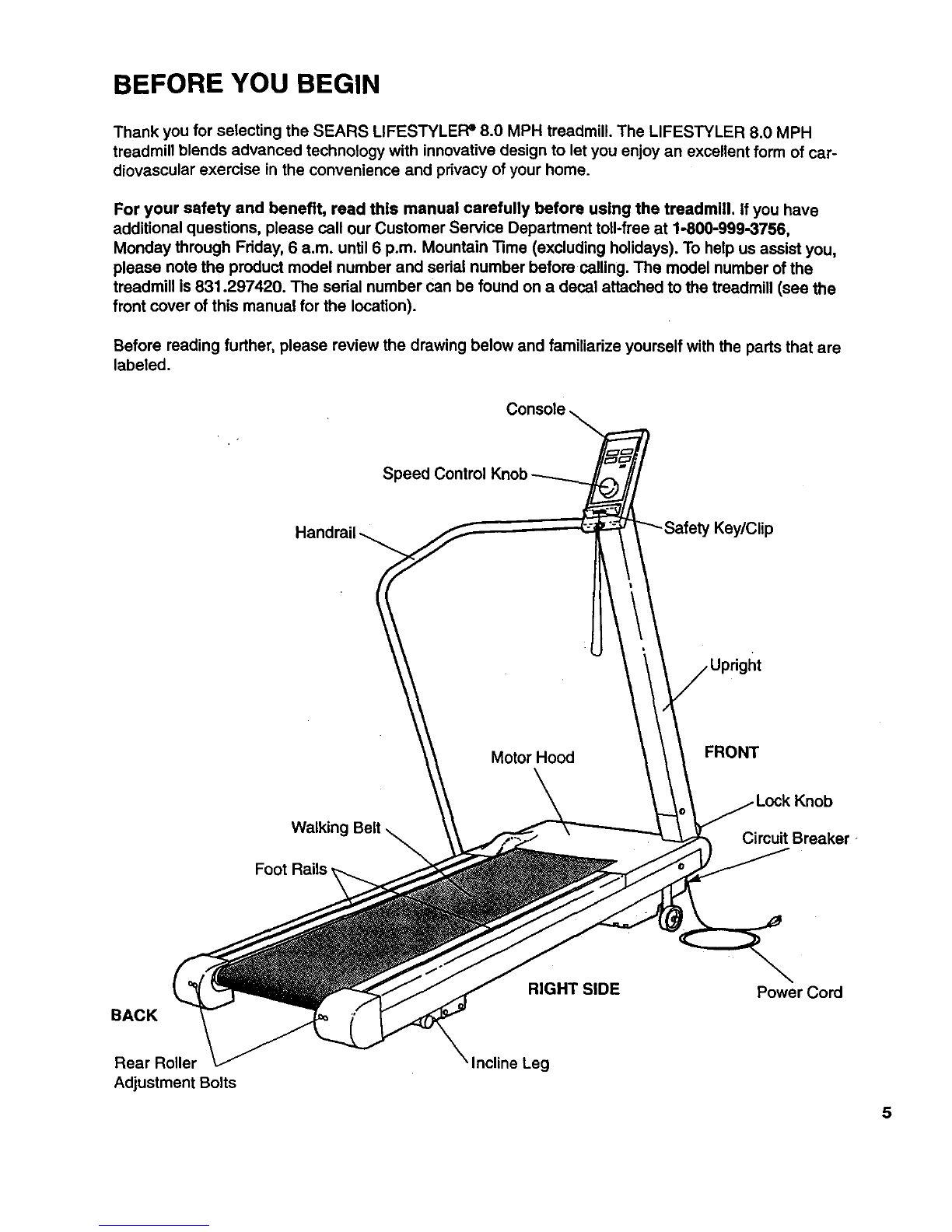

BEFORE YOU BEGIN
Thank you for selecting the SEARS LIFESTYLEFP 8.0 MPH treadmill. The LIFESTYLER 8.0 MPH
treadmill blends advanced technology with innovative design to let you enjoy an excellent form of car-
diovascular exercise in the convenience and privacy of your home.
For your safety and benefit, read this manual carefully before using the treadmill, if you have
additional questions, please call our Customer Service Department toll-free at 1-800-999-3756,
Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you,
please note the product model number and serial number before calling. The model number of the
treadmill is 831.297420. The serial number can be found on a decal attached to the treadmill (see the
front cover of this manual for the location).
Before reading further, please review the drawing below and familiarize yourself with the parts that are
labeled.
Speed
Motor Hood FRONT
Walking
Foot Rails.
Circuit Breaker •
BACK
RIGHT SIDE Power Cord
Rear Roller
Adjustment Bolts Incline Leg
5

ASSEMBLY
Set the treadmill in a cleared area and remove all packing materials. Donot dispose of the packing
materials untilassembly is completed. TOOLS REQUIRED FOR ASSEMBLY: An 8=adjustable
wrench _(not included).
1. Raise the Upright (11) and Handrail (not shown), to a ver-
tical position. Insert the Lock Knob (13), with the Lock
Knob Washer (14), into the Upright and turn the Knob
clockwise until it is almost tight. Leave a little play in the
Upright for the following steps.
2. Align the hole in the lower end of the Handrail (1) with the
hole in the side of the Frame (37). Insert a Handrail Bolt
(74), with a Handrail Washer (9), into the Handrail and
tighten the Bolt into the Frame.
3. "13ghtenthe Acorn Nut (10) on the side of the Upright (11).
"13ghtenthe Lock Knob (13) (see step 1).
1 37
11
4. Remove the paper backing from the Wrench Clip (68).
Press the Wrench Clip onto the Right Endcap (64) in the
indicated location. Press the Alien Wrench (66) into the
Wrench Clip.
Make sure that all parts are tightened before using the tread-
mill. Note: To protect the floor, a covering should be
placed under the treadmill. 68 66
6

OPERATION AND ADJUSTMENT
PLUGGING IN THE POWER CORD
This product must be grounded. If it should malfunction or break down, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock. This producLis equipped with a
cord having an equipment-grounding conductor and a grounding plug. Plug the power cord into an
appropriate outlet that is properly Installed and grounded in accordance with all local codes
and ordinances.
DANGER: Improper connection ofthe equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or serviceman ifyou are in doubt as to whether the
product is propedy grounded. Do not modify the plug provided with the product--if itwillnot fit the out-
let, have a proper outlet installed by a qualified electdcian.
This product isfor use on a nominal 120-volt circuit, and has agroundingplug that lookslike the plug
illustrated in Drawing 1. A temporary adapter that looks like the adapter illustrated in Drawing 2 may be
used to connect this plug to a 2-pole receptacle as shown in Drawing 2 ifa propedy grounded outlet is
not available. The temporary adapter should be used only until a properlygrounded outlet(Drawing 1)
can be installed by a qualified electdcian. The green colored rigidear, lug, or the like extending from
the adapter must be connected to a permanent ground such as a propedy grounded outlet box cover.
Whenever the adapter is used it must be held in place by a metal screw.
Some 2-pole receptacle Outlet box covers are not grounded. Contact aqualified electrician to
determine if theoutlet box cover is grounded before using an adapter.
Grounded Outlet Box
Grounding Plug
=gPin
•Grounded Outlet
2_munded Outlet Box
Grounding Pin
Grounding Plug
APPLYING SILICONE LUBRICANT
To reduce the friction of the walking belt and minimize wear, a
non-oil-, non-petroleum-base silicone lubricant must be
applied to the walking platform before the treadmill is used.
Failure to apply lubricant will reduce treadmill performance.
WITH THE POWER CORD UNPLUGGED, lift each side of
the walking belt and spray lubricant generously onto the indi-
cated area. Reapply lubricant after every ten hours of use, or
whenever performance decreases. Lubricant is available at
most hardware and automotive stores. Uni°Sport TM silicone
spray is recommended.
Apply lubricant
to the entire
shaded area.
Silicone Lubricant
7

INSTALLING BAI-rERIES
The motivational fitness monitor requires two "AA"batteries
(not included); alkaline batteries are recommended. Slide the
battery cover open. Remove the battery clip from the con-
sole. Find the markings inside the battery clip showing which
direction the batteries should be tumed. Press the batteries
intothe battery clip• Replace the battery clip in the console
and close the battery cover. Note: If there is a sheet of pro-
tective plastic on the face of the console, peel it off
before operating the console.
Battery Cover
Battery Clip
TURNING THE POWER ON
Step onto the foot rails of the treadmill. Locate the clipattached by a cord to the safety key, and slide
the c!iponto the waistband of your clothing.
a=CAUTION: oo not stand on the walking belt while turning the power on. Always wear
the clip while operating the treadmill; if you fall, the safety key will be pulled from the power
switch, Instantly turning the power off.
8
Insert the safety key into the power switch.
The power indicatorwill light.The four dis-
plays of the motivational fitness monitorwill
not appear untilthe ON/RESET button is
pressed, or the walking belt begins to move
(see CONTROLLING THE SPEED below).
Note: If batteries were just installed, the four
displayswill already appear.
CONTROLLING THESPEED
To start the walking belt, first turn the speed
control knob to "RESET." Then, turn the
knob slowly clockwise until the walking belt
begins to move at slow speed.
a=CAUTION: After the knob is
turned, there will be a pause before the
walking belt begins to move• Adjust the
speed slowly until you are familiar with the
operation of the treadmill.
Carefully step onto the walking belt and begin
exercising. Change the speed of the walking
belt as desired by tuming the speed control
knob• To stop the walking belt, turn the knob
to "RESET."
MOTIVATIONAL RTNESS MONITOR
The four displays of the motivational fitness
monitor provide continuous exercise feed-
backl The displays can be reset by pressing
the ON/RESET button. The four displays are
described below:
Motivational
Fitness _
Monitor
Speed
Control Knob
Power Switch
Power
Safety
ACCUSMART
Mo'rlvA_O_L FITNESS MONIll_R

TIME--This display shows the elapsed time. Note: When the walking belt is stopped, the TIME display
will go into a pause mode after a few seconds.
CALORIE--This display shows the approximate number of nutritional Calories that you have burned.
SPEED--This display shows the current speed of the walking belt.
DISTANCE--This display shows the total distance that you have walked or run.
Note: If the walking belt isstopped and remains stationary for about five minutes, the four displays of
the motivational fitness monitor will be reset and willdarken, although the power will remain on. The
four displays willappear again when the ON/RESET button is pressed, or the walking belt is restarted.
CHANGING THE INCLINE
To vary the intensity of your exercise, the treadmill can be
adjusted to three different "incline settings. Before adjusting
the incline setting, turn off the power and unplug the
power cord. Stand on the floor at the back of the treadmill
and grip the endceps. Liftthe back of the treadmill untilthe
incline leg locks into position at the desired incline setting.
When the treadmill is lifted above the highest incline setting,
the incline will reset and the treadmill can be lowered tothe
lowest incline setting.
Decrease
Incline Setting
CAUTION: Push slightly on the back of the treadmill to make sure that the incline leg
is locked into one of the three Incline settings before exercising on the treadmill.
TURNING OFF THE POWER
To turn off the power, remove the safety key from the console. The power indicatorwill darken. Store
the safety key in a secure location.
9

TROUBLE-SHOOTING AND STORAGE
10
Most treadmill problems can be solved by following the simple steps below, Find the symptom
that applies to your treadmill and follow the steps listed. If further assistance is needed, please call our
Customer Sewice Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m.
Mountain Time (excluding holidays).
1. SYMPTOM: THE POWER DOES NOT TURN ON
d, Make sure that the power cord is plugged into a properly grounded outlet. (See OPERATION
_'_AND ADJUSTMENT on page 7.) If an extension cord is needed, use only a 14-gauge general-
purpose cord of five feet or less in length.
b. After the power cord has been plugged in, make sure that the safety key is fullyinserted intothe
console. Various indicators on the console should light. (See OPERATION AND ADJUSTMENT
on parle 7.)
C, Check the circuitbreaker located on the treadmill
frame near the power cord. If the switch protrudes as
shown, the circuit breaker has tripped. To reset the cir-
cuit breaker, wait for five minutes and then press the
switchback in.
2. SYMPTOM: THE POWER TURNS OFF DURING USE Tripped Reset
a. Check the circuit breaker located on the treadmill frame near the power cord. If the circuit breaker
has tripped, the switch will protrude. (See the drawing above.) To reset the circuit breaker, wait
for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Remove the safety key from the console. Reinsert the safety key fully into the console. Various
indicators on the console should light.
3. SYMPTOM: THE WALKING BELT SLOWS WHEN WALKED ON
a. Apply silicone lubricant to the walking platform before use. Reapply lubricant after every 10 hours
of use, and whenever a decrease in performance is noticed. (Uni.Sport silicone spray is recom-
mended.) CAUTION: UNPLUG THE POWER CORD WHEN APPLYING LUBRICANT. (See
OPERATION AND ADJUSTMENT on page 7 application instructions.)
b. If an extension cord is needed, use only a14-gauge general-purpose cord of five feet or less in length.
c. If the walking belt is overtightened, treadmill performance
may decrease and the walking belt may be permanently
damaged. Remove the safety key and UNPLUG THE
POWER CORD. Using the allen wrench, turn both rear
roller adjustment bolts counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you should
be able to lift each side of the walking belt 3-4 inches off
the walking platform. The center of the walking belt should
be just above the walking platform. Be careful to keep the
walking belt centered. Plug in the power cord, insert the
safety key and run the treadmill for a few minutes. Repeat
until the walking belt is properly tightened. Rear Roller Adjustment Bolts

4. SYMPTOM: THE WALKING BELT IS OFF-CENTER OR SLIPS WHEN WALKED ON
a. If the walking belt has shifted to the left, first remove the
safety key and UNPLUG THE POWER CORD. Using the
allen wrench, turn the left rear roller adjustment bolt
clockwise, and the right bolt counterclockwise, 1/4 of a
turn each. Be careful not to overtighten the walking belt.
Plug in the power cord, insert the safety key and run the
treadmill for a few minutes. Repeat untilthe walking belt
is centered.
a
b. If the walking belt has shifted to the dght,first remove the
safety key and UNPLUG THE POWER CORD. Using the
allen wrench, tum the left rear roller adjustment boltcoun*
terclockwise, and the rightboltclockwise, 114of a turn
each. Be careful not to overtighten the walking belt. Plug
in the power cord, insert the safety key and run the tread-
mill for a few minutes. Repeat untilthe walking belt is
centered.
b
c. If the walking belt slips when walked on, first remove the
safety key and UNPLUG THE POWER CORD. Using the
allen wrench, turn both rear roller adjustment bolts clock-
wise, 1/4 of a turn. When the walking beltis correctlytight-
ened, you should be able to lifteach side of the walking
belt 3-4 inches off the walking platform. The center of the
walking belt should be just above the walking platform. Be
careful to keep the walkingbelt centered. Plug in the power
cord, insert the safety key and run the treadmill for a few
minutes. Repeat untilthe walking belt is properly tightened.
5. SYMPTOM: THE MOTIVATIONAL FITNESS MONITOR DOES NOT FUNCTION PROPERLY
a. Check the batteries in the console. (See INSTALLING BA'n'ERIES on page 8.) Most problems
are the result of drained batteries.
STORAGE
Unplug the power cord when the treadmill is not in use. Remove the bolt and washer from the lower
end of the handrail. Loosen the nut at the upper end of the handrail. Loosen the lock knob at the front
of the upright. Carefully lay the uprighton the treadmill. Keep the hardware in a secure location. It is
recommended that the treadmill be covered during extended periodsof storage.
11

CONDITIONING GUIDELINES
12
The following guidelines will help you to plan your exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
I WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for individuals over the age of 35 or individuals with pre-existing
health problems.
EXERCISE INTENSITY
To maximize the benefits of exercising, it is important to exercise with the proper intensity.The proper
intensitycan be found by using your heart rata as a guide, For effective aerobic exercise, your heart
rate should be maintained at a level between 70% and 85% of your maximum heart rate as you exer-
cise. This is known as your training zone. You can findyour trainingzone in the table below.
Training zones are listedfor both unconditioned and conditioned persons according to age.
AGE
2O
25
30
35
40
45
50
UNCONDITIONED
TRAINING ZONE
(BEATS/MIN)
136-167
136-166
135-164
134-162
132-161
131-159
129-156
CONDITIONED
TRAINING ZONE
(BEATS/MIN)
133-162
132-160
130-158
129-156
127-155
125-153
124-150
AGE
55
• 60
65
70
75
80
85
UNCONDITIONED
TRAINING ZONE
(BEATS/MIN)
127-155
126-153
125-151
123-150
122-147
120..146
118-144
CONDITIONED
TRAINING ZONE
(BEATS/MIN)
122-149
121-147
119-145
118-144
117-142
115-140
114-139
During the firstfew months of your exercise program, keep yOur
heart rate near the low end of your training zone as you exercise. "-_._._/ _._
After a few months, your heart rate can be increased gradually
until it is near the middle of your training zone as you exercise. To
measure your heart rate, stop exercisingand place two fingers on
your wdst. Take a six-second heartbeat count, and multiplythe
result by 10 tofind your heart rate. For example, if your six-second
heartbeat count is 14, your heart rate is 140 beats per minute. (A
six-second count is used because your heart rate will drop rapidly
when you stop exercising.) Adjust the intensityof your exercise
untilyour heart rate is at the proper level.
WORKOUT GUIDELINES
Each workout should consist of three basic parts: a warm-up, 20 to 30 minutes of training zone exer-
cise, and a cool-down. Warming up prepares the body for exercise by increasing circulation, delivering
more oxygen to the muscles and raising the body temperature. Begin each workout with 5 to 10 min-
utes of stretching and light exercise to warm up. Then, increase the intensity of your exercise to raise
your heart rate to your training zone for 20 to 30 minutes. Breathe regularly and deeply as you exer-
cise-never hold your breath. Finish each workout with 5 to 10 minutes of stretching to cool down. This
will increase the flexibility of the muscles, and reduce soreness and other post-exercise problems.
To maintain or improve your condition, complete three workouts each week, with at least one day of
rest between workouts. After a few months of regular exercise, you may complete up to five workouts
each week, if desired. The key to success is CONSISTENCY.

SUGGESTEDSTRETCHES
Thefollowingstretchescanprovidea goodwarm-uporcool-down.Correctformforeachstretchis
showninthedrawingsbelow.Moveslowlyas you stretch---never bounce.
TOE TOUCH STRETCH
Stand with your knees bent slightly and slowly bend for-
ward from your hips. Allow your back and shoulders to
relax as you reach down toward your toes as far as possi-
ble. Hold for 15 counts, then relax. Repeat 3 times.
Stretches: Hamstrings, back of knees and back.
HAMSTRING STRETCH
Sit with one leg extended. Bring the sole of the opposite
foot toward you and rest it against the inner thigh of your
extended leg. Reach toward your toes as far as possible.
Hold for 15 counts, then relax. Repeat 3 times for both
legs.
Stretches: Hamstrings, lower back and groin.
CALF/ACHILLES STRETCH
With one leg in front of the other, reach forward and place
your hands against awall. Keep your back leg straight
and your back foot flat on the floor. Bend your front leg,
lean forward and move your hips toward the wall. Hold for
15 counts, then relax. Repeat 3 times for both legs. To
cause further stretching of the achilles tendons, bend
your back leg as well.
Stretches: Calves, achilles tendons and ankles.
QUADRICEPS STRETCH
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as
Closeto your buttocks as possible. Hold for 15 counts,
then relax. Repeat 3 times for both legs.
Stretches: Quadriceps and hip muscles.
INNER THIGH STRETCH
Sit with the soles of your feet together and your knees
outward. Pull your feet toward your groin area as far as
possible. Hold for 15 counts, then relax. Repeat 3 times.
Stretches: Quadriceps and hip muscles. 13

PART LISTuModel No, 831.297420 R894A
Key Pad
No. No. Qty. Description Key Pa_
No, No. Qty. Description
100541 2 Motor Swivel Bolt
031238 1 Choke
120647 1 Motor
105477 2 Motor Nut
108276 1 Pulley/Flywheel/Fan
102959 2 Small Bolt
013547 4 incline Leg Bolt
120655 2 incline Leg Spring
012152 4 Small Nut
014087 4 incline Leg Washer
120663 2 incline Leg Latch
013300 5 Hood Bracket Screw
120656 4 incline Leg Spacer
012108 4 Incline Leg Nut
120746 2 incline Leg Cap
120657 1 incline Leg
119503 1 Controller/Choke Plate
114261 1 Ground Wire
016057 4 8" Cable "lJe
016029 2 4" Cable "lJe
119348 1 Right Endcap
013206 2 Rear Roller Adj. Bolts
045010 1 Allen Wrench
119347 1 Left Endcap
016028 2 Wrench Clip
113050 2 Rear Roller Spacer
109788 1 Rear Roller
010206 2 Roller Guard
013162 2 Roller Guard Screw
100691 6 Platform Screw
112001 1 Handrail Bolt
120645 1 Motor Hood w/Decal
111430 1 Handrail Cage Nut
114355 1 Front Roller Spacer
115809 1 Belt
016055 1 Wire Clip
116890 1 Tabbed Washer
014041 2 Tension Washer
104514 1 Tension Spring
120527 2 Platform Shim
118204 1 8" Blue Jumper Wire
119407 1 Owner's Manual
1 114218 1 Handrail 44
2 114575 1 Safety Key/Clip 45
3 110000 1 Speed Control Knob 46
4 120650 1 Console 47
5 108404 9 Screw 48
6 113203 1 6" Cable Loom 49
7 116131 1 Power Switch Wire 50
8 012149 1 Pivot Nut 51
9 014132 5 Handrail Washer/Pivot Washer 52
10 114268 1 Acorn Nut 53
11 119350 1 Upright 54
12 120003 1 Pivot Bolt 55
13 017088 1 Upright Knob 56
14 014156 1 Upright Washer 57
15 012056 2 Lock Nut 58
16 031229 1 Power Cord 59
17 113204 1 12" Cable Loom 60
18 019084 1 Grommet 61
19 111869 1 Upright Cage Nut 62
20 109382 1 Circuit Breaker 63
21 113106 5 Hood Anchor 64
22 013088 10 Safety Cover Screw 65
23 112609 1 Front Roller Adj. Bolt 66
24 014127 2 Adjustment Washer 67
25 052014 2 Front Wheel 68
26 117806 2 Front Wheel Bolt 69
27 012082 1 Tension Nut 70
28 118153 1 Reed Switch/Sensor Wire 71
29 118332 1 Extension Wire 72
30 109265 2 Belt Guide 73
31 013423 8 Guide Screw/Leg Screw 74
32 120649 2 Foot Rail 75
33 117841 1 Safety Cover 76
34 117273 1 Front Roller/Pulley 77
35 120526 1 Walking Platform 78
36 120525 1 Walking Belt 79
37 NSP 1 Frame 80
38 103855 1 J-Bolt 81
39 121637 1 Motor Swivel 82
40 100994 2 Motor Bolt 83
41 108080 8 Small Screw #
42 109786 1 Controller #
43 014073 2 Motor Swivel Washer
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the
14 back cover for information about ordering replacement parts.

EXPLODED DRAWING-:-'Model No. 831.297420 R894A
5_
9
,10
_11
7
912
13
74 75 77 17 19
2O
9
32
66
71
70
24
59 58
35
36
\
52
31 54
i
!8O
37
30
31
15 26
23
15

ORDERING REPLACEMENT PARTS
Each TREADMILL has itsown MODEL NUMBER. Always mention this MODEL NUMBER when
requesting service or repair parts for your TREADMILL.
All parts listed herein can be ordered through SEARS, ROEBUCK AND CO. SERVICE CENTERS and
most SEARS RETAIL STORES. If parts you need are not stocked locally,your order will be tiansmitted
to a SEARS PARTS DISTRIBUTION CENTER for handling.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:
1. The MODEL NUMBER of the product (831.297420).
2. The NAME of the product (SEARS LIFESTYLER °10.0 treadmill).
3. The PART NUMBER of the part(s) from page 14 of this owner's manual.
4. The DESCRIPTION of the part(s) from page 14 of this owner's manual.
Your SEARS TREADMILL has added value when you consider that SEARS has service units nation-
wide, staffed with SEARS trained technicians specificallytrained on SEARS products,having the parts,
tools and equipment to ensure that we meet our pledge to you: "We service what we sell."
Should you ever need repair service or parts, call toll free:
For repair service: 1-800-4-REPAIR (1-800-473-7247)
For repair parts: 1-800-FON-PART (1-800-366-7278)
Part No. 119407 R894A Printed in USA ©1994 Sears, Roebuck and Co.
