Evo EVO 3i User manual

USER’S MANUAL
EVO 3i MOTORIZED TREADMILL
MODEL NUMBER: EVO 3i
USER WEIGHT LIMITATION: 400lbs.
TOLL FREE CUSTOMER SERVICE NUMBER: 1.888.800.1167
SERIAL NUMBER (found on frame):

EVO 3i MOTORIZED TREADMILL
Visit us at: www.evofitness.com
2
PRECAUTIONS
For future service or related questions:
Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your Smooth
Fitness treadmill.
Name: ______________________________ Phone Number: ___________________ Receipt: ______________________
Precautions:
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and
information before operating the treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are
adequately informed of all warnings and precautions.
?? Use the treadmill only as described in this manual.
?? Place on a level surface, with 6 feet (2 m) of clearance behind it. Do not place the treadmill on any surface that
blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
?? When choosing a location for the treadmill make sure that the location and position permit access to a plug.
?? Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or
near water.
?? Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
?? Keep children under the age of 12 and pets away from the treadmill at all times.
?? The treadmill should not be used by persons weighing more than 400lbs.
?? Never allow more than one person on the treadmill at a time. Wear appropriate exercise clothing when using the
treadmill. Do not wear loose clothing that could become caught in the treadmill. Athletic support clothes are
recommended for both men and women. Always wear athletic shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
?? When connecting the power cord, plug the power cord into a grounded circuit. No other appliance should be on the
same circuit.
?? Always straddle the belt and allow it to start moving before stepping onto the belt.
?? Always examine your treadmill before using to ensure all parts are in working order.
?? Allow the belt to fully stop before dismounting.
?? Never insert any object or body parts into any opening.
?? Follow the safety information in regards to plugging in your treadmill.
?? Keep the power cord away from the incline wheels and do not run the power cord underneath your treadmill. Do not
operate the treadmill with a damaged or frayed power cord.
?? Always unplug the treadmill before cleaning and/or servicing. Service to your treadmill should only be performed by
an authorized service representative, unless authorized and/or instructed by the manufacturer. Failure to follow
these instructions will void the treadmill warranty.
?? Never leave the treadmill unattended while it is running.

EVO 3i MOTORIZED TREADMILL
Visit us at: www.evofitness.com
3
POWER REQUIREMENTS
Power Requirements:
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN A RISK OF AN
ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS TO
WHETHER THE PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH THE
PRODUCT, IF IT WILL NOT FIT THE OUTLET; HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED ELECTRICIAN.
This treadmill can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage spikes, surges
and noise interference can result from weather conditions or from other appliances being turned on or off. To reduce the
possibility of treadmill damage, always use a surge protector (not included) with your treadmill.
Surge protectors can be purchased at most hardware stores. The manufacturer recommends a single outlet surge protector
with a UL 1449 rating as a Transient Voltage Surge Suppressor (TVSS) with a UL suppressed voltage rating of 400V or less
and an electrical rating 120VAC, 15 amps.
This treadmill must be grounded to reduce the risk of electrical shock. Grounding provides a path of least resistance for
electric current, should the treadmill malfunction. This treadmill comes with an electrical cord having an equipment-grounding
conductor and a grounding plug. Always plug the power cord into a surge protector, and plug the surge protector into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in the
drawing below.

EVO 3i MOTORIZED TREADMILL
Visit us at: www.evofitness.com
4
PREASSEMBLY
Open the boxes:
You are now ready to open the boxes of your new equipment. Make sure to inventory all of the parts that are included in the
boxes. Check the Hardware Comparison Chart for a full count of the number of parts included for this product to be
assembled properly. If you are missing any parts or have any assembly questions call your local Smooth Retailer.
Gather your tools:
Before starting the assembly of your unit, make sure that you have gathered all the necessary tools you may require to
assemble the unit properly. Having all of the necessary equipment at hand will save time and make the assembly quick and
hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is free
from anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a comfortable
amount of free area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another person
when assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 400lbs. it is not recommended that
you use this product. Serious injury may occur if the user’s weight exceeds the limit shown here. This product is not
intended to support users whose weight exceeds this limit.

EVO 3i MOTORIZED TREADMILL
Visit us at: www.evofitness.com
5
HARDWARE COMPARISON CHART

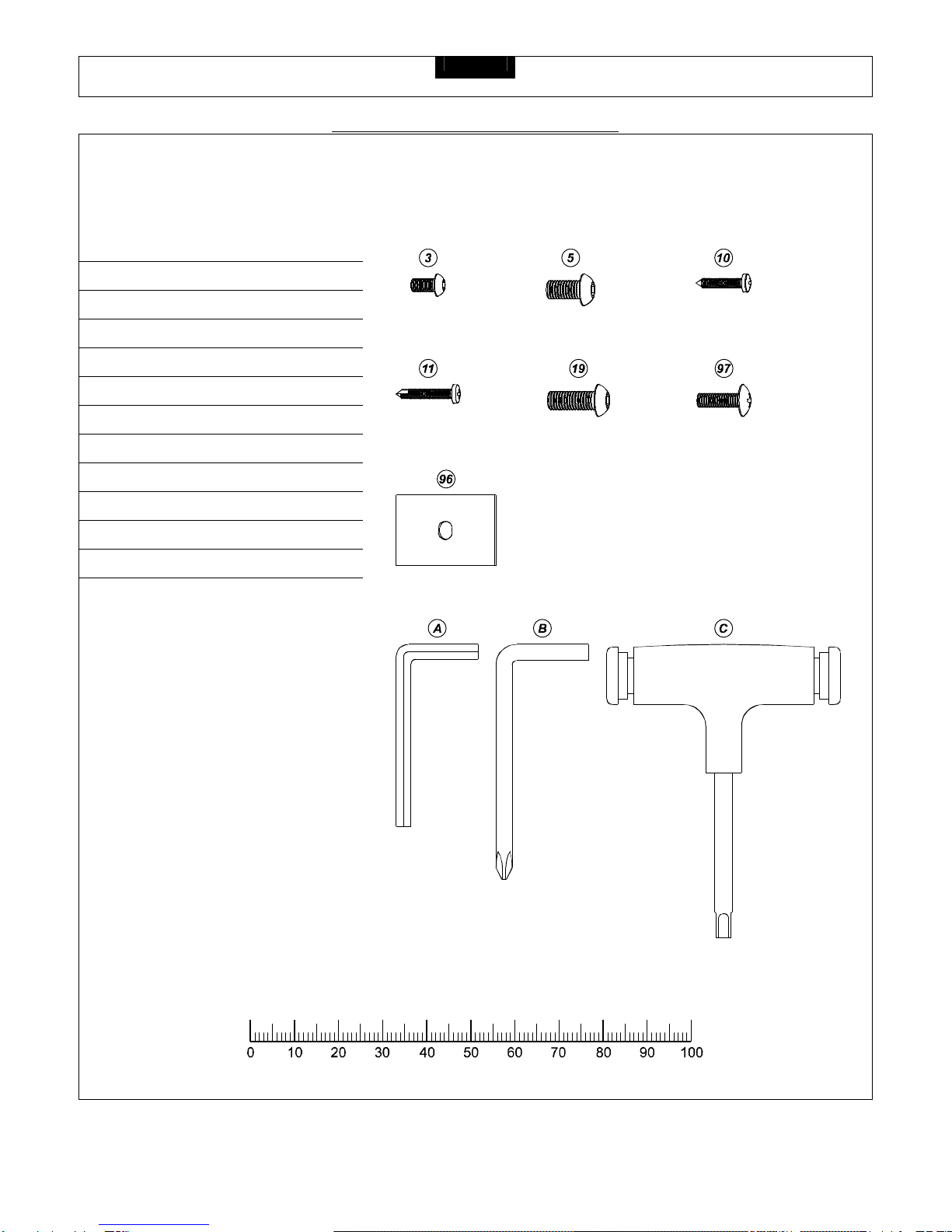

Hardware chart:
For your convenience, we have identified the hardware used in the assembly of this product. This chart is provided to help
you identify those items that may be unfamiliar to you.
NO. DESCRIPTION QTY.
3M6 x 10mm Screw 4
5M8 x 10mm Bolt 4
10 #8 x 19mm Screw 14
11 #8 x 25mm Screw 12
19 M8 x 25mm Bolt 4
96 Plastic Bracket 2
97 M6 x 20mm Screw 2
A5mm Wrench 1
BWrench 1
C5/6mm Allen Wrench 1
MILLIMETERS

EVO 3i MOTORIZED TREADMILL
Visit us at: www.evofitness.com
6
PARTS LIST
No. Description Qty. Order No. No. Description Qty. Order No.
1Computer 1EVO3i-01 30 Transport Wheel Base 2EVO3i-30
2Safety Key 1EVO3i-02 31 M10 x 60mm Bolt 2EVO3i-31
3M6 x 10mm Screw 4EVO3i-03 32 Bushing 4EVO3i-32
4Console Support Tube 1EVO3i-04 33 Transport Wheel Bracket -
Left
1EVO3i-33
5M8 x 10mm Bolt 4EVO3i-05 34 Transport Wheel Bracket -
Right
1EVO3i-34
6Handlebar Rear End Cap –
Left
#1
1EVO3i-06 35 Transport Wheel 2EVO3i-35
7Handlebar Rear End Cap –
Left
#2
1EVO3i-07 36 Upright Plastic Shroud -Left
#1
1EVO3i-36
8Handlebar Rear End Cap –
Right
#1
1EVO3i-08 37 Upright Plastic Shroud -Left
#2
1EVO3i-37
9Handlebar Rear End Cap –
Right
#2
1EVO3i-09 38 Upright Plastic Shroud -
R
ight #2
1EVO3i-38
10 #8 x 19mm Screw 14 EVO3i-10 39 Upright Plastic Shroud -
Right #1
1EVO3i-39
11 #8 x 25mm Screw 16 EVO3i-11 40 Side Cover -Left 1EVO3i-40
12 Handlebar -Left 1EVO3i-12 41 Side Cover -Right 1EVO3i-41
13 Handlebar -Right 1EVO3i-13 42 Cushion 2EVO3i-42
14 Hand Pulse Sensor 2EVO3i-14 43 M6 x 55mm Bolt 2EVO3i-43
15 Handlebar Front End Cap 2EVO3i-15 44 Cushion 1EVO3i-44
16 M8 x 15mm Screw 2EVO3i-16 45 Motor Hood 1EVO3i-45
17 Left Upright 1EVO3i-17 46 #8 x 50mm Screw 2EVO3i-46
18 Right Upright 1EVO3i-18 47 Side Rail -Left 1EVO3i-47
19 M8 x 25mm Bolt 4EVO3i-19 48 Deck End Cap -Left 1EVO3i-48
20 M14 x 113 Bolt 2EVO3i-20 49 Side Rail -Right 1EVO3i-49
21 Bushing 4EVO3i-21 50 Deck End Cap -Right 1EVO3i-50
22 Power Switch Set 1EVO3i-22 51 Rail Guide 8EVO3i-51
23 M5 x 10mm Screw 2EVO3i-23 52 M8 x 25mm Screw 10 EVO3i-52
24 Base Frame 1EVO3i-24 53 Running Deck 1EVO3i-53
25 Running Deck Fixed Tube
Sleeve
2EVO3i-25 54 Deck Cushion 10 EVO3i-54
26 Level Adjuster 4EVO3i-26 55 M10 x 35mm Bolt 9EVO3i-55
27 Cushion 2EVO3i-27 56 M5 x 12mm Screw 2EVO3i-56
28 6 x 13mm Washer 11 EVO3i-28 57 Clip 2EVO3i-57
29 #8 x 15mm Screw 28 EVO3i-29 58 Elevation Motor 1EVO3i-58

EVO 3i MOTORIZED TREADMILL
Visit us at: www.evofitness.com
7
PARTS LIST
No. Description Qty. Order No. No. Description Qty. Order No.
59 M10 x 63mm Hex Head Bolt 1EVO3i-59 89 Elevation Support Tube
Cover
-
Left
1EVO3i-89
60 M10 Nylon Nut 5EVO3i-60 90 Elevation Support Tube
Cover
-
Right
1EVO3i-90
61 Washer 2EVO3i-61 91 Elevation Support 1EVO3i-91
62 Rubber Cushion 1EVO3i-62 92 Motor Belly Pan 1EVO3i-92
63 M8 x 135mm Bolt 1EVO3i-63 93 # 8 x 35mm Screw 4EVO3i-93
64 M8 x 15 Screw 2EVO3i-64 94 M8 Nut 10 EVO3i-94
65 8x15XT2.0 Spring Washer 12 EVO3i-65 95 Running Belt 1EVO3i-95
66 8 x 16mm Washer 2EVO3i-66 96 Plastic Bracket 2EVO3i-96
67 M10 x 136mm Hex Head Bolt 1EVO3i-67 97 M6 x 20mm Screw 2EVO3i-97
68 Motor Bracket 1EVO3i-68
69 Driving Motor 1EVO3i-69
70 Motor Drive Belt 1EVO3i-70
71 Front Roller with Fly Wheel 1EVO3i-71
72 Front Roller Shaft 1EVO3i-72
73 Micro Switch 1EVO3i-73
74 M6 x 70mm Bolt 3EVO3i-74
75 Deck Frame 1EVO3i-75
76 Motor Hood Side Cover -Right 1EVO3i-76
77 Motor Hood Side Cover -Left 1EVO3i-77
78 Frame Side Cover -Right 1EVO3i-78
79 Frame Side Cover -Left 1EVO3i-79
80 Plastic Clamp -Top 2EVO3i-80
81 Plastic Clamp -Bottom 2EVO3i-81
82 Bracket 2EVO3i-82
83 M8 x 19mm Allen Head Bolt 4EVO3i-83
84 Rear Roller 1EVO3i-84
85 Rear Roller Shaft 1EVO3i-85
86 M8 x 43mm Bolt 2EVO3i-86
87 Deck Wheel 2EVO3i-87
88 Running Deck Fixed Tube 1EVO3i-88

EVO 3i MOTORIZED TREADMILL
Visit us at: www.evofitness.com
8

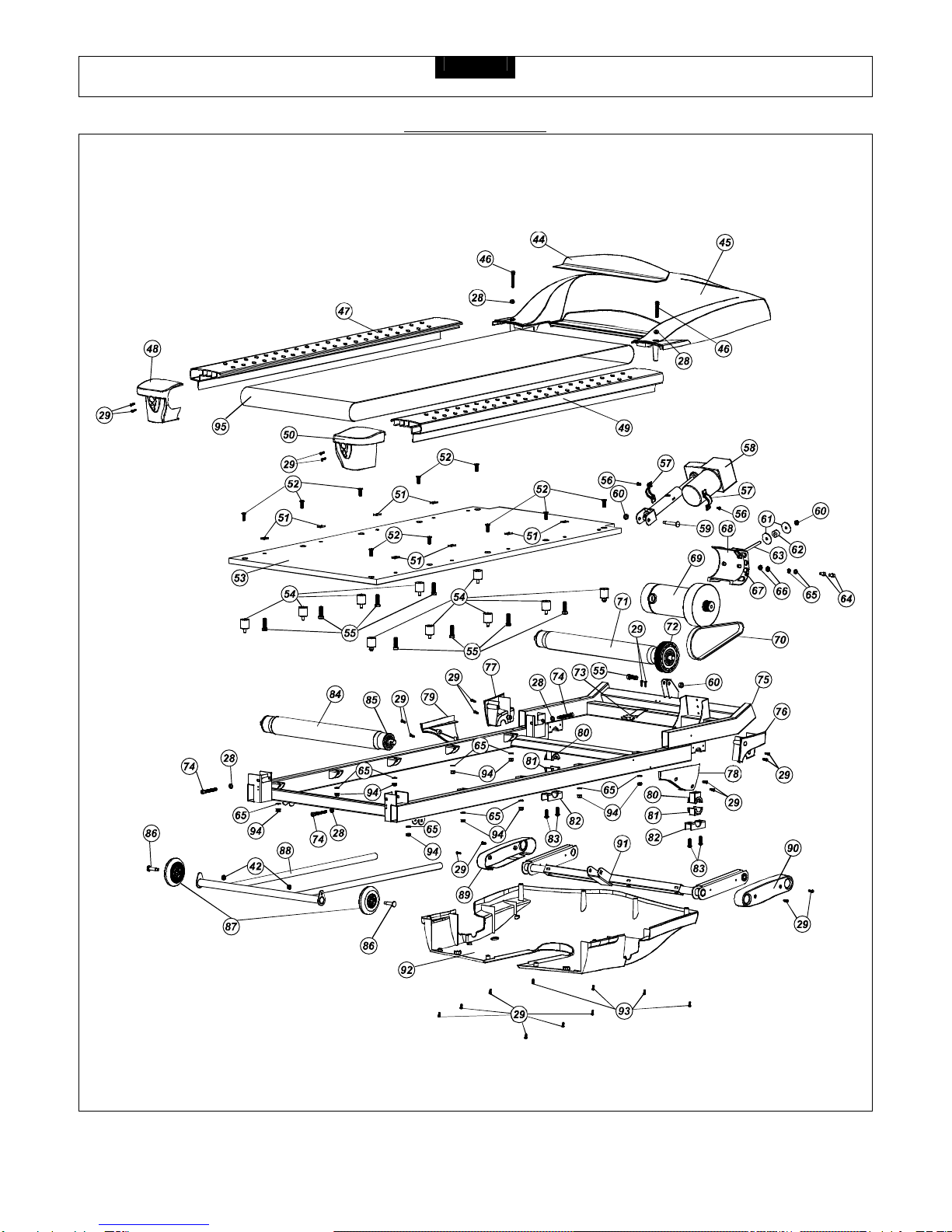

PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.

EVO 3i MOTORIZED TREADMILL
Visit us at: www.evofitness.com
9

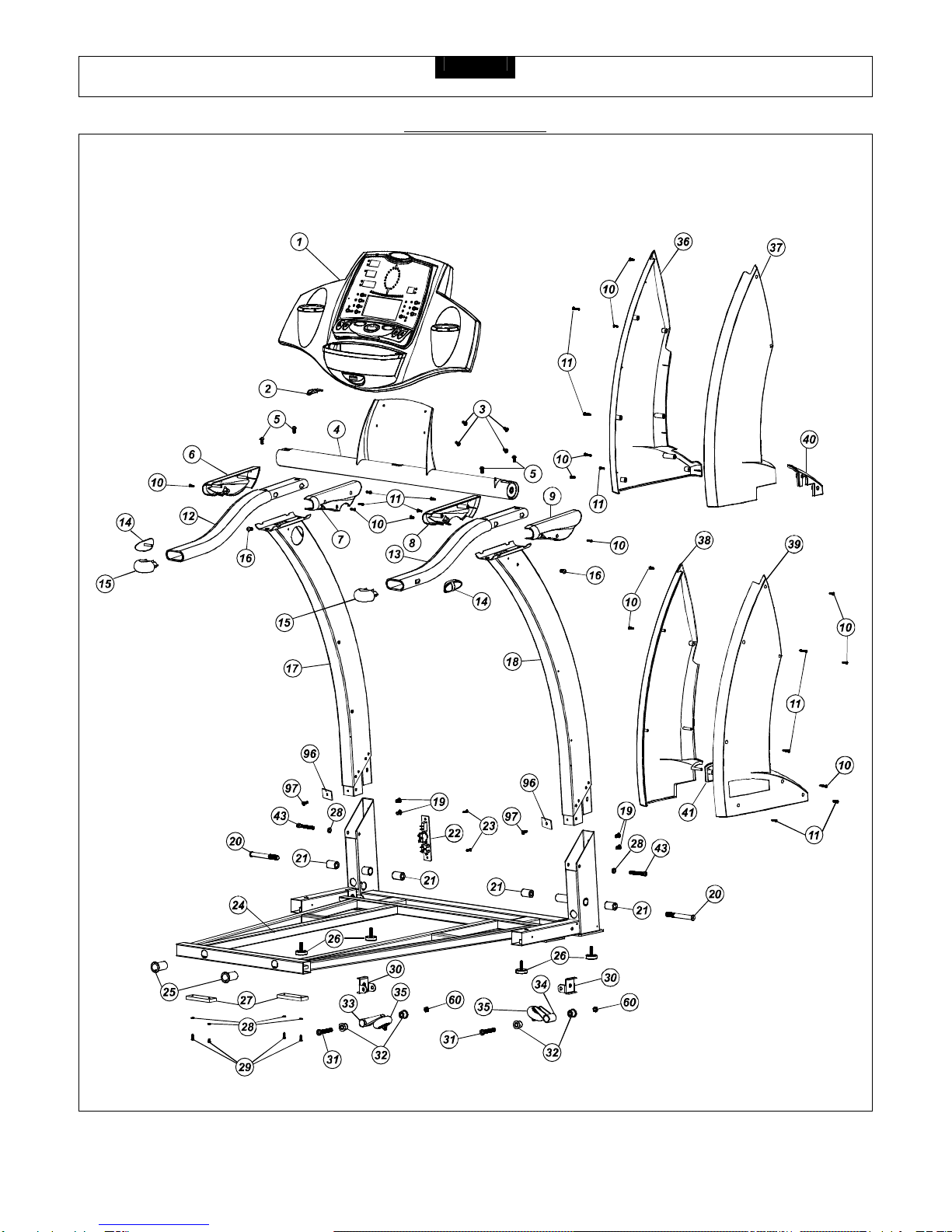

PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.

EVO 3i MOTORIZED TREADMILL
Visit us at: www.evofitness.com
10
ASSEMBLY
STEP 1:
Remove your treadmill from the carton and place it on the floor in an open area as shown in FIG-1.

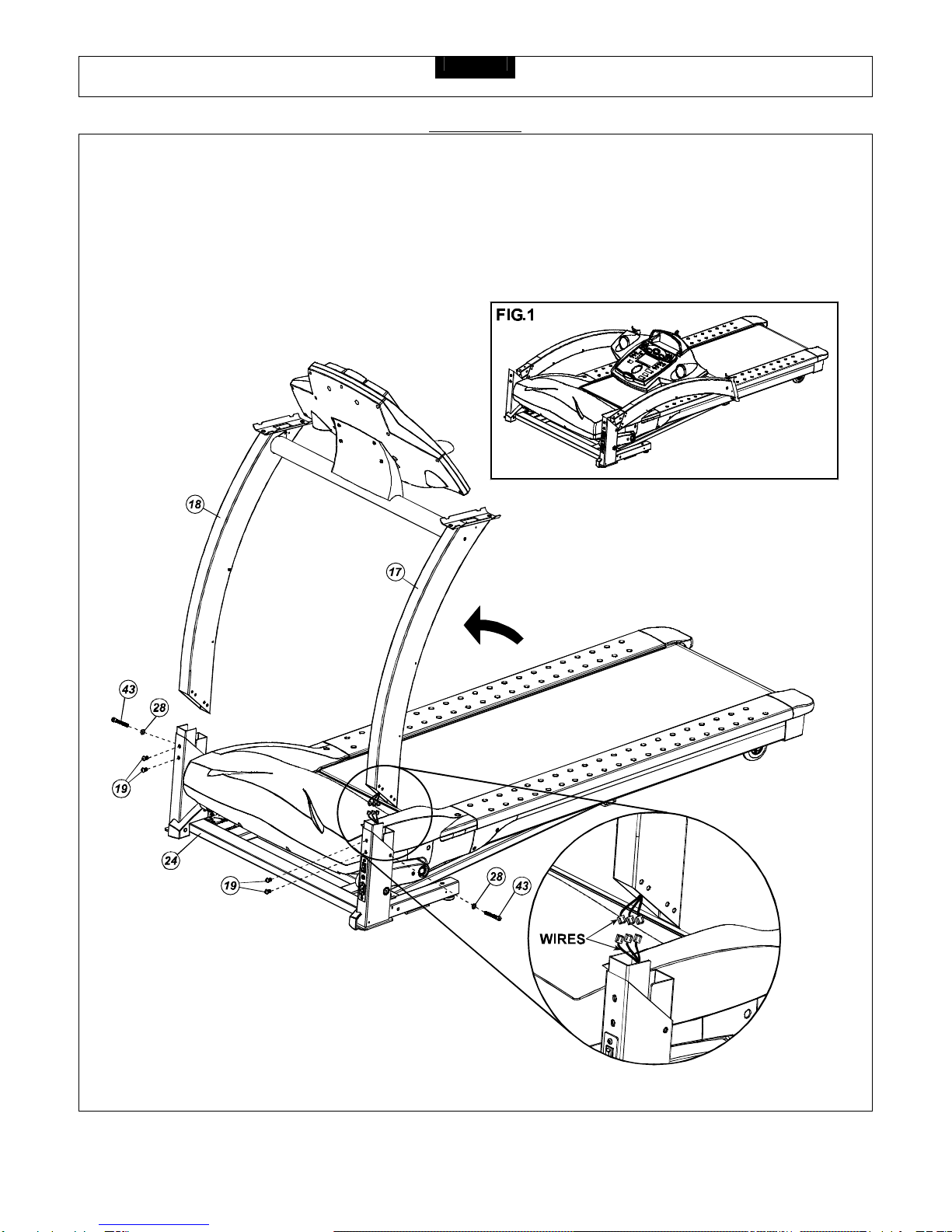

Attach the Left Upright (17) and Right Upright (18) to the Base Frame (24) as shown and secure in place using two M6 x
55mm Bolts (43), two 6 x 13mm Washers (28) and four M8 x 25mm Allen Bolt (19).

EVO 3i MOTORIZED TREADMILL
Visit us at: www.evofitness.com
11
ASSEMBLY
STEP 2:
Attach the Computer (1) to the Console Support Tube (4) using four M6 x 20mm Allen Head Bolts (3).

EVO 3i MOTORIZED TREADMILL
Visit us at: www.evofitness.com
12
ASSEMBLY
STEP 3:
Rotate the Console Support Tube (4) to the correct position and secure with M5 x 12mm Screw (56).

EVO 3i MOTORIZED TREADMILL
Visit us at: www.evofitness.com
13
ASSEMBLY
STEP 4:

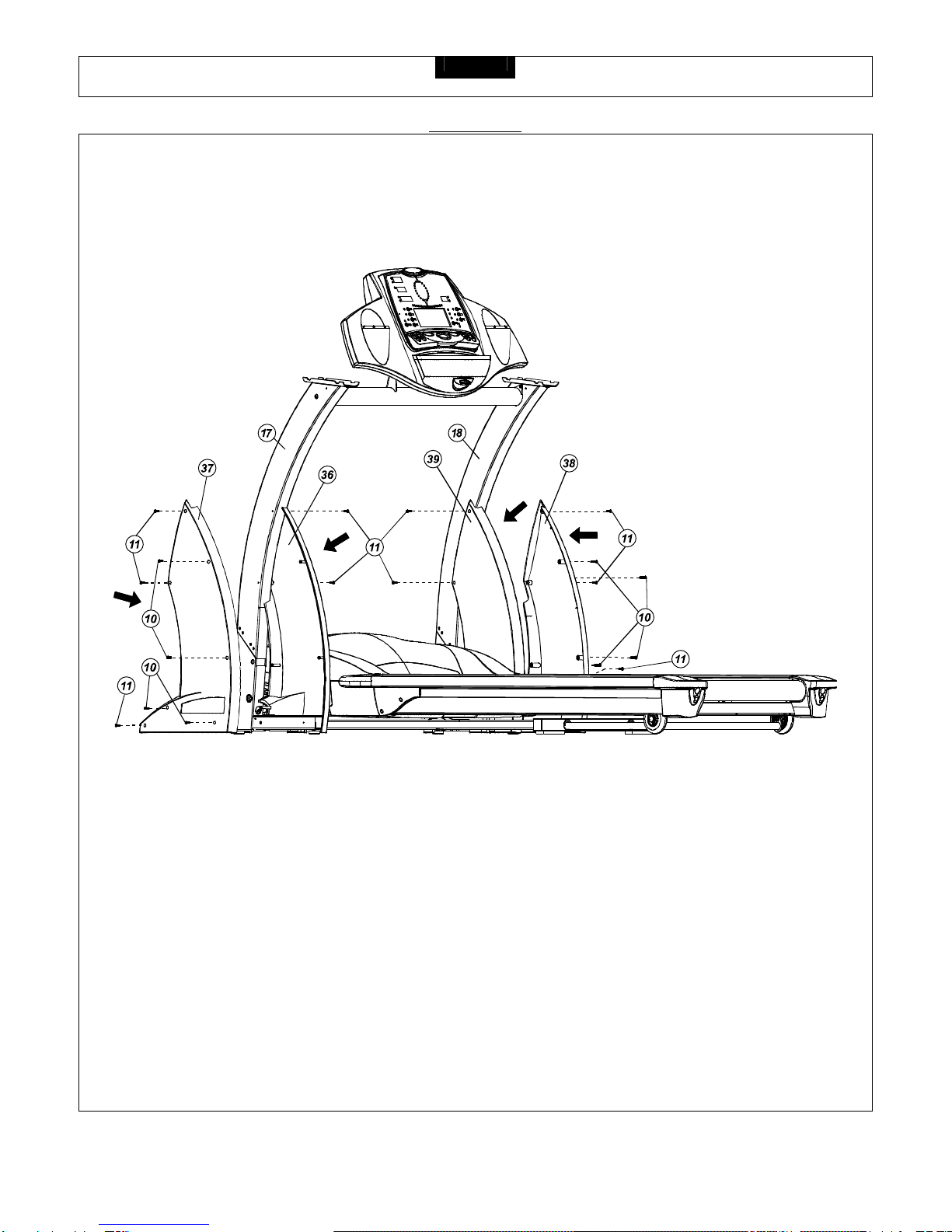

Attach the Upright Plastic Shroud –Left #1 (36) and Upright Plastic Shroud –Left #2 (37) to the Left Upright (17) and secure
with five #8 x 25mm Screws (11) and four #8 x 19mm Screws (10). Repeat this procedure on Right Upright (18) with Upright
Plastic Shroud –Right #2 (38) and Upright Plastic Shroud –Right #1 (39).

EVO 3i MOTORIZED TREADMILL
Visit us at: www.evofitness.com
14
ASSEMBLY
STEP 5:
First connect the wires between the Left Handlebar (12) and Left Upright (17) as shown, then attach the Left Handlebar (12)
to the Left Upright (17) using two M8 x 10mm Bolts (5). Repeat this procedure for the Right Handlebar (13) and Right Upright
(18).

EVO 3i MOTORIZED TREADMILL
Visit us at: www.evofitness.com
15
ASSEMBLY
STEP 6:
Attach the Handlebar Rear End Cap –Left #1 (6) to the Handlebar Rear End Cap –Left #2 (7) over the Left Upright (17) and
secure in place using two #8 x 19mm Screws (10) and two #8 x 25mm Screws (11). Attach the Handlebar Rear End Cap –
Right #2 (9) to the Handlebar Rear End Cap –Right #1 (8) over the Right Upright (18) and secure in place using two #8 x
19mm Screws (10) and two #8 x 25mm Screws (11).

EVO 3i MOTORIZED TREADMILL
Visit us at: www.evofitness.com
16
TRANSPORT INSTRUCTIONS
How to transport the treadmill
:

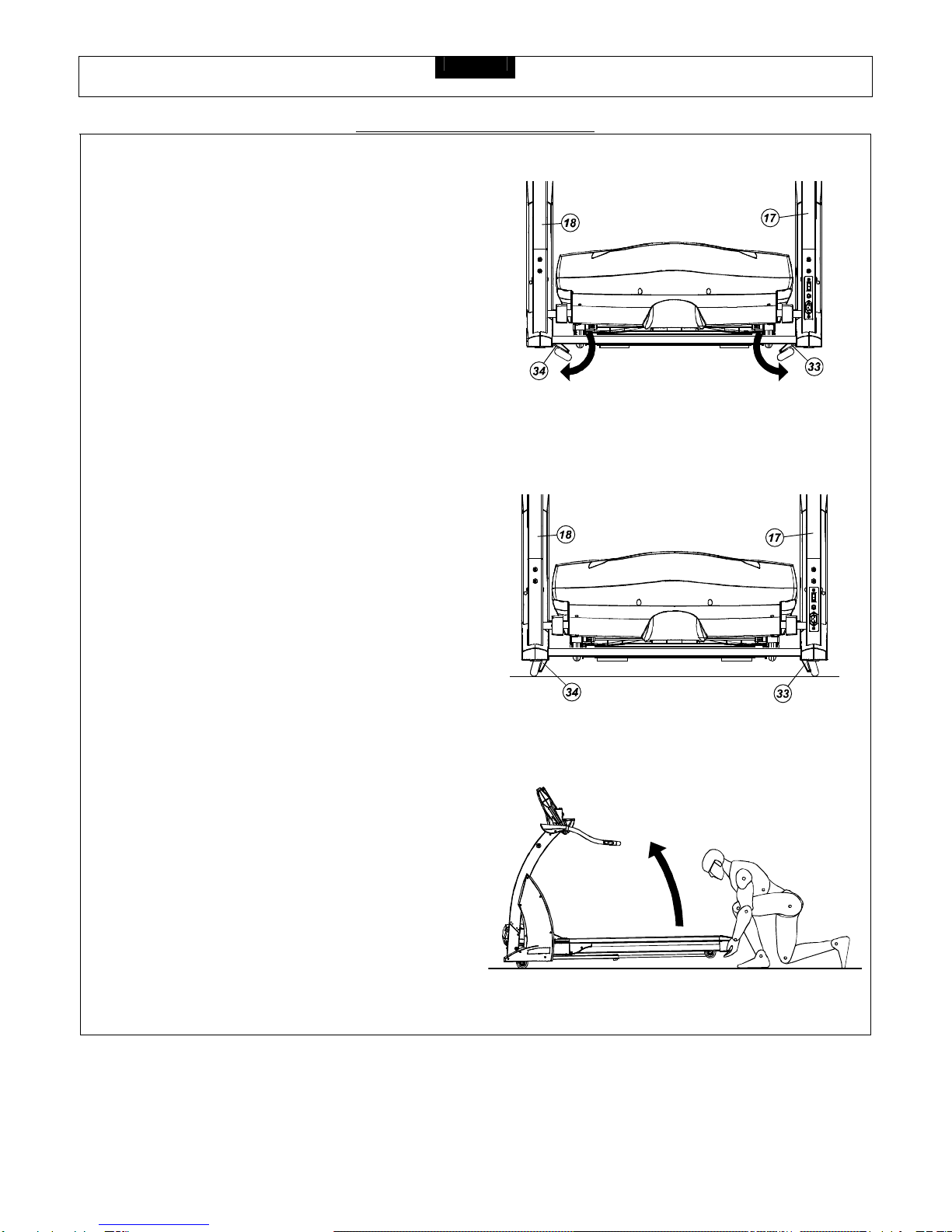

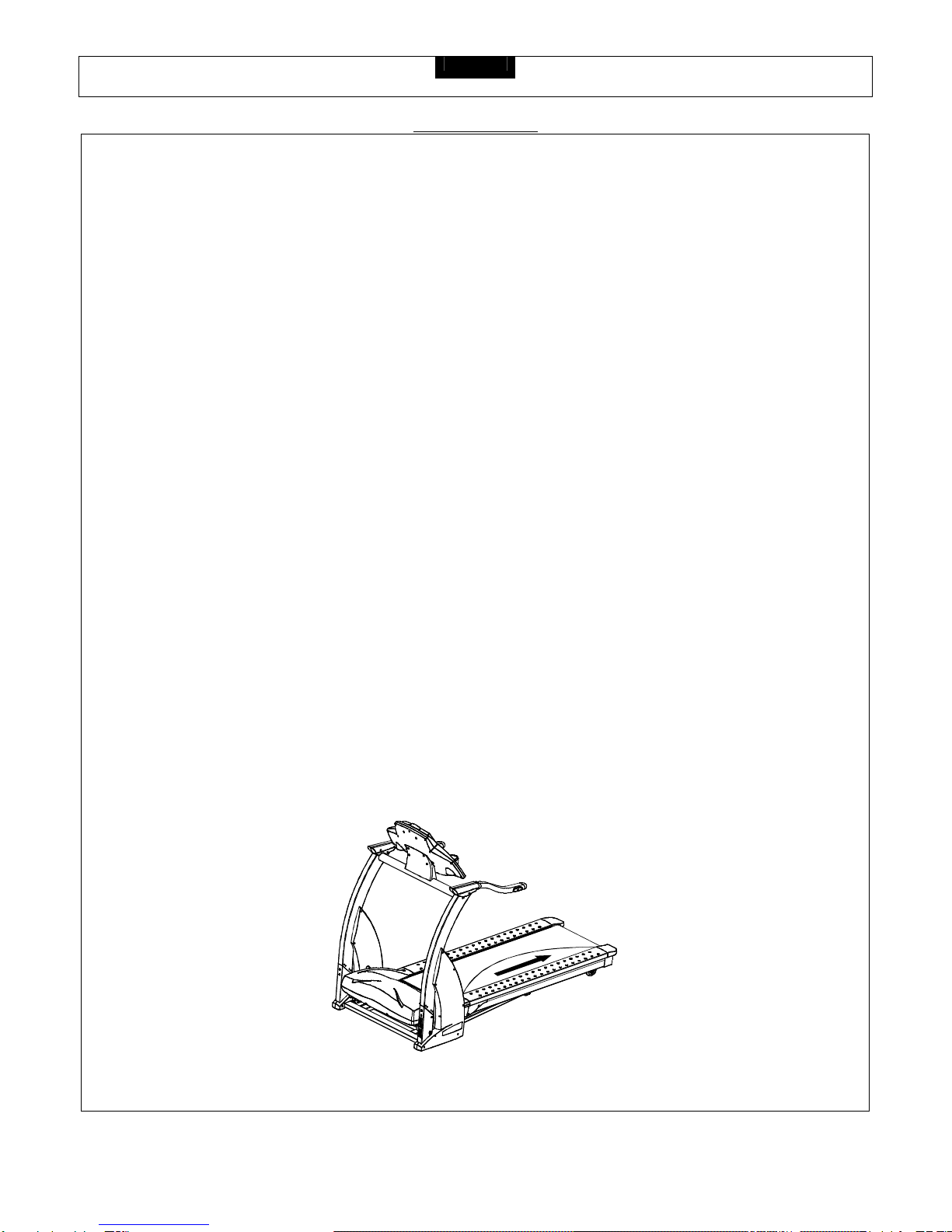

1. To move the treadmill you will need to first flip
out the Right and Left Transport Wheel Brackets
(34 and 33) located on the underside of the Left
and Right Uprights (17 and 18). You may need
to tilt the treadmill to one side in order to access
the wheels. Be careful when tilting the treadmill
because it is heavy. You may need the
assistance of another person to do this.
2. Be sure both Transport Wheel Brackets (34 and
33) are flipped down and resting firmly on the
floor as shown in drawing 2.
3. Carefully lift the treadmill up slightly from the rear
and roll it to a desired position. Flip the
Transport Wheel Brackets (34 and 33) back up
into their stored position. Follow the instructions
on the STABILIZER ADJUSTMENT page in this
manual to level the frame to the floor.

EVO 3i MOTORIZED TREADMILL
Visit us at: www.evofitness.com
17

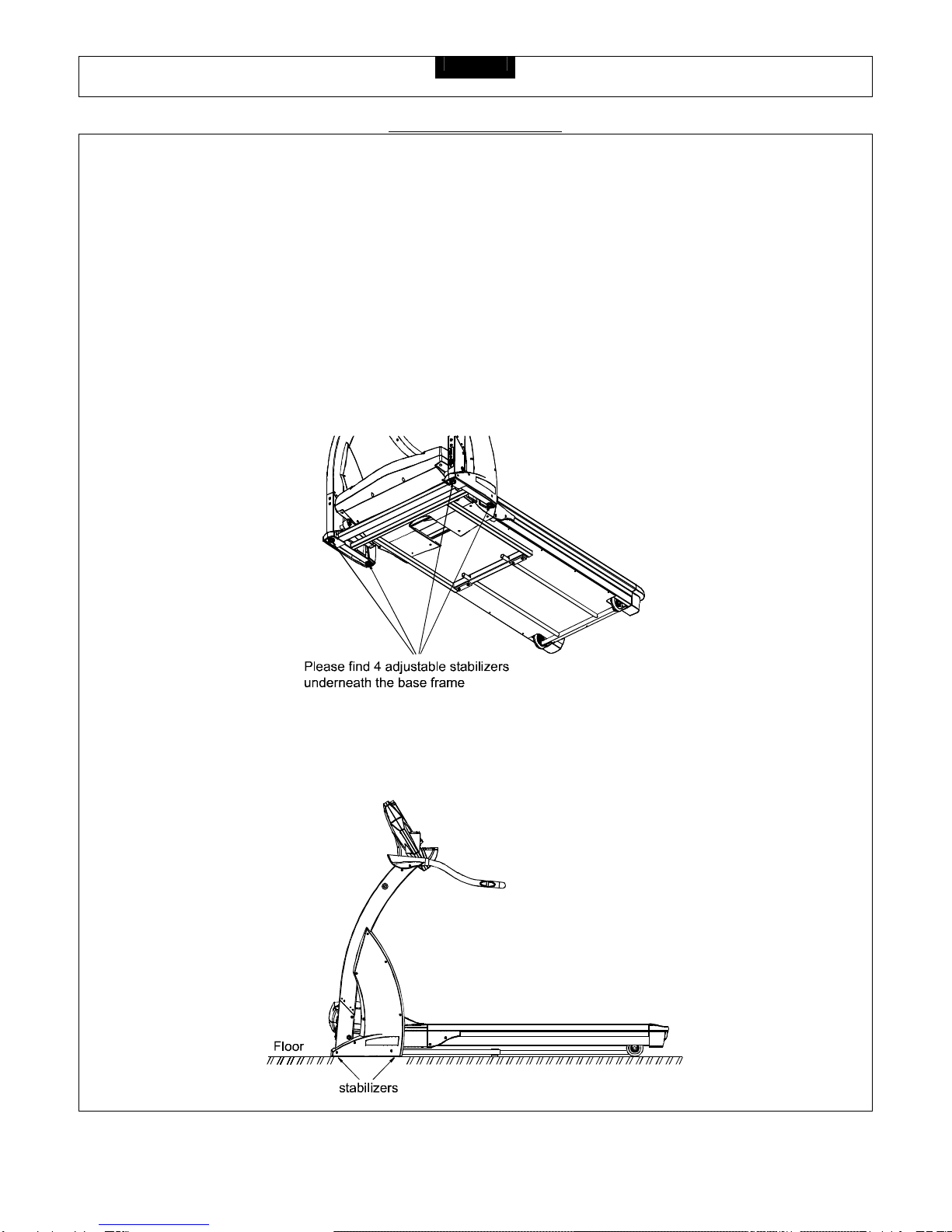

LEVEL ADJUSTMENT
LEVEL ADJUSTMENT:
Uneven flooring could cause the SPRING KNOBS not to engage and thus prevent the EVO3i from inclining.
To adjust the levelers follow these instructions:
You will need someone to help you with this procedure, as you will need to tip the treadmill on its side.
Tip the treadmill to the left/right. You will then see the LEVEL ADJUSTERS. These will need to be screwed either in or out
to level the treadmill. Repeat for the other side. It may help to use a spirit level when adjusting the level on your treadmill.

EVO 3i MOTORIZED TREADMILL
Visit us at: www.evofitness.com
18
MAINTENANCE
HOW TO MAINTAIN THE EVO 3i TREADMILL:
Proper maintenance is very important to ensure your treadmill is always in top working condition. Improper maintenance
could cause damage or shorten the life of your treadmill and exceed the LIMITED WARRANTY coverage.
?? Important: Never use abrasives or solvents to clean the treadmill. To prevent damage to the computer, keep liquids
away and keep it out of direct sunlight.
?? Inspect and tighten all parts of the treadmill regularly. Replace any worn parts immediately.
BELT ADJUSTMENT:
Belt adjustment and tension performs two functions: adjustment for tension and centering. The running belt has been
adjusted properly at the factory. However transportation, uneven flooring or other unpredicted reasons could cause the belt to
shift off center resulting in the belt rubbing with the plastic side rail or end caps and possibly causing damage. To adjust the
belt back to it’s proper position please follow the directions below:
?? Walking belt has shifted to the left:First unplug the power cord from the surge protector. Using the hex key
provided, turn the left rear roller adjustment bolt 1/4 turn in the clockwise direction. Plug the power cord back into
the surge protector and run the treadmill at 2.5 mph. You should see the belt start to correct itself, moving back
towards the center. Repeat the above procedure until the walking belt is centered. It may be necessary to set
walking belt tension once you have completed this procedure if the belt feels like it is slipping while walking. Refer
below to the "Walking belt slipping" instructions.
?? Walking belt has shifted to the right: First unplug the power cord from the surge protector. Using the hex key
provided, turn the right rear roller adjustment bolt 1/4 turn in the clockwise direction. Plug the power cord back into
the surge protector and run the treadmill at 2.5 mph. You should see the belt start to correct itself, moving back
towards the center. Repeat the above procedure until the walking belt is centered. It may be necessary to set
walking belt tension once you have completed this procedure if the belt feels like it is slipping while walking. Refer
below to the "Walking belt slipping" instructions.
?? Walking belt is slipping:First unplug the power cord from the surge protector. Using the hex key provided, turn
both the left and right rear roller adjustment bolts the same distance, usually a 1/4 turn in the clockwise direction.
Plug the power cord back into the surge protector and run the treadmill at 2.5 mph. You should now walk on the belt
to determine if the belt is still slipping. Repeat the above procedure until the walking belt is not slipping. The tension
should be just tight enough not to slip.
WARNING! Do not over tighten rollers! This will cause premature roller bearing failure!
Right and left tension bolts are located at the rear of the treadmill.

EVO 3i MOTORIZED TREADMILL
Visit us at: www.evofitness.com
19
MAINTENANCE
CLEANING:
Routine cleaning of your treadmill will extend the product's life.
?? Warning: To prevent electrical shock, be sure the power to the treadmill is OFF and the power cord is unplugged
from the wall electrical outlet before attempting any cleaning or maintenance.
?? Important: Never use abrasives or solvents to clean the treadmill. To prevent damage to the computer, keep
liquids away and keep it out of direct sunlight.
?? After each workout: Wipe off the console and other treadmill surfaces with a clean, water dampened soft cloth to
remove excess perspiration.
?? Weekly: Use of a treadmill mat is recommended for ease of cleaning. Dirt from your shoes contacts the belt and
eventually makes it to underneath the treadmill. Vacuum underneath treadmill once a week.
DECK LUBRICATION:
The walking belt has been pre-lubricated at the factory. However, it is recommended that the walking board be checked
periodically for lubrication to ensure optimal treadmill performance. Your treadmill should not have to be lubricated usually
within the first year or 500 hours of use. For service call your local EVO dealer or contact us directly at 888-800-1167.
Every 3 months of operation lift the sides of the walking belt and feel the top surface of the walking board as far as you can
reach. If you feel signs of silicone, no further lubrication is required. If it feels dry to the touch, follow the instructions below.
Please use Lube 'N Walk (can be purchased from your dealer or call the number on the front of the manual), or a non-
petroleum based silicone such as "Napa 8300" (available at most stores).
To apply lubricant to the walking belt:
1. Position the walking belt so that the seam is located on top and in center of the walking board.
2. Insert the spray nozzle into the spray head of the lubricant can.
3. While lifting the side of the walking belt, position the spray nozzle between the walking belt and the board
approximately 6" from the front ofthe treadmill. Apply the silicone spray to the walking board, moving from the front
of the treadmill to the rear. Repeat this on the other side of the belt. Spray approximately 4 seconds on each side.
4. Allow the silicone to "set" for 1 minute before using the treadmill.
Spray lubricant from front to back.

EVO 3i MOTORIZED TREADMILL
Visit us at: www.evofitness.com
20
WARRANTY
This warranty covers all parts including frame, electronics and wear parts for a lifetime. Labor costs under this warranty are
covered for a period of one year from the date of purchase. If used in a commercial setting the warranty will change to cover
three (3) years on all parts and one (1) year on labor. Labor will be provided by an approved Smooth Fitness reseller, or at
the discretion of Smooth fitness, through an approved independent service agent.
Conditions Of Warranty
This warranty is valid only for the original purchaser and is not transferable. A copy of the original purchase receipt will be
required to obtain warranty parts and/or service. As a condition of this warranty, Smooth Fitness requires that the EVO
treadmills be lubricated on the belt and deck in accordance with the manufacturer's maintenance requirements, and using
lubrication in conformity with the specifications provided by the manufacturer. Customer is required to maintain records to
establish compliance with maintenance requirements. Smooth Fitness will not be responsible for repair or replacement of any
part damaged or destroyed due to misuse, failure to properly maintain, and/or abuse.
Remedies for Parts and Service:
Smooth Fitness may at its discretion, choose to provide any of the following parts or repair options. In the event that a part is
determined in need of replacement, upon receipt of the part by Smooth Fitness, Smooth Fitness may send out the part by
UPS ground or another such carrier directly to the customer's home. The customer is responsible for the cost of sending the
part to Smooth Fitness. For one year from the date of purchase, labor will be provided by a Smooth Fitness dealer or service
agent free of charge. After that time, the customer may either replace the component, or hire the dealer/service agent to
provide the labor at an additional cost. If Smooth Fitness in its sole discretion determines that the treadmill cannot or should
not be repaired, it may decide to purchase the unit for the residual value in accordance with the following: 25% of retail
purchase price after 5 years, 15% after 10 years, 5% after 15 years.
Unit has a labor warranty of 1 year from date of installation.
