ICON Health & Fitness PRO-FORM 560 Crosstrainer User manual

Serial Number Decal
Model No. PFTL59906.2
Serial No.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER’S MANUAL
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete cus-
tomer satisfaction. If you have
questions, or if parts are missing,
PLEASE DO NOT CONTACT
THE STORE; please contact
Customer Care.
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.proformservice.com
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
V
Write the serial number in the space
above for reference.

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
PROFORM is a registered trademark of ICON IP, Inc.

3
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air open-
ings. To protect the floor or carpet from dam-
age, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should be used only by persons
weighing 300 lbs. (136 kg) or less.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women.
Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.

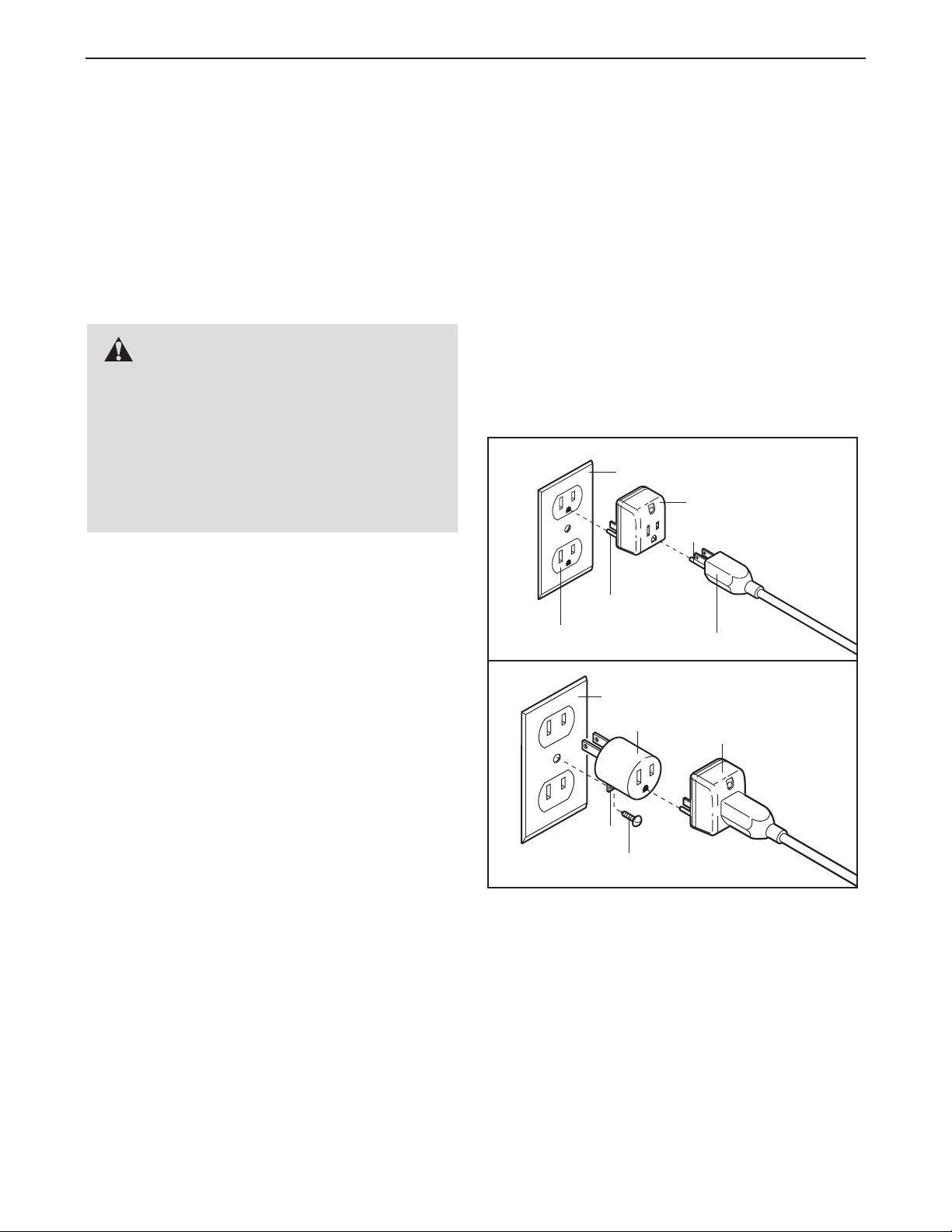

10. When connecting the power cord (see page
9), plug the power cord into a surge suppres-
sor (not included) and plug the surge sup-
pressor into a grounded circuit capable of
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
11. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 9. To purchase a surge suppressor, see
your local PROFORM dealer or call the tele-
phone number on the front cover of this man-
ual and order part number 146148, or see your
local electronics store.
12. Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill. If the control sys-
tem is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.
13. Keep the power cord and the surge suppres-
sor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROU-
BLESHOOTING on page 19 if the treadmill is
not working properly.)
15. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 11).
16. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
17. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
18. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
19. Use the included dumbbells only as de-
scribed in this manual. Properly store the
dumbbells in the dumbbell holders on the
console when you are not using them. If the
dumbbells are improperly stored, they may
fall off the console, causing the user to trip.
WARNING: Toreduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
IMPORTANT PRECAUTIONS

4
The decals shown here have been applied in the locations
shown. If a decal is missing or illegible, call the telephone
number on the front cover of this manual and request a free
replacement decal. Apply the decal in the location shown.
Note: The decals may not be shown at actual size.
20. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and switch the reset/off cir-
cuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the circuit breaker.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 18.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
23. Never insert any object into any opening on
the treadmill.
24. Inspect and properly tighten all parts of the
treadmill regularly.
25. DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
nance and adjustment procedures described in
this manual. Never remove the motor hood un-
less instructed to do so by an authorized ser-
vice representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commer-
cial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS

5
Thank you for selecting the new PROFORM®560
Crosstrainer treadmill. The 560 Crosstrainer treadmill
combines advanced technology with innovative design
to help you get the most from your exercise in the con-
venience of your home. And when you’re not exercising,
the 560 Crosstrainer treadmill can be folded up, requir-
ing less than half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill.If you have questions after read-
ing this manual, please see the front cover of this man-
ual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.proformservice.com/registration.

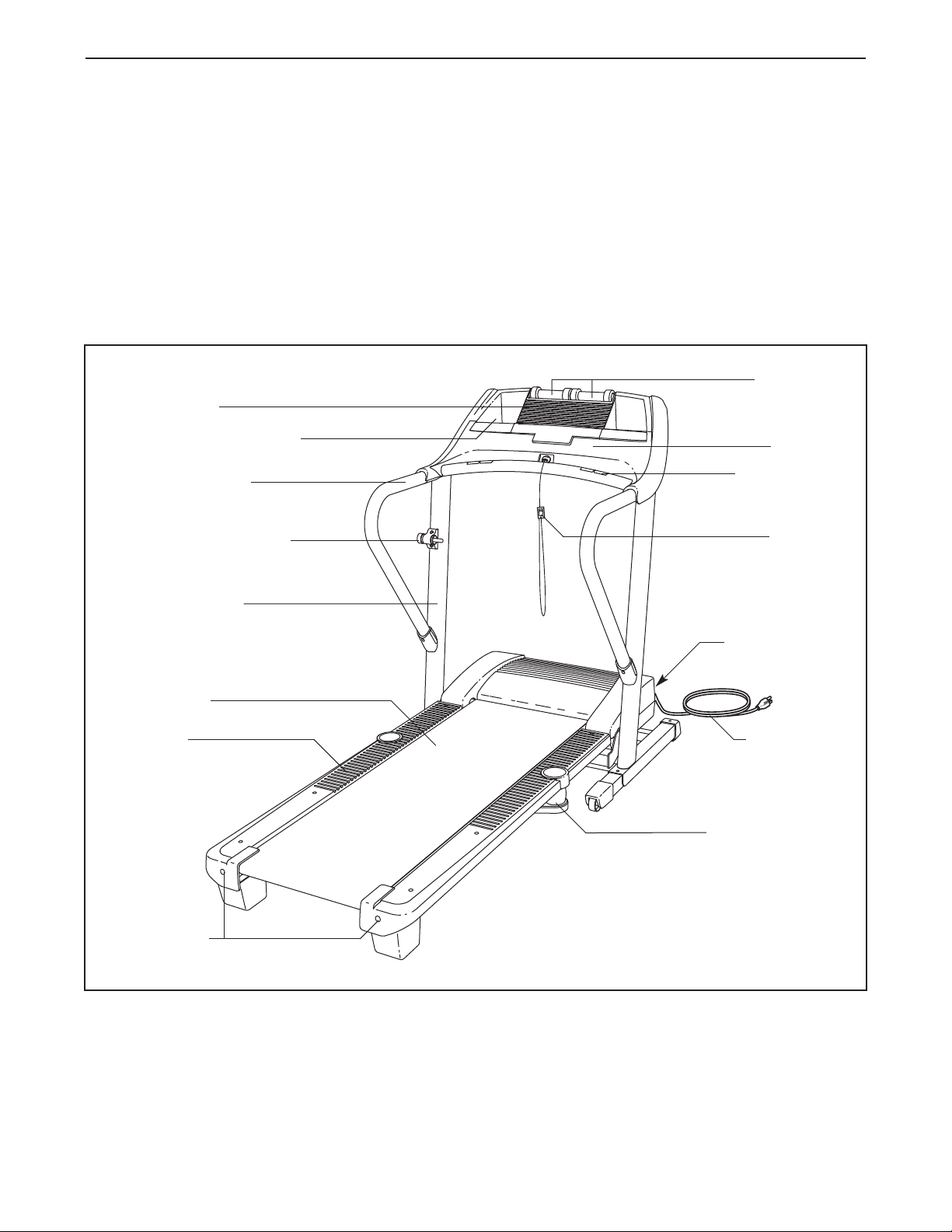

Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Upright
Storage Latch
Accessory Tray
Fan
Key/Clip
Reset/Off
Circuit Breaker
Walking Belt
Platform Cushion
Foot Rail Power Cord
Rear Roller
Adjustment Bolts
Console
Dumbbells
Pulse Sensor

6
ASSEMBLY
To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove the packing materials; do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, lubricant may be transferred to the top of the
walking belt or to the shipping carton. This is a normal condition and does not affect treadmill performance. If
there is lubricant on top of the walking belt, wipe it off with a soft cloth and mild, non-abrasive cleaner.

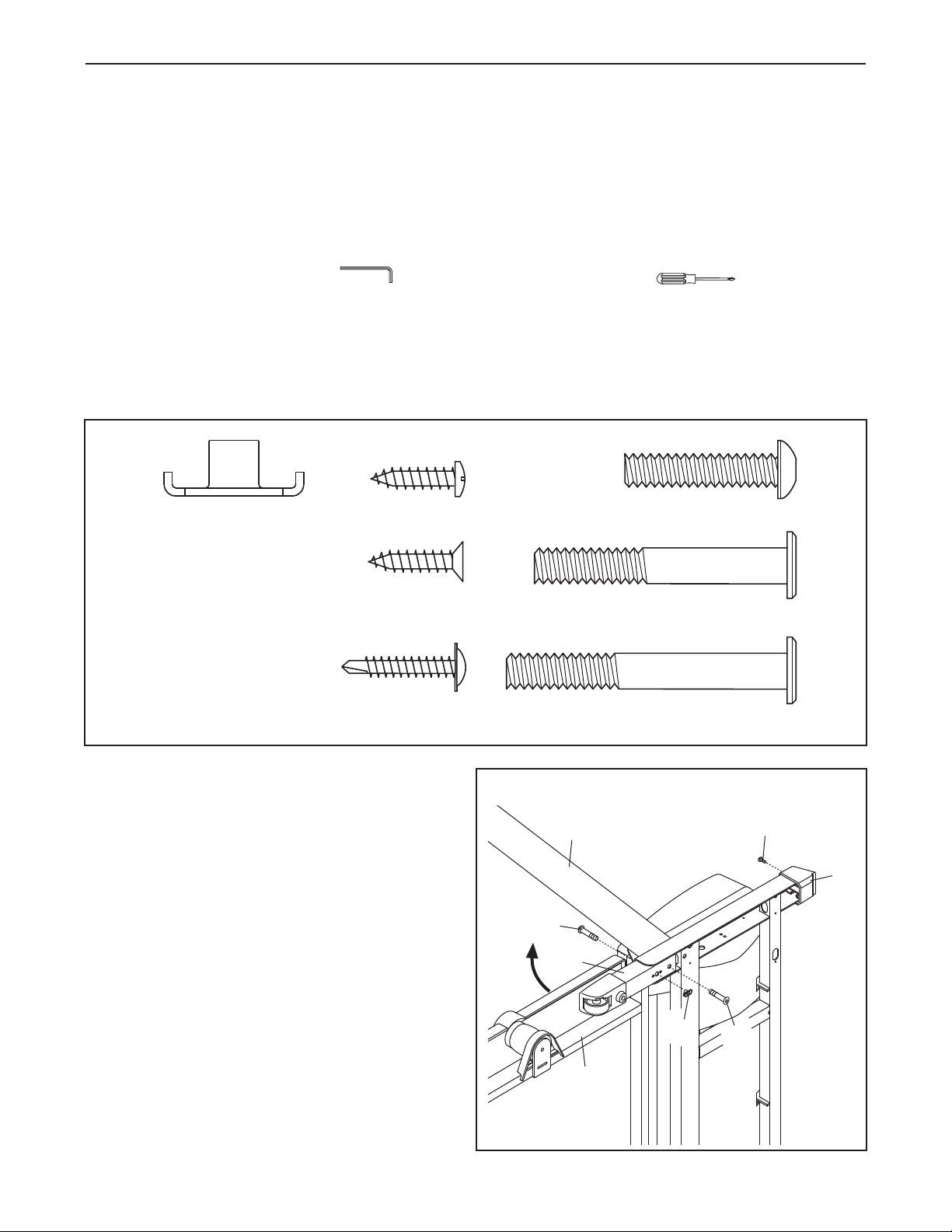

Assembly requires the included hex key and your own Phillips screwdriver .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the parts bag, check to see if it is preattached to
one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assembly.
Extra hardware may be included.
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side as shown. Partially
fold the Frame (58) so the treadmill is more sta-
ble. Do not fully fold the Frame until the
treadmill is completely assembled.
Insert an Extension Leg (89) into the base of the
Uprights (84). Hold an Extension Leg Nut (67) in
the bottom of the Extension Leg, and thread a
2.25" Extension Leg Bolt (92) into the top of the
Extension Leg. Next, thread a 2.5" Extension Leg
Bolt (65) into the bottom of the Extension Leg.
Firmly tighten the Extension Leg Bolts.
Slide a Front Endcap (44) onto the base of the
Uprights (84). Partially tighten a Front Endcap
Screw (14) into the Front Endcap and the base.
89
58
44
84
92
14
67
1" Tek Screw (83)–2
Extension Leg Nut (67)–2
Screw (3)–6
2.5" Extension Leg Bolt (65)–2
2.25" Extension Leg Bolt (92)–2
Handail Bolt (64)–4
Front Endcap
Screw (14)–2
1
65

7
3. With the help of a second person, carefully tip
the treadmill onto its right side. Do not fully fold
the treadmill until it is completely assembled.
Insert the other Extension Leg (89) into the base
of the Uprights (84). Hold an Extension Leg
Nut (67) in the bottom of the Extension Leg, and
thread a 2.25" Extension Leg Bolt (92) into the
top of the Extension Leg. Next, thread a 2.5"
Extension Leg Bolt (65) into the bottom of the
Extension Leg. Firmly tighten the Extension
Leg Bolts.
Slide the other Front Endcap (44) onto the base
of the Uprights (84). Partially tighten a Front
Endcap Screw (14) into the Front Endcap and
the base.
65
44
84
14
92
67
3
4. Attach two Base Pads (82) to the base of the
Uprights (84) with two 1" Tek Screws (83).
84
83
83 82
82
4
89
2. Insert the tab on one of the Handrail Brackets (42)
into the indicated slot in the right Upright (84).
Attach the Handrail Bracket with a Screw (3).
Slide a Handrail Cap (8) onto the lower end of a
Handrail (20). Make sure that the Handrail Cap is
oriented as shown.
Insert the top of the Handrail (20) into the tube at
the top of the right Upright (84), and slide the
Handrail Cap (8) over the Handrail Bracket (42).
Attach the top of the Handrail to the right Upright
with two Handrail Bolts (64); start both Handrail
Bolts but do not tighten them yet. Then, at-
tach the Handrail to the Handrail Bracket with a
Screw (3). Tighten the two Handrail Bolts.
2
Slot
42
20
84
38
3
64

If you purchase the optional chest pulse sensor (see
page 17), follow the steps below to install the receiver
included with the chest pulse sensor.
1. Make sure that the power cord is unplugged. Remove
the indicated Screw (3) and the Access Door (76) from
the back of the Console Base (85).
2. Connect the wire on the receiver (A) to the indicated wire
extending from the Console Base (85). Hold the re-
ceiver so the small cylinder is oriented as shown and
is facing the Console Back. Attach the receiver to the
plastic posts on the Access Door (76) with the two in-
cluded small screws.
3. Make sure that no wires are pinched. Reattach the
Access Door (76) with the Screw (3). Discard the other
wires included with the receiver.
A
85
Small
Cylinder
3
76
Wire
Small
Screws
6. Attach the Latch Housing (73) to the left Upright
(84) with two Screws (3); start both Screws
and then tighten them. Note: Make sure that
the large hole in the Latch Housing is on the
indicated side.
Remove the knob from the pin. Make sure that
the collar and the spring are on the pin. (Note: If
there are two collars, place one on each side of
the spring.) Next, insert the pin into the Latch
Housing (73). Then, tighten the knob onto the pin.
See steps 1 and 3. Fully tighten the two Front
Endcap Screws (14).
3
Pin
Spring
Collar
Knob
73
7. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear
plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the tread-
mill. Note: Extra hardware may be included. Keep the included hex key in a secure place; the large hex key is
used to adjust the walking belt (see page 20).
84
Large
Hole
6
5. Insert the tab on the other Handrail Bracket (42)
into the indicated slot in the left Upright (84).
Attach the Handrail Bracket with a Screw (3).
Slide a Handrail Cap (8) onto the lower end of a
Handrail (20). Make sure that the Handrail Cap is
oriented as shown.
Insert the top of the Handrail (20) into the left
Upright (84), and slide the Handrail Cap (8) over
the Handrail Bracket (42). Attach the top of the
Handrail to the left Upright with two Handrail
Bolts (64); start both Handrail Bolts but do not
tighten them yet. Then, attach the Handrail to
the Handrail Bracket with a Screw (3). Tighten
the two Handrail Bolts. With the help of a
second person, carefully raise the Uprights
(84) to a vertical position.
8
5
Slot
42
20
84
3
8
364

9
OPERATION AND ADJUSTMENT
THE PRE-LUBRICATED WALKING BELT
Your treadmill features a walking belt coated with high-
performance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone
number on the front cover of this manual and order
part number 146148, or see your local electronics
store.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a moni-
toring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill. If
the control system is damaged, the walking belt
may change speed, accelerate, or stop unexpect-
edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin

10
FEATURES OF THE CONSOLE
The treadmill console offers a selection of features de-
signed to make your workouts more effective and en-
joyable.
When you select the manual mode of the console, you
can change the speed and incline of the treadmill with
the touch of a button. As you exercise, the console will
display continuous exercise feedback. You can even
measure your heart rate using the handgrip pulse sen-
sor or the optional chest pulse sensor (see page 17 for
information about the optional chest pulse sensor).
The console also features eight calorie programs that
automatically control the speed and incline of the tread-
mill to help you burn excess calories during your work-
outs. You can even lose unwanted pounds with the ef-
fective new pound-a-week weight-loss program.
In addition, the console offers six cross training pro-
grams designed to help you to burn calories and en-
hance your cardiovascular system while toning and
strengthening your muscles. The cross training pro-
grams control the speed and incline of the treadmill
and prompt you to perform a variety of strength exer-
cises during your workouts. Two upper body programs,
two lower body programs, and two total body programs
are offered. Note: The strength exercises require the
use of dumbbells and an inflatable exercise ball (not
included). To purchase dumbbells or an exercise
ball, call the telephone number on the front cover
of this manual.
To use the manual mode of the console, follow the
steps beginning on page 11. To use a calorie
program,see page 13. To use the pound-a-week
program,see page 14. To use a cross training pro-
gram,see page 15.
Note: If there is a sheet of clear plastic on the face
of the console, remove the plastic. To prevent dam-
age to the walking platform, wear clean athletic
shoes while using the treadmill. The first time the
treadmill is used, observe the alignment of the
walking belt, and center the walking belt if neces-
sary (see page 20).

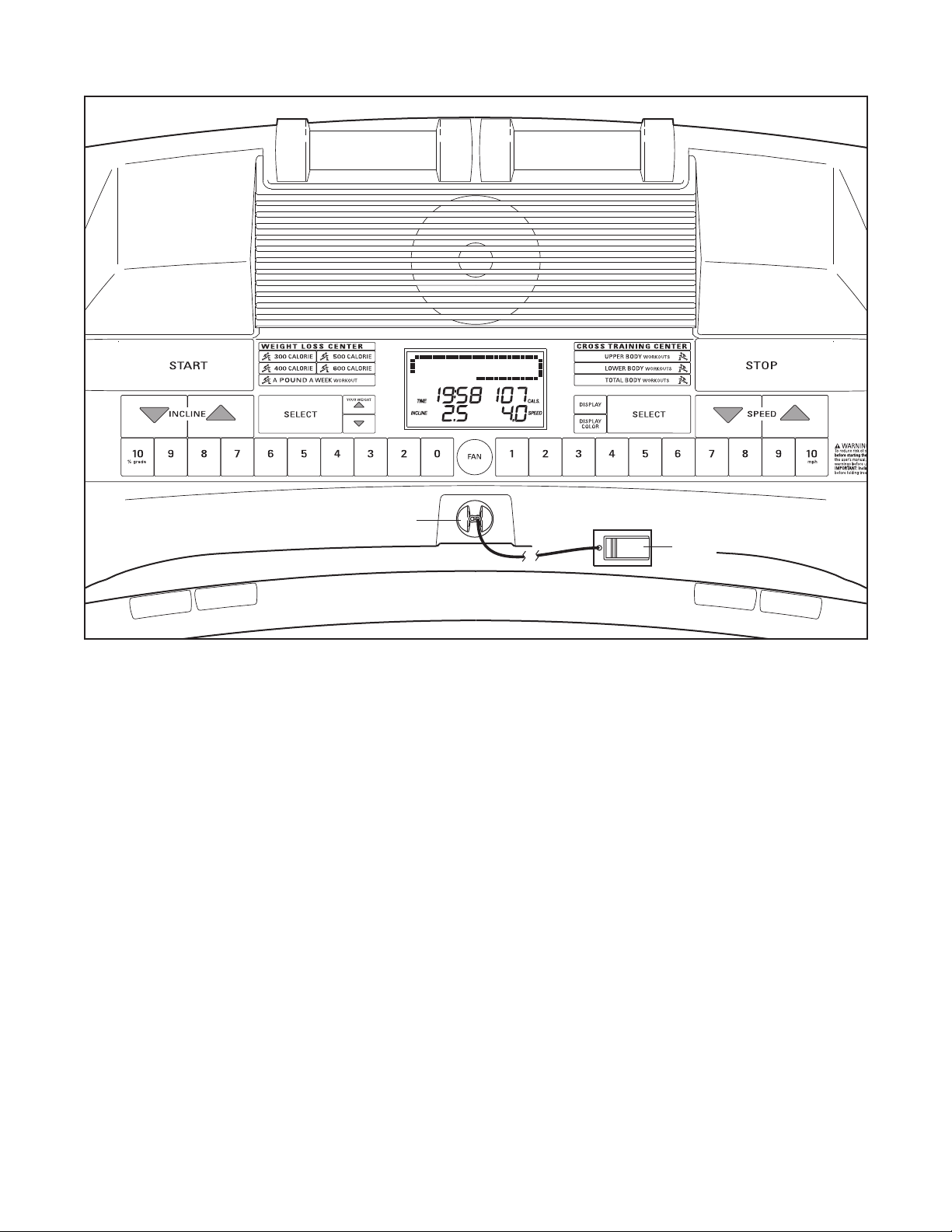

Clip
CONSOLE DIAGRAM
Key

11
HOW TO TURN ON THE POWER
Plug in the power cord (see page 9).
Locate the reset/off circuit
breaker near the power
cord. Make sure that the
circuit breaker is in the
reset position.
Next, step onto the foot rails of the treadmill. Find the
clip attached to the key (see the drawing on page 10)
and slide the clip securely onto the waistband of your
clothes. Then, insert the key into the console. After a
moment, the display will light. Important: In an emer-
gency situation, the key can be pulled from the
console, causing the walking belt to slow to a stop.
Test the clip by carefully taking a few steps back-
ward; if the key is not pulled from the console, ad-
just the position of the clip.
HOW TO USE THE MANUAL MODE
Insert the key into the console.
See HOW TO TURN ON THE POWER above.
Enter your weight if desired.
If you enter your weight
into the console, the
console will display a
more accurate estimate
of the number of calories
that you burn. To enter
your weight, press the weight increase and de-
crease buttons repeatedly. Note: Once you have
entered your weight, it will be saved in memory.
Select the manual mode.
When the key is inserted, the manual mode will be
selected. If you have selected a program, reselect
the manual mode by pressing either of the Select
buttons re-
peatedly
until a track
appears in
the upper
half of the
display.
Start the walking belt.
To start the walking belt, press the Start button,
the Speed increase button, or one of the speed
buttons numbered 1 to 10.
If you press the Start
button or the Speed in-
crease button, the walk-
ing belt will begin to
move at 1 mph. As you
exercise, change the
speed of the walking belt as desired by pressing
the Speed increase and decrease buttons. Each
time a button is pressed, the speed setting will
change by 0.1 mph; if a button is held down, the
speed setting will change in increments of 0.5
mph. Note: After the buttons are pressed, it may
take a moment for the walking belt to reach the se-
lected speed setting.
If one of the numbered speed buttons is pressed,
the walking belt will gradually change speed until it
reaches the selected speed setting.
To stop the walking belt, press the Stop button.
The time will begin to flash in the display. To
restart the walking belt, press the Start button, the
Speed increase button, or one of the numbered
speed buttons.
Change the incline of the treadmill as desired.
To change the incline of
the treadmill, press the
Incline increase and de-
crease buttons or one of
the incline buttons num-
bered 0 to 10. Each time
the Incline increase or decrease button is
pressed, the incline will change by 0.5%. If one of
the numbered incline buttons is pressed, the
treadmill will adjust to the selected incline setting.
Note: After the buttons are pressed, it may take a
moment for the treadmill to reach the selected in-
cline setting.
Follow your progress with the display.
Note: The display features six background col-
ors. To select a color, press the Display Color
button repeatedly. To adjust the contrast of the
display, see THE INFORMATION MODE on
page 17.
6
5
4
3
2
1
Reset
Position
Track

When the
manual
mode is se-
lected, the
upper part of
the display
will show a
track that represents 1/4 mile. As you walk or run,
indicators will appear in succession around the
track until the entire track appears. The track will
then disappear and the indicators will again begin
to appear in succession.
In the man-
ual mode,
the upper
part of the
display can
also show
the elapsed
time, the distance that you have walked or run, the
speed of the walking belt, the approximate number
of calories you have burned while walking or run-
ning, your pace in minutes per mile, or the incline
level of the treadmill. If desired, press the Display
button repeatedly until the upper part of the display
shows the information you are most interested in
viewing. Note: While information is shown in the
upper part of the display, the same information will
not be shown in the lower parts of the display.
The left side of the dis-
play can show the
elapsed time, the dis-
tance that you have
walked or run, the ap-
proximate number of
grams of carbs that you have burned, and the in-
cline level of the treadmill. Note: When a program
is selected, the display will show the time remain-
ing in the program instead of the elapsed time.
The right side of the dis-
play can show the ap-
proximate number of
calories you have
burned, the speed of
the walking belt, and
your pace in minutes per mile. The right side of the
display will also show your heart rate when you
use the handgrip pulse sensor or the optional
chest pulse sensor.
Note: The console can display speed and dis-
tance in either miles or kilometers. To find out
which unit of measurement is selected or to
change the unit of measurement, see THE IN-
FORMATION MODE on page 17. For simplicity,
all instructions in this section refer to miles.
To reset the display, press the Stop button, re-
move the key, and then reinsert the key.
Measure your heart rate if desired.
Note: If you use the handgrip pulse sensor and
the optional chest pulse sensor at the same
time, the console will not display your heart
rate accurately.
Before using
the handgrip
pulse sensor,
remove the
sheets of
clear plastic
from the
metal con-
tacts. In addi-
tion, make sure that your hands are clean.
To measure your heart rate, stand on the foot
rails and hold the metal contacts on the
handrail—avoid moving your hands.When your
pulse is detected, aheart-shaped indicator will
flash in the right side of the display each time your
heart beats, one or two dashes will appear, and
then your heart rate will be shown. For the most
accurate heart rate reading, continue to hold
the contacts for about 15 seconds.
Turn on the fan if desired.
The fan features high and low speed settings.
Press the Fan button repeatedly to select a fan
speed or to turn off the fan. Note: If the fan is on
when the walking belt is stopped, the fan will turn
off automatically after a few minutes.
When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting
or you may damage the treadmill when you fold
it to the storage position. Next, remove the key
from the console and put it in a secure place.
When you are finished using the treadmill, switch
the reset/off circuit breaker to the “off” position and
unplug the power cord. IMPORTANT: If you do
not do this, the treadmill’s electrical compo-
nents may wear prematurely.
9
8
7
12
Contacts
Track

13

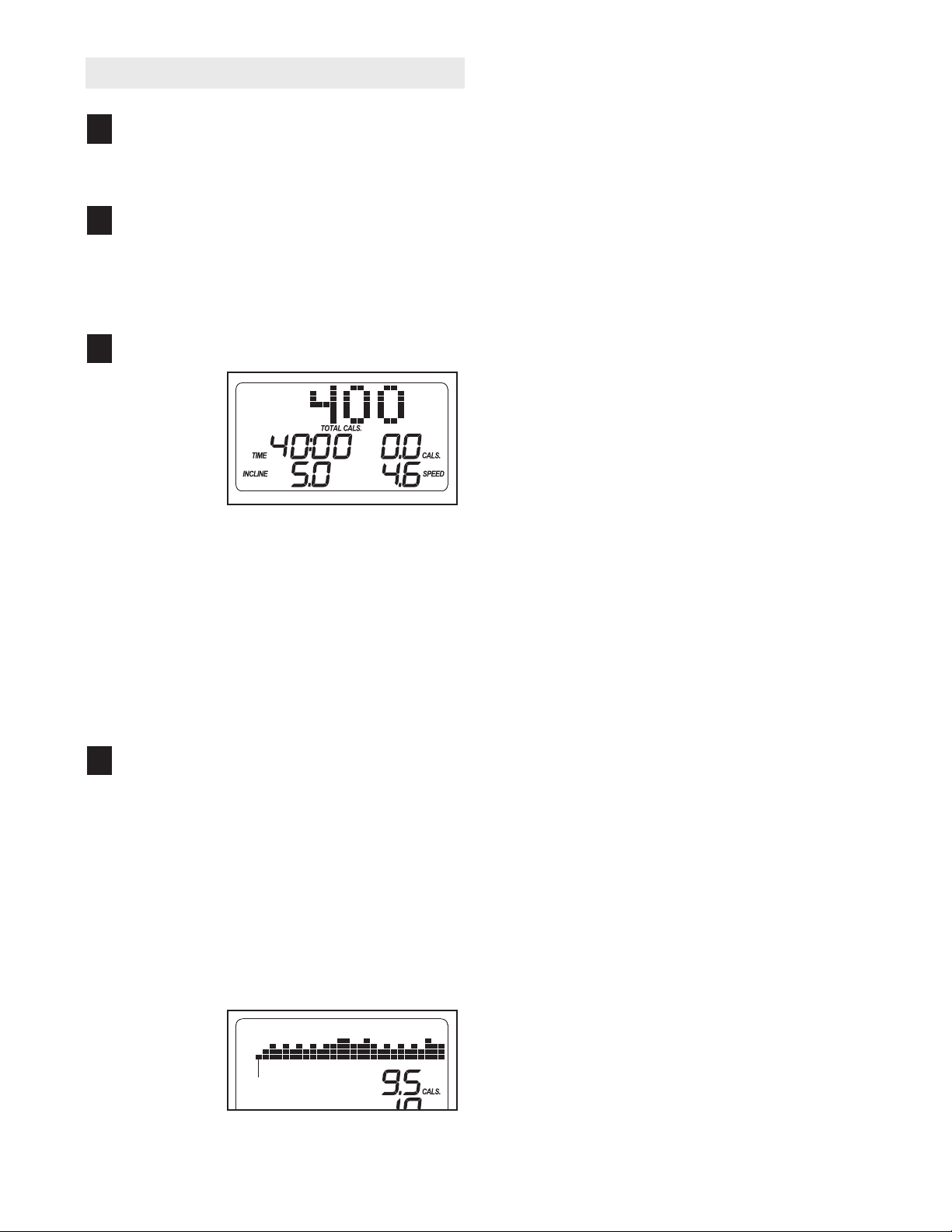

HOW TO USE A CALORIE PROGRAM
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
11.
Enter your weight if desired.
See step 2 on page 11. Note: Always enter your
weight before using a calorie program; the
speed and incline settings of the program will
depend on the weight setting that you enter.
Select a calorie program.
To select
one of the
eight calorie
programs,
press the
left Select
button re-
peatedly.
When a
calorie program is selected, the display will show
the calorie goal (the approximate number of calo-
ries to be burned during the program) and the
number of minutes that the program will last. In
addition, the maximum incline setting of the pro-
gram and the maximum speed setting of the pro-
gram will flash in the display. A few seconds after
acalorie program is selected, a profile of the
speed settings of the program will scroll across
the display.
Press the Start button to start the program.
Amoment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings of the program. Hold the handrails
and begin walking.
Each program is divided into 30, 40, 45, 50, 55, or
60 one-minute segments. One speed setting and
one incline setting are programmed for each seg-
ment. Note: The same speed setting and/or incline
setting may be programmed for two or more con-
secutive segments.
The speed
setting for
the first seg-
ment will be
shown in
the flashing
Current Segment column in the display. (The in-
cline settings are not shown in the display.) The
speed settings for the next several segments will
be shown in the columns to the right.
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash and a
series of tones will sound. If the speed and/or in-
cline of the treadmill is about to change, the speed
setting and/or the incline setting will flash in the
display to alert you.
When the first segment is completed, all speed
settings will move one column to the left
.The
speed setting for the second segment will then be
shown in the flashing Current Segment column
and the treadmill will automatically adjust to the
speed and incline settings for the second seg-
ment. Note: If all the indicators in the Current
Segment column are lit, the speed settings may
move downward so that only the highest indicators
appear in the display.
If the speed or incline setting for the current seg-
ment is too high or too low, you can manually
override the setting by pressing the Speed and
Incline buttons. Every few times a Speed button is
pressed, an additional indicator will appear or dis-
appear in the Current Segment column.
Important: When the current segment of the
program ends, the treadmill will automatically
adjust to the speed and incline settings for the
next segment.
To stop the program at any time, press the Stop
button. The time will begin to flash in the display.
To restart the program, press the Start button or
the Speed increase button. The walking belt will
begin to move at 1 mph. When the next segment
of the program begins, the treadmill will automati-
cally adjust to the speed and incline settings for
that segment.
The program will continue in this way until the last
segment of the program ends. The walking belt
will then slow to a stop. Important: The calorie
goal is an estimate of the number of calories
that you will burn during the program. The ac-
tual number of calories that you burn will de-
pend on your weight. In addition, if you manu-
ally change the speed or incline of treadmill
during the program, the number of calories
you burn will be affected.
4
3
2
1
Current Segment

14
Follow your progress with the display.
See step 6 on pages 11 and 12.
Measure your heart rate if desired.
See step 7 on page 12.
Turn on the fan if desired.
See step 8 on page 12.
When you are finished exercising, remove the
key from the console.
See step 9 on page 12.
HOW TO USE THE POUND-A-WEEK PROGRAM
The exciting new pound-a-week program is a weight-
loss program designed to help you lose 3600 calories,
equal to one pound of excess fat, in five days. For vari-
ety, each of the daily 60-minute workouts offers differ-
ent speed and incline settings from the previous day’s
workout.
On days 1, 3, and 5, you will burn approximately 800
calories each day, and on days 2 and 4, you will burn
approximately 600 calories each day. Important: The
actual number of calories that you burn will de-
pend on your weight. In addition, if you manually
change the speed or incline of treadmill during the
program, the number of calories you burn will be
affected.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
11.
Enter your weight if desired.
See step 2 on page 11. Note: Always enter your
weight before using the pound-a-week pro-
gram; the speed and incline settings of the
program will depend on the weight setting that
you enter.
Select the pound-a-week program.
To select the
pound-a-
week pro-
gram, press
the left
Select but-
ton. When
the pound-a-
week pro-
gram is selected, the words “A Pound A Week”
will appear in the display, followed by “Day 1,”
“Day 2,” “Day 3,” “Day 4,” or “Day 5.” In addition,
the maximum incline setting of the program and
the maximum speed setting of the program will
flash in the display. A few seconds after the
pound-a-week program is selected, a profile of the
speed settings of the program will scroll across
the display.
Press the Start button to start the program.
The pound-a-week program will function in the
same way as a calorie program (see step 4 on
page 13).
Note: Once you have started a pound-a-week daily
workout, the console will automatically start you on
the next day’s workout the next time you select the
pound-a-week program.
Follow your progress with the display.
See step 6 on pages 11 and 12.
Measure your heart rate if desired.
See step 7 on page 12.
Turn on the fan if desired.
See step 8 on page 12.
When you are finished exercising, remove the
key from the console.
See step 9 on page 12.
8
7
6
5
4
3
2
1
8
7
6
5

15

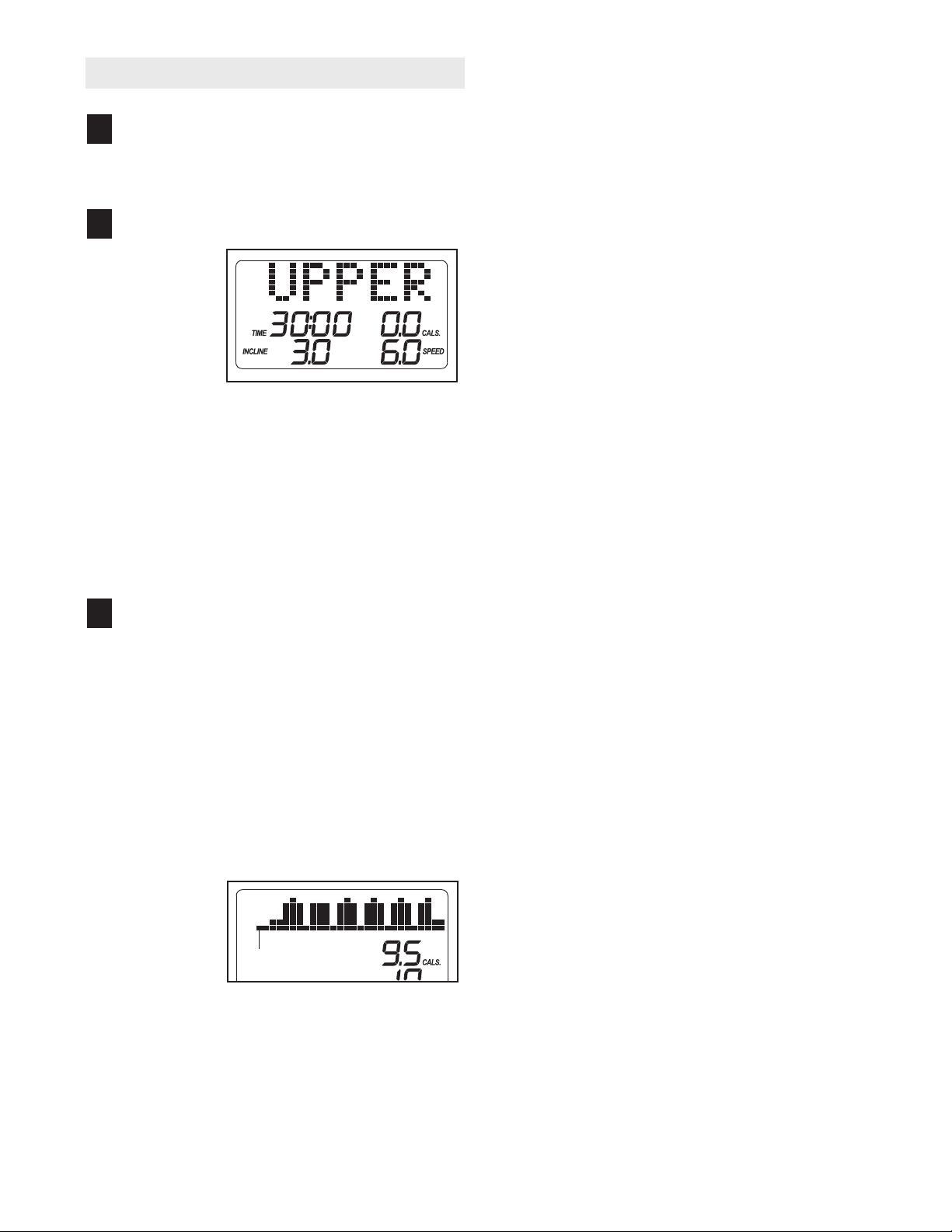

HOW TO USE A CROSS TRAINING PROGRAM
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
11.
Select a cross training program.
To select
one of the
six cross
training pro-
grams,
press the
right Select
button re-
peatedly.
When a cross training program is selected, the
display will show the word UPPER, LOWER, or
TOTAL and the number of minutes that the pro-
gram will last. In addition, the maximum incline
setting of the program and the maximum speed
setting of the program will flash in the display. A
few seconds after a cross training program is se-
lected, a profile of the speed settings of the pro-
gram will scroll across the display.
Press the Start button to start the program.
Amoment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings of the program. Hold the handrails
and begin walking.
Each program is divided into 25, 30, or 45 one-
minute segments. One speed setting and one in-
cline setting are programmed for most segments.
(Note: The same speed setting and/or incline set-
ting may be programmed for two or more consecu-
tive segments.) During other segments, the console
will prompt you to perform strength exercises.
The speed
setting for
the first seg-
ment will be
shown in
the flashing
Current
Segment column of the display. (The incline set-
tings are not shown in the display.) The speed
settings for the next several segments will be
shown in the columns to the right.
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash and a
series of tones will sound. If the speed and/or in-
cline of the treadmill is about to change, the speed
setting and/or the incline setting will flash in the
display to alert you.
When the first segment is completed,
all speed
settings will move one column to the left
.The
speed setting for the second segment will then be
shown in the flashing Current Segment column
and the treadmill will automatically adjust to the
speed and incline settings for the second seg-
ment. Note: If all the indicators in the Current
Segment column are lit,
the speed settings may
move downward
so that only the highest indicators
appear in the display.
If the speed or incline setting for the current seg-
ment is too high or too low, you can manually
override the setting by pressing the Speed and
Incline buttons. Every few times a Speed button is
pressed, an additional indicator will appear or dis-
appear in the Current Segment column; if any of
the columns to the right of the Current Segment
column have the same number of lit indicators as
the Current Segment column, an additional indica-
tor may appear or disappear in those columns as
well. Important: When the current segment of
the program ends, the treadmill will automati-
cally adjust to the speed and incline settings
for the next segment.
To stop the program at any time, press the Stop
button. The time will begin to flash in the display.
To restart the program, press the Start button or
the Speed increase button. The walking belt will
begin to move at 1 mph. When the next segment
of the program begins, the treadmill will automati-
cally adjust to the speed and incline settings for
that segment.
3
2
1
Current Segment

16
Perform the first strength exercise when
prompted.
When the
first strength
exercise
segment be-
gins (only
one indica-
tor will flash
in the Current Segment column), the walking belt
will slow to a stop and the name of the first
strength exercise will appear in the display for a
few seconds.
Next, the
display will
show the
recom-
mended
number of
repetitions
for the first strength exercise.
Remove the clip from the waistband of your
clothes, step off the treadmill, and prepare to
begin the first strength exercise. Every few sec-
onds, the console will sound a tone; when a tone
sounds, perform one repetition of the exercise.
Exercise with a slow, steady motion; do not per-
form more than one repetition each time a tone
sounds. The display will count down the repeti-
tions as you perform them.
Note: Refer to the accompanying exercise chart to
see the correct form for each exercise. When per-
forming lunges, alternate legs with each repetition.
When performing dumbbell rows, perform half the
repetitions with your right arm and half the repeti-
tions with your left arm. The strength exercises re-
quire the use of dumbbells and an inflatable exer-
cise ball (not included). To purchase dumbbells
oran exercise ball, call the telephone number
on the front cover of this manual.
Continue the cross training program.
When you have performed the recommended
number of repetitions, the words PRESS START
will appear in the display. To continue the cross
training program, step onto the treadmill, slide the
clip back onto the waistband of your clothes,
and press the Start button. The treadmill will auto-
matically adjust to the speed and incline settings
for the next segment.
The program will continue in this way until the last
segment ends. The walking belt will then slow to a
stop.
Follow your progress with the display.
See step 6 on pages 11 and 12.
Measure your heart rate if desired.
See step 7 on page 12.
Turn on the fan if desired.
See step 8 on page 12.
When you are finished exercising, remove the
key from the console.
See step 9 on page 12.
9
8
7
6
5
4

17
THE INFORMATION MODE
The console features an information mode that keeps
track of treadmill usage information. The information
mode also allows you to select miles or kilometers as
the unit of measurement, to adjust the contrast of the
display, and to turn on and turn off the demo mode.
To select the information mode, hold down the Stop
button, insert the key into the console, and then release
the Stop button. When the information mode is se-
lected, the following information will appear in the dis-
play:
Anumber from 1
to 20 will appear
in the upper part
of the display.
This number is
the contrast set-
ting of the dis-
play; 1 is the lowest setting and 20 is the highest set-
ting. To change the contrast of the display, press the
weight increase and decrease buttons.
The center of the
display will show
the number of
hours that the
treadmill has
been operated.
The lower right
corner of the display will show the total number of miles
or kilometers that the walking belt has moved.
In addition, an “E” for English miles or an “M” for metric
kilometers will appear in the lower left part of the dis-
play. To change the unit of measurement, press the
Speed increase button.
IMPORTANT: If a “d” appears in the display, the con-
sole is in the “demo” mode. This mode is intended to be
used only when the treadmill is displayed in a store.
When the console is in the demo mode, the power cord
can be plugged in, the key can be removed from the
console, and the indicators in the display will automati-
cally appear in a preset sequence; the buttons on the
console will not operate. If a “d” appears when the in-
formation mode is selected, press the Speed de-
crease button so that the “d” disappears.
To exit the information mode, remove the key from the
console.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor offers hands-free oper-
ation as it continuously tracks your heart rate during
your workouts. To purchase the optional chest
pulse sensor, call the telephone number on the
front cover of this manual.

18
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position. If you do not do this, you may damage the
treadmill when you fold it. Remove the key and unplug the
power cord. CAUTION: You must be able to safely lift 45 lbs.
(20 kg) to raise, lower, or move the treadmill.
1. Hold the treadmill with your hands in the location shown by the
arrow at the right. CAUTION: To decrease the possibility of
injury, bend your legs and keep your back straight. As
you raise the frame, make sure to lift with your legs rather
than your back. Raise the frame about halfway to the vertical
position.
2. Move your right hand to the position shown, and hold the
treadmill firmly. Using your left hand, pull the latch knob to
the left and hold it. Raise the frame until the catch is past the
latch pin. Then, slowly release the latch knob. Make sure
that the frame is securely held by the latch pin.
To protect the floor or carpet from damage, place a mat
under the treadmill. Keep the treadmill out of direct sun-
light. Do not leave the treadmill in the storage position in
temperatures above 85° F (30° C).
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert it to the storage position as
described above. Make sure that the frame is held securely
by the latch pin.
1. Hold the handrails and place one foot against one of the
wheels.
2. Tilt the treadmill back until it rolls freely on the wheels. Carefully
move the treadmill to the desired location. Never move the
treadmill without tipping it back.To reduce the risk of in-
jury, use extreme caution while moving the treadmill. Do
not attempt to move the treadmill over an uneven surface.
3. Place one foot against a wheel, and carefully lower the tread-
mill until it is resting in the storage position.
HOW TO LOWER THE TREADMILL FOR USE
1. See drawing 2 above. Hold the upper end of the treadmill with your right hand. Pull the latch knob to the left
and hold it. Pivot the frame down until it is past the latch pin.
2. See drawing 1 above. Hold the frame firmly with both hands, and lower it to the floor. CAUTION: To decrease
the possibility of injury, bend your legs and keep your back straight.
Engaged
Catch
Latch Knob
Latch Pin
Base
Handrails
Wheels
1
2

19
TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 9). Use only a single-outlet surge suppressor
that meets all of the specifications described on page 9. Important: The treadmill is not compatible
with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch
protrudes as shown, the circuit breaker has
tripped. To reset the circuit breaker, wait for five
minutes and then press the switch back in.
PROBLEM: The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait
for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. If the treadmill still will not run, please see the front cover of this manual.
PROBLEM: The incline of the treadmill does not change correctly
SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-
move the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the
maximum incline level and then return to the minimum level. This will recalibrate the incline system.
PROBLEM: The console displays remain lit when you remove the key from the console
SOLUTION: a. The console features a display demo mode, designed to be used if the treadmill is displayed in a
store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off
the demo mode, hold down the Stop button for a few seconds. If the displays are still lit, see THE
INFORMATION MODE on page 17 to turn off the demo mode.
PROBLEM:The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD.Remove the three hood Screws (7).
Carefully pivot the Hood (41) off.
Tripped Reset
c
41
7
a

20

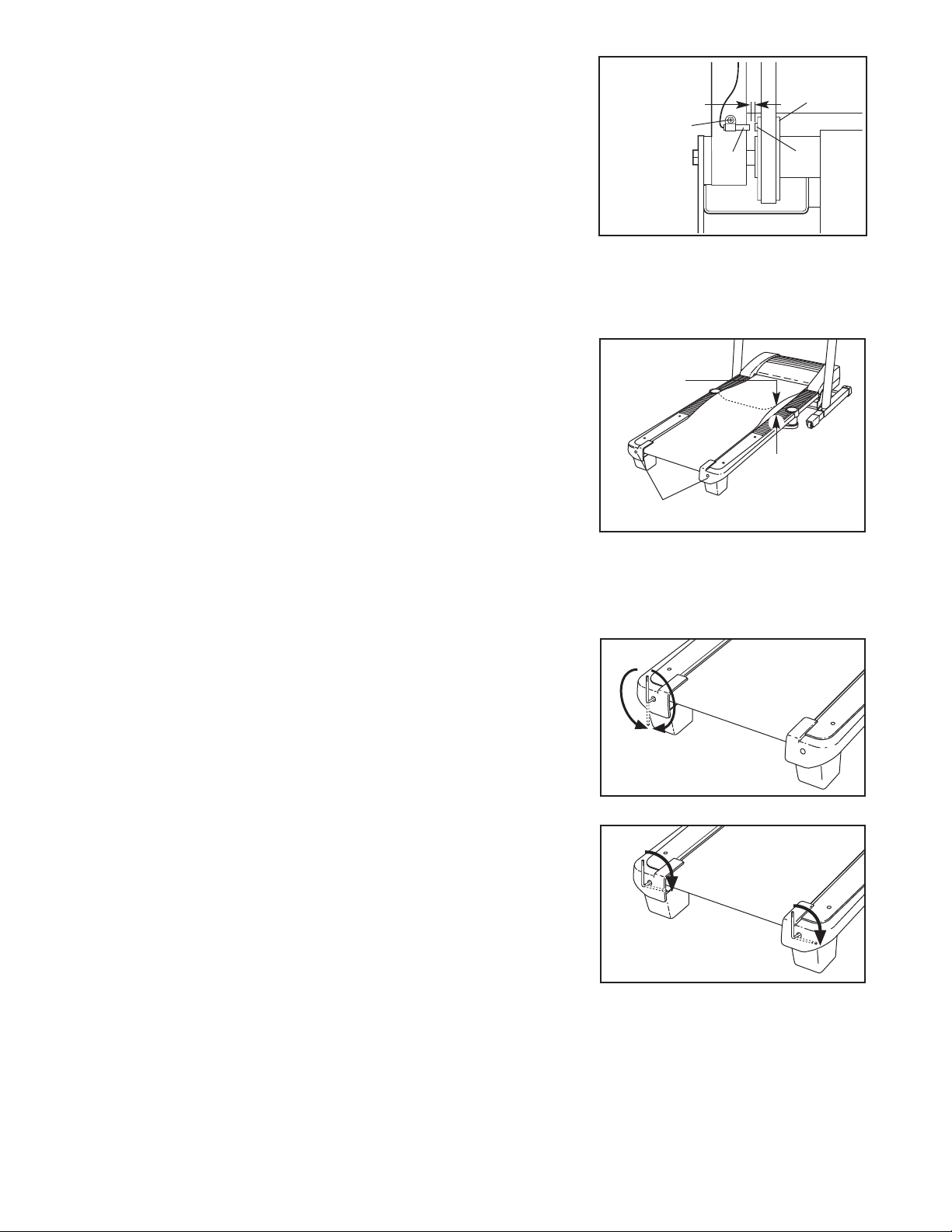

Locate the Reed Switch (63) and the Magnet (46) on
the left side of the Pulley (47). Turn the Pulley until
the Magnet is aligned with the Reed Switch. Make
sure that the gap between the Magnet and the
Reed Switch is about 1/8 in. (3 mm). Ifnecessary,
loosen the Screw (7), move the Reed Switch slightly,
and then retighten the Screw. Reattach the Hood, and
run the treadmill for a few minutes to check for a cor-
rect speed reading.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be-
come damaged. Remove the key and UNPLUG THE
POWER CORD.Using the hex key, turn both rear
roller bolts counterclockwise, 1/4 of a turn. When the
walking belt is properly tightened, you should be able
to lift each edge of the walking belt 2 to 3 in. (5 to 7
cm) off the walking platform. Be careful to keep the
walking belt centered. Then, plug in the power cord,
insert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, please see the front cover of this manual.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, first remove the key
and UNPLUG THE POWER CORD.If the walking
belt has shifted to the left, use the hex key to turn
the left rear roller bolt clockwise 1/2 of aturn; if the
walking belt has shifted to the right, turn the bolt
counterclockwise 1/2 of a turn. Be careful not to over-
tighten the walking belt. Then, plug in the power cord,
insert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first re-
move the key and UNPLUG THE POWER CORD.
Using the hex key, turn both rear roller bolts clock-
wise, 1/4 of a turn. When the walking belt is correctly
tightened, you should be able to lift each edge of the
walking belt 2 to 3 in. (5 to 7 cm) off the walking plat-
form. Be careful to keep the walking belt centered.
Then, plug in the power cord, insert the key, and
carefully walk on the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
b
a
Rear Roller Bolts
2–3 in.
b
Top
View
46
7
63
1/8 in. 47
