Lifetime 6422 User manual

MODEL N° 6422
OWNER’S MANUAL
OUTDOOR STORAGE
Keep this Identification Number in case you need to contact our Customer Service Department.
Copy

2
IMPORTANT! PLEASE READ BEFORE BEGINNING ASSEMBLY
Dear Valued Customer,
We would like to congratulate you on your purchase of a Lifetime© Outdoor Storage Shed! We are
confident that you have made the perfect choice and you will be very pleased with your new storage
solution.
Lifetime© Outdoor Storage is part of the family of products created and manufactured by Lifetime®
Products, Inc. Like all of our products, you can be assured that the quality of your Lifetime Outdoor
Storage Shed is the best in the world! And, we back that quality up by offering the best warranty in the
business – A 10-year warranty that fully covers the Shed!
All of our Sheds are built with the highest-quality steel and high-density polyethylene (HDPE) parts. The
design and construction of our steel-reinforced double-Wall Panels is second to none. All of our exposed
steel parts and gables are powder coated and we use high-density polyethylene plastic. What makes
polyethylene so special? It has superior strength and durability, and, it won’t crack or degrade outdoors.
So now that you know the quality you are getting in a Lifetime Outdoor Storage Shed, please take the
time to READ THIS INSTRUCTION MANUAL!
We have taken great care in providing the best possible form of instructions to help you put your new
Outdoor Storage Shed together. Before you get started, PLEASE read the following preparation tips to
help you get started!
We can assure you, your construction experience will be a lot more enjoyable if you do!
PREPARATION TIPS:
s4HElRSTSTEPISSIMPLEx2%,!89OUHAVEMADEAGREATPURCHASEBUT2OMEWASNOTBUILTINA
day. Plan to spend a good part of your weekend putting together your fine Outdoor Storage Shed. Our
PHILOSOPHYISIFITCOMESTOGETHERQUICKLYANDEASILYITSURELYWILLCOMEAPARTQUICKLYANDEASILY9OUR
Lifetime© Outdoor Storage Shed will surely last a long, long time, if you are patient, and take all the time
necessary to put it together as we have instructed.
s'RABAFRIENDTOJOININONTHEFUN4HISISNOTAONEPERSONENDEAVOR7EHAVEFOUNDTHATNOTONLYWILL
things go smoother if you have two or more people participating in the construction of the Shed, but it
will go quicker as well. So, the more the merrier!
s-AKESUREYOUHAVEALLTHETOOLSNECESSARYFORCONSTRUCTINGYOURNEW3HED4HEREISAh4OOLS2E
quired For This Assembly” list on page five of this Owner’s Manual.
s4HEPLASTICPIECESOFYOUR3HEDMAYBECOMEDAMAGEDBYOVERTIGHTENINGTHESCREWS4OAVOIDTHIS
damage, we strongly recommend the use of a low-powered power screwdriver or a drill that has an
adjustable clutch that is set on a low-torque setting. If neither is available, use a hand screwdriver. If a
HANDSCREWDRIVERISALLYOUHAVETAKESEVERALBREAKSxYOURWRISTWILLNEEDIT
s9OUWILLALSONEEDTWOSMALLLADDERSWHENITCOMESTIMETODOTHEROOF
12/15/2010
INSTRUCTION #1052923 D
Copy

3
IMPORTANT! PLEASE READ BEFORE BEGINNING ASSEMBLY
s"EFOREBEGINNINGASSEMBLYREMOVETHE0ARTS,ISTFROMTHECENTEROFTHIS/WNERS-ANUALANDTAKEAN
inventory of the parts included with your Outdoor Storage Shed. Also, read through the entire instruc-
tion manual. It’s always a great practice to get a feel for the flow of the process and to familiarize your-
self with the parts involved. But, try not to get ahead of yourself and start the process out of order.
s&/,,/74(%).3425#4)/.3)./2$%2%VERYTHINGGOESTOGETHERINACERTAINORDERANDWEHAVE
learned what that correct order should be. In our state-of-the-art research and testing facility, we have
painstakingly created these instructions. The order of construction is there for a reason, and some parts
simply will not fit if built out of order. Just follow along with the order in the instructions and everything
will fit together and things will go very smooth.
s9/523(%$-534"%"5),4/.!,%6%,352&!#%)FTHESPOTYOUHAVECHOSENTOPLACEYOUR
wonderful new Outdoor Storage Shed is not level, the Shed will not assemble correctly! We recommend
ACONCRETEPATIOAWOODPLATFORMORCREATINGAPADWITHPEAGRAVEL9OUR3HEDISMEANTTOLASTALIFE
time, so provide the proper foundation for it before you start to build.
s"EFOREYOUBUILDITMAKESUREYOUAREALLOWEDTOBUILDIT#ONSULTALLBUILDINGCODESASWELLASCITY
and county ordinances, to ensure that you do not require a building permit to construct your Outdoor
Storage Shed. Proper building permit documentation may be required in your neighborhood, and it
would be quite unfortunate to learn this after your Outdoor Storage Shed is already built!
Now that you’re ready to begin the construction of your wonderful new Outdoor Storage Shed, step
back, take a deep breath, get yourself a large cold beverage and enjoy yourself. We guarantee that after
spending the right amount of time in building your Shed, you will be able to enjoy it for years to come.
Thanks for choosing Lifetime©, and have fun!
ABOUT LIFETIME PRODUCTS, INC.
Lifetime Products, Inc., has applied innovation and cutting-edge technology in plastics and
metals to create a family of affordable lifestyle products that feature superior strength and
durability. The world’s leading manufacturer of folding tables and chairs, Lifetime was found-
ed in 1986 as the maker of portable basketball systems that revolutionized the industry with
patented technology. With diverse offerings such as outdoor storage sheds and steel utility
trailers, Lifetime continues to develop innovative products that outfit the way you live.
Lifetime makes the things you need for the lifestyle you want. By innovating products in and
around the home, Lifetime simplifies your everyday life and enables you to get the most out
of your free time.

4
Most injuries are caused by misuse and/or not following instructions. Use caution when using this product.
To ensure safety, do not attempt to assemble this product without following the instructions carefully. Check entire box and inside all
packing material for parts and/or additional instruction material. Before beginning assembly, read the instructions and identify parts
using the hardware identifier and parts list in this document. Proper and complete assembly, use and supervision are essential to
reduce the risk of accident or injury.
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY OR
PROPERTY DAMAGE AND WILL VOID WARRANTY.
s$ONOTUSEORSTOREHOTOBJECTSSUCHASGRILLSBLOWTORCHESWELDINGEQUIPMENTETCNEARTHEPRODUCT
s)FUSINGALADDERDURINGASSEMBLYUSEEXTREMECAUTION
s4WOCAPABLEADULTSAREREQUIREDFORASSEMBLY)TISALSORECOMMENDEDTHATATHIRDADULTFUNCTIONASANINSTRUCTIONREADER
SAFETY INSTRUCTIONS
REGISTER YOUR LIFETIME PRODUCT TODAY!
LIFETIME’S PROMISE TO YOU:
We invite you to read our privacy policy at www.lifetime.com
REGISTER today!
There are benefits to registering your Lifetime product. With our new online product registration form, it’s fast and easy! Register with us at www.lifetime.com
and enjoy these great benefits:
s2ECEIVEEXCLUSIVEMONEYSAVINGOFFERSFROM"UY,IFETIMECOMOURONLINESTOREASWELLAS.%7PRODUCTNOTIlCATIONSANDSPECIALCLOSEOUT
promotions!
s)NTHEUNLIKELYEVENTOFAPRODUCTRECALLORSAFETYMODIlCATIONWEWILLNOTIFYYOU
s2EGISTERINGYOURPRODUCTGUARANTEESYOUWARRANTYSERVICE)FYOUDONOTREGISTERYOURPRODUCTYOURWARRANTYRIGHTSWILLNOTBEDIMINISHED
But you will need to provide a sales receipt to verify your product purchase date before warranty service will be provided.
Maintaining your privacy is our long-standing policy at Lifetime. And you can rest assured that Lifetime will not sell or provide your
personal data to other third parties, or allow them to use your personal data for their own purposes.
**For customers outside the U.S. or Canada, please contact the store for assistance.**
**U.S. and Canada customers ONLY**
IF ASSISTANCE IS NEEDED,
DO NOT CONTACT THE STORE!
CALL OUR CUSTOMER SERVICE DEPARTMENT at 1 [phone]
HOURS: 7:00 a.m. to 5:00 p.m. Monday through Friday (Mountain Standard Time)
**Call, or visit our Web site for Saturday hours**

5
*See “Screwdriver Notice” on page 7.
TOOLS REQUIRED FOR THIS ASSEMBLY
*Two adults required to
complete assembly*
(+ one adult suggested as an instruction reader)
Only adults should set up the product. Do not allow children
in the set-up area until assembly is complete.
BEFORE BEGINNING ASSEMBLY
Keep the hardware bags and their contents separate. If any parts are missing, call our
Customer Service Department.
2EADTHEh#ONGRATULATIONSvLETTERONPAGEIdentify and inventory all parts and hardware
using the parts and hardware lists and identifiers in this document.

*Phillips Screwdriver *Electric Drill 7/16" Wrench 3/8" Wrench Safety Glasses
(x1) (x1) X (x1)
(1 pair for each
person)
1. Check contents of boxes and compare to parts listed on the Parts List.
&OLLOWINSTRUCTIONSTHATCAMEWITHYOURSHEDBUTADDEXTRAmOORPANELWALLPANELS2OOF#APAND3KYLIGHTAT
appropriate points in the assembly.
1. Remove any bolts or screws being used to anchor the shed to the ground.
2EMOVEANYOBJECTSFROMBACKSHELVES
2EMOVEANYSHELVESPEGBOARDORPEGBOARDSTRIPSOROTHEROBJECTSHANGINGONTHELASTTWO3IDE7ALL0ANELSONEITHER
side.
4. Check contents of boxes and compare to parts listed on the Parts List.
5. Follow the steps in this manual.
6. If you are extending an 8’ x 5’ shed you will need to modify the following instructions by not removing as many parts as
shown in the illustrations.
IF YOU ARE INSTALLING A NEW SHED
IF YOU ARE EXTENDING AN EXISTING SHED

6
This area is located at the top, left-hand
corner of the page and indicates which tools
and hardware are needed to complete the
assembly steps on a page.
This area is located at the top, right-hand
corner of the page and shows an image of the
product with shaded parts indicating which
section is being assembled.
SEC
#
Note:
!
Refer to the following areas throughout the instructions
to assist in the assembly process:
This area is usually located in the bottom,
left-hand corner of a step and indicates that
special attention is needed to perform a
particular part of a step.
These areas are usually located in the bottom,
right-hand corner of a step and indicate that
damage to the product or serious injury may
occur if the caution or warning is not heeded.
Throughout the Parts & Hardware List, Part
& Hardware Identifiers, and instructions
are three-letter IDs. These IDs are below
the images of the parts and hardware to
help you locate and identify the parts and
hardware during assembly. These IDs are not
necessarily on the parts themselves.
WARNING
ASSEMBLY GUIDES
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
CAUTION
ADZ (x10)
1/4” x 5/8” Pan-Head Screw

7
Consult all local building codes, as well as city and county ordinances, to ensure that the construction of the
Outdoor Shed does not require a building permit. Proper building permit documentation may be required in
your neighborhood, and it would be unfortunate to learn this after constructing the Shed.
Surface must be leveled before installation. We recommend building a level work space with a concrete
or patio style surface. If the surface is not properly leveled, the Outdoor Shed will not assemble correctly.
Proper surface leveling will save you time in the long run, so please do not ignore this step.
Level Surface Notice:
Building Code Notice:
9OUMAYUSEA0HILLIPSHEADSCREWDRIVERBITANDAPOWERSCREWDRIVERORDRILLINSTEADOFAHAND
screwdriver. However, be aware that the plastic pieces of your Shed can be damaged by overtightening of
screws. To avoid damage we strongly recommend the use of a low-powered power screwdriver or a drill that
has an adjustable clutch that is set on a low torque setting. If neither is available, use a hand screwdriver. In
any case use caution to avoid overtightening the screws.
Screwdriver Notice:
Sharp objects may damage your floor. If resting sharp, heavy objects on your Shed floor, place a block of
wood between the sharp object and floor.
Floor Puncture Notice:
If more than six (6) inches of snow accumulate on the roof of the shed, carefully remove the snow to avoid
possible roof collapse. While standing on the ground, remove the snow from the roof with a broom or snow
shovel. Do not stand on the roof to remove snow.
IMPORTANT NOTICES
CAUTION:

8
WALL & ROOF INSTALLATION HARDWARE [BGT]
Hardware shown at actual size
TRUSS ASSEMBLY HARDWARE [BEA]
Hardware shown at actual size (*unless otherwise indicated)
ADZ (x45)
1/4" x 5/8" Phillips Pan-Head Screw
(Not all screws will be used)
PARTS & HARDWARE LIST
HARDWARE IDENTIFIER
ID Description Quantity
Main Parts
!($  7ALL0ANEL 
!&8  #ENTER&LOOR0ANEL 
!'1  2OOF0ANEL 
AHC Skylight 1
!&9  #ENTER2OOF#AP 
!&'  2OOF4RUSS"RACE 
!&(  4RUSS'UTTER#HANNEL 
!&,  2OOF3UPPORT3TRIP 
AIP (x1)*
Truss Connector
ADH (x1)*
1/4” Threaded Rod
ADY (x6)
Xv0HILLIPS0AN(EAD3CREW
ADK (x6)
#AP.UT
ADJX
1/4” Cap Nut
ID Description Quantity
BJL 6422 Hardware Bag
BEA Truss Assembly Hardware
!$9  Xv0HILLIPS0AN(EAD3CREW 
!$+  #AP.UT 
AIP Truss Connector 1
!$*  v#AP.UT 
ADH 1/4” Threaded Rod 1
CSG Floor Assembly Hardware
"1# Xv0AN(EAD3CREW 
!$#  0HILLIPS"IT 
BGT Wall & Roof Installation Hardware
ADZ 1/4” x 5/8” Phillips Pan-Head Screw 45
BGS Skylight Installation Hardware
!$8  8v0HILLIPS0AN(EAD3CREW 
!%$  Xv&ENDER7ASHER 
Note: Throughout the Parts & Hardware List, Part & Hardware Identifiers, and instructions are three-
letter IDs. These IDs are below the images of the parts and hardware to help you locate and identify
the parts and hardware during assembly. These IDs are not necessarily on the parts themselves.
!
FLOOR ASSEMBLY HARDWARE [CSG]
Hardware shown at actual size
ADC (x1)
0HILLIPS"IT
BQC (x8)
Xv0AN(EAD3CREW

9
SKYLIGHT INSTALLATION HARDWARE [BGS]
Hardware shown at actual size
Parts are shown at 4% of actual size (Unless indicated otherwise*)
HARDWARE IDENTIFIER
PARTS IDENTIFIER
AED (x6)
Xv&ENDER7ASHER
ADX (x6)
Xv0HILLIPS0AN(EAD3CREW
AFX (x1)
Center Floor Panel
AFY (x1)
Center Roof Cap
AGQX
Roof Panel
AHDX
Wall Panel
AHC (x1)
Skylight
51”
48”
Parts are shown at 8% of actual size
AFG (x1)
Roof Truss Brace
AFHX
4RUSS'UTTER#HANNEL
Notched end goes over
Wall Panel
AFLX
Roof Support Strip

10
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
SEC

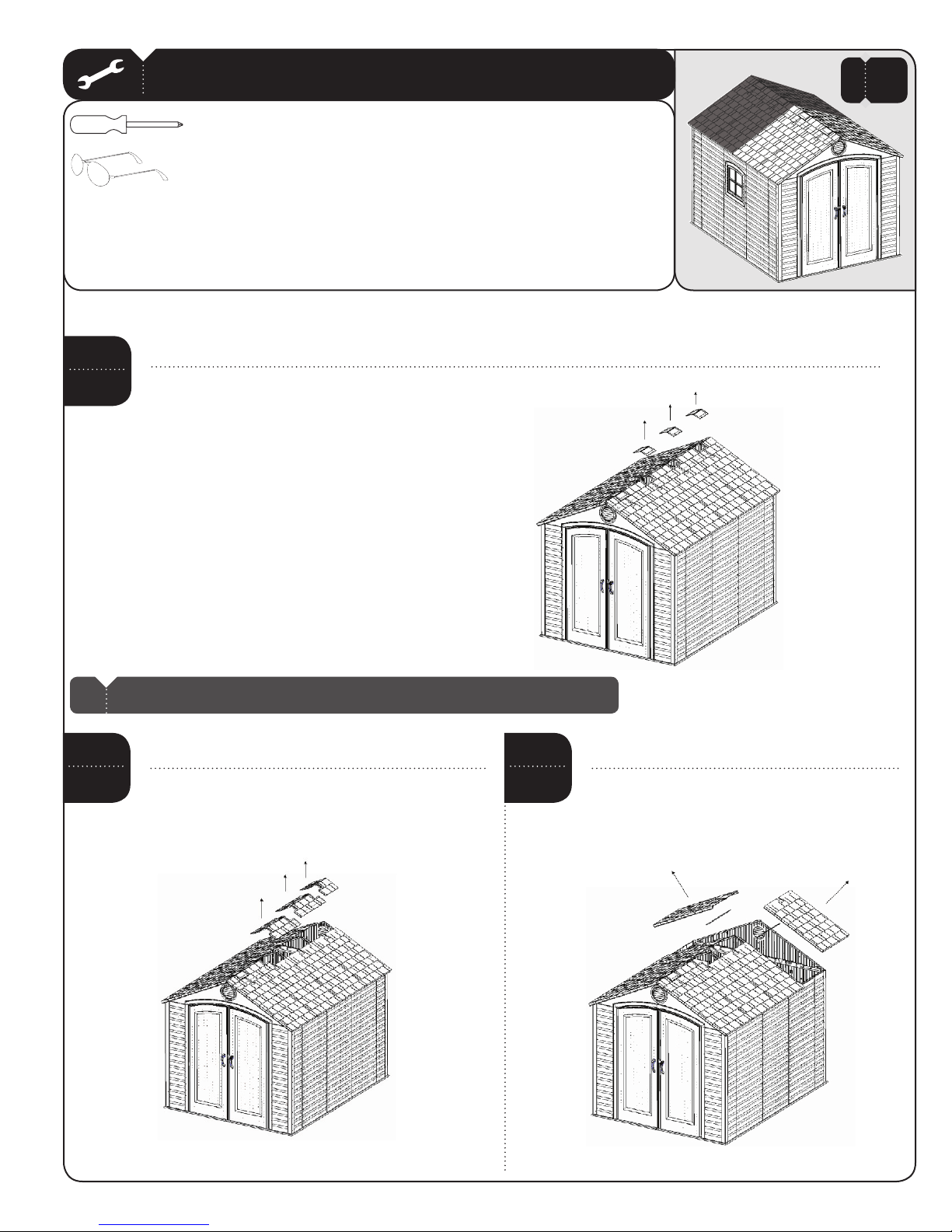

1.1 Remove last three Skylights and set aside.
SHED DISASSEMBLY
NO HARDWARE REQUIRED FOR THIS PAGE
SEC
1.2
SEC
1.3
Remove the back two Center Roof Caps and the
End Roof Cap and set aside.
Remove the back Roof Panels and Roof
Support Strips and set aside.
1
**SAVE ALL HARDWARE FOR RE-ASSEMBLY!**
Note: You’re Shed may be a different length than the Shed shown, but the ideas are the same.
!

11
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
**SAVE ALL HARDWARE FOR RE-ASSEMBLY!**
SEC

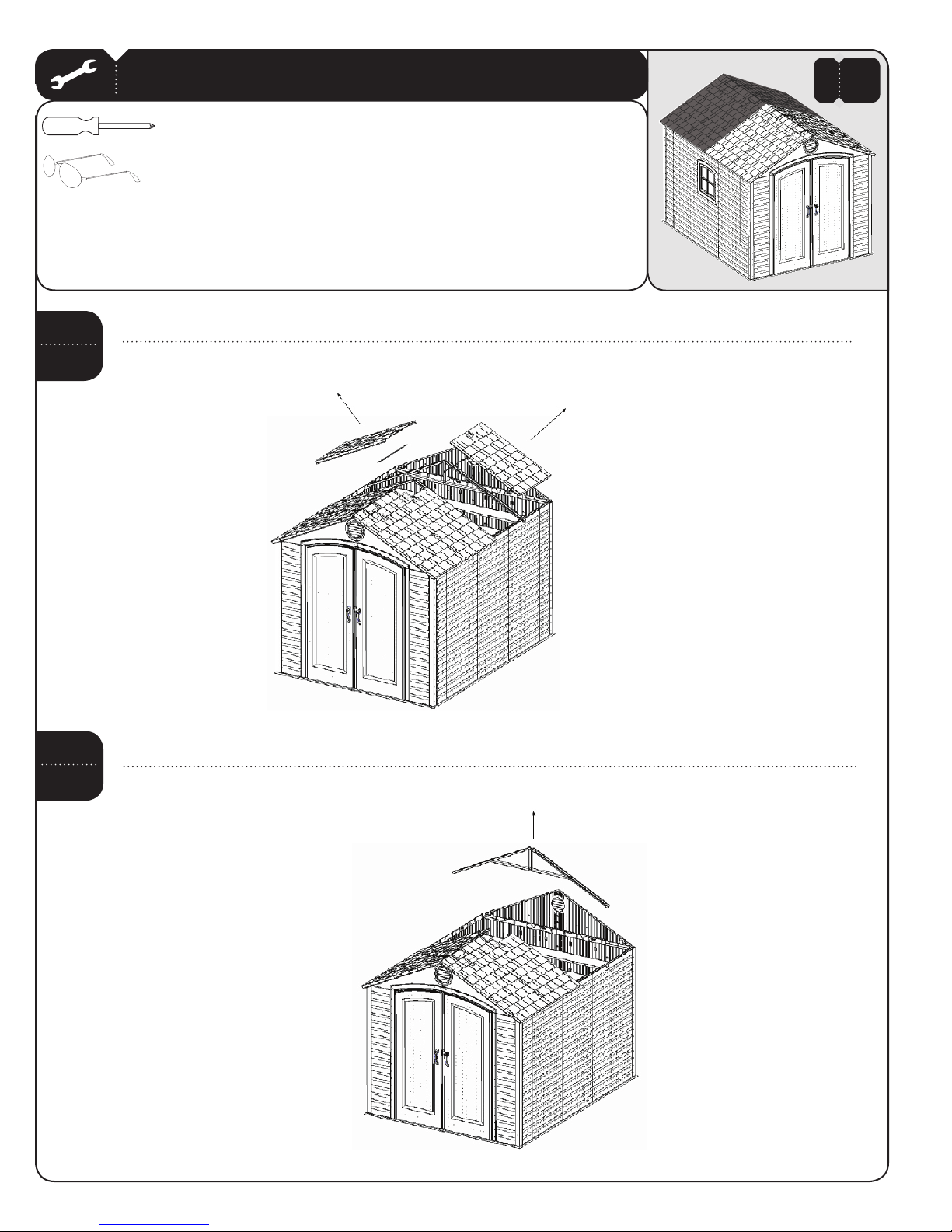

1.4 Remove the next Roof Panels and Roof Support Strips and set aside.
SEC
1.5 Remove the Roof Truss Assembly and set aside.
1
NO HARDWARE REQUIRED FOR THIS PAGE

12
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
**SAVE ALL HARDWARE FOR RE-ASSEMBLY!**
SEC

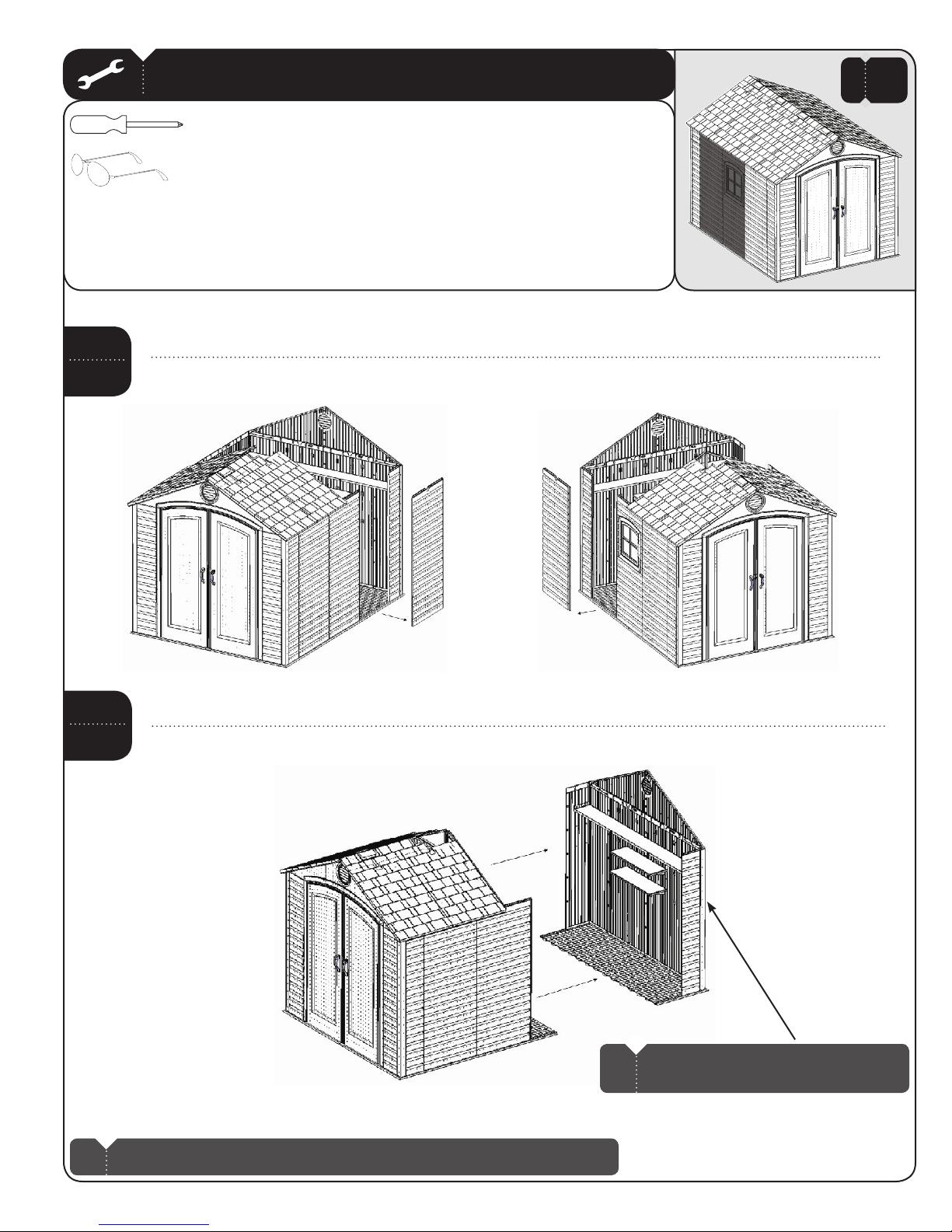

1.6 Remove the last two side Wall Panels and set aside.
SEC
1.7 3LIDETHEREARSECTIONOFTHE3HEDAWAYFROMTHEFRONT9OUWILLNEEDTOTIPTHEREARSECTIONFORWARDSLIGHTLYIN
order to disconnect the Floor Panels
Note: One person should support the rear Wall
while it is being tipped and moved.
Note: Ensure there is nothing on the rear Shelves before moving the rear section of the Shed.
!
!
1
NO HARDWARE REQUIRED FOR THIS PAGE

13
FLOOR ASSEMBLY
HARDWARE REQUIRED HARDWARE BAG REQUIRED: CSG
HARDWARE BAG REQUIRED: CSG
PLASTIC PARTS REQUIRED
TOOLS REQUIRED
SEC
2
Safety GlassesPhillips Screwdriver
AFX (x1)
Center Floor Panel
Hardware shown at actual size
Part shown at 4% of actual size
ADC (x1)
0HILLIPS"IT
ADC (x1)
0HILLIPS"IT
BQC (x8)
Xv0AN(EAD3CREW

14
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
SEC
2.1 Add new Center Floor Panel (AFX)4HENSLIDETHEREARSECTIONINTOPLACEANDCONNECTTHE&LOOR0ANELS9OUWILL
need to tip the rear section forward slightly to connect the Center Floor Panels.
NO HARDWARE REQUIRED FOR THIS PAGE
Note: Tip up one floor panel and line up tabs and then lay floor panel flat.
!
2
SE
2
AFX

15
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
SEC

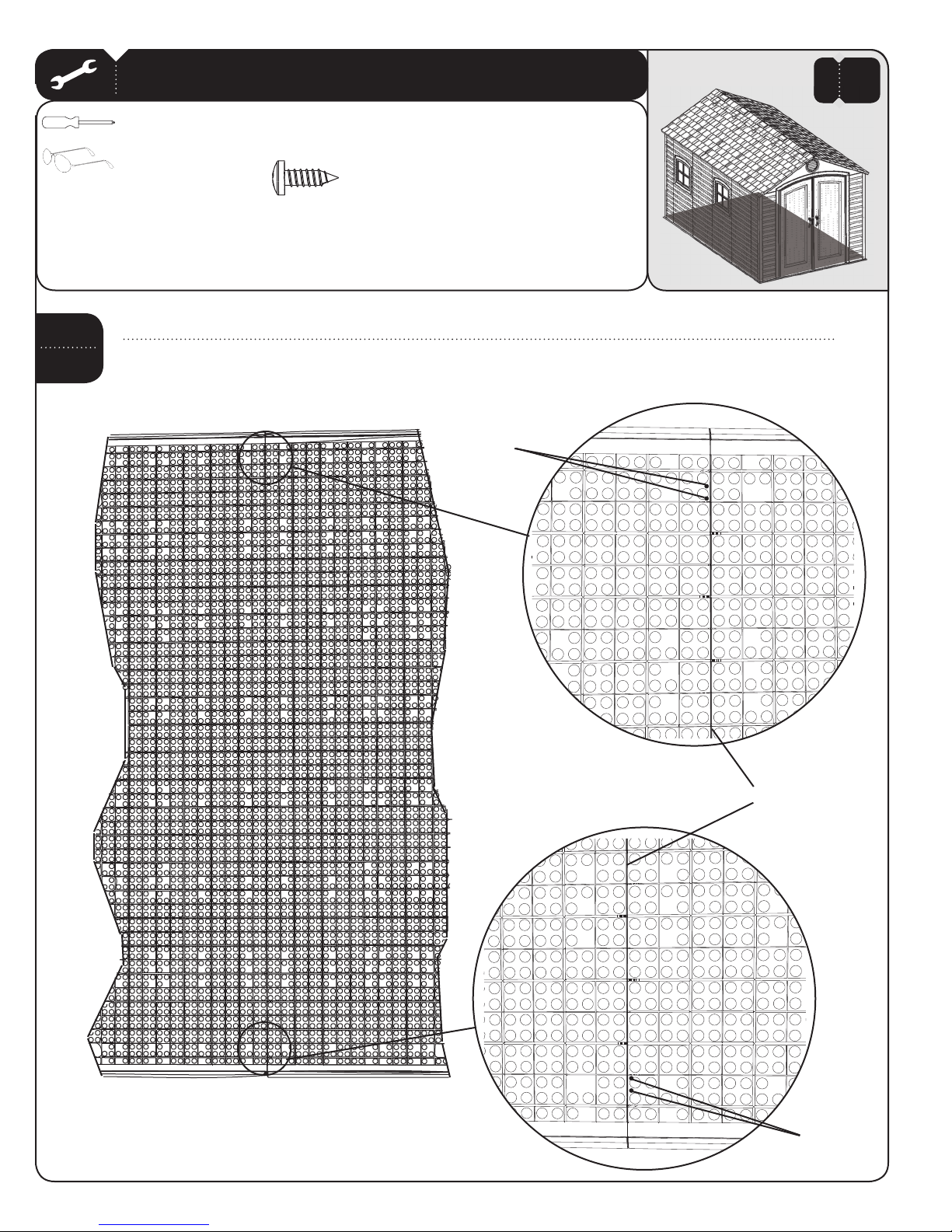

&ACETHESEAMOFTHETWOADJACENT&LOOR0ANELS)NSERTTWO#8 x 1/2” Pan-Head Screws (BQC) near the seam of
a Floor Panel and down into the tab of the adjacent Floor Panel at the locations shown. Repeat this step for the
second seam.
Insert Screws here.
Seam
BQC (x8)
Insert Screws here.
2.2
S
2

16
51”
48”
TRUSS ASSEMBLY
HARDWARE REQUIRED HARDWARE BAG REQUIRED: BEA
METAL PARTS REQUIRED
TOOLS REQUIRED
SEC
Safety GlassesPhillips Screwdriver 7/16” Wrench 3/8” Wrench
AFHX
4RUSS'UTTER#HANNEL
AFG (x1)
Roof Truss Brace (Not to Scale)
Parts shown at 8% of actual size (*Unless indicated otherwise)
Hardware shown at actual size
ADY (x6)
Xv3CREW
ADK (x6)
#AP.UT
ADJX
1/4” Cap Nut
*AIP (x1)
Truss Connector
ADH (x1) 1/4” Threaded Rod
Part shown at 50% of actual size
12 11/16”
3

17
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
ADK (x1)
ADY (x1)
SEC TRUSS ASSEMBLY

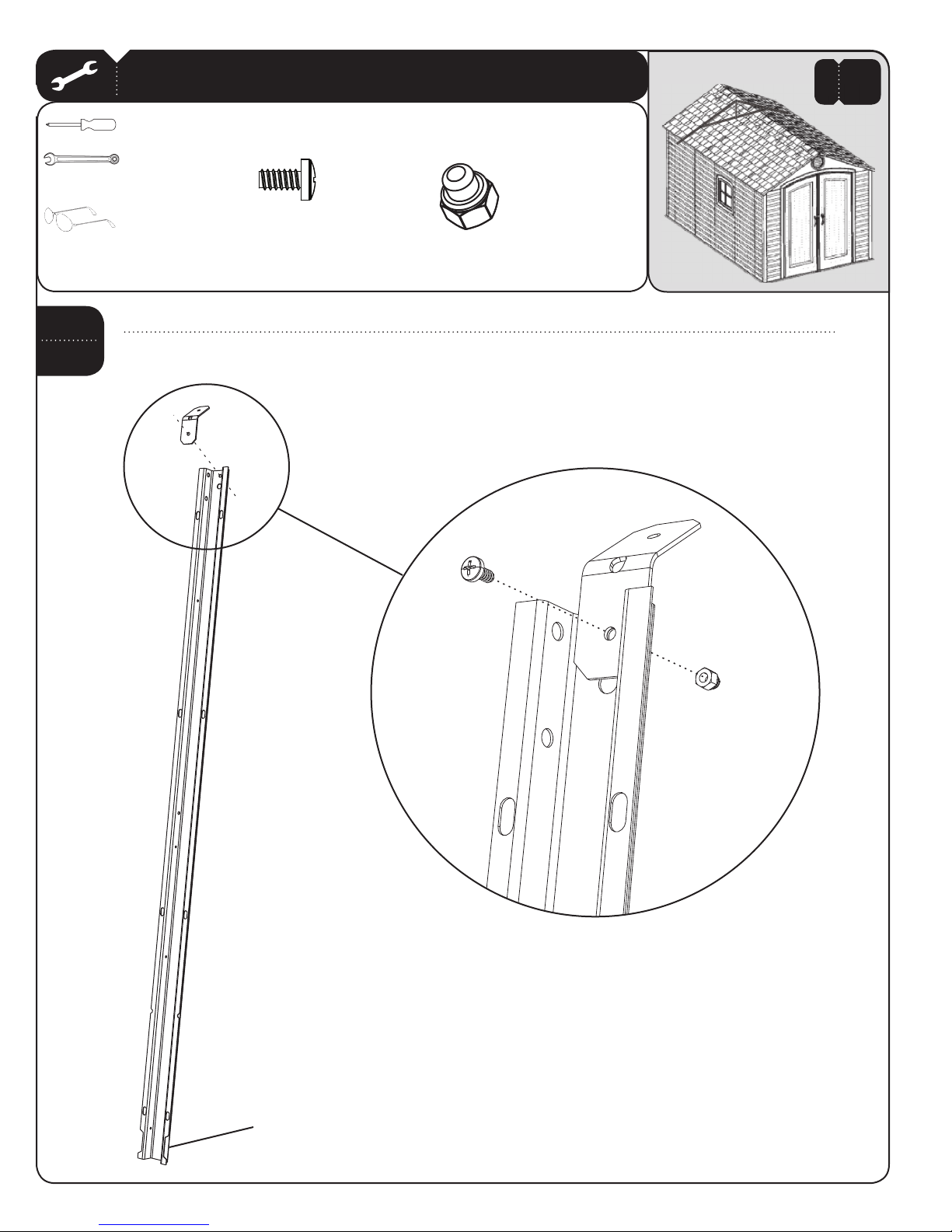

Stand a Truss Gutter Channel (AFH) upright and set a Truss Connector (AIP) inside the end of the Channel as shown.
Align the holes and secure with one (1) #10 x 3/8” Pan-Head Screw (ADY) and one (1) #10 Cap Nut (ADK).
3/8”
AIP
AIP
AFH
AFH
ADY
ADK
Notch
3.1
SE
3

18
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
ADK (x1)
ADY (x1)
3/8”
SEC
Connect another Truss Gutter Channel (AFH) to the Truss Connector using one (1) #10 x 3/8” Pan-Head Screw (ADY) and
one (1) #10 Cap Nut (ADK).
AIP
AFH
AFH
ADY
ADK
Notch
Notch
AFH
3.2
SE
3

19
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
SEC
3ECURETHE2OOF4RUSS"RACETOTHE4RUSS'UTTER#HANNELUSINGTWO#10 x 3/8” Pan-Head Screws (ADY)ANDTWO
#10 Cap Nuts (ADK). Repeat this step for the other end of the Roof Truss Brace.
ADY (x4) ADK (x4)
Note: The Cap Nuts goes on the outside of the Truss.
!
ADY
ADK
ADK
WARNING
Do not overtighten the Cap Nut. If the end of
the Bolt breaks through the plastic cap, call our
Customer Service Department. Exposed threads
on the end of the Bolt may cause serious injuries.
SEC

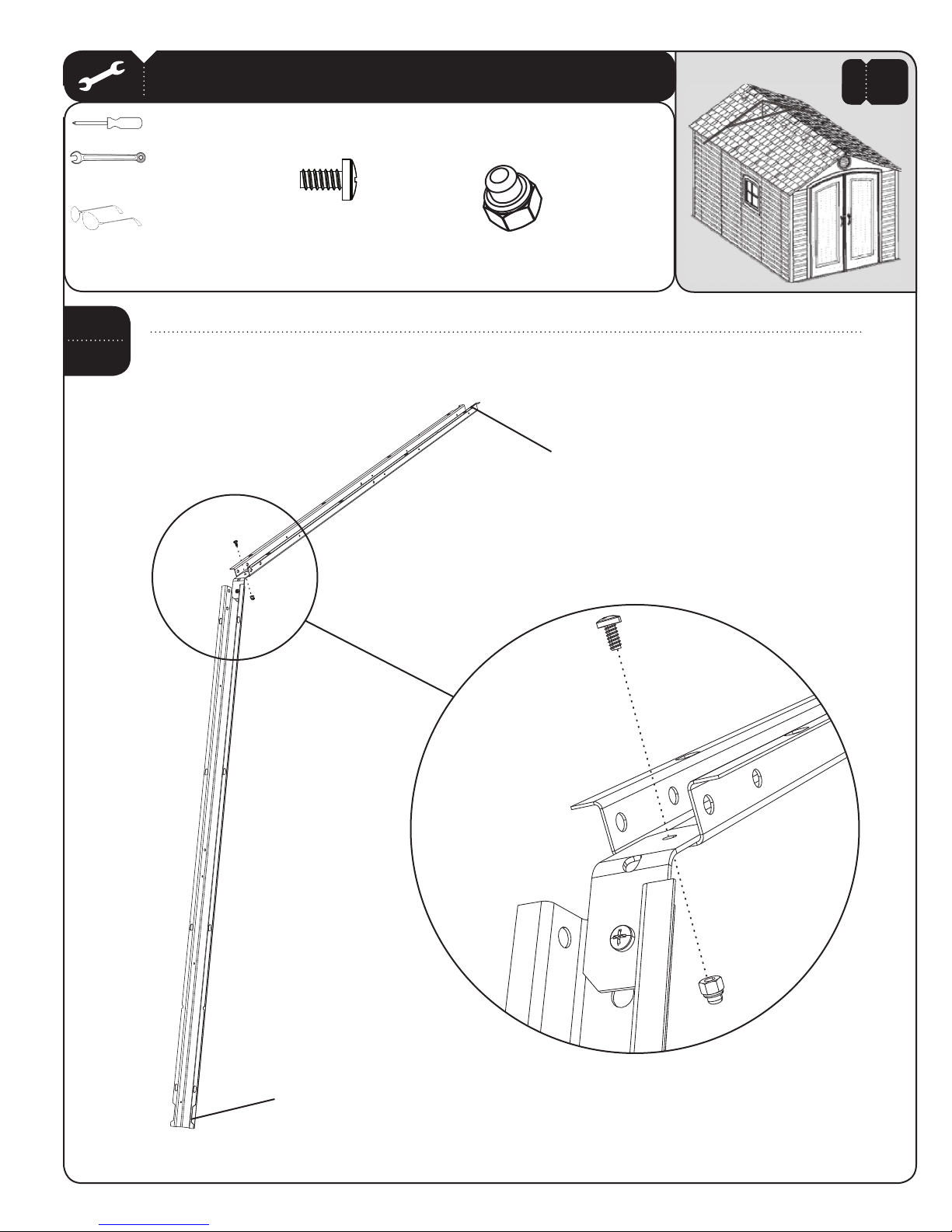

Lay the Truss Assembly on its side, and align the holes in a Roof Truss Brace (AFG) with those circled on the Truss
'UTTER#HANNELSASSHOWN
AFG
3/8”
SE
3
3.3

20
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
ADJ X
ADJ
ADJ
SEC
With the Truss Assembly on its side, slide a 1/4” Threaded Rod (ADH) through the Roof Truss Brace and Truss
Connector as shown. Secure the top and bottom of the 1/4” Threaded Rod with a 1/4” Cap Nut (ADJ). Tighten all
hardware. The 1/4” Threaded Rod will still spin freely. Set aside.
ADH (x1) (Not to scale)
12 11/16”
7/16”X
ADH
WARNING
Do not overtighten the Cap Nut.
SE
3
3.4
