LIFT-O-FLEX 19500S User manual

R ON I
8001 Tower Point Drive
Charloe, NC 28227 USA
[phone]
[phone]
[e-mail]
www.roni.com
LIFT-O-FLEX
19500S
LIFTER
USER MANUAL
DOCUMENT ID: 01022018
PLACE
SERIAL
NUMBER
LABEL
HERE
Have Quesons?
We’re here for you.

Where Ergonomics make
Economic sense.
BEFORE YOU BEGIN
▪▪▪
READ
It is important that you read and understand this complete manual prior
to using your LIFT-O-FLEX®ergonomic handling equipment. If you have any
questions, contact your dealer or RonI.
SPECIAL NOTES
The appearance of your LIFT-O-FLEX®lifter and the accompanying attachments
may differ from the images displayed in this manual due to the custom nature
of this equipment.
LIFT-O-FLEX®is a registered trademark of RonI, Charlotte, North Carolina.
[phone]
[phone]
[e-mail]
www.roni.com
8001 Tower Point Drive
Charlo�e, NC 28227 USA

TABLE OF CONTENTS
1. DESCRIPTION 4
1.1 OVERVIEW
1.2 OPTIONS
1.3 ATTACHMENTS
2. SAFETY 5
2.1 BUILT-IN SAFETY FEATURES
2.2 STORAGE AND TRANSPORT
2.3 MOVEMENT
2.4 LOADING AND UNLOADING
6
8
4.1 ASSEMBLY
4.2 DISASSEMBLY
5. OPERATING INSTRUCTIONS 13
5.1 USING THE LIFTER
5.2 ADJUSTING THE HANDLEBAR
5.3 POWER PACK
5.4REMOTE CONTROL
5.5 BRAKE SYSTEM
6. MAINTENANCE 15
6.1 GUIDELINES
6.2 EVERYDAY
6.3EVERY YEAR, OR WHEN NEEDED
19
20
21
9.1 WIRING DIAGRAM
9.2 SPARE PARTS
10. DECLARATION OF CONFORMITY 31
3. WARRANTY
4. ASSEMBLY INSTRUCTIONS
7. TROUBLESHOOTING

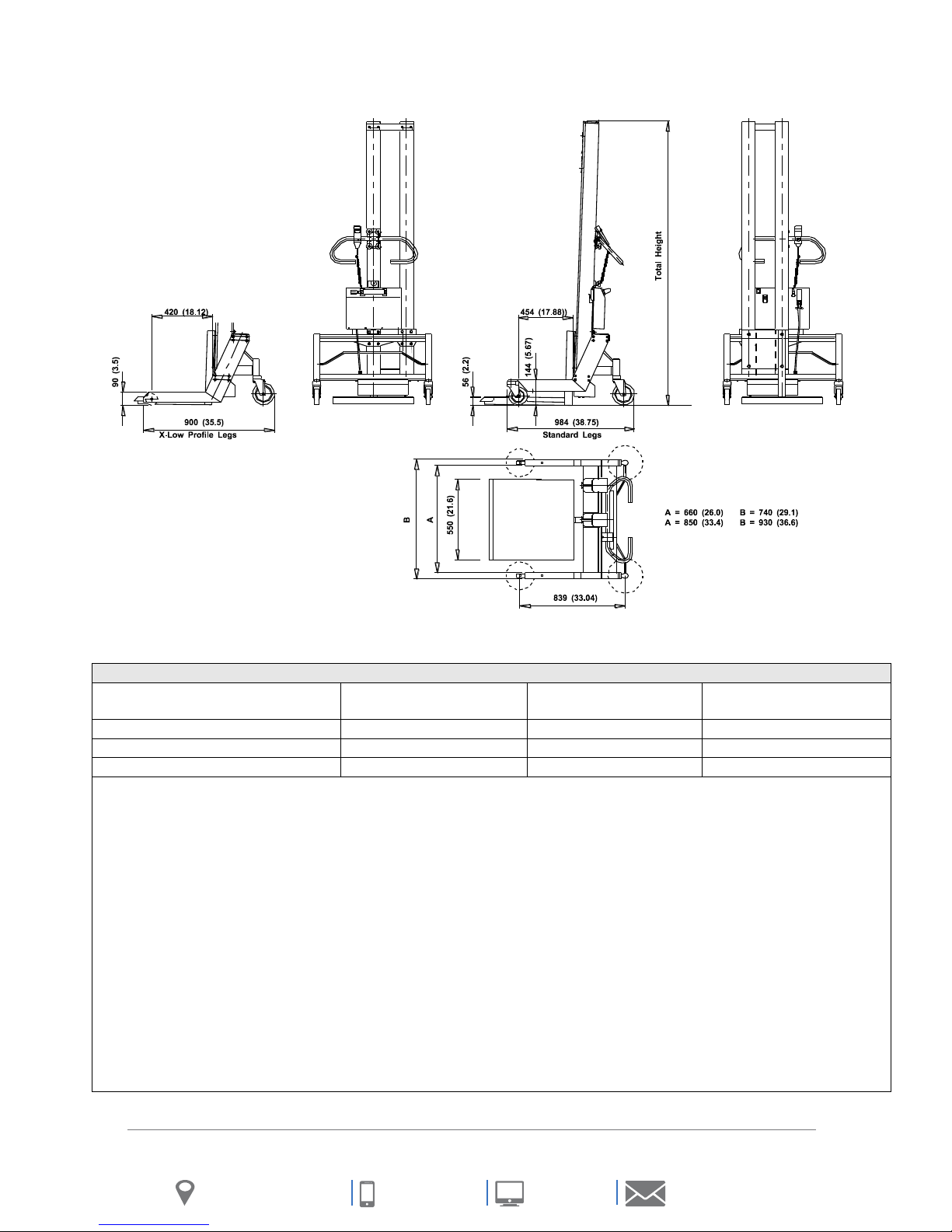

8. TECHNICAL SPECIFICATIONS
9. SCHEMATICS
LIF T-O -F LEX 19500S | 3
8001 Tower Point Drive
Charlo�e, NC 28227 USA
[phone]
[phone]
[e-mail] www.roni.com

1. DESCRIPTION
1.1 OVERVIEW
LIFT-O-FLEX®lifters are ergonomically designed to simplify handling, lifting, and transportation of
goods. Each lifting unit can be equipped with different types of load carriers or attachments. The
goods to be handled are placed on the load carrier and adjusted to the desired height
by pressing the buttons on the hand-held remote control pendant. The lifter is powered by
rechargeable, sealed, lead acid batteries. The lift mast is totally enclosed and features a ball screw
for smooth vertical DC-powered movement.
1.2 OPTIONS
The LIFT-O-FLEX comes standard with a Powder-Coated Paint/Anodized finish. As an additional
option, the LIFT-O-FLEX is also available in Stainless Steel/Anodized finish.
An additional electronic power pack with quick exchange features is available to allow for multishift
use.
1.3 ATTACHMENTS
Standard attachments for the LIFT-O-FLEX include a load platform, with or without a stationary or
rotating V-Block, a fixed core probe, an Expand-O-Turn, and Squeeze-O-Turn. Custom applications
are also available upon request.
Platform with V-Block
Core Probe
Expand-O-Turn
Squeeze-O-Turn
4 | USER MANUA L
8001 Tower Point Drive
Charlo�e, NC 28227 USA
[phone]
[phone]
DO C UMENT I D: 01022018
www.roni.com [email protected]

2. SAFETY
2.1 BUILT-IN FEATURES
The ergonomic design of the LIFT-O-FLEX is, in itself, an active factor of operational safety. The
rear casters are equipped with pedal-activated brakes and the handle bar adjusts vertically to
provide optimal ergonomic positioning for the operator. The lift mast contains a slip clutch;if
anything gets in the way of the downward movement of the attachment, the slip clutch engages
to help prevent injuries as well as mechanical damage to the lifter. We have also incorporated
current limiting to prevent overloading beyond the rated capacity for the unit.
2.2 STORAGE AND TRANSPORT
During storage and transport, the remote control pendant and motor cable should be
disconnected. The lifter should be secured during transport to avoid the risk of tipping over.
2.3 MOVEMENT
The load carrier should always be lowered as low as possible to ensure safe and stable
handling. Use caution when passing thresholds, cords, and other objects on the floor. The
handle bar should be gripped in a way so that the hands are not hurt when passing edges,
walls, or protruding objects. The movement of heavy loads can be easier when using the
directional lock (details listed under 5.5 Brake System).
2.4 LOADING AND UNLOADING
The user is responsible for ensuring that the lifter is loaded correctly.
Always apply the brakes when loading and unloading.
The center of gravity of the goods should always be centered on the load carrier and positioned
as close to the lift mast as possible for maximum stability.
The load carrier should be positioned at the correct height before loading and unloading
to allow a good working position. The load should be pushed or pulled on or off of the load
carrier.
LIF T-O -F L E X 19500S | 5
8001 Tower Point Drive
Charlo�e, NC 28227 USA
[phone]
[phone]
[e-mail] www.roni.com

3. WARRANTY
Limited Warranty
RonI warrants this product to be free of defects in material and workmanship during the
warranty period. Our warranty obligation is to provide a replacement for a defective original
part if the part is covered by the warranty, after we receive a proper request from the warran-
tee (you) for warranty service.
Who may request service?
Only a warrantee may request service. You are the warrantee if you purchased the product
from RonI or from an authorized distributor and RonI has been fully paid.
What is an “original part”?
An original part is a part used to make the product as shipped to the warrantee.
What is a “proper request”?
A request for warranty service is proper if RonI receives: 1) a photocopy of the customer
invoice that displays the shipping date and 2) a written request for warranty service that
includes your name and phone number. Requests may be sent using the following methods:
Mail
RonI
8001 Tower Point Drive
Charlotte, NC 28227
Fax
Toll Free 1-866-543-9532
Direct 1-704-847-6739
Email
[email protected]
What is covered under the warranty?
After RonI receives your request for warranty service, an authorized representative will contact
you to determine whether your claim is covered by the warranty. Before providing warranty
service, RonI may require you to send the entire product, or just the defective part(s),to its
facility in Charlotte, North Carolina.
How long is the warranty period?
The warranty period for original dynamic components is one (1) year. For batteries, the
warranty period is 30 days. The warranty period begins on the date when RonI ships the
product to the warrantee.
6 | USER MANUA L
8001 Tower Point Drive
Charlo�e, NC 28227 USA
[phone]
[phone]
DO C UMENT I D: 01022018
www.roni.com [email protected]

If a defective part is warranteed, how will RonI correct the problem?
RonI, will provide an appropriate replacement for any covered part. An authorized repre-
sentative of RonI will contact you to discuss your claim.
Warranty Evaluation
All parts sent back (freight paid by customer) to RonI for warranty replacement and/or repair
will be evaluated. RonI will determine if the part is a warranty issue or if it has been damaged
due to misuse or negligence. A written report will be issued detailing the investigation of the
part and whether or not the part is classifed as warranty.
What is not covered by this warranty?
1. Labor
2. Freight
3. Occurrence of any of the following, which will automatically void the warranty:
• product misuse
• negligent operation or repair
• corrosion or use in corrosive environments
• inadequate or improper maintenance
• damage sustained during shipping
• collisions or other incidental contacts causing damage to the product
•unauthorized modifications: do not modify the product in any way without first
receiving written authorization from RonI as modifications(s) might make the
product unsafe to use or could potentially cause excessive and/or abnormal wear
Warranty Procedure
In the event that a part is damaged or broken,
please contact RonI via phone or email to establish
a dialogue to identify and diagnose the problem.
Please have your lifter serial number available
when you call or email.
(located on the motor cover underneath the
intermediate)
L I F T- O-F L EX 19500S | 7
8001 Tower Point Drive
Charlo�e, NC 28227 USA
[phone]
[phone]
[e-mail] www.roni.com

4... ASSEMBLY INSTRUCTIONS
Lifter leg
Power pack
Intermediate
Handlebar
Lift mast
End-effector
The wheel frame and the cross-member are integrated on some models:
Remote control Charger
8 | USER MANUAL
8001 Tower Point Drive
Charlo�e, NC 28227 USA
[phone]
[phone]
DO C UMENT I D: 01022018
www.roni.com [email protected]

L I F T- O-F L EX 19500S | 9
8001 Tower Point Drive
Charlo�e, NC 28227 USA
[phone]
[phone]
[e-mail] www.roni.com
1) Before assembling the frame, the rear casters on each leg (three position-see example on next page);
should be locked in the directional lock mode. This is accomplished with the brake rod (4). Insert
one end of the rod into the hole located on the caster holder and turn it so the wheel is
directionally locked and is in the proper position. (Do this on both legs).
Place the upper intermediate section (2) and the lower intermediate section (3) on edge. The upper
intermediate section has the mast slide located on the center and should be placed facing the front
casters. The lower intermediate section has the lift motor attached and should be placed so that the
(2) screws that attach the lift mast to the lower intermediate section face the front casters. Take one
of the legs (1) (the hex hole for the brake rod should face down) and mount it with the enclosed bolts
(6) 8 pcs. Screw it in place (do not tighten). Turn the intermediate sections with one leg attached over
and mount the opposite leg. Insert the brake rod (4) into the hex holes in the proper position before
attaching the leg with the bolts. (do not tighten). The brake rod (4) should be pointed up and
perpendicular to the legs.
Place the frame on its wheels on a level floor. Put pressure on the legs so that each wheel has contact
with the floor. Now, tighten all the bolts in place.
2)
3)
4.1 ASSEMBLY
Assembly Instructions
The lifter is normally delivered disassembled in modules or partially assembled in order to minimize freight
costs. When the lifter is delivered disassembled, each module comes separate with required screws and
tools, etc. When the lifting device is delivered partially assembled, the frame will be together and the
components such as masts, power pack and handle will need to be mounted to the frame.
(Associated diagrams on the next page)
Tools: 1 Allen wrench key size 5mm
Bolts: 16pc. M8x70 mm (6)
Modules: 1 pair of legs (1), 1 pc. Upper intermediate section (2), 1pc. Lower intermediate section (3), 1 pc
Brake rod (4), 1 pc. Lock for Power Pack (5), (needed when power pack is to be mounted),
ASSEMBLING THE FRAME

B ROD POSITIONS
Directional Lock
Free Wheeling
Set Brake
10 | USER MANUA L
8001 Tower Point Drive
Charlo�e, NC 28227 USA
[phone]
[phone]
DO C UMENT I D: 01022018
www.roni.com [email protected]

Remove the 3 screws (9) which are on the lower intermediate section and loosen the 4 nuts (10)
on both sides of the intermediate section.
Make sure the yellow plastic coupling on the motor is still in place on the gear reducer.
Rotate the primary mast so the coupling is pointing down. Move the mast slide all the way to its bottom
position. Note: The slide can travel down at a high rate of speed should it be on the opposite end when
rotating the mast for placement! The slide should be in the lowest position when mounting the mast.
Insert the mast over the guide rails on the upper intermediate section and push the mast down in order
for the fastening plate to cover the lower intermediate section. Make sure the coupling on the lift mast
and motor are properly mated together or the lower bolts cannot be installed. Installing the slave mast is
the same as the primary except for aligning coupling to lift motor which is not required. Also, attach the
top mast bracket prior to installing end-effector.
Fasten the first 3 bolts (9), this will automatically center the mast. Next, tighten the 4 bolts (10) on the
guide rails in the upper intermediate section.
The end-effector can now be mounted with its 2 bolts (11).
Should you have an accessory which requires electricity this is to be connected to the power pack (5) into
the same outlet as the battery charger. While charging, these accessories will have to be disconnected.
After charging remember to reconnect the plug for the accessory.
1)
2)
3)
4)
5)
6)
7)
Tool: 1 pc. Allen wrench size 5 mm, 1 pc. regular wrench size 13 mm
Screw: The bolt holding the mast: each bolt and nut is on the frame, the platform screw 2 pcs. 3/8”x 3 ½”
Modules: 1 pc. mast (7), 1 pc. Load platform (8), 1 pc. slave mast (12)
L I F T - O-F L EX 19500S | 11
8001 Tower Point Drive
Charlo�e, NC 28227 USA
[phone]
[phone]
[e-mail] www.roni.com
(Associated diagrams on the next page)
ASSEMBLING THE END EFFECTOR AND MAST

n
 n
8
9
Modules: 1 pc upper lock (5), 1 pc power pack (12), 1 pc grip (13), and 1 pc remote control
Guide the upper lock nut of the power pack into (5) the tracks of the back of the mast,
the knob shall be on top (slightly off center).
Lift the power pack (12) by lifting the upper lock (5), slide the power pack (12) so its lower
fastening hook fastens at the bottom of the mast. Lower the upper connector (5) until it
covers the top of the power pack mounting detent and tighten.
Plug in the connector to the front of the power pack. Cable with plug to motor (black
connector with red handle).
Insert the handle slides into the two slots in the back of the lift mast and slide down the
handle and secure at a desired height.
Connect the remote control device to the power pack (12). The plug shall be on the right
front side (the same side as the plug for the motor).
The lifter is now ready for use.
1)
2)
3)
4)
5)
6)
12 | USER MANUA L
8001 Tower Point Drive
Charlo�e, NC 28227 USA
[phone]
[phone]
DO C UMENT I D: 01022018
www.roni.com [email protected]
(Associated diagrams on the next page)
ASSEMBLING THE POWER PACK, GRIP, AND REMOTE CONTROL

4.2 DISASSEMBLY
To disassemble the lifter, refer to directions above and reverse the order.
8001 Tower Point Drive
Charlo�e, NC 28227 USA
1 866 543 8635+
[phone]
[e-mail] www.roni.com
Disposal after useful life
When the lifter has provided many years of use and is ready to be disposed of, it should be recycled. The
LIFT-O-FLEXlifter is manufactured with materials that are recyclable. We have also selected recyclable gel-
cell batteries over nickel-cadmium batteries for this purpose.
5. OPERATING INSTRUCTIONS
5.1 USING THE LIFTER
In order to prevent and avoid work injuries, it is important that the LIFT-O-FLEX is operated in
a proper manner.
Please note, if a load remains on the lifter for some time, it may be necessary to lower the load
before it can be raised.
L IF T-O -F LEX 19500S | 13

8001 Tower Point Drive
Charlo�e, NC 28227 USA
[phone]
[phone]
[e-mail] www.roni.com
5.2 ADJUSTING THE HANDLEBAR
The height of the handlebar can easily be adjusted by loosening the quick disconnect
knobs and sliding the handlebar to the desired position. After adjustment, tighten the
quick disconnect knobs. To obtain the best working conditions, it is important to adjust the
handle to a comfortable level. During movement of the lifter, always keep your hands inside
the handlebar. This will protect the hands in the event the handlebar should encounter an
obstacle. Never put arms through the handlebar to reach something on the load carrier, as
this may pose a crush hazard.
5.3 POWER PACK
Modifying the power pack is dangerous. This device may not be sealed in any way. It should
not be exposed to splashed or running water.
5.4 REMOTE CONTROL
The load carrier is raised and lowered by pressing the buttons on the hand-held remote
control pendant. The remote control has either two or four buttons and is used as
shown below.
Up/down Up/down
Slowly up/down
14 | U SER MANUA LDO C UMENT I D: 0 6212017

The remote control should be placed to allow the user to easily press the buttons. The bracket
for the remote control is fitted to the handlebar. The bracket can easily be moved by turning
the black knob counter-clockwise. The bracket can be locked in any position on the handle by
turning the knob clockwise. The bracket can be tilted to any angle on the handlebar. The
remote control can be removed from the bracket.
5.5 BRAKE SYSTEM
On lifters equipped with a central brake, the brake is applied by moving the brake bar to its
lowest position.
On lifters equipped with a central brake, the directional lock is activated by moving the brake
bar to its highest position. This locks the rear wheels in a position that only allows the lifter to
move straight forward or backward.
On lifters with individually-braked wheels, the brakes are applied by pressing down the lever
on each wheel separately.
6. MAINTENANCE
6.1 GUIDELINES
In order for the lifter to function properly, it is important that maintenance is carried out in
accordance with what is described below. The stated service intervals are applicable during
normal use and charging once a day. Further use requires more frequent service intervals.
After disassembly or assembly of the column or load carrier, a load test should be
performed.
8001 Tower Point Drive
Charlo�e, NC 28227 USA
[phone]
[phone]
[e-mail] www.roni.com
LIF T-O -F LEX 19500S | 15

6.2EVERYDAY
Charging
Only chargers supplied or approved by RonI may be used.
The charger must not be exposed to water.
The lifter must be in a well-ventilated area when it is being charged.
Always connect the charger to the lifter before connecting to the main power.
Do not operate the device while charging.
The batteries should be recharged every night. In order to avoid complete discharge, which
damages the batteries, the batteries should also be charged when the lifter is not used for an
extended period of time, e.g. during weekends and holidays.
When the battery charger is connected to the lifter and has power, there is a yellow/orange
light on the charger, indicating ongoing charging. When the batteries are fully charged the light
is green. The lifter can remain connected to the charger indefinitely without risk of overcharg-
ing, preferably until next use.
For lifters with a power pack equipped with a voltage indicator, a flashing bar on the voltage
indicator means that the batteries need charging. If the lifter is left unused for 10 minutes,
sleep mode is activated and the voltage indicator turns black. The lifter can be restarted by
pressing any button on the remote control. When the lifter is restarted from sleep mode after
charging, it takes two minutes before the voltage indicator shows if the batteries are fully
charged.
8 | USER MANUAL
8001 Tower Point Drive
Charlo�e, NC 28227 USA
[phone]
[phone]
DO C UMENT I D: 0 6212017
www.roni.com [email protected]
8001 Tower Point Drive
Charlo�e, NC 28227 USA
[phone]
[phone] www.roni.com [email protected]
16 | U SER MANUA LDO C UMENT I D: 0 6212017

6.3EVERY YEAR, OR WHEN NEEDED
Cleaning
Clean the lifter by wiping it down only. Wipe the lifter dry after cleaning. Do not use hose or
high-pressure jet as this may damage the electronics and the paint.
Electrical connections
Check all connections and repair any damage or wear. If needed, replace with new parts.
Wear of machine parts
Check the parts of the machine in order to identify any cracking or wear.
Nuts and bolts
Make sure all nuts and bolts are tightened.
Lift mast
Lift the column from the cross-member.
Clean the brush strips and wipe the column clean.
Remove the four corner screws at the top of the column (not the three in the middle).
Pull out, wipe and lubricate the lift screw with new ball bearing grease.
Put the lift screw back and tighten the screws.
Check the coupling by making sure the sleeve and the hub located inside the column and
inside the cross-member are intact and in working order.
Put the lift mast back and perform a load test.
Wheels
Make sure all wheels run smoothly.
Lubricate the bearings.
Check that the tire rubber is intact.
Brakes
Check that the brakes work.
Knobs for handlebar and bracket for remote control
Check that the knobs loosen and tighten correctly.
8001 Tower Point Drive
Charlo�e, NC 28227 USA
[phone]
[phone]
[e-mail] www.roni.com
LI F T-O -F LEX 1 9500S | 17

Replacing the fuse
The fuse is located inside the power pack. A wiring diagram for the lifter is attached to the
inside of the lid of the power pack. Before removing the lid, by loosening the screws, the user
should apply the brakes and wear protective footwear. Be extra cautious when opening the
power pack. If the device is tilted after the lid has been removed, the batteries can slide out of
the power pack and harm the user.
Replacing the batteries
Batteries may be replaced by a person with basic technical knowledge. When changing the
batteries, protective footwear should be used and the brakes should be applied. To open the
power pack, see section above. Used batteries should be handed in to a recycling center.
Plates and decals
Verify that the following plates and decals are attached and fully readable.
Plate / Decal Description Placement
CE Decal Decal with CE mark and year
of manufacture
At the back of the
intermediate
Serial Number Decal with serial number At the back of the
intermediate & at the bottom
on one side of the lift mast
Model Decal with text stating the
model of the lifter
At the back of the
lift mast
Maximum Load Decal with text stating the
maximum load and that lift-
ing people is not allowed
At the top on both the left
and right sides of the lift
mast
Do Not Step, Do Not Stand
Under Platform, Charge @
Night
Moving / Unloading
Safety Information Card with warranty
check list and contact
information
Zip tied to handlebar
8001 Tower Point Drive
Charlo�e, NC 28227 USA
[phone]
[phone] www.roni.com [email protected]
Decal with Do Not Step, Do
Not Stand Under Platform,
Charge @ Night
On the top of the intermediate
Decal with moving and
unloading instruction
On the top of the intermediate
Brake Positions Decal with brake
positions
At the back of the power pack
18 | U SER MANUA LDO C UMENT I D: 0 6212017

7. TROUBLESHOOTING
The lifter is designed for safe and ecient operation, provided that routine maintenance is
carried out in accordance with the instructions given. If problems arise, some guidance is
provided below. If the problem persists after action has been taken, please contact a service
technician or RonI.
If the load carrier does not move or moves very slowly:
• Verify that the maximum load is not exceeded.
• Charge the batteries.
• Check that the battery charger works. A light should be visible on the charger when
plugged into the main power.
• Check if the fuse inside the power pack needs to be replaced.
• Check the battery voltage and replace the batteries if the voltage after eight hours of
charging is less than 24volts.
If the lifter sounds strange:
• Make sure the lifter is correctly assembled, see section Assembly.
• See section Maintenance.
8001 Tower Point Drive
Charlo�e, NC 28227 USA
[phone]
[phone]
[e-mail] www.roni.com
LIF T-O -F LEX 19500S | 19

NOTE: Custom Lift-O-Flex® solutions can be designed specifically for your
application
Technical Specifications 19500 (Slave Mast) Series
Floor to top of Mast
Standard Legs
Floor to top of Mast
Low Profile Legs
Total Lift Stroke
Standard Mast
Total Lift Stroke
HD Mast
2003mm (78.8”)
1951mm (76.8”)
1375mm (54.1”)
1262mm (49.7”)
2503mm (98.5”)
245mm (96.5”)
1875mm (73.8”)
1694mm (66.7”)
3003mm (118.2“)
2951mm (116.1“)
2368mm (93.2”)
2260mm (89”)
Minimum Lift Height
Lift-Speed 19500 Series
Legs-Standard (Overall Length)
Legs-X-Low Profile (Overall Length)
Wheel Material
Wheel Diameter (Front/Back) Standard
Wheel Diameter (Front/Back) X-Low built
Width: Outside
~56mm (~2.2”)
~100mm/sec (2”/sec)
Std Length 984mm (38.75”)-Long 1184mm (46.6”)-X-Long 1384mm
(54.5”)
Std Length 900mm (35.4”)-Long 1110mm (39.7”)
Polyurethane/Rubber
100mm (3.9”)/150mm (5.9”)-Front Single Swivel
76mm (2.9”)/150mm (5.9”)-Front Fixed Castor
Std-850mm (33.5”)
Noise level
Maximum Load 19500 Series
Lifter Weight w/o End-Effector
Battery Type
Battery Voltage
Battery Capacity
>70dB(A) 240Kg
(525-lbs) ~105Kg
(200-lbs) Lead
Gel Cell 24V, 2
Amp
Recharge Time
Lifter Finish
16 Ahr
6-8 Hours
Powder Coated Paint/Anodized or Stainless Steel/Anodized
8. TECHNICAL SPECIFICATIONS
20 | U SER MANUA L
8001 Tower Point Drive
Charlo�e, NC 28227 USA
[phone]
[phone]
DO C UMENT I D: 01022018
www.roni.com [email protected]
