Light Blue Optics LT1221 Series User manual


User Guide
Light Touch
Virtual Touch-Screen Computer
LT1221 Series
For models: LT1221FC/MG/RG-10/11
LT1221_UG_V2_9 | Page 1

Contents
Package Contents................................................................................................................3
Product Accessories...........................................................................................................3
Introducing Light Touch™............................................................................................... 4
Light Touch LT1221 Series Product Range ..............................................................5
Safety Notice......................................................................................................................... 6
Product Classification ........................................................................................................7
The Basics..............................................................................................................................10
Getting Started ...............................................................................................................10
Demonstration Applications.....................................................................................10
Light Touch Settings ......................................................................................................... 11
System Information....................................................................................................... 12
Power Management...................................................................................................... 13
Wireless Networking .................................................................................................... 15
USB Mode ..........................................................................................................................18
Developing Custom Applications .............................................................................20
Introduction .....................................................................................................................20
Connecting to the Unit...............................................................................................20
Internal File Structure .................................................................................................. 21
Configuring Application Use on Start-Up......................................................... 22
Creating Applications in Adobe Flash Lite 3.1 ................................................23
Creating Applications in Microsoft .NET Compact Framework 3.5.....23
Support ..................................................................................................................................24
Troubleshooting ............................................................................................................24
Support Desk ..................................................................................................................24
Appendix A – ActiveSync USB Setup for Windows XP ................................ 25
Appendix B – ActiveSync USB Setup for Windows Vista/7 .......................29
Appendix C - Light Touch™ Specifications ..........................................................36
bbb
Light Touch LT1020 – User Guide v1.1 – Application Release C1.0.0 | Page 2
LT1221_UG_V2
_
9 | Page 2

Package Contents
The following items should be included in the package
•1 x Light Touch (LT1221FC/MG/RG-10/11)
•1 x International Power Adaptor (220/110V AC to 5V DC)
•1 x USB Cable (Full-size Type A to Micro Type B)
•1 x CD containing:
•Light Touch LT1221 Series Quick Start Guide
•Links to further documentation on http://lightblueoptics.com
Product Accessories
There are a number of accessory items that are available for purchase to
accompany the LT1221 Series product.
For details, contact a LBO sales representative
bbb
Light Touch LT1020 – User Guide v1.1 – Application Release C1.0.0 | Page 3
LT1221_UG_V2
_
9 | Page 3

Introducing Light Touch™
Light Touch™ is an interactive projector that instantly transforms any flat surface into
a touch screen. It projects a full-colour image down onto any flat surface and turns it
into a virtual touch-screen.
Light Touch™ is an application platform with onboard processor, running Microsoft
WinCE 6 R3 operating system. It supports applications written in Adobe Flash Lite 3.1
or Microsoft .NET CF 3.5. Light Touch has wireless networking capability and is ideally
suited to running applications that connect to the internet or cloud-based servers.
Light Touch models from the LT1221 series, are supplied in a plastic outer shell,
designed for standalone operation.
Figure 1 – Light Touch LT1221 Series
bbb
Light Touch LT1020 – User Guide v1.1 – Application Release C1.0.0 | Page 4
LT1221_UG_V2
_
9 | Page 4

Light Touch LT1221 Series Product Range
The Light Touch LT1221 Series product range includes the following models:
Product code Description
LT1221FC-10 Light Touch
Virtual Touch Screen Computer
Full-colour projection
O/S: MS Win CE6R3 Core
LT1221FC-11 Light Touch
Virtual Touch Screen Computer
Full-colour projection
O/S: MS Win CE6R3 Pro
LT1221MG-10 Light Touch
Virtual Touch Screen Computer
Monochrome green projection
O/S: MS Win CE6R3 Core
LT1221MG-11 Light Touch
Virtual Touch Screen Computer
Monochrome green projection
O/S: MS Win CE6R3 Pro
LT1221RG-10 Light Touch
Virtual Touch Screen Computer
Bi-chrome (red/green) projection
O/S: MS Win CE6R3 Core
LT1221RG-11 Light Touch
Virtual Touch Screen Computer
Bi-chrome (red/green) projection
O/S: MS Win CE6R3 Pro
bbb
Light Touch LT1020 – User Guide v1.1 – Application Release C1.0.0 | Page 5
LT1221_UG_V2
_
9 | Page 5

Safety Notice
Caution - use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure
This laser product is certified as a CLASS 2 laser product to the requirements
of the US Federal Product Performance Standard for Laser Products
contained in the regulations in 21 CFR Subchapter J except for specific
deviations described in FDA Laser Notice #50.
This machine incorporates embedded, Class 3B and 4 lasers which are
capable of producing hazardous levels of laser radiation. However, this
product incorporates a protective housing and controls in its design such that
there is no exposure or human access to levels of laser radiation above Class
2.
Tested to IEC 60825-1:2007
447nm wavelength, 0.16mW maximum power, 200uSec pulse duration
532nm wavelength, 0.26mW maximum power, 200uSec pulse duration
637nm wavelength, 0.26mW maximum power, 200uSec pulse duration
780nm wavelength, 0.14mW maximum power, 16.6mSec (Class 1)
CLASS 2 – DO NOT STARE INTO THE BEAM
AS WITH ANY PRODUCT CONTAINING LASERS, DO NOT DISASSEMBLE
THE PROJECTOR FOR ANY REASON. DISSASSEMBLING THE PROJECTOR
MAY RESULT IN HAZARDOUS LASER RADIATION EXPOSURE.
UNDER NO CIRCUMSTANCE SHALL ATTEMPTS BE MADE TO OPERATE
THIS DEVICE WHEN IT IS DAMAGED OR DISASSEMBLED.
Return it to the manufacturer for repair or replacement. All service to the
product shall be performed by Light Blue Optics Ltd., their authorised agents, or
personnel trained by Light Blue Optics Ltd.
bbb
Light Touch LT1020 – User Guide v1.1 – Application Release C1.0.0 | Page 6
LT1221_UG_V2
_
9 | Page 6

Product Classification
DECLARATION OF CONFORMITY according to FCC part 15
Light Blue Optics declares that the equipment described in this
document is in conformance with the Requirements of the European
Council Directive listed below:
2006/95/EC Low Voltage Directive
2004/108/EC EMC Directive
This product follows the provisions of the European Directive 1999/5/EC.
Dette produkt er i overensstemmelse med det europæiske direktiv 1999/5/EC.
Dit product is in navolging van de bepalingen van Europees Directief 1999/5/EC.
Tämä tuote noudattaa EU-direktiivin 1999/5/EC määräyksiä.
Ce produit est conforme aux exigences de la Directive Européenne 1999/5/EC.
Dieses Produkt entspricht den Bestimmungen der Europäischen Richtlinie
1999/5/EC.
Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer 1999/5/EC.
Questo prodotto è conforme alla Direttiva Europea 1999/5/EC.
Dette produktet er i henhold til bestemmelsene i det europeiske direktivet
1999/5/EC.
Este produto cumpre com as normas da Diretiva Européia 1999/5/EC.
Este producto cumple con las normas del Directivo Europeo 1999/5/EC.
Denna produkt har tillverkats i enlighet med EG-direktiv 1999/5/EC.
This declaration is based upon compliance of the product to the following
standards:
EN 55022:2006 (CISPR 22 Class B) RF Emissions Control.
EN 55024:1998 +A1:2001 +A2:2003 Immunity to Electromagnetic Disturbance.
EN 60950-1 Second Edition Information Technology Equipment- Safety-Part 1:
General Requirements.
FCC warning statement:
•This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
•This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance. This transmitter must not
be co-located or operating in conjunction with any other antenna or
transmitter.
•Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment
Responsible party: Light Blue Optics Ltd
Address: Platinum Building, St. John’s Innovation Park,
Cowley Road, Cambridge. CB4 0WS U.K.
Telephone: [phone]
Declares that product: Models LT1221FC, LT1221MG & LT1221RG
Comply with part 15 of the FCC rules
bbb
Light Touch LT1020 – User Guide v1.1 – Application Release C1.0.0 | Page 7
LT1221_UG_V2
_
9 | Page 7

VCCI Class B Statement (Japan)
BSMI Class A Notice (Taiwan)
This product uses RoHS compliant components
Light Blue Optics products with the Waste Electrical and Electronic
Equipment Directive (WEEE) label, shown below, can be shipped back to
Light Blue Optics for proper disposal of hazardous components. Please
contact Light Blue Optics Technical Support for the proper procedure.
WLAN
Declaration
European
Union
Regulatory
Conformance
The Light Touch unit has a WLAN capability.
The unit supports 802.11 b/g (Channels 1-11).
FCC ID: YVE-LM
The equipment complies with the RF Exposure Requirement
1999/519/EC, Council Recommendation of 12 July 1999 on the limitation
of exposure of the general public to electromagnetic fields (0–300 GHz).
This equipment meets the following conformance standards:
EN 300 328, EN 301 489-17, EN 301 511, EN 301 908, EN 50385
This wireless device complies with the R&TTE Directive.
Japan Wireless Certification obtained
bbb
Light Touch LT1020 – User Guide v1.1 – Application Release C1.0.0 | Page 8
LT1221_UG_V2
_
9 | Page 8

Canada
IC ID: 9291A-LM
English
"Under Industry Canada regulations, this radio transmitter may only
operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type and its gain should be
so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not
more than that necessary for successful communication."
"This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation
of the device."
“This device complies with Industry Canada's RF radiation exposure limits
for general population. It must be installed to provide a separation
distance of at least 20 cm from all persons and must not be collocated or
operated in conjunction with any other antenna or transmitter.”
French
"Conformément à la réglementation d'Industrie Canada, le présent
émetteur radio peut fonctionner avec une antenne d'un type et d'un gain
maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada.
Dans le but de réduire les risques de brouillage radioélectrique à
l'intention des autres utilisateurs, il faut choisir le type d'antenne et son
gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne
dépasse pas l'intensité nécessaire à l'établissement d'une communication
satisfaisante."
"Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement."
“Cet appareil est conforme aux limites d'Industrie Canada concernant
l'exposition de la population générale aux radiofréquences. Il doit être
installé de façon à laisser une distance de séparation d'au moins 20 cm
de toute personne et ne doit pas être colocalisés ou exploité en
conjonction avec toute autre antenne ou transmetteur.”
bbb
Light Touch LT1020 – User Guide v1.1 – Application Release C1.0.0 | Page 9
LT1221_UG_V2
_
9 | Page 9

The Basics
Getting Started
1. Remove from packaging
Check package contents against list on page 3.
2. Place unit upright on flat surface
Place the unit on a flat, level surface. For uniform results, a matte white
surface is recommended.
3. Press the button on top of the unit
This will turn on the unit. A blue logo will be projected for a few seconds
whilst the software loads. Light Touch™ will display a carousel menu which
provides access to a selection of preloaded demonstration applications.
4. Touch the projected image to interact
The menu can be navigated by touching the projected image with a finger
and using standard actions such as swipe and click. A touch is registered
when the finger lifts up from the projection surface, and not when the finger is
pressed down.
Demonstration Applications
The Light Touch LT1221 unit comes preloaded with a number of
demonstration applications, which can be accessed via the carousel. A
category can be selected by a single “click” on any visible icon.
Figure 2 – Screenshot of carousel menu
The pre-loaded applications are provided for demonstration purposes
only. Please contact Light Blue Optics for further information if required,
including enquiries about obtaining permission to use part or all of one of
these applications in a commercial product.
For information on creating applications for Light Touch, see the separate
document entitled: ‘Light Touch Application Guide’.
bbb
Light Touch LT1020 – User Guide v1.1 – Application Release C1.0.0 | Page 10
LT1221_UG_V2
_
9|Page10

Light Touch Settings
The user can configure Light Touch via the ‘Settings’ section of the menu
carousel.
Figure 3 – Screenshot of ‘Settings’ icon in menu
Within the ‘Settings’ menu, the following categories are accessible:
•System Information (‘About’)
•Power Management
•Wireless Networking
•USB Mode
Each category is described in the following section.
bbb
Light Touch LT1020 – User Guide v1.1 – Application Release C1.0.0 | Page 11
LT1221_UG_V2
_
9|Page11

System Information
The ‘About’ screen can be accessed from within the ‘Settings’ category:
Figure 4 – Screenshot of ‘About’ icon within ‘Settings’ menu
The ‘About’ screen contains information about the hardware and software
versions. The serial number is the unique identifier for the unit.
Figure 5 – Screenshot of ‘About’ screen
bbb
Light Touch LT1020 – User Guide v1.1 – Application Release C1.0.0 | Page 12
LT1221_UG_V2
_
9|Page12

Power Management
The ‘Power Management’ control panel can be accessed from within the
‘Settings’ category:
Figure 6 – Screenshot of ‘Power Management’ icon within ‘Settings’ menu
The ‘Power Management’ control panel allows the user to put Light Touch
into a ‘display-off’ mode after a period of inactivity. To activate this mode, the
‘Display Off Time’ needs to be set to a value greater than 0. There are
separate settings for when the unit is running from the power adaptor (called
‘AC mode’) and from the internal battery. Use the arrows to access the other
power management settings.
Figure 7 – Screenshot of power management control panel
In the top right corner of the screen, the power source status is displayed;
either ‘AC Online’ or ‘Battery’ with the current battery charge level. Touching
the value (shown here as ‘0’) brings up a virtual keyboard so that the value
can be changed.
bbb
Light Touch LT1020 – User Guide v1.1 – Application Release C1.0.0 | Page 13
LT1221_UG_V2
_
9|Page13

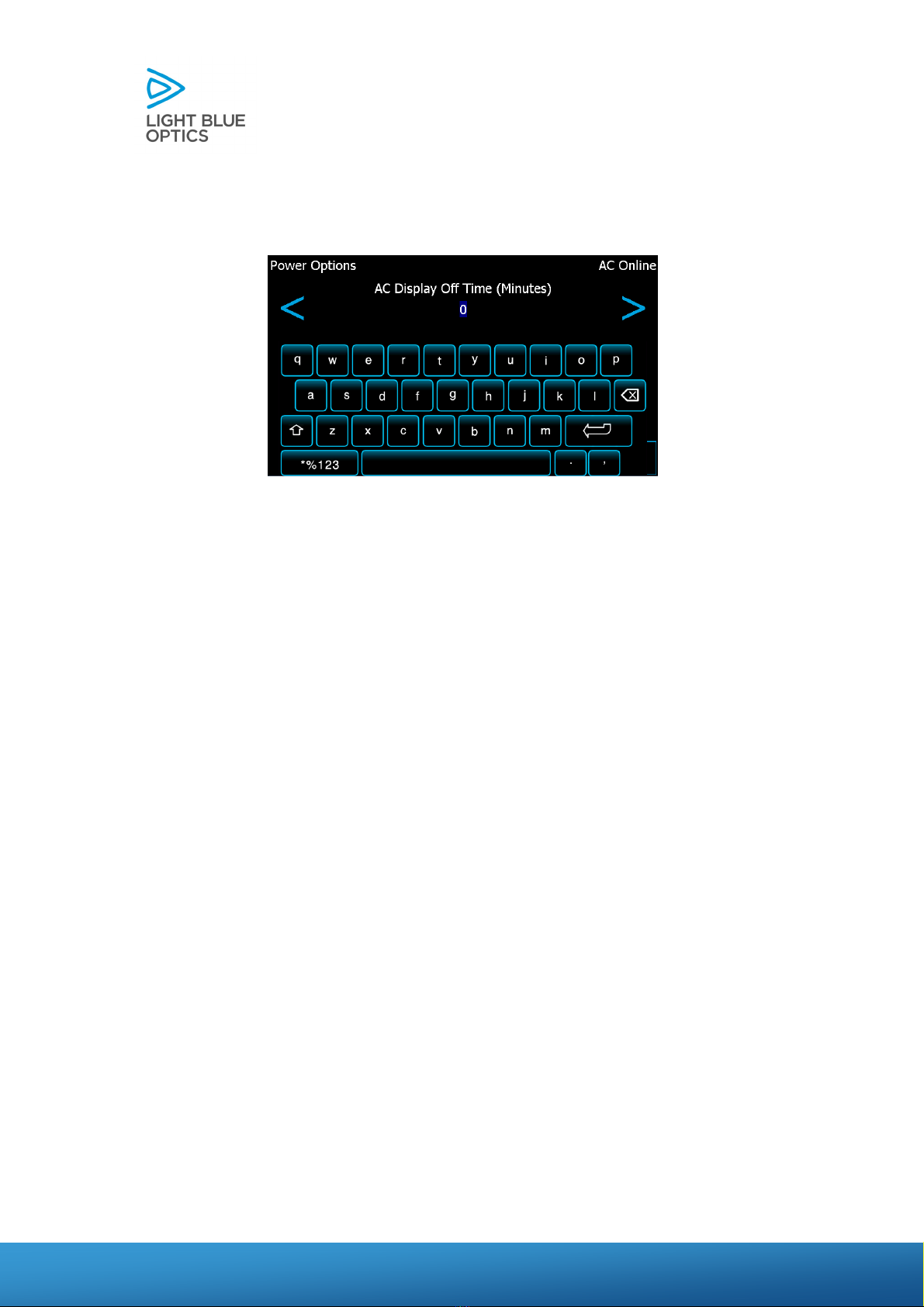

The virtual keyboard can switch between three screens by pressing the mode
key (marked as *%123) in the image below
Figure 8 – Screenshot of selecting a value in power management control panel
When the desired value has been entered, press the enter key to return (the
right-hand button on the second line up)
bbb
Light Touch LT1020 – User Guide v1.1 – Application Release C1.0.0 | Page 14
LT1221_UG_V2
_
9|Page14

Wireless Networking
Light Touch has inbuilt wireless networking support for 802.11 b/g. The
following encryption standards are supported:
•WEP
•WPA
•WPA2 – TKIP
•WPA2 – AES
The wireless networking control panel can be accessed from within the
‘Settings’ category:
Figure 9 – Screenshot of ‘Wireless Networking’ icon within ‘Settings’ menu
The main screen within the wireless networking control panel is shown below:
Figure 10 – Screenshot of wireless networking control panel
To connect to one of the networks displayed in the list, select the network by
touching the name, then press ‘Connect’. If the network requires a security
code then this will cause a virtual keyboard to be displayed and the code
should be entered.
bbb
Light Touch LT1020 – User Guide v1.1 – Application Release C1.0.0 | Page 15
LT1221_UG_V2
_
9|Page15

The virtual keyboard can switch between three screens by pressing the mode
key (marked as *%123) in the image below. When the code has been entered,
press the green arrow button to connect.
Figure 11 – Screenshot of entering network access code
At the main screen of the wireless networking control panel, the status of the
connection will be displayed. Pressing the ‘Test’ button with cause the
application to actively test the wireless network connection. If successful, the
following screen will be shown. If unsuccessful, a similar screen will say that
you are not connected to the internet.
Figure 12 – Screenshot of networking control panel showing network test
Light Touch can also connect to wireless networks that don’t broadcast their
SSIDs. To connect to a network with a hidden SSID, select ‘Other’ from the list
of available networks and press ‘Connect’.
bbb
Light Touch LT1020 – User Guide v1.1 – Application Release C1.0.0 | Page 16
LT1221_UG_V2
_
9|Page16

The manual configuration screen, as shown below, allows network parameters
to be set explicitly.
Figure 13 – Screenshot of manual configuration within wireless networking control panel
The virtual keyboard is used to enter the network name and security code.
bbb
Light Touch LT1020 – User Guide v1.1 – Application Release C1.0.0 | Page 17
LT1221_UG_V2
_
9|Page17

USB Mode
Light Touch can be connected to a host machine via a USB cable that plugs
into the USB Micro-B port. The USB Mode control panel can be accessed from
the ‘Settings’ menu:
Figure 14 – Screenshot of ‘USB Mode’ icon within ‘Settings’ menu
The default USB mode is ‘ActiveSync’ mode, which allows Light Touch to be
controlled from a Microsoft Windows PC. Further details are available in the
separate ‘Application Guide’ document.
In order to connect using USB ActiveSync mode, a device driver is needed for
the host PC. Instruction relating to the installation and use of these drivers is
contained in the appendices of this document.
Light Touch also supports ‘USB Mass Storage’ mode, which allows Light
Touch to appear as an external drive to a host PC or Mac.
Mass storage mode supports a higher transfer rate and the ability to connect
without using a device driver. However, whilst Light Touch is connected as a
mass storage device, it cannot access its own file system.
The main screen of the USB Mode control panel allows the connection type to
be selected as shown below.
Figure 15 – Screenshot of selecting USB mode
bbb
Light Touch LT1020 – User Guide v1.1 – Application Release C1.0.0 | Page 18
LT1221_UG_V2
_
9|Page18

bbb
Light Touch LT1020 – User Guide v1.1 – Application Release C1.0.0 | Page 19
LT1221_UG_V2
_
9|Page19
There are two different mass storage modes because Light Touch contains
two separate memories that are accessible to the user. The ‘internal’ Flash
memory has a capacity of 4GB and is present at all times. The ‘micro-SD’
Flash memory is an optional memory card that may be fitted into the device
via the external micro-SD card slot.1
If mass-storage (micro-SD) mode is selected, the user will first be prompted
to make sure that a micro-SD card is inserted.
Figure 16 – Screenshot of prompt to check micro-SD card inserted
When Light Touch is put into mass storage mode, the following screen will be
displayed for the duration of the transaction.
Figure 17 – Screenshot of mass storage mode message
When a USB cable is connected, the appropriate memory within Light Touch
will appear as a network drive on the host machine. Once any file transfers
have completed, Light Touch should be restarted using the power button. On
power-up, Light Touch will return to ‘ActiveSync’ mode.
1Note that the external micro-SD card slot is only accessible by removing the back
panel of the outer plastic cover. To remove the cover, first remove the screw at the
bottom of the back panel and then lift off the panel, starting from the bottom.

Developing Custom Applications
Introduction
The Light Touch LT1221 Series is designed to be an application platform that
users can create their own content for. The system is designed to enable
users to create applications using either one of two popular software
platforms:
•Adobe Flash Lite 3.1 – the Adobe Flash development toolset is currently
used by over 1,000,000 developers. A wide range of visually-rich, interactive
applications can be developed quickly and easily without the need for
complex coding. As such, this method of creating applications is accessible
to a wider range of content developers such as graphic designers and
artists. Flash Lite 3.1 can also be used for the development of complex
applications due to its support for ActionScript 2.0 code.
•Microsoft .NET Compact Framework 3.5 – this powerful development
environment gives developers maximum control over the system at the
expense of more complex code development. Standard tools such as
Microsoft Visual Studio can be used to create applications and the
developer can get low-level access to system peripherals which would not
be accessible via Flash Lite 3.1
The Light Touch LT1221 Series runs Microsoft WinCE 6.0 R3 as the operating
system and includes all of the files needed to run applications written in both
Flash Lite 3.1 and .NET Compact Framework 3.5.
Connecting to the Unit
Light Touch can be connected to a host computer via USB. The USB
connection can be run in two modes: USB mass storage mode (i.e. providing
drag-and-drop file transfer support, or ActiveSync mode (i.e. providing file
transfer and debug capabilities for Windows PCs). Information on how to set
the USB mode is provided in the ‘Light Touch Settings -> USB Mode’ section
of this document.
For USB ActiveSync mode, the recommended method of connecting to the
Light Touch from a PC is slightly different depending on which operating
system the PC is running:
For Windows XP:
•Ensure that the host PC has Microsoft ActiveSync software installed
http://www.microsoft.com/windowsmobile/en-
us/downloads/microsoft/activesync-download.mspx . With the Windows XP
operating system, it is recommended to use ActiveSync version 4.5
•Plug in the power to the Light Touch and turn the unit on
•Connect the Light Touch unit to a PC via the USB cable. The required USB
cable is: Micro-USB (Type B) to Full Size USB (Type A).
bbb
Light Touch LT1020 – User Guide v1.1 – Application Release C1.0.0 | Page 20
LT1221_UG_V2
_
9|Page20
