IBM xSeries 200 Owner's manual

Hardware Maintenance Manual
xSeries 200


:
Note: Before using this information and the product it
supports, be sure to read the general information
under “Notices” on page 167.
Fifth Edition (April 2008)
INTERNATIONAL BUSINESS MACHINES CORPORATION
PROVIDES THIS PUBLICATION ″AS IS″WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR APARTICULAR PURPOSE. Some states
do not allow disclaimer of express or implied warranties in
certain transactions, therefore, this statement may not
apply to you.
This publication could include technical inaccuracies or
typographical errors. Changes are periodically made to the
information herein; these changes will be incorporated in
new editions of the publication. IBM may make
improvements and/or changes in the product(s) and/or the
program(s) described in this publication at any time.
This publication was developed for products and services
offered in the United States of America. IBM may not offer
the products, services, or features discussed in this
document in other countries, and the information is subject
to change without notice. Consult your local IBM
representative for information on the products, services,
and features available in your area.
Requests for technical information about IBM products
should be made to your IBM reseller or IBM marketing
representative.

xSeries 200
©Copyright International Business Machines
Corporation 2000. All rights reserved.
US Government Users Restricted Rights –Use, duplication
or disclosure restricted by GSA ADP Schedule Contract
with IBM Corp.
iii

iv Hardware Maintenance Manual: xSeries 200

About this manual
This manual contains diagnostic information, a
Symptom-to-FRU index, service information, error codes,
error messages, and configuration information for the IBM
xSeries 200.
Important: This manual is intended for trained servicers
who are familiar with IBM PC Server products.
Important safety information
Be sure to read all caution and danger statements in this
book before performing any of the instructions.
Leia todas as instruções de cuidado eperigo antes de
executar qualquer operação.
Prenez connaissance de toutes les consignes de type
Attention et
Danger avant de procéder aux opérations décrites par les
instructions.
Lesen Sie alle Sicherheitshinweise, bevor Sie eine
Anweisung ausführen.
©Copyright IBM Corp. 2000 v

Accertarsi di leggere tutti gli avvisi di attenzione edi
pericolo prima di effettuare qualsiasi operazione.
Lea atentamente todas las declaraciones de precaución y
peligro ante de llevar acabo cualquier operación.
Online support
Use the World Wide Web (WWW) to download Diagnostic,
BIOS Flash, and Device Driver files.
File download address is:
http://www.us.pc.ibm.com/files.html
IBM online addresses
The HMM manuals online address is:
http://www.us.pc.ibm.com/cdt/hmm.html
The IBM PC Company Support Page is:
http://www.us.pc.ibm.com/support/index.html
The IBM PC Company Home Page is:
http://www.pc.ibm.com
vi Hardware Maintenance Manual: xSeries 200

Contents
About this manual ...........v
Important safety information .........v
Online support .............vi
IBM online addresses ..........vi
Chapter 1. General checkout ........1
Chapter 2. General information .......3
Features and specifications .........3
Server features .............5
Reliability, availability, and serviceability......6
Server controls and indicators ........7
Turning on the server ..........8
Turning off the server ..........8
Chapter 3. Diagnostics ..........11
Diagnostic tools overview .........11
POST ...............11
POST beep code descriptions .......12
POST error messages .........12
Small computer system interface messages (some
models) ..............12
Diagnostic programs and error messages.....13
Text messages ...........14
Starting the diagnostic programs ......15
Using the diagnostics CD .......15
Downloading the diagnostics program ....16
Using the diagnostic diskette ......16
Viewing the test log ..........17
Diagnostic error message tables ......17
Power checkout ............17
Recovering BIOS ............18
Clearing CMOS ............20
Replacing the battery...........20
Temperature checkout ..........22
Diagnosing errors ............23
Troubleshooting the Ethernet controller .....23
Network connection problems .......23
Ethernet controller troubleshooting chart ....24
Ethernet controller messages ........26
Novell NetWare or IntraNetWare system ODI driver
teaming messages .........26
NDIS 4.0 (Windows NT) driver messages....28
Ethernet teaming messages: .......31
Chapter 4. Configuring the server ......33
Using the Configuration/Setup Utility program ...33
Starting the Configuration/Setup Utility program 34
Choices available from the Configuration/Setup
main menu ............34
©Copyright IBM Corp. 2000 vii

Using passwords ...........36
Using the SCSISelect utility program (some models) 37
Starting the SCSISelect utility program ....38
Choices available from the SCSISelect menu ..38
Chapter 5. Installing options ........41
Expanded view of the xSeries 200 .......41
System and PCI extender board ......41
System and PCI extender board options
connectors ...........41
System board internal cable connectors ...42
System board external connectors .....42
System board switches and jumpers ....43
Before you begin ............44
Working inside the server with the power on ...44
System reliability considerations ......45
Handling static-sensitive devices ......45
Moving the stabilizing feet .........46
Removing the side cover..........46
Removing the bezel ...........48
Removing the support bracket assembly .....49
Working with adapters ..........50
Adapter considerations .........50
Installing an adapter ..........51
Installing aSCSI or ServeRAID adapter (some models) 53
Installing internal drives ..........54
Internal drive bays ..........54
Preinstallation steps (all bays) .......56
Installing adrive in bay 2or 4.......56
Installing ahard disk drive in bay 5, 6, or 7...59
Installing memory modules .........61
Removing and installing amicroprocessor ....63
Removing amicroprocessor........65
Installing amicroprocessor ........66
Installing asecurity U-bolt .........69
Completing the installation .........70
Installing the cover ..........70
Updating the server configuration ......72
Connecting external options ........72
Installation procedure.........72
I/O connector locations .........72
Input/output ports ...........73
Mouse port............74
Keyboard port ...........74
Parallel connector..........75
Viewing or changing the connector
assignments .........75
Parallel connector.........75
Serial connectors ..........76
Viewing or changing the serial-connector
assignments .........76
Serial connectors .........77
Ethernet connector .........77
viii Hardware Maintenance Manual: xSeries 200

Configuring the Ethernet controller ....77
Failover for redundant Ethernet .....78
High Performance Ethernet Modes....78
Ethernet connector ........81
Universal Serial Bus connectors .....82
USB cables and hubs .......82
USB connectors .........82
Audio connectors ..........83
Line out............83
Line in ............83
Mic .............83
MIDI connector ..........83
Video connector ..........84
Ultra 3/160 SCSI connector (some models) 84
SCSI cabling requirements ......85
Setting SCSI IDs .........85
Chapter 6. FRU information (service only) ....87
Hard disk drive cage ...........87
Power supply .............88
Rear fan ..............88
System board .............89
CD-ROM drive.............90
Floppy disk drive ............91
Button kit ..............92
Guide assembly /speaker .........93
Bezel release latch ...........94
Top/side cover .............95
Handle assembly ............96
Adapter retainer ............96
Chapter 7. Symptom-to-FRU index ......99
Beep symptoms ............99
No beep symptoms ........... 103
Diagnostic error codes .......... 103
Error symptoms ............ 107
POST error codes ...........110
Processor board LEDs ..........116
ServeRAID .............116
Undetermined problems .........116
Chapter 8. Parts listing .........119
System ..............119
Keyboards ............. 121
Power cords ............. 122
Chapter 9. Related service information .... 125
Safety information ........... 125
General safety ........... 125
Electrical safety ........... 126
Safety inspection guide ......... 128
Handling electrostatic discharge-sensitive devices 129
Grounding requirements ........ 130
Contents ix

Safety notices (multi-lingual translations).... 130
Send us your comments! ......... 166
Problem determination tips......... 166
Notices .............. 167
Trademarks ............. 168
xHardware Maintenance Manual: xSeries 200

Chapter 1. General checkout
The server diagnostic programs are stored in upgradable
read-only memory (ROM) on the system board. These
programs are the primary method of testing the major
components of the server: The system board, Ethernet
controller, video controller, RAM, keyboard, mouse
(pointing device), diskette drive, serial ports, hard drives,
and parallel port. You can also use them to test some
external devices. See “Diagnostic programs and error
messages” on page 13.
Also, if you cannot determine whether aproblem is caused
by the hardware or by the software, you can run the
diagnostic programs to confirm that the hardware is
working properly.
When you run the diagnostic programs, asingle problem
might cause several error messages. When this occurs,
work to correct the cause of the first error message. After
the cause of the first error message is corrected, the other
error messages might not occur the next time you run the
test.
Afailed system might be part of ashared DASD cluster
(two or more systems sharing the same external storage
device(s)). Prior to running diagnostics, verify that the
failing system is not part of ashared DASD cluster.
Asystem might be part of acluster if:
vThe customer identifies the system as part of acluster.
vOne or more external storage units are attached to the
system and at least one of the attached storage units is
additionally attached to another system or unidentifiable
source.
vOne or more systems are located near the failing
system.
If the failing system is suspected to be part of ashared
DASD cluster, all diagnostic tests can be run except
diagnostic tests which test the storage unit (DASD residing
in the storage unit) or the storage adapter attached to the
storage unit.
Notes:
1. For systems that are part of ashared DASD cluster,
run one test at atime in looped mode. Do not run all
tests in looped mode, as this could enable the DASD
diagnostic tests.
2. If multiple error codes are displayed, diagnose the first
error code displayed.
©Copyright IBM Corp. 2000 1

3. If the computer hangs with aPOST error, go to the
Chapter 7, “Symptom-to-FRU index,” on page 99.
4. If the computer hangs and no error is displayed, go to
“Undetermined problems” on page 116.
5. Power supply problems, see Chapter 7,
“Symptom-to-FRU index,” on page 99.
6. Safety information, see “Safety information” on page
125.
7. For intermittent problems, check the error log; see
“POST error messages” on page 12.
1. IS THE SYSTEM PART OF ACLUSTER?
YES. Schedule maintenance with the customer. Shut down
all systems related to the cluster. Run storage test.
NO. Go to step 2.
2. IF THE SYSTEM IS NOT PART OF ACLUSTER:
vPower-off the computer and all external devices.
vCheck all cables and power cords.
vSet all display controls to the middle position.
vPower-on all external devices.
vPower-on the computer.
vRecord any POST error messages displayed on the
screen. If an error is displayed, look up the first error
in the “POST error codes” on page 110.
vCheck the System Error Log. If an error was
recorded by the system, see Chapter 7,
“Symptom-to-FRU index,” on page 99.
vStart the Diagnostic Programs. See “Diagnostic
programs and error messages” on page 13.
vCheck for the following responses:
a. One beep.
b. Readable instructions or the Main Menu.
3. DID YOU RECEIVE BOTH OF THE CORRECT
RESPONSES?
NO. Find the failure symptom in Chapter 7,
“Symptom-to-FRU index,” on page 99.
YES. Run the Diagnostic Programs. If necessary, refer to
“Diagnostic programs and error messages” on page 13.
If you receive an error, go to Chapter 7, “Symptom-to-FRU
index,” on page 99.
If the diagnostics completed successfully and you still
suspect aproblem, see “Undetermined problems” on page
116.
2Hardware Maintenance Manual: xSeries 200

Chapter 2. General information
The IBM®200 server delivers great value for general
server applications. It is ideally suited for networking
environments that require superior microprocessor
performance, efficient memory management, flexibility, and
large amounts of reliable data storage.
The server serial number and model number are located
on labels on the rear and front of the server. With access
to the World Wide Web, up-to-date information about the
server model and other IBM server products is available at
the following World Wide Web address:
http://www.ibm.com/pc/us/eserver/xseries
Features and specifications
The following provides asummary of the features and
specifications for the 200 server. Depending on the server
model, some features and specifications might not apply.
©Copyright IBM Corp. 2000 3

Table 1. Features and Specifications
Microprocessor:
Supports one
microprocessor
(depending on your
model)
vIntel®Pentium®III
with 256 KB
Level-2 cache and
MMX™(MMX2)
technology
or
vIntel®Celeron®
with 128 KB
Level-2 cache and
MMX™(MMX2)
technology
Memory:
vMinimum: 64 MB
vMaximum: 1.5 GB
vType: PC133
MHz, ECC
SDRAM,
unregistered
DIMMs only
vSlots: 3dual inline
Drives: (depending
on your model)
vDiskette: 1.44 MB
vCD-ROM: IDE
vHard disk drive
v
Tape drive
Expansion bays:
vTwo 5.25-in. bays
(one CD-ROM
drive installed)
vTwo 3.5-in. bays
(one diskette drive
installed)
vThree 3.5-in.
slim-high bays
available
PCI expansion
slots:
vThree 33
MHz/32-bit on the
system board
(some models
come with aSCSI
adapter installed)
vTwo 33
MHz/32-bit on the
PCI Bus extender
board
AGP slot:
Accelerated graphics
port (AGP)
Power supply:
One 330 watt
(90-240 Vac)
Video:
vS3 Savage 4
AGP video
adapter
vCompatible with
SVGA and VGA
v8MB SDRAM
video memory
Size:
vHeight: 470 mm
(18.5 in.)
vDepth: 508 mm
(19.9 in.)
vWidth: 165 mm
(6.5 in.)
vWeight:
approximately
19.5 Kg (43 lb.)
when fully
configured or
15.9 Kg (35 lb.)
minimum
Integrated
functions:
v
10BASE-T/
100BASE-TX
Ethernet controller
on the system
board
vTwo serial ports
vOne parallel port
vTwo USB ports
vKeyboard port
vMouse port
vMIDI port
vAudio ports
–Line out
–Line in
–Mic
v
Dual-channel bus
mastering IDE
controller
Acoustical noise
emissions:
vSound power,
idling: 6.6 bel
maximum
vSound power,
operating: 6.8 bel
maximum
Environment:
vAir temperature:
–Server on: 10°
to 35° C(50.0°
to 95.0° F).
Altitude: 0to
914 m(2998.7
ft.)
–Server on: 10°
to 32° C(50.0°
to 89.6° F).
Altitude: 914 m
(2998.7 ft.) to
2133 m(6998.0
ft.)
–Server off: 10°
to 43° C(50.0°
to 109.4° F).
Maximum
altitude: 2133 m
(6998.0 ft.)
vHumidity:
–Server on: 8%
to 80%
–Server off: 8%
to 80%
Heat output:
Approximate heat
output in British
Thermal Units (Btu)
per hour
vMinimum
configuration: 341
Btu (100 watts)
vMaximum
configuration: 1604
Btu (470 watts)
Electrical input:
vSine-wave input
(50-60 Hz)
required
vInput voltage low
range:
–Minimum: 90 V
ac
–Maximum: 137
Vac
vInput voltage high
range:
–Minimum: 180
Vac
–Maximum: 265
Vac
vInput
kilovolt-amperes
(kVA)
approximately:
–Minimum: 0.08
kVA
Maximum: 052
4Hardware Maintenance Manual: xSeries 200

Server features
The design of the 200 takes advantage of advancements
in data storage and memory management. The server
combines:
vImpressive performance using an innovative approach to
microprocessor utilization
The server comes with one Celeron®or Pentium®III
microprocessor installed.
vLarge system memory
The memory bus in the server supports up to 1.5
gigabytes (GB) of system memory. The memory
controller provides error code correction (ECC) support
for up to three industry-standard PC133, 3.3 V, 168-pin,
133 megahertz (MHz), unregistered, synchronous
dynamic random access memory (SDRAM) dual in-line
memory modules (DIMMs).
vSystems-management capabilities
See the documentation provided with the
systems-management software for more information.
vIntegrated network environment support
The server comes with an Ethernet controller on the
system board. This Ethernet controller has an interface
for connecting to 10-Mbps or 100-Mbps networks. The
server automatically selects between 10BASE-T and
100BASE-TX environments. The controller provides
full-duplex (FDX) capability, which allows simultaneous
transmission and reception of data on the Ethernet local
area network (LAN).
vIBM ServerGuide™CDs
The ServerGuide CDs included with IBM servers provide
programs to help set up the server and install the
network operating system (NOS). The ServerGuide
program detects the hardware options installed, and
provides the correct configuration program and device
drivers. In addition, the ServerGuide CDs include a
variety of application programs for the server.
Note: The latest level of BIOS for the server is also
available through the World Wide Web. Refer to
“Recovering BIOS” on page 18 for the
appropriate World Wide Web addresses.
Chapter 2. General information 5

Reliability, availability, and serviceability
Three of the most important considerations in server
design are reliability, availability, and serviceability (RAS).
The RAS features help to ensure the integrity of the data
that is stored on the server, the availability of the server
when needed, and the ease with which you can diagnose
and repair problems.
The following is an abbreviated list of the RAS features
that the server supports. Many of these features are
explained in the following chapters of this book.
vReliability features
–Boot block recovery
–Cooling fans with speed-sensing capability
–Customer-upgradable basic input/output system
(BIOS)
–ECC front-side buses (FSBs)
–ECC L2 cache
–ECC memory
–Parity checking on the small computer system
interface (SCSI) and peripheral component
interconnect (PCI) buses
–Advanced configuration and power interface (ACPI)
–Power-on self-test (POST)
–Synchronous dynamic random access memory
(SDRAM) with serial presence detect (SPD)
v
Availability features
–Advanced desktop management interface (DMI)
features
–Alarm on LAN™capability
-Chassis intrusion
-Operating system (OS) hangs
–Auto-restart initial program load (IPL) power supply
–Automatic error retry or recovery
–Automatic server restart
–Automatic restart after power failure
–Built-in, menu-driven configuration programs
–Built-in, menu-driven SCSI configuration programs
(some models)
–Built-in, menu-driven setup programs
–Failover Ethernet support
–Menu-driven diagnostic programs on CD-ROM
–Monitoring support for temperature, voltage, and fan
speed
–Server management
–ServeRAID™adapter support
–Standard advanced system management (ASM) PCI
adapter provides control for remote system
management
–Upgradable BIOS, diagnostics, ASM PCI adapter
microcode, and POST
6Hardware Maintenance Manual: xSeries 200

–Wake on LAN®(WOL) capability
–Microsoft®Windows NT®failover support
vServiceability features
–24/7 customer support
–3-year warranty (parts: three (3) years; labor: one (1)
year)
–Adaptec 29160 built-in self-test (BIST)
–Alert on LAN™with optional IBM Ethernet adapter
–CD-ROM-based diagnostics
–Diagnostic support of Ethernet adapters
–Error codes and messages
–Processor serial number access
–Read-only memory (ROM) checksums
–Standard cables present detection
–Standby voltage for system management features
and monitoring
–System error logging (ASM PCI adapter)
–Vital product data (VPD) (includes serial number
information and replacement part numbers, stored in
nonvolatile memory, for easier remote maintenance)

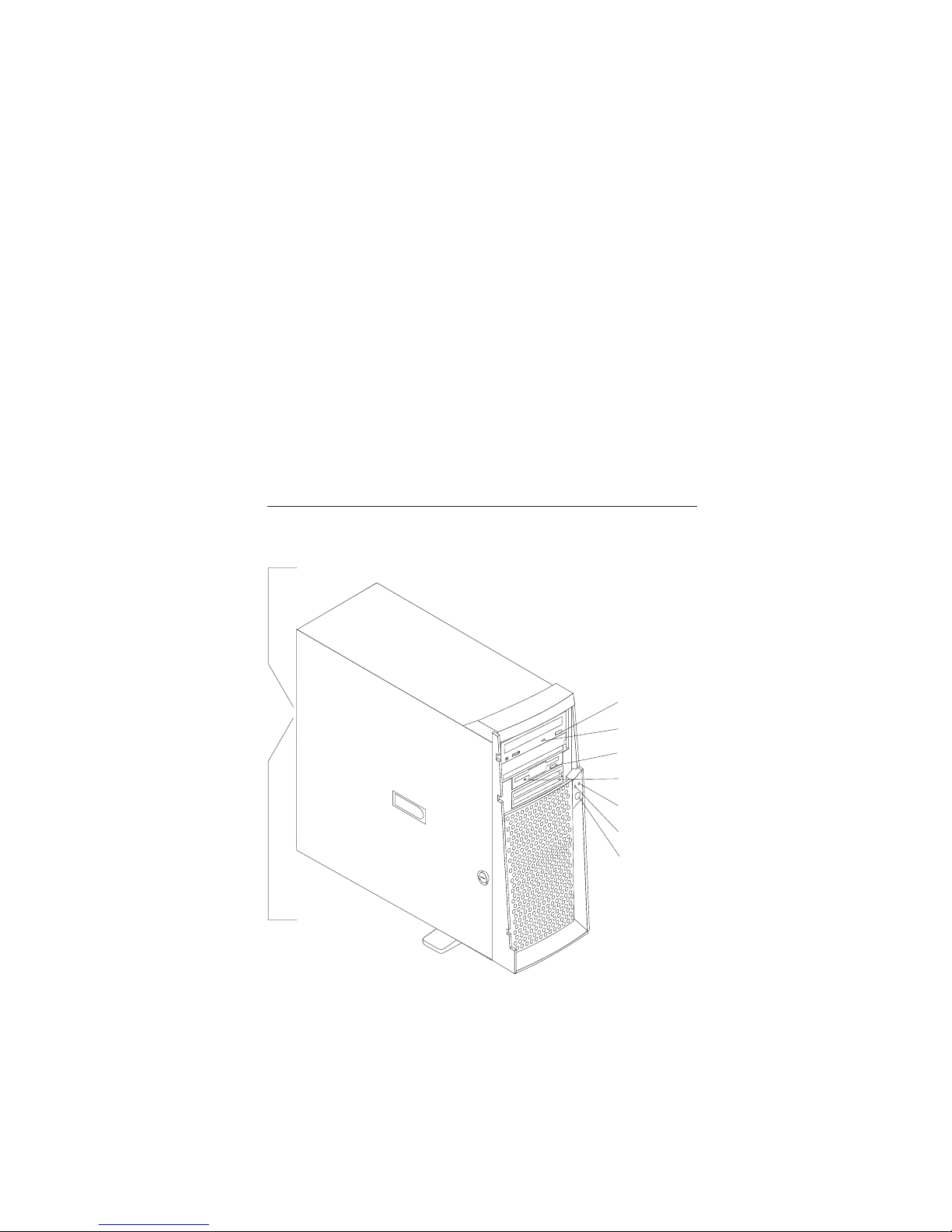

Server controls and indicators
CD eject
button
CD-ROM drive
activity light
Diskette eject
button
Hard disk drive
activity light
Power-on
light
Power control
button
Diskette drive
activity light
Ethernet speed 100 Mbps
Ethernet transmit/
receive activity
CD-ROM drive activity light: When this light is on, it
indicates that the CD-ROM drive is in use.
Diskette eject button: Push this button to install or
remove adiskette from the drive.
Diskette drive activity light: When this light is on, it
indicates that the diskette drive is in use.
Chapter 2. General information 7

Hard disk drive activity light: When this light is on, it
indicates that the hard disk drive is in use.
Power-on light: This status indicator lights when you turn
on your server.
Power control button: Press this button to manually turn
the server on or off.
See “I/O connector locations” on page 72 for the location
of the input/output (I/O) connectors on the rear of the
server.
Turning on the server
After you plug one end of the server power cord into the
power supply outlet on the rear of the server, and the other
end of the power cord into an electrical outlet, the server
can start as follows:
vYou can press the power control button on the front of
the server to start the server.
vIf the server is turned on and apower failure occurs, the
server will start automatically when power is restored.
CAUTION:
The power control button on the device and the power switch
on the power supply do not turn off the electrical current
supplied to the device. The device also might have more than
one power cord. To remove all electrical current from the
device, ensure that all power cords are disconnected from the
power source.
1
2
Turning off the server
You can turn off the server in any of the following ways:
vYou can press the power control button on the front of
the server. This starts an orderly shutdown of the
operating system, if this feature is supported by your
operating system, and places the server in standby
mode.
Note: After turning off the server, wait at least five
seconds before you press the power control
button to turn on the server again.
8Hardware Maintenance Manual: xSeries 200

vYou can press and hold the power control button for
more than four seconds to cause an immediate
shutdown of the server and place the server in standby
mode. You can use this feature if the operating system
stops functioning.
vYou can disconnect the server power cords from the
electrical outlets to shut off all power to the server.
Note: After disconnecting the power cords, wait
approximately 15 seconds for your system to
stop running.
Chapter 2. General information 9

10 Hardware Maintenance Manual: xSeries 200
