Elation PLATINUM SPOT LED II User manual

11/11/2013 - visage Version 2.2.0
PLATINUM SPOT LED II
Elation Professional
6122 S Eastern Ave
Los Angeles, Ca 90040
www.elationlighting.com

PLATINUM SPOT LED II ™
©Elation Professional, Los Angeles Ca. 2 www.ElationLighting.com

PLATINUM SPOT LED II ™
©Elation Professional, Los Angeles Ca. 3 www.ElationLighting.com
CONTENTS
1. General Information………………………………………………………………………4
a. Introduction……………………………………………………………………….4
b. Unpacking………………………………………………………..…………..….. 4
c. Customer Support…………………………………………….………………… 4
d. Warranty Registration……………………………………………………..……. 5
e. Discharge Lamp Warning……………………………………………………….5
2. Safety Instructions………………………………………………………........…………. 7
3. Features……………………………………………………………………………………8
4. General Guidelines……………………………………………………………………….9
5. Fixture Overview…………………………………………………………………………. 10
6. Mounting and Installation………………………………………………………….……. 13
a. Mounting Positions……………………………………………………………… 13
b. Mounting Points…………………………………………………………………. 14
c. Securing………………………………………………………………………….. 15

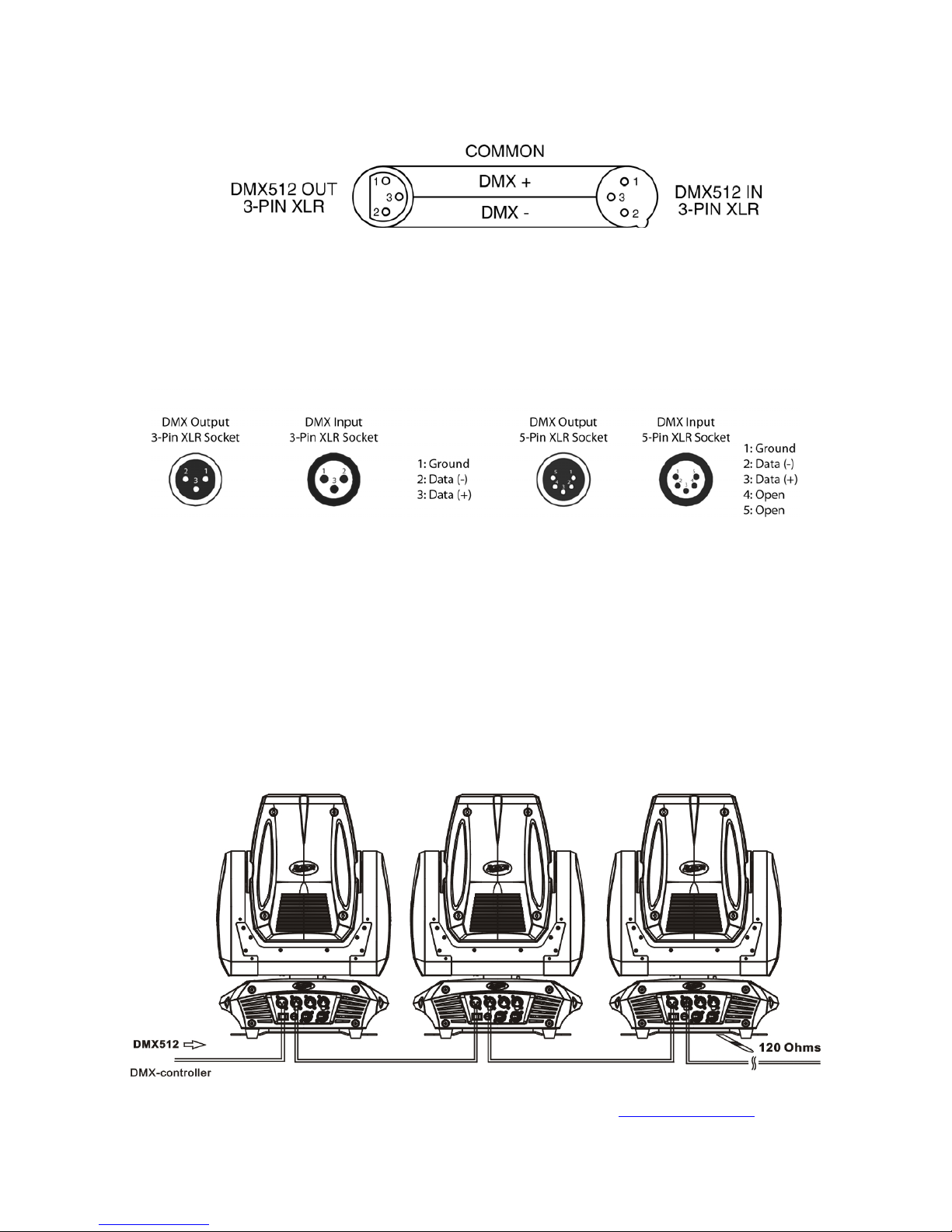

7. Understanding DMX……………………………………………………………………...16
a. DMX Cable Requirements……..………………………………………………. 16
b. DMX Terminator…………………………………………………………………. 17
c. 3-Pin to 5-Pin Conversion……………………………………………………….18
d. DMX Addressing………………………………………………………………… 19
8. Fixture Menu………………………………………………………………………………20
9. DMX Addressing..……………………………………………………………..………….30
10. Operation…………………………………………………………………………………..32
11. Working with Built-In Programs..………………………………………………………..34
12. DMX Channel Traits…...….…………………………………………………………..… 37
13. Error Codes………………………………………………………………………….…….41
14. Cleaning and Maintenance………………………………………………………………43
15. Photometric Data………………………………………………………………………….44
16. Gobo Patterns……………………………………………………………..……………...54
17. Dimensional Drawings………………………………………………………………..…46
18. Circuit Schematics………………………………………………….…………………....47
19. 2-Year limited Warranty………...……………………………………………………..…48
20. Technical Specifications…………………………………………...………….……….….50

PLATINUM SPOT LED II ™
©Elation Professional, Los Angeles Ca. 4 www.ElationLighting.com
1. GENERAL INFORMATION
INTRODUCTION: Congratulations, you have just purchased one of the most innovative and
reliable lighting fixtures on the market today! The PLATINUM SPOT LED II™ has been
designed to perform reliably for years when the guidelines in this booklet are followed.
Please read and understand the instructions in this manual carefully and thoroughly before
attempting to operate this unit, this fixtures uses a unique lamp that has very specific
guidelines that must be strictly followed. These instructions contain important information
regarding safety during use and maintenance.
UNPACKING: Thank you for purchasing the PLATINUM SPOT LED II™ by Elation
Professional®. Every PLATINUM SPOT LED II™ has been thoroughly tested and has
been shipped in perfect operating condition. Carefully check the shipping carton for damage
that may have occurred during shipping. If the carton appears to be damaged, carefully
inspect your unit for damage and be sure all accessories necessary to operate the unit
have arrived intact. In the event damage has been found or parts are missing, please
contact our customer support team for further instructions. Please do not return this unit to
your dealer without first contacting customer support at the number listed below.
CUSTOMER SUPPORT:Elation Professional®provides a customer support line, to provide
set up help and to answer any question should you encounter problems during your set up
or initial operation. You may also visit us on the web at www.elationlighting.com for any
comments or suggestions. For service related issue please contact Elation Professional®.
Service Hours are Monday through Friday 8:00 a.m. to 5:00 p.m. Pacific Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [e-mail]
Forum: www.ElationLighting.com/forum
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to
rain or moisture.
Caution!There are no user serviceable parts inside this unit. Do not attempt any repairs
yourself, doing so will void your manufactures warranty.

PLATINUM SPOT LED II ™
©Elation Professional, Los Angeles Ca. 5 www.ElationLighting.com
Please do not discard the shipping carton in the trash. Please recycle whenever possible.
WARRANTY REGISTRATION: The PLATINUM SPOT LED II™ carries a two-year (730
days) limited warranty. Please fill out the enclosed warranty card to validate your purchase.
All returned service items whether under warranty or not, must be freight pre-paid and
accompany a return authorization (R.A.) number. The R.A. number must be clearly written
on the outside of the return package. A brief description of the problem as well as the R.A.
number must also be written down on a piece of paper and included in the shipping
container. If the unit is under warranty, you must provide a copy of your proof of purchase
invoice. Items returned without a R.A. number clearly marked on the outside of the package
will be refused and returned at customer’s expense. You may obtain a R.A. number by
contacting customer support at [phone].
Important: Damages caused by the disregard of the instructions in this user
manual are not subject to warranty.
Epileptic Warning: Those suffering from epilepsy should avoid looking directly into the
lamp at all times.
Never open this fixture while in use!
During the initial operation of this fixture, a light smoke or smell may emit from the interior of
the fixture. This is a normal process and is caused by excess paint in the interior of the
casing burning off from the heat associated with the lamp and will decrease gradually over
time.
This device falls under protection-class 1. Therefore it is essential that the device be
grounded properly.
All electrical connections should be performed by a qualified electrician.
Be sure the available voltage matches the voltage requirements of the unit.
Be sure the power cord is never crimped or damaged. If the power cord is damaged,
replace it immediately with a new one of similar power rating.
Always disconnect from main power before performing any type of service or any cleaning

PLATINUM SPOT LED II ™
©Elation Professional, Los Angeles Ca. 6 www.ElationLighting.com
procedure.
Only handle the power cord by the plug. Never pull out the plug by tugging the wire portion
of the cord.
This fixture is designed for use indoors. Use of this fixture outdoors will void the
manufactures warranty.
Please be aware that damages caused by manual modifications to the
device are not subject to warranty.

PLATINUM SPOT LED II ™
©Elation Professional, Los Angeles Ca. 7 www.ElationLighting.com
2. SAFETY INSTRUCTIONS
The PLATINUM SPOT LED II™ is an extremely sophisticated
piece of electronic equipment. To guarantee a smooth operation,
it is important to follow the guidelines in this manual. Elation will
not accept responsibility for damages resulting from the misuse o
f
this fixture due to the disregard of the information printed in this
manual.
1. Always be sure that the fan and the air inlets remain clean and are never blocked.
Allow about 6” (15cm) between this fixture and other devices or a wall to allow for
proper cooling.
2. Never touch the fixture during normal operation. This can cause severe personnel
injuries and/or damage to the fixture.
3. Be sure to unplug the PLATINUM SPOT LED II™ from the power outlet before
performing any service related issues.
4. Never look directly into the lamp beam. You risk injury to your retina, which may
induce blindness.
5. For safe operation, follow the Installation guide described in chapter two of this
manual. Operating the PLATINUM SPOT LED II ™ without suited safety aids
such as safety cables or clamps can increase the risk of damage and/or personal
injury.
6. Only qualified and certified personnel should perform installation.
7. When mounting this fixture, use only the original rigging parts included with this
fixture. Any structural modification will void the original manufactures warranty and
may increase the risk of damage and/or personal injury.
8. To reduce the risk of fire or shock, do not expose this fixture to rain or moisture.
9. Do not attempt to operate this fixture if the power cord has become damaged or
frayed.
Important Notice: Damages resulting from the disregard of safety and general user
instructions found in this user manual are not subject to any warranty claims.

PLATINUM SPOT LED II ™
©Elation Professional, Los Angeles Ca. 8 www.ElationLighting.com
3. FEATURES
•Pan 540° or 630˚(User selectable) / Tilt 265°
•3 operation mode: DMX controlled, stand alone, or sound activated
•3 DMX Channel Modes (14, 16, and 20 Channels)
•8 colors plus white
•User selectable color change modes (mode 1: full colors, mode 2: split-colors)
•Two Gobos Wheels:
oWheel 1: Rotating gobo wheel with 7 gobos plus open, all gobos can be easily
replaceable and gobo indexing
oWheel 2: Static/Fixed gobo wheel with 7 gobos plus open
•Strobe effect: 0~13 flashes per second or random strobe
•Prism and prism rotation, with 16 prism macros
•Frost Filter for Soft and Hard Edge Spot
•ProLight PU88-150FWL-NOON LED Light Source
•100,000 Hours Rated LED Life Source
•Dimmer intensity from 0%~100%
•Electronic Power Supply (120v/60Hz)
•Control board with full color LCD graphic display and foil touch keyboard
•RDMX (Remote DMX addressing from any DMX console)
•Auto test for all functions
•Automatic Pan/Tilt Correction
•Built-in Iris (5% ~ 100%), with Iris Pulse Effect
•Glass Dichroic Reflector for Even Lamp Output
•Anti-Reflective Coated Lenses
•USITT DMX-512 Complaint (3-pin and 5-pin DMX Connections)
•Electronic Focus via DMX
•Upgradable Firmware via Elation “E-Loader”
•7 User Assignable Program Presets - Internal Program: Edit and save programs to
the incorporated EEPROM. Maximum of 64 scenes.

PLATINUM SPOT LED II ™
©Elation Professional, Los Angeles Ca. 9 www.ElationLighting.com
4. GENERAL GUIDELINES
This fixture is a professional lighting effect designed for use on stage, in nightclubs, in
theatres, etc. Do not attempt operation or installation without a proper knowledge on how to
do so.
This fixture was designed for indoor use only.
Consistent operational breaks may ensure that the fixture will function properly for many
years to come.
Do not shake the fixture around. Avoid brute force when installing or operating the device.
While choosing an installation location, please be sure that the fixture will not be exposed to
extreme heat, moisture or dust. The minimum distance between the fixture and a wall or flat
surface should be at least 1 meter (about 3.281 ft).
Always install the fixture with an appropriate safety cable. When installing the fixture in a
suspended environment always be sure to use mounting hardware no less than M10 x 25
mm, also be sure the hardware is insert in the pre-arranged screw holes in the base of the
fixture.
When using the quick release “Omega” cam-lock system, be sure the four quick lock
fasteners are locked in the quick lock holes correctly.
Do not attempt to operate this fixture until you have familiarized yourself with its functions.
Do not permit operation by persons not qualified for operating this type of theatrical fixture;
most damages are the result of operations by nonprofessionals.
Please use the original packaging to transport the fixture in for service.

PLATINUM SPOT LED II ™
©Elation Professional, Los Angeles Ca. 10 www.ElationLighting.com

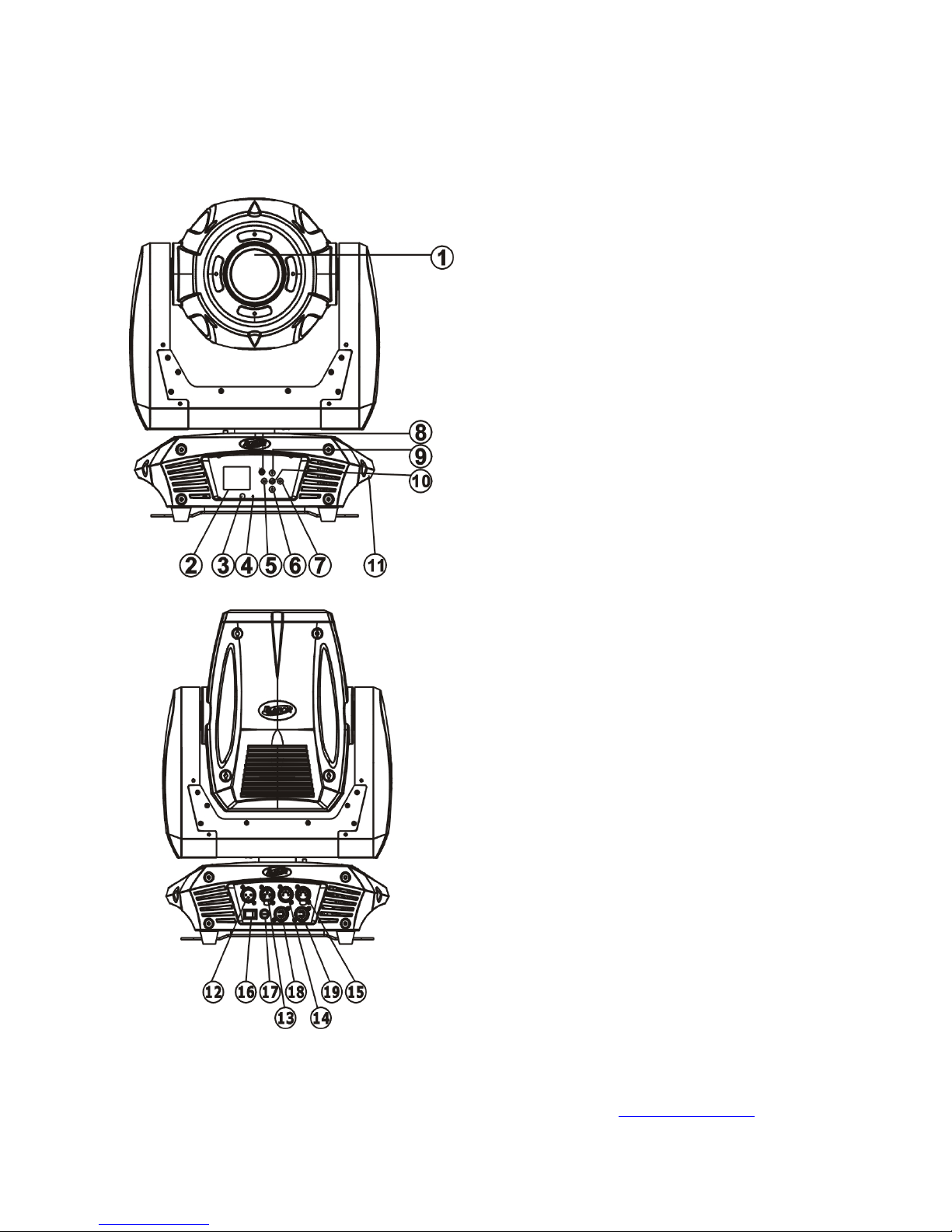

5. FIXTURE OVERVIEW
1: Main Output Lens
2: Display
3: DC Switch
4: Microphone
5: Left Button
6: Down Button
7: Right Button
8: Mode/Esc Button
9:Up Button
10:Enter Button
11: Handle
12: 3-Pin DMX in
13: 3-Pin DMX out
14: 5-Pin DMX in
15: 5-Pin DMX out
16: Power Switch
17: Fuse
18: Power in
19: Power out
