DTS JED User manual

2
Le informazioni contenute in questo documento sono state attentamente redatte e
controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze.
Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato,
riprodotto per intero o in parte senza previo consenso scritto della D.T.S .
D.T.S. si riserva il diritto di apportare senza preavviso cambiamenti e modifiche
estetiche , funzionali o di design a ciascun proprio prodotto. D.T.S non assume alcuna
responsabilità sull’uso o sull’applicazione dei prodotti o dei circuiti descritti.
The information contained in this publication has been carefully prepared and
checked. However, no responsibility will be taken for any errors. All rights are
reserved and this document cannot be copied, photocopied or reproduced, in part or
completely, without prior written consent from D.T.S.
D.T.S. reserves the right to make any aesthetic, functional or design modifications to
any of its products without prior notice. D.T.S. assumes no responsibility for the use or
application of the products or circuits described herein.
Les informations contenues dans le présent manuel ont été rédigées et contrôlées
avec le plus grand soin. Nous déclinons toutefois toute responsabilité en cas
d'éventuelles inexactitudes. Tous droits réservés. Ce document ne peut être copié,
photocopié ou reproduit, dans sa totalité ou partiellement, sans le consentement
préalable de D.T.S.
D.T.S. se réserve le droit d'apporter toutes modifications et améliorations esthétiques,
fonctionnelles ou de design, sans préavis, à chacun de ses produits. D.T.S. décline
toute responsabilité sur l'utilisation ou sur l'application des produits ou des circuits
décrits.
Las informaciones contenidas en este documento han sido cuidadosamente
redactadas y controladas. Con todo, no se asume ninguna responsabilidad por
eventuales inexactitudes. Todos los derechos han sido reservados y este documento
no puede ser copiado, fotocopiado o reproducido, total o parcialmente, sin previa
autorización escrita de D.T.S.
D.T.S. se reserva el derecho a aportar sin previo aviso cambios y modificaciones de
carácter estético, funcional o de diseño a cada producto suyo. D.T.S. no se asume
responsabilidad de ningún tipo sobre la utilización o sobre la aplicación de los
productos o de los circuitos descritos.

3
INDEX:
1 - SYMBOLS................................................................................................................4
2 - GENERAL WARNING .............................................................................................5
3 - GENERAL WARRANTY CONDITIONS...................................................................5
4 - TECHNICAL FEATURES ........................................................................................6
5 - ACCESSORIES .......................................................................................................7
6 - IMPORTANT SAFETY INFORMATION...................................................................8
6.1 Fire prevention......................................................................................................8
6.2 Prevention of electric shock..................................................................................8
6.3 Safety...................................................................................................................8
6.4 Level of protection against the penetration of solid and liquid objects..................9
6.5 Waste Electrical and Electronic Equipment (WEEE) directive..............................9
7 - VOLTAGE AND FREQUENCY................................................................................9
8 - INSTALLATION.....................................................................................................10
8.1 Safety cable........................................................................................................10
8.2 Protection against liquids....................................................................................11
8.3 Movement...........................................................................................................11
8.4 Risk of fire ..........................................................................................................11
8.5 Forced ventilation...............................................................................................11
8.6 Ambient temperature..........................................................................................11
9 - MAINS CONNECTION...........................................................................................12
11.1 Protection.........................................................................................................12

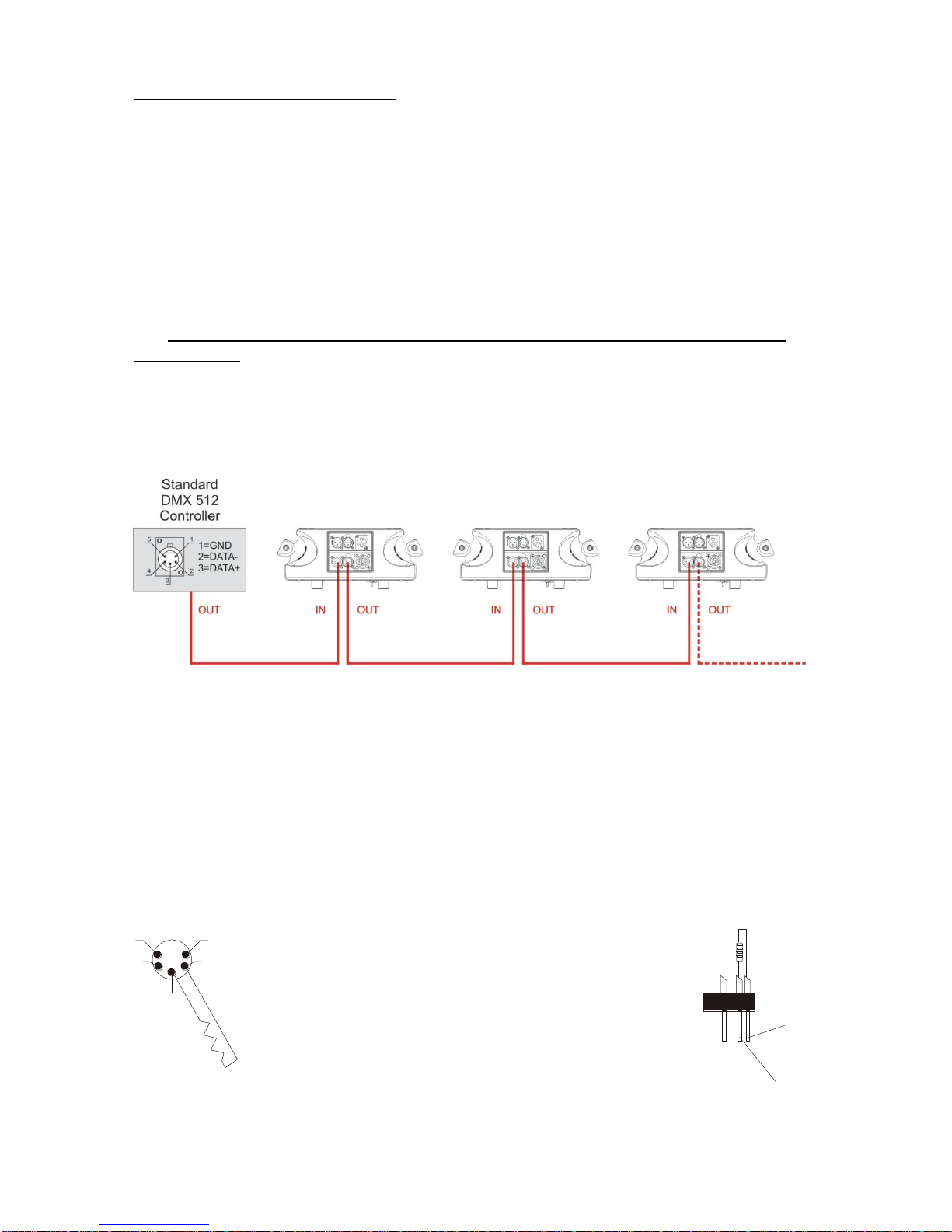

10 - DMX SIGNAL CONNECTION..............................................................................13
10.1 DMX addresses................................................................................................14
10.2 Selecting the DMX address..............................................................................14
11 - FIRMWARE UPDATING......................................................................................14
12 - DISPLAY FUNCTIONS........................................................................................15
13 - AUTOFOCUS CALIBRATING PROCEDURE .....................................................22
14 - OPENING THE PROJECTOR HOUSING............................................................23
15 - REMOVING / REPLACING THE ROTATING GOBOS........................................24
16 - PERIODIC CLEANING ........................................................................................25
16.1 Lenses and reflectors .......................................................................................25
16.2 Fans and air passages .....................................................................................25
17 - PERIODIC CONTROLS.......................................................................................25
18 - DMX PROTOCOL................................................................................................26
19 - ROTATING GOBO WHEEL.................................................................................40
20 - FIXED GOBO WHEEL.........................................................................................41
21 - COLOUR WHEEL................................................................................................42

4
1- SYMBOLS
Graphic symbols used on this manual:
THIS SYMBOL INDICATES A HOT SURFACE
THIS SYMBOL INDICATES ELECTRIC
SHOCK RISK
THIS SYMBOL INDICATES GENERAL RISK
THIS SYMBOL MEANS “SUITABLE FOR
MOUNTING ON NORMALLY FLAMMABLE
SURFACES”
THIS SYMBOL MEANS “SUITABLE FOR
INDOOR USE ONLY”
THIS SYMBOL INDICATES THE MAXIMUM
OPERATING AMBIENT TEMPERATURE
THIS SYMBOL INDICATES THE MINIMUM
DISTANCE FROM THE OBJECTS AND THE
PEOPLE LIT BY THE LIGHT BEAM
THIS SYMBOL MEANS “DO NOT STARE
AT THE OPERATING LIGHT SOURCE”
THIS SYMBOL INDICATES
PHOTOBIOLOGICAL SAFETY
THIS SYMBOL INDICATES THE EUROPEAN
COMMUNITY DIRECTIVE 2012/19/EU ON
WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT (WEEE)
!

5
2- GENERAL WARNING
Read the instruction contained in this user manual carefully, as they give important
information regarding safety during installation, use and maintenance.
The unit is not for household use and must be installed by a qualified electrician or
experienced person.
The device must always be equipped with an efficient ground connection.
3- GENERAL WARRANTY CONDITIONS
The unit is guaranteed for 36 months from the date of purchase against manufacturing
material defects.
WARNING!
NEVER EXPOSE THE FRONT LENS
TO SUNLIGHT FROM ANY ANGLE
TO AVOID DAMAGE OF
HEAD INTERNAL PARTS.
Front lens could become powerful
magnifying glass if exposed towards the
sun or any strong artificial light source;
this can cause damage of head internal
parts, even for few seconds and even
when the unit is off.
The last command before switch off:
point the front lens down towards the
ground.

6
4- TECHNICAL FEATURES
DTS Product Code:
03.MS020.L JED Black finishing
LED
60W RBL (Red, Blue, Lime Green)
Optical group
Custom built optical group
2° - 19° zoom range (Beam-Spot mode)
4,5° - 26° zoom range (Wash mode)
Linear motorized focus
Auto Focus
Color generation
Advanced RBL color synthesis
Lime green color for brightness enhancement
RBL independent strobe color pulse
2-tone color generation
16-color wheel
Dynamic effects
Overlapping wheels for multiple effects:
Customizable rotating gobo wheel (8 gobos + Open)
Fixed gobo wheel (13 gobos + Animation sector + Open)
8-facet rotating prism
Interface / Control / Programming
DMX 512 / RDM
Auto flip LCD graphic display + 4 soft-keys
Internal updatable operating system
DMX
28 DMX channels
Pan & Tilt
Pan: 540° rotation
Tilt: 270° rotation
Power supply
Full-range 100-240Vac 50-60 Hz
Consumption: 150VA
Connections
Power supply: PowerCON TRUE1 In&Out panel connectors
DMX: XLR 3 and 5 pins In&Out panel connectors
Operating ambient temperature
-10° / 40°
Internal safety devices
Overvoltage circuit protection and overtemperature circuit protection

7
International certifications
CE certification
Weight
11,9 Kg
Dimensions
5- ACCESSORIES
As standard
1 x PowerCON TRUE1 female cable connector (Code 0520P066)
1 x XLR 5 pins female cable connector (Code 0508B147)
1 x XLR 5 pins female cable connector (Code 0508B148)
1 x G-Quick clamp with “Fast Lock” connection 1/4 turn (Code 0521A014)
1 x User’s manual
Optional (on request)
• Omega bracket with “Fast Lock” connection 1/4 turn (Code 02K00467)
• Aliscaf clamp for tube diameter 50 mm (max load 100Kg) (Code 0521A008)
• “C” Clamp G60 (max load 50 Kg) (code 0521A004)
• Safety cable (3mm x 60 cm), max capacity load 60Kg (Code 0521A010)

8
6- IMPORTANT SAFETY INFORMATION
6.1 Fire prevention:
-It is permissible to place the unit on normally flammable surfaces.
Suitable for mounting on normally flammable materials surfaces greater than 200°C
with some combustion time lag.
-Minimum distance from the objects and the people lit by the light beam: 0,5 m.
-Replace any blown or damaged fuses only with those of identical value (T 2A 250V).
Refer to the wiring diagrams if there is any doubt.
-Connect the projector to mains power via a thermal magnetic circuit breaker.
6.2 Prevention of electric shock:
-High voltage is present inside the unit.
Unplug the unit prior to performing any function which involves touching the inside of
the moving head.
-The level of technology inherent in the JED requires the assistance of specialised
personnel for all servicing. Please refer to an authorised DTS service centre.
-A good earth connection is essential for proper functioning of the projector.
-Never connect the unit without proper earth connection.
-The fixture should be located in places with a good air ventilation.
6.3 Safety:
-Risk Group 2 product according to EN 62471.
CAUTION. Do not look directly into the light output and do not view the light beam with
optical instruments or any device that may concentrate the beam.
May be harmful to the eyes and skin.
-Do not stare at the operating light source.
-The light source contained in this luminaire shall only be replaced by the
manufacturer or his service agent or a similar qualified person.
-The unit is not for household use and must be installed by a qualified electrician or
experienced person.
-The projector should always be installed with bolts, clamps and other tools that are
capable of supporting the weight of the unit.
-Always use a safety cable to sustain the weight of the unit in case of the failure of the
main fixing point.
-The external surface of the unit, at various points, may exceed 50°C. Never handle
the unit until at least 5 minutes have elapsed since the unit was turned off.
-Never install the fixture in an enclosed area lacking sufficient air flow.
The ambient temperature should not exceed 40°C.
!

9
6.4 Level of protection against the penetration of solid and liquid objects:
-The projector is classified as an ordinary appliance and its protection level against the
penetration of solid and liquid objects is IP20.
Suitable for indoor use only.
6.5 Waste Electrical and Electronic Equipment (WEEE) directive:
- The projector, accessories and packaging should be sorted for environmental-friendly
recycling.
For EC countries: according to the European Directive 2012/19/EU for Waste
Electrical and Electronic Equipment and its implementation into national right,
luminaires that are no longer usable must be collected separately and disposed of in
an environmentally correct manner.
7- VOLTAGE AND FREQUENCY
JED operates at 100-240Vac 50-60 Hz.
!

10
8- INSTALLATION
The unit is suitable for dry locations only.
JED may be either floor or ceiling mounted.
For floor mounting installations, JED is supplied with four rubber mounting feet on the
base.
For ceiling mounted installations, we recommend the use of appropriate clamps to fix
the unit to the mounting surface.
The supporting structure from which the unit is hung should be capable of bearing the
weight of the unit, as should any clamps used to hang it.
The structure should also be sufficiently rigid so as not to move or shake whilst the
JED is moving.
Four 1/4 turn Fast Locks connections placed in the base of the unit allow to hang the
JED by using a G-Quick clamp (provided in the box) or a Omega bracket in
conjunction with Aliscaf clamp (Omega bracket and Aliscaf clamp are available on
demand).
8.1- Safety cable
A safety cable must be securely fixed to the JED and to the suspension truss in order
to avoid the fixture accidentally falling should the main fixing point fail.
Make sure that the safety cable or chain can bear the weight of the entire unit.
A suitable safety cable (code 0521A010) is available on demand.

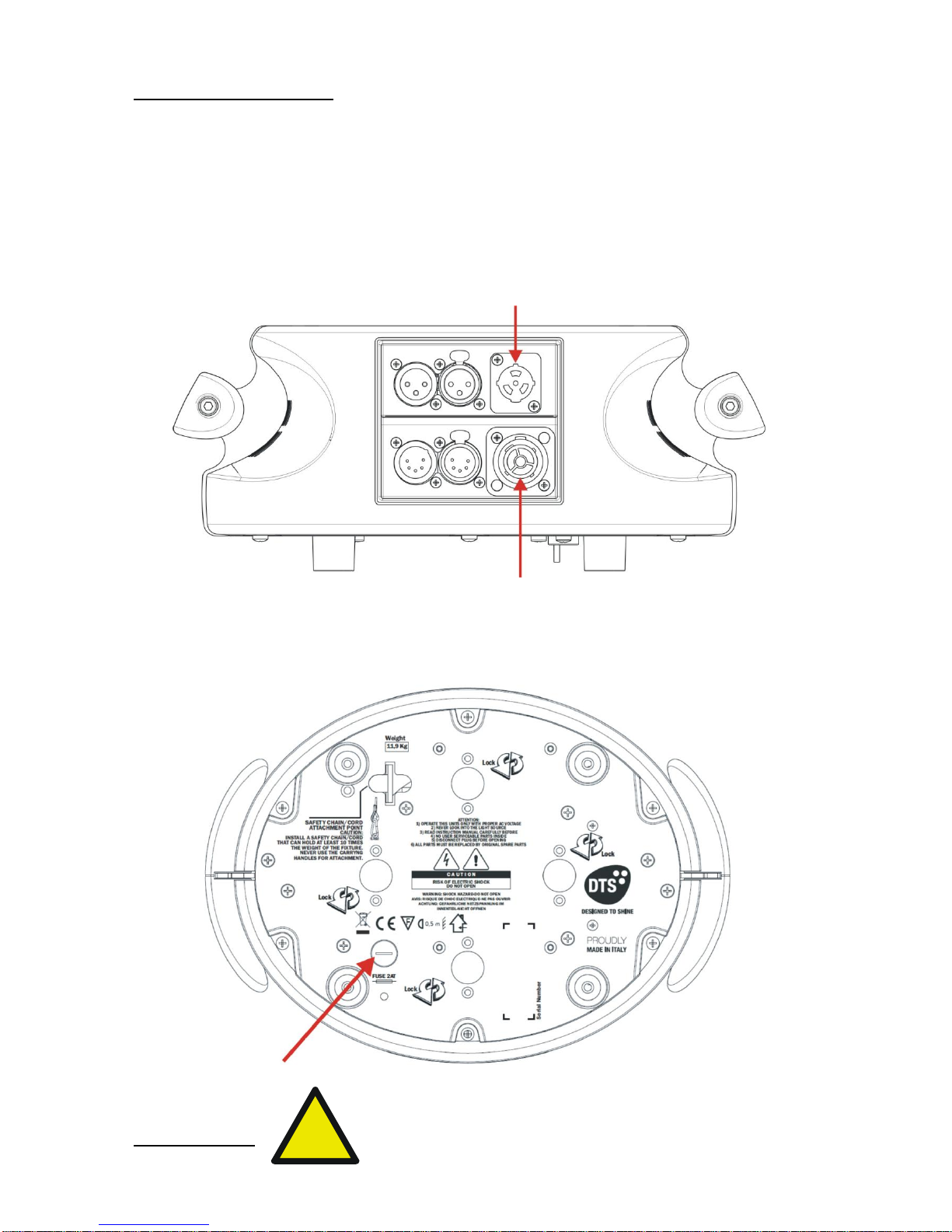

You may attach the safety cable to the attachment point (A) located on the base of the
fixture, as shown in the picture below.
!
