RP-SWL-15W-40K-BK-GI
L 12.2IN x W 10.17IN x D 5.02IN
SMD2835, 76PCS(Primary LED module)+
12PCS(Secondary LED module )
LiFePO4 Battery Lasts at least 2000cycles, 6.4 V/6000mAh
15-24FT
30FT
9-15 FT
3 YEARS
Battery Charging Temp 32°F~
Fixture Operating Temp 5°F~113°F

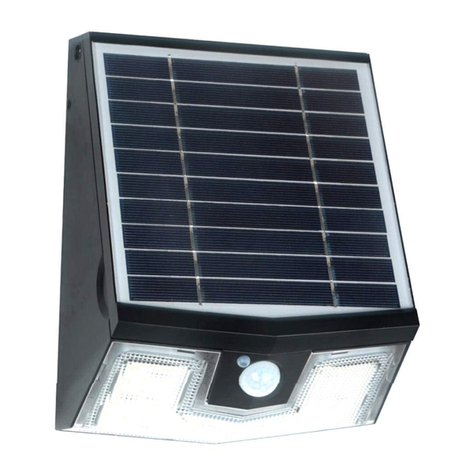

Off Grid LED Solar Wall Pack
User Manual
Adjustable Solar Panel
Replaceable Battery
IP65 Waterproof
ZERO Electricity Cost
PIR Sensor
Product name
Power/Lumen
Dimension
LEDS
Solar Panel
Working Mode
Detection Angle/Area
Material
Remote Control/Distance
Beam Angle
IP Degree
Install Height
Lifespan
Warranty
Packing
15W / 1500LM
7.3Wp Polycrystalline Silicon
3 Different Lighting Modes
120°/
ABS+PC
4 Key Infrared Control / <
80°*100°
IP65
35,000 hrs
1*Solar light,1*Screws Bag,1*User Manual,
1*Remote Controller
113°F
Anti-theft Installation

by
FOR LIGHT EFFICIENT DESIGN PRODUCT INFO CALL • 188 S. Northwest Highway •Cary, IL 60013 • 847.380.3540 •led-llc.com
FOR REMPHOS PRODUCT INFO CALL • 30 Log Bridge Road, Building 200 •Middleton, MA 01949 •877.997.3674 •remphos.com
12.05.18 Information is subject to change without notice.
ON/OFF will memorize the last mode set
before turning off
The primary LED module will automatically
turn on at dusk and remain at 50% brightness
when the motion sensor is disabled. After 5
hours or when the battery capacity is below
30%, the fixture will switch to Mode .
When motion is detected (within 24ft), the
secondary LED module will turn off and the
primary LED module will turn on to full
brightness (1500LM). After 20 seconds of no
motion, the primary LED module will turn off
(to conserve battery). The secondary LED
module will then turn back on.
The primary LED module will turn on to full
brightness (1500LM) when motion is
detected in the range of 24ft. Once no
motion is detected for 20 seconds, the
fixture will turn off. The secondary LED
module will not turn on in this mode.
The fixture features a unique optical design to provide safe illumination of the area while
maximizing battery life. The illumination is made up of a primary and a secondary LED
module. The secondary LED module provides a low light level.
Remind:When switching to a different working mode,the lamp will flash one time, which
is normal and indicate that the working mode is changed successfully.
by
FOR LIGHT EFFICIENT DESIGN PRODUCT INFO CALL • 188 S. Northwest Highway •Cary, IL 60013 • 847.380.3540 •led-llc.com
FOR REMPHOS PRODUCT INFO CALL • 30 Log Bridge Road, Building 200 •Middleton, MA 01949 •877.997.3674 •remphos.com
12.05.18 Information is subject to change without notice.
Slide the mounting plate down the
open position and remove. Please
note the arrow icon on the plate is
upward before fix the screw.
Place the mounting
plate on the wall and
mark he 5 hole positions
Drill into the 5 holes
with a depth of 2.36
– 2.56in on the wall
Place the
expansion plugs
into the drill holes
Use a screw driver to
fix the mounting plate
on the wall with screws
Place the lamp in the right
position and slide it down to
fasten it
Affix the screw in the side of
the mounting plate
Adjust the solar panel to the
appropriate angle and press any
button on the lamp to activate it and
the remote control. Then, tighten the
screws on both sides of the lamp.
1. Please install the solar powered lamp in an area with a lot of sunlight. A south facing wall is ideal,
a west facing wall is second best, followed by an east. A north facing wall may not receive
enough sunlight in your area. We recommend a 42-degree angel for the solar panel.
2. Please note that the lighting time of the lamp will depend on the amount of sunshine & weather
conditions in you area.
3. The lamp will light up automatically at dusk.
4. Built in intelligent IC with over-charge, over-discharge & surge protection.
5. The lamp is equipped with an internal battery pack, which is replaceable. Please contact us if you
think that you may need a replacement.
6. If the battery is taken out and put back in or replaced with new ones, please place the solar panel
in sunshine or a strong light to reactivate the lamp.
Remove the screws on the side of
the mounting plate.
Loosen the screws
on the both sides
of the lamp
Please press any button on the lamp
to activate the lamp and remote.
