Light Headed 20204 User manual

“Riviera” LightHeaded™ Bed
Assembly Instructions
www.LightHeadedBeds.com
Model #20204Twin size, Cheshire Cherry
Model #20321Twin size, Black
Model #20324 Twin size, White
9/17/2015
1168344 B

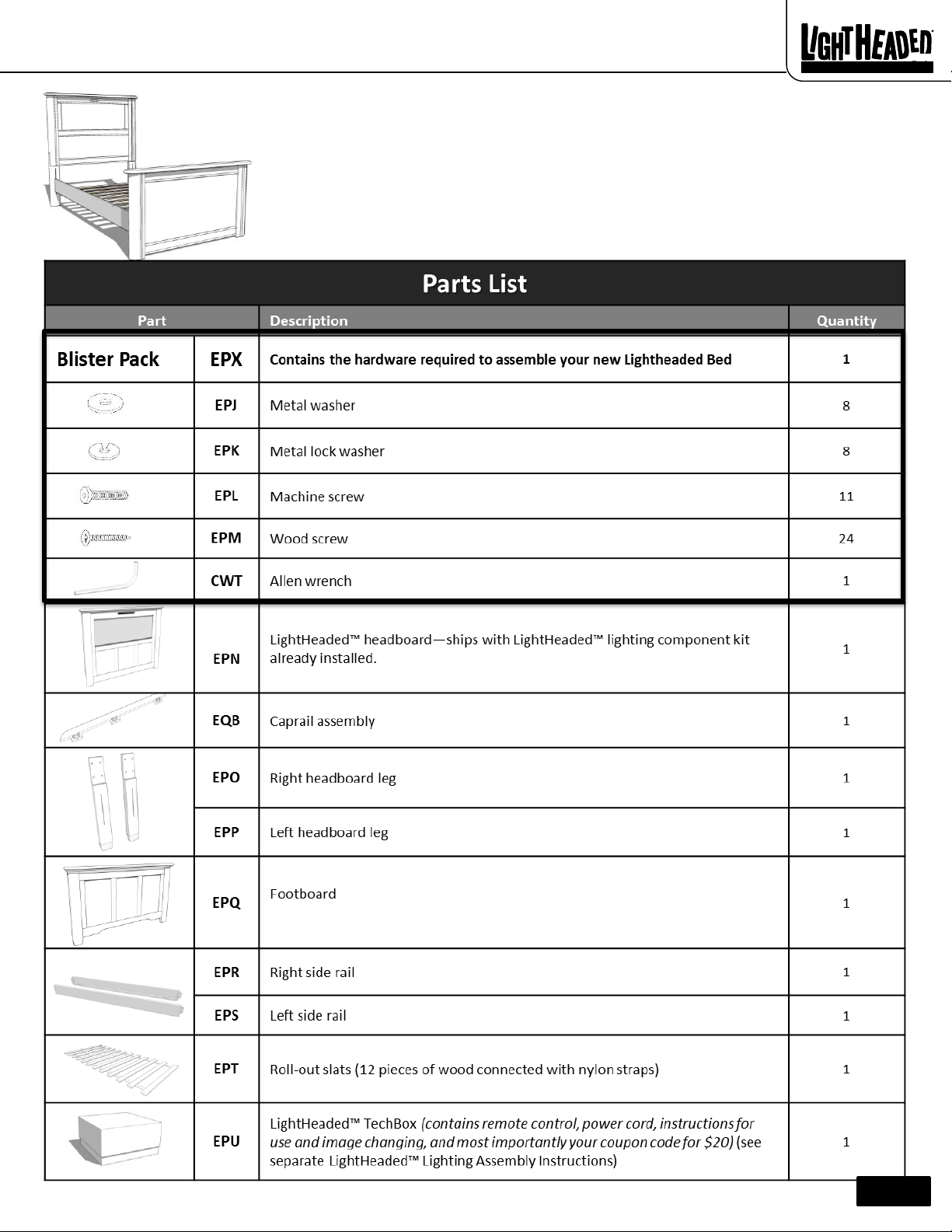

Before you begin:
•Consider enlisting a family member or friend to help; it will make assembly easier,
faster, and more fun.
•Layout all of the parts listed below.
•Save all packing materials until assembly is complete to avoid accidentally
discarding smaller parts or hardware.
•You will need a Phillips head screw driver (not included)
Page 1

“Riviera” LightHeaded™ Bed
Assembly Instructions
www.LightHeadedBeds.com
Model #20204Twin size, Cheshire Cherry
Model #20321Twin size, Black
Model #20324 Twin size, White
9/17/2015
1168344 B
Step 1

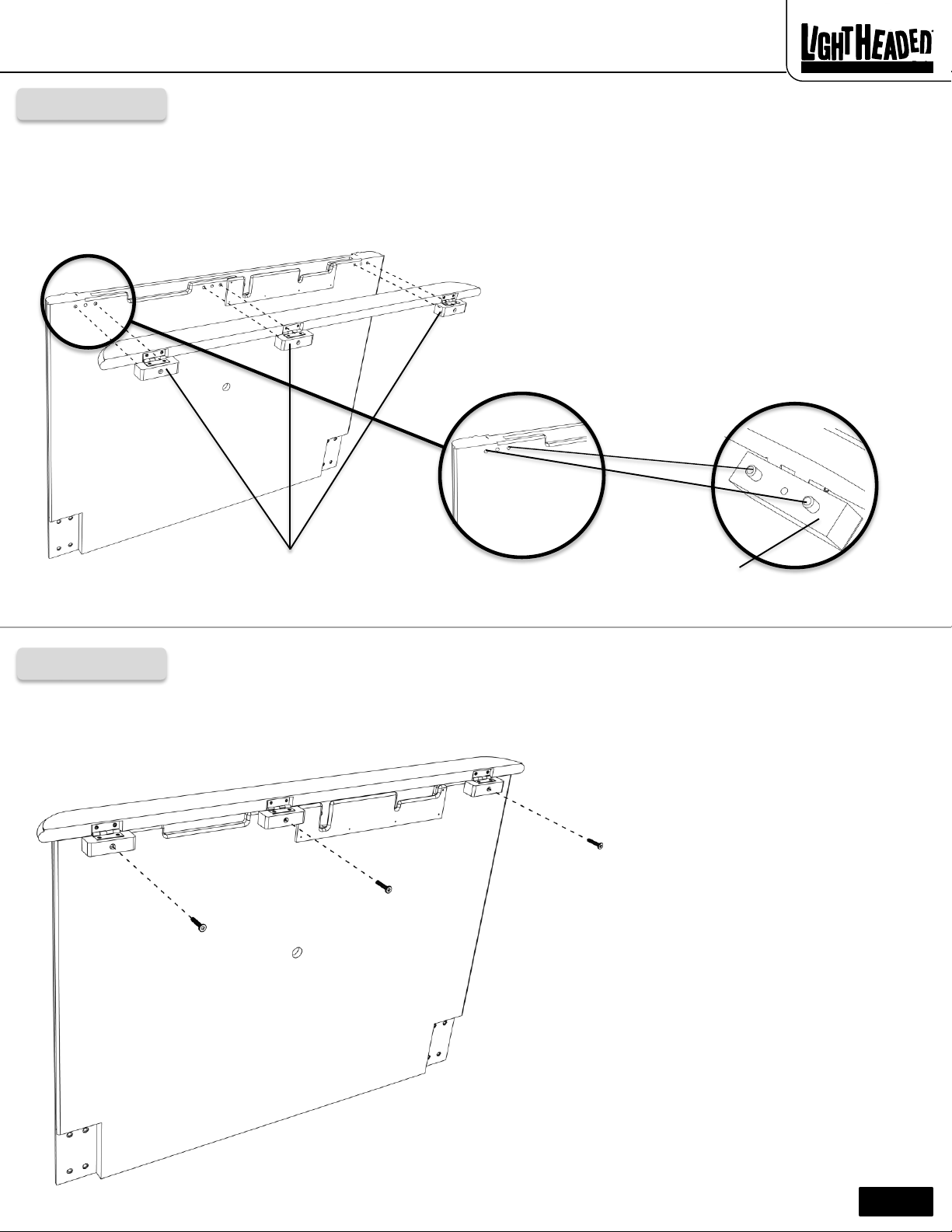

1. Orient the caprail (EQB) as shown, and insert the two dowels on each wood block into
the holes at the top of the headboard (EPN). The wood blocks should be flush with the
back surface of the headboard. The center hole of each set of three holes is reserved
for Step 2.
Wood blocks
Step 2
1. Insert one machine screw (EPL) into each wood block to secure the caprail to the headboard.
Wood block
EPL
EPL
EPL
EPN
EQB
Page 2

“Riviera” LightHeaded™ Bed
Assembly Instructions
www.LightHeadedBeds.com
Model #20204Twin size, Cheshire Cherry
Model #20321Twin size, Black
Model #20324 Twin size, White
9/17/2015
1168344 B
Step 3
Step 4
1. Open the caprail, and remove the protective foam insert and attached paper and
discard.
2. Your LightHeaded™ light component is pre-assembled in the headboard and ready to
use. Please refer to your LightHeaded™ Lighting Assembly Instructions in the TechBox
for information on how to connect power to your light, insert LightHeaded™ Images,
general use, and troubleshooting if necessary.
1. With the help of your assistant, gently lay your LightHeaded™
headboard panel face down on a soft surface with the hinged top in
the open position.
2. Align left leg (EPP) with the left side headboard (EPN).
3. Align the cutout in the top of the leg with the corresponding cutout
in the bottom of the headboard post. The 4 holes in the leg should
align with the 4 threaded inserts in the back of your headboard
panel.
4. Select 4 metal washers (EPJ), 4 metal lock washers (EPK), and 4
machine screws (EPL). Using the Allen wrench supplied (CWT),
tighten screws into legs through the lock washer then washer.
5. Repeat these steps for the right leg (EPO).
Mattress only
Box Spring & Mattress or
Step 3-1 Step 3-2
1. If you’re using a box spring and mattress, hook your
wooden side rails (EPR, EPS) onto the bottom two
metal pins in the vertical slot on the headboard and
footboard legs.
2. If you’re using a mattress only, hook your wooden side
rails (EPR, EPS) onto the top two metal pins in the
vertical slot on the headboard and footboard legs.
Page 3
Step 5
It’s your choice!
Your LightHeaded™ bed can be assembled to use a box
spring and mattress set or a mattress only. Don’t worry,
you can change it at any time with a couple simple
steps and no tools.
EPN
EPO
EPP

“Riviera” LightHeaded™ Bed
Assembly Instructions
www.LightHeadedBeds.com
Model #20204Twin size, Cheshire Cherry
Model #20321Twin size, Black
Model #20324 Twin size, White
9/17/2015
1168344 B
Step 6
Rollout wooden slats (EPT) onto your side rails so that
the two end slats lock into place with the wood blocks
near the headboard and footboard.
Step 7
Secure each slat into the side rails with the wood screws (EPM) using a
Phillips head screwdriver (not included).
You have now completed the bed assembly.
Page 4
Your LightHeaded Bed comes with a built-in image
storage on the inside of your footboard. This
specially designed area allows you to organize and
safely store up to 25 interchangeable LightHeaded
graphic images.
Please refer to the Lighting Assembly Instructions in
your TechBox. Locate the page titled Using Your
LightHeaded Bed to easily remove one graphic
image and replace it with another.
Place the image which you just removed from the
Headboard into the storage area in the Footboard
and your image will be ready for the next time you
want to personalize your LightHeaded Bed.
On the back of your LightHeaded headboard, located just below
the hinged top, is an On/Off switch which can be used to toggle
the light component on or off. Please refer to your user manual
in the TechBox for additional information.
Display in your headboard. Store in your footboard.
On/Off switch Light component positioning hole
If, after review of the Lighting Assembly Instructions contained in the
TechBox, you find that your LightHeaded™ Image does not slide in
and out of the headboard with little to no resistance, we’ve provided
a 1" diameter hole located in the center of the headboard back panel.
With your finger, simply apply gentle pressure to the back of the light
component to reposition it, and your LightHeaded™ Image will slide
effortlessly in and out of your headboard.
EPT
EPM
EPM

“Riviera” LightHeaded™ Bed
Assembly Instructions
www.LightHeadedBeds.com
Model #20204Twin size, Cheshire Cherry
Model #20321Twin size, Black
Model #20324 Twin size, White
9/17/2015
1168344 B Page 5
One Year Limited Warranty
LightHeaded™ Beds warrants that for a period of one year from the date of purchase, this product will be free
from defects in material and workmanship. LightHeaded™ Beds, at its option, will repair or replace the
product or any component of the product found to be defective during the warranty period. Replacement will
be made with a new or remanufactured product or component. If the product is no longer available,
replacement may be made with a similar product of equal or greater value. This is your exclusive warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not
transferable. Keep the original sales receipt. Proof of purchase is required for warranty service. LightHeaded™
Beds dealers, service centers, or retail stores selling LightHeaded™ Beds products do not have the right to
alter, modify, or in any way change the terms and conditions of this warranty.
This warranty does not cover normal wear and tear of parts or damage resulting from any of the following:
negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating
instructions, electronics disassembly, repair or alteration by anyone other than LightHeaded™ Beds authorized
service representatives.
What Are the Limits on LightHeaded™ Beds Liability?
LightHeaded™ Beds shall not be liable for any incidental or consequential damages caused by the breach of
any express, implied, or statutory warranty or condition. Except to the extent prohibited by applicable law,
any implied warranty or condition of merchantability or fitness for a particular purpose is limited in duration
to the duration of the above warranty. LightHeaded™ Beds disclaims all other warranties, conditions or
representations, express, implied, statutory or otherwise. LightHeaded™ Beds shall not be liable for any
damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including
incidental, special, consequential or similar damages or loss of profits, or for any breach of contract,
fundamental or otherwise, or for any claim brought against purchaser by any other party.
How to Obtain Warranty Service
We suggest you complete and return the product registration card that was included with your bed. This will
help us to promptly facilitate verification of the date of your original purchase. If you have any questions
regarding this warranty or would like to obtain warranty service, please call [phone] and a friendly
Customer Service Representative will assist you.
Congratulations! Your LightHeaded™ bed is assembled and you are
ready for the real fun.
•Hop online and surf our website LightHeadedBeds.com where you can
apply your $20 gift coupon toward your first LightHeaded™ Image and
personalize your bed.
•Create your own custom images or select from our massive gallery of
amazing images and super characters.
Trundle
An optional Twin Trundle bed is
available for purchase at
LightHeadedBeds.com
Underbed storage
An optional Underbed Storage Unit is
available for purchase at
LightHeadedBeds.com. Use 1 or 2
for additional storage as needed.
Got questions?
Our friendly LightHeaded™
Customer Service Rep can help you
at 800-225-3865 or e-mail us at
[e-mail].
Assembly videos are available on
You-Tube. Thanks from the folks at
www.LightHeadedBeds.com
