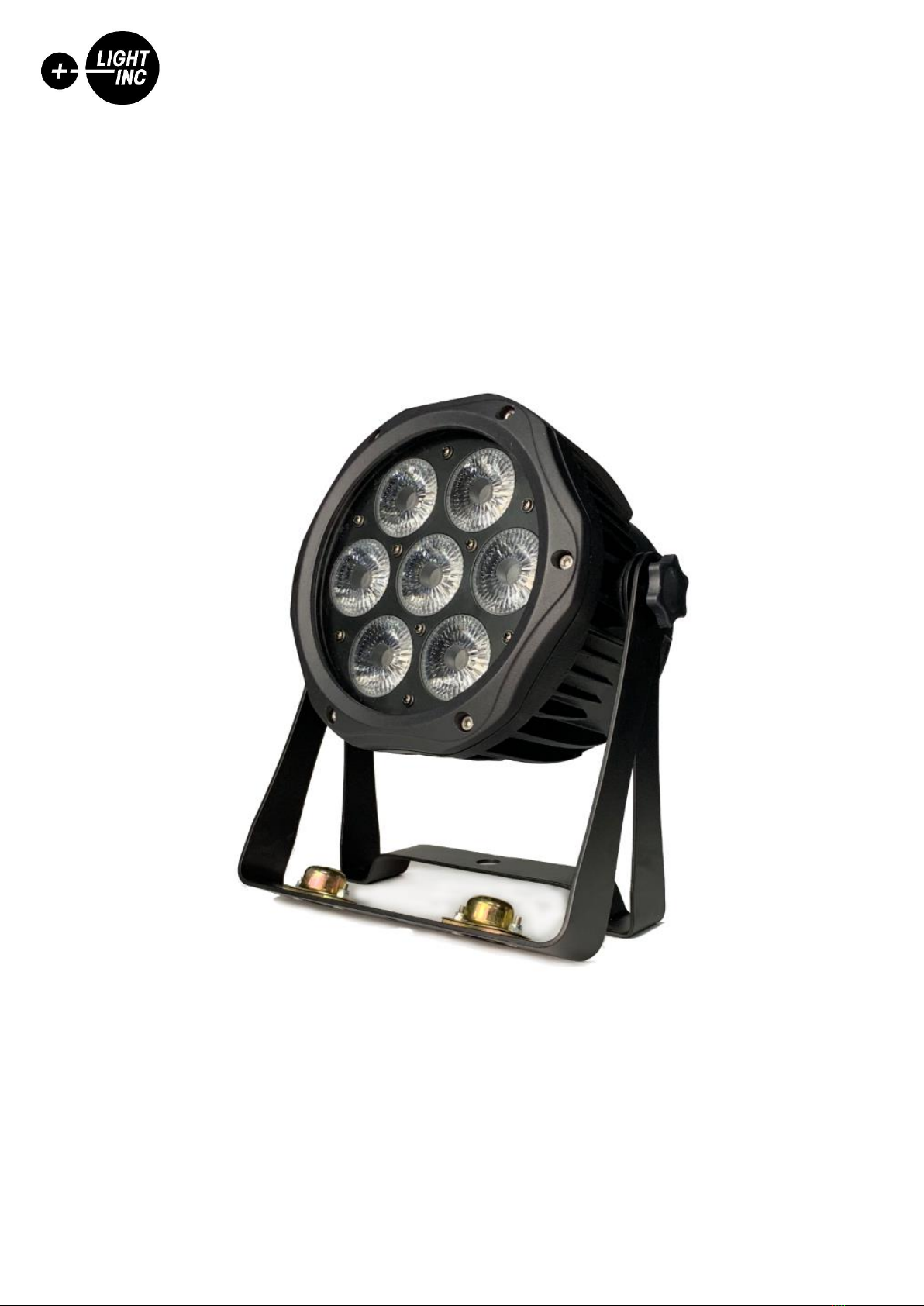

Light-ink OUTDOOR-PAR 7 HEXA User manual
OUTDOOR-PAR 7 HEXA
MANUAL
2
THANK YOU FOR PURCHASING OUR PRODUCTS.
Every unit has been thoroughly tested and has been shipped in perfect operating condition.
Carefully check the outer and inner packaging for damage that may have occurred during shipping.
If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all
accessories necessary to operate the unit have arrived intact. In case damage has been found or
parts are missing, please contact the distributor or your dealer for further instructions. Do not return
this unit to your dealer without first contacting them.
1. SAFETY INFORMATION
Before operating this unit, please carefully read this manual and keep for
usage in the future. It is necessary to respect the following rules.
Disposal of the device after its life cycle can damage the environment. Take it
to a recycling company or return it to the authorized dealer.
The products referred to in this manual conform to the guidelines of the
European Community and are therefore marked with the CE logo.
Keep this device away from children and unauthorized users. The dealer is
not liable for damage as a result of ignoring the information in this manual and
incorrect operation.
Before operating this unit, please make sure the housing is in good condition
and ensure pan and tilt can rotate in full range.
0.5M
Ensure that a minimum distance of 0.5 m is maintained between the fixture
and any flammable material.
The device can only function with 100-240v voltage, 50 / 60Hz power. Do not
connect to any other power supply. Disconnect the device from the power
supply before opening it or before maintenance.
Never look directly into the projecting lens when the fixture is switched on. The
light can cause epileptic seizures in light-sensitive people or people with
epilepsy. Extreme caution and compliance with these safety instructions are
required, especially with beam effects.
Do not place or install the device on a surface that is exposed to vibration or
any movement.
-15⁰C + 45⁰C
The device should operate in temperature range -15 °C and + 45 °C. Do not
use the device if the temperature exceeds this range.
The lens shield must be replaced if it is broken. Never use the device if the
shield is not fully closed.
Safety I class device must be earthed.
When the fixture is mounted overhead, the safety rope must be attached to
the correct mounting location on the bottom of the device.
Please note that damage caused by manual changes to the device is not
covered by the warranty.
♲
If possible, recycle all packaging material
3
2. MENU
Address
001-512
Channel Mode
6 CH / 10 CH
Manual Color
Red
0-99
Green
0-99
Blue
0-99
WW
0-99
Amber
0-99
UV
0-99
Strobe
0-99
Color
Macro 1
Macro 2
--
Macro 14
Color Jump
Speed
1-99
Strobe
1-99
Color Fade
Speed
1-99
Strobe
1-99
Test
Sound
Speed
1-99
Program
1
2
3
Fade
On
Off
3. DMX CHANNEL SHEET
6CH
10CH
Channel
Value
Function
CH1
0--255
Red dimmer, From dark to bright
CH2
0--255
Green dimmer, From dark to bright
CH3
0--255
Blue dimmer, From dark to bright
CH4
0--255
Warm white dimmer, From dark to bright
CH5
0--255
Amber dimmer, From dark to bright
CH6
0--255
UV dimmer, From dark to bright
Channel
Value
Function
CH1
0--255
Linear Dimmer 0-100%
CH2
0--255
Strobe from slow to fast
CH3
0--255
Red dimmer, From dark to bright
CH4
0--255
Green dimmer, From dark to bright
CH5
0--255
Blue dimmer, From dark to bright
CH6
0--255
Warm white dimmer, From dark to bright
CH7
0--255
Amber dimmer, From dark to bright
4
4. CURRENT ADJUSTMENT
Press the “ENTER” button for 5 seconds. You will enter the current adjustment interface.
Press enter to change the color, “UP” and “Down ” to change the value.
Display
Value
Description
rL00
00-99
electric current of RED LED , small to big
gL00
00-99
electric current of Green LED , small to big
bL00
00-99
electric current of Blue LED , small to big
UL00
00-99
electric current of white LED , small to big
Note: We don’t suggest changing the color current, because preferred colors have been set.
5. CONNECTIONS
Please connect XLR-XLR control wire with every light from the output of DMX.
XLR connection :
NOTE: do not forget to connect a circle circuit plug to the output signal of the last device. This
circular circuit plug must be connected to a 120 ohm resistor between terminals 2 and 3 of the
CANON plug. Closing this circle circuit plug can avoid the signal flash phenomena of signal
DMX512 during the transfer.
CH8
0--255
UV dimmer, From dark to bright
CH9
0--6
No function
6--125
Color
126--192
Color jump
193--220
Color fade
221--255
Sound, auto
CH10
Control 9Ch
0--6
No function
6--125
Color option
126--192
Speed of color jump, from slow to fast
193--220
Speed of color fade, from slow to fast
221--255
Sensitivity of sound
5
ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
BSL B.V. | SPAARPOT 19| 5667 KV GELDROP | THE NETHERLANDS
+31 (0)40 750 24 95
WWW.BSL-LIGHTING.COM | WWW.LIGHT-INC.EU
6. MAINTENANCE
7. SPECIFICATIONS
Voltage
AC100-240V
Frequency
50Hz-60Hz
Consumption
100W
Light source
7pcs*12W RGBWW (3200K) A+UV 6in1 LED
Channel
6/10 CH
IP Rate
IP65
Beam Angle
25 degrees
Mode of control
DMX512, Auto, Sound, Master-slave
Net weight
3.1 KG
Problem
Check list
Trouble Shooting
The fixture
doesn’t work
1. If your power matches the input
of the machine.
2. If the fuse is broken.
1. Make sure the voltage matches.
2. Replace with the same type fuse.
LED dimmed
If your power matches the input of
the machine.
Make sure the voltage input matches.
No DMX input
1. If the polarity is opposite in the
DMX controller.
2. If it is in DMX mode.
3. If there are 2 Masters in a loop.
1. Correct the DMX polarity.
2. Change to the DMX mode.
3. Set one piece into Slave mode.
