UV-STICK...NX

Germicidal UV-C Device for Disinfection by Direct Irradiation

MODELS:

UV-STICK-E40H-NX

UV-STICK-E75H-NX

UV-STICK-E2/40H-NX-NT

UV-STICK-E2/75H-NX-NT

LIGHT PROGRESS STICK-NX [eng]

gen-2021 Pag. 2/16

SECURITY WARNING

The Company has ensured that every care is taken in the design and production of its machinery. In order to guar-

antee, as far as possible, that it is safe when used correctly. However, the laws on accident prevention require all users

of the machinery to ensure that whoever is responsible for installation, maintenance, use and sale of these products is

shown the instruction provided by our company and is made aware of the precautions to be taken.

According to the circumstances, the appropriate recommendations made in these instructions must be made available,

together with any other relative information, to any company or person involved in the installation of LIGHT PRO-

GRESS products.

Only use this appliance for its intended purpose as described in this booklet.

If the appliance is wrongly operated for a purpose other than that for which it is intended, no liability can be accept-

ed for any possible damage. The manufacturer cannot be responsible for any damage to people, animals and objects

caused by use or operation of the appliance contrary to these instructions.

As with all electrical appliances the safety information and precautions contained in this booklet must be carefully

observed, including following:

Before maintenance or cleaning ensure that the appliance is switched off and unplugged from the mains supply.

Should the appliance become faulty please contact our authorized Service Centre direct and in case of repairs ask

for genuine parts.

Improper repairs may damage the appliance and place the user at serious risk.

WARNING

•Avoid exposition to UV-C rays emitted by germicidal lamps,

even for few seconds, it may cause severe conjunctivitis and

erythema

•Plastic or painted surfaces exposed to direct UV-C rays may

progressively yellow, as after a long exposure to sunlight.

•The intended use is as a germicidal lamp for sterilization, any

other use is improper and dangerous

•The lamp, as supplied, can not be modified or designed for use

with accessories or tools

•We disclaim all responsibilities and void the warranty in case of

tampering or lack of maintenance

•Read carefully the following instruction before use

•In case of opening of the UV section, switch off the UV-C devices in order to avoid

exposures to UV-C light. They may cause severe conjunctivitis and erythema.

•Remove the protection film from the device before switching on the UV-C lamps.

•This device can be used by children with no less than 8 years and by persons with

reduced physical, sensory or metal capacities or with no experience or knowledge, as

long as under supervision or often they have receiv3ed the related instructions about

the safe use of the device and the related risks. Kids do not have to play with this de-

vice.

LIGHT PROGRESS STICK-NX [eng]

gen-2021 Pag. 3/16

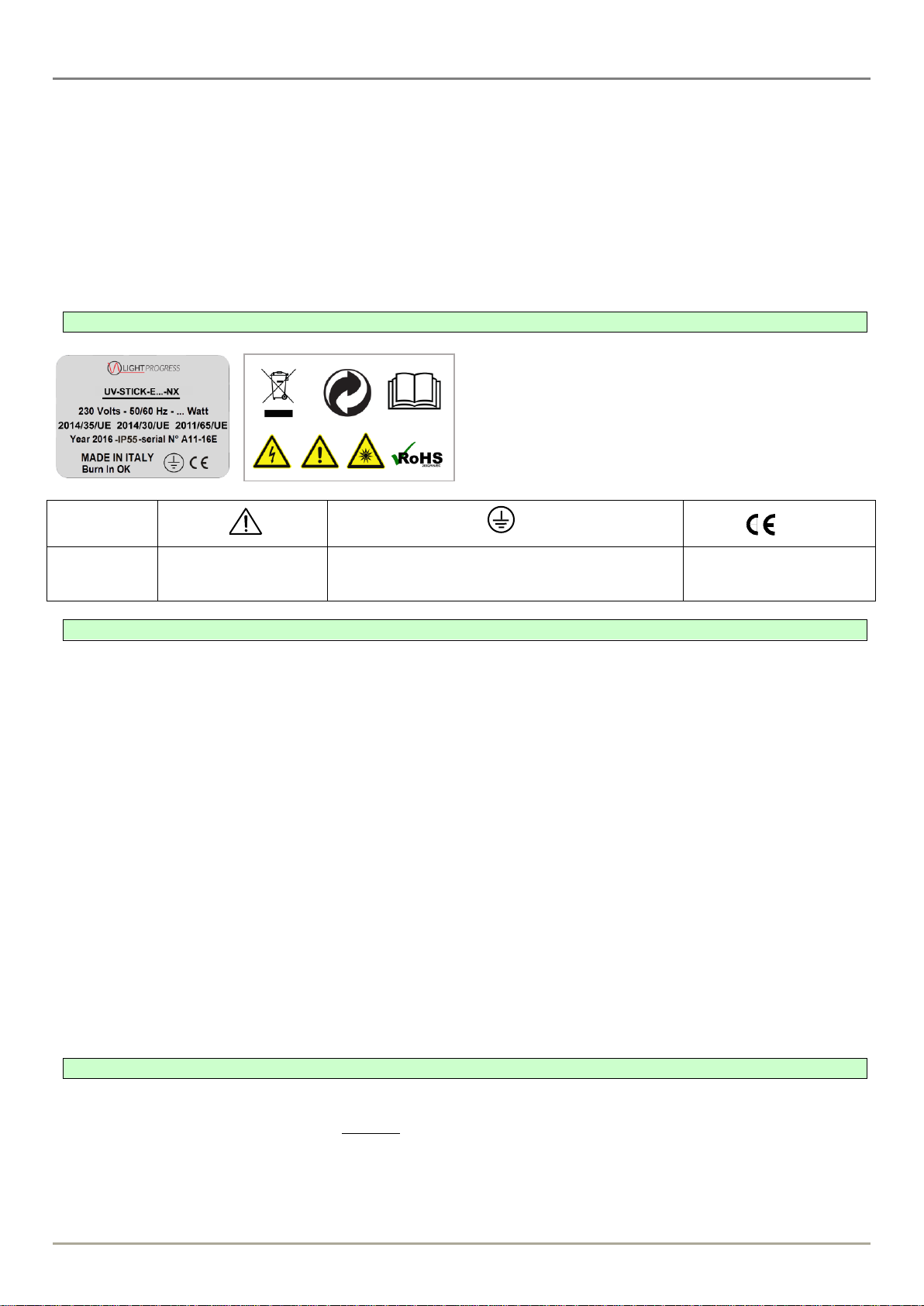

CONVENTIONAL SYMBOLS NOTICED ON DEVICES

SUBSTITUTED ITEMS MUST BE PERFORMED RESPECTING THE LOCAL LAWS.

RECYCLE THE STUFFS THAT COMPOSES THIS PRODUCT.

OBLIGATION TO CONSULT THESE INSTRUCTIONS BEFORE USE THIS PRODUCT

DANGER OF ELECTRICAL SHOCK; REMOVE TENSION TO THE SYSTEM BEFORE PERFORMING

ANY OPERATION.

GENERIC DANGER.

DANGER OF EXPOSITION TO ULTRAVIOLET UV-C RAYS.

THIS DEVICE RESPECTS THE ROHS NORMS.

USE PROTECTIVE GLOVES

WEAR PROTECTIVE GLASSES

STORAGE OF THIS MANUAL

ATTENTION!

This instruction manual must be preserved and be ever at disposal to consultation; it must follow the device in

case of passage of property, and accompany the device until its demolition

To request the instruction manual updated and to ask all other information needed, it’s possible to contact the Light

Progress’ technical office.

DEMOLITION AND DISPOSAL

Do not dispose of these products as unsorted municipal waste, but collect them separately as a special

waste and entrust them to specialized waste disposal companies. Disposal should be in accordance with

Legislative Decree No. 151/2005 (WEEE - Italy), or the law of the country where disposal will occur (WEEE

- EC). In case of failure to comply with laws or illegal disposal heavy penalties are provided. The apparatus

consists of plastic parts, electronic components, metal, UV lamps containing mercury (substances danger-

ous for the environment and human health). The dealer is available to the withdrawal of the apparatus used.

LIGHT PROGRESS STICK-NX [eng]

gen-2021 Pag. 4/16

DEVICE DESCRIPTION

UV-STICK...NX includes a UV-C lamp placed inside a shaped case of small size, entirely made of stainless steel, and

with polished aluminum screen, to increase performance also reflecting the proportion of UV-C which should be dis-

persed in the direction opposite to that useful. The UV-C lamps, with emission peak at 253,7 nm. (nanometers), have a

strong germicidal power against all organisms (fungi, bacteria and viruses). The shaped case consists of a box of stain-

less steel AISI 304, within which a watertight plastic duct is located, containing all the electronic power supply, with de-

gree of protection IP 55 for a double insulation. The UV-C lamp can also be protected by a grid of stainless steel AISI

304; The unit comes complete with a cable 2x1mm2, without plug for power supply.

Each series UV-STICK...NX is designed to radiate environments directly, but can also be installed in places where

space is very limited, as laminar flow hoods, cupboards and drawers to store items to be kept sterile, tables for food

processing or cutting, air ducts, sterilized containers (tanks, silos, etc..). They can also be used for the disinfection of

packaging film, conveyor belts, but also of bottling lines and devices for the disinfection of bottles and their closure

caps, etc.. The construction materials of the UV-STICK...NX (AISI 304) shall permit its use for disinfection / sterilization

of products and their containers, even within the food industry or where a high resistance to chemical and atmospheric

agents is required.

APPLICATIONS AND RESULTS

This device can be applied to radiate the packaging lines of the alimentary products, to decontaminate from the germs

both the containers and the food. It has compact dimensions (section 53x53 mm.) and is available in various lengths

and wattages. The unit can be configured in a portable version, or can be permanently installed in places where space

is particularly limited. The special construction materials and the degree of protection IP68 make it possible to use the

device even in environments rich in aggressive chemical and physical agents.

OPERATING

UV-STICK...NX produces direct radiation by UV-C ultraviolet rays. When activated, it generates a strong reduction of

microbes in the air and on the irradiated surfaces. For instance, with the model UV-STICK E75H NX, in 2 ÷ 3 seconds

a reduction of 99% of bacteria (Bacillus, E. coli, Clostridium, Legionella, Vibrio, Salmonella, Pseudomonas, Staphylo-

coccus, Streptococcus, etc..) is obtained, at the distance of 10 cm.

UV-STICK...NX can be installed in any type of environment, to obtain a deep disinfection of air and surfaces, even

those difficult to reach with traditional cleaning systems. The use of this device is allowed only in the absence of per-

sonnel; otherwise, the device should be contained within adequately screened boxes or protections. In case of use for

the disinfection of work environments, the device must be turned on for 2 ÷ 3 hours during the time of absence of staff

workers. For example, by means of a time switch, you can manage the switching-on of the lamps in the hours immedi-

ately before the entry of operators, so as to start a new working cycle inside a disinfected environment.

The schedule of the irradiation time can be made by a MASTER-ST series electronic control unit, which can manages

several operations, like:

•Programmed switching on. It is possible to program the duration of the irradiation by means of an adjustable

timer..

•Personnel entry detector. A safety system switches off the lamps in case of intrusion of personnel.

•Failure alarm. In case of failure of one or more lamps of the device, a warning light will turn on to enable the

identification of the lamp/lamps off, and an electric contact will open to signal the failure.

Hour counter. To manage the correct replacement for exhausted lamps.

BENEFITS AND ADVANTAGES

a) DEEP AND ONGOING DISINFECTION. This unit can stay lit continuously in the absence of people (for example

during the night, at least for 2-3 hours). The disinfection of air, equipments, and of all that is contained within a room,

allows to start the working day in ideal hygienic conditions. Therefore, the level of microbial load of a room remains

constantly low .

b) PHYSICAL ACTION AND ENVIRONMENTAL PROTECTION. Treatment by UV-C rays is purely physical, and

achieves always the same effect; also, there are no problems of overdose and rooms are always safe and practicable

(when devices are off). Rather, many methods of chemical treatment involve the use of dangerous products for the en-

vironment, and difficult to biodegrade, as well as the risk of contamination of foodstuffs. Also, by the use of chemicals it

is likely to develop resistant microbial forms with consequent danger to human health.

c) ELIMINATION OF MICROBIAL LOAD. The food and its container can be irradiated by UV-C rays to significantly re-

duce the level of microbial load, increasing the shelf-life of the products, without any contra-indication.

LIGHT PROGRESS STICK-NX [eng]

gen-2021 Pag. 5/16

d) IMMEDIATE EFFECT. It takes just a very short time to obtain effective results (99% killing of the bacteria), compa-

rably to volumes / surfaces to be treated, and the installation is easy and not invasive, so that modules can be applied

even all along a production line, with no interference.

e) NO DANGER OF LAUNCH OF GLASS FRAGMENTS. With the special protection UVLON (optional), no danger of

dispersion of glass fragments due to possible breaking of the lamps UV-C.

f) PRACTICABILITY AND SAVINGS.The treatment is immediate and ready for use. The maintenance is minimal with

low costs of both energy consumption and repairs.

g) NO CHEMICAL / PHYSICAL ALTERATION.The cold and dry treatment of the UV-C rays does not cause any altera-

tion in the organoleptic quality of the food.

DEVICE CODES

RECEPTION

Handle with care as fragile material. Verify the integrity of the packaging, and please be careful not to damage the con-

tents when using sharp blades or cutters to open the box.

Remove the unit from the box, then inspect it immediately to ensure that no damage has occurred during transport.

Before installation and using the device please READ CAREFULLY THE SECURITY WARNINGS and all others in-

structions that follows.

LIGHT PROGRESS STICK-NX [eng]

gen-2021 Pag. 6/16

INSTALLATION

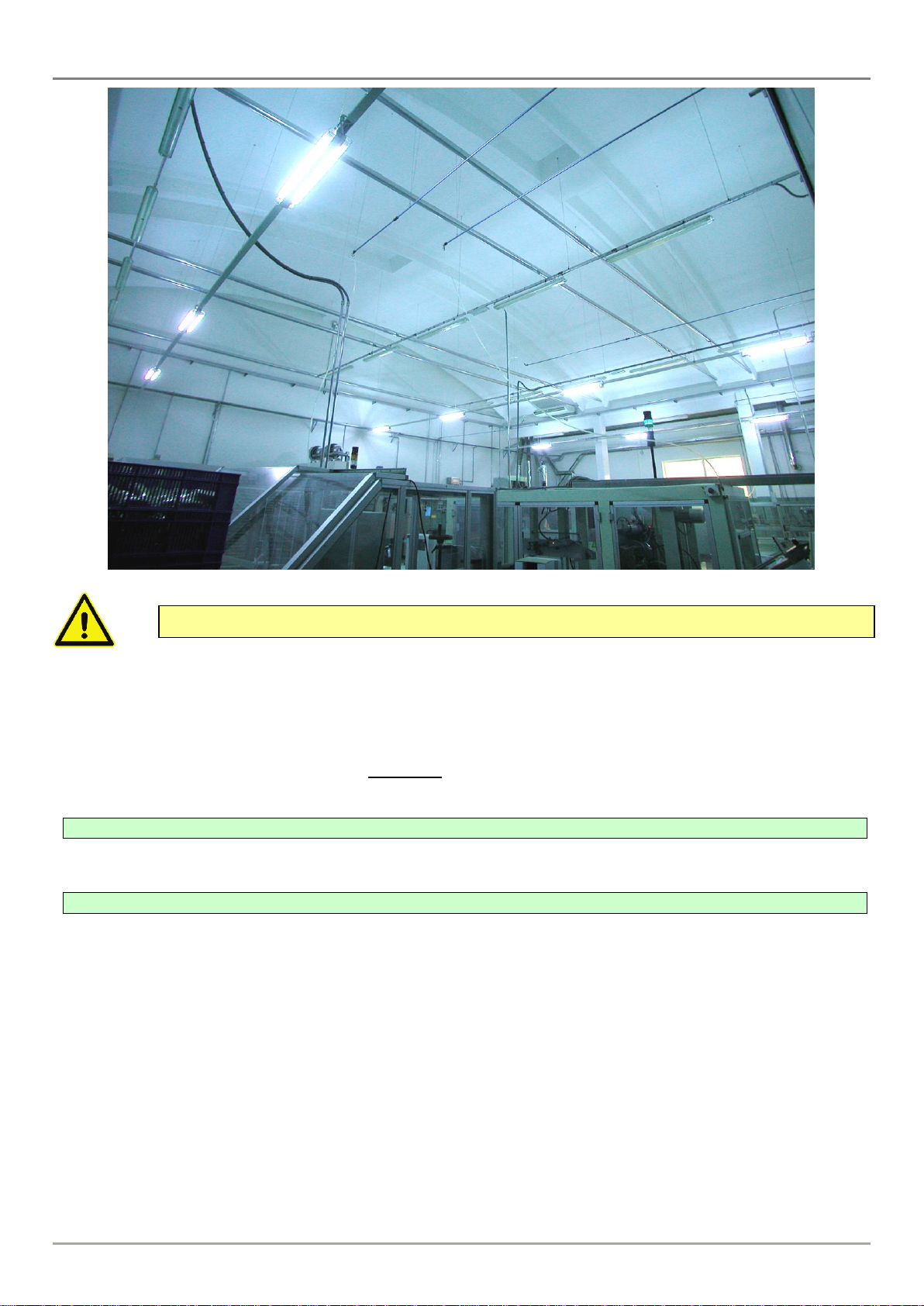

In the case of application of UV-STICK for direct irradiation of the environment, the device should be positioned on the

ceiling almost in central position. The installation of several units should be carried out so as to distribute them uniform-

ly in the environment (to avoid the hidden areas, such as the corners; it should allow all the air to be treated). These

models can be mounted on the wall and still comply with the regular distribution (Fig. 2).

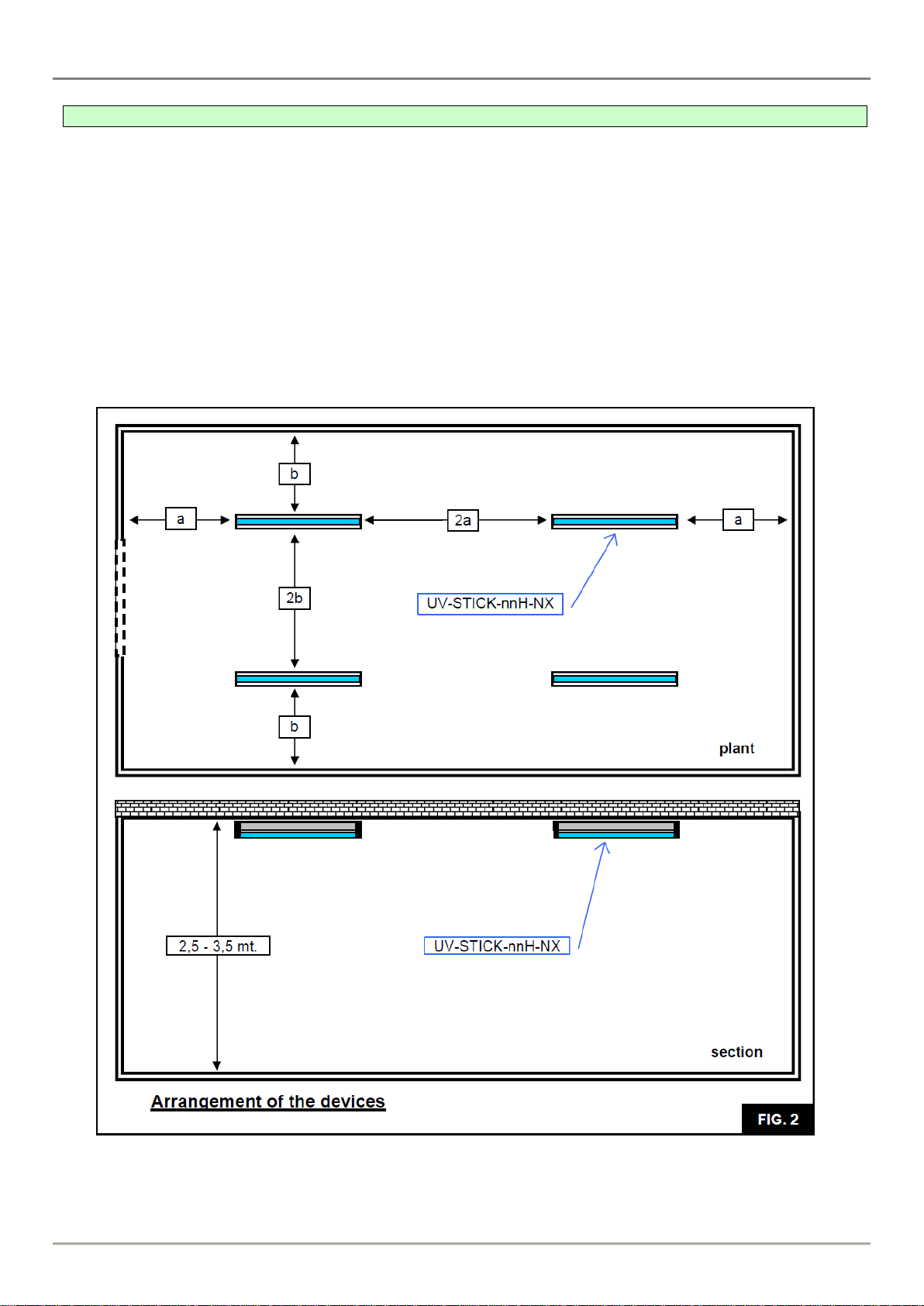

The area/space covered by the UV STICKS...NX devices is shown in Table 1. The final result of the disinfection will still

be made dependent on the amount of germs coming in from the external environment.

To fit the model of UV-STICK-E...-NX using the two stainless steel brackets supplied, anchoring them to the ceiling by

screw anchors (8 ÷ 10 mm.) or by self-tapping screws (not supplied).

After inserting the anchors onto the ceiling, you should tighten (by supplied stainless steel screws M4x10) the device to

the two brackets, and then you should screw the brackets to the ceiling.

For the model, UV-STICK-E2/...-NX you must drop the UV device from the ceiling by a not supplied chain, connecting

the chain to the ring of the supplied steel bracket.

LIGHT PROGRESS STICK-NX [eng]

gen-2021 Pag. 7/16

WARNING!!!

To avoid exposition to UV-C rays please provide a total shielding of the modules, or automatic turning OFF disposals at

the entry doors in the environment treated. There must be no direct irradiation of the personnel.

To shield the devices, you can use materials with opaque surfaces such as stainless steel or aluminium, but also

transparent materials such as glass or Lexan®; to have further information please contact us.

To improve safety, we suggest you to add light signs or signboards to report the potential danger.

Remember to switch on the device ONLY IF there is a concrete shield and no accidental ex-

positions to UV-C rays by the personnel.

SCHEDULING

Power on the device. The UV light lamp will irradiate. Remember not to expose people to UV-C rays irradiation.

ELECTRICAL CONNECTIONS

We suggest you to let a qualified electrician to install this device, following these instructions and the electrical

scheme, and following the CEI norms.

Make sure that the device will be installed where it will fit with the existing environmental conditions. Before connect-

ing the device to the electrical line, make sure that the labelled data on the device are the same as the ones of the

electrical line; we remind you that the electrical supply power of this device is 220-240V, 50/60Hz.

Make sure that the electrical system is suitable to provide the supply current required by the device (please read the

label).

The connection to the electrical line needs a multipolar switch.

The connection to the electrical line must be made by the supplied cable 3 x 1 mm2.

The use of screws, nuts, or other means, is necessary to connect the device to the electrical line.

We suggest the use of counters to know exactly the life of UV lamps and to remember when replace them.

Protect the power supply cable from high temperature, sharp corners, water, oils.

LIGHT PROGRESS STICK-NX [eng]

gen-2021 Pag. 8/16

►UV-STICK-EL

In model -EL you get the possibility to remote control the functionality of UV lamp.

Connected to the device there is a cable with 7 poles (or 9): a couple of poles (or two) carrying output signal to turn on

LED indicating the UV lamp (when it’s lighting); another couple of poles triggers a voltage-free contact to be activated

when a lamp stops working (alarm function: open contact if at least one lamp UV is not working); in addition, there are

two input wires to power the device (phase and neutral) + ground.

The faulty lamp alarm contact can be powered by max. 500mA of current and 24V of tension, and can be connected to

an electronic panel as "MASTER-ST” control unit.

For this models see the numbering of the wires on the table below.

In the device

UV-STICK-ELnn-NX…

Multi-pole

plug and

socket

Wire

Meaning

Black wire for LED

terminal n° 1

Wire n°1

1- anode LED for synoptic

2- cathode LED MASTER-ST.....

Red wire for LED

terminal n° 2

Wire n°2

Power line 230V-50Hz - phase

terminal n° 3

Wire n°3

3- Line 230V-50Hz (Phase)

Power line 230V-50Hz - Neutral

terminal n° 4

Wire n°4

4- Line 230V-50Hz (Neutral)

Electrical ground

terminal n° 9

Wire Y/G

Y/G- Ground terminal

Alarm board faulty lamp

terminal n° 5

Wire n°5

5-6- open contact = faulty lamp

(free contact without tension, max 500 mA-24V)

terminal n° 6

Wire n°6

In the device

UV-STICK-EL2/nn-NX…

Multi-pole

plug and

socket

Wire

Meaning

Black wire for LED - UV-lamp n°1

terminal n° 1

Wire n°1

1- anode LED for synoptic

2- cathode LED MASTER-ST.....

Red wire for LED - UV-lamp n°1

terminal n° 2

Wire n°2

Black wire for LED - UV-lamp n°2

terminal n° 3

Wire n°3

3- anode LED for synoptic

4- cathode LED MASTER-ST.....

Red wire for LED - UV-lamp n°2

terminal n° 4

Wire n°4

Power line 230V-50Hz - phase

terminal n° 5

Wire n°5

5- Line 230V-50Hz (Phase)

Power line 230V-50Hz - Neutral

terminal n° 6

Wire n°6

6- Line 230V-50Hz (Neutral)

Electrical ground

terminal n° 9

Wire Y/G

Y/G- Ground terminal

Alarm board faulty lamp

terminal n° 7

Wire n°7

7-8- open contact = faulty lamp

(free contact without tension, max 500 mA-24V)

terminal n° 8

Wire n°8

Model -EL

LIGHT PROGRESS STICK-NX [eng]

gen-2021 Pag. 9/16

MAINTENANCE

UV LAMP

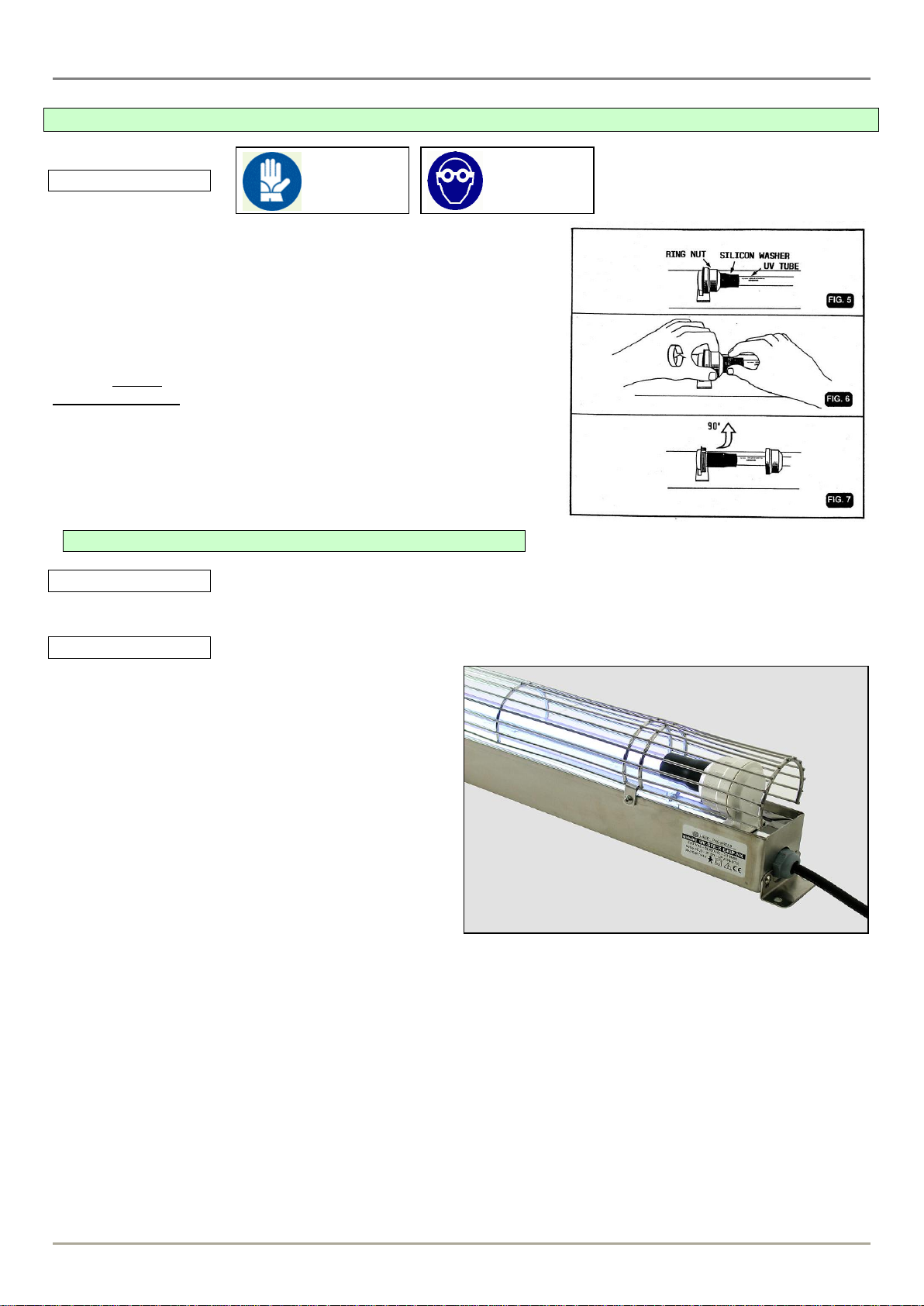

Lamp maintenance is very important because UV-C light emitted by

the source is not visible to the eye, so, although you see the lamp

ON, its germicidal effect may not be sufficient to performs disinfec-

tion treatment.

Before reaching the lamp, ALWAYS switch off power supply

If UV-C lamp gets dirty (or gets dusty) clean it with a clean cloth and al-

cohol, and avoid touching the glass part with hands. To check UVC lamp

life number of hours, correct product code of the spare UV lamp please

refer to table 1. The lamp, once reached the timing for replacement,

must be replaced, this operation is carried out as follows:

• Loosen the ring nuts on the lamp housing and let them slide

along the lamp; grab the lamp at the 2 ends and pull it in a direc-

tion parallel to the lamp.

• Repeat the steps in reverse to insert the new lamp.

TROUBLESHOOTING

UV LAMP

See MAINTENANCE.

BALLAST

All UV-STICK models are supplied with electronic ballasts

which guarantees an emission of 15% more if compared

with traditional ballasts. Furthermore, lamps are not influ-

enced by environment temperature that can goes until -

20°C. Finally, the switching on is immediate, with no

starter, and for this reason lamps last longer.

To preserve the original features of original IP protection

and isolation class, and to maintain all the characteristics

that guarantee a long-lasting life of this product, the bal-

last replacement must be done by qualified technicians

verified by Light Progress. In case of necessity, please,

send the device back to our facility for any kind of repairs.

If this is not possible you can order the entire supply

channel for replacement (for code, see Table 1).

USE

PROTECTIVE

GLOVES

WEAR

PROTECTIVE

GLASSES

LIGHT PROGRESS STICK-NX [eng]

gen-2021 Pag. 10/16

TECHNICAL FEATURES

TABLE n.1

UV-STICK

E40H-NX

E75H-NX

E2/40H-NX-NT

E2/75H-NX-NT

LAMP AVERAGE LIFETIME (hour)*

≤ 18.000

POWER (W)

40

75

2X40

2X75

DIMENSIONS LxSxH (mm.)

530 x 65 x 96

986 x 65 x 96

530 x 65 x 170

986 x 65 x 170

WEIGHT (Kg.)

1,5

2

3

4

TREATED VOLUME (m3)

from 20 to 40

from 40 to 65

from 25 to 50

from 50 to 85

TREATED SURFACE (m2)

from 7 to 13

from 14 to 25

from 10 to 18

from 18 to 30

SPARE PARTS

UV LAMP Code

n.1 CHS-40WH

n.1 CHS-90WH

n.2 CHS-40WH

n.2 CHS-90WH

BALLAST Code (complete duct)

n.1 CpE-40H

n.1 CpE-75H

n.1 CpE-2/40H

n.1 CpE-2/75H

* continuous operation

•Selective UV-C lamp (at 253.7 nm.) with high efficiency lighting.

UV-STICK-E2/40/75H-NX-NT

UV-STICK-E40/75H-NX

LIGHT PROGRESS STICK-NX [eng]

gen-2021 Pag. 11/16

•Body in Stainless Steel AISI 304

•All used materials are tested for resistance to intense UV-C rays.

•Watertight and dust-tight (IP 55).

•Powered by electronic ballasts specific for UV-C rays lamps

•Reflector in extremely pure mirror bright aluminium.

•Direct protection of the lamp with a stainless-steel grid

•CE mark (LVD - EMC - MD - RoHS).

•Complies with the noise standards of Directive 2006/42/EC

•Values measured according to UNI EN ISO 3746

•Non-detectable and non-transmissible vibration values

•Suitable for class 1 installations - protected areas

LABEL AND SYMBOLS

SYMBOL

MEANING

Warning! Check the at-

tached documentation

GROUND TERMINAL

(The unit must always be connected to the

ground)

Device with CE certifica-

tion.

WARRANTY

All products made by LIGHT PROGRESS are manufactured using only materials of the higher quality, and are subject-

ed to rigorous testing, and are guaranteed to be free of factory faults according to current law and regulations.

1. Minimum requirements for warranty validity

Warranty will be considered valid only in case of possession of the purchase document.

2. Warranty limits

Warranty excludes

•Damages caused by not following the instructions that accompany the product at purchase.

•Periodical controls, maintenance, repairs or replacements of parts due to normal wear.

•Consumable parts.

•Use of incompatible spare parts or consumables; Compatibility is assured only by use of products pur-

chased from or recommend by Light Progress.

•Damages caused by modification of device / system without Light Progress’ previous consent.

•Improper use of the product, falling or crashes.

•Modifications or repairs made by unauthorized personnel.

For defective materials return, you must request the return merchandise authorization (RMA) sending an email to in-

[email protected] or calling the number +39.0575.749255.

Once you receive the module, it has to be filled up in every part and sent via email to info@lightprogress.it or via fax to

+39.0575 789929 to obtain the RMA number that will authorize the shipments of the goods to Light Progress ware-

house. Only authorized goods will be accepted, otherwise it will be refused and sent back to the sender on ex-works

conditions. The packages must be sent on DDP (Delivery Duty Paid) with packaging suitable for transport. RMA num-

ber is valid up to 10 working days from release date.

MANUFACTURER RESPONSABILITY AND COMMITMENTS

Light Progress do not assume any responsibility for any damage to persons or property, due to failure to follow

these instructions. We recommend you to carefully read all the given instructions.

The manufacturer agrees with the buyer to provide, upon request, schemes of circuits, component parts lists, in-

structions for calibration of lamps and other information, which are useful to repair those parts that the manufacturer

considers repairable.

The company reserves the right to make changes without prior notification or public notice.

LIGHT PROGRESS STICK-NX [eng]

gen-2021 Pag. 12/16

DECLARATION OF COMPLIANCE

We, LIGHT PROGRESS S.r.l., hereby declare under our own responsibility that the following units of own production:

UV-STICK…NX series

•are in accordance with EEC directive 2014/30/EU (Electromagnetic Compatibility)

•are in accordance with EEC Machinery Directive dispositions 2006/42/EU

•are in accordance with EEC Low Voltage Directive 2014/35/EU

•are in accordance with EEC (RoHS) 2011/65/EU (D.Lgs 4 Marzo 2014, n.27)

TECHNICAL STANDARDS APPLIED

UNI EN ISO 12100:2010

Safety of Machinery - Basic Concepts, General Principles for Design - Risk

assessment and risk reduction

UNI EN ISO 13857:2008

Safety of Machinery - Safety Distances to prevent danger zones being reached

by the upper and lower limbs (2008)

ISO 14120:2015

Safety of Machinery - Guards - General Requirements for the Design and

construction of fixed and movable guards

UNI EN ISO 13849-1:2016

Safety of Machinery - Parts of the Control System related to the Safety –Part 1:

General Design Principles

UNI EN ISO 14119:2013

Safety of Machinery - Interlocking devices associated with guards - Principles for

design and selection

CEI EN 60204-1/2016

Safety of Machinery - Electrical Equipment of Machines. Part 1: General Rules

(2010)

EN 61439-1:2011

Low-voltage Switchgear and Control Gear Assemblies. Part 1: General rules

FURTHER TECHNICAL STANDARDS APPLIED:

IEC EN 60335-1 "Safety of household electrical appliances and similar”

Electronic Ballasts for the control of the lamps in accordance with the standard EN 60928.

Germicidal UV-C Lamps in accordance with EN 61199.

Electrical Protective Measures in accordance with IEC 70-1, EN 60229.

Anghiari, 1.22.2021

Responsible for Standards: Dr. Aldo Santi

LIGHT PROGRESS S.r.l. Loc. San Lorenzo, 40 - 52031 ANGHIARI (AR) - ITALY - http://www.lightprogress.com

LIGHT PROGRESS STICK-NX [eng]

gen-2021 Pag. 13/16

Notes:

____________________________________________________

LIGHT PROGRESS STICK-NX [eng]

gen-2021 Pag. 14/16

____________________________________________________

LIGHT PROGRESS STICK-NX [eng]

gen-2021 Pag. 15/16

____________________________________________________

LIGHT PROGRESS STICK-NX [eng]

gen-2021 Pag. 16/16

Loc. San Lorenzo, 40 - 52031 ANGHIARI (AR) - ITALIA

TEL. 0575 / 74.92.55 - FAX 0575 / 78.99.29

PRODUZIONE:

•ANGHIARI - Loc. San Lorenzo, 40

•CASTIGLION F.NO - Loc. S. Antonino, 40

Http: www.lightprogress.it

E-mail: info@lightprogress.it

Light Progress UV-STICK NX Series User manual

Popular Steriliser manuals by other brands
