Light Sky BUMBLEBEE 2 Series User manual

E-mail:
n
Address: No. 43, Yunfeng Road, Xiuquan Street,
Huadu District, Guangzhou, China
BUMBLEBEE SERIESⅡ
F230II
F330II

Contents
1
Congratulations on choosing our company product! We thank you for your custom.
◆Please note that this product, as all the others in the rich my company range, has
been designed and made with total quality to ensure excellent performance and
best meet your expectations and requirements.
◆Carefully read this user manual in its entirety and keep it safe for future reference.
It is essential to know the information and comply with the instructions given in this
manual to ensure the fitting is installed, used and serviced correctly and safely.
◆My company disclaims all liability for damage to the fitting or to other property or
persons deriving from installation, use and maintenance that have not been carried
out in conformity with this user manual, which must always accompany the fitting.
◆My company reserves the right to modify the characteristics stated in this user
manual at any time and without prior notice.
1. Safety information...................................................................................................2
2.Technical information..............................................................................................3
3.Attachment ........................................................................................7 and body size
4.Installation and connecting......................................................................................8
5. Control panel........................................................................................................10
6. Menu setting..........................................................................................................11
7.Channel function....................................................................................................14
8. ....................................................................................23Circuit connecting diagram
9.Cleaning and maintenances.................................................................................24
10.Troubeshooting...................................................................................................24
11. ..........................................................25Duty exonerative and copyright protection

• Installation
Make sure all parts for fixing the projector are in a good state of repair.
Make sure the point of anchorage is stable before positioning the projector.
The safety chain must be properly hooked onto the fitting and secured to the framework, so that,
if the primary support system fails,the fitting falls as little as possible.
If the safety chain gets used, it needs to be replaced with a genuine spare.
• MINIMUM DISTANCE OF ILLUM INATED OBJECTS
The projector needs to be positioned so that the objects hit by the beam of light are at least
12 metres from the lens of the projector.
• Minimum distance from flammable materials
The projector must be positIoned so that any flammable materials are at least 0.2 metres from
every point on the surface of the fitting.
• Mounting surfaces
It is permissible to mount the fitting on normally flammable surfaces.
• Maximum ambient temperature
Do not operate the fixture if the ambient temperature (Ta) exceeds 38Ў.
•Protection against electrical shock
Connection must be made to a power supply system fitted with efficient earthing (Class I appliance
according to standard EN 60598-1).
It is,moreover, recommended to protect the supply lines of the projectors from indirect contact and/or
shorting to earth by using appropriately sized residual current devices.
• Connection to mains supply
Connection to the electricity mains must be carried out by a qualified electrical installer.
Check that the mains frequency and voltage correspond to those for which the projector is designed
as given on the electrical data label.
This label also gives the input power to which you need to refer to evaluate the maximum number
of fittings to connect to the electricity line, in order to avoid overloading.
Don't use the power cable when the insulation is damaged.
It must be the manufacturer or distributor or the professional person to change the damaged power
cable in order to avoid any dangerous.
• Temperature of the external surface
The maximum temperature that can be reached on the external surface of the fitting, in a thermally
steady state, is 100Ў.
• Maintenance
Before starting any maintenance work or cleaning the projector, cut off power from the mains supply.
After switching off, do not remove any parts of the fitting, to avoid getting burnt for at least 30 minutes.
After this time the likelihood of the lamp exploding is virtually nill.
The fitting is designed to hold in any splinters produced by a lamp exploding. The lenses must be
mounted and, if visibly Damaged, they have to be replaced with genuine spares.
• Lamp
The fitting mounts a high-pressure lamp that needs an external igniter. This igniter is fitted onto the
apparatus.
-Carefully read the "operating instructions" provided by the lamp manufacturer.
-Immediately replace the lamp if damaged or deformed by heat.
• Battery
This product contains a rechargeable lead-acid battery. To preserve the environment, please dispose
the battery at the end of its life according to the regulation in force.
SAFETY INFORMATION
The products referred to in this manual conform to the European Community Directives to which
they are subject:
•Low Voltage 2014/35/EU
•Electromagnetic Compatibility 2014/30/EU
Pb
12m
t 100Ў
c
t 38Ў
a
2
www.lightsky.com.cn

TECHNICAL INFORMATION
3
Color Wheel
(please refer to the actual material)
Gobo Wheel
(please refer to the actual material)
● Lamp:
◎ Brand:SIRIUS HRI 230 OSRAM
- Lamp power: 230W
- Colour temperature 8000K
- Average life 2000h
● IP set
-Automatic charging battery,IP could be set without
electricity.
● Software upgrade
-Insert USB upgrade software.
● Wash effect
-Adjustable wash effects angle
● IP set
-Automatic charging battery,IP could be set without
electricity.
● Features
-Remote control lamp’s switch function,display light and
lamp’s using time,automaticallay adjust cooling-fan’s
speed,Drop power when strobe lens.
● IP20 protection rating
- Protected against the entry of solid bodies larger than
12mm.
- No protection against the entry of liquids.
● Safety Devices
- Bipolar circuit breaker with thermal protection.
- Automatic break in power supply in case of overheating
or failed operation of cooling system.
● Cooling
Forced ventilation with axial fans.
● Structure
Heat-proof plastic+module pressing alloy materials.
● CE Marking
- In conformity with the European Union Low Voltage.
- Directive 2014/35/EU and Electromagnetic
compatibility Directive 2014/30/EU.
● Two side handles for transportation.
● Device locking PAN and TILT mechanisms for
transportation and maintenance.
◎ Brand:SIRIUS HRI 330W XL OSRAM
- Lamp power: 330W
- Colour temperature 7500K
- Average life 1500h
● Motors:
-12 Ultra-quiet motor
● Inputs:
-DMX 512
● Color
-14 colors+white
● Gobo
-white+11Gobo+3 animation range
● Strobe
-Double lens strobe(0.5-9 times/second)
● Dimmer
-0-100% linear adjustment
● Prism
-8 prism+16 doubie Prism + multi combination
● Focus and Lens
-High precision optical lens
● Wash effect
-Adjustable wash effects angle
White Dark
red
Orange
Aquamarine
Dark
green
Green
Lavender
Pink
Yellow
Magenta
Cyan
Dark
blue
CTB
CTO1
CTO2
F230Ⅱ 、F330Ⅱ、HP350

4
0 1 2 3 4 5
5 4 3 2 1
10m(32 9 ) 20m(65 7 ) 30m(98 4 ) 40m(131 2 )
0.44m(1 5 ) 0.87m(2 9 ) 1.3m(4 2 ) 1.75m(5 8 )
0m
0m
2.5°
165000(15335) 37200(3457) 16100(1496) 5600(520)
Lux(fc)
50m(164 )
2.18m(7 1 )
9400(874)
2°
0.35m(1 1 ) 0.7m(2 3 ) 1.0m(3 3 ) 1.4m(4 7 )
0m 1.7m(5 6 )
Distance m(ft in)
Diameter 5％ m(ft in)
Diameter 50％ m(ft in)
F230Ⅱ Distance,spot diameter and illumination diagram
Standard(2.5°)
Lamp total output:9500 lumens
SIRIUS HRI 230 OSRAM
www.lightsky.com.cn

5
0 1 2 3 4 5
5 4 3 2 1
10m(32 10 ) 20m(65 7 )
0.4m(1 4 ) 0.8m(2 7 )
0m
0m
2. 3°
380000(35316) 99000(9201) 44000(4089) 17300(1608)
30m(98 4 ) 40m(131 2 )
1.2m(3 11 )
Lux(fc)
2.05m(6 9 )
24200(2249)
50m(164 )
1.65m(5 5 )
0m 0.3m(1 ) 0.6m(2 ) 0.9m(2 11 ) 1.2m(3 11 ) 1.5m(4 11 )
Distance m(ft in)
Diameter 10％ m(ft in)
Diameter 50％ m(ft in)
1. 8°
F330Ⅱ Distance,spot diameter and illumination diagram
Standard(2.3°)
Lamp total output:15000 lumens
SIRIUS HRI 330W XL OSRAM

6
F230Ⅱ F330Ⅱ
230W
12
0-2.5°0-2.3°
14CH/16CH/16CH PLUS
Prism macro
11 Gobo + 1 white + 3 animation range
8 Prism+16 double Prism+Prism combination
17.5kg 18.8kg
400mm×345mm×570mm
19.9kg 21.2kg
380mm×280mm×477mm
380m×280mm×529mm
865mm×470mm×740mm
69kg 71.8kg
345W
330W
450W
www.lightsky.com.cn

Body Size---Fig 2
7
F230 Ⅱ S E RIES
F330 Ⅱ S E RIES
370
335
235
380
275
280
456
120
477
379
285
166
power cord
335
235
155 188
380
275
280
529
424
120
336
483
377

Installing the projector- Fig. 3
The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WARNING:with the exception of when the projector is positioned on the floor, the safety rope must be fitted.
This must be securely fixed to the support structure of the projector and then connected to the fixing point at
the centre of the base.
8
Safety rope
Safety rope
www.lightsky.com.cn

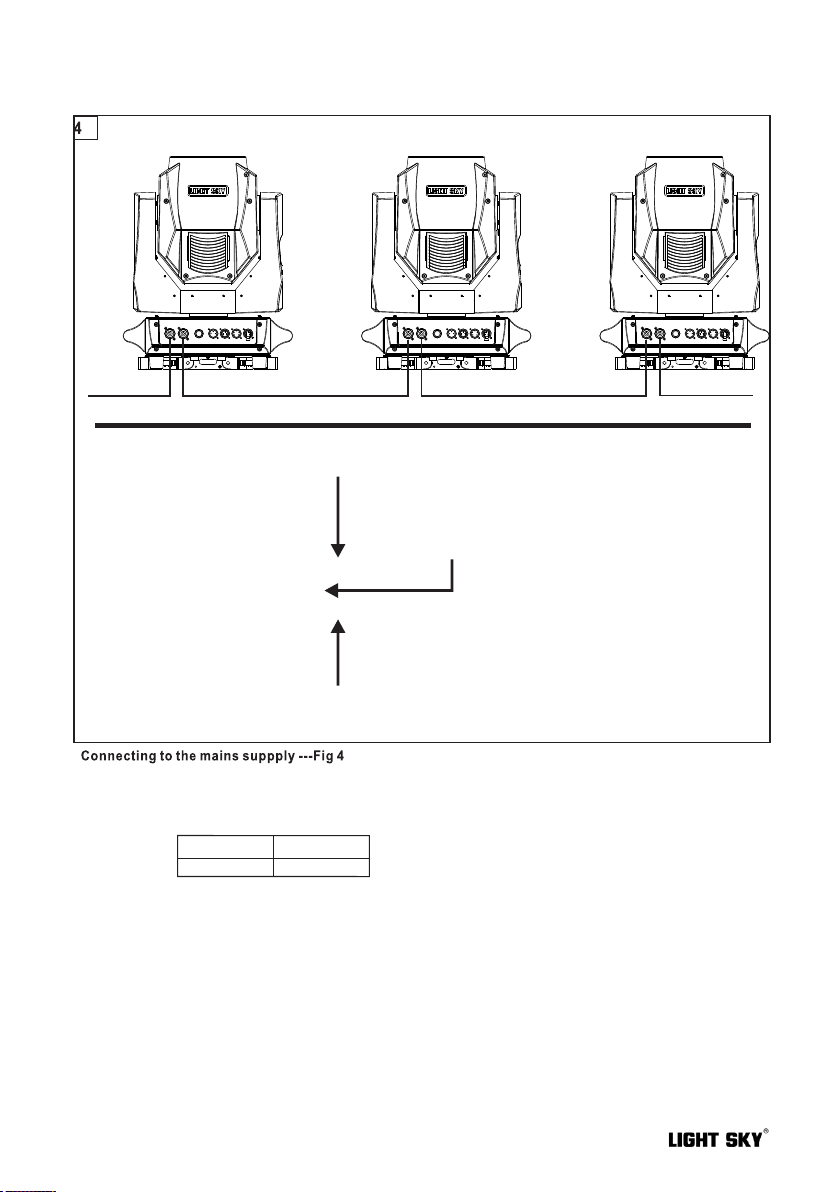

power in out power end
out in in
● The items can’t be more than 2-3pcs under series, specifically as
follows:
The L terminal is connected with the brown line.
The N terminal is connected with the blue line.
● After doing the above operation and making sure all the devices had been
installed with natural operate, press the power switch to check whether every
-thing is working normally.
L
NGround
● Connection to the electricty mains must be carried out by a qualified electrical
installer.
9
3pcs
F230Ⅱ F330Ⅱ
2pcs

Connecting to the control signal line (DMX) - Fig. 5
◎ Please use the round 3 or 5-pin XLR plugs &sockets offered by menu facture to connect the first
projector's output to the second projector' input and connect the second projector's output to the
third projector's input. And in the same way for the rest,eventually connect the last projector's
output,all the projectors are together.
◎The projectors's control signal output or input by using the 3 or 5-pin XLR pug and socket.If need to
lengthen the communication cable,please make sure the both side of 3 or 5-pin plug is one to one .
(one to one,two to two,three to three).Otherwise,the communication cable will be interrupted.The
communicate cable is 2-cord screened cable 75¦ resistance with each core is at least a 0.5mm
diameter.(Caution:All the inside leading wire of 3 or 5-pin XLR plug couldn't touch each other or
plinth).
◎Recommend to use the DMX signal terminator for the installation to avoid the electronic noise dama
-ge the digital control signal.Simply speaking,DMX terminator is an XLR connector with a 120¦ 1/2W
resistor connected across pin 2 and 3.Which is then plugged into the output socket on the last projec
-tor in the chain.Refer to the connection.
CONTROL PANEL
Press the switch. The projector starts resetting the effects. At the same time, the following
information scrolls on the display :(please refer to the actual material)
LCD seriesЈ
PROFESSIONAL SHOW LIGHTING
DMX512 in
out signal end out in in
USB
Display Up arrowhead:page up
Down arrowhead:page down
Left arrowhead:reduce
Right arrowhead:increase
Enter:OK function
Exit:in the choice screen
DMX:
001 DMX Address Information Personal Manual control
Service Lamp Language Reversal
www.lightsky.com.cn 10

MENU SETTING(V1.0)
11
DMX Address
Main menu
Information
→
→
Fan speed/Voltag
Return(ESC)
Address:001-512
System version
Channel mode
Auto lamp on
RDM UID
Lamp hours
Temperature
Ⅰ menu
DMX live
→
→
→
→
→
→
→
→
Standard(16CH)
Simple(14CH)
16CH PLUS
Total:** * * (h)
Lamp open:****(h)
Board:***.*
Undistributed
Fan1:**.*V
Fan2:**.*V
Fan1:****RPM
Fan2:**** RPM
Fan3:****RPM
1.Colour(***)
2.Shutter(***)
3.Dimmer(***)
4.Gobo(***)
5.Prism(***)
6.PrismRota.(***)
7.PrismMacro(***)
8.Frost(***)
9.Focus(***)
10.Pan(***)
11.Pan Fine(***)
12.Tilt(***)
13.Tilt Fine( * **)
14.Function(***)
15.Reset(***)
16.LampControl(***)
XY:V*.**
10M:V*.**
DIS Board:V*.**
OFF
ON
Ⅱ menu Ⅲ menu

12
www.lightsky.com.cn
Manual control
Main menu
Personal
→
→Display
Return(ESC)
Channel control
P/T invert
Reset
Ⅰ menu
→
→
→
→
Reversal
Back Light
Backlight blink
Return(ESC)
Return(ESC)
Test P/T
Pan invert
Tilt invert
Language
1.Colour(***)
2.Shutter(** * )
3.Dimmer( ***)
4.Gobo(*** )
5.Prism(***)
6.PrismRota.(***)
7.PrismMacro(***)
8.Frost(** * )
9.Focus(***)
10.Pan(***)
11.Pan Fine(* * * )
12.Tilt(* * *)
13.Tilt Fine(***)
14.Function(***)
15.Reset(* * *)
16.LampControl(***)
System reset
Pan/Tilt reset
Head motor reset
Ⅱ menu
→
→
→
→
→
→
English(英文)
Chinese(中文)
Normal
Rota.180
Open
Auto close(15s)
ON
OFF
STEP ***
OFF
OFF
ON
ON
Ⅲ menu

13
Language
Reversal
Main menu
Lamp
Service →
→
→
→
On
English
Chinese
Rota.180
Calibration
Return(ESC)
Error list
Return(ESC)
Off
Normal
Factory
Test
Ⅰ menu
→
→
→
Test effect
Test all
Time clean
Return(ESC)
Return(ESC)
Developer
Firmware update
WIFI ON/OFF
Return(ESC)
Pan
Tilt
Dimmer1
Dimmer2
Focus1
Focus2
Colour
Stat.Gobo
Prism1
Prism2
PrismRota.
Frost
Defualt
Ⅱ menu
000-255
000-255
000-255
000-255
000-255
000-255
000-255
000-255
000-255
000-255
000-255
000-255
→
→
→
STEP ***
STEP ***
Total
La m p o pen
Ⅲ menu

14
CHANNEL FUNCTION(V1.0)
CHANNEL table (standard 16CH)
www.lightsky.com.cn
Channe DMX Percentage Function
Colour
0-4
5-8
9-12
13-17
18-21
22-25
26-29
30-34
35-38
39-42
43-46
47-51
52-55
56-59
60-63
64-68
69-72
77-81
82-85
86-89
90-93
94-98
99-102
103- 1 0 6
73-76
107- 1 1 0
111- 1 1 5
116- 1 1 9
120- 1 2 3
124- 1 2 7
128- 1 9 1
192- 2 5 5
0-1.56
1.96-3.14
3.53-4.71
5.10-6.67
7.06-8.24
8.63-9.80
10.2-11.4
11.8-13.3
13.7-14.9
15.3-16.5
16.9-18.0
18.4-20.0
20.4-21.6
22.0-23.1
23.5-24.7
25.1-26.7
27.0-28.2
28.6-29.8
30.2-31.8
32.2-33.3
33.7-34.9
35.3-36.5
36.9-38.4
38.8-40.0
40.4-41.6
42.0-43.1
43.5-45.1
45.5-46.7
47.1-48.2
48.6-49.8
50.2-74.9
75.3-100
White
White+Red
Red
Red+Orange
Orange
Orange+Aquamarine
Aquamarine+Green
Green
Green+Light Green
Ligh t G r een
Light Green+Lavender
Lavender
Lavender+Pink
Pink
Pink+Yellow
Yellow
Yell o w +Mag e nta
Magenta
Magenta+Cyan
Cyan
Cyan+CTO2
CTO2
CTO2+CTO1
CTO1
CTO1+CTB
CTB
CTB+Dark B l ue
Dark B l u e
Dark Blue+White
CCW，Fa s t→S low Ro t atio n
CW，Slo w→F a st Rot a tion
Aquamarine
Strobe
0-3
104-107
108-157
158-207
208-212
4-103
0-1.2
40.8-42.0
42.4-61.6
62.0-81.2
81.6-83.1
1.6-40.4
Closed
Slow-Fast Strobe
Open
Open
1
2Pulsation slow-fast, fast off,slow open
Pulsation slow-fast, fast open,slow off
213-251
252-255
Random Slow-Fast Strobe
Open
83.5-98.4
99.8-100

15
0-2553
Dimmer
0-100
GOBO
0-3
4-7
8-11
12-1 5
16-19
20-23
24-27
28-31
32-35
36-39
40-43
44-47
48-51
52-55
56-59
60-73
88-101
102-115
116-129
130-143
74-87
144-157
158-171
172-185
186-199
200-213
214-227
228-241
242-255
0-1.2
1.6-2.7
3.1-4.3
4.7-5.9
6.3-7.5
7.8-9.0
9.4- 1 0 .6
11.0-12.2
12.5-13.7
14.1-15.3
15.7-16.9
17.3-18.4
18.8 - 2 0.0
20.4-21.6
22.0-23.1
23.5-28.6
34.4-39.6
40.0-45.1
45.5-50.6
51.0-56.1
29.0-34.1
56.5-61.6
62.0-67.1
67.5-72.6
72.9-78.0
78.4-83.5
83.9-89.0
89.4-94.5
94.9-100
4
White
Gobo1
Gobo2
Gobo3
Gobo4
Gobo5
Gobo6
Gobo7
Gobo 2 S h ake Sl o w-Fa s t Spee d
Gobo 3 S h ake Sl o w-Fa s t Spee d
Gobo 4 S h ake Sl o w-Fa s t Spee d
Gobo 5 S h ake Sl o w-Fa s t Spee d
Gobo 6 S h ake Sl o w-Fa s t Spee d
Gobo 7 S h ake Sl o w-Fa s t Spee d
Gobo 8 S h ake Sl o w-Fa s t Spee d
Gobo9
Gobo 1 0
Gobo 1 1
Gobo12
Gobo13
Gobo14
Gobo 1 S h ake Sl o w-Fa s t Spee d
Gobo 9 S h ake Sl o w-Fa s t Spee d
Gobo 1 0 S hake S l ow-F a st Spe e d
Gobo 1 1 S hake S l ow-F a st Spe e d
Gobo 1 2 S hake S l ow-F a st Spe e d
Gobo 1 3 S hake S l ow-F a st Spe e d
Gobo 1 4 S hake S l ow-F a st Spe e d
Prism
Gobo8
0-63
64-127
128-191
192-255
0-24.7
25-49.8
50.2-74.9
75.3-100
Unused Range
Prism1
Prism2
Pris m 1 +Pri s m2
5
6
Prism Rotation
Unused Range
0 0
Channe DMX Percentage Function
1-63
128-191 50.2-74.9
25.1-49.8
0.4-24.7 0-180°rotation
CCW，Fa s t → S low
CW，Slo w → F a st
64-127

16
7
6
8
9
10
11
12
13
14
15
16
192-207
208-223
224-239
240-255 94.1-100
87.8-93.7
81.6-87.5
75.3-81.2 Slow → Fast Rotation，90 degrees back and forth
Slow → Fast Rotation，180 degrees back and forth
Slow → Fast Rotation，270 degrees back and forth
Slow → Fast Rotation，360 degrees back and forth
Prism Macro
0-15
16-55
56-95
96-135
136-175
176-215
216-255
0-5.9
6.3-21.6
22.0-37.3
37.6-52.9
53.3-68.6
69.0-84.3
84.7-100
0-255 0-100
0-100
0-100
0-100
0-100
0-100
0-100
0-255
0-255
0-255
0-255
0-255
0-255
Unus e d R ange
From fast to slo w，8 p r ism fr e e swit c h
From fast to slow，8 prism+16 prism at the same time
free switch
8 prism + 16 prism to free switch from fast to slow
Frost
Focus
Pan
Pan Fine
TILT
TILT Fine
From fast to slow，8 prism and the 16 prism interlock
switch
From fast to slo w，1 6 p rism f r ee swi t ch
16 prism + 8 prism to free switch from fast to slow
Unused Range
Reset
Lamp control
128-255
77-127
26-76
0-25
0-25
26-100
101-255 Lamp ON
Lamp OFF
PAN/TITL Reset
Unus e d R ange
Unus e d R ange
Effe c t Reset
Comp l e te Reset
Channe DMX Percentage Function
www.lightsky.com.cn
0-9.8
10.2-29.8
30.2-49.8
50.2-100
0-9.8
10.2-39.2
39.6-100

17
CHANNEL table (steamline 14CH)
Channe DMX Percentage Function
Colour
0-4
5-8
9-12
13-17
18-21
22-25
26-29
30-34
35-38
39-42
43-46
47-51
52-55
56-59
60-63
64-68
69-72
77-81
82-85
86-89
90-93
94-98
99-102
103- 1 0 6
73-76
107- 1 1 0
111- 1 1 5
116- 1 1 9
120- 1 2 3
124- 1 2 7
128- 1 9 1
192- 2 5 5
0-1.56
1.96-3.14
3.53-4.71
5.10-6.67
7.06-8.24
8.63-9.80
10.2-11.4
11.8-13.3
13.7-14.9
15.3-16.5
16.9-18.0
18.4-20.0
20.4-21.6
22.0-23.1
23.5-24.7
25.1-26.7
27.0-28.2
28.6-29.8
30.2-31.8
32.2-33.3
33.7-34.9
35.3-36.5
36.9-38.4
38.8-40.0
40.4-41.6
42.0-43.1
43.5-45.1
45.5-46.7
47.1-48.2
48.6-49.8
50.2-74.9
75.3-100
White
White+Red
Red
Red+Orange
Orange
Orange+Aquamarine
Aquamarine+Green
Green
Green+Light Green
Ligh t G r een
Light Green+Lavender
Lavender
Lavender+Pink
Pink
Pink+Yellow
Yellow
Yell o w +Mag e nta
Magenta
Magenta+Cyan
Cyan
Cyan+CTO2
CTO2
CTO2+CTO1
CTO1
CTO1+CTB
CTB
CTB+Dark B l ue
Dark B l u e
Dark Blue+White
CCW，Fa s t→S low Ro t atio n
CW，Slo w→F a st Rot a tion
Aquamarine
Strobe
0-3
104-107
108-157
158-207
208-212
4-103
0-1.2
40.8-42.0
42.4-61.6
62.0-81.2
81.6-83.1
1.6-40.4
Closed
Slow-Fast Strobe
Open
Open
1
2Pulsation slow-fast, fast off,slow open
Pulsation slow-fast, fast open,slow off
213-251
252-255
Random Slow-Fast Strobe
Open
83.5-98.4
99.8-100

0-2553
Dimmer
0-100
GOBO
0-3
4-7
8-11
12-1 5
16-19
20-23
24-27
28-31
32-35
36-39
40-43
44-47
48-51
52-55
56-59
60-73
88-101
102-115
116-129
130-143
74-87
144-157
158-171
172-185
186-199
200-213
214-227
228-241
242-255
0-1.2
1.6-2.7
3.1-4.3
4.7-5.9
6.3-7.5
7.8-9.0
9.4- 1 0 .6
11.0-12.2
12.5-13.7
14.1-15.3
15.7-16.9
17.3-18.4
18.8 - 2 0.0
20.4-21.6
22.0-23.1
23.5-28.6
34.4-39.6
40.0-45.1
45.5-50.6
51.0-56.1
29.0-34.1
56.5-61.6
62.0-67.1
67.5-72.6
72.9-78.0
78.4-83.5
83.9-89.0
89.4-94.5
94.9-100
4
White
Gobo1
Gobo2
Gobo3
Gobo4
Gobo5
Gobo6
Gobo7
Gobo 2 S h ake Sl o w-Fa s t Spee d
Gobo 3 S h ake Sl o w-Fa s t Spee d
Gobo 4 S h ake Sl o w-Fa s t Spee d
Gobo 5 S h ake Sl o w-Fa s t Spee d
Gobo 6 S h ake Sl o w-Fa s t Spee d
Gobo 7 S h ake Sl o w-Fa s t Spee d
Gobo 8 S h ake Sl o w-Fa s t Spee d
Gobo9
Gobo 1 0
Gobo 1 1
Gobo12
Gobo13
Gobo14
Gobo 1 S h ake Sl o w-Fa s t Spee d
Gobo 9 S h ake Sl o w-Fa s t Spee d
Gobo 1 0 S hake S l ow-F a st Spe e d
Gobo 1 1 S hake S l ow-F a st Spe e d
Gobo 1 2 S hake S l ow-F a st Spe e d
Gobo 1 3 S hake S l ow-F a st Spe e d
Gobo 1 4 S hake S l ow-F a st Spe e d
Prism
Gobo8
0-63
64-127
128-191
192-255
0-24.7
25-49.8
50.2-74.9
75.3-100
Unused Range
Prism1
Prism2
Pris m 1 +Pri s m2
5
6
Prism Rotation
Unused Range
0 0
Channe DMX Percentage Function
1-63
128-191 50.2-74.9
25.1-49.8
0.4-24.7 0-180°rotation
CCW，Fa s t → S low
CW，Slo w → F a st
64-127
18
www.lightsky.com.cn

19
7
6
8
9
10
11
12
13
192-207
208-223
224-239
240-255 94.1-100
87.8-93.7
81.6-87.5
75.3-81.2 Slow → Fast Rotation，90 degrees back and forth
Slow → Fast Rotation，180 degrees back and forth
Slow → Fast Rotation，270 degrees back and forth
Slow → Fast Rotation，360 degrees back and forth
Prism Macro
0-15
16-55
56-95
96-135
136-175
176-215
216-255
0-5.9
6.3-21.6
22.0-37.3
37.6-52.9
53.3-68.6
69.0-84.3
84.7-100
0-255 0-100
0-100
0-100
0-100
0-100
0-100
0-255
0-255
0-255
0-255
0-255
Unus e d R ange
From fast to slo w，8 p r ism fr e e swit c h
From fast to slow，8 prism+16 prism at the same time
free switch
8 prism + 16 prism to free switch from fast to slow
Frost
Focus
Pan
Pan Fine
TILT
TILT Fine
From fast to slow，8 prism and the 16 prism interlock
switch
From fast to slo w，1 6 p rism f r ee swi t ch
16 prism + 8 prism to free switch from fast to slow
Channe DMX Percentage Function
14
Function
36-40
31-35
26-30
0-25
41-180
181-200
221-255 Lamp ON
Lamp OFF
PAN/TITL Reset
Unused Range
Unused Range
Effect Reset
Complete Reset
201-220 Unused Range
0-9.8
10.2-11.8
12.2-13.7
14.1-15.7
16.1-70.6
71.0-78.4
78.8-86.3
86.7-100
