Lightolier D03 User manual

Lightolier is a Philips group brand
Architectural Decorative Vetro Downlight D03
Page 1 of 2 Evolution, Low Voltage
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • C1108
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Features
1. Decorative Element: Angled hand blown triplex glass carefully
proportioned to each aperture size. Glass is gently and evenly illuminated for
clean brightness recognition.
2. Die Cast Finish Ring: Aluminum Die Cast finish ring with crisp 90 degree
edges conceals all fasteners for a clean finished appearance.
3. Integral Reflector: 16 ga. aluminum, 50° visual cutoff to lamp and lamp
image. Decorative Element is mechanically attached to reflector via die cast
ring. Reflector is specular clear for best performance and aesthetics.
4. Cover Glass: 3" Evolution contains high temperature soft focus lens. 4"
Evolution contains high temperature perimeter frost.
5. Trim Kit: For 3" and 4" Evolution, trim kit, reflector and decorative element
ship complete.
6. Frame-In Kit: Specified separately. See Frame-In Kit Specification Sheet for
details.
Mechanical
Decorative element is mechanically secured to the die cast finish ring and the
integral reflector from the factory.
Labels
cULus (Damp Location)
C
B
A
2
1
Decorative Element/Trim Kit
Catalog No.
Frame-In Kit Lamping Dimensions
A B C
3" Evolution D3MR03 C3LV; C3AICLV; C3ALV; C3LVE1; C3LVE2; C3ALVE1; C3AICLVE1; C3ALVE2 50W MR16 3 5/8" 4 1/4" 2"
4" Evolution D4MR03 C3LV; C4ALV; C4AICLV 50W MR16 5" 5 5/8" 2 1/4"
Complete Fixture consists of Decorative Element/Trim-Kit + Frame-In Kit. Each sold seperately.
2 Piece Ordering System, Example: D3MR03 + C3LV

Lightolier is a Philips group brand
Job Information Type:
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • C1108

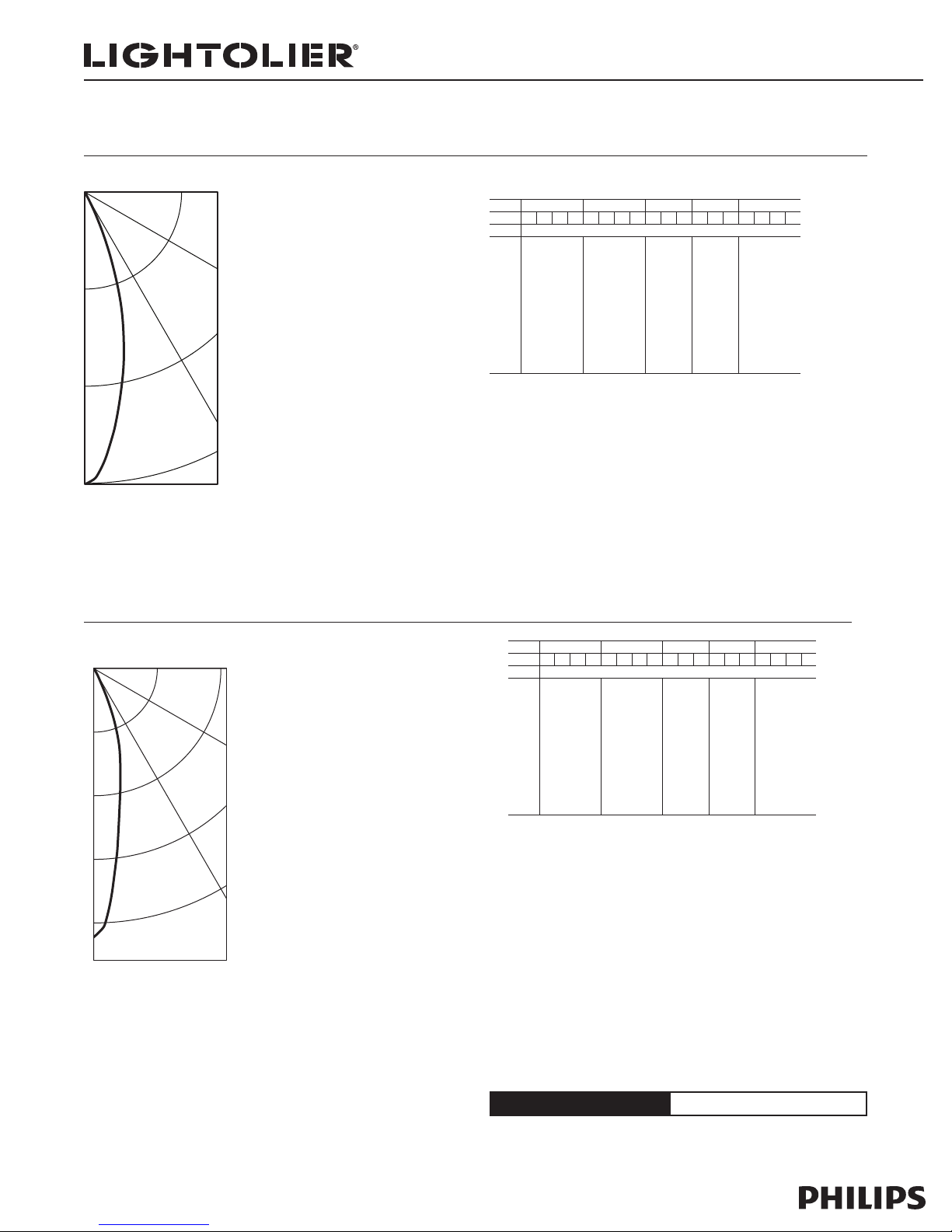

Architectural Decorative Vetro Downlight D03
Page 2 of 2 Evolution, Low Voltage
1000
1500
0°
30°
60°
90°
500
C3MR03 /NFL
Zonal Lumens and Percentages
Zone Lumens % Lamp %Luminaire
0-30 448 56.03 89.19
0-40 461 57.63 91.74
0-60 482 60.30 96.00
0-90 502 62.82 100.00
40-90 41 5.19 8.26
60-90 20 2.51 4.00
90-180 0.00 .00
0-180 502 62.82 100.00
** Efciency = 57.5% **
Certified test report no. 3568FR
Computed by LSI program **TEST-LITE**
SC = .5
Prepared For:
Lightolier
Fall River, MA
Tested According to IES Procedures. Test Distance Exceeds Five
Times the Greatest Luminous Opening of Luminaire.
Coefficients of Utilization
Ceiling 80% 70% 50% 30% 10%
Wall 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance = 20%
Room Cavity Ratio
0.75 .75 .75 .75 .73 .73 .73 .73 .70 .70 .70 .67 .67 .67 .64 .64 .64 .63
1.72 .71 .70 .68 .71 .70 .68 .67 .67 .66 .65 .65 .64 .63 .63 .62 .62 .61
2.70 .67 .66 .64 .68 .66 .65 .63 .64 .63 .62 .63 .62 .61 .61 .60 .59 .58
3.68 .65 .62 .61 .66 .64 .62 .60 .62 .61 .59 .61 .60 .58 .60 .59 .58 .57
4.66 .62 .60 .58 .65 .62 .60 .58 .61 .59 .57 .59 .58 .57 .58 .57 .56 .55
5.64 .60 .58 .56 .63 .60 .57 .56 .59 .57 .55 .58 .56 .55 .57 .55 .54 .54
6.62 .59 .56 .54 .61 .58 .56 .54 .57 .55 .54 .57 .55 .53 .56 .54 .53 .52
7.61 .57 .54 .52 .60 .56 .54 .52 .56 .54 .52 .55 .53 .52 .54 .53 .52 .51
8.59 .55 .53 .51 .59 .55 .52 .51 .54 .52 .51 .54 .52 .50 .53 .52 .50 .50
9.58 .54 .51 .50 .57 .53 .51 .50 .53 .51 .49 .53 .51 .49 .52 .50 .49 .48
10 .56 .52 .50 .48 .56 .52 .50 .48 .52 .50 .48 .51 .49 .48 .51 .49 .48 .47
Determined in Accordance with Current IES Published Procedures
Luminaire Input Watts = 52.0
Calculite 3” Dia. Recessed Vetro Downlight,
Cat.# C3MRDCLW/D3MR03 50W G.E. MR16 NFL (25 Deg.) Lamp.
Lumen Rating = 800 LMS.Lightech XFMR LET-75
Candlepower Summary
Angle Mean CP Lumens
01505
51350 126
10 1065
15 780 220
20 474
25 188 103
30 38
35 14 13
40 15
45 14 11
50 13
55 12 11
60 10
65 9 9
70 7
75 6 7
80 6
85 4 5
90 3
1200
1800
2400
0°
30°
60°
90°
600
C4MR03 /NFL
Certified test report no. 33604FR
Computed by LSI program **TEST-LITE**
SC = .4
Prepared For:
Lightolier
Fall River, MA
Tested According to IES Procedures. Test Distance Exceeds Five
Times the Greatest Luminous Opening of Luminaire.
Candlepower Summary
Angle Mean CP Lumens
02534
52068 192
10 1389
15 971 281
20 638
25 249 140
30 78
35 19 21
40 15
45 15 12
50 14
55 13 12
60 12
65 11 11
70 9
75 7 8
80 6
85 6 6
90 5
Calculite 4” Dia. Vetro Recessed Downlight Cat.# D4MR03
50W G.E. MR16 NFL (25 Deg.) Lamp. Lumen Rating = 800 LMS.
Lightech XFMR LET-75
Zonal Lumens and Percentages
Zone Lumens % Lamp %Luminaire
0-30 614 76.75 89.89
0-40 634 79.35 92.93
0-60 658 82.29 96.38
0-90 683 85.39 100.00
40-90 48 6.04 7.07
60-90 24 3.09 3.62
90-180 0.00 .00
0-180 683 85.39 100.00
** Efciency = 85.4% **
Coefficients of Utilization
Ceiling 80% 70% 50% 30% 10%
Wall 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance = 20%
Room Cavity Ratio
01.021.021.021.02 .99 .99 .99 .99 .95 .95 .95 .91 .91 .91 .87 .87 .87 .85
1.98 .96 .95 .93 .96 .95 .93 .92 .91 .90 .89 .88 .87 .86 .85 .84 .84 .82
2.95 .92 .89 .87 .93 .90 .88 .86 .88 .86 .84 .85 .84 .83 .83 .82 .81 .80
3.92 .88 .85 .83 .91 .87 .85 .82 .85 .83 .81 .83 .81 .80 .82 .80 .79 .78
4.90 .85 .82 .80 .88 .84 .82 .79 .83 .80 .78 .81 .79 .77 .80 .78 .77 .76
5.87 .82 .79 .76 .86 .82 .78 .76 .80 .78 .76 .79 .77 .75 .78 .76 .74 .73
6.85 .80 .77 .74 .84 .80 .76 .74 .78 .76 .74 .77 .75 .73 .76 .74 .73 .72
7.83 .78 .74 .72 .82 .77 .74 .72 .76 .73 .72 .75 .73 .71 .75 .72 .71 .70
8.81 .76 .72 .70 .80 .75 .72 .70 .74 .72 .70 .74 .71 .69 .73 .71 .69 .68
9.79 .74 .71 .68 .78 .73 .70 .68 .73 .70 .68 .72 .70 .68 .71 .69 .68 .67
10 .77 .72 .69 .67 .77 .72 .69 .67 .71 .68 .66 .71 .68 .66 .70 .68 .66 .65
Determined in Accordance with Current IES Published Procedures
Luminaire Input Watts = 52.0
