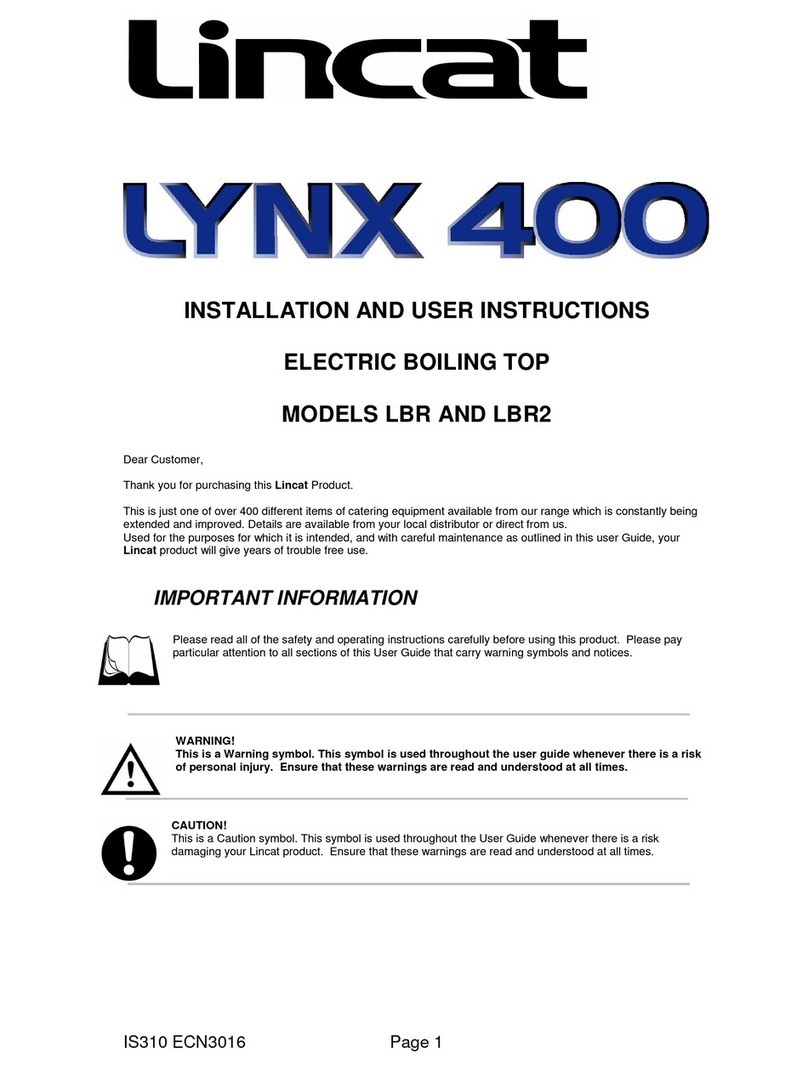

Lincat Lynx 400LBR Operating instructions

IS310 ECN3016
User and Installation Instructions
Lynx 400 Electric Boiling Tops
LBR and LBR2

IS310 ECN3016 2
Dear Customer,
Thank you for purchasing this Lincat Product.
This is just one of over 450 different items of catering equipment available from our range which is constantly being
extended and improved. Details are available from your local distributor or direct from us.
Used for the purposes for which it is intended, and with careful maintenance as outlined in this user Guide, your
Lincat product will give years of trouble free use.
IMPORTANT INFORMATION
Please read all of the safety and operating instructions carefully before using this product. Please pay
particular attention to all sections of this User Guide that carry warning symbols and notices.
WARNING!
This is a Warning symbol. This symbol is used throughout the user guide whenever there is a risk
of personal injury. Ensure that these warnings are read and understood at all times.
CAUTION!
This is a Caution symbol. This symbol is used throughout the User Guide whenever there is a risk
damaging your Lincat product. Ensure that these warnings are read and understood at all times.

IS310 ECN3016 3
SAFETY INSTRUCTIONS
TECHNICA
L SPECIFICATION
PACK CONTENTS
INSTALLATION
WARNING!
Basic safety precautions, including the following, should be followed to reduce the risk of personal injury.
Make sure you have read all of these instructions before switching on the unit. Keep this User Guide in
a safe place for future reference for you and your staff.
GENERAL
Do not clean the unit with a water jet.
Do not try to modify this product.
In the interest of hygiene, you should clean the product after unpacking and ensure all plastic coatings are removed
before use.
Ensure that the electrical supply cable is not damaged. If the supply cable is damaged it should be replaced by Lincat
Ltd or other suitably qualified persons, in order to avoid a hazard.
Disconnect the electric supply before servicing or undertaking any electrical maintenance.
This unit must be earthed.
Electric boiling ring (with electrical supply cable and 13 amp plug)
4 rubber feet
User guide
Guarantee card
Push rubber feet into base holes provided and ensure that the unit is installed on a sound, level work
surface, which is heat resistant e.g. stainless steel or formica. inform your personnel that the external
surfaces and base will become hot.
For safety regulations, the plug must always be accessible .
CONNECTING TO THE ELECTRICITY SUPPLY
Ensure that the voltage of your electricity supply corresponds to the serial plate details. The product is
supplied with a 13 amp plug. To replace the plug, follow these instructions:
green and yellow wire to 'E' or (Earth)
blue wire to 'N' (Neutral)
brown wire to 'L' (Live)
Model LBR LBR2
Width mm 285 565
Depth mm 400 400
Height (Hob) mm 119 119
Power Rating watts 2000 3000
Weight (net) kg 5.5 10

IS310 ECN3016 4
CLEANING AND MAINTENANCE
SERVICE INFORMATION
OPERATING INSTRUCTIONS
2
1
Fig 1 - LBR
1 Control knob
2 Green neon
Connect the unit to the electricity supply. The green neon will light up. Turn the control knob to set the desired
temperature.
CLEANING
Disconnect the unit from the electricity supply and allow to cool before starting to clean. Use a mild
detergent in hot water and a soft cloth. Do not use abrasive creams or scourers.
MAINTENANCE
Regular cleaning of the unit is recommended.
Regular maintenance is not required.
For help regarding the installation, maintenance and use of your Lincat equipment, please contact our service
department:
01522 875520
All service work, other than routine cleaning should be carried out by one of our authorised service agents. We
cannot accept responsibility for work carried out by other persons.
To ensure your service enquiry is handled as efficiently as possible, you need to have the following details available :
•Brief details of problem
•Product code, type number and serial number of unit (both on serial plate)
Lincat reserve the right to carry out any work under warranty during normal working hours, ie Monday to Friday,
08:30 a.m. – 17:00 p.m.

IS310 ECN3016 5
GUARANTEE
This unit carries a comprehensive UK twelve-month warranty. The guarantee is in addition to, and does not
diminish your statutory or legal rights.
The guarantee does not cover :
•Accidental damage, misuse (or use not in accordance with the instructions in this User Guide), or
consumable items.
•Damage due to incorrect installation, modification or unauthorised service work.
•The manufacturer disclaims any liability for incidental, or consequential damages.
