Lincat CT1 Owner's manual

IS 341 ECN 3607 Page 1 of 10
Installation, Operating and Servicing
Instructions
Electric Conveyor Toaster
CT1
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________

IS 341 ECN 3607 Page 2 of 10
CONTENTS
Important Information
2
Warnings and Precautions
3
Technical Data
3
Checklist of Enclosures
3
Installation and Commissioning
3-5
Operating Instructions
5-6
Cleaning
7
Servicing, Maintenance and Component Replacement
7
Fault Finding
7
Spare Parts List
8
Accessories
8
Service Information and Guarantee
9
IMPORTANT INFORMATION
Read these instructions carefully before using this product, paying particular
attention to all sections that carry warning symbols, caution symbols and notices.
Ensure that these are understood at all times.
WARNING!
This symbol is used whenever there is a risk of personal injury.
CAUTION!
This symbol is used whenever there is a risk of damaging your Lincat product.
NOTE:
This symbol is used to provide additional information, hints and tips.
KEEP THIS MANUAL FOR FUTURE REFERENCE

IS 341 ECN 3607 Page 3 of 10
WARNINGS AND PRECAUTIONS
This appliance must be installed, commissioned and serviced by a qualified person
in accordance with national and local regulations in force in the country of
installation.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified person.
Ensure that the plug/socket is accessible at all times.
Strip plastic coating and clean the appliance before use.
During operation parts may become hot - avoid accidental contact.
Disconnect this appliance before servicing, maintenance or cleaning.
TECHNICAL DATA
Model
Height (mm)
Width (mm)
Depth (mm)
Weight (kg)
CT1
398
410
668 (inc. toast tray)
21
CHECK LIST OF ENCLOSURES
Warranty Card
Instructions Manual
Wire feed rack
Crumb tray
Toast tray
INSTALLATION AND COMMISSIONING
This appliance must be earthed.
An equipotential bonding terminal is provided to allow cross bonding with other
equipment.

IS 341 ECN 3607 Page 4 of 10
If replacing the plug connect the terminals as follows:
Green and Yellow wire Earth E
Blue wire Neutral N
Brown wire Live L

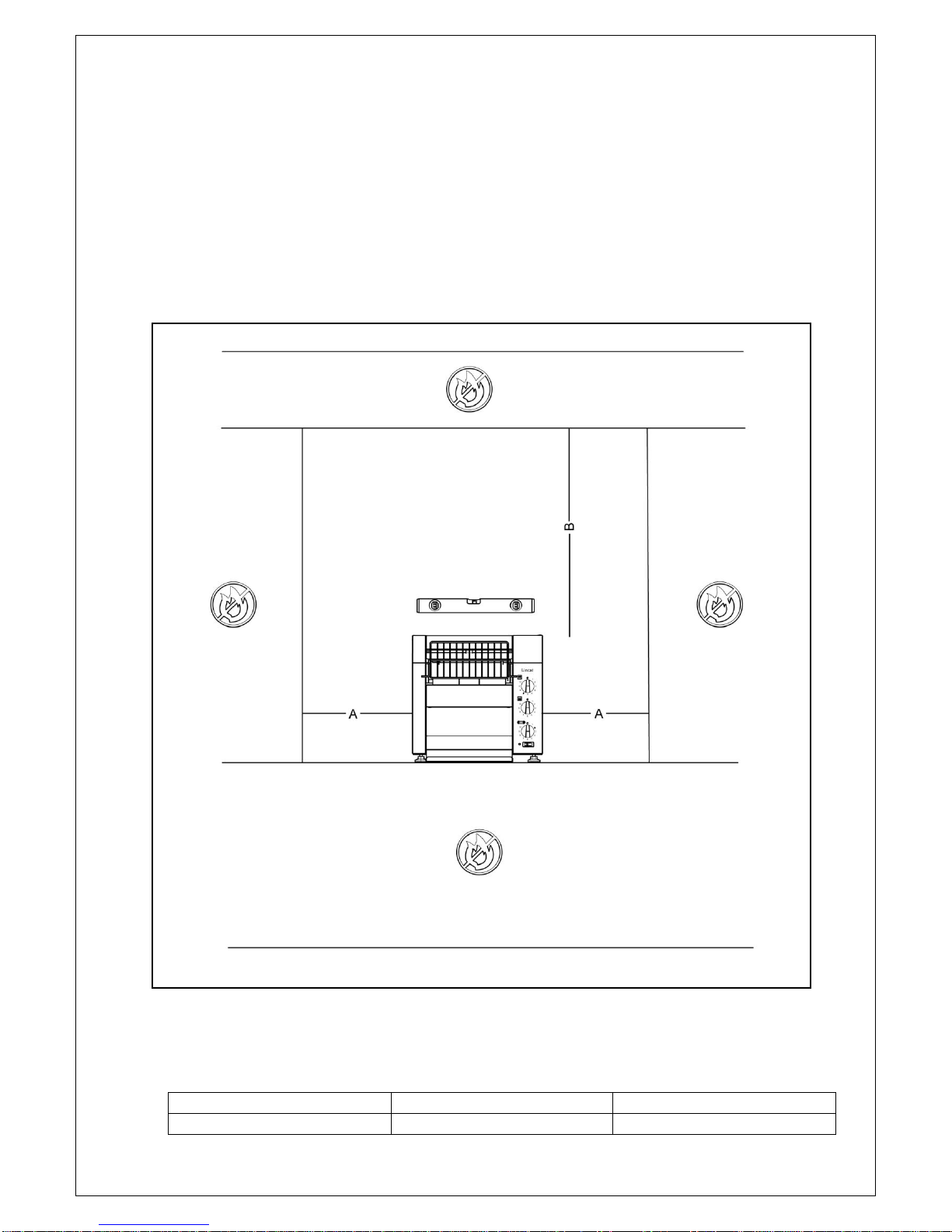

Fit feet to holes provided in base. Install this appliance on a level, heat resistant
surface ensuring all vents are unobstructed. Any partitions, walls or furniture must
be of non-combustible material. Minimum distances A 100mm B 1000mm –see
Fig 1.
Fig 1
Power Rating
Model
kW
Amps
CT1
2.4
10.5

IS 341 ECN 3607 Page 5 of 10
See Fig 2.
Pull the wire feed rack (E) forward.
Place the crumb tray (F) into the appliance.
Hook the toast tray (G) onto the appliance using two screws at the base of the
chute.
OPERATING INSTRUCTIONS
Only qualified or trained personnel should use this appliance.
Connect the appliance to the electricity supply.
See Fig 2.
Turn switch (D) on. The switch illuminates.
Set top (A) and bottom (B) element controls to the required temperature.
Set the conveyor control (C) to the required speed.
Allow 10-15 minutes for the toaster to heat up.
Feed product into toaster using wire feed rack.

IS 341 ECN 3607 Page 6 of 10
Fig 2
Adjust the temperature and conveyor speed to achieve optimum results for each type
of bread used.
Best results are obtained by using bread at least one day old.
Set the elements to a lower temperature to save energy during quieter periods.
To toast single sided products (buns etc.), set the bottom element at a higher
temperature than the top element. For stability, face flat (cut) side of product down.
This will warm but not toast the uncut side of the product.
Note that items placed on the conveyor will return upside down into the toast tray.

IS 341 ECN 3607 Page 7 of 10
CLEANING
Do not use a water jet or steam cleaner, and do not immerse this appliance.
Clean all panels with warm water and mild detergent, do not use abrasive
materials. Dry with a soft cloth.
To cool the appliance quickly, switch off both elements and turn the conveyor to low
leaving the fan running.
Do not remove crumb tray when the appliance is running as it will be hot.
To remove the feed rack, move rack to the right, gently flex the left leg free of the
fixing hole (H) and lift away. Reverse procedure to refit.
SERVICING, MAINTENANCE AND
COMPONENT REPLACEMENT
All servicing, maintenance and component replacement on this appliance should be
carried out by one of our recommended service engineers.
Please refer to the Service Help Desk number on the final page of this manual.
FAULT FINDING

IS 341 ECN 3607 Page 8 of 10
Part Number
Description
BE11
PTFE Bearing
CV02
Conveyor chain
DC08
Drive chain
DI28
Diode
EL239
Top element
EL240
Bottom element
EN10
Energy regulator
FE10
Foot
FG03
Fanguard
KN251
Control knob
MO13
Motor and fan blade
PL202
Plug and lead
RH01
Rheostat
S/R0079
Cooling fan
SP09
Sprocket –drive chain
SP75
Spindle extension –conveyor control
SW53
On/Off switch
WR05
Feed rack
TR52
Toast tray
TR53
Crumb tray
Part Number
Description
CT1/CC
Anti-tamper control cover
SPARE PARTS LIST
ACCESSORIES

IS 341 ECN 3607 Page 9 of 10
For help with the installation, maintenance and use of your Lincat equipment,
please contact our service department:
UK: 01522 875520
For non-UK customers, please contact your local Lincat dealer
All service work, other than routine cleaning should be carried out by one of our
authorised service agents. We cannot accept responsibility for work carried out by
other persons.
To ensure your service enquiry is handled as efficiently as possible, please tell us:
Brief details of the problem
Product code
All available on serial plate
Type number
Serial number
Lincat reserve the right to carry out any work under warranty, given reasonable
access to the appliance, during normal working hours, Monday to Friday, 08:30 to
17:00.
GUARANTEE
This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is
in addition to, and does not diminish your statutory or legal rights.
The guarantee does not cover:
Accidental damage, misuse or use not in accordance with the manufacturer’s
instructions
Consumable items (such as filters, glass, bulbs, slot toaster elements and door
seals.)
Damage due to incorrect installation, modification, unauthorised service work or
damage due to scale, food debris build-up, etc.
The manufacturer disclaims any liability for incidental, or consequential damages.
Attendance is based on reasonable access to the appliance to allow the authorised
technician to carry out the warranty work.
Service calls to equipment under warranty will be carried out in accordance with the
conditions of sale. Unless otherwise specified, a maximum of 15 minutes of
administrative time, not spent directly carrying out servicing work, is provided for
within the warranty. Any requirement for staff attending the call to spend greater time
than 15 minutes due to administrative requirements, such as on health and safety risk
assessments, will be chargeable at the prevailing rate.
SERVICE INFORMATION

IS 341 ECN 3607 Page 10 of 10
