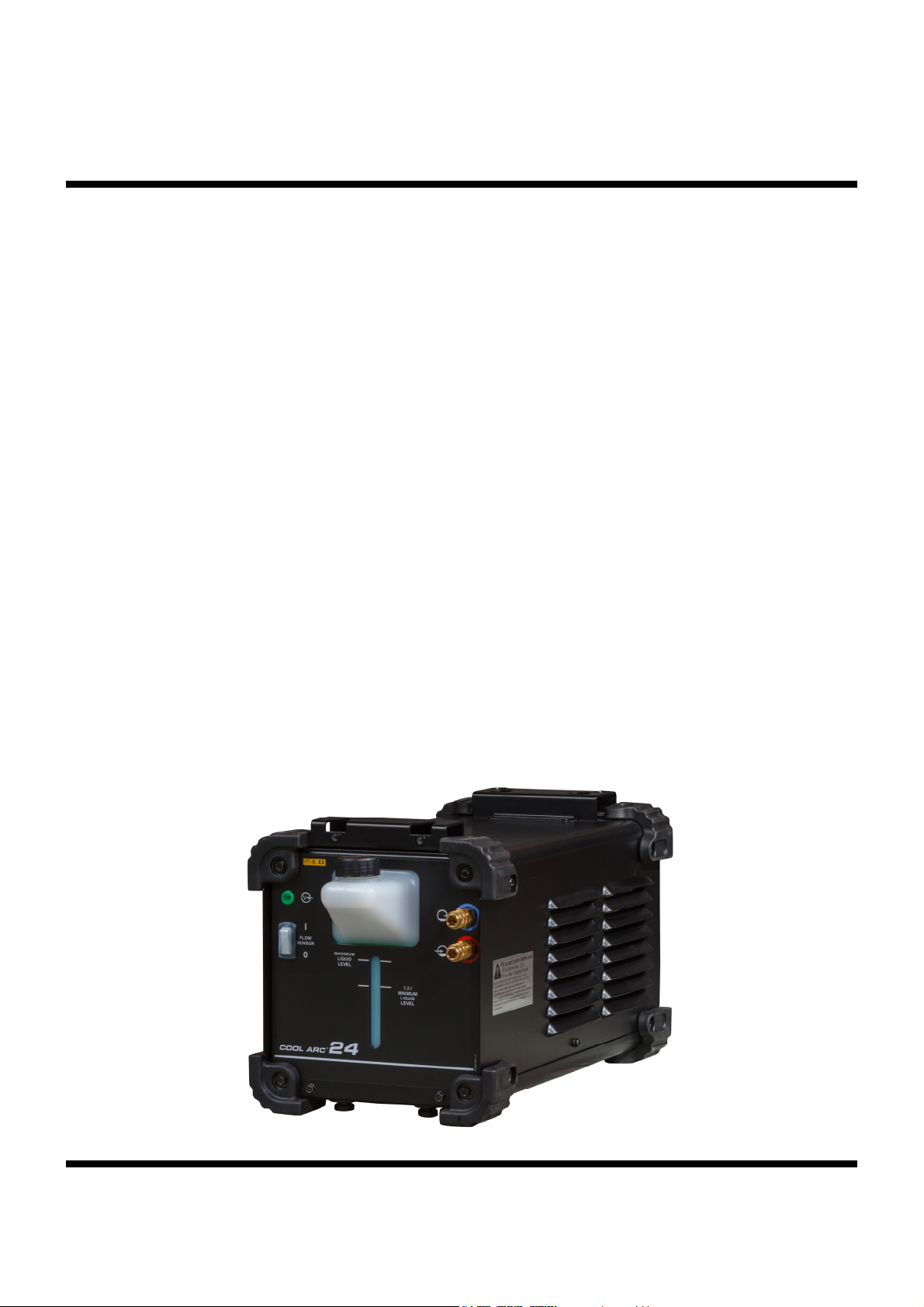

COOL ARC®24
OPERATOR’S MANUAL
ENGLISH
Lincoln Electric Bester Sp. z o.o.
ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland

English English
I
12/05
THANKS! For having chosen the QUALITY of the Lincoln Electric products.
Please Examine Package and Equipment in case of Damage. Claims for material damaged in shipment must be
notified immediately to the dealer.
For future reference record in the table below your equipment identification information. Model Name, Code &
Serial Number can be found on the machine rating plate.
Model Name:
………………...…………………………….…………………………………………………………………………………………..
Code & Serial number:
………………….……………………………………………….. …………………………………………………….……………..
Date & Where Purchased:
…………………………………………………………………... ……………………….…………………………………………..
INDEX
Technical Specifications...................................................................................................................................................... 1
Electromagnetic Compatibility (EMC).................................................................................................................................. 2
Safety.................................................................................................................................................................................. 3
Introduction ......................................................................................................................................................................... 5
Unpacking ........................................................................................................................................................................... 5
Unpacking the COOL ARC® 24........................................................................................................................................ 5
Installation on Power Source............................................................................................................................................... 5
Installation and Operator Instructions.................................................................................................................................. 6
Recommended power source.......................................................................................................................................... 6
Input Supply Connection.................................................................................................................................................. 6
Controls and Operational Features.................................................................................................................................. 7
Circulation of Coolant in the Cooler ................................................................................................................................. 8
Preparation COOL ARC®24 to Work .............................................................................................................................. 8
Filling the reservoir and water lines ................................................................................................................................. 8
Priming Pump (only first use the cooler) and Bleeding the Cooling System .................................................................... 8
Connecting the Cooling System Hoses ........................................................................................................................... 9
Transport ....................................................................................................................................................................... 10
Symbols used ................................................................................................................................................................ 10
Maintenance .................................................................................................................................................................. 10
Pump inlet strainer maintenance ................................................................................................................................... 11
Access the strainer ........................................................................................................................................................ 11
Troubleshooting............................................................................................................................................................. 12
Customer Assistance Policy .......................................................................................................................................... 13
WEEE ............................................................................................................................................................................... 14
Spare Parts ....................................................................................................................................................................... 14
REACh .............................................................................................................................................................................. 14
Authorized Service Shops Location .................................................................................................................................. 14
Electrical Schematic.......................................................................................................................................................... 14
Accessories....................................................................................................................................................................... 15

English 1 English
Technical Specifications
NAME INDEX
COOL ARC®24 K14190-1
INPUT
Input Voltage U1Input Amperes I1max
COOL ARC®24 390 Vdc 0,8 A
Frequency EMC Class
COOL ARC®24 50/60 Hz A
PARAMETERS RATING
The cooling power of flow 1liter per minute at
temperature of 25°C Maximum pressure rate
COOL ARC®24 0,87 kW 0,43 MPa
PARAMETERS O FTHE COOLER’S RESERVOIR
Maximum reservoir capacity Minimum required reservoir capacity
COOL ARC®24 2,27 liters 1,51 liters
COOLANT
COOL ARC®24 Recommended coolant FREEZCOOL - W000010167
COOL ARC®24 Do not use!!
Pre-packaged welding industry coolants. These coolants may contain oil-
based substances, which attack the plastic components of the cooler.
Once added to the cooler, these substances are impossible to purge
from the water lines and heat exchanger.
Automotive anti-freeze and conductive cooling liquids. These coolants
will damage the pump and block of the heat exchanger, affecting cooling
performance.
PHYSICAL DIMENSIONS
Weight Height Width Length
COOL ARC®24 18 kg 276 mm 246 mm 540 mm
Protection Rating Operating Humidity (t=20°C) Operating Temperature Storage Temperature
IP23 ≤90 % from -10 ºC to +40 ºC from -25 ºC to +55 ºC

English 2 English
Electromagnetic Compatibility (EMC)
11/04
This machine has been designed in accordance with all relevant directives and standards. However, it may still generate
electromagnetic disturbances that can affect other systems like telecommunications (telephone, radio, and television) or
other safety systems. These disturbances can cause safety problems in the affected systems. Read and understand this
section to eliminate or reduce the amount of electromagnetic disturbance generated by this machine.
This machine has been designed to operate in an industrial area. To operate in a domestic area it is necessary
to observe particular precautions to eliminate possible electromagnetic disturbances. The operator must install
and operate this equipment as described in this manual. If any electromagnetic disturbances are detected the
operator must put in place corrective actions to eliminate these disturbances with, if necessary, assistance from
Lincoln Electric.
Before installing the machine, the operator must check the work area for any devices that may malfunction because of
electromagnetic disturbances. Consider the following.
Input and output cables, control cables, and telephone cables that are in or adjacent to the work area and the
machine.
Radio and/or television transmitters and receivers. Computers or computer controlled equipment.
Safety and control equipment for industrial processes. Equipment for calibration and measurement.
Personal medical devices like pacemakers and hearing aids.
Check the electromagnetic immunity for equipment operating in or near the work area. The operator must be sure
that all equipment in the area is compatible. This may require additional protection measures.
The dimensions of the work area to consider will depend on the construction of the area and other activities that are
taking place.
Consider the following guidelines to reduce electromagnetic emissions from the machine.
Connect the machine to the input supply according to this manual. If disturbances occur if may be necessary to take
additional precautions such as filtering the input supply.
The output cables should be kept as short as possible and should be positioned together. If possible connect the
work piece to ground in order to reduce the electromagnetic emissions. The operator must check that connecting the
work piece to ground does not cause problems or unsafe operating conditions for personnel and equipment.
Shielding of cables in the work area can reduce electromagnetic emissions. This may be necessary for special
applications.
WARNING
The Class A equipment is not intended for use in residential locations where the electrical power is provided by the public
low-voltage supply system. There may be potential difficulties in ensuring electromagnetic compatibility in those locations,
due to conducted as well as radiated disturbances.

English 3 English

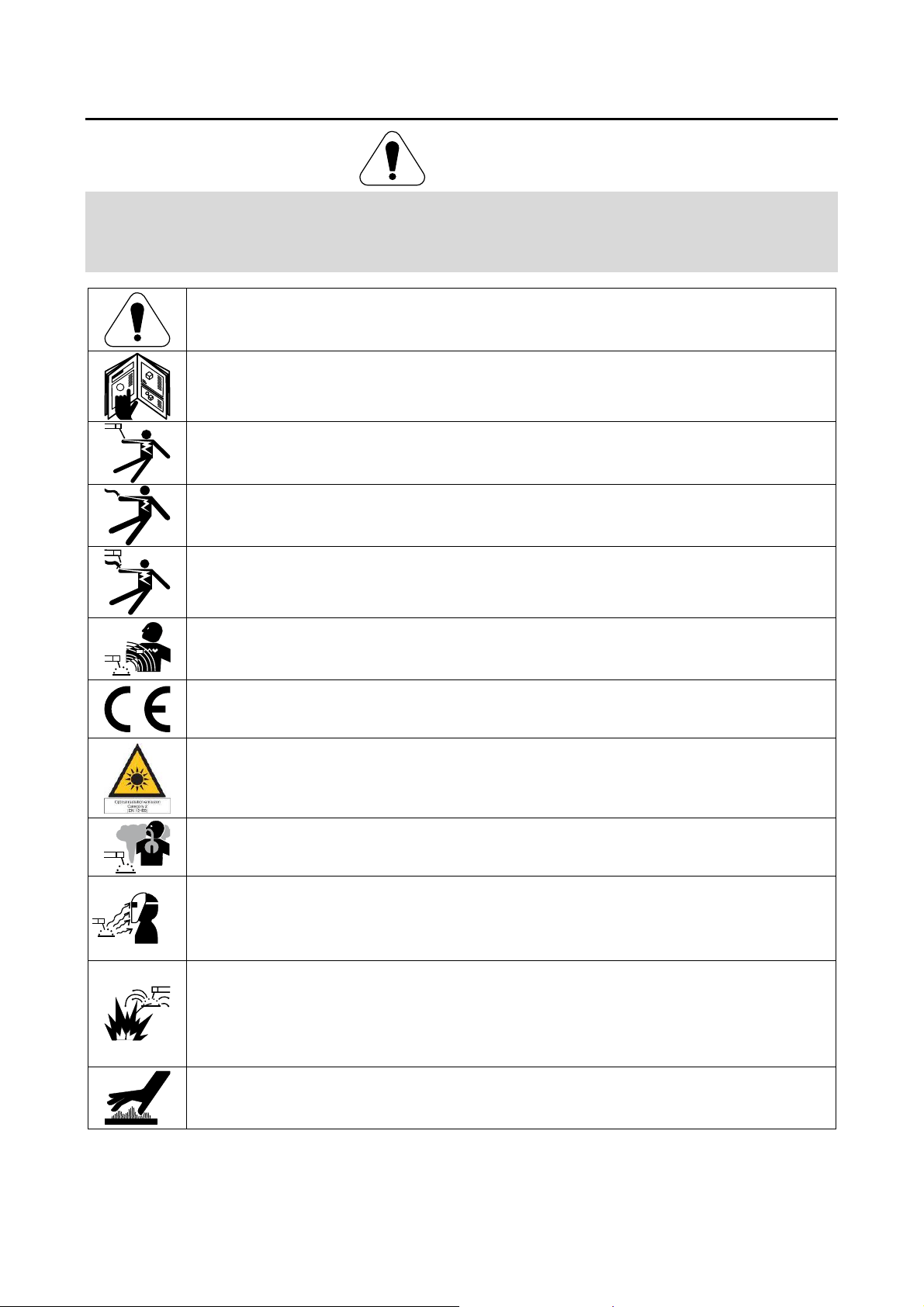

Safety
01/11
WARNING
This equipment must be used by qualified personnel. Be sure that all installation, operation, maintenance and repair
procedures are performed only by qualified person. Read and understand this manual before operating this equipment.
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment.
Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages
caused by improper installation, improper care or abnormal operation.
WARNING: This symbol indicates that instructions must be followed to avoid serious personal injury,
loss of life, or damage to this equipment. Protect yourself and others from possible serious injury or
death.
READ AND UNDERSTAND INSTRUCTIONS: Read and understand this manual before operating this
equipment. Arc welding can be hazardous. Failure to follow the instructions in this manual could cause
serious personal injury, loss of life, or damage to this equipment.
ELECTRIC SHOCK CAN KILL: Welding equipment generates high voltages. Do not touch the
electrode, work clamp, or connected work pieces when this equipment is on. Insulate yourself from the
electrode, work clamp, and connected work pieces.
ELECTRICALLY POWERED EQUIPMENT: Turn off input power using the disconnect switch at the
fuse box before working on this equipment. Ground this equipment in accordance with local electrical
regulations.
ELECTRICALLY POWERED EQUIPMENT: Regularly inspect the input, electrode, and work clamp
cables. If any insulation damage exists replace the cable immediately. Do not place the electrode
holder directly on the welding table or any other surface in contact with the work clamp to avoid the risk
of accidental arc ignition.
ELECTRIC AND MAGNETIC FIELDS MAY BE DANGEROUS: Electric current flowing through any
conductor creates electric and magnetic fields (EMF). EMF fields may interfere with some pacemakers,
and welders having a pacemaker shall consult their physician before operating this equipment.
CE COMPLIANCE: This equipment complies with the European Community Directives.
ARTIFICIAL OPTICAL RADIATION: According with the requirements in 2006/25/EC Directive and
EN 12198 Standard, the equipment is a category 2. It makes mandatory the adoption of Personal
Protective Equipments (PPE) having filter with a protection degree up to a maximum of 15, as required
by EN169 Standard.
FUMES AND GASES CAN BE DANGEROUS: Welding may produce fumes and gases hazardous to
health. Avoid breathing these fumes and gases. To avoid these dangers the operator must use
enough ventilation or exhaust to keep fumes and gases away from the breathing zone.
ARC RAYS CAN BURN: Use a shield with the proper filter and cover plates to protect your eyes from
sparks and the rays of the arc when welding or observing. Use suitable clothing made from durable
flame-resistant material to protect you skin and that of your helpers. Protect other nearby personnel
with suitable, non-flammable screening and warn them not to watch the arc nor expose themselves to
the arc.
WELDING SPARKS CAN CAUSE FIRE OR EXPLOSION: Remove fire hazards from the welding area
and have a fire extinguisher readily available. Welding sparks and hot materials from the welding
process can easily go through small cracks and openings to adjacent areas. Do not weld on any tanks,
drums, containers, or material until the proper steps have been taken to insure that no flammable or
toxic vapors will be present. Never operate this equipment when flammable gases, vapors or liquid
combustibles are present.
WELDED MATERIALS CAN BURN: Welding generates a large amount of heat. Hot surfaces and
materials in work area can cause serious burns. Use gloves and pliers when touching or moving
materials in the work area.

English 4 English
CYLINDER MAY EXPLODE IF DAMAGED: Use only compressed gas cylinders containing the correct
shielding gas for the process used and properly operating regulators designed for the gas and pressure
used. Always keep cylinders in an upright position securely chained to a fixed support. Do not move or
transport gas cylinders with the protection cap removed. Do not allow the electrode, electrode holder,
work clamp or any other electrically live part to touch a gas cylinder. Gas cylinders must be located
away from areas where they may be subjected to physical damage or the welding process including
sparks and heat sources.
HOT COOLANT CAN BURN SKIN: Always be sure coolant is NOT HOT before servicing the cooler.
SAFETY MARK: This equipment is suitable for supplying power for welding operations carried out in
an environment with increased hazard of electric shock.
The manufacturer reserves the Right to make changes and/or improvements in design without upgrade at the same time
the operator’s manual.

English 5 English
Introduction
The COOL ARC®24 is a cooling system designed for use
witch water-cooler torches and guns:
GTAW torches.
The following equipment has been added to
COOL ARC®24:
Hose with quick water connector – 0,2m.
COOL ARC®24 is delivered empty with no coolant in the
system.
Recommended equipment, which can be bought by user,
was mentioned in the chapter "Accessories".
Unpacking
Unpacking the COOL ARC® 24
The packaging of the Cooler is designed to withstand
shipping abuse, and contains a cardboard liner that
surrounds the unit. If any shipping damages have been
occurred, contact your certified Lincoln distributor or
service center.
When unpacking the unit, avoid thrusting sharp objects
through the carton liner, which may puncture the plastic
reservoir. Save the manual instruction and service
directory supplied with the COOL ARC® 24 for parts
orders and future maintenance service.
Installation on Power Source
The COOL ARC®24 need to be mounted directly to the
chassis of TIG welding power source that lists the
COOL ARC®24 as an approved accessory.
WARNING
Always place the COOL ARC®24 on a level surface to
avoid toppling and pouring out coolant through the hole in
the cap.
WARNING
Only a qualified electrician can connect the welding
machine to the supply. Installation had to be made in
accordance with the appropriate National Electrical Code
and local regulations.
WARNING
Before connecting COOL ARC® 24 turn off the power
source and disconnect it from the input supply.
Figure 1

English 6 English
Installation and Operator Instructions
Read this entire section before installation or operation
of the machine.
WARNING
ELECTRIC SHOCK can kill.
Do not operate with covers removed.
Do not operate if cables are wet or
immersed in water.
MOVING PARTS can injure.
Moving parts can injure. Never place
fingers into openings of Cooler.
HOT COOLANT can burn skin.
Always be sure coolant is NOT HOT
before servicing the cooler.
Location
This machine will operate in harsh environments.
However, it is important that simple preventative
measures are followed to assure long life and reliable
operation.
Do not place or operate this machine on a surface
with an incline greater than 15° from horizontal.
Do not use this machine for pipe thawing.
This machine must be located where there is free
circulation of clean air without restrictions for air
movement to and from the air vents. Do not cover
the machine with paper, cloth or rags when switched
on.
Dirt and dust that can be drawn into the machine
should be kept to a minimum.
This machine has a protection rating of IP23. Keep it
dry when possible and do not place it on wet ground
or in puddles.
Locate the machine away from radio controlled
machinery. Normal operation may adversely affect
the operation of nearby radio controlled machinery,
which may result in injury or equipment damage.
Read the section on electromagnetic compatibility in
this manual.
Do not operate in areas with an ambient temperature
higher than 40°C. The ambient air temperature
influences the parameters of cooling. If the ambient
temperature is higher, the cooling system will be less
effective
WARNING
Avoid placing the cooler near areas of extreme heat.
Recommended power source
The COOL ARC® 24 is designed for use with water-
cooled torches. The COOL ARC® 24 must be used with
a TIG welding power source that lists the
COOL ARC® 24 as an approved accessory.
Input Supply Connection
The COOL ARC® 24 must be supplied by a welding
power source in accordance with installation procedure
that can be done only by qualified electrician. Installation
must be made in accordance with the appropriate
National Electrical Code and local regulations.
The COOL ARC® 24 could be supplied by welding power

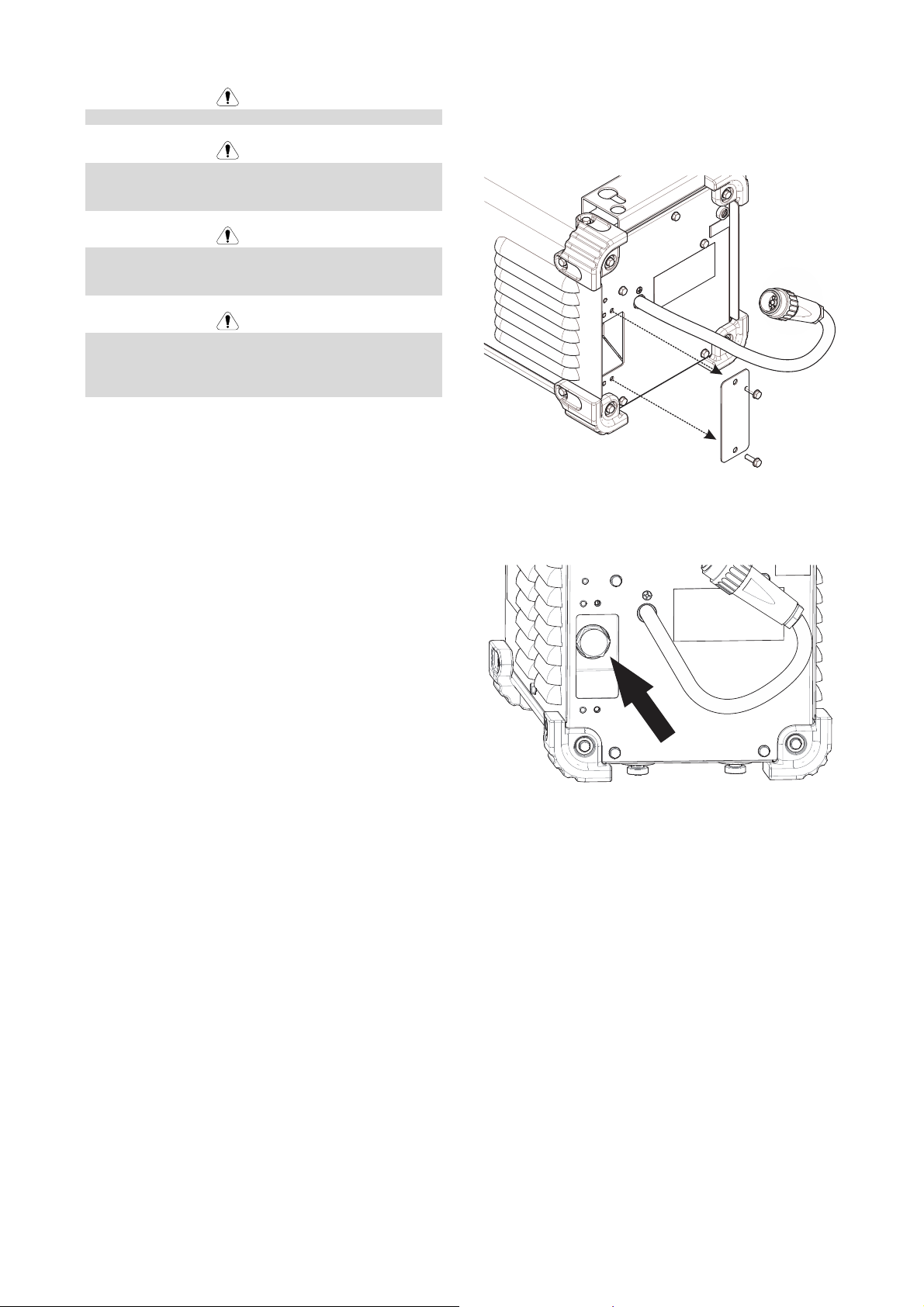

source using 9-PIN socket (see Figure 2).
To connect the input supply to the COOL ARC® 24, turn
off the power to the welding power source and
disconnect it from the input supply.
The allowable input voltages is 390Vdc. Make sure that
the supply voltage of the unit matches the cooler’s rated
voltage.
WARNING
Do not run cooler if the reservoir was not filled and the
torch’s/gun’s hoses are disconnected from the cooling
unit. Not observing this warning may cause internal
damage to the cooler unit.
Figure 2

English 7 English
Controls and Operational Features
1
2
3
4
5
6
Figure 3
1. Power Indicator Light: This lamp will illuminate when
the pump and internal fan are on. The light does not
indicate the COOL ARC®24 is being supplied by the
power source.
2. Flow Sensor Switch: The COOL ARC®24 comes
equipped with a flow sensor that triggers an error code
to the machine to protect the TIG Torch from over-
heating when inadequate coolant flow is detected
through the flow sensor. The Error Code fault (Error
11) could indicate a possible kink in the torch lines,
damage and/or a leak in the TIG Torch coolant lines,
or signal the need to use a TIG Torch that is of a
higher amperage capacity and rating. The flow sensor
can be turned off ‘O’ or on ‘I’. The default position is on
when first powered on out of the box. When in ‘O’ off
position, the flow sensor is inactive: in this condition
the missing coolant flow is not detected.
WARNING
Incorporated into the cooler is an automatic flow
sensor to detect low or no coolant flow. A low or no
flow condition will cause welding output to
automatically stop to protect the torch.
3. Reservoir for Coolant with Cap: The translucent
reservoir enables control of volume of the coolant. A
tank filter to catch 400um dust material is located in
opening tank. See Maintenance section for more
details.
4. Quick Connect Coupling: Coolant outlet (supplies
cool coolant to the torch/gun).
5. Quick Connect Coupling: Coolant inlet (takes warm
coolant from torch/gun).
6. Minimum and maximum Liquid Level: The minimum
recommended liquid level is 1,51 liters.
7. Airflow Slots: Enable proper circulation of air cooling
7
7
Figure 4
8
9
10
Figure 5
8. Power Lead with 9-pin connector. Table below
indicates the Pin-out and description:
Pin # Signal name Description
1 COM Reference
2 +15V/1 Aux. power supply
3 Coolant Error Coolant flow error
4 Presence To indicate to Power
generator CA24 is active
5 NC Not used
6 VBUS Power supply 390Vdc
7 NC Not used
8 ON_OFF To enable pump and cooling
9 EARTH Earth ground

English 8 English
9. Fuse Receptacle: A 2A fuse is present to protect the
motor pump.
10. Removable Strainer. The pump is equipped with a
150um strainer: an external cover is supplied to
protect the accessible strainer. See Maintenance
section for more details.
WARNING
Moving parts can injure. Never place fingers into the
openings of the Cooler.
WARNING
Avoid placing the cooler near a flux hopper or an area
where dust build-up is extreme.
Circulation of Coolant in the Cooler
Figure 6
WARNING
The ambient air temperature influences the parameters of
cooling. If the ambient temperature is higher, the cooling
system will be less effective.
WARNING
Avoid kinking or putting sharp bends in any water lines.
WARNING
Never operate the cooler with case off.
WARNING
Avoid placing the cooler near areas of extreme heat.
Preparation COOL ARC®24 to Work
Fill the coolant reservoir.
Connect COOL ARC®24 to power source.
Turn the power source on.
Warning: First use the cooler require the pump is
primed by coolant.
Turn power source off.
Connect the water-cooler hoses to the cooler’s inlet
[5] and outlet [4] socket (Figure 3).
Turn the power source on.
Warning: The water-cooler hoses can require
bleeding.
Filling the reservoir and water lines
WARNING
Avoid contact with coolant. Wear waterproof
gloves and protective eye wear.
WARNING
Before filling the coolant reservoir, disconnect cooler’s
power lead to the power source.
Warning: The cooler can be filled and used only in the
horizontal position.
Use only recommended coolant FREEZCOOL -
W000010167
Do not use pre-packaged welding industry coolants.
These coolants may contain oil-based substances,
which attack the plastic components of the cooler. Once
added to the cooler, these substances are impossible to
purge from the water lines and heat exchanger.
Do not use automotive anti-freeze. These coolants will
damage the pump and block of the heat exchanger,
affecting cooling performance.
WARNING
The coolant reservoir can be filled maximum 2,27l
coolant. Minimum 1,51l of coolant has to be poured into
the reservoir.
WARNING
Never operate the cooler with the reservoir empty.
WARNING
Do not start the cooler with less than 1,50 liters of coolant.
Operating without enough coolant can prevent full priming
of the system and may damage the pump.

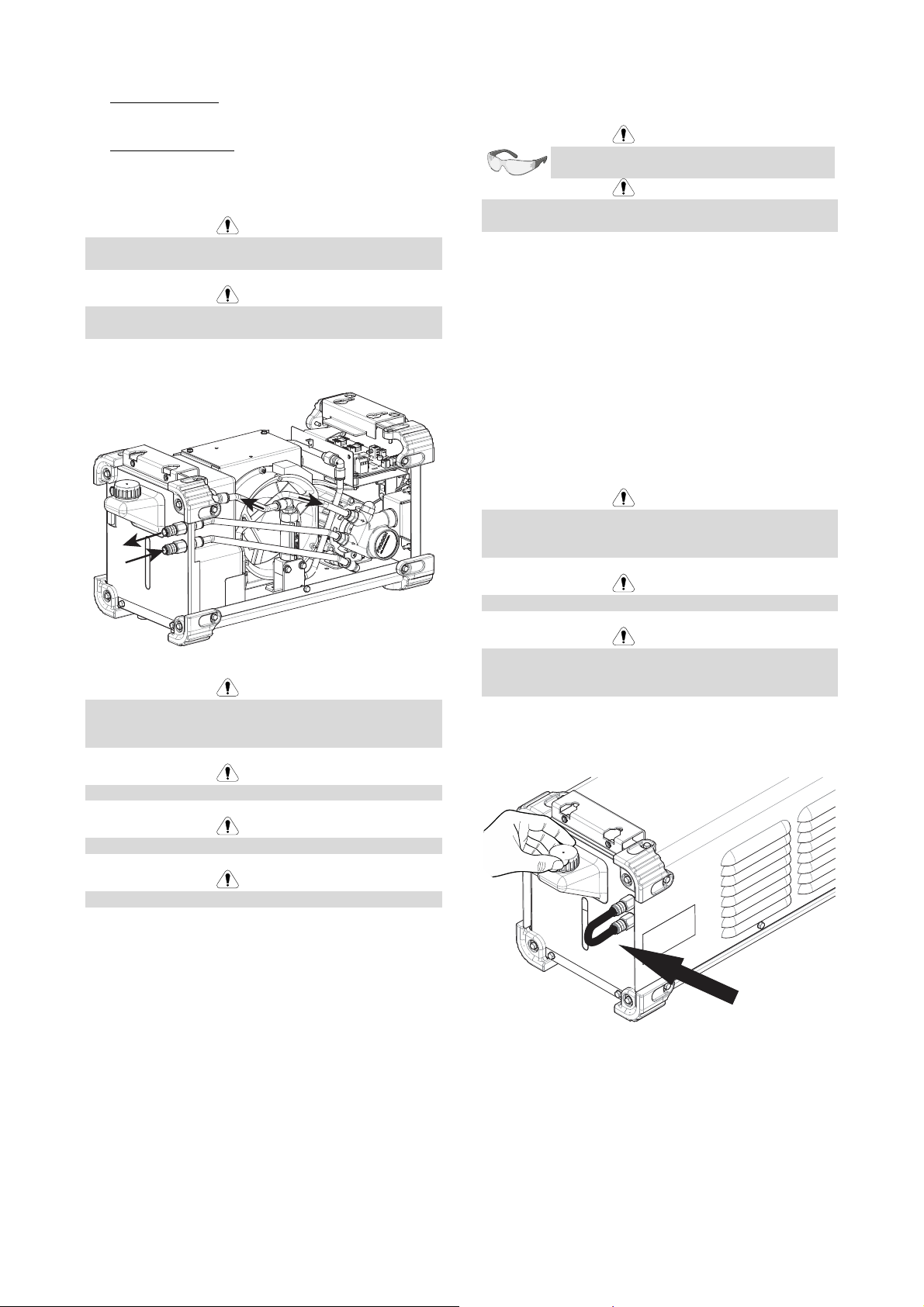

Priming Pump (only first use the
cooler) and Bleeding the Cooling
System
Figure 7
Assemble the welding setup.
Connect the hose with quick water connector (added
to the equipment) to the cooler’s inlet and outlet
socket (Figure 5).
Fill the coolant reservoir – minimum 2l.
Undo the nut.

English 9 English
WARNING
At first using of the COOL ARC®24 reservoir’s nut has to
be removed to avoid generate partial vacuum in cooling
system during priming pump.
Place the flow sensor to the off ‘0’ position.
Turn the power source on.
Wait 30 seconds until the coolant fully circulates
through the cooling system and returns into the
reservoir.
Turn the power source off.
Disconnect the hose with quick water connector.
Connect the water-cooler hoses – Figure 6.
Turn the power source on.
Wait 30 seconds until the coolant fully circulates
through the cooling system.
Tighten the nut.
Return the flow sensor to the on ‘I’ position.
Machine is ready to use
WARNING
After priming pump and/or bleeding the cooling system,
be sure the reservoir’s nut is tightened up. Operation of
the cooler without the nut is tightened, can cause poor
cooling efficiency, evaporation loss of coolant, and low
product life.
The welding set is ready to work.

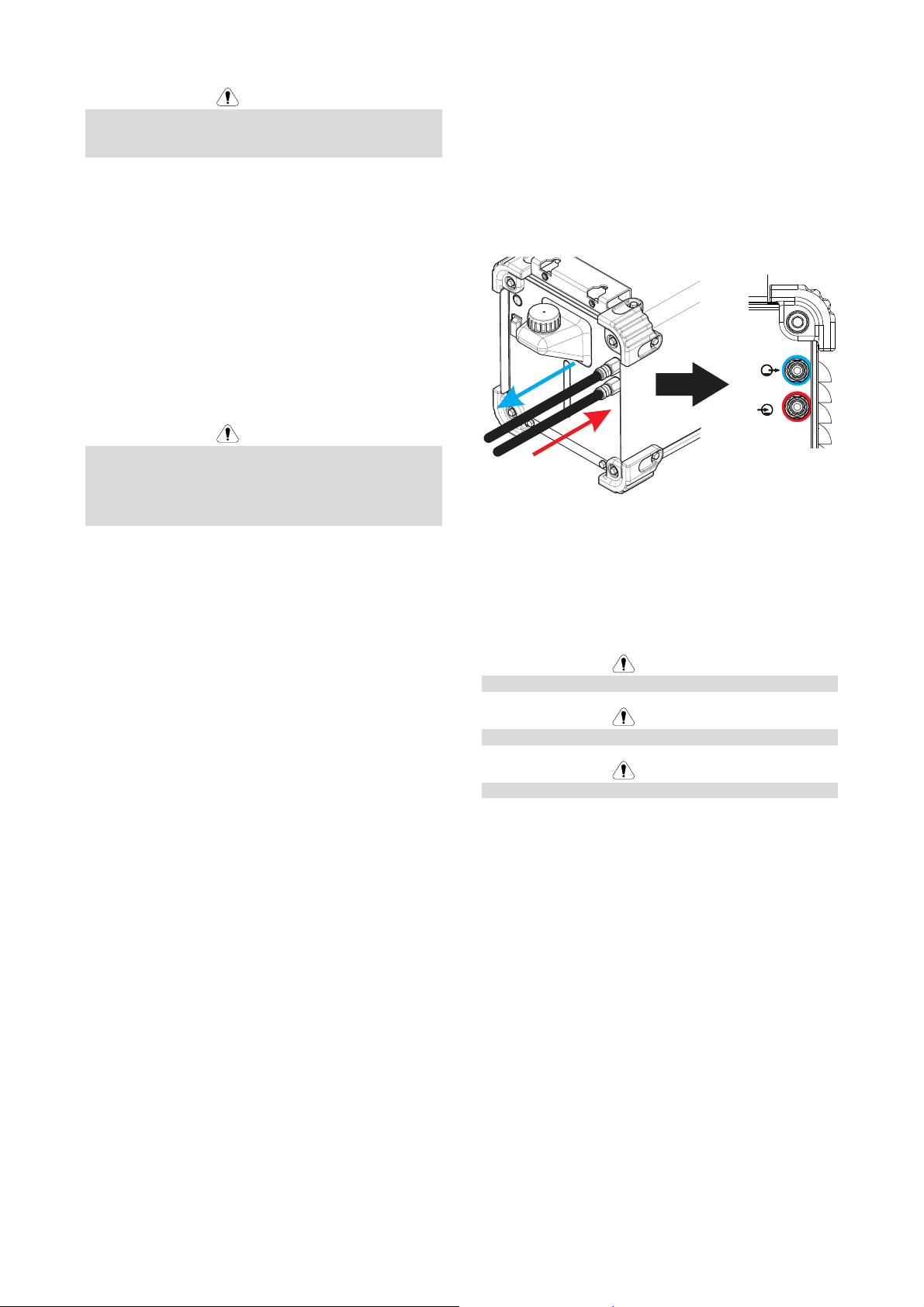

Connecting the Cooling System Hoses
The power source has to be turned off.
Connect the "outlet" hose of torch/gun (colored or
tagged red on most hoses) into the inlet quick
connect coupling [5] located on the front panel of the
cooler.
Connect the "inlet" hose of torch/gun (colored or
tagged blue on most hoses) into the outlet quick
connect coupling [4] located on the front panel of the
cooler.
Figure 8
Warning: The water-cooler hoses are connected into
the quick connect coupling type, which automatically
close when hoses are disconnected.
Before installing the hoses to the cooler, verify that the
hose connectors match the quick connect couplings
located on the front panel of the cooler.
WARNING
Avoid kinking or putting sharp bends in any water lines.
WARNING
Keep all water lines clean and free of any blockage.
WARNING
Keep the reservoir full especially after changing lines.

English 10 English
Transport
To avoid freeze damage and water leakage during
transport, the coolant must be removed from the cooler
reservoir.
Symbols used
Symbol Description
Direct Current
Cooling Power
Power On
Flow Sensor ON
Flow Sensor OFF
Cooled Coolant Out
Warm Coolant In
Maintenance
WARNING
For any repair operations, modifications or maintenance, it
is recommended to contact the nearest Technical Service
Center or Lincoln Electric. Repairs and modifications
performed by unauthorized service or personnel will
cause the manufacturer’s warranty to become null and
void.
Any noticeable damage should be reported immediately
and repaired.
ROUTINE MAINTENANCE
Check the condition of water-cooler hoses and
connections of the power lead.
Check the welding torch / gun condition: replace it, if
necessary.
Check condition and operation of the cooling fan.
Keep its airflow slots clean.
The reservoir volume should be checked daily before
using the cooler.
Keep the reservoir full, especially after disconnecting
the water lines or changing the accessory being
cooled.
Clean the tank filter.
PERIODIC MAINTENANCE (NOT LESS THAN ONCE A
YEAR)
Perform the routine maintenance and, in addition:
Keep the machine clean. Using a dry (and low
pressure) airflow, remove the dust from the external
case and from the heat exchanger inside.
In dirty or dusty environments or if biological growth
occurs in the coolant, it may be necessary to flush the
coolant reservoir. Drain the old coolant, rinse the inside
of the reservoir and circulate rinsing solution through the
coolant system. Add new coolant when cleaning is
finished.
WARNING
Hot coolant can burn skin. Always be sure coolant is NOT
HOT before servicing the cooler.
WARNING
Special precautions have to be taken when
the coolant is removed from the cooler
reservoir. The coolant must not be poured
out into ground water, sewerage, soil. Read
"Material Safety Data Sheet" (coolant used)
and contact the local Department of
Environmental Protection office to obtain
information on recycling coolant.
The frequency of the maintenance operations may vary in
accordance with the working environment where the
machine is placed.

English 11 English
WARNING
Do not touch electrically live parts.
WARNING
Before the case of machine will be removed, the machine
had to be turned off and the power lead had to be
disconnected from mains socket.
WARNING
Mains supply network must be disconnected from the
machine before each maintenance and service. After
each repair, perform proper tests to ensure safety.
WARNING
Do not touch electrically live parts.
Before the case of machine will be removed, the machine
has to be turned off and the power lead has to be
disconnected from mains socket.
Pump inlet strainer maintenance
Poor cooler performance can usually be traced to a
partially or completely blocked pump inlet strainer. This
is a user-serviceable item and can be cleaned and
reused, or replaced
Continued pump operation with a blocked strainer can
cause:
Voiding of cooler service warranty
Damage to the pump head’s inlet areas
Torch damage from overheating due to insufficient
coolant flow rate.
A new or properly cleaned pump inlet strainer should
restore the cooler’s performance.
It is recommended to clean or replace the pump's inlet
strainer at least once a year.
Access the strainer
Disconnect welder and cooler from power.
The strainer access panel is located on the back
lower left, remove two screws – see Figure 9.
Figure 9
Next remove the large brass bolt. See Figure 10. A
deep well socket or tongue and groove pliers may be
used. A small amount of coolant may leak.
Figure 10

English 12 English
Troubleshooting
This Troubleshooting Guide is designed to be used by the machine Owner/Operator. Unauthorized repairs performed on
this equipment may result in danger to the technician and machine operator and will invalidate your factory warranty. For
your safety, please observe all safety notes and precautions detailed in the Safety Section of this manual to avoid electrical
shock or danger while troubleshooting this equipment.
WARNING
If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact the
nearest authorized Technical Service Center or Lincoln Electric for technical troubleshooting assistance before you proceed.
LOCATE PROBLEM
(SYMPTOM). POSSIBLE CAUSE RECOMMENDED COURSE OF ACTION
Cooler does not
operate.
Power lead unplugged.
No power at outlet.
Power lead is damaged.
Water lines blocked or crimped.
Leak in gun or water hoses.
Reservoir empty.
Plug in power lead.
Check outlet circuit breaker.
Repair damaged lead or order new lead
set.
Clear blockage in hose. Avoid kinking or
putting sharp bends in water lines.
Repair leak.
Fill reservoir.
Internal water leak. Hose clamp loose on one of internal
hoses.
Internal hose punctured.
Heat exchanger leaking.
Tighten or replace hose clamp.
Replace punctured hose with new hose.
Replace heat exchanger.
Leak at inlet/outlet
connector block.
Hose clamp loose. Tighten hose clamp onto hose.
Torch or gun runs hot. Unit placed by area of extreme heat.
Low coolant flow.
No coolant flow.
Fan not operating.
Move unit away from hot air.
See Low Coolant Flow Section.
See No Coolant Flow Section.
Reference fan section.
Fan operates but there
is low coolant flow.
Leak in torch/gun or hoses.
Torch/gun or hoses partially obstructed.
Reservoir empty or very low.
Repair leak.
Clear obstruction.
Refill reservoir.
Fan operates but there
is no coolant flow.
Pump failure.
Pump seized.
Replace pump.
Replace pump.
Pump operates, but
fan does not.
Fan blade contacting heat exchanger.
Fan motor failure.
Replace fan.
Replace fan.
Cooler trips outlet
circuit breaker.
Circuit overloaded.
Cooler electrical component failure.
Check outlet circuit breaker.
Replace suppressor assembly and rectifier
inside of cooler.

English 13 English
Customer Assistance Policy
The business of The Lincoln Electric Company is
manufacturing and selling high quality welding equipment,
consumables, and cutting equipment. Our challenge is to
meet the needs of our customers and to exceed their
expectations. On occasion, purchasers may ask Lincoln
Electric for advice or information about their use of our
products. We respond to our customers based on the best
information in our possession at that time. Lincoln Electric
is not in a position to warrant or guarantee such advice,
and assumes no liability, with respect to such information
or advice. We expressly disclaim any warranty of any
kind, including any warranty of fitness for any customer’s
particular purpose, with respect to such information or
advice. As a matter of practical consideration, we also
cannot assume any responsibility for updating or
correcting any such information or advice once it has
been given, nor does the provision of information or
advice create, expand or alter any warranty with respect
to the sale of our products
Lincoln Electric is a responsive manufacturer, but the
selection and use of specific products sold by Lincoln
Electric is solely within the control of, and remains the sole
responsibility of the customer. Many variables beyond the
control of Lincoln Electric affect the results obtained in
applying these types of fabrication methods and service
requirements.
Subject to Change – This information is accurate to the
best of our knowledge at the time of printing. Please refer
to www.lincolnelectric.com for any updated information.

English 14 English
WEEE
07/06
English
Do not dispose of electrical equipment together with normal waste!
In observance of European Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE)
and its implementation in accordance with national law, electrical equipment that has reached the end of its
life must be collected separately and returned to an environmentally compatible recycling facility. As the
owner of the equipment, you should get information on approved collection systems from our local
representative.
By applying this European Directive you will protect the environment and human health!
Spare Parts
12/05
Part List reading instructions
Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service
Department for any code number not listed.
Use the illustration of assembly page and the table below to determine where the part is located for your particular
code machine.
Use only the parts marked "X" in the column under the heading number called for in the assembly page (# indicate
a change in this printing).
First, read the Part List reading instructions above, then refer to the "Spare Part" manual supplied with the machine, that
contains a picture-descriptive part number cross-reference.
REACh
11/19
Communication in accordance with Article 33.1 of Regulation (EC) No 1907/2006 – REACh.
Some parts inside this product contain:
Bisphenol A, BPA, EC 201-245-8, CAS 80-05-7
Cadmium, EC 231-152-8, CAS 7440-43-9
Lead, EC 231-100-4, CAS 7439-92-1
Phenol, 4-nonyl-, branched, EC 284-325-5, CAS 84852-15-3
in more than 0,1% w/w in homogeneous material. These substances are included in the “Candidate List of Substances
of Very High Concern for Authorisation” of REACh.
Your particular product may contain one or more of the listed substances.
Instructions for safe use:
use according to Manufacturer instructions, wash hands after use;
keep out of reach of children, do not put in mouth,
dispose in accordance with local regulations.
Authorized Service Shops Location
01/19
The purchaser must contact Lincoln Electric or Authorized Service Facility about any defect claimed under warranty
period.
Contact your local Sales Representative for assistance in locating the nearest Authorized Service Facility.
Electrical Schematic
Refer to the "Spare Part" manual supplied with the machine.

English 15 English
Accessories
W000010167 FREEZCOOL (coolant)
W000404213 PRESTOTIG 200 AC/DC
W000404214 CITOTIG 200 AC/DC
K14189-1 ASPECT 200
