Lincoln Electric FlexCut 125 User manual

Operat r’s Manual
Register y ur machine:
www.lincolnelectric.com/register
Auth rized Service and Distribut r L cat r:
www.lincolnelectric.com/locator
IM10300-A | Issue D ate Nov-16
© Lincoln Glo al, Inc. All Rights Reserved.
For use with machines having Code Num ers:
12478
Save f r future reference
Date Purchased
Code: (ex: 10859)
Serial: (ex: U1060512345)
FlexCut™125

THANK YOU FOR SELECTING
A QUALITY PRODUCT BY
LINCOLN ELEC TRIC.
PLEASE EXAMINE CARTON AND EQUIPMENT FOR
DAMAGE IMMEDIATELY
When this equipment is shipped, title passes to the purchaser
upon receipt by the carrier. Consequently, claims for material
damaged in shipment must be made by the purchaser against the
transportation company at the time the shipment is received.
SAFETY DEPENDS ON YOU
incoln arc welding and cutting equipment is designed and built
with safety in mind. However, your overall safety can be increased
by proper installation ... and thoughtful operation on your part.
DO NOT INSTALL, OPERATE OR REPAIR THIS EQUIPMENT
WITHOUT READING THIS MANUAL AND THE SAFETY
PRECAUTIONS CONTAINED THROUGHOUT. And, most importantly,
think before you act and be careful.
This statement appears where the information must be followed
exactly to avoid serious personal injury or loss of life.
This statement appears where the information must be followed
to avoid minor personal injury or damage to this equipment.
KEEP YOUR HEAD OUT OF THE FUMES.
DON’T get too close to the arc.
Use corrective lenses if necessary
to stay a reasonable distance
away from the arc.
READ and obey the Safety Data
Sheet (SDS) and the warning label
that appears on all containers of
welding materials.
USE ENOUGH VENTILATION or
exhaust at the arc, or both, to
keep the fumes and gases from
your breathing zone and the general area.
IN A LARGE ROOM OR OUTDOORS, natural ventilation may be
adequate if you keep your head out of the fumes (See below).
USE NATURAL DRAFTS or fans to keep the fumes away
from your face.
If you de velop unusual symptoms, see your supervisor.
Perhaps the welding atmosphere and ventilation system
should be checked.
EAR CORRECT EYE, EAR &
BODY PROTECTION
PROTECT your eyes and face with welding helmet
properly fitted and with proper grade of filter plate
(See ANSI Z49.1).
PROTECT your body from welding spatter and arc
flash with protective clothing including woolen
clothing, flame-proof apron and gloves, leather
leggings, and high boots.
PROTECT others from splatter, flash, and glare
with protective screens or barriers.
IN SOME AREAS, protection from noise may be appropriate.
BE SURE protective equipment is in good condition.
Also, wear safety glasses in work area
AT ALL TIMES.
SPECIAL SITUATIONS
DO NOT WELD OR CUT containers or materials which previously
had been in contact with hazardous substances unless they are
properly cleaned. This is extremely dangerous.
DO NOT WELD OR CUT painted or plated parts unless special
precautions with ventilation have been taken. They can release
highly toxic fumes or gases.
Additional precautionary measures
PROTECT compressed gas cylinders from excessive heat,
mechanical shocks, and arcs; fasten cylinders so they cannot fall.
BE SURE cylinders are never grounded or part of an
electrical circuit.
REMOVE all potential fire hazards from welding area.
ALWAYS HAVE FIRE FIGHTING EQUIPMENT READY FOR
IMMEDIATE USE AND KNOW HOW TO USE IT.
WARNING
CAUTION
Safety 01 of 04 - 06/15/2016

SECTION A:
WARNINGS
CALIFORNIA PROPOSITION 65 WARNINGS
Diesel En ines
Diesel engine exhaust and some of its constituents are known
to the State of California to cause cancer, birth defects, and other
reproductive harm.
Gasoline En ines
The engine exhaust from this product contains chemicals known
to the State of California to cause cancer, birth defects, or other
reproductive harm.
ARC ELDING CAN BE HAZARDOUS. PROTECT
YOURSELF AND OTHERS FROM POSSIBLE SERIOUS
INJURY OR DEATH. KEEP CHILDREN A AY.
PACEMAKER EARERS SHOULD CONSULT ITH
THEIR DOCTOR BEFORE OPERATING.
Read and understand the following safety highlights. For
additional safety information, it is strongly recommended
that you purchase a copy of “Safety in Welding & Cutting -
ANSI Standard Z49.1” from the American Welding Society,
P.O. Box 351040, Miami, Florida 33135 or CSA Standard
W117.2-1974. A Free copy of “Arc Welding Safety” booklet
E205 is available from the incoln Electric Company,
22801 St. Clair Avenue, Cleveland, Ohio 44117-1199.
BE SURE THAT ALL INSTALLATION, OPERATION,
MAINTENANCE AND REPAIR PROCEDURES ARE
PERFORMED ONLY BY QUALIFIED INDIVIDUALS.
FOR ENGINE POWERED
EQUIPMENT.
1.a. Turn the engine off before troubleshooting
and maintenance work unless the
maintenance work requires it to be running.
1.b. Operate engines in open, well-ventilated
areas or vent the engine exhaust fumes outdoors.
1.c. Do not add the fuel near an open flame
welding arc or when the engine is running.
Stop the engine and allow it to cool before
refueling to prevent spilled fuel from
vaporizing on contact with hot engine parts
and igniting. Do not spill fuel when filling
tank. If fuel is spilled, wipe it up and do not start engine until
fumes have been eliminated.
1.d. Keep all equipment safety guards, covers
and devices in position and in good repair.
Keep hands, hair, clothing and tools away
from V-belts, gears, fans and all other
moving parts when starting, operating or
repairing equipment.
1.e. In some cases it may be necessary to remove safety guards to
perform required maintenance. Remove guards only when
necessary and replace them when the maintenance requiring
their removal is complete. Always use the greatest care when
working near moving parts.
1.f. Do not put your hands near the engine fan. Do not attempt to
override the governor or idler by pushing on the throttle control
rods while the engine is running.
1.g. To prevent accidentally starting gasoline engines while turning
the engine or welding generator during maintenance work,
disconnect the spark plug wires, distributor cap or magneto wire
as appropriate.
1.h. To avoid scalding, do not remove the radiator
pressure cap when the engine is hot.
ELECTRIC AND
MAGNETIC FIELDS MAY
BE DANGEROUS
2.a. Electric current flowing through any conductor
causes localized Electric and Magnetic Fields (EMF).
Welding current creates EMF fields around welding cables
and welding machines
2.b. EMF fields may interfere with some pacemakers, and
welders having a pacemaker should consult their physician
before welding.
2.c. Exposure to EMF fields in welding may have other health effects
which are now not known.
2.d. All welders should use the following procedures in order to
minimize exposure to EMF fields from the welding circuit:
2.d.1. Route the electrode and work cables together - Secure
them with tape when possible.
2.d.2. Never coil the electrode lead around your body.
2.d.3. Do not place your body between the electrode and work
cables. If the electrode cable is on your right side, the
work cable should also be on your right side.
2.d.4. Connect the work cable to the workpiece as close as pos-
sible to the area being welded.
2.d.5. Do not work next to welding power source.
SAFETY
Safety 02 of 04 - 06/15/2016

ELECTRIC SHOCK
CAN KILL.
3.a. The electrode and work (or ground) circuits are
electrically “hot” when the welder is on. Do
not touch these “hot” parts with your bare skin or wet clothing.
Wear dry, hole-free gloves to insulate hands.
3.b. Insulate yourself from work and ground using dry insulation.
Make certain the insulation is large enough to cover your full area
of physical contact with work and ground.
In addition to the normal safety precautions, if
welding must be performed under electrically
hazardous conditions (in damp locations or while
wearing wet clothing; on metal structures such as
floors, gratings or scaffolds; when in cramped
positions such as sitting, kneeling or lying, if there
is a high risk of unavoidable or accidental contact
with the workpiece or ground) use the following
equipment:
• Semiautomatic DC Constant Voltage (Wire) Welder.
• DC Manual (Stick) Welder.
• AC Welder with Reduced Voltage Control.
3.c. In semiautomatic or automatic wire welding, the electrode,
electrode reel, welding head, nozzle or semiautomatic welding
gun are also electrically “hot”.
3.d. Always be sure the work cable makes a good electrical
connection with the metal being welded. The connection should
be as close as possible to the area being welded.
3.e. Ground the work or metal to be welded to a good electrical (earth)
ground.
3.f. Maintain the electrode holder, work clamp, welding cable and
welding machine in good, safe operating condition. Replace
damaged insulation.
3.g. Never dip the electrode in water for cooling.
3.h. Never simultaneously touch electrically “hot” parts of electrode
holders connected to two welders because voltage
between the
two can be the total of the open circuit voltage of both
welders.
3.i. When working above floor level, use a safety belt to protect
yourself from a fall should you get a shock.
3.j. Also see It ems 6.c. and 8.
ARC RAYS CAN BURN.
4.a. Use a shield with the proper filter and cover plates to protect your
eyes from sparks and the rays of the arc when welding or
observing open arc welding. Headshield and filter lens should
conform to ANSI Z87. I standards.
4.b. Use suitable clothing made from durable flame-resistant material
to protect your skin and that of your helpers from the arc rays.
4.c. Protect other nearby personnel with suitable, non-flammable
screening and/or warn them not to watch the arc nor expose
themselves to the arc rays or to hot spatter or metal.
FUMES AND GASES
CAN BE DANGEROUS.
5.a. Welding may produce fumes and gases
hazardous to health. Avoid breathing these fumes and gases.
When welding, keep your head out of the fume. Use enough
ventilation and/or exhaust at the arc to keep fumes and gases
away from the breathing zone. hen welding hardfacing
(see instructions on container or SDS) or on lead
or cadmium plated steel and other metals or
coatings which produce highly toxic fumes, keep
exposure as low as possible and within applicable
OSHA PEL and ACGIH TLV limits using local
exhaust or mechanical ventilation unless exposure
assessments indicate otherwise. In confined
spaces or in some circumstances, outdoors, a
respirator may also be required. Additional
precautions are also required when welding
on galvanized steel.
5. b. The operation of welding fume control equipment is affected by
various factors including proper use and positioning of the
equipment, maintenance of the equipment and the specific
welding procedure and application involved. Worker exposure
level should be checked upon installation and periodically
thereafter to be certain it is within applicable OSHA PE and
ACGIH T V limits.
5.c. Do not weld in locations near chlorinated hydrocarbon vapors
coming from degreasing, cleaning or spraying operations. The
heat and rays of the arc can react with solvent vapors to form
phosgene, a highly toxic gas, and other irritating products.
5.d. Shielding gases used for arc welding can displace air and
cause
injury or death. Always use enough ventilation, especially in
confined areas, to insure breathing air is safe.
5.e. Read and understand the manufacturer’s instructions for this
equipment and the consumables to be used, including the
Safety Data Sheet (SDS) and follow your employer’s safety
practices. SDS forms are available from your welding
distributor or from the manufacturer.
5.f. Also see item 1.b.
SAFETY
Safety 03 of 04 - 06/15/2016

WELDING AND CUTTING
SPARKS CAN CAUSE
FIRE OR EXPLOSION.
6.a. Remove fire hazards from the welding area. If
this is not possible, cover them to prevent the welding sparks
from starting a fire. Remember that welding sparks and hot
materials from welding can easily go through small cracks and
openings to adjacent areas. Avoid welding near hydraulic lines.
Have a fire extinguisher readily available.
6.b. Where compressed gases are to be used at the job site, special
precautions should be used to prevent hazardous situations.
Refer to “Safety in Welding and Cutting” (ANSI Standard Z49.1)
and the operating information for the equipment being used.
6.c. When not welding, make certain no part of the electrode circuit is
touching the work or ground. Accidental contact can cause
overheating and create a fire hazard.
6.d. Do not heat, cut or weld tanks, drums or containers until the
proper steps have been taken to insure that such procedures
will not cause flammable or toxic vapors from substances inside.
They can cause an explosion even though they have been
“cleaned”. For information, purchase “Recommended Safe
Practices for the Preparation for Welding and Cutting of
Containers and Piping That Have Held Hazardous Substances”,
AWS F4.1 from the American Welding Society
(see address above).
6.e. Vent hollow castings or containers before heating, cutting or
welding. They may explode.
6.f. Sparks and spatter are thrown from the welding arc. Wear oil free
protective garments such as leather gloves, heavy shirt, cuffless
trousers, high shoes and a cap over your hair. Wear ear plugs
when welding out of position or in confined places. Always wear
safety glasses with side shields when in a welding area.
6.g. Connect the work cable to the work as close to the welding area
as practical. Work cables connected to the building framework or
other locations away from the welding area increase the
possibility of the welding current passing through lifting chains,
crane cables or other alternate circuits. This can create fire
hazards or overheat lifting chains or cables until they fail.
6.h. Also see item 1.c.
6.I. Read and follow NFPA 51B “Standard for Fire Prevention During
Welding, Cutting and Other Hot Work”, available from NFPA, 1
Batterymarch Park, PO box 9101, Quincy, MA 022690-9101.
6.j. Do not use a welding power source for pipe thawing.
CYLINDER MAY EXPLODE IF
DAMAGED.
7.a. Use only compressed gas cylinders containing
the correct shielding gas for the process used
and properly operating regulators designed for
the gas and pressure used. All hoses, fittings,
etc. should be suitable for the application and
maintained in good condition.
7.b. Always keep cylinders in an upright position securely chained to
an undercarriage or fixed support.
7.c. Cylinders should be located:
• Away from areas where they may be struck or subjected
to physical damage.
• A safe distance from arc welding or cutting operations
and any other source of heat, sparks, or flame.
7.d. Never allow the electrode, electrode holder or any other
electrically “hot” parts to touch a cylinder.
7.e. Keep your head and face away from the cylinder valve outlet
when opening the cylinder valve.
7.f. Valve protection caps should always be in place and hand tight
except when the cylinder is in use or connected for use.
7.g. Read and follow the instructions on compressed gas cylinders,
associated equipment, and CGA publication P-l, “Precautions for
Safe Handling of Compressed Gases in Cylinders,” available from
the Compressed Gas Association, 14501 George Carter Way
Chantilly, VA 20151.
FOR ELECTRICALLY
POWERED EQUIPMENT.
8.a. Turn off input power using the disconnect
switch at the fuse box before working on
the equipment.
8.b. Install equipment in accordance with the U.S. National Electrical
Code, all local codes and the manufacturer’s recommendations.
8.c. Ground the equipment in accordance with the U.S. National
Electrical Code and the manufacturer’s recommendations.
Refer to
http://www.lincolnelectric.com/safety
for additional safety information.
SAFETY
Safety 04 of 04 - 06/15/2016

SAFETY
General Precautions
Whereas plasma cutting has been used safely for years, it does
require certain precautions to ensure the safety of the operator and
other people around the equipment. The following safety information
must be provided to each person who will operate, observe, perform
maintenance, or work in close proximity to this piece of equipment.
Installation, operation, and repairs made to the system should only be
performed by qualified personnel. The system makes use of both A.C.
and D.C. circuitry for operation. Fatal shock hazard does exist.
Exercise extreme caution while working on the system. Safety decals
On the power supply should not be removed.
ULTRA IOLET RADIATION
PROTECTION
Plasma cutting produces ultraviolet radiation similar to a welding arc.
This ultraviolet radiation can cause skin and eye burns. For this
reason, it is essential that proper protection be worn. The eyes are
best protected by using safety glasses or a welding helmet with an
AWS No. 12 shade or ISO 4850 No. 13 shade, which provides
protection up to 400 amperes. All exposed skin areas should be
covered with flame-retardant clothing. The cutting area should also
be prepared in such a way that ultraviolet light does not reflect. Walls
and other surfaces should be painted with dark colors to reduce
reflected light. Protective screens or curtains should be installed to
protect additional workers in the area from ultraviolet radiation.
NOISE PROTECTION
The system generates high noise levels while cutting. Depending on
the size of the cutting area, distance from the cutting torch, and arc
current cutting level, acceptable noise levels may be exceeded.
Proper ear protection should be used as defined by local or national
codes.
TOXIC FUME PRE ENTION
Care should be taken to ensure adequate ventilation in the cutting
area. Some materials give off toxic fumes that can be harmful or fatal
to people in the vicinity of the cutting area. Also, some solvents
decompose and form harmful gases when exposed to ultraviolet
radiation. These solvents should be removed from the area prior to
cutting. Galvanized metal can produce harmful gases during the
cutting process. Ensure proper ventilation and use breathing
equipment when cutting these materials.
Certain metals coated with or containing lead, cadmium, zinc,
beryllium, and mercury produce harmful toxins. Do not cut these
metals unless all people subjected to the fumes wear proper air
breathing equipment.
ELECTRIC SHOCK PRE ENTION
The system uses high open circuit voltages that can be
fatal. Extreme care should be used when operating or
performing maintenance on the system. Only qualified personnel
should service the system. Observe the following guidelines to protect
against electric shock:
• A wall-mounted disconnect switch should be installed and fused
according to local and national electrical codes. The disconnect
switch should be located as close as possible to the power supply
so it can be turned off in case of an emergency.
• The primary power cord should have a 600 volt minimum rating in
order to protect the operator. In addition, it should be sized
according to local and national electrical codes. Inspect the primary
power cord frequently. Never operate the system if the power cord
is damaged in any way.
• Make sure the primary power ground wire is connected at the input
power ground location on the power supply. Make sure the
connection is securely tightened.
• Make sure the positive output (work ground) of the power supply is
connected to a bare metal area on the cutting table. A driven
ground rod should be placed no further than five feet from this
connection. Make sure this ground point on the cutting table is
used as the star ground point for all other ground connections.
• Inspect the torch leads frequently. Never use the system if the leads
are damaged in any way.
• Do not stand in wet, damp areas when operating or performing
maintenance on the system.
• Wear insulated gloves and shoes while operating or performing
maintenance on the system.
• Make sure the system is switched off at the wall disconnect before
servicing the power supply or torch.
• Never change torch consumable parts unless main power to the
system is switched off at the power supply or wall disconnect.
• Do not attempt to remove any parts from beneath the torch when
cutting. Remember that the workpiece forms the current path back
to the power supply.
• Never bypass the safety interlock devices.
• Before removing any of the covers, switch the system off at the wall
disconnect. Wait at least five (5) minutes before removing any
cover. This will give the capacitors inside the unit time to discharge.
See Section 5 for additional safety precautions.
• Never operate the system without all of the covers in place. See
Section 5 for additional safety precautions.
• Preventive maintenance should be performed daily to avoid
possible safety hazards.
2
FLEXCUT™ 125 SAFETY

3
FLEXCUT™ 125
FIRE PRE ENTION
When using the system , it is necessary to exercise good
judgment. While cutting, the arc produces sparks that could cause a
fire if they fall on flammable materials. Make sure that all flammable
materials are a suitable distance away from the cutting area. All
flammable liquids should be at least 40 feet away from the cutting
area, preferably stored in a metal cabinet. Plasma cutting should
never be attempted on containers that contain flammable materials.
Make sure that fire extinguishers are readily accessible in the cutting
area.
EXPLOSION PRE ENTION
The system uses compressed gases. Use proper
techniques when handling compressed gas cylinders and other
compressed gas equipment. Observe the following guidelines to
protect against explosion:
• Never operate the system in the presence of explosive gases or
other explosive materials.
• Never cut pressurized cylinders or any closed container.
• When using a water table and cutting aluminum under water or
with water touching the underside at the aluminum plate,
hydrogen gas is produced. This hydrogen gas may collect under
the plate and explode during the cutting process. Make sure the
water table is properly aerated to help prevent the accumulation
of hydrogen gas.
• Handle all gas cylinders in accordance with safety standards
published by the U.S. Compressed Gas Association (CGA),
American Welding Society (AWS), Canadian Standards
Association (CSA), or other local or national codes.
• Compressed gas cylinders should be maintained properly. Never
attempt to use a cylinder that is leaking, cracked, or has other
signs of physical damage.
• All gas cylinders should be secured to a wall or rack to prevent
accidental knock over.
• If a compressed gas cylinder is not being used, replace the
protective valve cover.
• Never attempt to repair compressed gas cylinders.
• Keep compressed gas cylinders away from intense heat, sparks,
or flames.
• Clear the compressed gas cylinder connection point by opening
the valve momentarily prior to installing a regulator.
• Never lubricate compressed gas cylinder valves or pressure
regulators with any type of oil or grease.
• Never use a compressed gas cylinder or pressure regulator for
any purpose other than which it is intended.
• Never use a pressure regulator for any gas other than which it is
intended.
• Never use a pressure regulator that is leaking or has other signs
of physical damage.
• Never use any gas hose that is leaking or has other signs of
physical damage.
HEALTH SUPPORT EQUIPMENT
The system creates electric and magnetic fields that
may interfere with certain types of health support
equipment, such as pacemakers. Any person who uses a pacemaker
or similar item should consult a doctor before operating, observing,
maintaining, or servicing the system. Observe the following guidelines
to minimize exposure to these electric and magnetic fields:
• Stay as far away from the~power supply, torch, and torch leads
as possible.
• Route the torch leads as close as possible to the work ground
cable.
• Never place your body between the torch leads and work ground
cable. Keep the work ground cable and the torch leads on the
same side of your body.
• Never stand in the center of a coiled up set of torch leads or work
ground cable.
SAFETY

FLEXCUT™ 125
Safety Standards Booklet Index
For further information concerning safety practices to be exercised
with plasma arc cutting equipment, please refer to the following
publications:
1. AWS Standard AWN, Arc Welding and Cutting Noise, obtainable
from the American Welding Society, 550 NW Le eune Road, Miami,
FL 33126.
2. AWS Standard C5.2, Recommended Practices for Plasma Arc
Cutting, obtainable from the American Welding Society, 550 NW
Le eune Road, Miami, FL 33126.
3. AWS Standard FSW, Fire Safety in Welding and Cutting, obtainable
from the American Welding Society, 550 NW Le eune Road, Miami,
FL 33126.
4. AWS Standard F4.1, Recommended Safe Practices for Preparation
for Welding and Cutting of Containers and Piping, obtainable from
the American Welding Society, 550 NW Le eune Road, Miami, FL
33126.
5. AWS Standard ULR, Ultraviolet Reflectance of Paint, obtainable
from the American Welding Society, 550 NW Le eune Road, Miami,
FL 33126.
6. AWS I ANSI Standard Z49.1, Safety in Welding, Cutting, and Allied
Processes, obtainable from the American Welding Society, 550 NW
Le eune Road, Miami, FL 33126.
7. ANSI Standard Z41.1 , Standard For Men's Safety-Toe Footwear,
obtainable from the American National Standards Institute, 11 West
42nd Street, New York, NY 10036.
8. ANSI Standard Z49.2, Fire Prevention in the Use of Cutting and
Welding Processes, obtainable from the American National
Standards Institute, 11 West 42nd Street, New York, NY 10036.
9. ANSI Standard Z87.1, Safe Practices For Occupation and
Educational Eye and Face Protection, obtainable from the American
National Standards Institute, 11 West 42nd Street, New York, NY
10036.
10. ANSI Standard Z88.2, Respiratory Protection, obtainable from the
American National Standards Institute, 11 West 42nd Street, New
York, NY 10036.
11. OSHA Standard 29CFR 1910.252, Safety and Health Standards,
obtainable. from the U.S. Government Printing Office, Washington,
D.C. 20402.
12. NFPA Standard 51 , Oxygen - Fuel Gas Systems for Welding,
Cutting, and Allied Processes, obtainable from the National Fire
Protection Association, 1 Batterymarch Park, Quincy, MA 02269.
13. NFPA Standard 51 B, Cutting and Welding Processes, obtainable
from the National Fire Protection Association, 1 Batterymarch
Park, Quincy, MA 02269.
14. NFPA Standard 70, National Electrical Code, obtainable from the
National Fire Protection Association, 1 Batterymarch Park, Quincy,
MA 02269.
15. CGA booklet P-1 , Safe Handling of Compressed Gases in
Containers, obtainable from the Compressed Gas Association,
1725 efferson Davis Highway, Suite 1004, Arlington, VA 22202.
16. CGA booklet P-14, Accident Prevention in Oxygen-Rich and
Oxygen-Deficient Atmospheres, obtainable from the Compressed
Gas Association, 1725 efferson Davis Highway, Suite 1004,
Arlington, VA 22202.
17. CGA booklet TB-3, Hose Line Flashback Arrestors, obtainable from
the Compressed Gas Association, 1725 efferson Davis Highway,
Suite 1004, Arlington, VA 22202.
18. CSA Standard W117 .2, Safety in Welding, Cutting, and Allied
Processes, obtainable from Canadian Standards Association, 178
Rexdale Boulevard, Toronto, Ontario M9W IR3, Canada.
19. Canadian Electrical Code Part 1, Safety Standard for Electrical
Installations, obtainable from the Canadian Standards Association,
178 Rexdale Boulevard, Toronto, Ontario M9W 1 R3, Canada.
4
SAFETY

5
FLEXCUT™ 125
TABLE OF CONTENTS
Safety
General Description...........................................................................................................................10
Preheat Temperature For Plasma Cutting ..........................................................................................10
Duty Cycle.........................................................................................................................................10
User Responsibility............................................................................................................................10
Design Features And Advantages ......................................................................................................10
Installation ..................................................................................................................................Section A
Select Suitable Location...................................................................................................................A-2
Lifting ............................................................................................................................................A-2
Stacking ..........................................................................................................................................A-2
Tilting ............................................................................................................................................A-2
High Frequency Interference Protection ...........................................................................................A-2
Input Connection..............................................................................................................................A-2
Machine Grounding..........................................................................................................................A-2
Input Plug Installation ......................................................................................................................A-3
Input Connection..............................................................................................................................A-3
Input Fuse And Supply Wire Considerations .....................................................................................A-3
Input Voltage Selection ....................................................................................................................A-4
Gas Supply Requirements................................................................................................................A-4
Connecting The Gas Supply .............................................................................................................A-4
Output Connections .........................................................................................................................A-4
Operation ..................................................................................................................................Section B

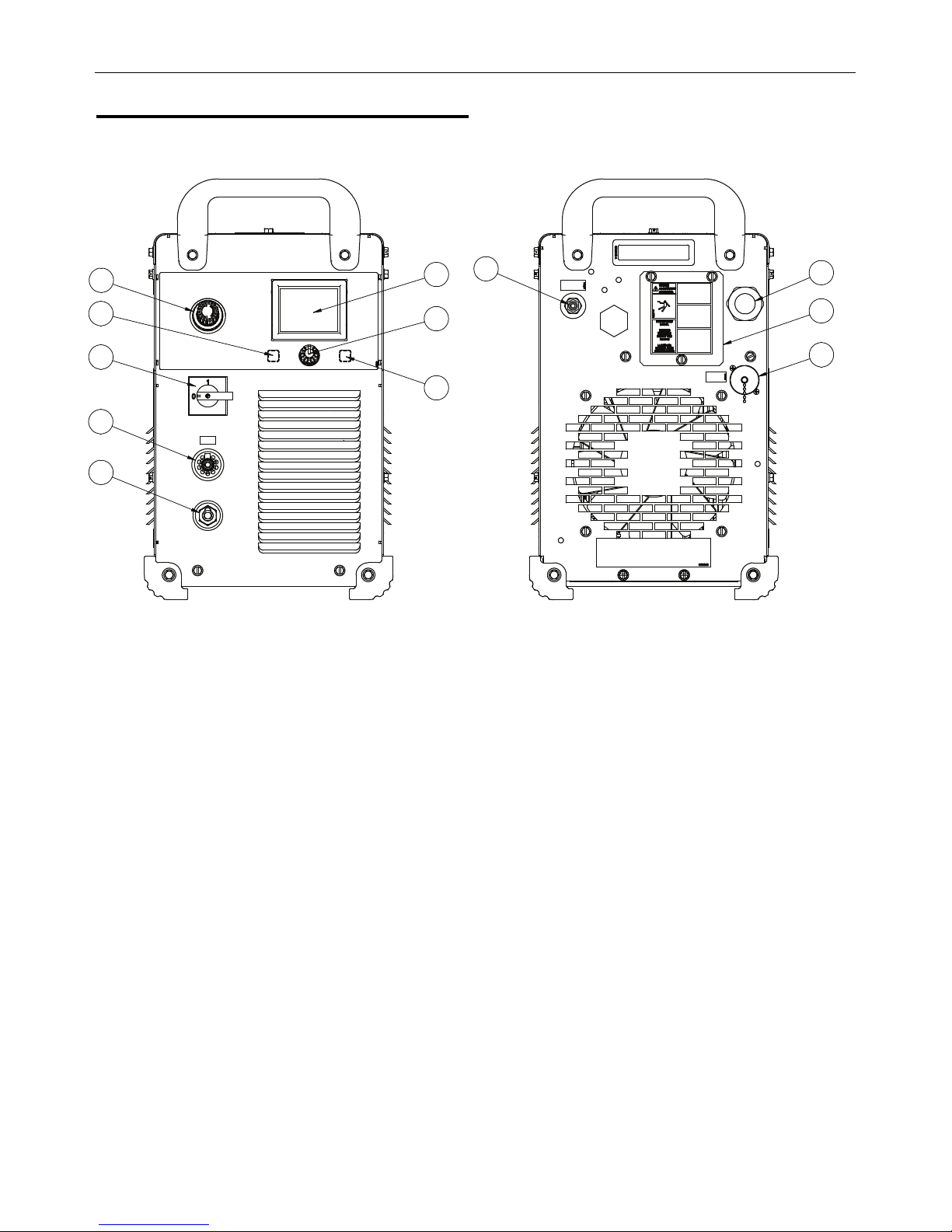

Controls And Settings ......................................................................................................................B-2

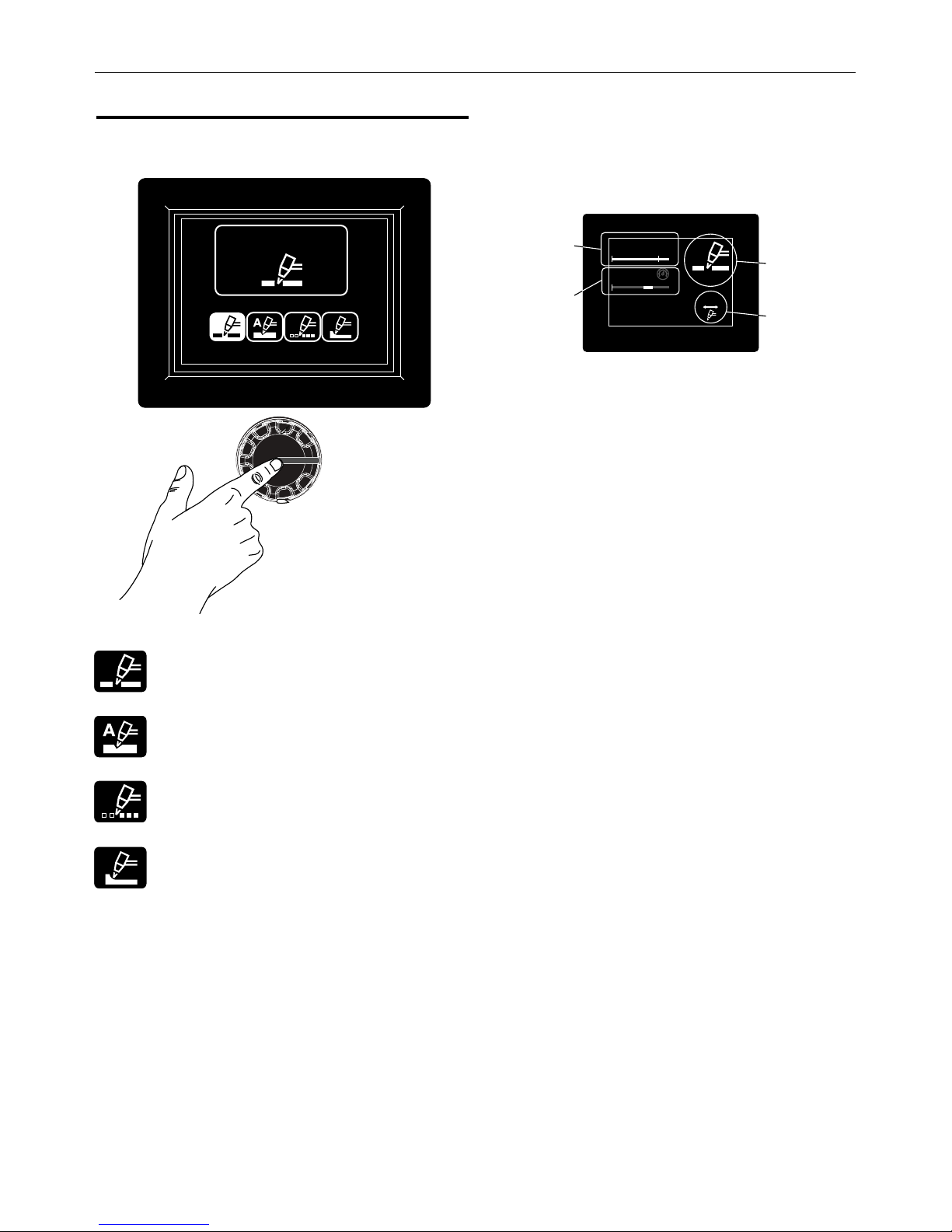

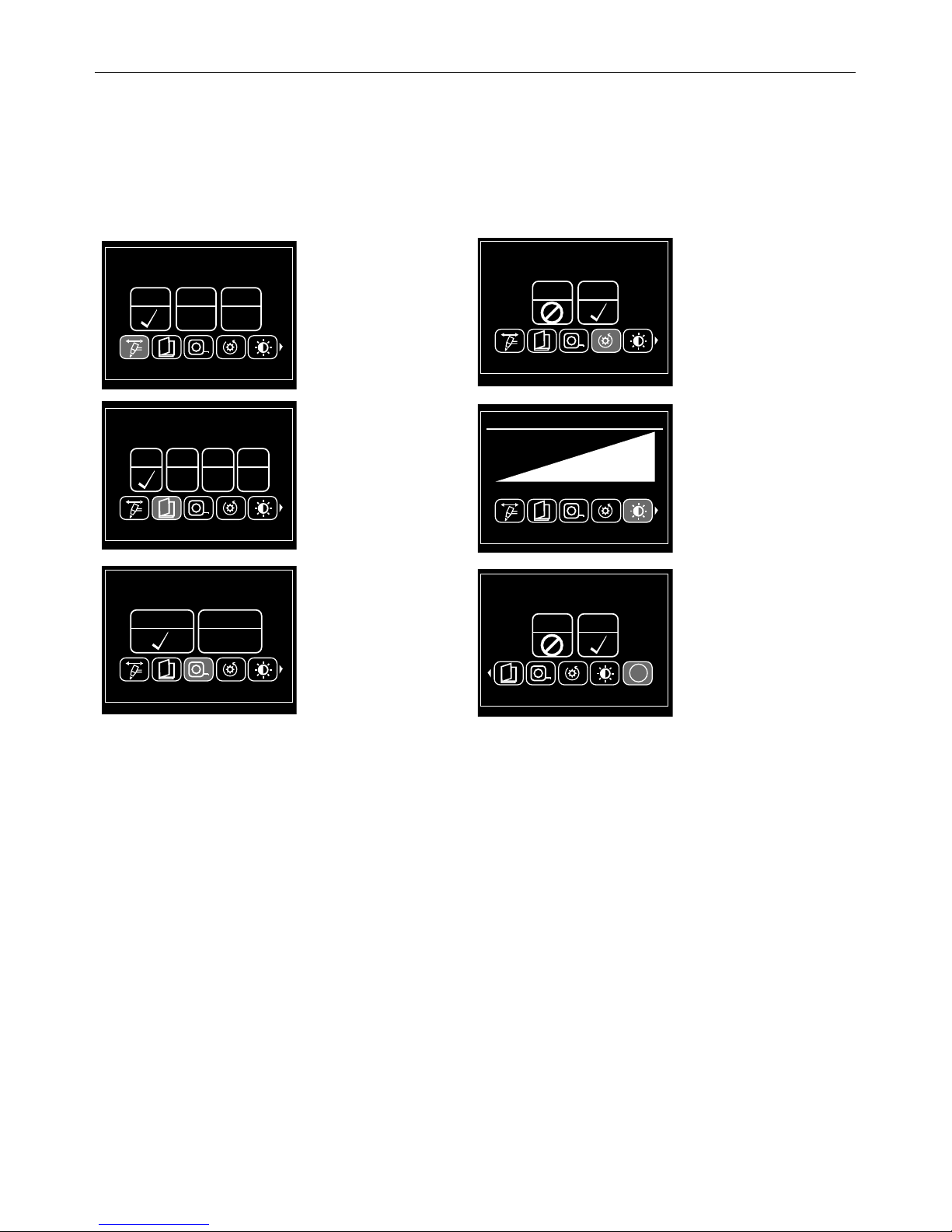

User Interface..................................................................................................................................B-3
Mechanized Cutting.........................................................................................................................B-5
Cut Charts .......................................................................................................................................B-7
Consumable Life............................................................................................................................B-13
Cut Quality.....................................................................................................................................B-13

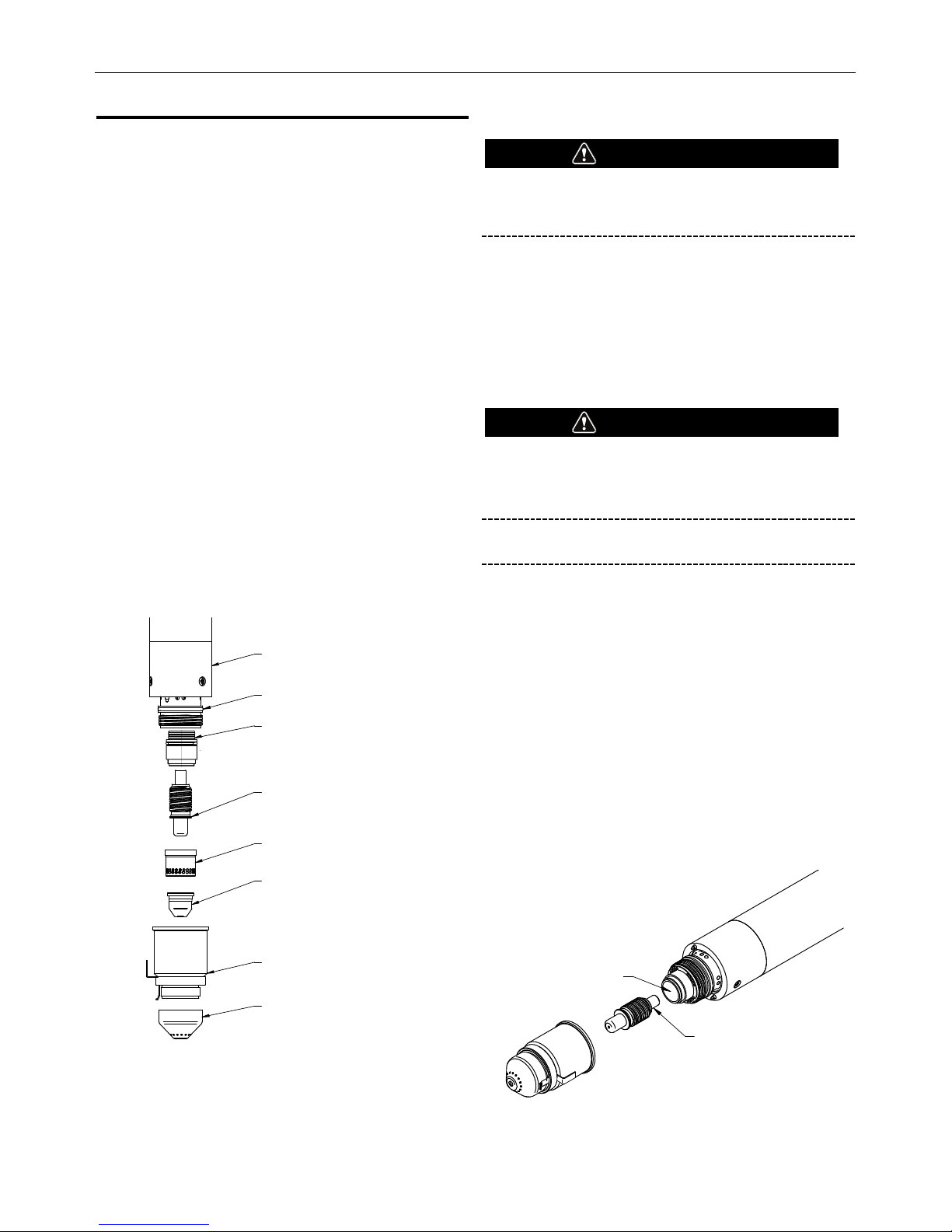

Inspection Of Consumable Parts ....................................................................................................B-14
Suggestions For Extra Utility From The Flexcut™ 125 System: ....................................................B-15

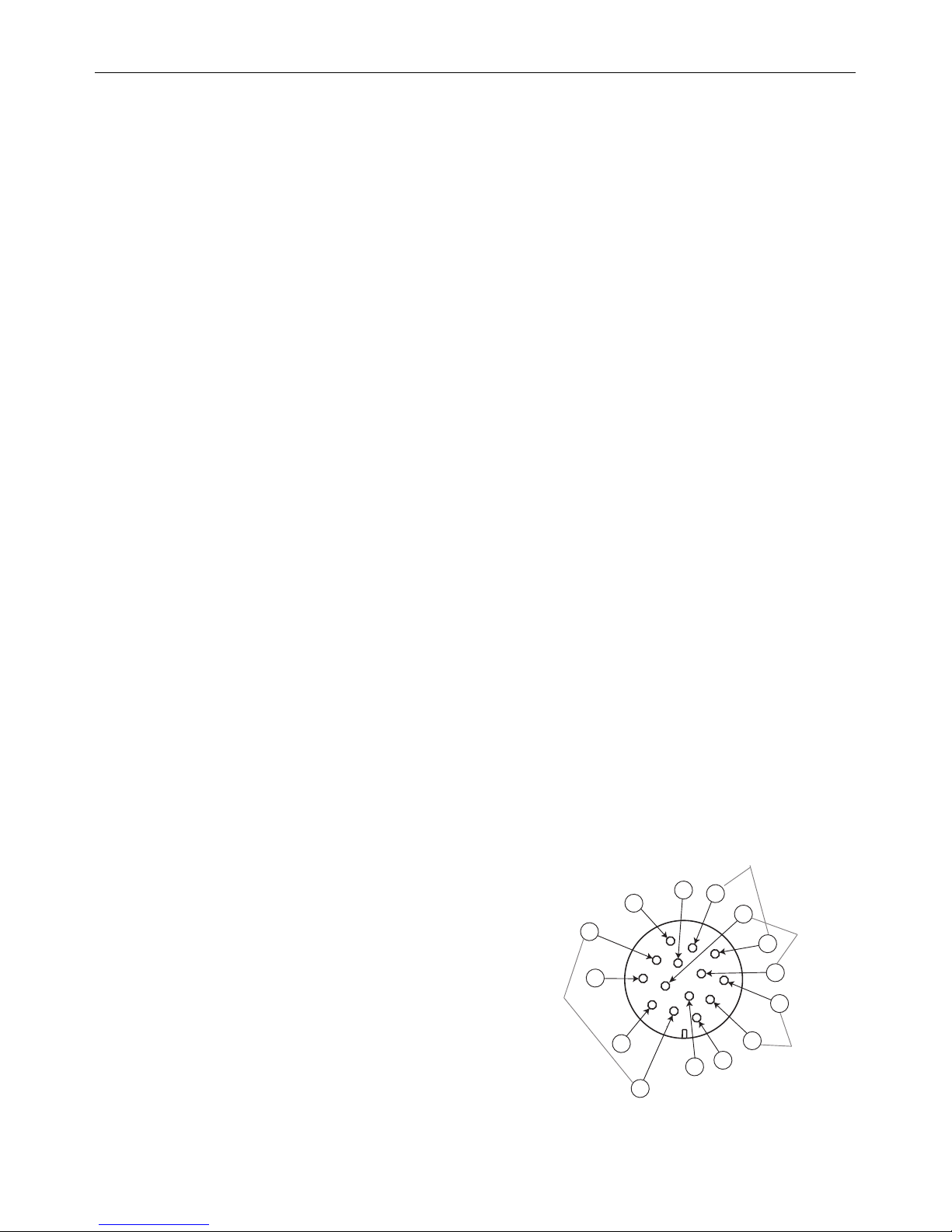

Accessing Divided Arc Voltage.......................................................................................................B-16
Options/Accessories...................................................................................................................Section C
Maintenance ...............................................................................................................................Section D
Daily Procedures .............................................................................................................................D-1
Monthly Procedures.........................................................................................................................D-1
Troubleshooting ..........................................................................................................................Section E
Diagrams ..................................................................................................................................Section F
Wiring Diagram................................................................................................................................F-1
Dimension Print ...............................................................................................................................F-2
arts List .........................................................................................................parts.lincolnelectric.com
Content/details may be changed or updated without notice. For most current Instruction Manuals, go to
parts.lincolnelectric.com.

FLEXCUT™ 125
GENERAL DE CRIPTION
The FLEXCUT™ 125 is a constant current, continuous control plasma
cutting power source. It provides superior and reliable starting
characteristics, cutting visibility and arc stability. The control system
has a safety mechanism to ensure that the nozzle and electrode are in
place before cutting or gouging. This is extremely important due to
the high voltages involved.
The FLEXCUT™ 125 comes standard with an air regulator and digital
pressure display.
The FLEXCUT™ 125 initiates the plasma arc with a simple, yet
reliable, contact start mechanism. This system eliminates many of the
failure problems associated with hi-frequency start systems.
PREHEAT TEMPERATURE FOR PLA MA CUTTING
Preheat temperature control is not necessary in most applications
when plasma arc cutting or gouging. Preheat temperature control
may be necessary on high carbon alloy steels and heat treated
aluminum for crack resistance and hardness control. ob conditions,
prevailing codes, alloy level, and other considerations may also
require preheat temperature control. The following minimum preheat
temperature is recommended as a starting point. Higher temperatures
may be used as required by the job conditions and/or prevailing
codes. If cracking or excessive hardness occurs on the cut face,
higher preheat temperature may be required. The recommended
minimum preheat temperature for plate thickness up to 1/2"
(12.7mm) is 70°F (21.1°C).
DUTY CYCLE
The duty cycle of a plasma machine is the percentage of time in a 10
minute cycle at which the operator can operate the machine at rated
cutting current.
Example: 60% duty cycle means that it is possible to cut for 6
minutes, then the machine stops for 4 minutes.
Refer to the Technical Specification section for more information
about the machine rated duty cycles.
U ER RE PON IBILITY
Because design, fabrication, erection and cutting variables affect the
results obtained in applying this type of information, the serviceability
of a product or structure is the responsibility of the user. Variation
such as plate chemistry, plate surface condition (oil, scale), plate
thickness, preheat, quench, gas type, gas flow rate and equipment
may produce results different than those expected. Some adjustments
to procedures may be necessary to compensate for unique individual
conditions. Test all procedures duplicating actual field conditions.
DE IGN FEATURE AND ADVANTAGE
The FLEXCUT™ 125 design makes plasma cutting uncomplicated.
This list of design features and advantages will help you understand
the machine's total capabilities so that you can get maximum use
from your machine.
- Light weight and portable design for industrial use.
- Continuous control, 20 - 125 amps.
- Reliable touch start mechanism for plasma arc initiation.
- Rapid arc restrike for fast cutting of expanded metal.
- Input over voltage protection.
- Bright 5.0 second timed pilot arc.
- Gas purge selection.
- Air regulator and pressure gage included.
- Internal water separator included.
- Parts-in-Place mechanism to detect proper installation of
consumables and torch.
- Preflow/Postflow timing. Preflow is eliminated if arc is re-
initiated in Postflow.
- Thermostatic Protection.
- Solid state over-current protection.
- Patented electrode, nozzle and shield cap for optimum cooling,
cut quality and long life.
6

TECHNICAL S ECIFICATIONS -
K4160-1 FLEXCUT™ 125
A-1
INSTALLATION FLEXCUT™ 125
INPUT - THREE PHA E/ 50 / 60 HERTZ
Input Voltge +/- 10%
Input Amperes @ R ted Output
Circuit Breker (Dely Type)
380/400/415V/3/50/6040100% Duty Cycle50 Amps
460V/3/50/6033100% Duty Cycle40 Amps
575V/3/50/6028100% Duty Cycle30 Amps
RATED OUTPUT AT 40° C
Duty Cycle CURRENT VOLTAGE
100% 125A 175 VDC
RECOMMENDED INPUT WIRE
For all plasma cutting applications
Based on U.S. National Electrical Code
Ambient Temperature 30oC or Less
Input Cord Supplied
with achine
STO, 600V
Type S, SO, ST, STO
or Extra Hard Usage Cord
AWG (IEC) Sizes
Input Supply Wires
#8 (8.4 mm2)
1 Ground Wire
#8 (8.4 mm2)
OUTPUT
Current R nge Open Circuit Volt ge Pilot Current
20 - 125 Amps 300 VDC 30 Amps
PHY ICAL DIMEN ION
Height Width Depth Weight
20.72 in.
(526 mm)
12.25 in.
(311 mm)
25.53 in.
(648 mm)
118 lbs.
(53.5 kgs)
TEMPERATURE RANGE
OPERATING TEMPERATURE
RANGE
STORAGE TEMPERATURE
RANGE
-10°C to +40°C -25°C to +55°C
GA
REQUIRED GAS FLOW RATE REQUIRED GAS INLET
PRESSURE
550 SCFH min @ 90 PSI
(260 SLP min @ 6.21 bar)
90 to 120 PSI
(6.21 to 8.27 Bar.)
*In some countries Uois also known as OCV (see CAN/CSA - W117.2)
*Ground wire should be longer than the three current carrying conductors
inside the machine.

A-2
INSTALLATION FLEXCUT™ 125
Read entire Installation Section before installing the
FLEXCUT™ 125 .
INSTALLATION
ELECTRIC HOCK CAN KILL.
• Only qualified personnel should install
this machine.
• Turn the input power OFF at the
disconnect switch or fuse box and
discharge input capacitors before working inside the
equipment.
• Do not touch electrically hot parts.
• Turn the FLEXCUT™ 125 Power witch OFF when
connecting power cord to input power.
ELECT UITABLE LOCATION
Place the FLEXCUT™ 125 where clean cool air can freely circulate in
through the rear of the machine and out through the front and side
louvers. Maintain at least 10 inches of space on all sides of the unit.
Dirt, dust, or any foreign material that can be drawn into the machine
should be kept to a minimum. A properly installed machine will allow
for dependable service and reduce periodic maintenance time. Failure
to observe these precautions may result in excessive operating
temperatures and nuisance shutdowns of the machine.
Keep machine dry.
helter from rain and snow. Do not place on wet ground or
in puddles.
LIFTING
The FLEXCUT™ 125 power supply should be lifted by two people or a
hoist. In order to prevent damage, the power supply should be lifted
by both handles while keeping the unit as horizontal as possible. Only
hoisting straps approved for the weight of the machine should be
used.
TACKING
The FLEXCUT™ 125 cannot be stacked.
TILTING
The FLEXCUT™ 125 must be placed on a stable, level surface so it
will not topple over.
HIGH FREQUENCY INTERFERENCE PROTECTION
The FLEXCUT™ 125 employs a touch start mechanism for arc
initiation which eliminates high frequency emissions from the
machine as compared with spark gap and solid state type high
frequency generators. Keep in mind though, that these machines may
be used in an environment where other high frequency generating
machines are operating. By taking the following steps, high frequency
interference into the FLEXCUT™ 125 can be minimized:
(1) Make sure the power supply chassis is connected to a good earth
ground. The work terminal ground does NOT ground the machine
frame.
(2) Keep the work clamp isolated from other work clamps that have
high frequency.
(3) If the work clamp cannot be isolated, then keep the clamp as far
as possible from other work clamp connections.
(4) When the machine is enclosed in a metal building, several good
earth driven grounds around the periphery of the building are
recommended.
INPUT CONNECTION
Only a qualified electrician should connect the input leads to
the FLEXCUT 125. Connections should be
made in accordance with all local and
national electrical codes and the
connection diagrams. Failure to do so may
result in bodily injure or death.
The FLEXCUT™ 125 is rated for 380 VAC through 575 VAC input
voltages, three phase and 50 or 60 Hertz. Before connecting the
machine to power, be sure the input supply voltage, phase and
frequency all match those listed on the machine’s rating plate.
MACHINE GROUNDING
The frame of the welder must be grounded. A ground terminal
marked with a ground symbol is located next to the input power
connection block.
See your local and national electrical codes for proper grounding
methods.
The FLEXCUT 125 ON/OFF switch is not intended as a
service disconnect for this equipment. Only a qualified
electrician should connect the input leads to the
FLEXCUT 125. Connections should be made in accordance
with all local and national electrical codes. Failure to do so
may result in bodily injury or death.
WARNING
WARNING
WARNING
CAUTION

A-3
INSTALLATION FLEXCUT™ 125
INPUT PLUG IN TALLATION
A 10 ft.(3m) power cord is provided with the FLEXCUT 125.
Three hase Input Only
Connect green lead to ground per National Electric Code.
Connect black, red and white leads to power.
In all cases, the green or green/yellow grounding wire must be
connected to the grounding pin of the plug, usually identified by a
green screw.
Attachment plugs must comply with the Standard for Attachment
Plugs and Receptacles, UL498.
The product is considered acceptable for use only when an
attachment plug as specified is properly attached to the supply cord.
Only a qualified electrician should connect the input leads to
the FLEXCUT 125. Connections should be made in
accordance with all local and national electrical codes and
the connection diagrams. Failure to do so may result in
bodily injure or death.
The FLEXCUT 125 ON/OFF switch is not
intended as a service disconnect for this
equipment. Only a qualified electrician should
connect the input leads to the FLEXCUT 125.
Connections should be made in accordance with all local
and national electrical codes and the connection diagram
located on the inside of the reconnect access door of the
machine. Failure to do so may result in bodily injury or
death.
POWER CORD REPLACEMENT
If the input cord is damaged or needs to be replaced, the new cord
should be routed through the strain relief and into the connection
block.
(See Figure A.1)
Use a three-phase supply line. A 1.40 inch diameter access hole with
strain relief is located on the case back. Route input power cable
through this hole and connect L1, L2, L3, and ground per connection
diagrams and National Electric Code. To access the input power
connection block, remove the seven screws and the left case side of
the machine as shown.
ALWAYS CONNECT THE GROUNDING LUG (LOCATED AS SHOWN IN
FIGURE A.1) TO A PROPER SAFETY (EARTH) GROUND.
INPUT FU E AND UPPLY WIRE CON IDERATION
Refer to the Specification Section for recommended fuse, wire sizes,
and type of copper wires. Fuse the input circuit with the
recommended super lag fuses or delay type breakers (also called
“inverse time” or “thermal/magnetic” circuit breakers). Choose input
and grounding wire size according to local or national electric codes.
Using input wire sizes, fuses, or circuit breakers smaller than
recommended may result in “nuisance” shut-offs from high inrush
currents, even if the machine is not being used at high currents.
WARNING
WARNING
GROUND CONNECTION
CONNECT GROUND LEAD PER LOCAL
AND NATIONAL ELECTRIC CODE
INPUT CORD STRAIN RELIEF
ROUTE INPUT CORD THROUGH RELIEF
AND TWIST NUT TO TIGHTEN
POWER CONNECTION BLOCK
CONNECT EACH PHASE OF A
THREE PHASE CONDUCTOR HERE
FIGURE A.1

INPUT VOLTAGE ELECTION
The Flexcut™ 125 is shipped connected for 460 VAC input. To
reconfigure the machine for a different input voltage see the panel on
the rear of the unit (Figure A.2). With input power removed from the
machine, move the Auxiliary (“A”) lead from the 460V tap to the
desired input voltage. Always replace the cover when finished.
If the “A” lead is not connected to the proper voltage tap, the machine
may not power on, it may throw an error, or the fuse may open.
Should the fuse open, replace the fuse, reconnect the “A” lead to the
correct voltage and re-apply power.
GA UPPLY REQUIREMENT
Supply the FLEXCUT™ 125 with clean, dry, oil-free compressed air or
nitrogen. A high pressure regulator MUST be used with a compressor
or a high pressure cylinder.
Supply pressure must be between 90-120 psi (6.21 - 8.27 bar) with
flow rates of at least 550 SCFH or 260 SLPM.
Air supply pressure should never exceed 130
psi or damage to the machine may occur!
The FLEXCUT™ 125 contains a built-in filter but depending on the
quality of the supply, additional filtration may be required. Be aware
that shop air systems are prone to oil and moisture contamination. If
shop air is used, it must be cleaned to ISO 8573-1:2010, Class 1.4.1.
See the Maintenance Gas Supply Section for information on changing
the internal filter element.
Specify dry air when using compressed cylinders. Breathing quality
air contains moisture and should not be used.
A standard nominal 5 micron inline filter is recommended, but for
optimal performance, select a pre-filter with a 3 micron absolute
rating.
CYLINDER could explode if damaged.
• Keep cylinder upright and chained to a fixed support.
• Keep cylinder away from areas where it
could be damaged.
• Never lift machine with cylinder
attached.
• Never allow the cutting torch to touch
the cylinder.
• Keep cylinder away from live electrical parts.
• Maximum inlet pressure 130 psi.
CONNECTING THE GA UPPLY
Air or gas must be supplied to the FLEXCUT™ 125 with 3/8” inside
diameter tubing and a ¼” NPT quick disconnect coupler.
OUTPUT CONNECTION
The FLEXCUT™ 125 is sent from the factory with a work clamp
included. The work clamp must be securely connected to the work
piece. If the work piece is painted or extremely dirty it may be
necessary to expose the bare metal in order to make a good electrical
connection.
WARNING
WARNING
A-4
INSTALLATION FLEXCUT™ 125
AUXILIARY ("A") LEAD
FIGURE A.2

B-1
OPERATION
OPERATION
SAFETY RECAUTIONS
ELECTRIC HOCK can kill.
• Do not touch electrically live parts
or electrode with skin or wet
clothing.
• Insulate yourself from work and
ground.
• Always wear dry insulating gloves.
FUME AND GA E can be
dangerous.
• Keep your head out of fumes.
• Use ventilation or exhaust to
remove fumes from breathing zone.
WELDING, CUTTING and
GOUGING PARK can cause
fire or explosion
• Keep flammable material away.
• Do not weld, cut or gouge on
containers that have held combustibles.
ARC RAY can burn.
• Wear eye, ear and body protection.
PLA MA ARC can injure
• Keep your body away from nozzle
and plasma arc.
• Operate the pilot arc with caution.
The pilot arc is capable of burning
the operator, others or even
piercing safety clothing.
Observe additional Safety Guidelines detailed in the beginning
of this manual.
GRAPHIC SYMBOLS THAT APPEAR ON THIS
MACHINE OR IN THIS MANUAL
WARNING
FLEXCUT™ 125
WARNING OR CAUTION
READ IN TRUCTION
MANUAL
CUT
GA INPUT
GRID or EXPANDED METAL
GOUGE
POWER ON
POWER OFF
PROTECTIVE
GROUND
GA PURGE
MARKING

B-2
CONTROL AND ETTING
FIGURE B.2 - Front anel
1. LCD Display: Shows available modes and real time parame-
ters.
2. Home Button: Allows the user to return to the Home Screen.
3. Menu Control Knob/Button: Used to navigate and select
items on the display.
4. ressure Regulator: Allows the regulation of the primary
air/gas pressure.
5. urge: Allows the user to enable air flow from the machine.
6. On/Off Switch: Turns the input power to the machine
ON/OFF.
7. Torch Connection: Connect the torch.
8. Work Lead Connection: Connect cable with work clamp.
FIGURE B.3 - Back anel
9. Input Cord Strain Relief: Used to connect the unit to input
power.
10. Reconnect anel Access: Allows the unit to be configured
for 380, 460, or 575 VAC input.
11. 14-pin CNC Interface: Allows access to Arc Start Trigger,
Arc Initiated contact, raw or divided Arc Voltage, and
Forced Mark.
12. Air or Gas Inlet (1/4” N T Quick Connect): Compressed air
or gas connection.
FLEXCUT™ 125 OPERATION
1
2
5
3
7
8
6
49
11
12
10

B-3
OPERATION
U ER INTERFACE
Mod S l ct Scr n
Choose between four available modes:
Cut – For cutting operations on a solid workpiece.
Mark – For discoloring or slight removal of material. Can
be used to add part numbers, bend lines, drill marks, or
many other surface modifications.
Grid – For cutting operations on a non-continuous
workpiece.
Gouge – For removing material from a workpiece
(removing a weld).
Activ Mod Scr n - S Figur B.4
Active Mode Icon – The currently selected mode icon will be
displayed here. Return to the mode select screen to choose a new
mode.
Output Current – Turn the control knob to adjust the desired output
current. While cutting, the screen will display the actual cutting
current in Amps. Output current range is dependent on Mode
selected.
Output Gas Pressure – The output gas pressure is displayed on a
linear scale, with the center of the green range as the recommended
output gas pressure based on selected mode and torch length. Use
the regulator knob on the front of the machine to adjust the output
gas pressure, but do so only while gas is flowing. Hold the purge
button while pulling and turning the regulator knob to adjust the
pressure as desired.
Torch Length – The selected torch length will be displayed here. Be
sure the torch length matches the torch that is being used with the
machine. The torch length can be modified in the settings menu.
FLEXCUT™ 125
Cutting
Press to Select
125 A
60 PSI
25ft
Active Mode Icon
Output Current
Output Gas Pressure
Torch Length
FIGURE B.4

B-4
OPERATION
S ttings
Press both the home and purge buttons at the same time to enter or
exit the settings menu.
Options (turn th knob to scroll and pr ss th knob
to s l ct):
Torch Size – Choose between
25 ft. (7.6m), 50 ft. (15.2m), or
75 ft. (22.9m) torch lengths.
This will change the
recommended output gas
pressure.
Language – Choose between
English, Spanish, French, or
German
Units – Choose between
English or Metric units
Reset Factory Settings – Use to
restore the machine back to the
factory settings
Brightness – Used to dim or
brighten the LCD display
Advanced – Used for diagnostic
purposes
FLEXCUT™ 125
25’ 50’ 75’
Press to Select
Torch Size
E
EN SP FR GR
Press to Select
Language
English Metric
Press to Select
Units
No Yes
Press to Select
Reset Factory Settings
Press to Select
110
Brightness
10
No Yes
Press to Select
Information
i

B-5
OPERATION
FLEXCUT™ 125
MECHANIZED CUTTING
M chaniz d Torch Installation
It is recommended that the FLEXCUT™ 125 mechanized torch be
installed on a positioner with an arc voltage control capable of
maintaining the cutting arc voltage within 1 volt. The positioner must
be rigid to ensure cut quality and a torch collision sensor is highly
recommended.
Installing th M chaniz d Torch Consumabl s
To install the torch parts, perform the following
steps (See Figure B.5):
Note: Do not over tighten the consumables! Only tighten until the
parts are seated properly.
1. Inspect the threads on the torch body and retaining cap and
clean as necessary. Apply lubricant to the torch o-ring as
necessary. Lubricant should be oxygen safe and inert in a
flammable environment.
2. Install the electrode (1) into the torch body and press into place.
3. Thread the shield cap (5) onto the retaining cap assembly. (4)
4. Insert the nozzle (3) into the swirl ring. (2)
5. Place the swirl ring / nozzle assembly into the retaining cap.
6. Thread and tighten the retaining cap assembly onto the torch
body. (6)
R moving th Torch Consumabl s
Turn off the machine prior to removing
consumables.
To remove the torch consumables, perform the
following steps:
1. Remove the retaining cap from the torch.
2. Remove the swirl ring and nozzle from the retaining cap.
3. Separate the shield cap from retaining cap.
4. Remove the electrode from the torch body.
5. Remove the swirl ring from the nozzle.
Contaminants such as dirt, metallic dust, oil and moisture
present on the surface of the electrode and/or torch body
can cause electrical arcing between these components and
ultimately result in failure of the torch and consumables.
Do not continue to try and cut excessively worn
consumables as this can cause damage to the Torch Head.
In order to avoid damaging the torch and/or consumables, adhere to
the following guidelines:
1. Ensure that the air supplied to the torch does not contain conta-
minants such as debris, moisture and oil.
2. Ensure that the torch cathode body and electrode body are clean
prior to assembling the consumables into the torch. Wipe away any
contaminants with a dry, lint free cloth.
3. Be sure that the consumables are properly tightened and fully
inserted when installing them into the torch. Check the installation
of the consumables before the start of each work shift and
frequently to ensure that the parts have not become loose as a
result of normal operation.
4. Inspect the surfaces of the cathode body and electrode body to
ensure no contaminants have collected during operation.
(Reference Figure B.6)
FIGURE B.6
WARNING
WARNING
KP4301-1
(
KP4141-13
(
45A - KP4301-7
65A - KP4301-8
85A - KP4301-9
100A - KP4301-10
125A - KP4301-11
(
KP4301-15
(
45A - 65A - KP4301-3
85A - 105A - KP4301-4
T
ELECTRODE BODY
CATHODE BODY
(1) ELECTRODE
BK14300-1
BK500024
(2) SWIRL RING
BK14300-13
(3) NOZZLE
45A - BK14300-7
65A - BK14300-8
85A - BK14300-9
105A - BK14300-10
125A - BK14300-11
(4) RETAINING CAP
BK14300-15
(5) SHIELD CAP
45A - 65A - BK14300-3
85A - 125A - BK14300-4
T
O-RING
BK14300-18
(7) FRONT ISOLATOR ASSEMBLY
(6) LC125M TORCH BODY
FIGURE B.5

B-6
OPERATION
Making a Cut
Setting up a Cut
Use the following procedure to make a cut with the
FLEXCUT™ 125.
1. Using the charts, determine the proper torch parts and cutting
conditions for the material being cut.
2. Install the proper consumables into the torch.
3. Turn the power switch to the ON position to apply power to the
FLEXCUT™ 125. The LCD will turn on and display the FLEXCUT™
initialization screen.
4. Press the home button and choose the desired operating mode.
5. Turn the control knob to set the desired output current.
6. Press and hold the gas purge button while adjusting the regulator
to recommended output pressure (center of green range).
7. The cutting operation is initiated after a start signal is received. The
arc should establish approximately 2 seconds after application of
the start command. The cutting operation is terminated when the
start signal is removed. At the completion of a cut, gas flow
through the torch will continue for approximately 20 seconds. The
LCD will display the actual output current and gas pressure while
the cut is active.
Machine Interface
The FLEXCUT™ 125 comes standard with a machine interface.
Interface signals provided include: Arc Start, Arc Initiated,
Arc Voltage (raw or divided) and Force Mark. These signals are
accessible through the 14 pin connector on the case back. (See
Figure B.7
Arc Start:
The Arc Start circuit allows for triggering of the power source to
commence cutting. This circuit can be accessed through pins K and
M of the 14 pin connector. The circuit has a 15 VDC nominal open
circuit voltage and requires a dry contact closure to activate.
Arc Initiat d:
The Arc Initiated circuit provides information as to when a cutting arc
has transferred to the work piece. This circuit can be accessed
through pins I and of the 14 pin connector. The circuit provides a
dry contact closure when the arc has transferred. Input to this circuit
should be limited to 0.3 A for either 120VAC or 30VDC.
Arc Voltag :
The Arc Voltage circuit can be used for activating a torch height
control. This circuit can be accessed through pins D and G of the 14
pin connector. The circuit provides full electrode to work arc voltage
(300VDC maximum). A divided arc voltage of 20:1, 30:1, 40:1 or 50:1
is available. See “Accessing Divided Arc Voltage.”
Forc Mark:
The Force Mark circuit can be used to change between a cut or grid
operating mode and a marking mode quickly and while output is on.
This circuit can be accessed though pins A and B of the 14-pin
connector. This circuit requires a dry contact closure to operate and
both modes should be configured prior to cutting.
Users wishing to utilize the Machine Interface can order a K867
Universal Adapter (please adhere to the pin locations stated above) or
manufacture a 14 pin connector cable assembly.
FLEXCUT™ 125
14-PIN BOX RECEPTACLE, FRONT VIEW
Arc Start
Force Mark
Arc Voltage
Arc Initiated
J
I
H
N
G
F
E
D
C
L
M
K
A
B
FIGURE B.7
