Lincoln Electric INVERTEC V450-PRO User manual

Invertec®V450-PRO
Substantial Output. Smart Performance.
Rugged Reliability.
MULTI-PROCESS WELDERS
Publication E .94 7/0
Web Update 6/07
www.lincolnelectric.com
TECHNICAL SPECIFICATIONS
Dime sio s Net
Product Product I put Rated Output I put Curre t Output H x W x D Weight
Name Number Power Curre t/Voltage/Duty Cycle @ Rated Output Ra ge i . (mm) lbs. (kg)
Invertec®V450-PRO K2420-1 208/230/460/575/3/50/60 60Hz: 60Hz: 5-570A 26.1 x 19.9 x 32.9 293
450A/38V/100% 58/53/25/22A (663 x 505 x 835) (133)
(570A/43V/60%) (82/78/37/31A)
50Hz: 50Hz:
400A/36V/100% 49/45/23/18A
(500A/40V/60%) (67/61/31/25A)
Invertec®V450-PRO K2421-1 380/415/3/50/60 400A/36V/100% 36/33A 5-500A 278
(CE) (500A/40V/60%) (48/44A) (126)
CV
CC
DC
3
PHASE
60
50
Hz
Output
I put
Heavy fabrication welding operations will appreciate the broad multi-process
performance of the V450-PRO – featuring robust stick, MIG and cored wire
welding as well as precision Touch-Start TIG®performance. The V450-PRO
is targeted for shops commonly welding with .052" or larger diameter wires
that also require plenty of power for arc gouging repair work with a 3/8" carbon.
Take advantage of the benefits of inverter-based power sources, including a fast
response to changes at the arc and high input power efficiency and power factor
ratings for real savings on your electric bills. Combine those platform advantages
with the optional Advanced Process Panel to add pulsing capability and access
to Waveform Control Technology®and other arc performance Lincoln extweld®

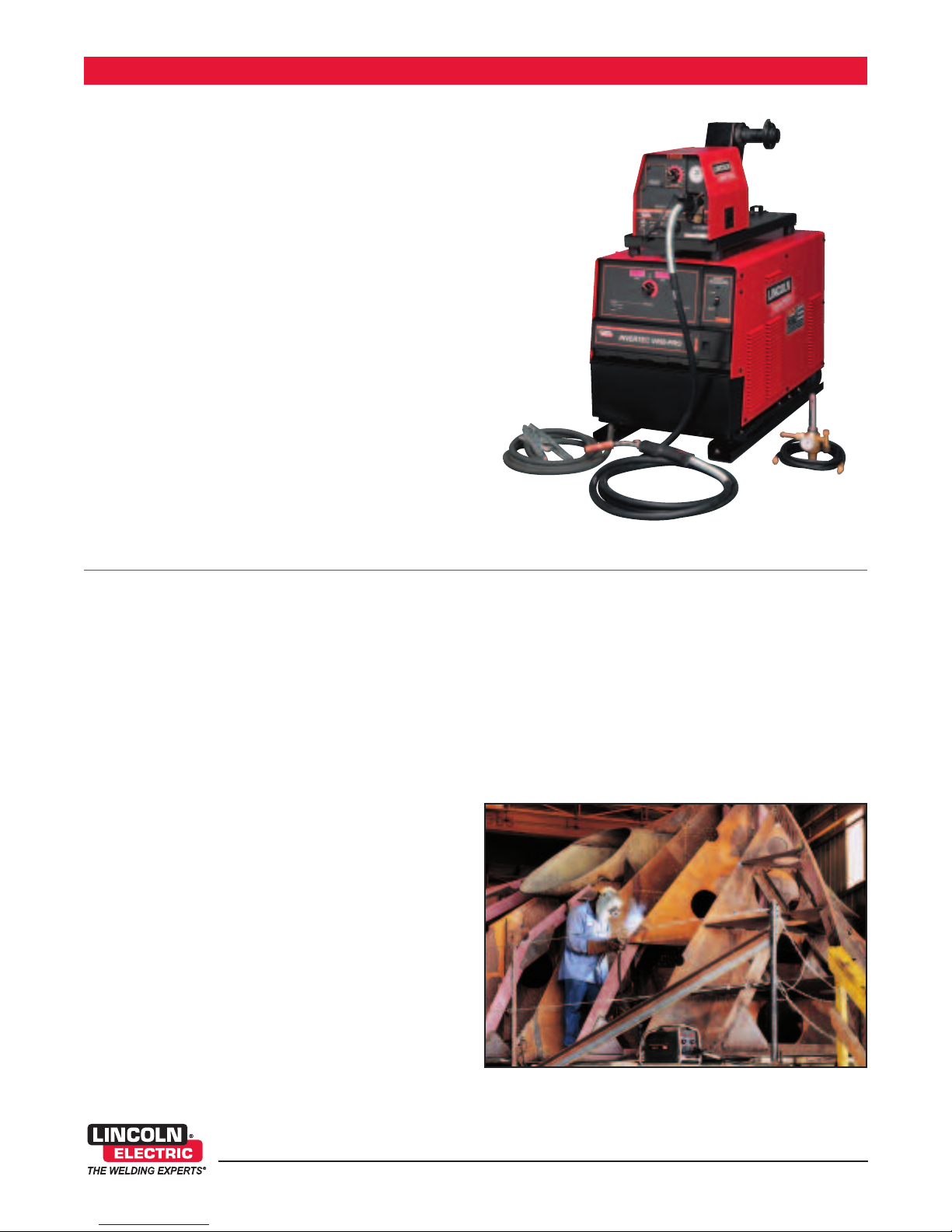

innovations. Add a rugged MaxTrac®wire drive system feeder to build an
economical, high value, high performance welding package you can count
on for use in your factories around the world.
Processes
Stick, TIG, MIG, Pulsed(1), Flux-Cored, Gouging
Standard Welding Controls Optional Advanced Process Panel
Protective Door Reveals Added Controls:
• Features full remote and multi-process capability – stick,
Touch-Start TIG®, MIG, flux-cored and arc gouging.
• 5-570 amp output range for all recommended processes is low
enough for TIG welding on thin sheetmetal and robust enough for
arc gouging with a 3/8" carbon.
• 88% efficiency with a high 95% power factor – the V450-PRO
inverter platform helps you dramatically lower energy consumption
to pocket real savings.
• Add the Advanced Process Panel Kit for access to Pulsed MIG
and a host of Lincoln extweld®arc performance innovations that
allow you to tailor the arc, including: Pulse-on-Pulse®, Power Mode®
and Waveform Control Technology®.
• Standard Controls include:
– Selectable Hot Start for stick welding: Turn it down for thin
material or turn it up to overcome cold starting at the beginning
of a weld.
– Variable Arc Control: Dial in the “soft” or “crisp” arc
characteristics you want for each application.
• Touch-Start TIG®makes it easy to achieve great arc starts with
minimal or no tungsten contamination.
• Clever stackable case design allows you to stack up to three units to
save valuable shop floor space.
• Supports 24, 42 or 115 VAC wire feeders.
• Heavy-duty construction, robust engineering and rigorous testing
result in tough IP23S rating for use in industrial environments.
• Front panel 15 amp 115 volt AC auxiliary power receptacles with
circuit breaker protection will power your lights, grinders or
gun/torch water coolers (on K2420-1 only).
• Easy-access front panel controls and connections are protected by
sturdy metal doors.
• Three year warranty on parts and labor.
• Manufactured under a quality system certified to ISO 9001 require-
ments and ISO 14001 environmental standards.
(1)With Advanced Process Panel Kit only.
Adva tage Li col

Exceptional Multi-Process Fabrication Welding
The Lincoln Invertec®inverter platform enables strong multi-process
welding performance with optimized arc characteristics for
each process.
• Fast arc response yields tight output control:
– More consistent bead appearance
– Smooth arc action
– Easy to follow puddle control
Invertec®V4 0-PRO
www.lincolnelectric.com
[2]
A CLOSER LOOK
PERFORMANCE
Five Welding Process Modes
1. CC-S ick Sof
Intended for low hydrogen stick applications.
Use to obtain outstanding E7018 performance for a variety of
construction and fabrication applications.
2. CC-S ick Crisp
Delivers a crisp shorting response optimized for cellulosic
(E6010) electrodes.
3. TIG GTAW
Standard Lincoln Touch-Start TIG®makes it easy to establish an arc
while minimizing tungsten contamination.
Add the optional TIG Module for touch-less high frequency starting.
4. CV-Wire
Intended for use for most MIG, and gas-shielded flux-cored or metal-
cored applications.
The V450-PRO features an exceptionally wide sweet spot
delivering the arc performance and finished weld quality every
operator appreciates:
• .030"-1/16" solid wire
• .035"-3/32" cored wire
Delivers outstanding performance with a wide variety of shielding gas
mixes, including 100% CO2, Ar/CO2or Ar/O shielding gas for carbon
steel as well as helium blends for stainless welding.
5. CV-Innershield®
Features a wide voltage range and tight voltage control optimized for
Lincoln Innershield self-shielded flux-cored applications.
Arc Gouging accessible from all S ick and CV Welding Modes –
With a maximum 70 amps, the V4 0-PRO has plenty of power to
handle a 3/8" (9. mm) carbon.
Stick
Arc Gouging
CV-Wire
Stainless

FEATURES – KEY CONTROLS
Invertec®V4 0-PRO
www.lincolnelectric.com
[3]
A CLOSER LOOK
A
E
D
C
B
Upper Control Panel
A) Large, bright, easy to read Amps Meter
B) Thermal Overload Indicator Light
C) Local/Remote Output Control Button
D) Weld Mode Selector Button
E) Serial Port for Software Updates
F) Hot Start Control Knob
G) Arc Control Knob
H) Weld Terminals Button – On or Remotely Controlled
I)Power On/Off Switch
) Output Amps or Output Voltage Control Knob
K) Large, bright, easy to read Volt Meter
Lower Case Connection Panel
L)6-pin MS-Style Connector for Remote Control
M) Negative Output Stud Terminal
N) 24/42 Volt Circuit Breaker Reset Button
O) 115 Volt AC Auxiliary Power Receptacles
P)115 Volt Circuit Breaker Reset Button
Q) Positive Output Stud Terminal
R) 14-pin MS-Style Connector for Wire Feeder Input Power
and Remote Control (24V/42V/115V AC)
S)Wire Feeder Voltmeter Polarity Switch
F
K
J
I
H
G
LS
P
Q
R
O
N
M
Get the Results You Prefer
Hot Start
Regulates the starting current at arc initiation for stick or
TIG applications.
Set it to your preference to help overcome cold starts at the
beginning of a weld, restarting AWS E7018 or stainless stick
electrodes or to improve starting for tie-in welding on tack welds.
Turn it down for thin material or root welding on pipe. Turn it up
for thick material or general construction welding.
Variable Arc Control
Adds or reduces inductance (arc energy), particularly for short-cir-
cuit transfer mode. Arc Control increases or decreases the size and
frequency of arc droplet transfer.
Set it to your preference to help control spatter levels or electrode
stubbing as well as to improve weld toe wetting or to obtain a
uniform bead shape.
Turn it down to obtain a softer arc or turn it up for a stiffer, more
digging arc. For MIG, you can turn it up to aid with welding on
open gaps, out-of-position work or for use with 100% CO2or
75% Ar / 25% CO2.

Invertec®V4 0-PRO
www.lincolnelectric.com
[4]
A CLOSER LOOK
TIME
WELDING CURRENT
Background
Peak
Ramp Up Tail Out
Step Off
PULSE CYCLE
Low Heat
(Background) High Heat (Peak)
Key Controls
T ) Serial Port for Software Updates
U ) Weld Mode Memory Set Button
V ) Weld Mode Select Knob
W ) Hot Start/Arc Control Select Button
X ) Hot Start/Arc Control Parameters Adjust Knob
Y ) Arc Control Setting
Z ) Shielding Gas Type
AA ) Consumable Diameter
AB ) Process
AC ) Material Type
OPTIONAL ADVANCED PROCESS PANEL KIT
Add the Advanced Process Panel to gain access to Lincoln’s Nextweld®Innovations, including
Pulse-On-Pulse®, Power Mode®, Pulsed MIG.
UVWX
Pulse-On-Pulse®on 3mm Aluminum
Power Mode®reduces
spatter and improves
bead appearance, even
for low voltage
procedures on
stainless.
Power Mode®aids
bead wetting
and penetration
on aluminum.
Pulsed MIG
• Varies weld current between peak (high heat) and background (low heat) current to provide
better control of heat input.
• Reduces warping and burnthrough on thin materials.
• Enables in-the-flat, horizontal, vertical up, or overhead welding without a slag system. It can be
used in hard automation, robotic, and semiautomatic applications.
• Optimized GMAW-P waveforms are available to use on aluminum, carbon steel, high strength
low alloy steel, stainless steel, and nickel alloys.
For more information see Nextweld®Document NX-2.70
Pulse-On-Pulse®
• Uses a sequence of varying pulse wave shapes to produce a TIG-like bead appearance
and excellent weld properties when MIG welding aluminum.
• Pulse-On-Pulse®controls arc length and heat input together, making it easier to achieve
good penetration.
For more information see Nextweld®Document NX-2.10
Power Mode®
• Uses high-speed regulation of output power to deliver extremely fast response to changes in the
arc, for example, when using a whip technique.
• Improved MIG welding performance, including low spatter, very uniform, consistent bead wetting
and controlled penetration.
• Great for low voltage applications on thin steel and stainless steel material less than
20 gauge (0.7 mm).
• Delivers excellent arc characteristics on aluminum and other alloys such as silicon bronze and
nickel alloys.
For more information see Nextweld®Document NX-2.60
• Displays gas, mode and wire size for easy setting and monitoring.
• Eight memories to quickly switch between weld modes.
TY
AA Z
AB
AC

Invertec®V4 0-PRO
www.lincolnelectric.com
[5]
A CLOSER LOOK
Rugged Testing and Reliability
All Lincoln inverters are fully tested for reliability before and after assembly.
• Each machine undergoes a functional weld test to ensure performance.
• Lincoln inverters are operated in an environmental chamber under extreme conditions
of temperature and humidity.
• Mechanical testing, including vibration and drop testing is performed.
• Extensive temperature testing is performed to ensure that all components are running
within allowable range.
• Three-year warranty on parts and labor.
• Manufactured under a quality system certified to ISO 9001 requirements and ISO 14001
environmental standards.
• Designed to the IEC/EN 60974-1 standard. Meets tough NEMA EW 1,
CSA NRTL/C standards.
• Meets rigorous IP23S environmental rating.
Environmental Chamber
Manufacturing and Testing
Open Construction for preventative
maintenance and diagnostics.
Electrical Connections coated
with protective compound for
long-term reliability in harsh
environments.
Trayed and Potted PC Board
provides excellent protection.
Automotive Grade Sleeves
protect leads from abrasion.
Efficient Cooling System
with Fan-As-Needed™.
QUALITY AND RELIABILITY
Robust Design
Safety, reliability and serviceability are built into Lincoln’s inverter design.
• Invertec inverter models operate at a high efficiency (88-90%) with a 95% minimum
power factor at rated output and are capable of operating from a universal 3 phase
input voltage (208 to 575 volts).
• Thermostatically protected.
• Electronic output over-current protection and electronic input over-voltage protection.
• Operating Temperature Range: -20ºC to +40ºC.
• Storage Temperature Range: -40ºC to +40ºC.
• Double insulation and varnish on main transformer.
• Shielded heavy duty input contactor in tightly sealed environmental enclosure.
• Tough PC Boards — potted and trayed, filled with epoxy, double locked harness
connectors, environmentally protected connectors, electrical silicone grease, high
current rating. Extra attention to detail provides excellent protection from dirt, dust
and the environment.
• Efficient Cooling System with industrial motor with sealed bearings and metal fan blade.
• Fan-As-Needed™— reduces power consumption, damaging thermal cycling and the
amount of debris that gets drawn into the machine by shutting the fan down when it
is not needed.

SYSTEM SELECTION
Invertec®V4 0-PRO
www.lincolnelectric.com
[6]
V450-PRO/LF-72 Wire Feeder
Order K2494-1
• Invertec®V450-PRO power source
• LF-72 Heavy Duty Bench Model Wire Feeder
• Magnum®400 Gun and 15 ft. Cable Assembly,
• .035-.045" (0.8-1.1 mm) Drive Rolls and Wire Guides
• Work and Wire Feeder 2/0 Welding Cable and Work Clamp
Package - 10 ft. (3.0m)
• Harris®Flowmeter/Regulator with adapter and 10 ft. (3.0m) Hose
V450-PRO/LF-74 Wire Feeder
Order K2495-1
• Invertec®V450-PRO power source
• LF-74 Heavy Duty Bench Model Wire Feeder
• Magnum®400 Gun and 15 ft. Cable Assembly,
• .035-.045" (0.8-1.1 mm) Drive Rolls and Wire Guides
• Work and Wire Feeder 2/0 Welding Cable and Work Clamp
Package - 10 ft. (3.0m)
• Harris®Flowmeter/Regulator with adapter and 10 ft. (3.0m) Hose
V450-PRO/LF-74 Extra Torque: 5/64" (2.0mm) FCAW-SS
Welding System
• Invertec®V450-PRO power source K2420-1
• LF-74 Bench Model, Heavy-Duty, Extra Torque K2426-3
Wire Feeder
• 5/64" Drive Rolls and Wire Guides KP1505-5/64
• Lincoln Innershield®Gun and Cable Assembly K1500-1
• 10 ft. (3.0m) Magnum®Self-Shielded Gun and K115-5
Cable Assembly, 5/64"
• Weld Power Cable – 10 ft. (3.0m) K1842-10(2)
• Work Cable and Clamp (GC-500) K910-2
• Dual Cylinder Platform Undercarriage K1570-1
• Harris®Flowmeter/Regulator and Gas Hose K586-1
V450-PRO/DH-10 : .035" &.045" MIG Welding System
• Invertec®V450-PRO power source K2420-1
• DH-10 wire feeder K1499-3(3)
• .045 Drive Roll – solid wire KP1505-045S
• .035 Drive Roll – solid wire KP1505-035S
• Magnum®400 Gun Package K471-21(1)(2)
• Weld Power Cable – 10 ft. K1842-10(2)
• GC-500 Work Clamp K910-2
• Dual Cylinder Platform Undercarriage K1570-1
• Gas Regulator and Hose Kit K586-1
(1)Fully assembled, no gun connector required.
(2)Two required.
(3)Both electrodes must have the same polarity.
READY-PAK®PACKAGES
Fully assembled and ready to weld. Select a Ready-Pak®Package and use one
order number on your order form.
(Package does not include input power cord, shielding gas, welding electrode
and personal protective equipment.)
TYPICAL V450-PRO WELDING SYSTEMS
For specific welding applications, assemble the products listed to best suit your needs.
Shown:
Invertec®V4 0-PRO/LF-72 Heavy Duty
Wire Feeder Ready-Pak®Pkg.

Invertec®V4 0-PRO
www.lincolnelectric.com
[7]
RECOMMENDED OPTIONS
GENERAL OPTIONS
Advanced Process Panel
Includes Pulsed MIG, Pulse-On-
Pulse®and Power Mode®capabili-
ties. Alpha-numeric display for
accurate setting.
Order K1763-1
Deluxe Adjustable Gas Regulator
& Hose Kit
Accommodates CO2, argon, or
argon-blend gas cylinders. Includes
a cylinder pressure gauge, dual
scale flow gauge and 4.3 ft. (1.3m)
gas hose.
Order K586-1
Cool-Arc™40 Water Cooler
Reliable and affordable water
cooler for water-cooled MIG, TIG,
or plasma cutting applications.
Order K1813-1 for 115V
Order K2187-1 for 230V
Lincoln Fume Extraction
Systems
A full line of fume extraction
systems are available.
Request Publications
E13.11 Miniflex™
E13.40 Mobiflex™
Dual Cylinder Platform
Undercarriage
Platform undercarriage for
mounting two gas cylinders at
rear of welder.
Order K1570-1
STICK OPTIONS
Accessory Kit 400 Amp
For stick welding. Includes 35 ft.
(10.7 m) 2/0 electrode cable with
lug, 30 ft. (9.1 m) 2/0 work cable
with lugs, headshield, filter plate,
work clamp and electrode holder.
Order K704
Remote Output Control
For remote output of welding
voltage. Consists of control box
with 25 or 100 ft. (7.6 m or 30 m)
of four conductor cable and 6-pin
MS-type connector.
Order K857 for 25 ft. (7.6m)
Order K857-1 for 100 ft. (30m)
TIG OPTIONS
Pro-Torch®TIG Torch
V model two cable torches provide
a convenient gas control valve to
control shielding gas flow.
PTA-26V Two Cable Torch
Air-Cooled 200 amp
Order K1783-7 for 12.5 ft. 2 pc
Order K1783-9 for 25 ft. 2 pc
PTA-17V Two Cable Torch
Air-Cooled 150 amp
Order K1782-7 for 12.5 ft. 2 pc
Order K1782-9 for 25 ft. 2 pc
For Hi h Frequency TIG Weldin
TIG Module
Portable, high frequency unit with
gas valve for TIG welding. Rated
at 300 amps/60% duty cycle. Re-
quires TIG Module Control Cable.
Order K930-2
Docking Kit
Provides a means to “dock” the
TIG module on top of a flat-roofed
power source, or any other flat
surface measuring at least
10" x 15" (254 mm x 381 mm).
Includes a latch and provisions for
a user-supplied padlock to lock the
TIG Module in place.
Order K939-1
TIG Module Control Cable
9-pin connector at the TIG Module
to 14-pin MS type connector at the
power source. (Contains input
power source. control, contactor
control, and ground circuits). For
machines having a 14-pin remote
control and power receptacle.
Order K936-1
Hand Amptrol®
Provides 25 ft. (7.6 m) of remote
current control for TIG welding.
(6-pin plug connection). Velcro
straps secure torch.
Order K963-3 (one size fits all
Pro-Torch TIG torches).
Foot Amptrol®
Provides 25 ft. (7.6 m) of remote
current control for TIG welding.
(6-pin plug connection).
Order K870
Arc Start Switch
May be used in place of the Foot or
Hand Amptrol®. Comes with a 25 ft.
(7.6 m) cable. Attaches to the TIG
torch for convenient finger control
to start and stop the weld cycle at
the current set on the machine.
Order K814

INVERTEC®V450-PRO (208/230/460/575/3/50/60) K2420-1
INVERTEC®V450-PRO CE (380/415/3/50/60) K2421-1
INVERTEC®V450-PRO/LF-72 READY-PAK®PACKAGE K2494-1
INVERTEC®V450-PRO/LF-74 READY-PAK®PACKAGE K2495-1
RECOMMENDED GENERAL OPTIONS
Advanced Process Panel K1763-1
Deluxe Adjustable Gas Regulator and Hose Kit K586-1
Cool-Arc™40 Water Cooler:
For 115V K1813-1
For 230V K2187-1
Fume Extraction Systems:
Miniflex™See Publication E13.11
Mobiflex™See Publication E13.40
Dual Cylinder Platform Undercarriage K1570-1
RECOMMENDED STICK OPTIONS
Accessory Kit – 400 amp K704
Remote Output Control
25 ft. (7.6 m) K857
100 ft. (30 m) K857-1
RECOMMENDED TIG OPTIONS
Pro-Torch®PTA-26V Two Cable Torch, 12.5 ft. (3.8 m) K1783-7
Pro-Torch®PTA-26V Two Cable Torch, 25 ft. (7.6 m) K1783-9
Pro-Torch®PTA-17V Two Cable Torch, 12.5 ft. (3.8 m) K1782-7
Pro-Torch®PTA-17V Two Cable Torch, 25 ft. (7.6 m) K1782-9
TIG Module K930-2
Docking Kit K939-1
TIG Module Control Cable K936-1
Hand Amptrol®K963-3
Foot Amptrol®K870
Arc Start™Switch K814
RECOMMENDED WIRE FEEDERS
LN-8 See Publication E8.30
LN-15 See Publication E8.60
LN-25 See Publication E8.100
LN-742 See Publication E8.20
LF-72 See Publication E8.11
LF-74 See Publication E8.11
LN-10 See Publication E8.200
DH-10 See Publication E8.200
Cobramatic®Wire Feeder See Publication E8.300
TOTAL:
THE LINCOLN ELECTRIC COMPANY®
22801 St. Clair Ave., Cleveland, OH 44117-1199 • 216.481.8100 • www.lincolnelectric.com
INVERTEC®V450-PRO ORDER FORM
PRODUCT DESCRIPTION ORDER NUMBER QUANTITY PRICE
C U S T O M E R A S S I S T A N C E P O L I C Y
The business of The Lincoln Electric Company®is manufacturing and selling high quality welding equipment, consumables, and cutting equipment. Our challenge is to meet the
needs of our customers and to exceed their expectations. On occasion, purchasers may ask Lincoln Electric for advice or information about their use of our products. We respond
to our customers based on the best information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, and assumes no liability,
with respect to such information or advice. We expressly disclaim any warranty of any kind, including any warranty of fitness for any customer’s particular purpose, with respect to
such information or advice. As a matter of practical consideration, we also cannot assume any responsibility for updating or correcting any such information or advice once it has
been given, nor does the provision of information or advice create, expand or alter any warranty with respect to the sale of our products.
Lincoln Electric is a responsible manufacturer, but the selection and use of specific products sold by Lincoln Electric is solely within the control of, and remains the sole responsibility
of the customer. Many variables beyond the control of Lincoln Electric affect the results obtained in applying these types of fabrication methods and service requirements.
Subject to Change – This information is accurate to the best of our knowledge at the time of printing. Please refer to www.lincolnelectric.com for any updated information.
