Lincoln Electric POWER FEED 84 SINGLE User manual

IM2060
05/2017
REV01
POWER FEED 84, POWER
FEED 84 DUAL, POWER FEED
84 U.I. CONTROL BOX
OPERATOR’S MANUAL
ENGLISH
THE LINCOLN ELECTRIC COMPANY
22801 St. Clair Ave., Cleveland Ohio 44117-1199 USA
www.lincolnelectric.eu

English English
I
THE LINCOLN ELECTRIC COMPANY
EC DECLARATION OF CONFORMITY

Manufacturerandtechnical
documentationholder:


TheLincolnElectricCompany
22801St.ClairAve.
ClevelandOhio44117‐1199USA


ECCompany:


LincolnElectricEuropeS.L.
c/oBalmes,89‐802a
08008Barcelona
SPAIN

Herebydeclarethatequipment:


PowerFeed84
K3328,K3330

PowerFeed84One‐Pak
K3329,K3331

(Productnumbersmaycontainsuffixesandprefixes.)

IsinconformitywithCouncil
Directivesandamendments:

ElectromagneticCompatibility(EMC)Directive2014/30/EU

LowVoltageDirective2014/35/EU

Standards:




EN60974‐5:2013,ArcWeldingEquipment‐Part5:WireFeeders;

EN60974‐10:2014,ArcWeldingEquipment‐Part10:Electromagnetic
compatibility(EMC)requirements;

CE marking affixed in ‘15


Signature:


Signature:




Name:SamirFarah,ManufacturerName:DarioGatti,EuropeanCommunity
Representative
Position:ComplianceEngineeringManager Position: EuropeanEngineeringDirectorMachines
Date:


3Feb2017Date:

8Feb2017
MCD486c

English English
II

12/05
THANKS! For having chosen the QUALITY of the Lincoln Electric products.
Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified
immediately to the dealer.
For future reference record in the table below your equipment identification information. Model Name, Code &
Serial Number can be found on the machine rating plate.
Model Name:
………………...…………………………….…………………………………………………………………………………………..
Code & Serial number:
………………….……………………………………………….. …………………………………………………….……………..
Date & Where Purchased:
…………………………………………………………………... ……………………….…………………………………………..
ENGLISH INDEX
Technical Specifications...................................................................................................................................................... 1
Electromagnetic Compatibility (EMC) ................................................................................................................................. 3
Safety .................................................................................................................................................................................. 4
Introduction.......................................................................................................................................................................... 5
Installation and Operator Instructions ................................................................................................................................. 5
WEEE ................................................................................................................................................................................ 44
Electrical Schematic.......................................................................................................................................................... 45
Suggested Accessories..................................................................................................................................................... 49

English English
1
Technical Specifications
POWER FEED 84 CE, POWER FEED 84 DUAL CE: K3328-xx, K3329-xx, K3330-xx, K3331-xx, K3336-xx
INPUT VOLTAGE AND CURRENT
V
oltage Input Amperes Notes
40VDC 9A Wire Drive
1A User Interface
RATED OUTPUT @ 40°C
Duty Cycle Input Amperes
Wire Drive Only Wire Drive 60% 600 Amps
With Gouging Kit Wire Drive 60% 500 Amps
Gouging Stud 30% 600 Amps
With Contactors Wire Drive 60% 500 Amps
GEARING – WIRE FEED SPEED RANGE-WIRE SIZE
GEARBOX
GEARING
22.57:1
PINION GEAR
20 tooth*
WFS RANGE
50 – 700 inch/mm
(1.3 – 19.0 m/min)
WIRE SIZES
GMAW FCAW
.025” – 1/16”
(0.9 – 1.6 mm)
.035” – 5/64”
(0.9 – 2.0 mm)
30 tooth 50 – 1200 inch/mm
(1.3 – 30.4 m/min)
.025” – .045”
(0.9 – 1.2 mm)
.035” – 1/16”
(0.9 – 1.6 mm)
PHYSICAL DIMENSIONS
Model Height Width Depth Weight
Power Feed 84 Wire Drive, Single 257 mm 345 mm 338 mm 16.8 kg
Power Feed 84 Wire Drive, Dual 302 mm 437 mm 404 mm 26.8 kg
Power Feed 84 Control Box 279 mm 221 mm 31 mm 2.9 kg
Standard Duty Wire Reel Stand 338 mm 279 mm 31 mm 5.0 kg
Heavy Duty Wire Reel Stand 640 mm 279 mm 371 mm 8.6 kg
TEMPERATURE RANGES
Operation:
Storage:
-40°F to 104°F (-40°C to 40°C)
-40°F to 185°F (-40°C to 85°C)
Thermal tests have been performed at ambient temperature. The Duty Cycle (duty factor) @ 40ºC (104°F) has been
determined by simulation.
*= gearing installed in the wire drive as equipped from the factory.

English English
2
SINGLE WIRE DRIVE FEEDERS
MODEL K# User Interface USB Wire Reel
Stand
Gun
Adapter
Control
Cable
Inlet
Bushing
Gouging
Kit Contactor
K3328-1 BLANK PANEL N N STD #2-#4 N K3929-1 N N
K3328-2
FULL DISPLAY
WITH
MEMORIES
N N STD #2-#4 N K3929-1 N N
K3328-3
FULL DISPLAY
WITH
MEMORIES
Y N STD #2-#4 N K3929-1 N N
K3328-6
FULL DISPLAY
WITH
MEMORIES
N STD DUTY STD #2-#4 K1543-8' N N N
K3328-7
FULL DISPLAY
WITH
MEMORIES
Y STD DUTY STD #2-#4 K1543-8' N N N
K3328-11
FULL DISPLAY
WITH
MEMORIES
N N STD #2-#4 N K3929-1 Y N
K3328-12
FULL DISPLAY
WITH
MEMORIES
Y N STD #2-#4 N K3929-1 Y N
K3328-13
FULL DISPLAY
WITH
MEMORIES
Y HVY DTY STD #2-#4 K1543-8' N N N
DUAL WIRE DRIVE FEEDERS
MODEL K# User Interface USB Wire Reel
Stand
Gun
Adapter
Control
Cable
Inlet
Bushing Contactor
K3330-1 BLANK PANEL N N STD #2-#4 N K3929-1 N
K3330-3
FULL DISPLAY
WITH
MEMORIES
Y N STD #2-#4 N K3929-1 N
K3330-5
FULL DISPLAY
WITH
MEMORIES
Y HVY DTY STD #2-#4 K1543-8' N Y
K3330-6
FULL DISPLAY
WITH
MEMORIES
N STD DUTY STD #2-#4 K1543-8' N N
K3330-10
FULL DISPLAY
WITH
MEMORIES
Y HVY DTY STD #2-#4 K1543-8' N N
CONTROL BOXES
MODEL K# User Interface USB
K3336-2 FULL DISPLAY WITH MEMORIES Y
K3336-2 BLANK PANEL N
READY PACK WIRE DRIVE FEEDERS
MODEL K# User
Interface USB Wire Reel Stand
Gun
Adapter
Control
Cable Drive Roll Inlet Bushing
Gouging
Kit Contactor
SINGLE
K3329-1-P
FULL
DISPLAY
WITH
MEMORIES
Y
STD DUTY
WITH
SPOOL
COVER
K3349-1
AND
STD #2-#4
K1543-8' KP1505-045S
KP1505-1/16S K3929-1 N N
DUAL
K3331-1-P
FULL
DISPLAY
WITH
MEMORIES
Y
STD DUTY
WITH
SPOOL
COVER
K3349-1
AND
STD #2-#4
K1543-8' KP1505-045S
KP1505-1/16S K3929-1 N N

English English
3
Electromagnetic Compatibility (EMC)
01/11
This machine has been designed in accordance with all relevant directives and standards. However, it may still generate
electromagnetic disturbances that can affect other systems like telecommunications (telephone, radio, and television) or
other safety systems. These disturbances can cause safety problems in the affected systems. Read and understand
this section to eliminate or reduce the amount of electromagnetic disturbance generated by this machine.
This machine has been designed to operate in an industrial area. To operate in a domestic area it is
necessary to observe particular precautions to eliminate possible electromagnetic disturbances. The
operator must install and operate this equipment as described in this manual. If any electromagnetic
disturbances are detected the operator must put in place corrective actions to eliminate these disturbances
with, if necessary, assistance from Lincoln Electric.
Before installing the machine, the operator must check the work area for any devices that may malfunction because of
electromagnetic disturbances. Consider the following.
Input and output cables, control cables, and telephone cables that are in or adjacent to the work area and the
machine.
Radio and/or television transmitters and receivers. Computers or computer controlled equipment.
Safety and control equipment for industrial processes. Equipment for calibration and measurement.
Personal medical devices like pacemakers and hearing aids.
Check the electromagnetic immunity for equipment operating in or near the work area. The operator must be sure
that all equipment in the area is compatible. This may require additional protection measures.
The dimensions of the work area to consider will depend on the construction of the area and other activities that are
taking place.
Consider the following guidelines to reduce electromagnetic emissions from the machine.
Connect the machine to the input supply according to this manual. If disturbances occur if may be necessary to take
additional precautions such as filtering the input supply.
The output cables should be kept as short as possible and should be positioned together. If possible connect the
work piece to ground in order to reduce the electromagnetic emissions. The operator must check that connecting
the work piece to ground does not cause problems or unsafe operating conditions for personnel and equipment.
Shielding of cables in the work area can reduce electromagnetic emissions. This may be necessary for special
applications.
WARNING
EMC classification of this product is class A in accordance with electromagnetic compatibility standard EN 60974-10 and
therefore the product is designed to be used in an industrial environment only.
WARNING
The Class A equipment is not intended for use in residential locations where the electrical power is provided by the public
low-voltage supply system. There can be potential difficulties in ensuring electromagnetic compatibility in those locations,
due to conducted as well as radio-frequency disturbances.

English English
4

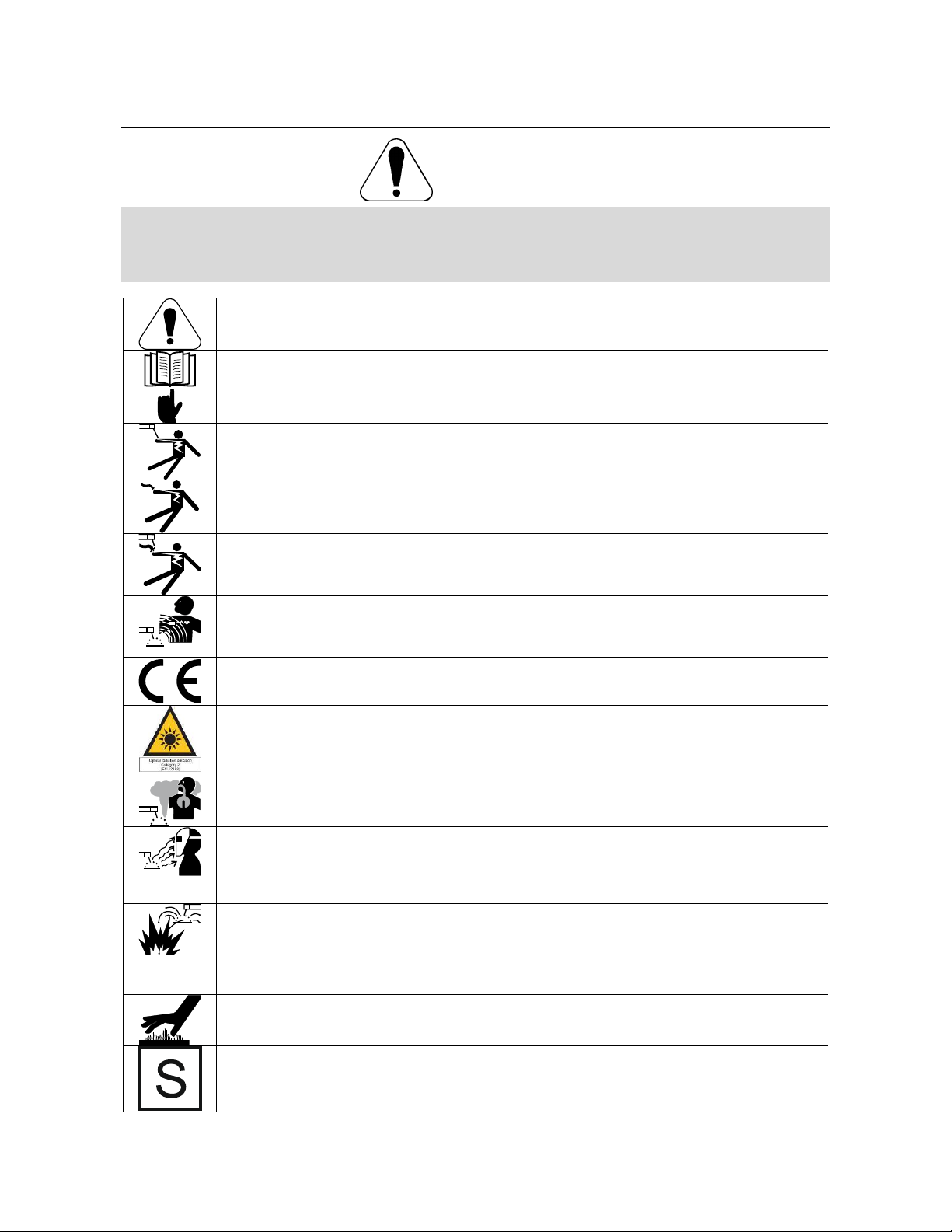

Safety
01/11
WARNING
This equipment must be used by qualified personnel. Be sure that all installation, operation, maintenance and repair
procedures are performed only by qualified person. Read and understand this manual before operating this equipment.
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this
equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible
for damages caused by improper installation, improper care or abnormal operation.
WARNING: This symbol indicates that instructions must be followed to avoid serious personal injury,
loss of life, or damage to this equipment. Protect yourself and others from possible serious injury or
death.
READ AND UNDERSTAND INSTRUCTIONS: Read and understand this manual before operating
this equipment. Arc welding can be hazardous. Failure to follow the instructions in this manual could
cause serious personal injury, loss of life, or damage to this equipment.
ELECTRIC SHOCK CAN KILL: Welding equipment generates high voltages. Do not touch the
electrode, work clamp, or connected work pieces when this equipment is on. Insulate yourself from
the electrode, work clamp, and connected work pieces.
ELECTRICALLY POWERED EQUIPMENT: Turn off input power using the disconnect switch at the
fuse box before working on this equipment. Ground this equipment in accordance with local electrical
regulations.
ELECTRICALLY POWERED EQUIPMENT: Regularly inspect the input, electrode, and work clamp
cables. If any insulation damage exists replace the cable immediately. Do not place the electrode
holder directly on the welding table or any other surface in contact with the work clamp to avoid the
risk of accidental arc ignition.
ELECTRIC AND MAGNETIC FIELDS MAY BE DANGEROUS: Electric current flowing through any
conductor creates electric and magnetic fields (EMF). EMF fields may interfere with some
pacemakers, and welders having a pacemaker shall consult their physician before operating this
equipment.
CE COMPLIANCE: This equipment complies with the European Community Directives.
ARTIFICIAL OPTICAL RADIATION: According with the requirements in 2006/25/EC Directive and
EN 12198 Standard, the equipment is a category 2. It makes mandatory the adoption of Personal
Protective Equipments (PPE) having filter with a protection degree up to a maximum of 15, as
required by EN169 Standard.
FUMES AND GASES CAN BE DANGEROUS: Welding may produce fumes and gases hazardous to
health. Avoid breathing these fumes and gases. To avoid these dangers the operator must use
enough ventilation or exhaust to keep fumes and gases away from the breathing zone.
ARC RAYS CAN BURN: Use a shield with the proper filter and cover plates to protect your eyes from
sparks and the rays of the arc when welding or observing. Use suitable clothing made from durable
flame-resistant material to protect you skin and that of your helpers. Protect other nearby personnel
with suitable, non-flammable screening and warn them not to watch the arc nor expose themselves to
the arc.
WELDING SPARKS CAN CAUSE FIRE OR EXPLOSION: Remove fire hazards from the welding
area and have a fire extinguisher readily available. Welding sparks and hot materials from the welding
process can easily go through small cracks and openings to adjacent areas. Do not weld on any
tanks, drums, containers, or material until the proper steps have been taken to insure that no
flammable or toxic vapors will be present. Never operate this equipment when flammable gases,
vapors or liquid combustibles are present.
WELDED MATERIALS CAN BURN: Welding generates a large amount of heat. Hot surfaces and
materials in work area can cause serious burns. Use gloves and pliers when touching or moving
materials in the work area.
SAFETY MARK: This equipment is suitable for supplying power for welding operations carried out in
an environment with increased hazard of electric shock.

English English
5

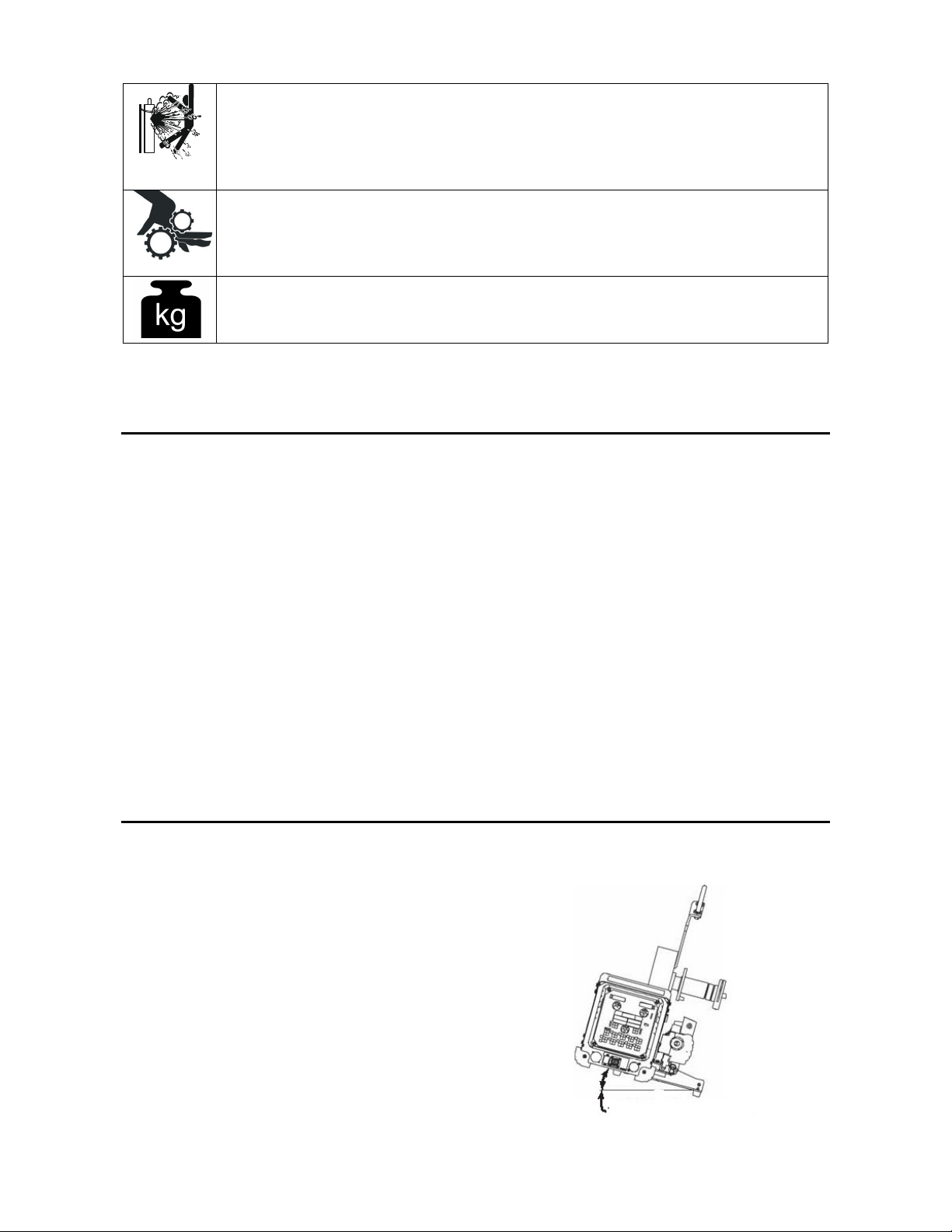

CYLINDER MAY EXPLODE IF DAMAGED: Use only compressed gas cylinders containing the
correct shielding gas for the process used and properly operating regulators designed for the gas and
pressure used. Always keep cylinders in an upright position securely chained to a fixed support. Do
not move or transport gas cylinders with the protection cap removed. Do not allow the electrode,
electrode holder, work clamp or any other electrically live part to touch a gas cylinder. Gas cylinders
must be located away from areas where they may be subjected to physical damage or the welding
process including sparks and heat sources.
MOVING PARTS ARE DANGEROUS: There are moving mechanical parts in this machine, which can
cause serious injury. Keep your hands, body and clothing away from those parts during machine
starting, operating and servicing.
EQUIPMENT WEIGHT OVER 30kg: Move this equipment with care and with the help of another
person. Lifting may be dangerous for your physical health.
The manufacturer reserves the right to make changes and/or improvements in design without upgrade at the same time
the operator’s manual.
Introduction
Read this entire section before installation or operation
of the machine.
General Physical Description
The Power Feed 84 is an industrial, modular wire feeder.
At the heart of the feeder is the proven wire drive and
motor, capable of feeding large diameter electrodes and
pulling through long conduits.
The modular platform allows the Power Feed 84 to be
used in many applications. The user interface may be
separated from the wire drive for “boom” applications.
The feed plate may be located on either the left or right
hand side of the wire drive housing. Two single Power
Feed 84 wire drives may be connected to one user
interface. A dual wire drive is offered for a compact set-
up. The same user interface is used for both single and
dual wire drive systems.
General Functional Description
The Power Feed 84 is ideal for applications requiring
display of preset voltage at the wire feeder. In addition,
the feeder has digital display of the wire feed speed and
for amperage.
Included with the wire drive is a pinion gear for high
speed operation.
The wire drive easily rotates to any angle.
A new series of gun adapters has been created for
better reliability and lower voltage drop.
Installation and Operator Instructions
Location
For best wire feeding performance, place the Power
Feed 84 on a stable and dry surface.
This equipment is for industrial use only and it is not
intended for use in residential locations where the
electrical power is provided by the public low-voltage
supply system. There can be potential difficulties in
residential locations due to conducted as well as
radiated radio-frequency disturbances. The EMC or RF
classification of this equipment is Class A.
Do not submerge the Power Feed 84.
The Power Feed 84 is rated IP2x and is suitable for
indoor use.
When suspending a wire feeder, insulate the hanging
device from the wire feeder enclosure.
For bench models, do not angle spindle for the wire
spool or coil more than 15 degrees downward. (See
Figure #1).
Figure #1
15 DEGREES MAXIMUM

English English
6

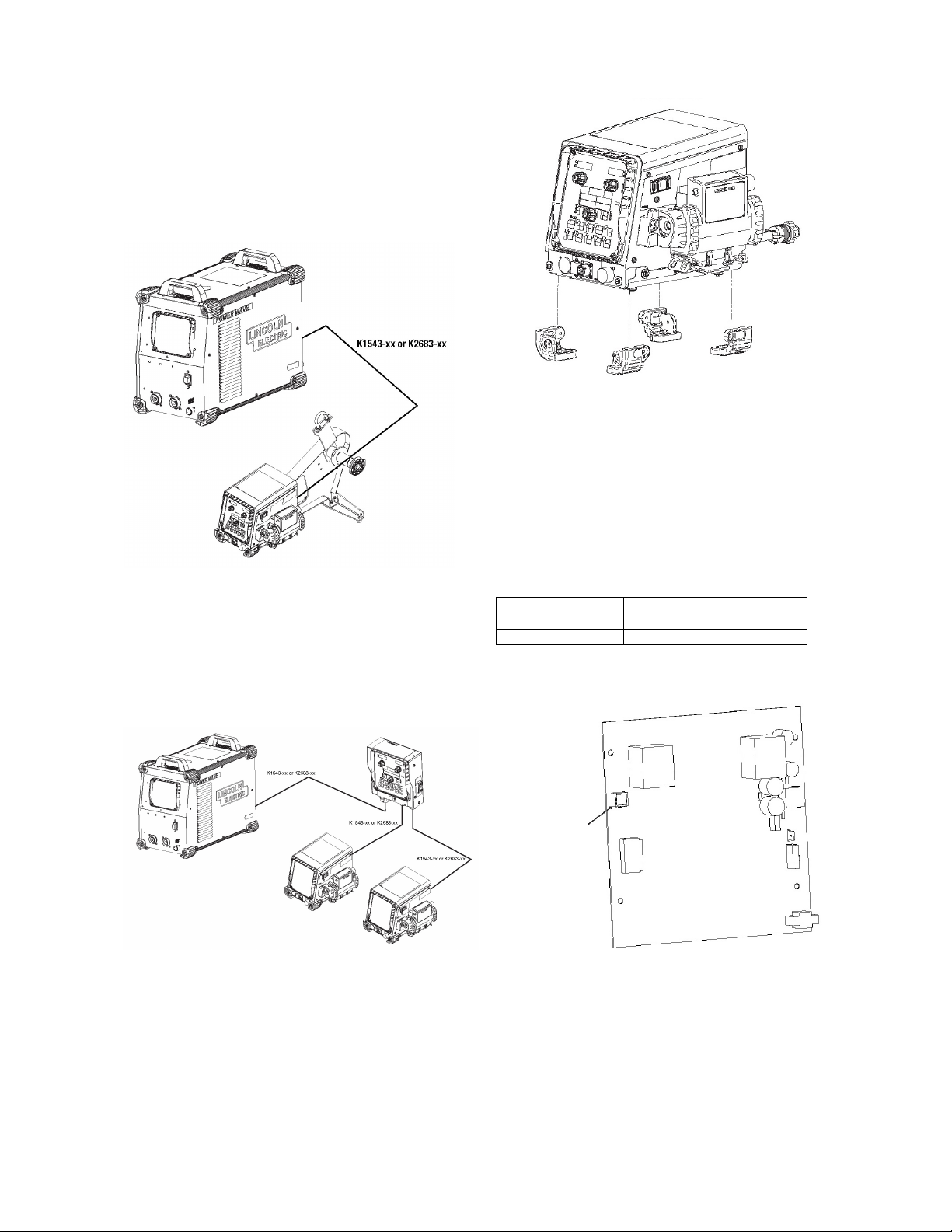

Bench Configurations
(See Figure #2)
“Bench” configuration means the user interface is
mounted directly to the wire drive housing. Valid Bench
configurations are:
Single Wire Drive
Dual Wire Drive
Two Single Wire Drives
Figure #2
Boom Configurations
(See Figure #3)
“Boom” configuration means the user interface is located
in a separate control box. Valid Boom configurations are:
1 Control box + 1 Single Wire Drive
1 Control box + 1 Dual Wire Drive
1 Control box + 2 Single Wire Drives
Figure #3
The User Interface may be remotely located from the
wire drive up to 200 feet.
Boom Mounting
(See Figure #4)
When the wire drive is to be bolted to a boom or other
flat surface, first remove the (4) rubber mounting feet.
(3) screws secure each foot.
Mounting bolts securing the wire drive should not
protrude more than 1” into the wire feeder.
Figure #4
Single/Dual User Interface Conversion
(See Figure #5)
The Power Feed 84 uses the same user interface for
both single and dual models. A DIP switch on the back
side of the user interface board sets the board
configuration.
1. Turn power OFF at the welding power source.
2. Remove the (4) screws securing the user interface.
3. Set the DIP switch on the back side of the user
interface per the table.
CONFIGURATION DIP SWITCH SETTING
Single On
Dual Off
4. Reassemble the user interface.
Figure #5
Bench to Boom Conversion
(See Figure #6)
Converting from a “Bench” feeder to a “Boom” feeder
means moving the user interface from the wire drive to a
control box.
DIP Switch

English English
7
Figure #6
Requires: K3336-3 User Interface.
1. Turn power OFF at the welding power source.
Wire Drive
(see Figure #7)
2. Remove the (4) screws securing the user interface
to the wire drive. Disconnect the harness from the 4
pin connector on the back of the user interface.
3. If the wire drive has a USB interface installed:
a. Disconnect 10 pin connector from the USB
board.
b. Remove the (2) screws securing the USB port
from the case front. Carefully remove the
connector and harness from the wire drive.
c. Remove the USB cover panel from the control
box and install on the wire drive.
d. Disconnect both 5 pin connectors from the USB
board. Remove both jumper harnesses from
the wire drive.
e. Remove the (4) screws securing the USB board
and lift out the USB board.
4. Remove the blank user interface panel from the
control box and install on the wire drive
A. USB Board
B. 10 pin connector
C. USB Port
D. 5 pin connector
Figure #7
Control Box
(see Figure #8A (with USB) and #8B (without USB)).
5. If the control box will have USB installed:
A. User Interface
B. 4 pin connector User Interface
C. 10 pin connector right hand side
D. Jumper Harness
E. Control Box
F. USB port
G. Cold Feed/Gas purge Harness
Figure #8A: with USB
A. Connect the harness directly to the board.
Figure #8B: without USB
a. Install the USB board into the control box,
oriented with the 10 pin connector on the right-
hand side.
b. Assemble the USB port to the case front.
Connect the harness to the USB board.
c. Connect one of the USB jumper harnesses to
the control box harness. Connect the other to
the 4 pin connector on the back of the User
Interface.
6. Connect the Cold Feed/Gas Purge harness to the
back side of the user interface.
7. Connect the User Interface to the harness as
shown.
8. Secure the User Interface to the Control box with (4)
screws.

English English
8

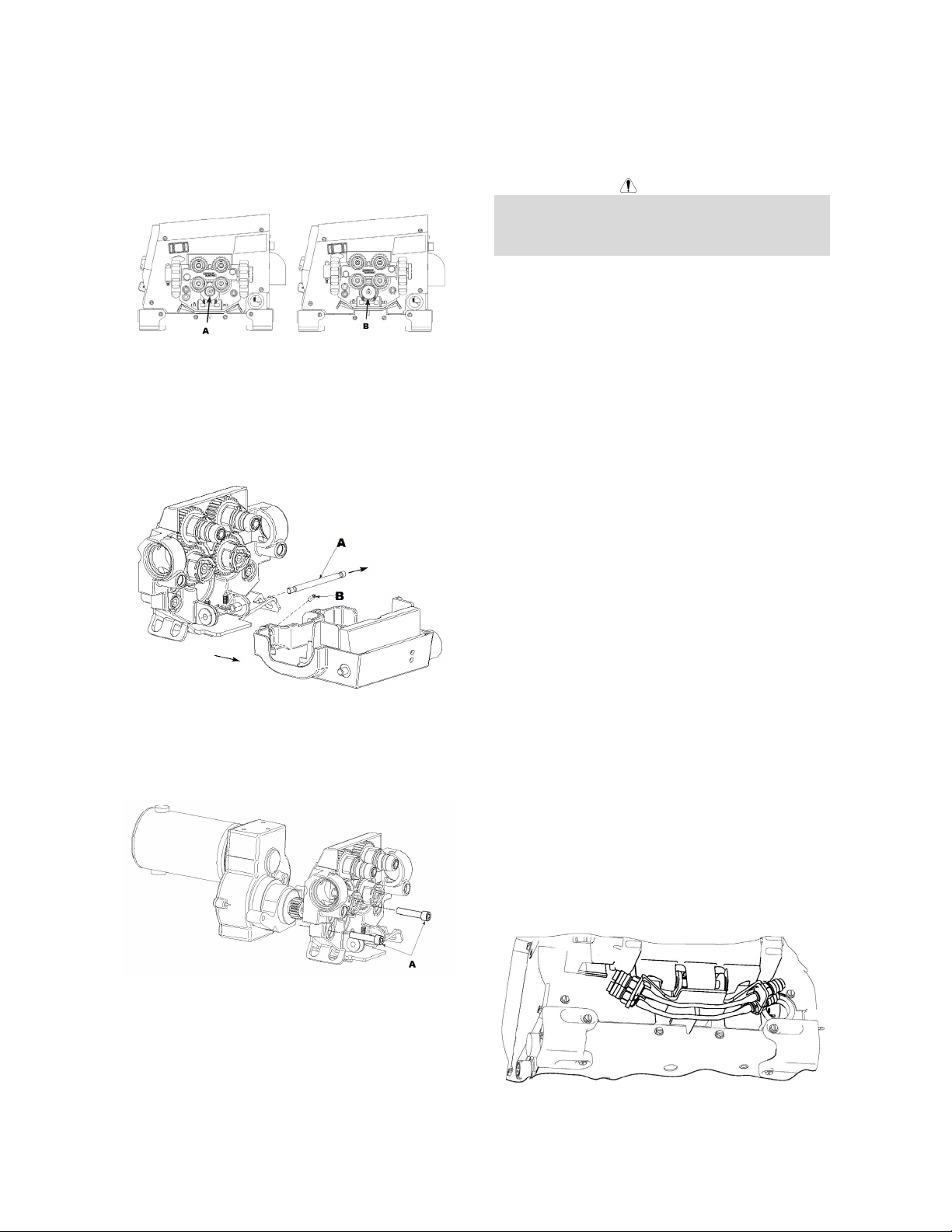

Installing Drive Rolls
(See Figure #9)
A. Inner Wire Drive
B. Drive Rolls
C. Outer Wire Drive
Figure #9
1. Turn power OFF at the welding power source.
2. Open the wire drive door by pulling on the top.
3. Remove the outer wire guide.
4. Remove drive rolls by pulling straight out. It may be
necessary to wiggle the drive roll to free it from the
snap ring.
5. Remove the inner wire guide.
6. Install the new inner wire guide, with the arrow
pointing in the direction of wire travel.
7. Install the drive rolls and outer wire guide.
8. Close the wire drive door and adjust the pressure
setting accordingly.
Wire Drive Pressure Setting
(See Figure #10)
Most wires operate well with a pressure setting of “2”.
The best drive roll pressure varies with wire type, wire
surface, lubrication and hardness. Too much pressure
may crush the wire or cause "birdnesting", but too little
pressure could cause slippage.
Set the drive roll pressure by:
1. Press the end of the gun against a solid object that
is electrically isolated from the welder output and
press the gun trigger for several seconds.
2. If the wire "birdnests" or jams, the drive roll pressure
is too high. Reduce the pressure by one turn of the
knob, run new wire through the gun, and repeat step
1.
3. If the only result is slippage, disconnect the gun and
pull the gun cable forward about 6" (150mm). There
should be a slight waviness in the exposed wire. If
there is no waviness, increase the pressure setting
one turn, reconnect the gun and repeat the above
step electrode lead to the gun adapter.
A. Pressure adjust knob
Figure #10
Lincoln, Standard #2-#4, Standard #5,
Miller Gun Adapter Installation
1. Turn power OFF at the welding power source.
2. Using a Phillips screw driver, remove the screw,
lock washer and washer securing the gun adapter
cover. Remove the gun adapter cover.
A. Screw
B. Gun Adapter Cover
Figure #11

English English
9

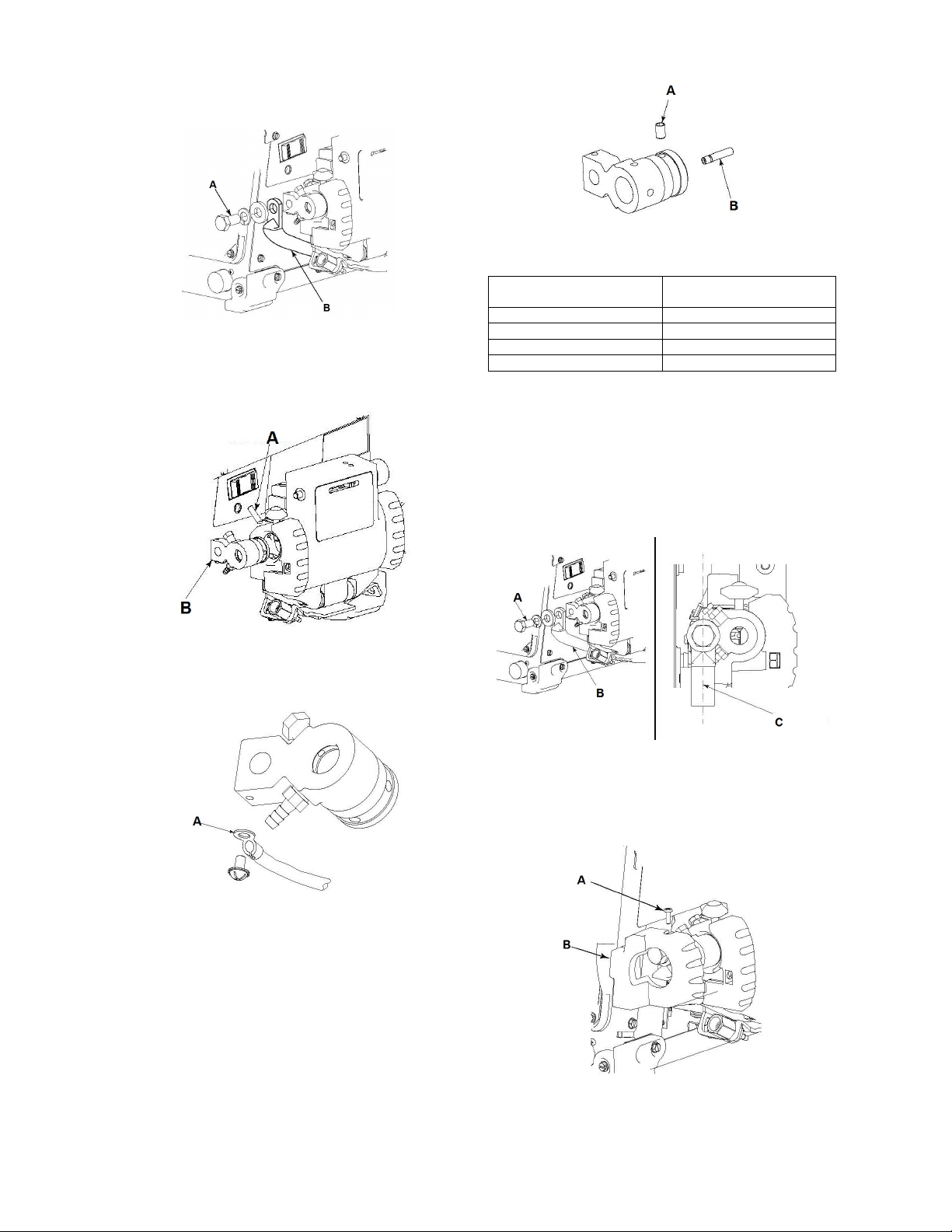

3. With a 3/4” wrench, remove the bolt holding the
electrode lead to the gun adapter.
A. Bolt
B. Electrode Lead
Figure #12
4. Use a 1/8” hex key to loosen the set screw securing
the gun adapter.
A. Set Screw
B. Gun Adapter
Figure #13
5. Remove the sense lead with a Phillips screw driver.
A. Sense Lead
Figure #14
6. If a gas hose is attached to the gun adapter, use
pliers to remove the hose clamp and remove the
gas hose.
7. If the gun adapter requires guide tubes, install the
correct size guide tube and secure with the set
screw.
A. Set Screw
B. Guide Tube
Figure #15
Wire size Number of grooves in
guide tube
0.6 – 1.2mm 1
1.2 – 1.6 mm 2
1.6 – 2.0 mm 3
2.0 – 2.8 mm 4
8. Assemble the sense lead to the new gun adapter.
Orient the lead towards the rear of the gun adapter.
9. If required, assemble the gas hose to the gun
adapter or the fitting on the feed plate and secure
with a hose clamp.
10. Assemble the gun adapter to the wire drive. Tighten
the set screw once the gun adapter is at a 90°
angle.
11. Bolt the electrode lead to the gun adapter, making
sure to route the lead straight down.
A. Bolt
B. Electrode Lead
C. Keep Terminal and Lead Vertical
Figure#16
12. Assemble the gun adapter cover and secure with
the screw, lock washer and washer.
A. Screw
B. Gun Adapter Cover
Figure #17

English English
10

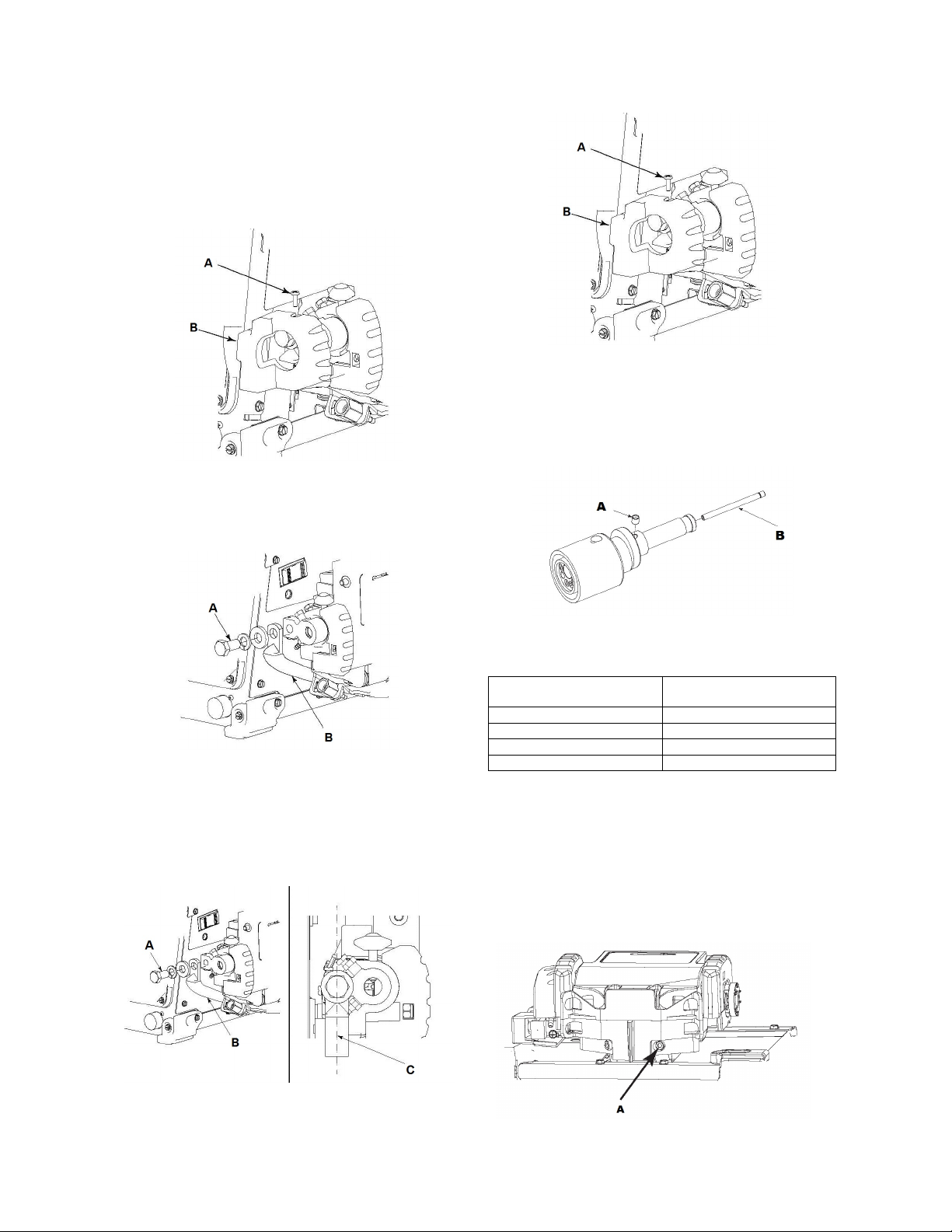

Oxo and Fast Mate Gun Adapter
Installation
Using the Oxo or FastMate gun adapters requires a
K3344-1 Standard #4 gun adapter to be installed in the
wire drive.
1. Turn power OFF at the welding power source.
2. Using a Phillips screw driver, loosen the screw
securing the gun adapter cover. Remove the gun
adapter cover.
A. Screw
B. Gun Adapter Cover
Figure #17
3. With a 3/4” wrench, remove the bolt holding the
electrode lead to the gun adapter.
A. Bolt
B. Electrode Lead
Figure #18
4. Using pliers, remove the hose clamp and hose from
the gun adapter.
5. Bolt the electrode lead to the gun adapter, making
sure to route the lead straight down.
A. Bolt
B. Electrode Lead
C. Keep Terminal and Lead Vertical
Figure #19
6. Assemble the gun adapter cover and secure with
the screw.
A. Screw
B. Gun Adapter Cover
Figure #20
7. Assemble the gas hose to the Oxo or FastMate gun
adapter.
8. Select the appropriate guide tube and secure with
the set screw.
A. Set screw
B. Guide tube
Figure #22
Wire size Number of grooves in
guide tube
0.6 – 1.2mm 1
1.2 – 1.6 mm 2
1.6 – 2.0 mm 3
2.0 – 2.8 mm 4
9. Slide the Oxo or FastMate gun adapter into the wire
drive and secure with the thumb screw.
10. For FastMate gun adapters, connect the trigger
pigtail to the connector on the front of the feeder.
Rotating the Wire Drive
1. Turn power OFF at the welding power source.
2. Locate the socket head cap screw at the bottom of
the wire drive. Loosen, but do not remove the
screw.
A. Socket head cap screw
Figure #23

English English
11
3. Rotate the wire drive to the desired position and
tighten the screw.
Pinion Gear Ratio
As shipped from the factory, a 20 tooth pinion gear is
installed. If desired, the 30 tooth pinion gear may be
installed for more speed but less torque.
A. 20 tooth pinion gear (standard
speed)
B. 30 tooth pinion gear (high speed)
Figure #24
1. Turn power OFF at the welding power source.
2. Open the wire drive door and loosen the set screw
holding the hinge pin using a 5/64” hex key. Slide
the hinge pin towards the rear and remove the door.
A. Hinge pin
B. Set screw
Figure #25
3. Remove the two socket head cap screws securing
the feed plate and remove the feed plate from
clamp.
A. (2) socket head cap screws
Figure #26
4. Remove the screw holding the pinion gear using a
Phillips screw driver. Remove the pinion gear.
5. Install the new pinion gear.
6. Position the feed plate and tighten the socket head
cap screws.
7. Re-assemble the hinge pin and door. Secure the
hinge pin with the set screw.
8. Turn power ON.
9. Enter the set-up menu and select P.18. Adjust to
match the pinion gear installed.
10. Turn power OFF, then back ON for the settings to
take effect.
Shielding Gas Connection
WARNING
Maximum inlet pressure is 6.9 bar
The inlet fitting is 5/8-18 CGA type connection
Use KIT Quick connector R-2013-027-1R &
D-1319-010-1R
Install the shielding gas supply as follows:
1. Secure the cylinder to prevent it from falling.
2. Remove the cylinder cap. Inspect the cylinder
valves and regulator for damaged threads, dirt, dust,
oil or grease. Remove dust and dirt with a clean
cloth. DO NOT ATTACH THE REGULATOR IF
OIL, GREASE OR DAMAGE IS PRESENT! Inform
your gas supplier of this condition. Oil or grease in
the presence of high pressure oxygen is explosive.
3. Stand to one side away from the outlet and open the
cylinder valve for an instant. This blows away any
dust or dirt which may have accumulated in the
valve outlet.
4. Attach the flow regulator to the cylinder valve and
tighten the union nut(s) securely with a wrench.
Note: if connecting to 100% CO2cylinder, insert
regulator adapter between regulator and cylinder
valve. If adapter is equipped with a plastic washer,
be sure it is seated for connection to the CO2
cylinder.
5. Attach one end of the inlet hose to the outlet fitting
of the flow regulator. Attach the other end to the
welding system shielding gas inlet. Tighten the
union nuts with a wrench.
6. Before opening the cylinder valve, turn the regulator
adjusting knob counterclockwise until the adjusting
spring pressure is released.
7. Standing to one side, open the cylinder valve slowly
a fraction of a turn. When the cylinder pressure
gage stops moving, open the valve fully.
8. The flow regulator is adjustable. Adjust it to the flow
rate recommended for the procedure and process
being used before making a weld.
Water-Cooled Gun Connections
The K590-6 water connection kit installs underneath the
wire drive.
1. Turn power OFF at the welding power source.
2. Install the quick disconnect fittings to the plastic
bracket, by holding the rear nut stationary and
spinning the fitting.
3. Cut the tubing to the desired length, and then install
the tubing and hose clamps to the fittings.
Figure #26

English English
12

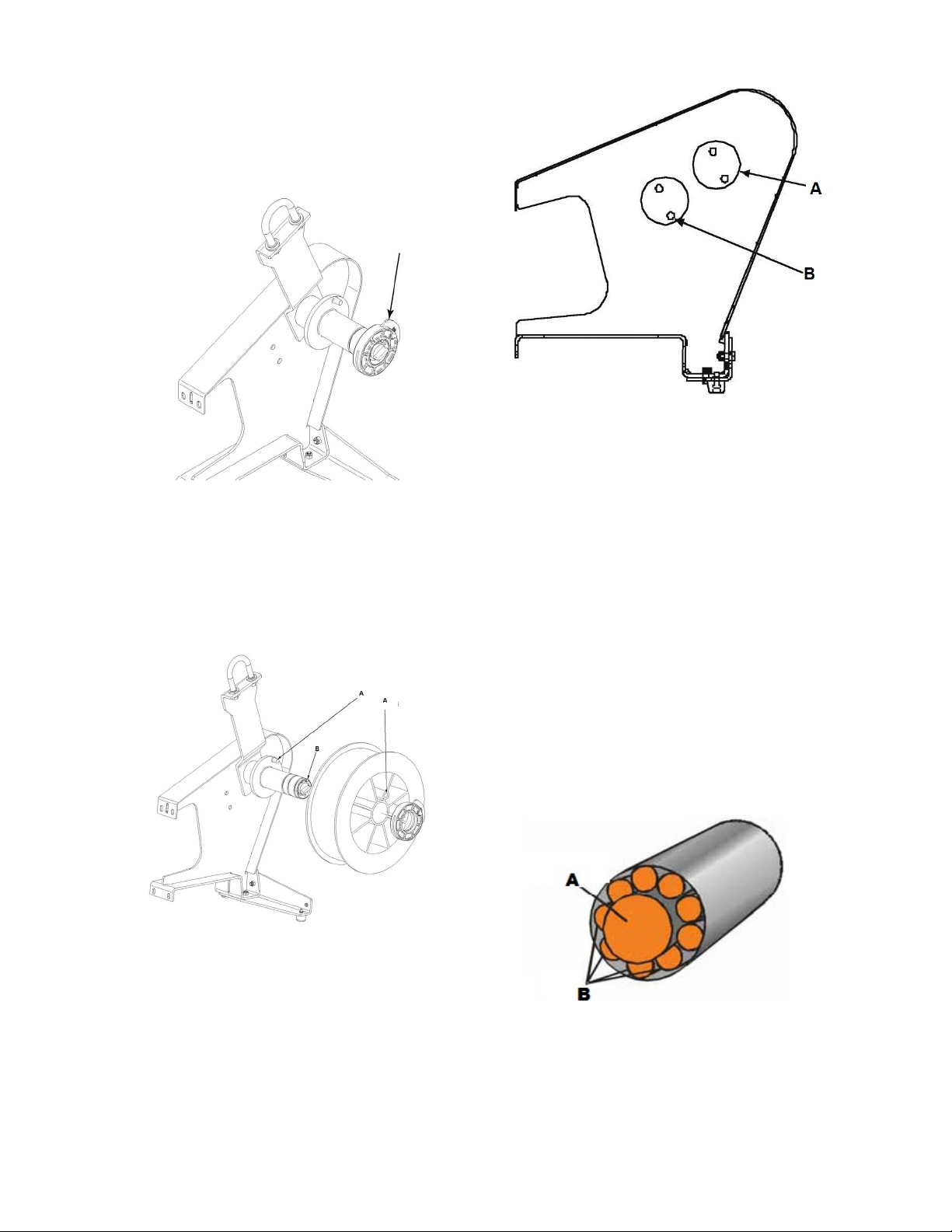

Loading Spools of Wire
22 – 27 kg coils require K3343-1 Heavy Duty Wire Reel
Stand
1. Turn power OFF at the welding power source.
2. Squeeze the release bar on the retaining collar and
remove it from the spindle.
Figure #27
3. Place the spool on the spindle, aligning the spindle
brake pin with one of the holes in the back side of
the spool. An indicator mark on the end of the
spindle shows the orientation of the brake holding
pin. Be certain the wire feeds off of the spool in the
proper direction.
4. Re-install the retaining collar, with the metal bar
engaging one of the grooves of the spindle. The
release bar will spring out when engaged.
A. Align Brake Pin with Hole
B. Indicator Mark
Figure#28
Wire Reel Stands
K3342-1 Standard Duty Wire Reel Stand is for use with
spools 10 to 44 lb (4.5 to 20 kg).
When using the K3343-1 Heavy Duty Wire Ree Stand,
place the spindle in the location as shown.
A. Spindle and Lift Bail location for 50-60lb coils
B. Spindle and Lift Bail location for 15-44lb coils
Figure #29
Electrical Installation
Weld Cables, Coaxial
(See figure #30)
Coaxial welding cables are specially designed welding
cables for STT™ and pulse welding. Coaxial weld cables
feature low inductance, allowing fast changes in the weld
current. Regular cables have a higher inductance which
may distort the STT™ waveshape. Inductance becomes
more severe as the weld cables become longer.
Coaxial cables work best for high performance
waveforms and when:
long cables are present
the cables are housed in a metal tray
A coaxial weld cable is constructed with multiple small
leads wrapped around one large lead. The large inner
lead connects to the electrode stud on the power source
and the electrode connection on the wire feeder. The
small leads combine together to form the work lead, one
end attached to the power source and the other end to
the work piece.
A. Electrode
B. Work
Figure #30
SQUEEZE
RELEASE BAR

English English
13
To install: (See figure #31)
1. Turn the input power off at the welding power source.
2. Connect one end of the center lead to the power source electrode connection, and the other end to the wire feeder
electrode connection.
3. Connect the outer lead bundle to the power source work connection, and the other end to the work piece. Minimize
the length of any work lead extension for best results.
4. Insulate all connections
Table 1
RECOMMENDED CABLE SIZES (RUBBER COVERED COPPER - RATED 75°C)**
AMPERES DUTY CYCLE COAXIAL CABLE LENGTH
0m to7.6m 7.6m to 15.2m 15.2m to 22.9m 22.9m to 30.5m
250 100% 1 1 1 1
300 60% 1 1 1 1/0
350 60% 1/0 1/0 -- --
** Tabled values are for operation at ambient temperatures of 104°F(40°C) and below. Applications above 104°F(40°C)
may require cables larger than recommended, or cables rated higher than 167°F(75°C).
A. Power source
B. Work
C. Electrode
D. Coaxial weld cable
E. Electrode
F. Wire feeder
G. work
Figure #31
Weld Cables, Standard
Table 2 has copper cable sizes recommended for different currents and duty cycles. Lengths stipulated are the distance
from the welder to work and back to the welder again. Cable sizes are increased for greater lengths primarily for the
purpose of minimizing cable drop
Table 2
RECOMMENDED CABLE SIZES (RUBBER COVERED COPPER - RATED 75°C)**
AMPERES
PERCENT
DUTY
CYCLE
CABLE SIZES FOR COMBINED LENGTHS OF ELECTRODE AND WORK
CABLES
0 to 15m 15 to 30m 30 to 46m 46 to 61m 61 to 76m
200 60 35mm2 35mm2 35mm2 50mm2 70mm2
200 100 35mm2 35mm2 35mm2 50mm2 70mm2
225 20 25mm2 35mm2 25mm2 50mm2 70mm2
225 40 & 30 35mm2 35mm2 35mm2 50mm2 70mm2
250 30 35mm2 35mm2 35mm2 50mm2 70mm2
250 40 35mm2 35mm2 50mm2 50mm2 70mm2
250 60 50mm2 50mm2 50mm2 50mm2 70mm2
250 100 50mm2 50mm2 50mm2 50mm2 70mm2
300 60 50mm2 50mm2 50mm2 70mm2 70mm2
350 100 70mm2 70mm2 70mm2 70mm2 95mm2
350 60 70mm2 70mm2 70mm2 70mm2 95mm2
400 60 70mm2 70mm2 70mm2 95mm2 120mm2
400 100 70mm2 95mm2 95mm2 95mm2 120mm2
500 60 70mm2 70mm2 95mm2 95mm2 120mm2
** Tabled values are for operation at ambient temperatures of 104°F(40°C) and below. Applications above 104°F(40°C) may require
cables larger than recommended, or cables rated higher than 167°F(75°C).
Negative Electrode Polarity
The Power Feed 84 ships from the factory configured for
electrode positive polarity. See P.81 in the Operations
Section (Set-Up menu) to select negative polarity
welding.

English English
14

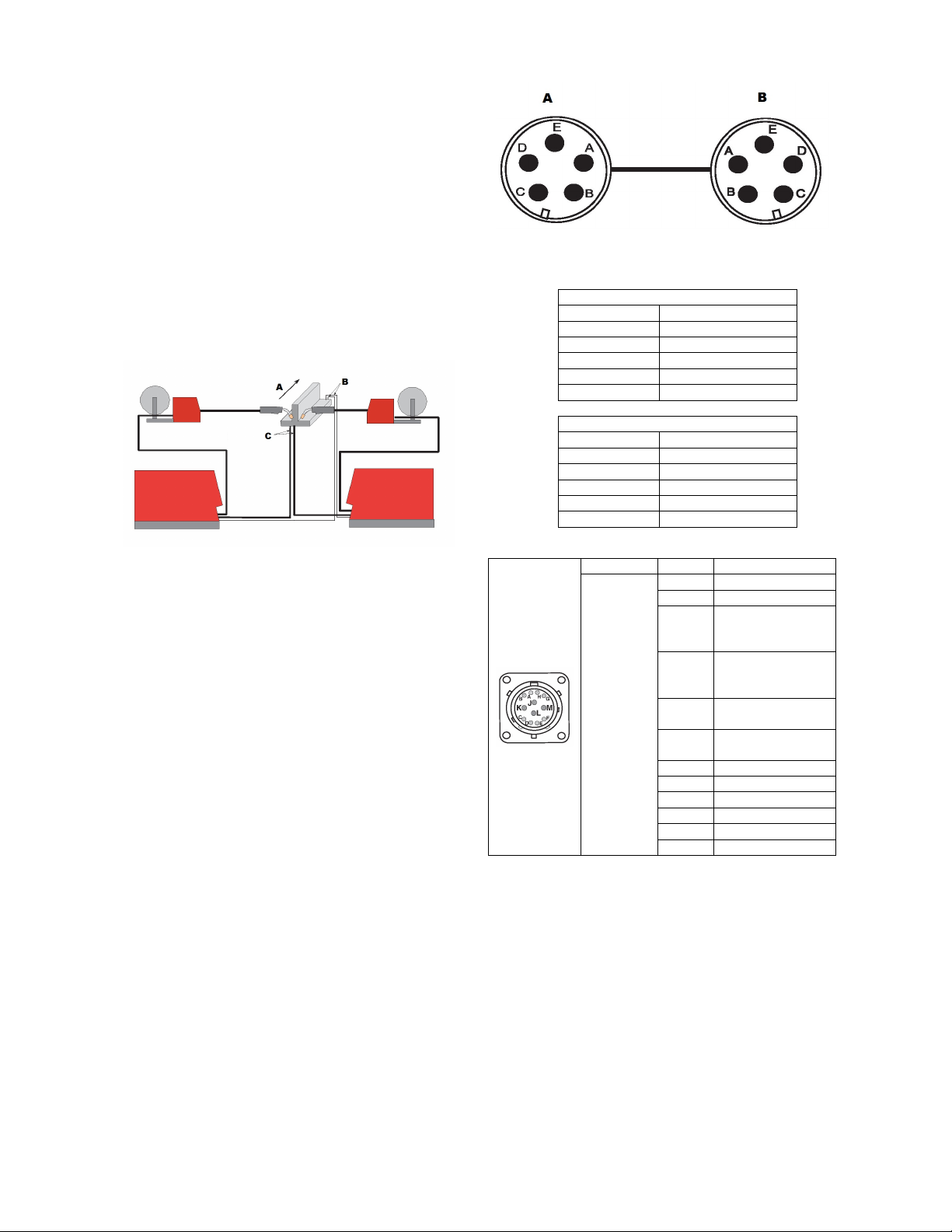

Welding with Multiple Arcs
Special care must be taken when more than one arc is
welding simultaneously on a single part. Arc blow and
arc interference may occur or be magnified. Each power
source requires a work lead from the work stud to the
welding fixture. Do not combine all of the work leads into
one lead. Perform welding in the direction away from the
work leads. Connect all of the work sense leads from
each power source to the work piece at the end of the
weld, such that they are out of the path of the weld
current.
For the best results when pulse welding, set the wire
size and wire feed speed the same for all the arcs. When
these parameters are identical, the pulsing frequency will
be the same, helping to stabilize the arcs.
A. Direction of travel
B. Connect all sense leads at the
end of the weld
C. Connect all work leads at the
beginning of the weld
Figure #32
Control Cable
ArcLink Control Cables are available in two forms:
K1543-xx series for most indoor or factory
installations.
K2683-xx series for outdoor use or when the
equipment is frequently moved.
ArcLink/LincNet control cables are special high quality
cables for digital communication. The cables are copper
5 conductor cable in a SO-type rubber jacket. There is
one 20 gauge twisted pair for network communications.
This pair has an impedance of approx-izmately 120
ohms and a propagation delay per foot of less than 2.1
nanoseconds. There are two 12 gauge conductors that
are used to supply 40VDC to the network. The fifth wire
is 18 gauge and is used as an electrode sense lead.
Use of non-standard cables may lead to system
shutdowns, poor arc starting and wire feeding problems.
Control cables may be connected end to end to extend
their length. Use a maximum of 60m of control cable
between components.
A. Power source
B. Wire feeder
Figure #33
Power Source
Pin Function
A ArcLink
B ArcLink
C "67" voltage sense
D 40 VDC
E Common
Wire Feeder
Pin Function
A ArcLink
B ArcLink
C "67" voltage sense
D 40 VDC
E Common
Advanced Accessories Connector (12 pin)
Function pin Wiring
12-pin
connector
for push-
pull guns
and
remotes
A CAN LOW
B CAN HIGH
C
75 Remote
potentiometer,
common
D
76 Remote
potentiometer,
wiper
E 77 Remote
potentiometer, 5K
F ArcLink
Peripheral Sense
G Trigger
H Trigger
J 40VDC Common
K 40VDC +
L Pull Motor –
M Pull Motor +

English English
15
Trigger Connector (5 pin)
Function pin Wiring
5-pin
connector
for push-
only guns.
A Trigger
B Not used
C Trigger
D Dual
Procedure
E Dual
Procedure
ArcLink Connector (5 pin)
Function pin Wiring
5-pin
connector for
communicaton
and power
A CAN
B CAN
C
67 Electrode
Voltage
Sense
D 40 VDC
E Common
WARNING
The serviceability of a product or structure utilizing the
welding programs is and must be the sole responsibility
of the builder/user. Many variables beyond the control of
The Lincoln Electric Company affect the results obtained
in applying these programs. These variables include, but
are not limited to, welding procedure, plate chemistry
and temperature, weldment design, fabrication methods
and service requirements. The available range of a
welding program may not be suitable for all applications,
and the build/user is and must be solely responsible for
welding program selection.
Power Up Sequence
1. The contactor drive energizes the contactor to
match the active wire drive. The LED for the active
wire drive illuminates.
2. Settings of the feeder before the last power-down
are restored – wire feed speed, voltage, trigger type,
procedure, etc.
GRAPHIC SYMBOLS THAT APPEAR ON
POWER FEED 84, POWER FEED 84 DUAL OR
IN THIS MANUAL
WARNING or CAUTION
INPUT POWER
ON
OFF
POSITIVE OUTPUT
NEGATIVE OUTPUT
CHASSIE GROUND
INPUT VOLTAGE
INPUT CURRENT
OUTPUT CURRENT
WELDING AMPERAGE
WELDING VOLTAGE
WIRE FEEDER
SHIELDING GAS
MENU
WAVE CONTROL
ARC START PARMETERS
ARC END PARMENTERS
COLD FEED
GAS PURGE
SHIELDING GAS INLET
SHIELDING GAS OUTLET
MEMORY SAVED
MEMORY RECALL
WIRE DRIVE SELECTION
2-STEP TRIGGER
4-STEP TRIGGER

English English
16
THERMAL
SET-UP MENU
TRIM
Recommended Processes and
Equipment
RECOMMENDED PROCESSES
GMAW, GMAW-Pulse, GMAW-STT
FCAW
SMAW
GTAW
CAG
PROCESS LIMITATIONS
Processes must be within the duty cycle and rating
of the wire feeder.
EQUIPMENT LIMITATIONS
The Power Feed 84 does not operate with LincNet
Power Sources.
The power source may require a software update.
If the Power Feed 84 has contactors or a gouging kit
installed, the power source software may require
updated.
Does not include weld cables
Operates on 40 VDC input
The user interface may be located a maximum of
60m away from the wire drive.
Must use newer gun adapter kits. Not compatible
with K1500-1, K1500-2, K1500-3, K1500-4 K1500-5
and K489-7 gun adapter kits.
A remote control/foot amptrol and a push-pull gun
may not be connected to the Power Feed 84 single
simultaneously.
Power Feed 84 user interfaces are not compatible
with Power Feed 10M wire drives.
Power Feed 84 wire drives are not compatible with
Power Feed 10M user interfaces.
The Power Feed 84 with contactors or gouging kit
may not be connected to a system with a robotic
wire drive.
With the Power Feed 84, only one USB port may
present anywhere in the system.
RECOMMENDED POWER SOURCES
Power Wave 355M, 455M
Power Wave 455M/STT
Power Wave 655R
Power Wave S350
Power Wave S500
Power Wave S700
Power Wave R350, R500
Power Wave i400
Speedtec 405, 505
Flextec 350x, 500, 650x

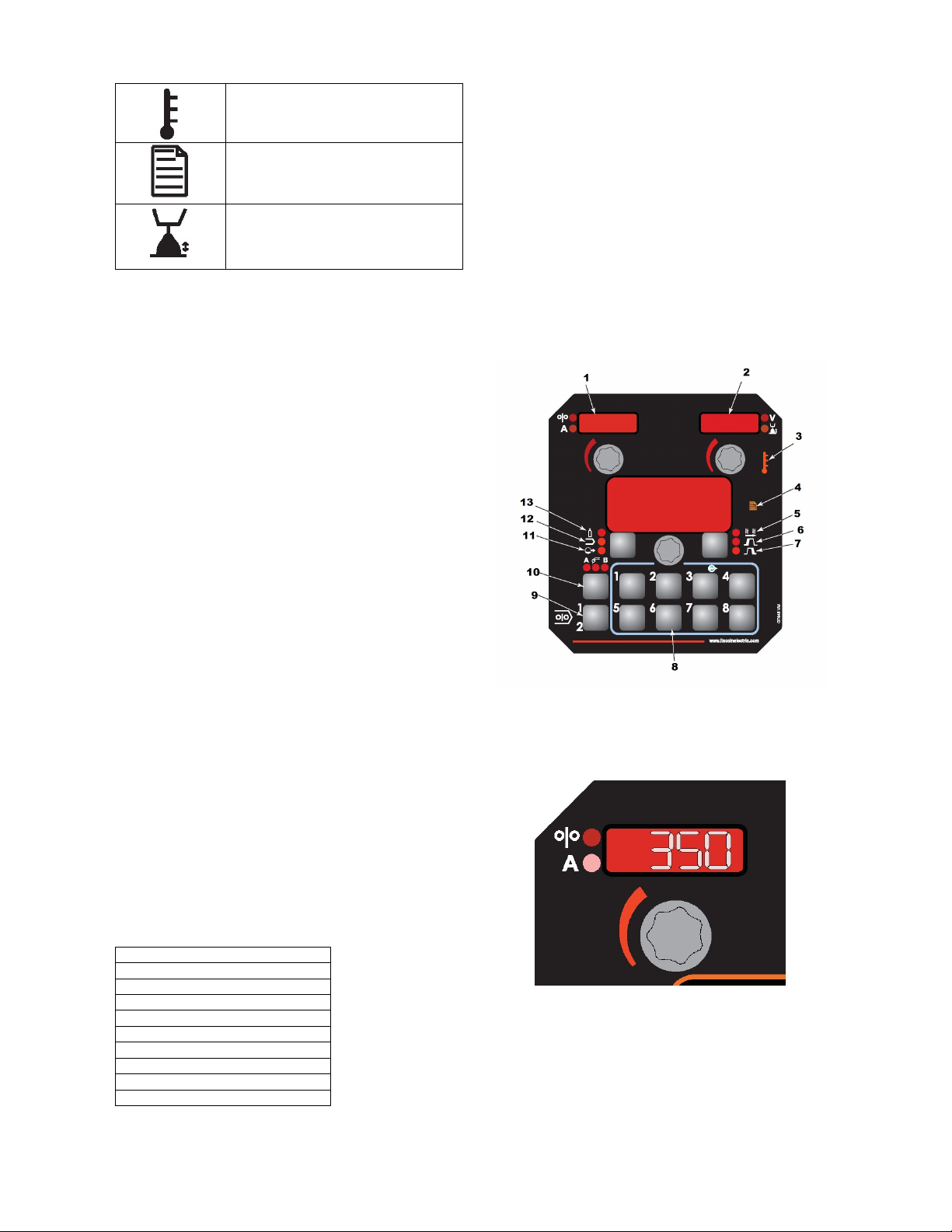

User Interface Layout
(See Figure #35)
1. Wire feed speed/amps
2. Volt/trim
3. Thermal
4. Set-up menu
5. 2-step/4-step trigger
6. Arc start parameters
7. Arc end parameters
8. Memory buttons
9. Wire drive select
10. Dual procedure
11. Arc control
12. Weld mode menu
13. Shielding gas
Figure #35
Wire Feed Speed/Amps Display and
Knob
(see Figre #36)
Figure #36
The left display and knob are used to adjust either wire
feed speed or amperage, depending upon the process
selected.
While welding, the amps LED lights when amperage is
displayed and the wire feed speed LED lights when WFS
is displayed.

English English
17

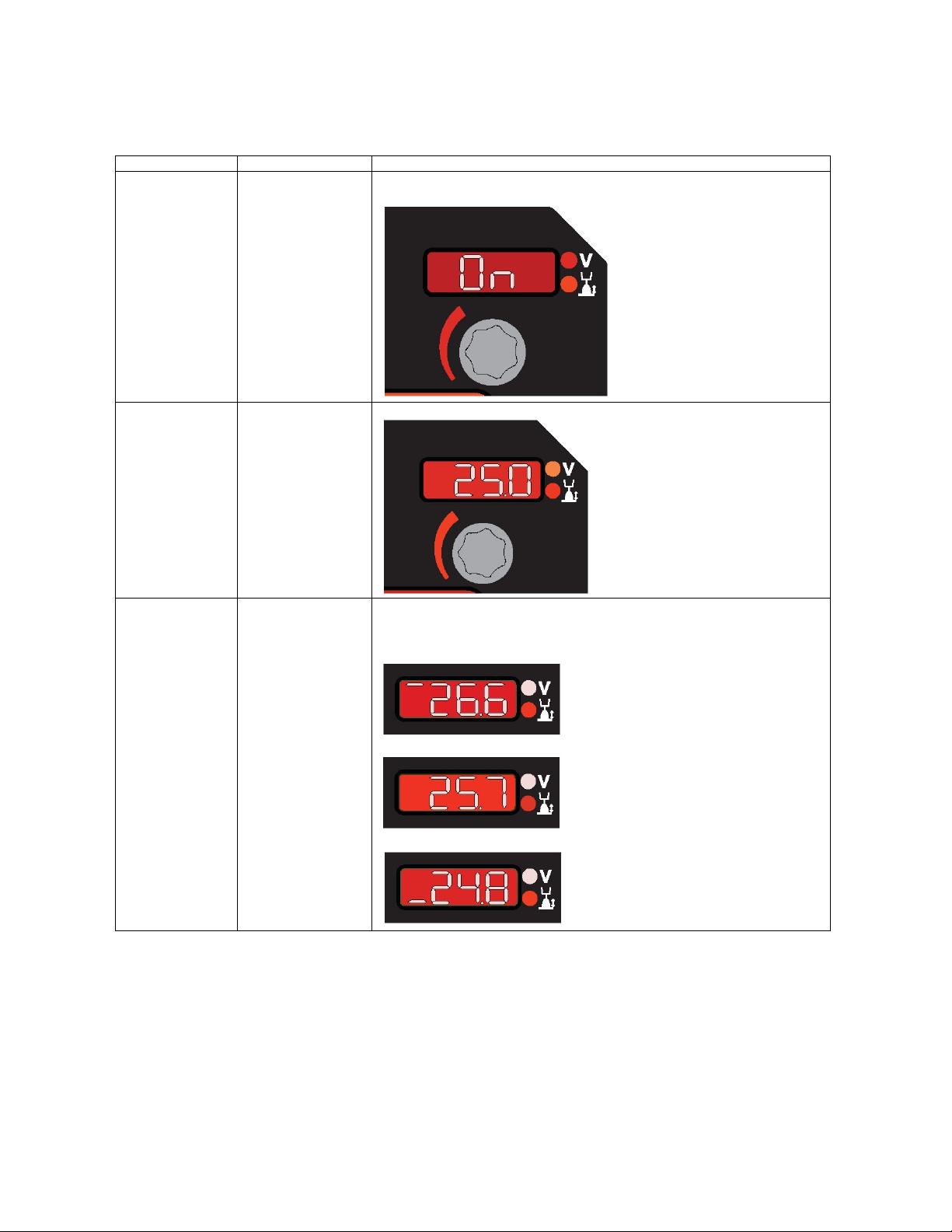

Voltage/Trim Display and Knob
The right display and knob control voltage, trim or output depending upon the process selected. Once welding is
complete, the display continues to show the welding voltage for 5 seconds.
Process Display/Function Description
SMAW
(Stick) and GTAW
(TIG)
Weld Output
Rotate clockwise to turn output ON.
Rotate counterclockwise to turn output OFF
Non-synergic
GMAW (MIG) and
FCAW Voltage
(Flux-cored)
Voltage
Adjusts the voltage. The display is blank for non-synergic STT modes
Synergic
GMAW (MIG) and
FCAW
(Flux-cored)
Voltage
When the voltage knob is rotated, the display will show an upper or lower
bar indicat ing if the voltage is above or below the ideal voltage. The
display is blank for synergic STT Modes.
Preset voltage above ideal voltage. (upper bar displayed).
Preset voltage at idealvoltage. (no bar displayed).
Preset voltage below idealvoltage. (lower bar displayed)
