Vantage®400
EN INE DRIVEN WELDERS
Compact, Multi-Process, Excellent Value
ENGINE DRIVEN WELDERS
The Vantage®400 is one of the most compact 400 amp engine-driven welder/
generators in the construction, pipe or rental fleet market today. It’s also one of
the most quiet, with a smooth running 4-cylinder Perkins®diesel engine. Use this
multi-process welder for arc gouging with up to 5/16" carbons, stick welding with
up to 1/4" electrodes and CV wire welding with up to 3/32" wire. You’ll value the
superior arc performance delivered by Lincoln Chopper Technology®. You'll
also appreciate VRD™(Voltage Reduction Device™), which reduces OCV (open
circuit voltage) in the CC-Stick weld mode for added safety.
This model efficiency generates 19,000 watts (peak) of 3-phase or 12,000 watts
of 1-phase AC generator power for your lights, grinders and power tools. And, it's
housed in a rugged, low maintenance stainless steel enclosure and loaded with
many innovative service features. That all totals up to an excellent value!
Processes
Stick, TIG, MIG, Flux-Cored, Gouging
Publicatio E6.210 10/05
Web Update 4/08
www.li col electric.com
TECHNICAL SPECIFICATIONS
•Compact Case
- One of the most compact 400 amp machines available. Suitable
for many pickup and service trucks.
•tainless teel Enclosure
- Standard stainless steel roof, side panels and engine-access door
deliver added protection and durability.
•Multi-Process Welding, imple to Operate
- Select one of four Process Modes, including CC-Stick (up to
1/4"), Downhill Pipe (for stick), Touch-Start®DC TIG or CV-Wire
(up to 3/32"(1)), and then dial in the desired output.
•VRD™Voltage Reduction Device™
- Reduced OCV in the CC-Stick weld mode for added safety.
- First engine-driven welder in North America having this standard
feature.
•Plenty of AC Generator Power
- 19 kW peak (17 kW continuous) 3-Phase 240V AC generator
power. Will power industrial equipment such as a plasma cutter,
pump or inverter welder.
- 12 kW peak (11 kW continuous) 1-phase AC generator power for
common construction tools.
•Arc Gouging
- Arc gouging with up to 5/16" carbons.
•Reliable Engine
- 4 cylinder 1800 RPM Perkins®diesel engine runs smooth and
quiet. Standard engine gauges allow you to monitor performance
at a glance.
•Low Noise
- 99.1 dBA Lwa sound power (74.8 dB at 23 ft./7 m) is one of the
quietest 400 amp engine-driven welders available.
•Innovative ervice Access
- Lockable, removable sliding engine access door provides ample
space for engine and oil filter work without requiring a large
clearance space on your truck.
- Battery drawer on front of machine and top-mounted radiator cover
provide convenient access to these systems.
- Patented tilt down control panel for easy servicing of internal
components.
- Patented radiator cap cover is latched for easy access and is lockable.
(1)3/32" E70T-6 up to 260 IPM, 27V.
Rated Output
Current/Voltage/Duty Cycle
400A/36V/100%
450A/32V/100%
Output
Range
30-500A DC
40-300A Pipe
20-250A DC TIG
14-36V CV
3-Phase AC Power:
19 kW Peak
17 kW Continuous
1-Phase AC Power:
12 kW Peak
11 kW Continuous
Engine
Model
Perkins®404D-22
Diesel
EPA Tier 4i
No. of
Cyl.
4
HP & peed
(rpm)
32.7@1800
Dimensions
HxWxD
Inches (mm)
35.9 x 25.3 x 60.0
(913 x 642 x 1524)
Net
Weight
lbs (kg)
1230
(559)
Product
Name
Vantage®400
CV
CC
DC
19
kWP
D
Output
Input
Advantage Lincoln

PERFORMANCE
Arc Performance
• 400 amps @100% duty cycle with output range up to 500 amps
using Chopper Technology®. All ratings are at temperatures
of 104°F/40°C.
• Arc ouging with up to a 5/16" carbon.
• VRD™(Voltage Reduction Device™) reduced OCV (open circuit
voltage) in CC-stick welding mode for added safety.
• CC-Stick mode is optimized for general purpose stick using
E7018 low hydrogen electrode.
• Built-in “hot” start for easier starts and restrikes minimizing the
electrode “sticking” to the work.
• Downhill pipe mode with active arc force control - enhanced
downhill pipe welding mode. Excellent for cellulosic electrodes.
Fast travel speeds, especially on fill passes. Arc control adjust-
ment for a soft, buttery arc or a more forceful digging arc.
• Standard Touch-Start DC TI ®welding, not scratch start, for easy
arc starting that avoids tungsten contamination and the use of
high-frequency equipment.
• Excellent CV wire welding with cored-wire and MI (CO2 and
blended gas). 3/32" E70T-6 up to 260 IPM, 27V.
Generator Performance
• 3-Phase 240V AC generator power rated at 19 kW peak (17 kW
continuous) output to power industrial equipment such as
a plasma cutter, pump or inverter welder. Simultaneously weld
and use 3-Phase AC power - for example, up to 9,400 watts can
be delivered while welding at 300 amps. Compare to competitive
product which has 3-Phase power available as an extra-cost fac-
tory-only option.
• 3-Phase 240V receptacle on control panel eliminates the need to
hard-wire the connections.
• The Vantage®400 provides added value at the job site by deliver-
ing up to 12 kW peak (11 kW continuous) watts of 1-Phase AC
auxiliary power for equipment such as a Lincoln plasma cutter.
Also use for lights, grinders and other common construction
tools. And, you can simultaneously weld and have access to AC
power – 4,700 watts can be delivered while welding at 300 amps.
• AC generator voltage is constant at 120V or 240V at any weld
dial setting.
• Two 120V FCI duplex receptacles.
• All receptacles are circuit breaker protected and have weather
protective covers.
Va tage®400
www.li col electric.com
[2]
A CLOSER LOOK
Patented and award-winning Lincoln Chopper Technology®delivers
superior DC arc welding performance for general purpose stick, Downhill
Pipe, DC TI , MI , cored-wire and arc gouging.
Benefits of Chopper Technology®include:
- Easy arc starting
-Smooth arc action
- Low spatter levels
-Excellent bead appearance
Traditio al weld co trol is more
variable arou d the desired output.
Chopper Tech ology®
delivers extremely fast respo se
for smoother output co trol.
WHAT IS CHOPPER TECHNOLOGY®?
WHAT IS TOUCH-START TIG®?
Touch-Start TI ®uses a very low voltage to sense when the tip of
the tungsten electrode is touched to the work piece. When this
occurs, a complete circuit is established. When the tungsten is then
raised from the work piece, the circuit senses a change in voltage
and initiates the appropriate welding current and voltage to support
the TI welding process.
Enjoy the added benefits of Lincoln’s Touch-Start TI ®when DC TI
welding. Not only do you avoid tungsten contamination when arc
starting, but you also don’t need extra high frequency equipment.
The VRD™(Voltage Reduction Device™) provides additional safety in the
CC-Stick weld mode, especially when working in an environment with a
higher risk of electrical shock such as wet areas and hot, humid sweaty
conditions. The VRD™reduces the OCV (open circuit voltage) at the welding
output terminals while not welding to less than 32 volts DC.
The VRD™is activated by flipping a toggle switch inside the machine to the
“ON” position. Indicator lights monitor the voltage: green for less than 32
volts while not welding, and either red (greater than 32 volts) or green while
welding, depending on the actual voltage of the arc.
Other weld modes when VRD™is on:
Downhill Pipe There is no output.
CV-Wire OCV is not reduced.
Touch Start TIG®No difference in
operation. TI is
normally a low
voltage (less than
32 volts) operation.
WHAT IS VRD™?
VRD™portio of ameplate
with gree light o .
0
100
200
300
400
500
17,000 41
15,400 37
13,000 31
9,400 23
3,400 8
00
11,000 46
11,000 46
8,000 33
4,700 20
1,700 7
0 0
11,000 -
11,000 -
8.000 -
4,700 -
1,700 -
0-
Weld Amps 1 Phase
Watts Amps
SIMULTANEOUS WELDING AND AUXILIARY POWER
3 Phase
Watts Amps
imultaneous 1 and 3 Phase
Watts Amps
AND OR OR

A CLOSER LOOK
Key Controls
20
21
141312
11
10
1
5
6
8
9
18
17
16
1. low Plug Button
2. Weld Mode Selector Switch
3. Run/Stop Switch
4. Hour Meter
5. Start Push button
6. Engine Idler Switch
7. Fuel Level, Engine Temperature and
Oil Pressure auges
8. Engine Protection Light
9. Engine Battery Charging Light
10. 120 VAC Circuit Breakers
11. 120 VAC FCI Receptacles
12. 120/240 VAC Full-KVA 1-Phase Receptacle
13. 240 VAC Full-KVA 3-Phase Receptacle
14. Full-KVA 1- & 3-Phase Circuit Breaker
15. Covered Weld Output Terminals + and -
16. round Stud
17. 14-Pin Wire Feeder Connector
18. 6-Pin Remote Control Connector
19. Arc Force & Inductance/Pinch Control Dial
20. Welding Terminals Control Switch
21. Wire Feeder Voltmeter Polarity Switch
22. Digital Amps and Volts Output Meters
23. VRD Indicator Lights
24. Output Control Dial
FEATURES
24 23
22
19
2
4
15
3
7
Note: Control panel door not shown.
Single-side engine access
with lockable sliding door.
Fuel, Oil Pressure and Engine
Temperature gauges help you
monitor performance.
Patent-pending latched
and lockable radiator cap
cover.
Convenient slide-out battery
drawer below control panel.
Handy oil drain valve and tube
makes oil changes easy.
Output automatically switches
to remote mode when remote
device is connected.
• Simple Controls – Keeps training time to a minimum. The flip-down
control panel door keeps less frequently used dials out of the way.
Scratch-resistant Lexan®nameplate.
• Digital weld meters for amps and volts output make it easy to
precisely set your procedures.
• Large 15 gallon (57 liter) fuel tank provides run time for an extended
day—12 hours of welding at 400A/36V/100% duty cycle output, or
36 hours at high idle.
• reat Engine Choice – 32.7 horsepower water-cooled 4 cylinder
Perkins®404D-22 diesel engine. Engine has an automatic idler for
greater fuel economy and reduced noise. low plug button for cold
weather starting.
• Engine hour meter for scheduled maintenance.
• LN-25 PRO Across-the-Arc wire feeder is a recommended option.
• 14-pin connector for Lincoln wire feeders with control cables LF-72,
LF-74, LN-7, LN-8, LN-15, LN-23P, LN-25 and LN-742. Also com-
patible with Magnum®S Spool un System.
• Two Vantage®400 units can be paralleled in the CC-Stick Mode to
increase output.
Va tage®400
www.li col electric.com
[3]

Dimensions (6)
Product Ordering CC/Pipe-Rated DC Output(1) CV Rated Output(1) H x W x L Weight
Name Information Description Current/Voltage/Duty Cycle Current/Voltage/Duty Cycle AC Power(3)(4) inches (mm) lbs. (kg)
Vantage®400 400 Amp DC Welder with DC Constant Current DC Constant Voltage(2) 19,000 Peak 35.9 x 25.3 x 60.0 1230
K2410-2 Engine Gauges 400A/36V/100% 400A/36V/100% Watts, 60 z (913 x 642 x 1524) (559)
450A/32V/100% 450A/32V/100%
19,000 Watts Peak 30-500 Amps Two 120V
17,000 Watts 14-36V Duplex GFCI
Continuous AC Power DC Pipe Current Single Dial Receptacles
3-Phase 300A/32V/100% Continuous Control 20A Per Duplex
40-300A 40A Total (5)
12,000 Watts Peak Touch- tart TIG®Range Wire Feeder Power 1-Phase
11,000 Watts 250A/30V/100% 120V/60 z Full KVA
Continuous AC Power 20-250 Amps 42V/60 z Receptacle
1-Phase 46A@240V
Single Dial 46A@120V Each
Continuous Control Branch Circuit(5)
60V DC Max OCV
@1880 RPM 3-Phase
Full KVA
Receptacle
41A@240V
Va tage®400
www.li col electric.com
[4]
A CLOSER LOOK
MACHINE SPECIFICATIONS
ENGINE SPECIFICATIONS
(1) igh Altitude: For maximum rating, derate the output 2.5% to 3.5% for every 1,000 ft. (300 m). igh Temperature: For maximum rating, derate 2 volts for every 18°F (10°C)
above 104°F (40°C).
(2) DC Constant Voltage capability provides convenience and added safety when welding in electrically hazardous conditions.
(3) When welding, available auxiliary power will be reduced. Output voltage is within +/- 10% at all loads up to rated capacity.
(4) 120V will operate either 60 z or 50/60 z power tools, lights, etc.
(5) Circuits cannot be wired in parallel to operate the same device.
(6) eight is to top of case. Add 7.4 in. (187mm) to top of exhaust elbow.
(7) Perkins®warranty is 2 years/2,000 hours, all non-electric components, 3 years major non-electric components. See warranty for details.
QUALITY AND RELIABILITY
• Simple wire harnessing keeps connections to a minimum for greater
reliability. Lead and harness strain reliefs on all control connections
help ensure trouble-free performance.
• Engine Protection System includes automatic shutdown for low oil
pressure or high engine temperature.
• Indicator light turns on for low oil pressure or high engine
temperature. A second indicator light turns on if the engine
battery charging system malfunctions.
• Circuit breaker protection on the battery ignition system provides
added component protection.
• Environmental friendly engine! Engine has a closed breather
system to keep the engine compartment and ground clean. This
system eliminates oil mist from collecting inside the engine
compartment, especially on surfaces that would lower engine
cooling efficiency.
• Self-bleeding engine simplifies startup if your fuel tank runs dry.
• Perkins®engine camshaft is gear-driven. No timing belt maintenance.
• Printed circuit boards are environmentally-shielded using Lincoln’s
engineered potting and protective frame trays.
• Dependability and long life aided by all-copper windings in rotor and
stator with high quality insulation.
• Standard stainless steel roof, side panels and engine-access door
deliver added protection, durability and corrosion-resistance.
Eliminates the need to paint or replace rusting panels.
• Manufactured under a quality system certified to ISO 9001
requirements and ISO 14001 environmental standards.
• Three-Year Lincoln Warranty on welder. (Engine is warranted
separately by the manufacturer.)
Product Horsepower & Operating Fuel
Name Description Displacement Capacities peeds Consumption
Perkins®404D-22 (7) 4 Cylinder, 4 Cycle 32.7 P@1800 RPM FUEL: 400A Load 1.2 Gal/ r
EPA Tier 4i Water-Cooled Diesel Engine, 15 gals (57 ltrs) 1800 RPM 4.4 Ltr/ r
12V Electric Start, 136 cu. in.
Dry Type Air Cleaner, (2.2 ltrs) OIL: High Idle 0.4 Gal/ r
Fuel Filter with Water Separator 8.5 qts (8.0 ltrs) 1880 RPM 1.5 Ltr/ r
RADIATOR COOLANT: Low Idle 0.3 Gal/ r
8.0 qts (7.6 ltrs) 1400 RPM 1.1 Ltr/ r

Va tage®400
www.li col electric.com
[5]
A CLOSER LOOK

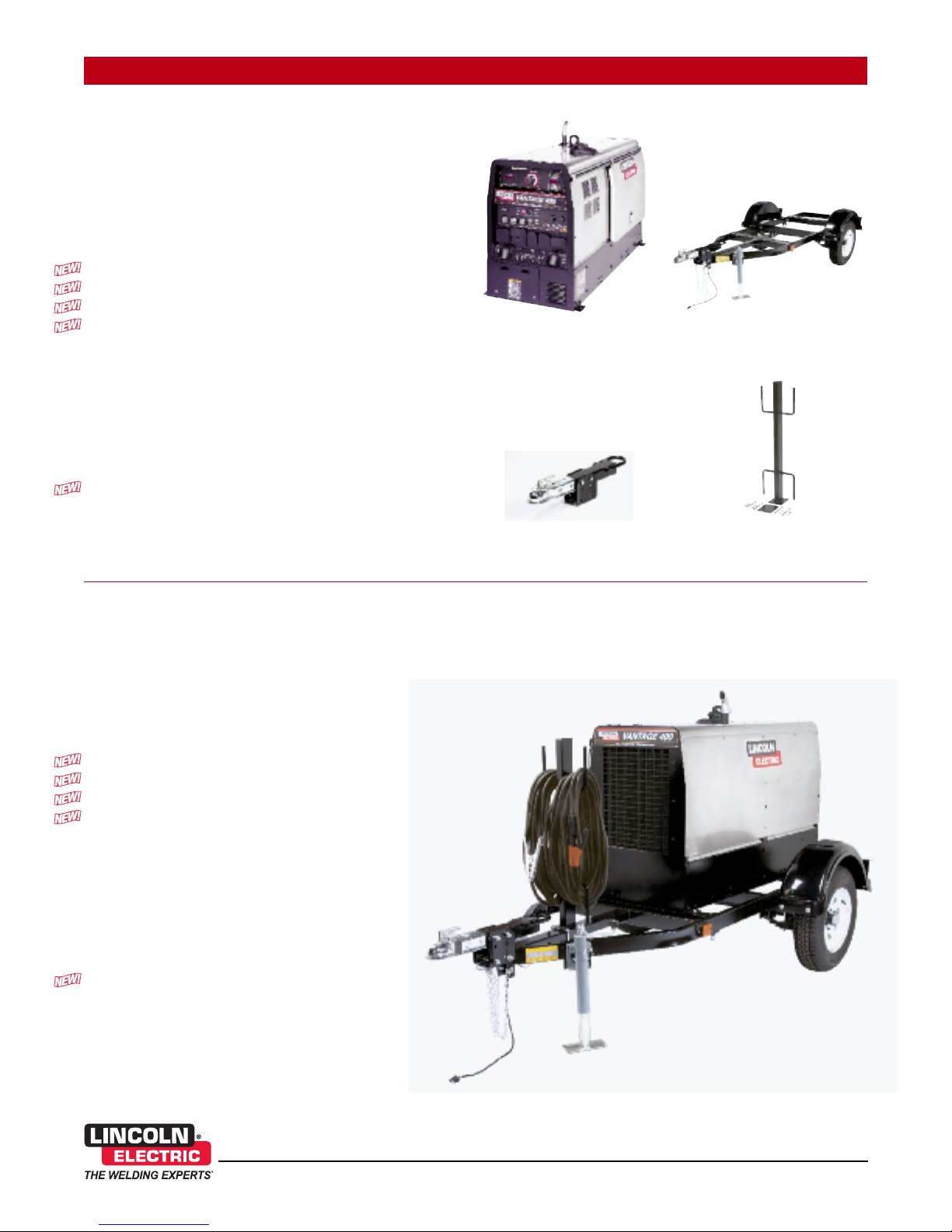

SYSTEM SELECTION
One-Pak®Welding Packages
Order a Lincoln One-Pak®and get everything you need to
complete a welding package - all with one order number.
(One-Pak®Packages require assembly.)
Each UNASSEMBLED Package Contains:
• Vantage®400 (See Order Number Below)
• Medium Welder Trailer (K2636-1)
• Duo-Hitch™2" Ball/Lunette Eye Hitch (included)
• Fender and Light Kit (K2639-1)
• Cable Rack (K2640-1)
• Cable Connectors - two (K2487-1)
• Electrode Cable 3/0, two 50 ft. (15.3 m) lengths (K2485-3)
• Electrode Cable 3/0, 10 ft. (3 m) (K2483-3)
• Work Cable 3/0, 50 ft. (15.3 m) (K2484-3)
• 400A Electrode Holder (K909-8)
• 500A Work Clamp (K910-2)
Order:
K2508-3 Vantage®400 One-Pak®Package
Ready-Pak®Welding Packages
Order a Lincoln Ready-Pak®Package and get an assembled welding package.
Each COMPLETELY ASSEMBLED Package Contains:
• Vantage®400 (See Order Number Below)
• Medium Welder Trailer (K2636-1)
• Duo-Hitch™2" Ball/Lunette Eye Hitch (included)
• Fender and Light Kit (K2639-1)
• Cable Rack (K2640-1)
• Cable Connectors - two (K2487-1)
• Electrode Cable 3/0, two 50 ft. (15.3 m) lengths (K2485-3)
• Electrode Cable 3/0, 10 ft. (3 m) (K2483-3)
• Work Cable 3/0, 50 ft. (15.3 m) (K2484-3)
• 400A Electrode Holder (K909-8)
• 500A Work Clamp (K910-2)
Order:
K2509-3 Vantage®400 Ready-Pak®Package
K2636-1 Medium Welder Trailer
Va tage®400
Duo-Hitch™2" Ball/Lu ette Eye Hitch
(i cluded)
K2640-1 Cable Rack
Completely Assembled Ready-Pak®Pkg.

Va tage®400
www.li col electric.com
[6]
RECOMMENDED OPTIONS
120V
120V
GENERAL OPTIONS
Power Plug Kit (20A)
Provides four 120V plugs rated at
20 amps each, and one dual volt-
age, full KVA 1-phase plug rated
at 120/ 240V, 50 amps. 120V plug
may not be compatible with com-
mon household receptacles.
Order K802N
Power Plug Kit (15A)
Provides four 120V plugs rated at
15 amps each, and one dual volt-
age, full KVA 1-phase plug rated
at 120/ 240V, 50 amps. 120V plug
is compatible with common house-
hold receptacles.
Order K802R
Full-KVA Power Plug (1-Phase)
One dual voltage plug rated at
120/240V, 50 amps. NEMA 14-50P.
Order T12153-9
Full-KVA Power Plug (3-Phase)
One plug rated at 240V, 50 amps.
NEMA 15-50P.
Order T12153-10
Medium Welder Trailer
For heavy-duty road, off-road, plant
and yard use. Includes pivoting jack
stand, safety chains, and 13"
wheels. Stiff .120" welded rectan-
gular steel tube frame construction
is phosphate etched and powder
coat painted for superior rust and
corrosion resistance. Low sway
suspension gives outstanding sta-
bility with manageable tongue
weight. Wheel bearings are packed
with high viscosity, high pressure,
low washout Lubriplate®grease.
Includes a Duo-Hitch™– a 2"
Ball/Lunette Eye combination
hitch. Overall width 60".
Order:
K2636-1 Trailer
K2639-1 Fender & Light Kit
K2640-1 Cable Rack
Four-Wheeled Steerable
Yard Trailer
For off-road, plant and yard use.
Includes an automatically engaging
drawbar lock when the drawbar is
raised to the verticle position. 13"
wheels. Wheel bearings are packed
with high viscosity, high pressure,
low washout Lubriplate®grease.
Stiff 3/16" welded rectangular steel
frame construction is phosphate
etched and powder-coat painted
for superior rust and corrosion
resistance. Also includes a
Duo-Hitch™–a2" Ball/ Lunette
Eye combination hitch. Overall
width: 55".
Order K2641-2
Spark Arrestor Kit
Mounts to Muffler Exhust Tube.
Virtually eliminates spark emissions.
Order K903-1
Service Indicator Kit
Provides a O/NO- O visual indica-
tion of air cleaner element useful
service life. Filter service based on
restriction readings allows the longest
life possible from the filter and best
engine protection.
Order K1858-1
Cold Weather Heater and Tarp Kit
For engine starting and operation in
extreme cold weather conditions
down to -40°F(-40°C) (with the use of
0W40 synthetic oil and arctic diesel
fuel). Includes 120V AC oil pan heater,
120V AC engine block heater, and
radiator grill tarp.
Order K2679-1
STICK OPTIONS
Accessory Kit
Includes 35 ft. (10.7 m) 2/0 electrode
cable with lug, 30 ft. (9.1 m) 2/0 work
cable with lugs, headshield, filter
plate, cover plate, work clamp and
electrode holder. 400 amp capacity.
Order K704
Remote Output Control
Consists of a control box with choice
of two cable lengths. Permits remote
adjustment of output.
Order K857 for 25 ft. (7.6 m)
K857-1 for 100 ft. (30.5 m)
TIG OPTIONS
Pro-Torch®PTA-26V TIG Torch
Air-cooled 200 amp torch (2 piece)
equipped with valve for gas flow
control. 25 ft. (7.6 m) length.
Order K1783-9
Magnum®Parts Kit for PTA-26V
TIG Torch
Magnum®Parts Kit provides all the
torch accessories you need to start
welding. Parts kit provides collets,
collet bodies, a back cap, alumina
nozzles and tungstens in a variety of
sizes, all packaged in an easy to carry
reclosable sack.
Order KP509
Foot Amptrol®
Provides 25 ft. (7.6 m) of remote out-
put control for TI welding. (6-pin
plug connection).
Order K870

RECOMMENDED OPTIONS
Va tage®400
www.li col electric.com
[7]
Drive Roll and Guide Tube Kit
(for LN-25 PRO)
For .035" and .045" (0.9-1.1 mm) solid
steel wire.
Order KP1696-1
LN-23P Wire Feeder
Portable CV unit for Innershield pipe
welding. Includes drive rolls and guide
tubes. Requires K2393-1 or -2 Input
Cable Assembly and Magnum®
Innershield®un.
Order K316L-2
Input Cable Assembly for LN-23P
8-socket to 14-pin control cable with
lugged electrode cable for K316L-2
LN-23P Wire Feeder.
Order:
K2393-1 25 ft (7.6 m)
K2393-2 75 ft (22.9 m)
Magnum®350 Innershield®Gun
(for LN-23P)
Rated 350 amps, 60% duty cycle. For
.068"-5/64" (1.7-2.0 mm) Innershield®
wire and includes reduced speed
switch.
Order K345-10
Magnum®SG Spool Gun
Hand held semiautomatic wire feeder.
Requires S Control Module and Input
Cable.
Order K487-25
SG Control Module
The interface between the power
source and the spool gun. Provides
control of the wire speed and gas flow.
For use with a spool gun.
Order K488
Input Cable
(For SG Control Module)
For Lincoln engine power sources with
14-pin MS-type connection, separate
115V NEMA receptacles and output
stud connections.
Order K691-10
PLASMA CUTTING
Pro-Cut®55
Cuts metal using the AC generator
power from the engine-driven welder.
Accepts 3-phase or 1-phase input
power. Requires the K1816-1 Full KVA
adapter kit, if connected for 1-phase
input power.
Order K1580-1
Full-KVA Adapter Kit (1-Phase)
Provides convenient connection of
Lincoln Electric equipment having a
240V AC 1-phase plug (NEMA 6-50P)
to the full-KVA receptacle on Lincoln
engine-driven welders.
Order K1816-1
Hand Amptrol®
Provides 25 ft. (7.6 m) of remote
current control for TI welding.
(6-pin plug connection). Velcro
straps secure torch.
Order K963-3 (one size fits all
Pro-Torch®TI Torches)
Precision TIG®225
Ready-Pak®Pkg.
For AC TI Welding with square
wave performance, use the AC gen-
erator of the engine-driven welder
to supply the power (Full rated
output may not be available). Easy
setup. Includes torch, Foot Amptrol®
and as Regulator & Hose. Requires
the K1816-1 Full KVA Adapter Kit.
Order K2535-1
Invertec®V205-T AC/DC
One-Pak®Package
For AC TI welding with square
wave performance, use the AC
generator of the engine-driven
welder to supply the power. Easy
setup. Includes torch, parts kit,
regulator and hose kit, Twist-Mate™
torch adapter, work cable with
Twist-Mate end and foot Amptrol®.
Requires K1816-1 Full-KVA Adapter
Kit.
Order K2350-2
Full - KVA Adapter Kit (1-Phase)
Provides convenient connection of
Lincoln Electric equipment having a
240V AC 1-phase plug (NEMA 6-
50P) to the full-KVA receptacle on
Lincoln engine-driven welders.
Order K1816-1
WIRE FEEDER OPTIONS
LN-25 PRO Wire Feeder
Portable CC/CV unit for flux-cored
and MI welding with MAXTRAC®
wire drive system. Includes gas sole-
noid and internal contactor
Order K2613-1
Magnum®350 Innershield Gun
(for LN-25 PRO)
For self-shielded wire with 15 ft.
(4.5 m) cable. For .062"-3/32"
(1.6-2.4 mm) wire.
Order K126-2
Drive Roll and Guide Tube Kit
(for LN-25 PRO)
For cored or solid steel wire.
Order KP1697-068
for .068"-.072" (1.8 mm)
KP1697-5/64
for 5/64" (2.0 mm)
Magnum®300 MIG Gun
For .035"-.045" (0.9-1.2 mm) gas-
shielded wire with 15 ft. (4.5 m)
cable.
LN-25 PRO Order:
K1802-1 (Includes Connector Kit)

VANTAGE®400 K2410-2
VANTAGE®400 ONE-PAK®PKG. K2508-3
VANTAGE®400 READY-PAK®PKG. K2509-3
RECOMMENDED GENERAL OPTIONS
Power Plug Kit - 20 amp K802N
Power Plug Kit - 15 amp K802R
Full-KVA Power Plug (1-Phase) T12153-9
Full-KVA Power Plug (3-Phase) T12153-10
Medium Welder Trailer with Duo-Hitch™2" Ball/Lunette Eye Hitch K2636-1
-Fender and Light Kit K2639-1
- Cable Rack K2640-1
Four-Wheeled Steerable Yard Trailer K2641-2
(with Duo-Hitch™: 2" Ball/Lunette Eye Hitch)
Spark Arrestor Kit K903-1
Service Indicator Kit K1858-1
Cold Weather Heater &Tarp Kit K2679-1
RECOMMENDED STICK OPTIONS
Accessory Kit K704
Remote Output Control
-25 ft. (7.6m) K857
-100 ft. (30.5m) K857-1
RECOMMENDED TIG OPTIONS
Pro-Torch®PTA-26V TI Torch K1783-9
Magnum®Parts Kit For PTA-26V TI Torch KP509
Foot Amptrol®K870
Hand Amptrol®(All Pro-Torch®TI torches) K963-3
Precision TI ®225 Ready-Pak®Pkg. (for AC TI Welding) K2535-1
Invertec®V205-T AC/DC One-Pak®Pkg. (for AC TI welding) K2350-2
- Full KVA Adapter Kit (required for K2535-1 and K2350-1) K1816-1
RECOMMENDED WIRE FEEDER OPTIONS
LN-25 PRO Wire Feeder K2613-1
Magnum®350 Innershield®un K126-2
Drive Roll and uide Tube Kit .068"-.072" (for LN-25 PRO) KP1697-068
Drive Roll and uide Tube Kit 5/64" (for LN-25 PRO) KP1697-5/64
Magnum®300 MI un (for LN-25 PRO) (includes Connector Kit) K1802-1
Drive Roll and uide Tube Kit (for LN-25 PRO) KP1696-1
LN-23P Wire Feeder K316L-2
- Input Cable Assembly, 25 ft. (7.6 m) K2393-1
- Input Cable Assembly, 50 ft. (15.2 m) K2393-2
Magnum®350 Innershield®Welding un K345-10
Magnum®S Spool un®K487-25
- S Control Module (required) K488
- Input Cable (required) K691-10
RECOMMENDED PLASMA CUTTING OPTIONS
Pro-Cut®55 K1580-1
- Full KVA Adapter Kit (required for 1-phase input power) K1816-1
TOTAL:
THE LINCOLN ELECTRIC COMPANY®
22801 St. Clair Ave., Cleveland, OH 44117-1199 • 216.481.8100 • www.lincolnelectric.com
VANTAGE®400 ORDER FORM
PRODUCT DESCRIPTION ORDER NUMBER QUANTITY PRICE
CUSTOMER ASSISTANCE POLICY
The business of The Lincoln Electric Company®is manufacturing and selling high quality welding equipment, consumables, and cutting equipment. Our challenge is to meet the needs of
our customers and to exceed their expectations. On occasion, purchasers may ask Lincoln Electric for information or advice about their use of our products. Our employees respond to
inquiries to the best of their ability based on information provided to them by the customers and the knowledge they may have concerning the application. Our employees, however, are not
in a position to verify the information provided or to evaluate the engineering requirements for the particular weldment. Accordingly, Lincoln Electric does not warrant or guarantee or assume
any liability with respect to such information or advice. Moreover, the provision of such information or advice does not create, expand, or alter any warranty on our products. Any express or
implied warranty that might arise from the information or advice, including any implied warranty of merchantability or any warranty of fitness for any customers’ particular purpose is
specifically disclaimed.
Lincoln Electric is a responsive manufacturer, but the selection and use of specific products sold by Lincoln Electric is solely within the control of, and remains the sole responsibility of the
customer. Many variables beyond the control of Lincoln Electric affect the results obtained in applying these types of fabrication methods and service requirements.
Subject to Change – This information is accurate to the best of our knowledge at the time of printing. Please refer to www.lincolnelectric.com for any updated information.
