• High efficiency, cleanable polyester filter.
• Uses a single fume gun or suction nozzle attachment.
• Filter is easily cleaned while inside the machine using a unique
compressed air rotary jet cleaning system.
• Automatic start/stop current sensor extends motor life and
provides extraction only when needed.
• For light to medium duty applications.
• Two powerful motors.
• Low noise operation: 74 dBA.
• Adapter for 45 mm (1-3/4 in.) hose (S20591-8).
• 8 ft. (2.4 m) flexible hose. 45 mm (1-3/4") diameter.
• 2 spare sets of carbon brushes for motors.
• Filter cartridge.
•12' (3.6 m) power cord.
X-Tractor 1GC
Portable Welding Fume Extractor
Lincoln’s X-Tractor 1GC is a portable, high vacuum, low volume extraction system
specifically designed for the removal and filtration of welding fumes. The 1GC is
the perfect choice for small shops or companies with few welding stations, yet
lightweight and small enough to be easily carried to the welding area.
Because of its high portability and low cost, the X-Tractor 1GC is
perfect for light duty welding use such as light fabrication,
maintenance and construction applications. With a simple motor
brush replacement, the X-Tractor 1GC could be used in "light duty"
semiautomatic applications as well.
What sets the X-Tractor 1GC apart from the competition is its unique internal and
self-contained filter cleaning system. By using compressed air, the filter is blown
out by a high-velocity rotary air jet device that extends the life of the filter.
Simple. Easy. Effective
Overall filter performance will be affected by process and application variables
including: base metal(s), consumable(s), and coatings (oil) if applicable.
Publication E13.17 2/07
www.lincolnelectric.com
Processes
Stick, TIG, MIG, Flux-Cored
Description
Extraction capacity: Low Speed: 55 CFM
High Speed: 115 CFM
Advantage Lincoln
Base Unit Includes
TECHNICAL SPECIFICATIONS
ENVIRONMENTAL SYSTEMS
55 CFM
LO:
HI:
110 CFM
60
50
Hz
1
PHASE
Extraction
Capacity
Input
Product Product Input Requirements Dimensions Net Weight
Name Number Volts / Phase / Hertz Input Current H x W x D in (mm) lbs (kg)
X-Tractor 1GC K652-1 120V/1/50/60 15 340 x 680 x 400 17
(13.4 x 26.8 x 15.8) (37)
K652-2 220V/1/50/60 9
Shown with optional
K639-5 Suction Nozzle

A CLOSER LOOK
Weight and Design
The X-Tractor 1GC is lightweight and portable at only 37 lbs.
(17 kg) and can easily be carried anywhere.This machine is
perfect for light duty, intermittent use such as maintenance
and construction applications.
High vacuum welding fume extraction systems utilize higher
pressure of 70-90" WG and low volume of 50-100 CFM with
an air speed of 4000-5000 ft/min. The air handling configura-
tion of high vacuum equipment allows the use of small diame-
ter rigid duct and small diameter flex hose to easily reach
extraction points. It is perfect for applications such as short
welds when using fume suction nozzles or larger fixture weld-
ing using integrated fume extraction guns. This process is
designed for close proximity source extraction from 2-4" to the
welding source.
Since the hoses and suction nozzles are smaller than those of
low vacuum systems, it is much easier to carry the extraction
nozzle and/or flex hose into confined spaces (45 ft. maximum
distance). The mobility of the hoses allows the main filter unit
to be kept at a central location. Due to the low air volume
(CFM) extracted make-up air and negative room air pressures
are kept to a minimum when exhausting outside the facility.
Filtration Process
The X-Tractor 1GC has a unique internal manual cleaning
system. Using a customer supplied compressed air source
and manual rotation, the internal rotary air jet device supplies a
burst of air from inside the filter cartridges. This in turn causes
the particulate that has collected on the outside of the filter
cartridge to drop into the bottom of the unit. The cover where
the flex hose inlet is located is then removed and the
particulate can be disposed of by following federal, state, and
local environmental regulations.
Cable Sensor
At the bottom of the X-Tractor 1GC unit is an automatic
start/stop sensor. The unit automatically switches on as the
welder begins to weld. And automatically switches off approxi-
mately 15 seconds after the welder stops welding. The result
is less energy consumption and non-continuous noise. For the
automatic start/stop function to work, the welders work cable
or power cable must be laid in the sensor hook.
X-Tractor 1GC
[2] www.lincolnelectric.com
Cable Sensor

X-Tractor 1GC
[3]
RECOMMENDED OPTIONS

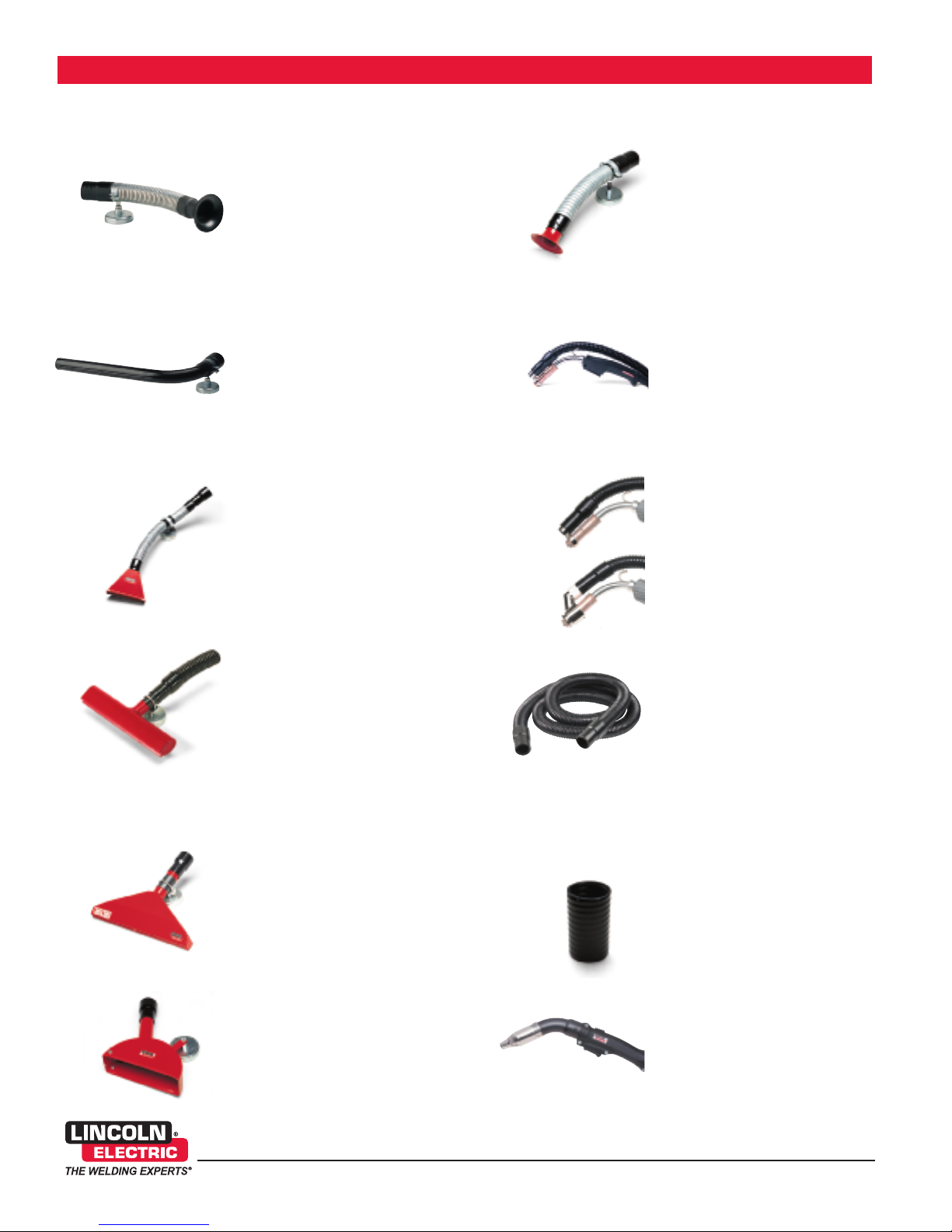

GENERAL OPTIONS
EN 20 Extraction Nozzle
The EN 20 nozzle is designed for a wide
array of welding applications. With its funnel
extraction opening and magnetic mounting
stand, it gives the welder a greater amount
of versatility.
Order K2389-5
EN 40 Extraction Nozzle
The EN 40 nozzle is designed for stick
electrode applications. With its L-shaped
tube and an elongated slotted opening, the
EN 40 nozzle is designed to coincide with
the time it takes the welder to use one stick
electrode. This design alleviates the welder
from having to continuously reposition the
nozzle. Magnetic mounting stand included.
Order K2389-6
SHFA Flat Suction Nozzle
150 mm (6 in.) Aluminum suction nozzle
with 20 in. (500 mm) flexible steel hose and
magnetic mounting. Includes S20591-7
adapter for 1-3/4 in. (45 mm) hose. Best
capture distance: < 4 in. (100 mm).
Order K639-5
Aluminum Suction Nozzle with Magnetic
Mounting. Includes S20591-7 adapter for
1 3/4 in. (45 mm) hose. Best capture
distance:~ 1-1/2 in. (38 mm).
SHM-300 Nozzle-300 mm (12 in.) Nozzle
Order K639-1
SHM-400 Nozzle-400 mm (16 in.) Nozzle
Order K639-2
SHM-500 Nozzle-500 mm (20 in.) Nozzle
Order K639-3
SHMS-400 Nozzle
Low noise Nozzle-400 mm (16 in.)
Aluminum suction nozzle with magnetic
mounting. Includes S20591-7 adapter for
1-3/4 in.
(45 mm) hose. Best capture distance:~
1-1/2 in. (38 mm).
Order K639-4
UNM Suction Nozzle for Heavy Smoke
200 mm (8 in.) Aluminum suction nozzle
with magnetic mounting. Includes S20591-7
adapter for 1-3/4 in. (45 mm) hose. Best
capture distance: < 4 in. (100 mm)
Order K639-6
GENERAL OPTIONS, CONT.
SHMT Round Suction Nozzle
90 mm (3.6 in.) Suction nozzle with 13 in.
(330 mm) flexible steel hose and magnetic
mounting. Includes S20591-8 adapter for
1-3/4 in. (45 mm) hose. Best capture
distance: < 4 in. (125 mm).
Order K639-14
Gun Mounted Nozzle Kit (OT-25)
Nickel plated brass nozzle slips over the
gun’s gas nozzle and secures with screw.
Includes a total of 16 ft. (5 m) of hose and
all necessary adapters including SS-3245
for connection to 1-3/4 in. (45 mm) hose.
Order K639-20
Nozzle Kits
The NKT and NKC nozzle kits provide
extraction capacity to standard welding
torches. The NKT kit is for mounting the
extraction hose on top of gun. The NKC kit
is for circular extraction. Note: guns not
included.
Order K2389-3 for NKT
Order K2389-4 for NKC
Extraction Hoses
For longer hose applications, flexible high
temperature hoses with spring steel
reinforcement are optional. The extraction
hoses can be used to connect to or replace
the already included hose with X-Tractor
1GC base unit. To ensure effective
performance level, it is recommended that a
maximum hose length of 45 ft. (15 m) be
used.
Order K2389-8
for 16 ft. x 1-3/4 in. hose
Order K2389-9
for 8 ft. x 1-3/4 in. hose
Hose-to-Hose Adapter
To connect hoses together, a 2 in. (50 mm)
hose-to-hose adapter screws over hose
ends, providing a tight connection and seal.
Order K2389-10
Fume Guns
To extract welding fumes, Lincoln Electric's
X-Tractor 250FG, 340FG, and 500FG fume
guns, can be connected to the X-Tractor
1GC and its extraction hose.
For X-Tractor 250FG, 340FG, 500FG
contact Lincoln Electric Sales Office
www.lincolnelectric.com
NKT
K2389-3
NKC
K2389-4
