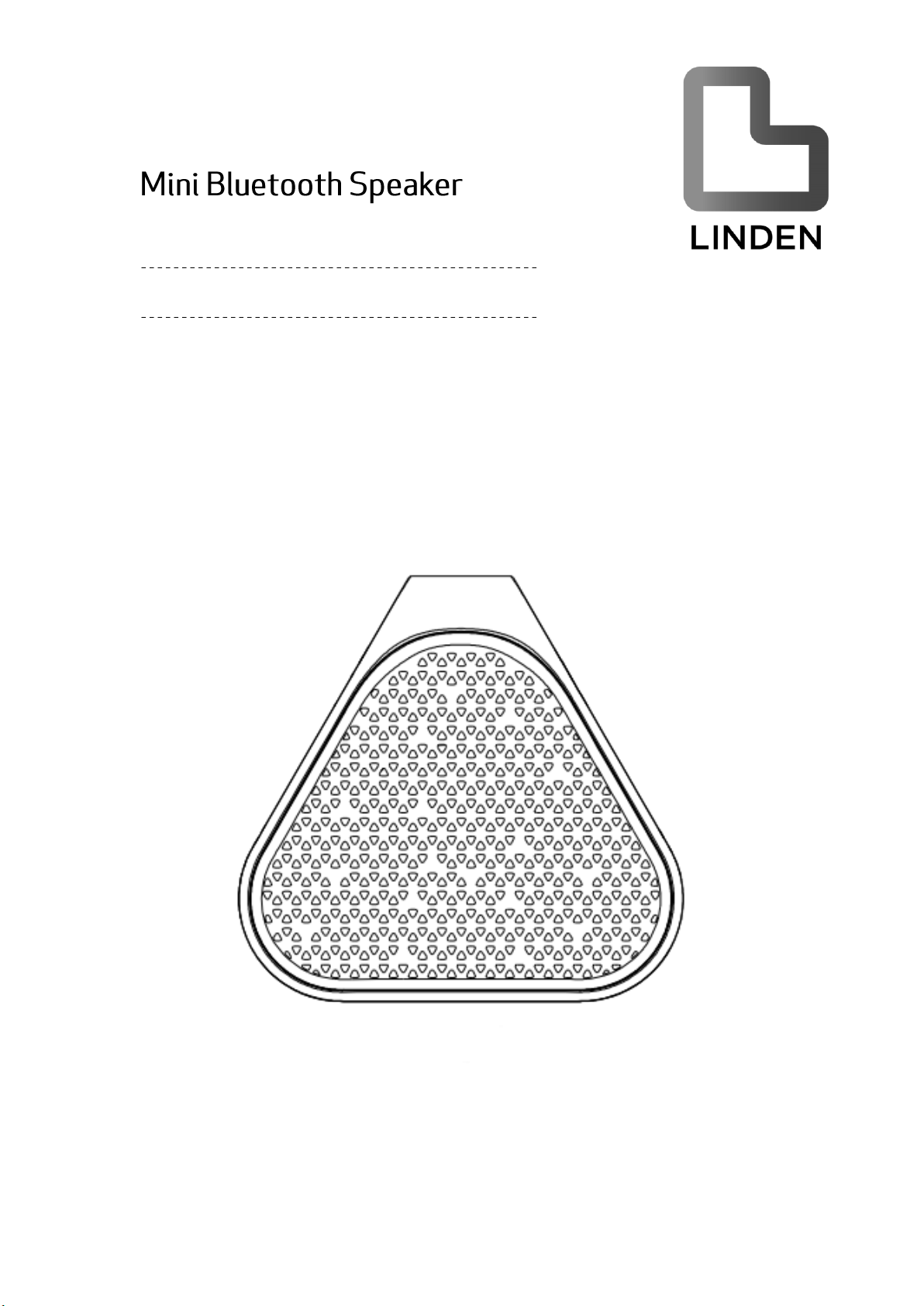

Linden L3WBSA16 User manual

Instruction Manual
L3WBSA16/L3WBSO16
12 Month Manufacturer’s Warranty

1
Contents
Guide to the Device 2
Caring for the Environment 3
Safety Information and Warnings 4
Items in the Box 6
Operation Instructions 7
Troubleshooting 10
Technical Specifications 11

2

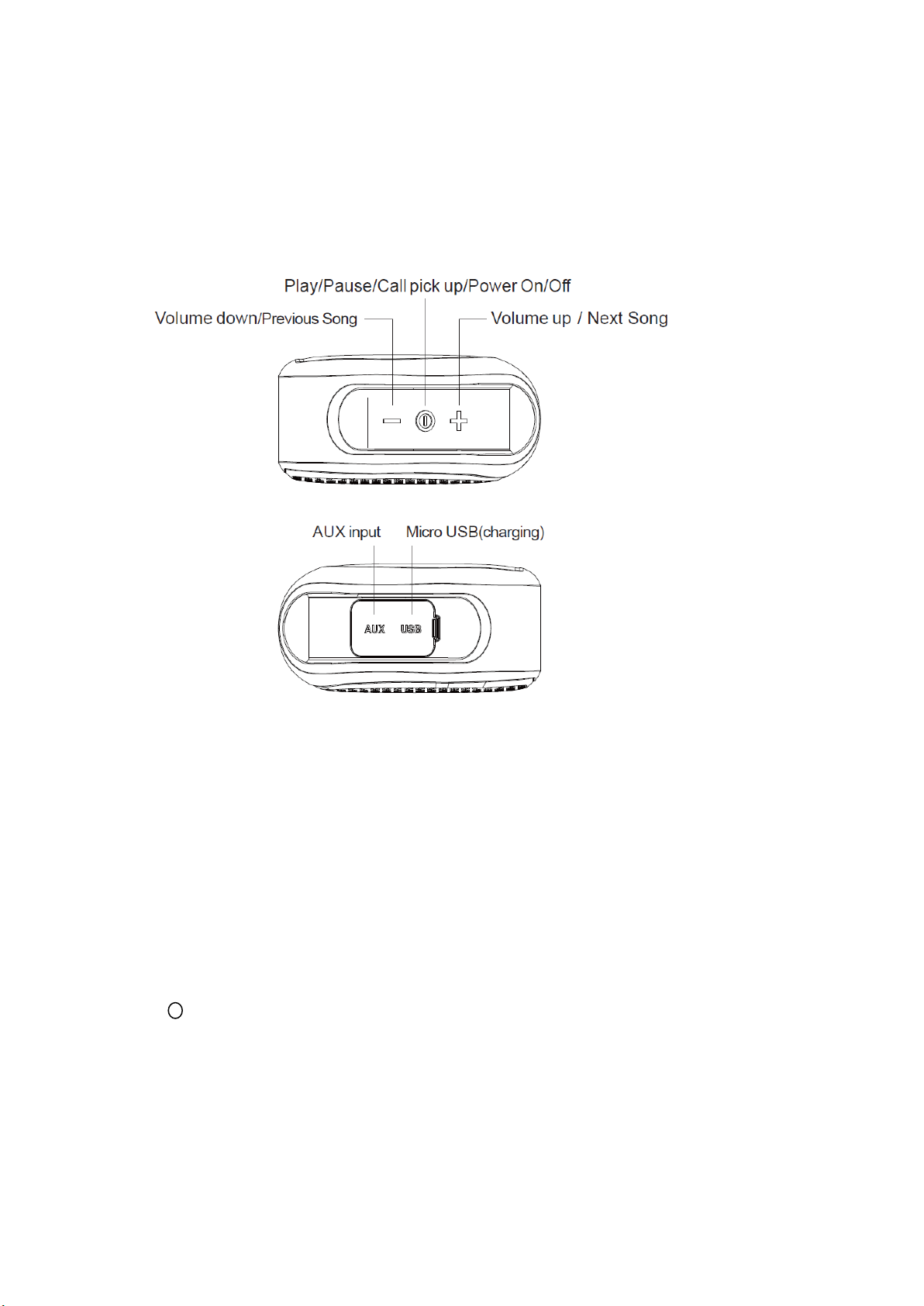

Guide to the Device
1. AUX : 3.5mm input for direct device connection
2. USB: Micro USB input port for charging only
3. + : Volume control - Increase
4. : Power and Hands-free button
5. - : Volume control decrease

3
Caring for the Environment
Responsible disposal of the packaging
The packaging of your appliance has been selected from environmentally friendly
materials and can usually be recycled. Please ensure these are disposed of correctly.
Plastic wrapping can be a suffocation hazard for babies and young children, please
ensure all packaging materials are out of reach and are safely disposed of. Please ensure
they are offered for recycling rather than throwing these materials away.
Responsible disposal of the appliance
At the end of its working life, do not throw this appliance out with your household rubbish.
An environmentally friendly method of disposal will ensure that valuable raw materials can
be recovered and used again.
Electrical and electronic appliances contain materials and substances which, if handled or
disposed of incorrectly, could be potentially hazardous on the environment and human
health. Observe any local regulations regarding the disposal of electrical consumer goods
and dispose of it appropriately for recycling. Contact your local authorities for advice on
recycling facilities in your area.

4
Safety Information and Warnings
Please read this instruction manual carefully and completely before using the product.
Make this instruction manual easily accessible to all users at all times. Always include this
instruction manual when passing the product on to third parties. Please retain manual for
all future use.
Use the product with care and store it in a clean dust free environment. Turn off the speaker
after use to conserve battery power.
Only use the supplied accessories supplied with the speaker.
Keep out of reach of young children. This apparatus is not suitable for use by young
children or infirm persons without supervision. Young children must be supervised to
ensure that they do not play with the apparatus.
DO NOT block any ventilation openings.
Install in accordance with any specific manufacturer’s instructions. Always allow a
sufficient gap around the apparatus to avoid overheating.
WARNING. Do not place any naked flame source, such as lighted candles on the electrical
apparatus.
For household use only, this apparatus is not intended for commercial use.
DO NOT attempt to service this apparatus. This apparatus requires specialist servicing and
knowledge to retain the safety of the apparatus.
WARNING: Do not insert any objects into any openings of the electrical appliance
DO NOT place near any heat source such as radiators, gas heaters, stoves or other
heating apparatus.
AVOID any exposure to direct heat or direct sunlight.
WARNING! This is a class III product please connect to suitable USB power socket. Ensure
any USB socket used for charging is 5VDC and rated in excess of 500mAh.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Do not leave the speaker on charge for extended periods of time. Once the speaker
charging LED indicator turns off disconnect from charging.

5
This apparatus is provided with a non-replaceable Lithium battery, DO NOT ATTEMPT to
replace this battery.
WARNING: This apparatus is IPX5 water resistant rated. This speaker is NOT waterproof.
This speaker is not submergible.
Electrical and electronic appliances contain materials and substances which, if handled or
disposed of incorrectly, could be potentially hazardous on the environment and human
health.
Observe any local regulations regarding the disposal of electrical consumer goods and
batteries and dispose of it appropriately.
No liability will be accepted for any personal injury or damage caused by failure to follow
these instructions.
This product contains materials that should not be disposed of with your household waste.
Instead, it is your responsibility to dispose of your waste equipment by handing it over to a
designated collection point for the recycling of waste electrical and electronic equipment.
The separate collection and recycling of your waste equipment at the time of disposal will
help conserve natural resources and ensure that it is recycled in a manner that protects
human health and the environment. For more information about where you can drop off
your waste for recycling, please contact your local authority, or where you purchased your
product.

6
Items in the Box
The below items are included in the box, remove all items and retain the packaging until
you have checked your appliance is undamaged and in good working order. Ensure
packaging materials are out of reach of children and disposed of safely.
Mini Speaker
AUX Cable
Micro USB Cable
User Manual

7
Operation Instructions
Getting Started
Before beginning operation please get familiar with the below controls and input locations;
Basic Button Function
+
Volume and Next Control
Short Press to increase the volume of your Bluetooth speaker
In Bluetooth mode: Long press to go to next track or song selection
-
Volume Decrease and Previous Control
Short Press to decrease the volume of your Bluetooth speaker
In Bluetooth Mode: Long press to go to previous track or song selection
Power and Hands-free Control
Long press to power ON or power OFF the speaker
In Bluetooth Mode –Short press to pick up or hang up phone calls

8
Making a Bluetooth Connection
To make a wireless Bluetooth connection between your device and your Linden Mini
Speaker please follow the below instructions:
1. Activate Bluetooth function on your desired device. This may be on your mobile
phone, smart phone, tablet, computer or other Bluetooth enabled device.
2. Once activated; long press the circle button on Linden Mini Speaker to turn ON the
speaker.
3. When in pairing mode your Linden Mini Speaker LED indicator on the front grill
will flash blue.
4. Enter the Bluetooth settings on your selected device to search and select ‘LINDEN –
AQUA’ or ‘LINDEN – ORANGE’.
Note: If you device requests a pairing code please enter ‘0000’.
5. Once the pairing is successful your Linden Mini Speaker will sound a prompt tone
and LED light will remain constant blue.
Tips:
Volume controls can be controlled on connected device and speaker. Ensure volume is at a
suitable volume on either device and/or speaker.
Notes:
Pairing time is varied between different devices. If you have paired to a device; it will
automatically pair again when turned on and off.
Making a AUX Connection
To make an AUX connection between your device and your Linden Mini Speaker please
follow the below instructions:
1. Using the supplied 3.5MM AUX cable insert a selected end into the Linden AUX
input. Once successfully connected the LED indicator will remain solid green.
2. Insert the alternative end of the supplied 3.5mm AUX cable to your selected audio
output 3.5mm jack.
Tips:
Volume controls can be controlled on connected device and speaker. Ensure volume is at a
suitable volume on either device and/or speaker .

9
Charging the Speaker
When your Linden Mini Speaker is in a low battery state it will provide a voice hint and
LED indicator will flash Green.
To charge your Linden Mini Speaker, connect the supplied micro USB cable to the ‘USB’
port on the side speaker. Insert USB connection into 5V-500mA USB output power supply.
When charging the LED indicator on the front grill will remain constant RED. Once
charging has finished LED indicator will turn off.
Note: Estimated charging time around 2-3 Hours
Hands-free Function
Your Linden mini speaker is equipped with a microphone for hands-free function when a
Bluetooth connection is made to a mobile or smart phone.
When receiving an incoming call; the Linden mini speaker will ring to indicate an incoming
call. Press the circle button on the side of the speaker to pick up and hang up the phone call.
For out-going calls hang up and pick up function are also functional.
IPX5: Water Resistant Rating
Your Linden mini speaker has been testing to IPX5 water resistant standard. Your Linden
mini speaker is designed to with take splashes of water.
IMPORTANT: This speaker is NOT WATERPROOF. This speaker is not submergible. Any
misuse or damage caused by excessive water exposure may limit or avoid manufacturer
warranty.
