LBVM920 Series 1.2 GHz Indoor High Output Optical Node

Installation & Operation Manual

Page 1 of 4

The LBVM920 85/102 high output optical node is designed for various applications from HFC to advanced ﬁber deep architecture networks. The LBVM920 node

features a 1218 MHz bandwidth, high RF output level up to 50 dBmV at 1218 MHz, 85/102 MHz split, Automatic Gain Control (AGC), and a wide selection of return

lasers including CWDM wavelengths as an option to overcome ﬁber limitations in a network for two-way services. All of these features and ﬂexibility are packaged in a

compact, diecast aluminum housing.

FEATURES

•85/102 MHz split

•AGC -8 to 0 dBm

•High RF output 50 dBmV at 1218 MHz

•Compact, diecast aluminum housing

•Low power consumption

•-20 dB directional coupler test points for forward & reverse RF

•Optional return 1310, 1550 & CWDM wavelengths

•1218 MHz forward bandwidth

•Optional WDM technology available for bi-directional services on a single ﬁber

•Superior heat dissipation

•I/O optical level test points

•Optional diplex ﬁlters 42/54

PRODUCT OVERVIEW

•Model: LBVM920

•Bandwidth: 5-85 MHz/102-1218 MHz

•Powering: 12-30 VDC

CAUTION

Risk of electric shock. Do not open.

No serviceable parts inside. Refer servicing to qualified service personnel.

Invisible laser radiation! Avoid eye injury. Never look into the optical cable or connector.

SPECIFICATIONS

Parameter Speciﬁcation

Forward Receiver

Optical Receive Wavelength 1200-1600 nm

Monitor Voltage 1 V/mW

Optical Input Power (Optical AGC) -8 to 0 dBm

Optical Input Return Loss (Min.) 45 dB

RF Frequency Range

(1)

102-1218 MHz

Flatness of Frequency Response (f = fmin-1218 MHz) ± 1 dB

Output Return Loss (f = fmin-1218 MHz) 16 dB

Reference Output Level (± 2 dB @ -1 dBm optical input) 36-50 dBmV

Slope (± 1 dB) 14 dB

FUNCTIONAL SCHEMATIC

DC-DC

CONVERTER

ATT

AGC

CPU

ATTEQ

LED

1 V/mw

Receiver

Transmitter

Rev TP

-20 dB

Fwd TP

-20 dB

Optical

OUT

RF+PWR

In/Out

DC Input From

Power Pack

Vcc

LBVM920

(front angled view)

LBVM920 Series 1.2 GHz Indoor High Output Optical Node Installation & Operation Manual

Page 2 of 4

OPTICAL, RF & POWER CONNECTIONS

1. The powering port and all RF ports are standard F-type coaxial connectors. The optical connector(s) are a SC/APC female-type.

2. The LBVM920 can be powered by applying 12-30 VDC via F connector labeled "PWR IN". 100-240 VAC to 29 VDC switching power pack is supplied in the box.

3. Connect a coaxial cable from the output of the power pack to the PWR IN port on the LBVM920.

4. The LBVM920 can also be powered from the RF OUT/PWR IN port by combining RF and power via a power inserter.

5. After connecting the coaxial cable between the power pack output and the LBVM920, plug the power pack into the wall receptacle.

6. The LBVM920 adjustment plug-ins, status indicator LEDs and DC test points (TPs) are located under the lid of the ONU. The lid can be opened using a size #5

Allen key.

7. When the LBVM920 powers up, the DC POWER ON LED will illuminate. As the LBVM920 is an HFC node with upstream transmitter always ON, the LASER ON

LED will also illuminate as soon as the LBVM920 powers up.

8. Connect the LBVM920 chassis to physical earth (ground) by using the grounding screw on the LBVM920.

9. The LBVM920 receiver is a wide range receiver that accepts all downstream wavelengths from 1200-1600 nm. However, if the LBVM920 is a single ﬁber (WDM)

unit then the receiver range is limited to 1550 ± 10 nm. Please note that a single ﬁber WDM LBVM920 cannot have the same receiver and transmitter wavelength,

while a dual ﬁber LBVM920 could operate on the same receive and transmit wavelength since the transmitter (TX) & receiver (RX) wavelength travel on diﬀerent

ﬁbers.

10. The LBVM920 accepts optical input levels from -8 dBm to 0 dBm. Using an optical power meter at appropriate downstream wavelength, make sure the optical level

on the incoming ﬁber is within range.

11. Make sure the optical cable is matched for the proper connector (ie. SC/APC to SC/APC). After cleaning all optical connectors, connect the optical ﬁber(s) to the

OPT IN/OUT port on the ONU.

12. If the input optical power is within range, the OPT ON LED on the photo diode will illuminate. Once the optical ﬁber is connected to the ONU, the O.P. TP 1 mW/1

VDC test point (TP) on the photo diode can be used to measure the optical input detected by the forward receiver in the ONU. Use a digital multimeter on DC

voltage setting and measure between the DC TP and the grounding screw. See table below for relation between measured DC voltage on O.P. TP and optical

power on the LBVM920 optical node.

SPECIFICATIONS CONT'D.

Parameter Speciﬁcation

Forward Receiver

C/N

(2)

50 dB

CTB

(2)

-64 dB

CSO

(2)

-60 dB

Return Transmitter

Optical Wavelength (CWDM available) 1310, 1550, or 1610 nm

Optical Output Power (DFB laser) 2 or 3 mW

Optical Output Return Loss 45 dB

RF Input Level (Total power)

(3)

15-25 dBmV

RF Input Frequency Range

(1)

5-85 MHz

Flatness of Frequency Response (f = 5-fmax MHz) ± 1 dB

Input Return Loss (f = 5-fmax MHz) 16 dB

Power, Environmental & Physical

Total Power Consumption (30 VDC power pack) < 14 W

Operating Humidity 5-95%, non-condensing

Operating Temperature -40°C to +60°C (-40°F to +140°F)

Dimensions (H x W x D) 4.7”H x 8.3”W x 3.1”D (12.0H x 21.0W x 8.0D cm)

Weight 2.2 lb (1.0 kg)

NOTES:

(1) Other diplex splits available; 45/54 MHz

(2) -1 dBm optical input; 3.5% OMI/CH; channel loading 102-550 MHz analog channels, & digital compressed or

equivalent broadband noise above 550 MHz to 1218 MHz at levels 6 dB below equivalent video

(3) NPR @ 38 dB. Measured using a receiver with an equivalent input noise (EIN) of < 2.5 pA/Hz0.5 with a link budget of 6 dB

(10 km ﬁber + passive loss)

V (DC) on 1 mW/1V O.P. TP

DC Test Point of ONU Optical Level (mW) Optical Level (dBm) OPT ON LED Notes

2.00 2.00 3 ON Blinking Too high input

1.58 1.58 2

No optical AGC

1.26 1.26 1

1.00 1.00 0

Optical AGC

0.79 0.79 -1

0.63 0.63 -2

0.50 0.50 -3

0.40 0.40 -4

0.32 0.32 -5

LBVM920 Series 1.2 GHz Indoor High Output Optical Node Installation & Operation Manual

Page 3 of 4

OPTICAL, RF & POWER CONNECTIONS CONT'D.

FORWARD & REVERSE SETUP GUIDELINES

1. Please note that LBVM920 uses JXP attenuator pads for output/input level control (forward/reverse pad) and for setting forward tilt (slope) in the

forward equalizer plug-in.

2. For the forward path setup, make sure that the forward optical input level to the LBVM920 is within range as shown in the table in section OPTICAL, RF & POWER

CONNECTIONS above. If the optical input is higher than +2 dBm, receiver overload may occur. If the optical input is < -8 dBm, the LBVM920 loses AGC tracking,

RF output will not be as per speciﬁcation and the output will drop a further 2 dB with every 1 dB drop in optical input. The LBVM920 delivers optimum performance

at -1 dBm optical input level.

3. The speciﬁed RF output level of 50 dBmV at 1.2 GHz is only guaranteed at optical input within AGC range and with OMI ≥ 3.5% on the downstream optical signal.

The output will drop a further 2 dB with every 1 dB drop in optical input, outside the -8 to 0 dBm optical AGC range.

4. To compensate for RF cable losses, the forward equalizer plug-in comes with a 15 dB JXP attenuator pad installed from the factory. This results in a 15 ± 1 dB

slope on the RF output of LBVM920 from low frequency to high frequency. The forward slope (tilt) can be changed by changing the forward equalizer plug-in value.

Use only JXP pad (attenuator) in the forward equalizer plug-in.

5. Connect a signal level meter at the RF OUT port to measure the RF output from the LBVM920. You can also use the forward output -20 dB TP to measure the RF

output.

6. If the output level is too high or low, the forward pad plug-in can be changed to adjust the output of LBVM920. The forward pad plug-in takes a JXP attenuator pad.

7. Verify the RF output levels from the LBVM920 are as expected.

8. This completes the forward path setup for the LBVM920 ONU.

9. The LBVM920 is also available in a downstream only model. If using a receive only LBVM920 node, then ignore the reverse (upstream) path setup.

10. For the reverse path setup, make sure that the reverse input level to the LBVM920 is not too high or damage to the ONU may occur. The -20 dB forward TP is a

bi-directional TP and can also be used to inject the upstream test carrier. Compensate 20 dB if using the forward TP to inject the upstream test carrier. The injected

upstream test carrier can be measured on the -20 dB reverse input TP of the LBVM920.

11. The upstream transmitter in the LBVM920 is a continuous ON laser transmitter and is always active. The LASER ON LED on the laser diode indicates the status of

the laser transmitter and will be illuminated when the LBVM920 turns ON (irrespective of upstream RF input).

12. Make sure the upstream RF input is within the upstream frequency and input level range. The upstream RF input range for LBVM920 is 10-30 dBmV per channel

(digital channel level) for 42/54 MHz LBVM920 and 10-27 dBmV per channel (digital channel level) for 85/102 MHz LBVM920. These upstream levels are assumed

with the condition that a 42/54 MHz split unit will have 4 equally loaded channels in the upstream band, and the 85/102 MHz split will have 8 equally loaded

channels in the upstream band. If using a diﬀerent number of channels from what is mentioned above, compensate for total RF power. The total RF input level to

the LBVM920 (for all channels combined) should not exceed more than 36 dBmV (digital channel level). More than 36 dBmV (digital channel level) total upstream

RF input may cause laser clipping and saturation on the LBVM920. Use the following formula to calculate total RF power: Total RF power = RF power per channel +

[10* log (# of channels)].

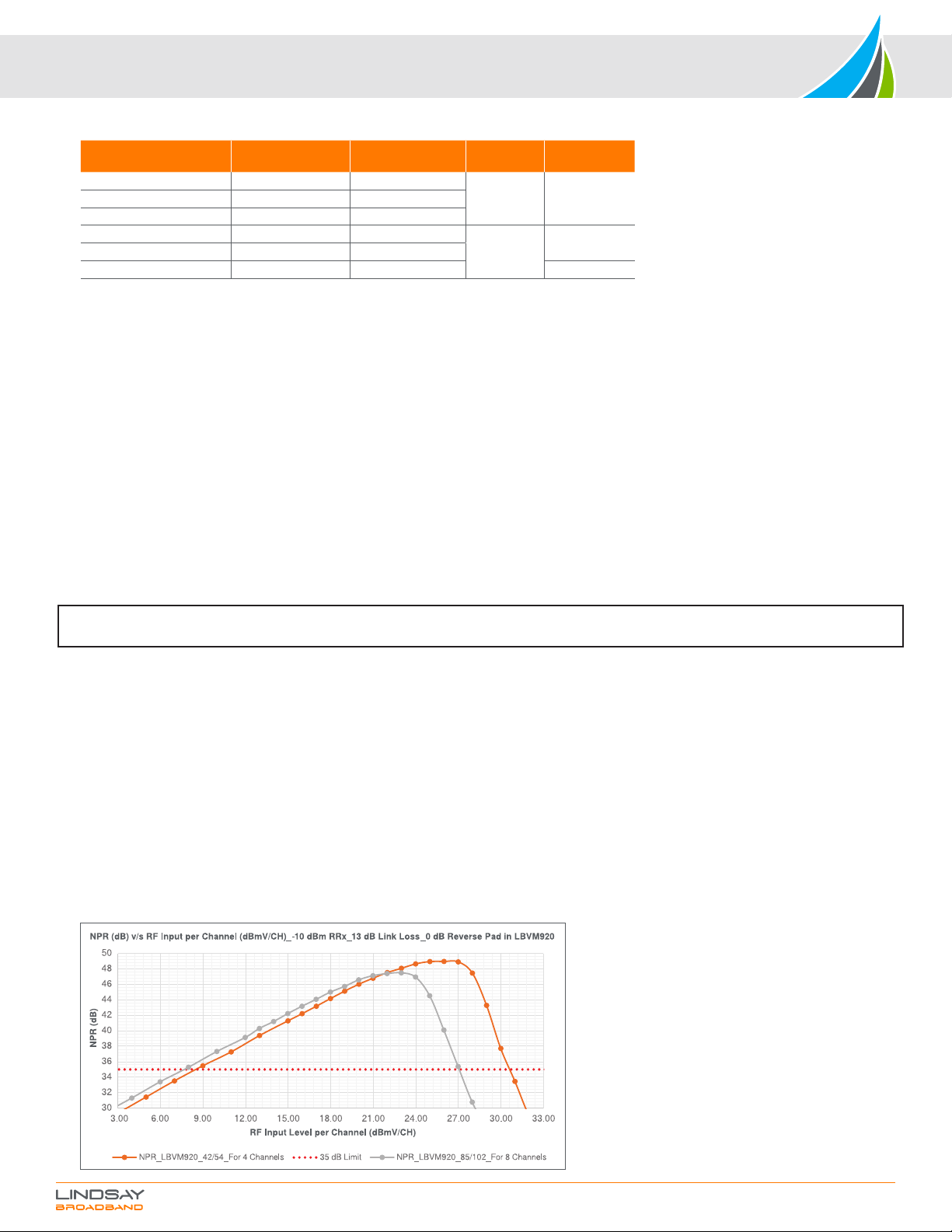

13. Refer to the NPR plot below to better understand the RF input levels to the LBVM920.

NOTE: The RF levels mentioned in this manual are analog channel levels, unless specified. For digital channels assume 6 dB less to that of

analog channels.

13. The F-port labeled "RF" is the bi-directional RF input and output port for the LBVM920 optical node.

14. There are separate forward output and reverse input -20 dB TPs labeled “FWD TP” and “REV TP” respectively. When not in use, please terminate these -20 dB

TPs with a 75 ohm terminator.

15. When using the -20 dB TP to measure the RF input/output levels, make sure the RF port is terminated to 75 ohm. Please note the levels from -20 dB TP will be 20

dB lower than the RF port.

V (DC) on 1 mW/1V O.P. TP

DC Test Point of ONU Optical Level (mW) Optical Level (dBm) OPT ON LED Notes

0.25 0.25 -6

ON Optical AGC0.20 0.20 -7

0.16 0.16 -8

0.13 0.13 -9

OFF No optical AGC

0.10 0.10 -10

< -10 Out of limit

LBVM920 Series 1.2 GHz Indoor High Output Optical Node Installation & Operation Manual

TROUBLESHOOTING GUIDELINES

1. No Power on the LBVM920 ONU.

a. Check the powering coaxial cable and connections for intermittent connections.

b. Check the output of the power adaptor for proper DC voltage (+29 VDC).

c. Check with a diﬀerent 29 VDC power pack.

d. Try powering via the RF OUT/PWR IN port using a power inserter.

2. Low or no downstream RF output level.

a. Verify the optical receive level on the LBVM920 is within range (-8 dBm to 0 dBm, 3.5% OMI level and correct downstream wavelength).

b. Using a ﬁber inspection scope, check the optical connector and adaptor. Make sure the optical connection is clean.

c. If the optical input is within range, the OPT ON LED on the photo diode is illuminated. Verify that the OPT ON LED is illuminated. Use a DC voltage meter to

measure the 1 mW/1V OP TP on the photo diode of the ONU. Refer to step #13 and table under the OPTICAL, RF & POWER CONNECTIONS section of

this manual.

d. Verify steps 2 to 8 under the FORWARD & REVERSE SETUP GUIDELINES of this manual for more troubleshooting.

e. Check for intermittent connections or pinched ﬁbers.

3. Low or no upstream transmit level.

a. Verify the LASER ON LED on the LBVM920 ONU is illuminated. Measure the OP TP 1V/1 mW DC TP on the laser diode using a digital multimeter on DC

voltage setting. Verify the DC voltage reading is as expected from table under the OPTICAL, RF & POWER CONNECTIONS section of this manual.

b. Connect an optical power meter to the OPT OUT port. Using the optical power meter at proper upstream wavelength, verify the optical output of the

LBVM920 directly from OPT OUT port is ≥ 2.7 dBm.

c. Verify the upstream RF input is within the LBVM920 upstream frequency range (5-42 MHz or 5-85 MHz) and level. Refer to reverse setup guidelines.

d. Use a CW carrier for injection to troubleshoot.

e. Inject either from the RF OUT port or using the bi-directional -20 dB forward TP. Make sure to compensate 20 dB if using the -20 dB TP to inject carrier.

f. The RF input can also be veriﬁed at the reverse -20 dB TP.

g. Check for intermittent connections.

4. If the problem is still not solved, replace, and try with another node.

5. If the problem still exists, contact Lindsay Broadband for support. Do not open the LBVM920 as it will void the warranty.

2-2035 Fisher Dr, Peterborough, ON K9J 6X6 Canada

+1.705.742.1350 • 1.800.465.7046 • support@lindsaybb.com • lindsaybb.com

service marks, and company names in this document are the property of their respective owners. All information is subject to change without notice.

Rev. 07/21 (LBB0378) • Page 4 of 4

ORDERING INFORMATION

# of Fibers Laser TX TX Sub-Split Optical Power

Type Power Wavelength Connector Adaptor

LBVM920 −x−D x −xx −xx −xx −x

S = Single (WDM) D = DFB 2 = 2 mW 31 = 1310 nm 45 = 42/54 SA = SC/APC 1 = N. America

D = Dual (RX & TX ﬁbers) 3 = 3 mW 47 = 1470 nm 81 = 85/102 2 = Europe

49 = 1490 nm 3 = Brazil

51 = 1510 nm

53 = 1530 nm

55 = 1550 nm

57 = 1570 nm

59 = 1590 nm

61 = 1610 nm

COMPLETING THE INSTALLATION

1. Record the input and output levels for the station in both upstream and downstream for reference.

2. Make sure the cables are routed properly and all connections are secured.

3. Ensure the optical ﬁber cable is not pinched and does not have sharp bends.

FORWARD & REVERSE SETUP GUIDELINES CONT'D.

14. For optimum performance in the upstream direction, make sure the LBVM920 is operated with RF input levels to the left side of the NPR peak. Operating at RF

input levels to the left side of the NPR peak will provide the best MER/BER performance while assuring the laser saturation and clipping does not occur on the laser

transmitter.
