Pulsar GREEN POWER CCTV BNC08128C User manual

BNC08128C
v.1.0
BNC 13,8V/8x1A/17Ah
Switch mode buffer power supply unit for CCTV.
EN**
Edition: 1 from 26.11.2013
Supersedes the edition: ------
B
N
C
G
R
E
EN POWER CCT
V

www.pulsar.pl BNC08128C GREEN POWER CCTV BNC
2
PSU features:
•DC 13,8V/8x1A uninterruptible power supply
•battery housing for one 17Ah/12V battery
•wide range of supply voltage: 176÷264V AC
•High efficiency: 83%
•battery charging and maintenance control
•deep discharge battery protection UVP
•battery charging current: 1A/4A, jumper
selectable
•battery output protection against short circuit and
reverse connection
•BNC connectors for connecting the video signal
•Voltage control at the AUX1 ÷ AUX8 outputs
•FPS technical output – indication of the
output fuse activation– relay and OC type
•LED optical indication
•protections:
•SCP short-circuit protection
•OVP overvoltage protection
•Surge protection
•Antisabotage protection
•OLP overload protection
•warranty – 2 year from the production date
TABLE OF CONTENTS:
1. Technical description.
1.1. General description
1.2. Block diagram
1.3. Description of components and connectors of the PSU
1.4. Technical parameters
2. Installation.
2.1. Requirements
2.2. Installation procedure
3. Power supply operation indication.
3.1. Optical indication
3.2. Technical outputs
4. Service and operation.
4.1. Overload or short-circuit of the power supply output
4.2. Battery operation
4.3. Maintenance
1. Technical description.
1.1. General description.
The buffer power supply is intended for uninterrupted supply of CCTV systems requiring stabilized
voltage of 12V DC (+/-15%). The PSU supplies voltage of 13,8V DC and total current capacity of:
1. Output current 8x1A + 1A battery charging
2. Output current 8x0,87A + 4A battery charging
Total current of the receivers + battery is max. 11A.
The PSU is constructed on the basis of the switch mode PSU. The PSU is characterized by high energy
efficiency and is housed in a metal enclosure (color RAL 9003) with battery housing for one 17Ah/12V battery. The
power supply unit enables transmitting power and video using a 75 ohm coaxial cable integrated with two power
wires (YAP type). Additionally, it is equipped with BNC sockets for connecting the video signal. The power supply
outputs are independently protected by melting fuses or PTC polymer fuses. Failure (short circuit) in the output
circuit will activate the melting fuse or PTC fuse and disconnect the circuit from DC power (+ U). Fuse failure is
indicated by switching off the corresponding LEDs: L1 for AUX1, etc. In addition, the FPS output (hi-Z state) and
LFPS LED are activated and the relay contacts change their position. The PSU is housed in a metal enclosure with
signaling panel equipped with a microswitch indicating door opening (front cover).

www.pulsar.pl BNC08128C GREEN POWER CCTV BNC
3
1.2. Block diagram.
Figure 1. Block diagram of the PSU.
1.3. The description of components and connectors of the PSU.
Table 1.
Component No.
[Figure 2] Description
[1], [11]
LED optical indication:
green L
IN
– indication of voltage at the IN input
red L
AC
– AC voltage indication
red L
FPS
–FPS failure indication
[2] Connector:
IN – power supply of the module (factory setting)
AC –230V mains supply indication input
[3] F1 ÷ F8 fuses in the AUX1 ÷ AUX8 (+), F1A circuits
[4] Jumper to select melting fuse or PTC polymer fuse
[5] Green LED L1 ÷ L8 – voltage indication at the AUX outputs (during normal
operation, these LEDs are on)
[6] BNC connector of the video output to the DVR
[7] BNC connector of the video input from the cameras
[8] AUX1÷AUX8 – camera power supply outputs (12÷15V)
[9] FPS – technical output indicating failure – OC type
[10] FPS – technical output indicating failure – relay type
[12] Optional, external optical indication connector (factory setting)
Table 1. The description of components of the BNC module.

www.pulsar.pl BNC08128C GREEN POWER CCTV BNC
4
Figure 2. Components arrangement.
Figure 3. The view of the PSU.
Component No.
[Figure 3] Description
[1] The module of the switch mode PSU
[2] LED light indicating correct operation of the switch mode PSU
[3] ADJ potentiometer – regulation of the power supply output voltage
[4]
Selection jumper for charging current:
Ibat =1 A Ibat =4 A
Description: jumper on, jumper off.
Factory setting: Ibat =1A (jumper on).
[5] BNC module

www.pulsar.pl BNC08128C GREEN POWER CCTV BNC
5
[6] TAMPER – microswitch (contacts) of antisabotage protection (NC)
[7] Connectors for connecting the batteries: +BAT = red, - BAT = black
Table 2. Components of the PSU (see Figure 3).
1.4. Technical parameters.
- electrical parameters (Table 3)
- mechanical parameters (Table 4)
- safety of use (Table 5)
- operation parameters (Table 6)
Electrical parameters (Table 3).
Mains supply 176÷264V AC
Current consumption 1,4A@230V AC max.
PSU’s power 152W max.
Efficiency 83%
Output voltage 11V÷ 13,8V DC – buffer operation
9,5V÷13,8V DC – battery operation
The adjustment range of the output voltage 12÷14V DC
Output current 8 x 1A + 1 A battery charging
8 x 0,87A + 4 A battery charging
Output current t
AMB
<30°C 8 x 1A + 1A battery charging– see diagram 1
8 x 0,87A + 4A battery charging – see diagram 1
Output current t
AMB
=40°C 8 x 0,83A + 1A battery charging – see diagram 1
8 x 0,46A + 4A battery charging – see diagram 1
Ripple voltage 120 mV p-p max.
Battery charging current 1A/4A max. @ 17Ah (± 5%)
Current consumption by the PSU
0,18A
Short-circuit protection SCP
electronic, automatic return
Overload protection OLP 8 x F 1A or 8 x PTC 1,1A (jumper selectable)
Battery circuit protection SCP and reverse
polarity connection polymer fuse
Overvoltage protection OVP U>115% ÷ 150% of the output voltage - disconnection of
the output voltage, automatic return
Deep discharge battery protection UVP U<9,5V (± 5%) – disconnecting the battery terminal
Surge protection 8 x varistor
Antisabotage protection:
- TAMPER output indicating enclosure opening - microswitch, NC contacts (enclosure closed),
0,5A@50V DC (max.)
Optical indication of operation: YES – LED lights
Technical outputs:
- FPS technical output indicating output fuse
activation
- OC type, 50mA max.
Normal operation: L state (0V),
failure: H state (hi-Z), (automatic return once the normal
operation is restored)
- relay type: 1A@ 30VDC/50VAC, delay time:
approximately 10 seconds
F1 ÷ F8 fuses F 1A or PTC 1,1A
Mechanical parameters (Table 4).
Enclosure dimensions 300 x 407 x 126 mm (WxHxD)
Mounting See Figure 3
Battery housing: 17Ah/12V (SLA) max.
Net weight 4,65kg / 4,95kg
Enclosure DC01 steel plate, 1,0mm, RAL 9003
Closing Cylindrical screw x 2 (at the front) lock assembly possible
Terminals Switch mode power supply: Φ0,63-2,5 (AWG 22-10)
BNC module : Φ0,5-2,1 (AWG 24-12)
Input / output of the video signal: BNC
TAMPER output: Φ0,8.
Notes The enclosure has a 15mm distance from the mounting surface so the cables
can be led.

www.pulsar.pl BNC08128C GREEN POWER CCTV BNC
6
Safety of use (Table 5).
Protection class PN-EN 60950-1:2004 I (first)
Protection grade PN-EN 60529: 2002 (U) IP20
Insulation electrical strength:
- between input (network) circuit and the output circuits of the PSU
(I/P-O/P)
- between input circuit and PE protection circuit (I/P-FG)
- between output circuit and PE protection circuit (O/P-FG)
3000 V/AC min.
1500 V/AC min.
500 V/AC min.
Insulation resistance:
- between input circuit and output or protection circuit 100 MΩ, 500V/DC
Operation parameters (Table 6).
Operating temperature -10ºC...+40ºC (see Figure1)
Storing temperature -20ºC...+60ºC
Relative humidity 20%...90%, no condensation
Vibrations during operation unacceptable
Surges during operation unacceptable
Direct insolation unacceptable
Vibrations and surges during transport According to the PN-83/T-42106
standard

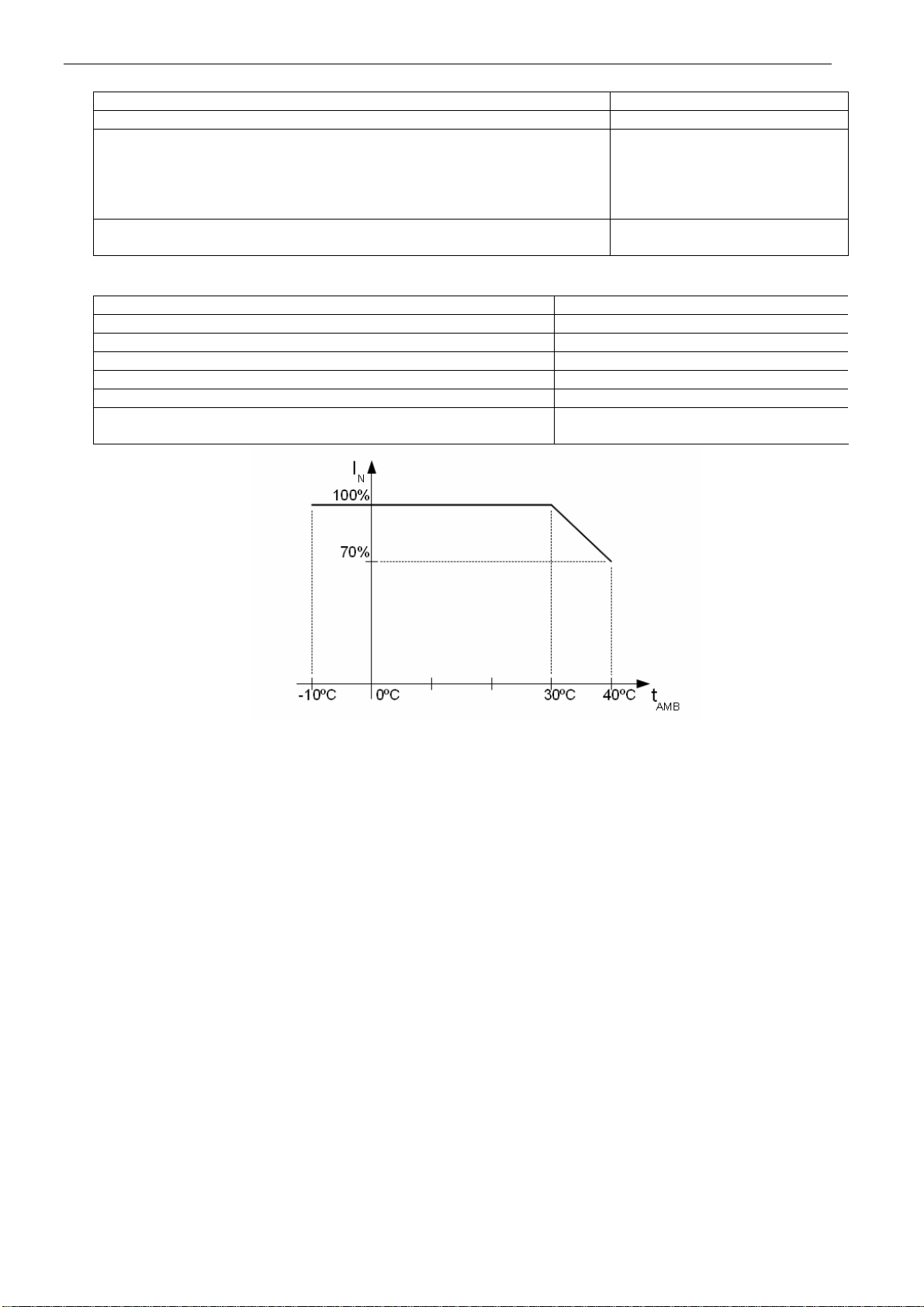

Diagram 1. Acceptable output current from the PSU depending on ambient temperature.
2. Installation.
2.1.Requirements.
The buffer PSU should be mounted by a qualified installer, holding relevant permits and licenses
(applicable and required for a given country) for 230V/AC and low-voltage installations. The unit should be
mounted in confined spaces, in accordance with the 2nd environmental class, with normal relative humidity
(RH=90% maximum, no condensation) and temperature range from -10°C up to +40°C. The power supply sh ould
operate in a vertical position in order to provide free and convectional air flow through ventilating holes of the
enclosure.
The power supply load balance should be done before installation:
1. Output current 8x1A + 1A battery charging
2. Output current 8x0,87A + 4A battery charging
Total current of the receivers + battery is max. 11A.
The power supply is designed for a continuous operation and is not equipped with a power-switch.
Therefore, an appropriate overload protection in the power supply circuit should be provided. Moreover, the user
should be informed how to disconnect the power supply unit from the mains supply (usually by assigning an
appropriate fuse in the fuse box). The electrical system shall be made in accordance with applicable standards
and regulations.

www.pulsar.pl BNC08128C GREEN POWER CCTV BNC
7
2.2. Installation procedure.
1. Before installation, cut off the voltage in the 230V power-supply circuit.
2. Mount the PSU in a selected location and lead the connecting cables.
3. Connect the power cables (230V AC) to L-N terminals of the PSU. Connect the ground wire to the terminal
marked with grounding symbol: . Use a three-core cable (with a yellow and green PE protection wire) to make
the connection. The power cables should be connected to the appropriate terminals on the connection board
through the bushing.
The shock protection circuit shall be done with a particular care: the yellow and green wire
coat of the power cable should be connected to the terminal marked with the symbol
in the PSU enclosure. Operation of the PSU without the properly made and fully operational
shock protection circuit is UNACCEPTABLE! It can cause damage to the equipment or an
electric shock.
4. Connect the power supply line and video signal to the BNC module (See Figure 4):
- connect the supply voltage of the camera to the AUX1÷ AUX 8 outputs
- connect the video signals from the cameras and the DVR to the BNC sockets

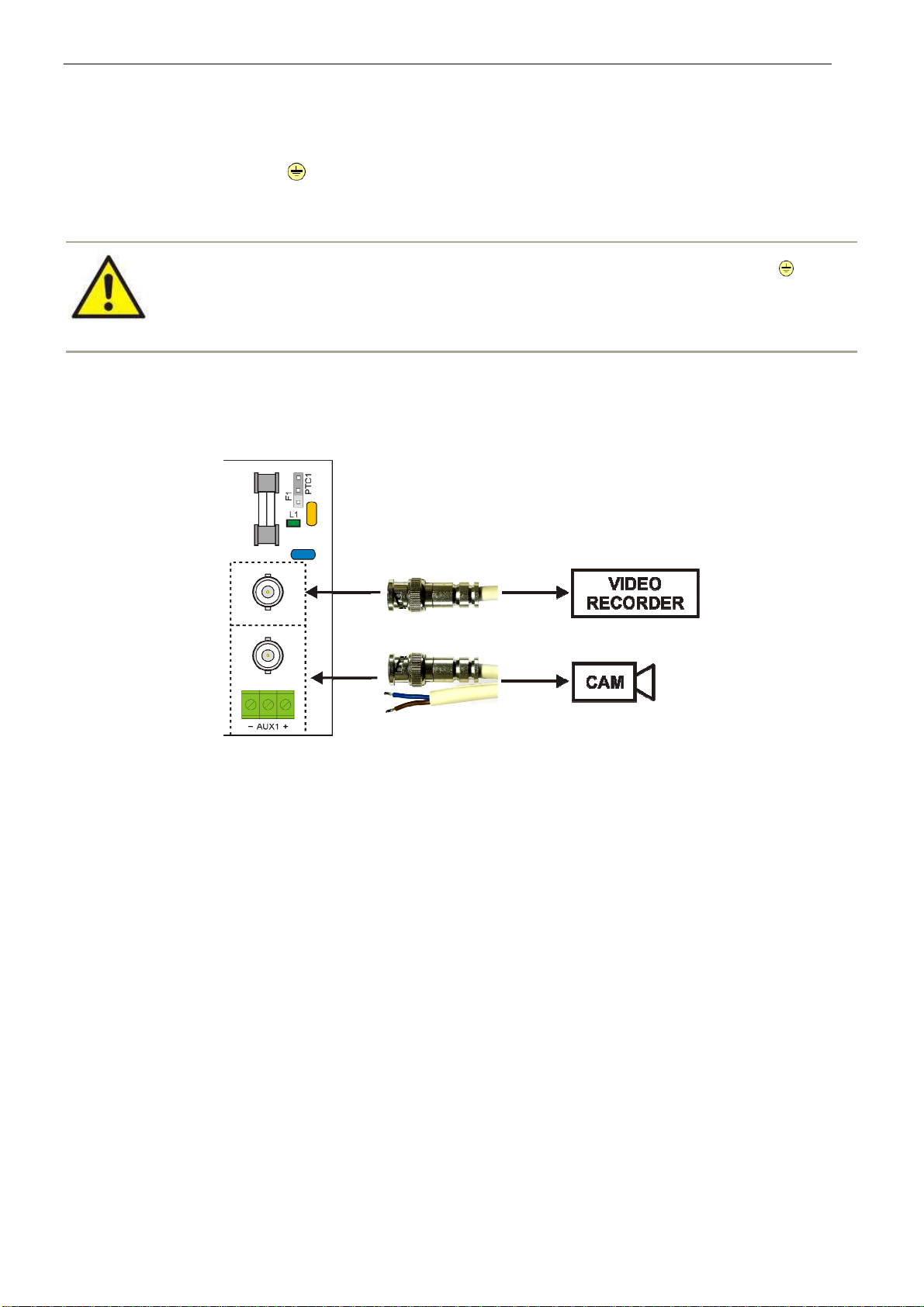

Figure 4. Connecting the camera and DVR to the BNC module.
5. Use the F1/PTC1 ÷ F8/PTC8 jumpers to select the type of short circuit / overload protection of individual circuits.
Jumper in the Fx position – melting fuse activation, PTCx – PTC fuse activation.
6. If needed, the following technical connections can be made:
- FPS technical output of the PSU status – indicates the voltage loss at any of the outputs (AUX1 ÷ AUX8).
- TAMPER indicating enclosure opening.
7. Check the power supply output voltage:
- output voltage of the unloaded power supply without a battery should amount to U=13,8V DC.
8. Set the battery charging current using the jumper (component 4, Figure 5):

www.pulsar.pl BNC08128C GREEN POWER CCTV BNC
8
Figure 5. Selection jumper for charging current.
Selection jumper for charging current:
Ibat =1 A Ibat =4 A
Description: jumper on, jumper off.
Factory setting: Ibat =1A (jumper on).
9. Connect the battery according to the color markings:
- battery output (+V): BAT+ cable / red
- battery output (0V): BAT- cable/ black
10. Check the optical indication of the PSU status: green LED light on the BNC module.
11. Close the cover after installing and checking the operation of the power supply.
3. Power supply operation indication.
3.1.Optical indication.
The PSU has 11 LED lights at the front panel:
RED LED:
•on – The PSU supplied with 230V AC voltage
•off – no 230V AC mains supply
RED LED:
•on – DC voltage at the output of the switch mode PSU
•off – no DC voltage at the output of the switch mode PSU
RED LED:
•on – fuse failure at one of the AUX1…AUX8 outputs
•off – no failure
GREEN LED:
•on – DC voltage at the AUX1…AUX8 output
•off – no DC voltage at the AUX1…AUX8 output
Additionally, the PSU is fitted with LED lights inside the enclosure – see Figure 2 and 3:
- L
AC
red LED (Figure 2, component 1) is permanently illuminated during normal operation (AC power ON).
No AC power is indicated by turning off the L
AC
LED.
- L
IN
green LED (Figure 2, component 1) indicates DC voltage at the BNC module input. During normal operation
(DC supply) the LED is permanently illuminated. No DC no DC voltage at the module input is indicated by turning
off the L
IN
LED.
- L
FPS
red LED (Figure 2, component 10) is not illuminated during normal operation (no failure). In case of activation
of the short circuit / overload protection at any output, the LED is permanently illuminated.
- L1 ÷ L8 green LEDs (Figure 2, component 5) indicate voltage at the individual outputs of the module (L1 for AUX
1 etc.). Activation of the short circuit / overload protection of a given circuit is indicated by turning off one of the Lx
LEDs.

www.pulsar.pl BNC08128C GREEN POWER CCTV BNC
9
3.2.Technical outputs.
The PSU has the following indication outputs:
•FPS – technical output of the PSU status:
- OC type output indicating failure (short-circuit, overload). During normal operation, shorted to ground – L
state (0V). In case of power loss, the FPS technical output is switched into hi-Z state (high impedance) at least
at one of the AUX outputs.
Figure 6. Electrical diagram of the OC output.
- relay output. In case of failure, relay contacts are switched automatically.
Figure 7. Electrical diagram of the relay output
CAUTION! The arrangement of contacts at the figure 7 shows a potential-free status of the relay,
which is equivalent to a state with no voltage at any of the AUX1 ÷ AUX8 outputs.
•TAMPER – output indicating enclosure opening:- volt free contact input indicating the status of the
power supply doors, PSU closed: contacts closed (NC), PSU open: contacts open (NO).
4. Service and operation.
4.1.Overload or short-circuit of the power supply output.
The AUX1÷ AUX8 outputs of the PSU are protected against short-circuit by
melting fuse inserts or PTC
fuses. In case of melting fuse replacement, use only compatible replacement parts. If the PTC polymer fuses are
used, then automatic disconnection of the output voltage, indicated by switching off the green LED, takes place. In
such case, disconnect the load from the power supply output for approximately 1 minute.
4.2. Battery operation
In case of mains power loss, the unit will instantly switch to battery operation.
The power supply is equipped with a discharged battery disconnection system. If
the voltage at the battery terminals has dropped below 9.5 V during battery operation, the
batteries will be disconnected.
4.2.Maintenance.
All maintenance procedures can be performed after disconnecting the power supply from the power
network. The PSU does not require any specific maintenance; however, its interior should be cleaned with
compressed air if used in dusty conditions. In case of fuse replacement, use only compatible replacement parts.

www.pulsar.pl BNC08128C GREEN POWER CCTV BNC
10
WEEE LABEL
Waste electrical and electronic equipment must not be disposed of with normal household
waste. According to the European Union WEEE Directive, waste electrical and electronic
equipment should be disposed of separatel from normal household waste.
CAUTION! The power supply unit is adapted for cooperation with the sealed lead-acid batteries (SLA). After the operation period they must
not be thrown but recycled according to the applicable law.
GENERAL WARRANTY CONDITIONS
1. Pulsar K. Bogusz Sp.j. (manufacturer) grants a two-year quality warranty for the equipment, starting from the production
date.
2. The warranty includes free-of-charge repair or replacement with an appropriate equi alent (selected by the manufacturer) if
the malfunction is due to the manufacturer. It includes manufacturing or material defects, pro ided that such defects ha e been
reported within the warranty period (point .1).
3. The equipment subjected to warranty should be brought to the place of purchase or directly to the main office of the
manufacturer .
4. The warranty applies to complete equipment, accompanied by a properly filled warranty claim with a description of the defect .
5. Should the claim be accepted, the manufacturer is obliged to pro ide warranty repairs, at the earliest con enience, howe er
not later that within 14 days from the deli ery to the ser ice centre of the manufacturer .
6. The repair period mentioned in point 5 may be prolonged, if there are no technical possibilities to carry out the repairs, or if
the equipment has been conditionally accepted, due to the breaking warranty terms by the claimant .
7. All the ser ices are carried out at the ser ice centre of the manufacturer, exclusi ely .
8. The warranty does not co er the defects of the equipment, resulting from: - reasons beyond the manufacturer's control,
- mechanical damage,
- improper storage and transport,
- use that iolates the operation manual or equipment’s intended use
- fortuitous e ents, including lightning discharges, power failures, fire, flood, high temperatures and chemical agents,
- improper installation and configuration (failure to follow instruction ).
9. The warranty is oid in case of construction changes and repairs carried out by any unauthorized ser ice center or in case of
damage or modifications to warranty stickers and serial numbers .
10. The liability of the manufacturer towards the buyer is limited to the alue of the equipment determined according to the
wholesale prices suggested by the manufacturer on the day of purchase .
11. The manufacturer takes no responsibility for the defects that result from the damaging, malfunctioning or inability to operate
the equipment especially when resulting from failure to comply with the recommendations and requirements contained in the
manual .
Pulsar K.Bogusz Sp.j.
Siedlec 150, 32-744 Łapczyca, Poland
Tel. [phone], Fax. [phone]
E-mail: [e-mail], [e-mail]
http:// www.pulsar.pl, www.zasilacze.pl
