Linetek SPL-DVI-0104E User manual

1
SPL-DVI-0104E
1 to 4 DVI Spliiter with EDID management
Version: V2016.001
User Manual

2
Contents
1. Production .........................................................................................................3
2. Features ............................................................................................................3
3. Specification ......................................................................................................3
4. Packing ..............................................................................................................3
5. Panels ................................................................................................................3
5.1 Front Panel ................................................................................................................ 4
5.2 Back Panel ................................................................................................................. 4
6. Operation ..........................................................................................................4
6.1 Connection Diagram .................................................................................................. 5
6.2 Indicators .................................................................................................................. 5
6.3 EDID Management DIP switch ................................................................................... 5
7. After Sales .........................................................................................................5
7.1 Warranty Information ................................................................................................. 5
7.2 Warranty limitation and excptation .......................................................................... 6
8. Version Information ...........................................................................................6

3
1. Introduction
In a real application, users usually need to send one DVI signal to the display, meanwhile also
need one more extra to monitor. So 1 to 4 DVI splitter comes to solve this issue. It supports 1
DVI/ HDMI input and 4 DVI/ HDMI outputs, the resolution can up to 1920*1200@ 60Hz, the
maximum resolution can up to 4K with smart EDID management. Compatible with DVI1.0, the
transmission distance can reach 15 meters
2. Features
•Supports 1 DVI input and 4 outputs
•Transmission distance can up to 15 meters 过DVI
•Supports 1920*1200@60Hz, the maximum can reach 4K2K
•Compatible with DVI1.0, HDCP protocol
•Smart EDID management function
•Visual LED indicators
3. Specification
Type
DVI-1*2
DVI-1*4
DVI-1*8
DVI-1*16
Input
1×DVI
Output
2×DVI
4×DVI
8×DVI
16×DVI
Protocol Standard
Support DVI1.0, HDCP, EDID management
Resolution
Support 1920*1200@ 60Hz, the maximum 4K2K
Bandwidth
330Mpbs
Distance
15 m
Dimension
220*70*44mm
272*98*44mm
440*154*44mm
440*154*44mm
Weight
0.6kg(No packing)
1kg
2.2kg
2.3kg
Power Supply
AC 110V-240V 50/60Hz
Consumption
≤11W

4
Working Humidity
10%-90%
Temperature
-10℃-50℃
Storage
-20℃-75℃
4. Packing
SPL-DVI-0104E
1
Pcs
Power Cord
1
Pcs
Rack ear
1
Pair
5. Panels

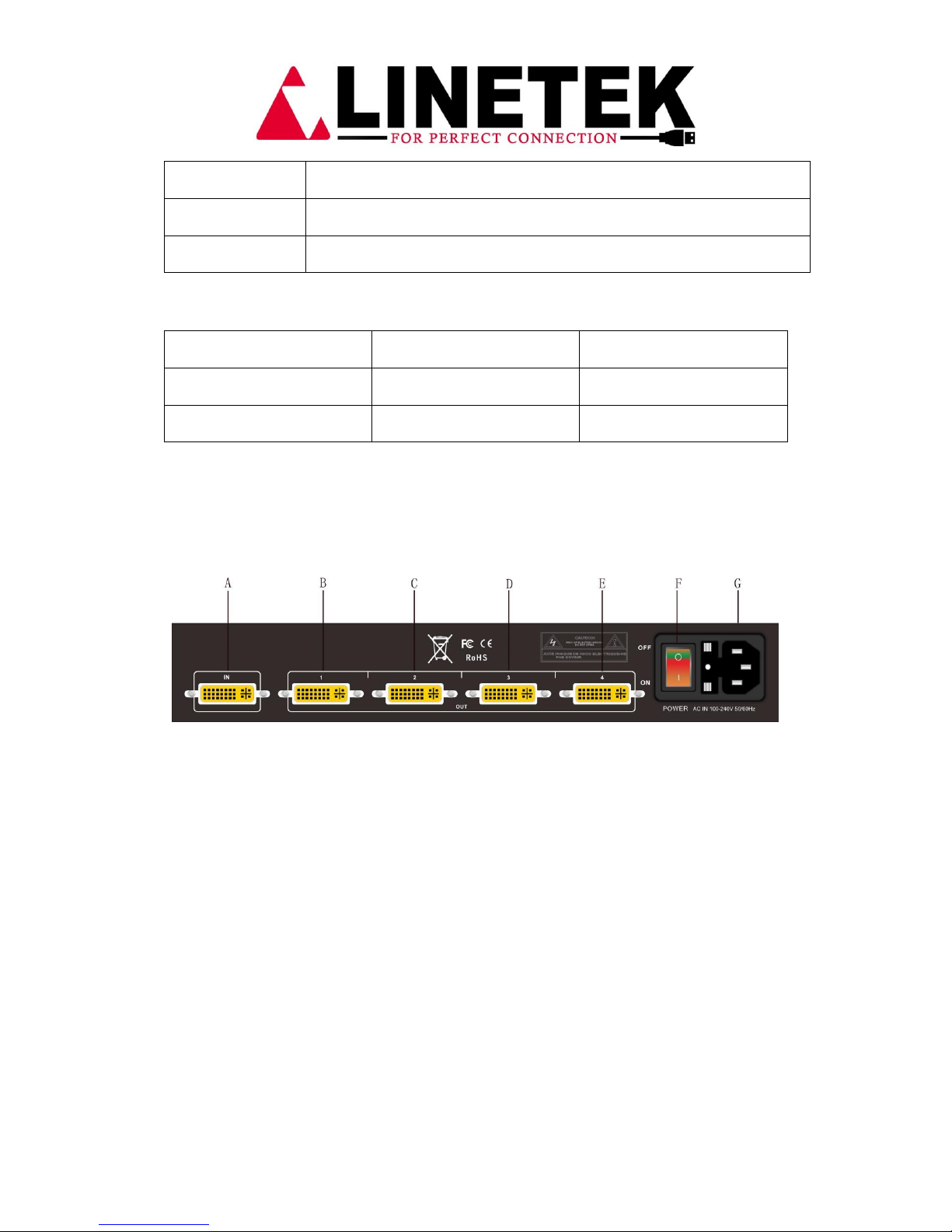

5.1 Front Panel
A: DVI Input port
B: DVI Output port 1
C: DVI output port 2
D: DVI output port 3
E: DVI output port 4
F: Power OFF/ON switch
G: AC100V-240V power supply

5
5.2 Back Panel
A: Power indicator
B: DVI input indicator
C: DVI output indicator 1
D: DVI output indicator 2
E: DVI output indicator 3
F: DVI output indicator 4
G: EDID management DIP switch
6. Operation diagram

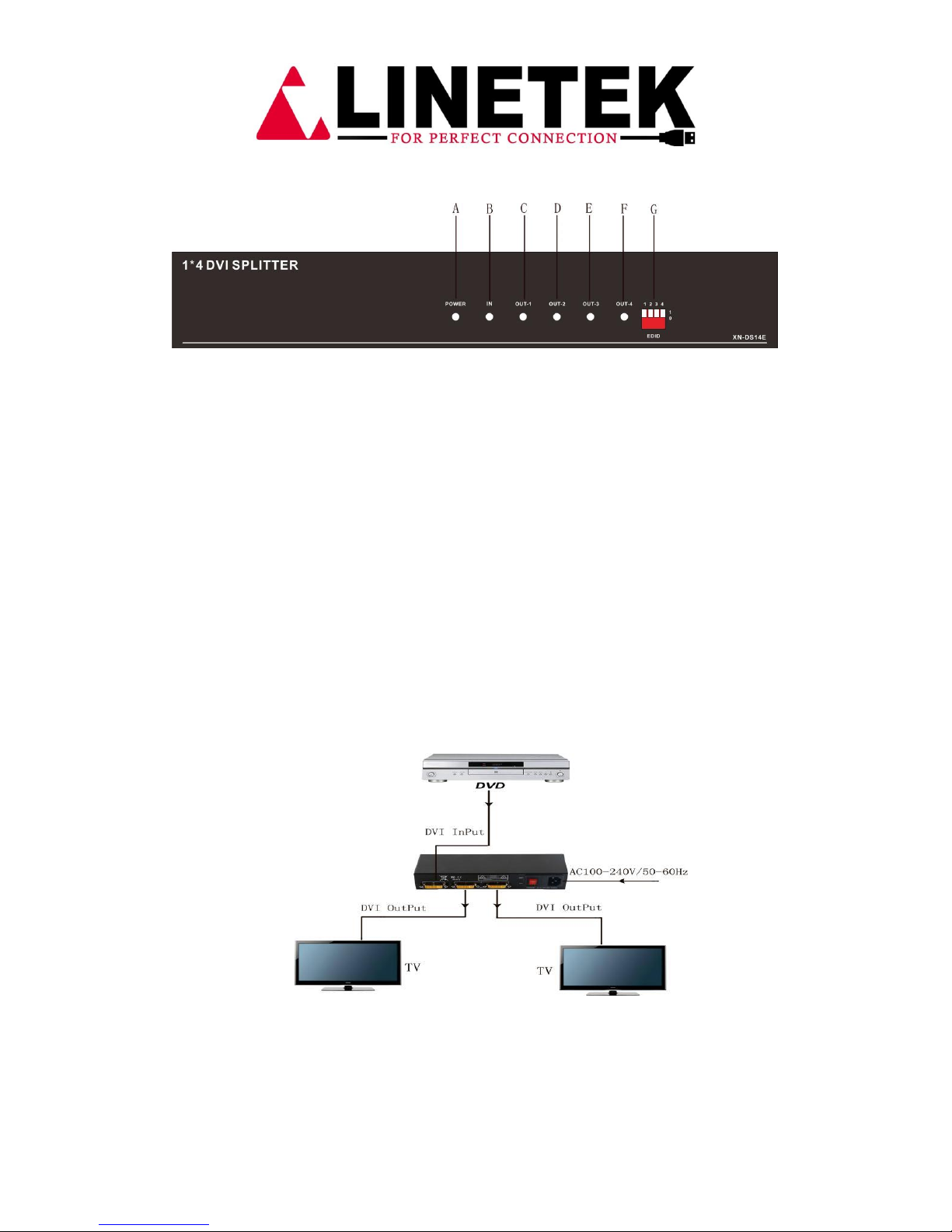

6.1 Connection diagram

6

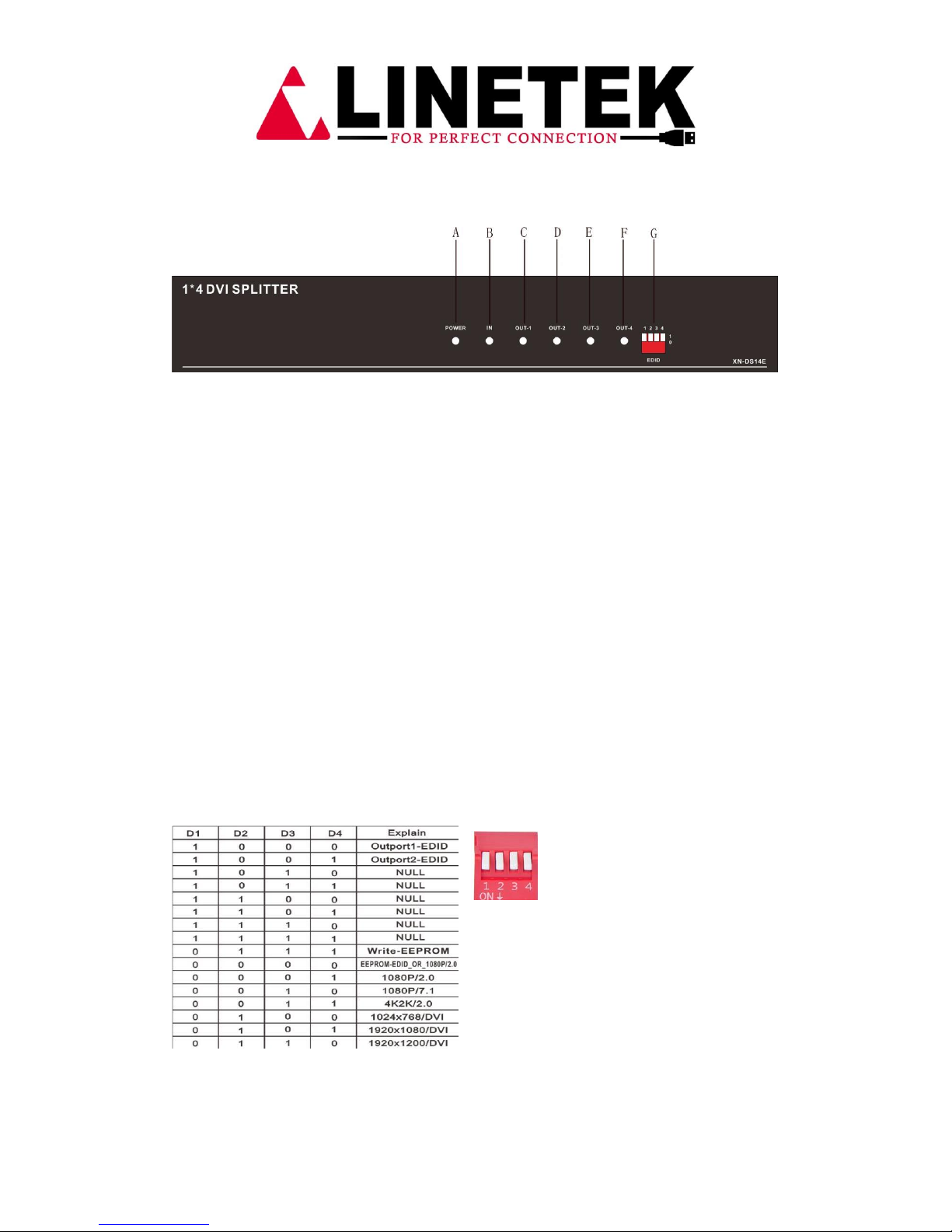

6.2 Indicators and EDID DIP
POWER: Lightning up when power on, off when power disconnected
IN: It will light up when has input source
OUT-1: When the output-1 connected to the display successfully and resend the
signals back, it will light up.
OUT-2: When the output-1 connected to the display successfully and resend the
signals back, it will light up
OUT-3: When the output-3 connected to the display successfully and resend the
signals back, it will light up
OUT-4: When the output-4 connected to the display successfully and resend the
signals back, it will light up
EDID: EDID management DIP switch, users can dial the buttons accordingly the
EDID map on the bottom side. Please check as below:
The EDID map is on the bottom side of the
equipment, showing as the left picture.
Example: If users need 1920×1200/DVI, then
users only need to dial the DIP switch as “0110”
Dial to the number side as “0”,
dial to the up side as “1”

7
7. After-Sales
7.1 Warranty Information
The Company warrants that the process and materials of the product are not defective under
normal use and service for 3 (3) years following the date of purchase from the Company or its
authorized distributors.
If the product does not work within the guaranteed warranty period, the company will choose
and pay for the repair of the defective product or component, the delivery of the equivalent
product or component to the user for replacement of the defective item, or refund the
payment which users have made.
The replaced product will become the property of the Company.
The replacement product could be new or repaired.
Whichever is longer, any replacement or repaired of the product or component is for a period
of ninety (90) days or the remaining period of the initial warranty. The Company shall not be
responsible for any software, firmware, information, or memory data contained in, stored in,
or integrated with the product repaired by the customer's return, whether or not during the
warranty period.
7.2 Warranty limitations and exceptions
Except above limited warranty, if the product is damaged by over usage, incorrectly use, ignore,
accident, unusual physical pressure or voltage, unauthorized modification, alteration or
services rendered by someone other than the Company or its authorized agent, the company
will not have to bear additional obligations. Except using the product properly in the proper
application or normal usage
