LINK AKC SPT001B User manual

2320 Presidential Drive, Suite 101, Durham, NC 27703 USA Voice: 919-381-4235
Certification Exhibit
FCC ID: 2AJPY-BASGY00
FCC Rule Part: 15.247
ACS Project Number: 16-3077
Manufacturer: Smart Pet Technologies, LLC.
Model: SPT001B
Manual

Getting Started
Instruction Manual

2
Let’s get
started.
3
10 12
7
What’s in the box?
Collar Carrier
Tracking Unit
Base Station
Setting up the
app
Activate your collar FAQS

3
What’s in the box?
Contents
Collar Carrier
Collar
Tracking Unit
Base Station
1
3
2
4

4
D-rings allow you to glide the
collar carrier onto the collar
(or your own standard collar)
A clip behind the
Collar Carrier goes
over the collar to
help keep it in place.
Tracking Unit
Release Switch
LED Light
On/Off switch
Name tag
D-rings
The Tracking Unit locks
into the Collar Carrier
Collar Carrier & Tracking Unit
1
2

5
Base Station
3
Gray power cord
plugs into the back
of the base station
and wall.
Each dot represents
25% charged.
The USB outlet lets you
charge your phone and
Tracking Unit at the same
time! (USB cable not included)
The base station is also
your Bluetooth signal so
place it near the center
of your dogs play area.
We recommend
charging your Tracking
Unit for at least 30 min
before your first usage!
USB outlet
Charging Lights
Power cord

6
(depending on any
signal obstructions)
Range: 50 - 150m

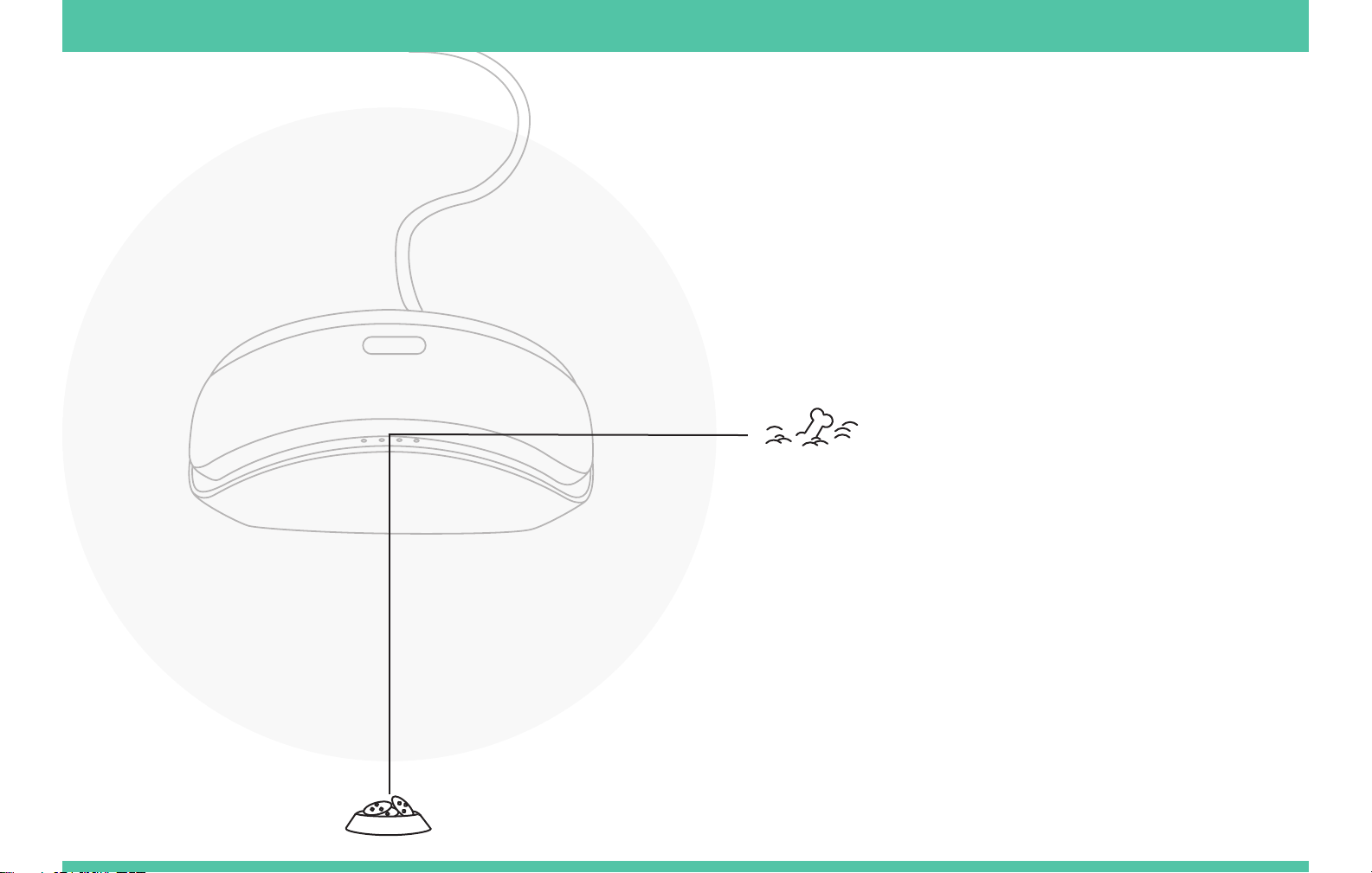

Place your Base Station at the
center of the radius where your
dog spends the most time
(home, yard, food bowl, etc.)
See next page for example.
Sync your Base
Station to your
phone:
Plug in your Base Station.*
Turn your phone’s Bluetooth on.
Place your phone near the Base
Station and find your Base Station
ID from the list (the ID is printed
on a sticker on the bottom of the
Base Station)
Name your Base Station something
that will help you know that your
dog is where it should be (home,
family room, etc.)
* An unplugged Base Station may generate a false “Away”
reading in thinking your dog is on the loose.
Base Station
01
02
03
04

7
Base Station
Finding the best placement
for your Base Station.
Example 1: Best coverage
Yard Yard
Home
Area not covered by Base Station
The home Base Station safe zone range is approx. 50-150
meters. Range will depend upon signal disruption from
appliances, concrete, etc.
Home
Neighbor
Example 2: Less than ideal
Area covered by Base Station

8
The app can be
download from:
Apple Store
Google Play
Name
Email
Password
Collars 1 +-
Create your account
and enter how many
collars you are activating.*
Choose your
preferred service
plan for payment.
* Each Tracking Unit will require its own LINK AKC service plan.
For multiple Tracking Units, you will receive a 30% discount on
the service plan.
Service plan:
A
B
Setting up the app

9
Setting up the app
The same login information will be used
if there are multiple dogs and people
using the LINK AKC app (such as your
significant other, friend, or dog walker)
Collars +-
Bingo
[email protected]
3

10
Setting up the app
Name
Age
Weight
Gender
Breed
At LINK AKC, we never share or
sell your information. We want
to create the best experience
for you and your best friend.
While it’s not required, entering
in your dogs breed or best
guess helps our dog experts
cater and recommend content
for you and your dog.
For mixed breeds,
just tap the toggle.
Customize your app.

11
Activate your collar!
01
02
03
04
You’re almost there!
Turn the Tracking Unit on.
(Make sure your bluetooth is on.
You will hear a series of beeps to
indicate that it’s syncing with the
bluetooth on your phone)
Select your collar ID in the list of
Bluetooth names.
When you see the light blinking on
the Tracking Unit, your phone will
be synced.
Place the Tracking Unit in the Collar
Carrier until it clicks and is locked in
place. Then slide it on to the Collar. To
release the Tracking Unit, simply slide
the Switch Release over to unlock it.
Tracking Unit
Collar Carrier
App/Bluetooth
Collar

12
You’re now ready to
go out and explore!

13
FAQ
How does the collar work?
Data is transmitted to a cellular network (similar
to a cell phone) which allows you to know your
dog’s location, activity levels and environment
temperatures.
Why do I need to charge my
collar before the first use?
The collar uses lithium ion batteries which are not
allowed to be shipped fully charged, but perfectly
safe for your furry friend.
How tight should the Collar be on
my dog’s neck?
The tracking Unit will stay in place on your Collar
Carrier so the collar should fit snuggly on your
dogs neck. Just like most collars, you should be
able to fit two fingers between your dog’s neck
and the collar.
How often should I charge my
Tracking Unit?
GPS is battery-intensive, so we suggest charging
your LINK AKC every night.
Why is there a service plan?
Service plans are required to communicate
with the LINK AKC collar. It enables data to be
transmitted from the Tracking Unit to a cellular
network which allows you to use features such as
the GPS, location & adventures, temperature, and
much more.

What’s in the box
14
1. Collar Carrier
2. Tracking Unit
3. Base Station
4. Collar
2
1
3
4

15
FCC Rules
This device complies with Park 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received,
including interference that may cause undesired
operation. Any Change or modification to the product is
not expressly approved by Smart pet Technologies and
could void the user’s authority to operate the device.
This equipment complies with the FCC radiation
exposure limits set forth in an uncontrolled environment.
This equipment should be installed and operated with
minimum distance 20cm between the equipment and
the user’s body.
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment
and receiver
• Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected
• Consult the dealer or an experienced radio/TV
technician for help

For questions or concerns, please
check our Help Center on LinkAKC.com
or contact us at:
[e-mail]
1 [phone]

Understanding
the App
Instruction Manual

2
Light,
camera,
action!
3
12 13 17
4 10
Home screen Location
Tracking
Modes
Notifications
Safe Zones
Lost Dog
Activity
Goals
Adventures More
Dog profile
Documents
Temperature
alerts
FAQS
Now that you’re linked to
your collar and Tracking Unit,
let’s open up the app.
Need help connecting? Please view the
Getting Started Instruction Manual first.

3
Light Battery Buzzer
Remote features on collar
Most recent
location, daily
activity, recent
adventures, and
curated content.
LED Light
Home Screen
Features
Dog profile
Documents
Temperature
alerts
More
